Rear Door

=NLEL0573S1102

1

CHECK OUTPUT SIGNAL FOR SUPER LOCK ACTUATOR

Check voltage between smart entrance control unit harness connector M101 terminal 55 (W/B), 52 (Y) and ground.

SIIA1609E

MTBL1716

OK or NG

OK

©

GO TO 2.

NG

©

Replace smart entrance control unit.

2

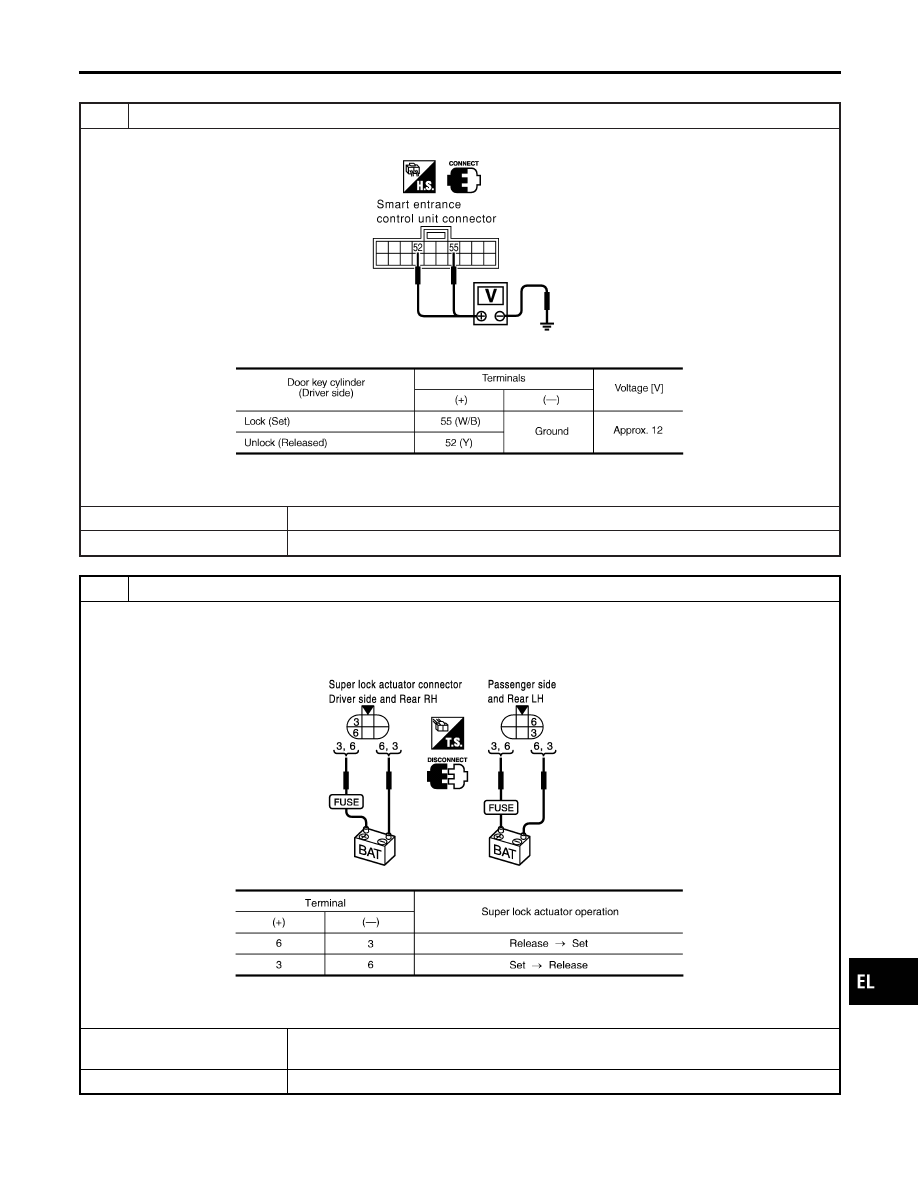

CHECK SUPER LOCK ACTUATOR

1. Disconnect door lock actuator assembly connector.

Door lock actuator connector (Rear LH side): D55
Door lock actuator connector (Rear RH side): D65

2. Apply 12V direct current to door lock actuator assembly and check operation.

YEL841D

MTBL1555

OK or NG

OK

©

Check harness for open or short between smart entrance control unit and super lock
actuator.

NG

©

Replace super lock actuator (door lock actuator).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER DOOR LOCK — SUPER LOCK —

Trouble Diagnosis (Cont’d)

EL-321

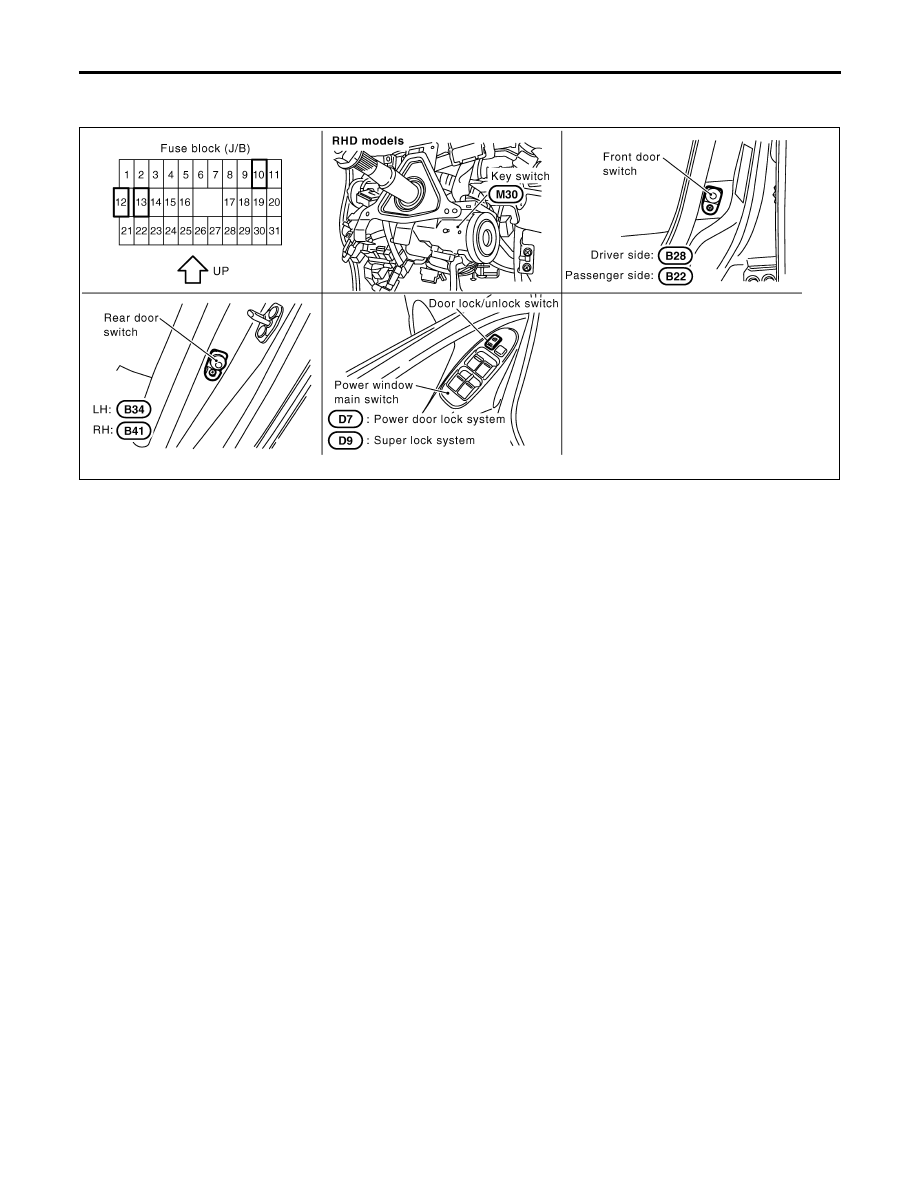

Component Parts and Harness Connector
Location

NLEL0574

YEL362E

System Description

NLEL0480

INPUTS

NLEL0480S06

Power is supplied at all times

I

to smart entrance control unit terminal 51 and

I

through 15A fuse [No. 5, located in the fuse block (J/B)], and

I

to key switch terminal 1

I

through 10A fuse [No. 12, located in the fuse block (J/B)]

When the key switch is ON (ignition key is inserted in key cylinder), power is supplied

I

through key switch terminal 2

I

to smart entrance control unit terminal 5.

When the door switch driver side is ON (door is OPEN), ground is supplied

I

to smart entrance control unit terminal 43

I

through door switch driver side terminal 2

I

to door switch driver side terminal 1

I

through body grounds B24, B30 and D89.

When the door switch passenger side is ON (door is OPEN), ground is supplied

I

to smart entrance control unit terminal 44

I

through door switch passenger side terminal 1

When the all doors switches are ON (door is OPEN), ground is supplied

I

to smart entrance control unit terminal 44

I

through front door switches terminal 1

I

to front door switches case grounds, and

I

through rear door switches terminal 1

I

to rear door switches case grounds

When lock/unlock switch is LOCK, ground is supplied

I

to power window main switch terminal 3

I

through body grounds B24, B30 and D89.

Door lock or unlock operation signal is supplied

I

through power window main switch terminal 14

I

to smart entrance control unit terminal 13.

MULTI-REMOTE CONTROL SYSTEM

Component Parts and Harness Connector Location

EL-322

Door lock or unlock operation signal is supplied

I

through power window main switch terminal 7

I

to smart entrance control unit terminal 14.

Remote controller signal is inputted to smart entrance control unit (The antenna of the system is combined
with smart entrance control unit).

FUNCTION

NLEL0480S01

Multi-remote control system has the following function.

I

Door lock (and set super lock)

I

Door unlock (and release super lock)

I

Hazard reminder

LOCK OPERATION

NLEL0480S02

To lock door by multi-remote controller, the key switch must be at OFF.
When the LOCK signal is input to smart entrance control unit, the antenna of the system is combined with
time control unit.
Then smart entrance control unit controls to lock doors and set super lock (models with super lock).

UNLOCK OPERATION

NLEL0480S03

Normal Mode

NLEL0480S0301

When UNLOCK signal is input to smart entrance control unit, the antenna of the system is combined with smart
entrance control unit.
Smart entrance control unit controls to unlock doors and release super lock (models with super lock).

Anti Hi-jack Mode

NLEL0480S0302

When the UNLOCK signal is input to smart entrance control unit (the antenna of the system is combined with
time control unit)
Smart entrance control unit controls to unlock driver’s door and release super lock (models with super lock).
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
Unlock operation mode can be changed to “SELECTIVE UNLOCK” by CONSULT-II (EL-271).

HAZARD REMINDER

NLEL0480S04

When the doors are locked or unlocked by multi-remote controller, supply power to turn lamps hazard reminder
flashes as follows

I

Lock operation: Flash once

I

Unlock operation: Flash twice

AUTO DOOR LOCK OPERATION

NLEL0480S07

Auto lock function signal is sent for operation when any of the following signals are not sent within 5 minutes
after the unlock signal is sent from the multi-remote controller:

I

when door switch is turned ON for open

I

when the ignition switch is turned ON

I

when the lock signal is sent from the multi-remote controller

I

when ignition switch is inserted in ignition key cylinder

Auto door lock mode can be changed to “AUTO RE-LOCK” by CONSULT-II (EL-271).

MULTI-REMOTE CONTROLLER ID CODE ENTRY

NLEL0480S05

A maximum of four remote controllers can be entered.
To enter ID code entry, the following signals must be input to the time control unit.

I

Ignition switch (ON)

I

Signal from remote controller

For detailed procedure, refer to “ID Code Entry Procedure” in EL-336.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

System Description (Cont’d)

EL-323

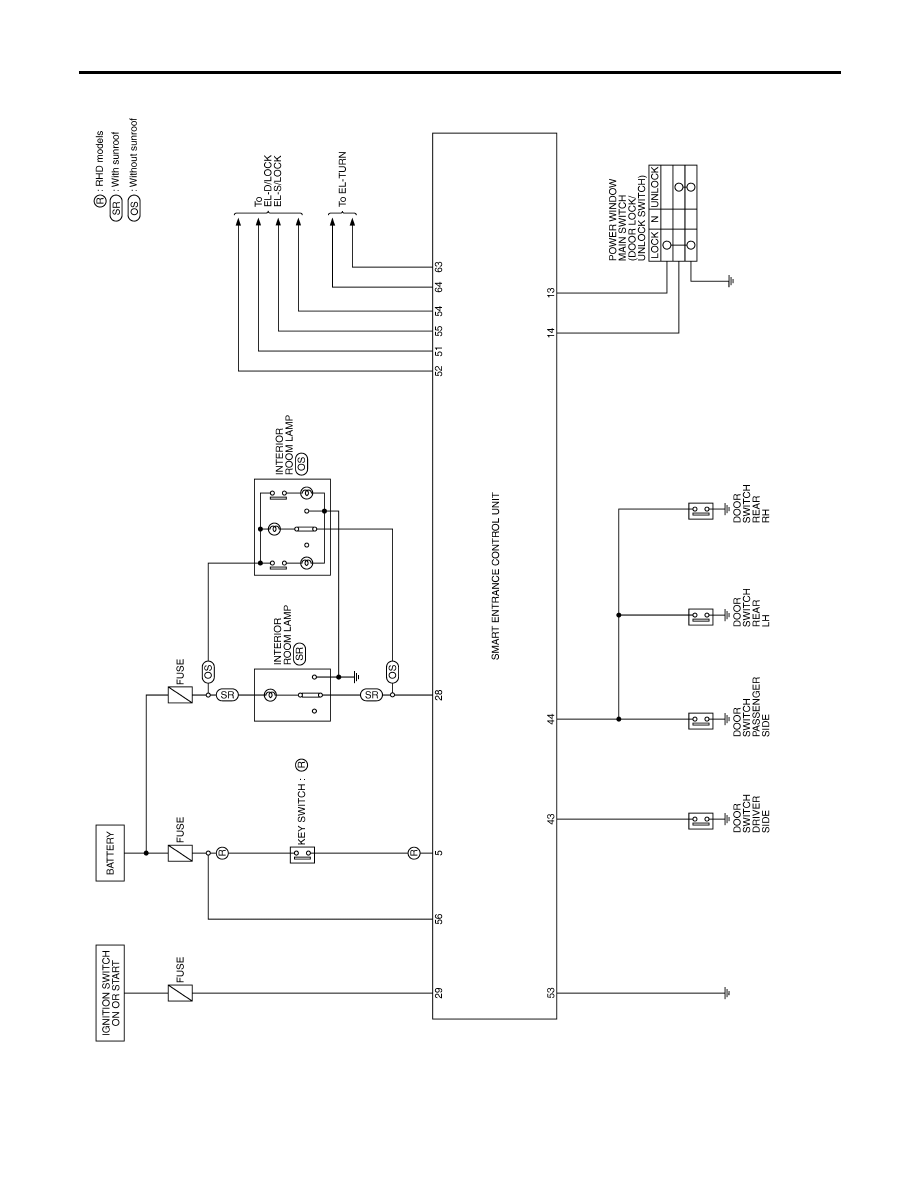

Schematic

NLEL0692

YEL473E

MULTI-REMOTE CONTROL SYSTEM

Schematic

EL-324

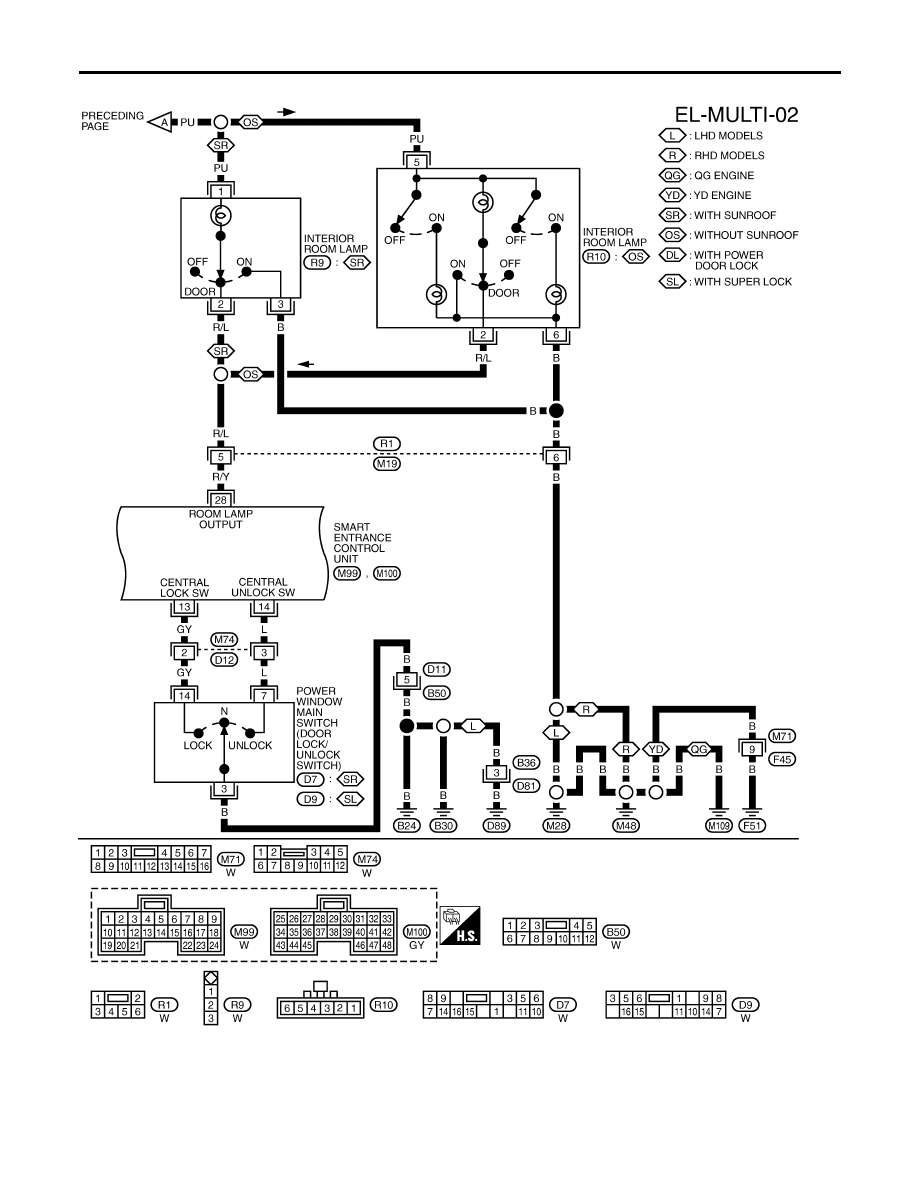

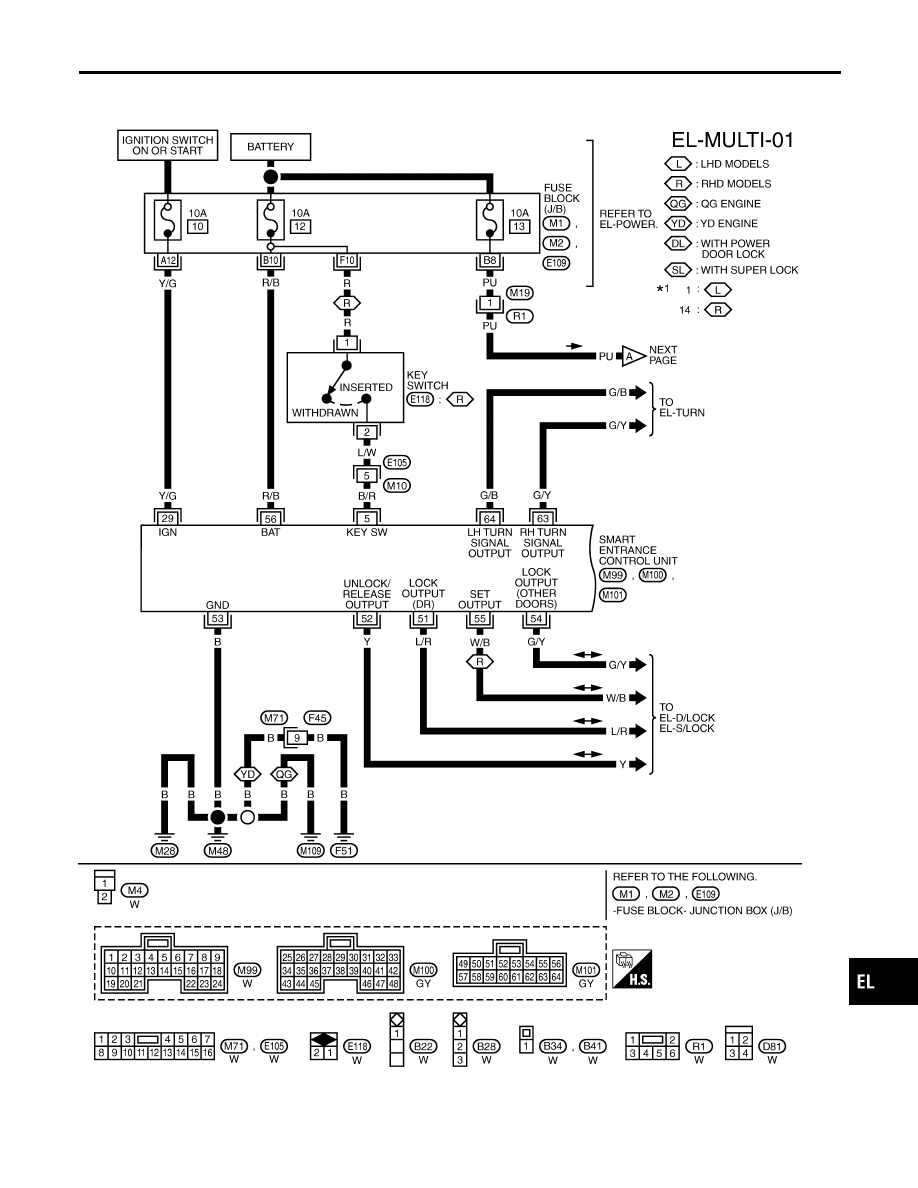

Wiring Diagram — MULTI —

NLEL0481

FIG. 1

NLEL0481S06

YEL016E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Wiring Diagram — MULTI —

EL-325

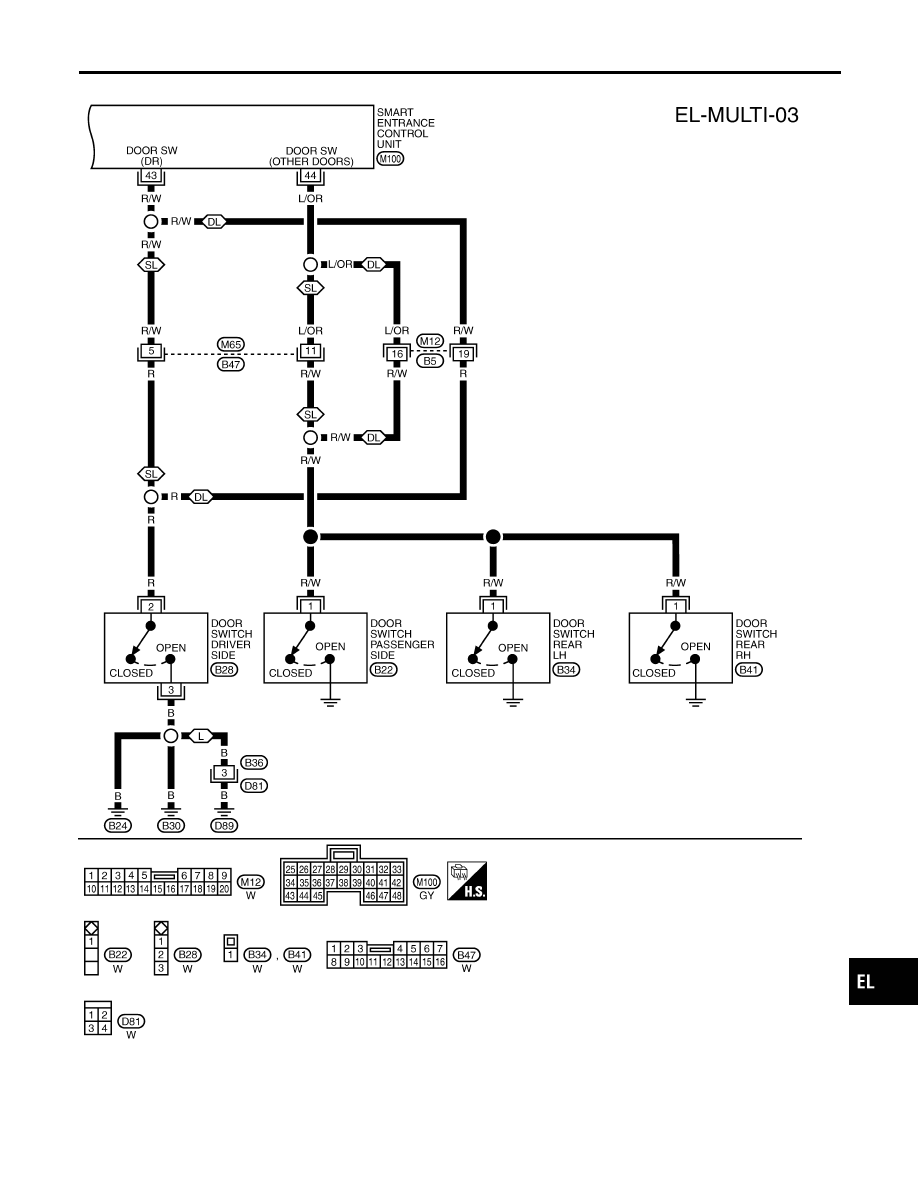

FIG. 2

NLEL0481S07

YEL017E

MULTI-REMOTE CONTROL SYSTEM

Wiring Diagram — MULTI — (Cont’d)

EL-326

FIG. 3

NLEL0481S08

YEL474E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Wiring Diagram — MULTI — (Cont’d)

EL-327

MBIB0906E

CONSULT-II Inspection Procedure

NLEL0685

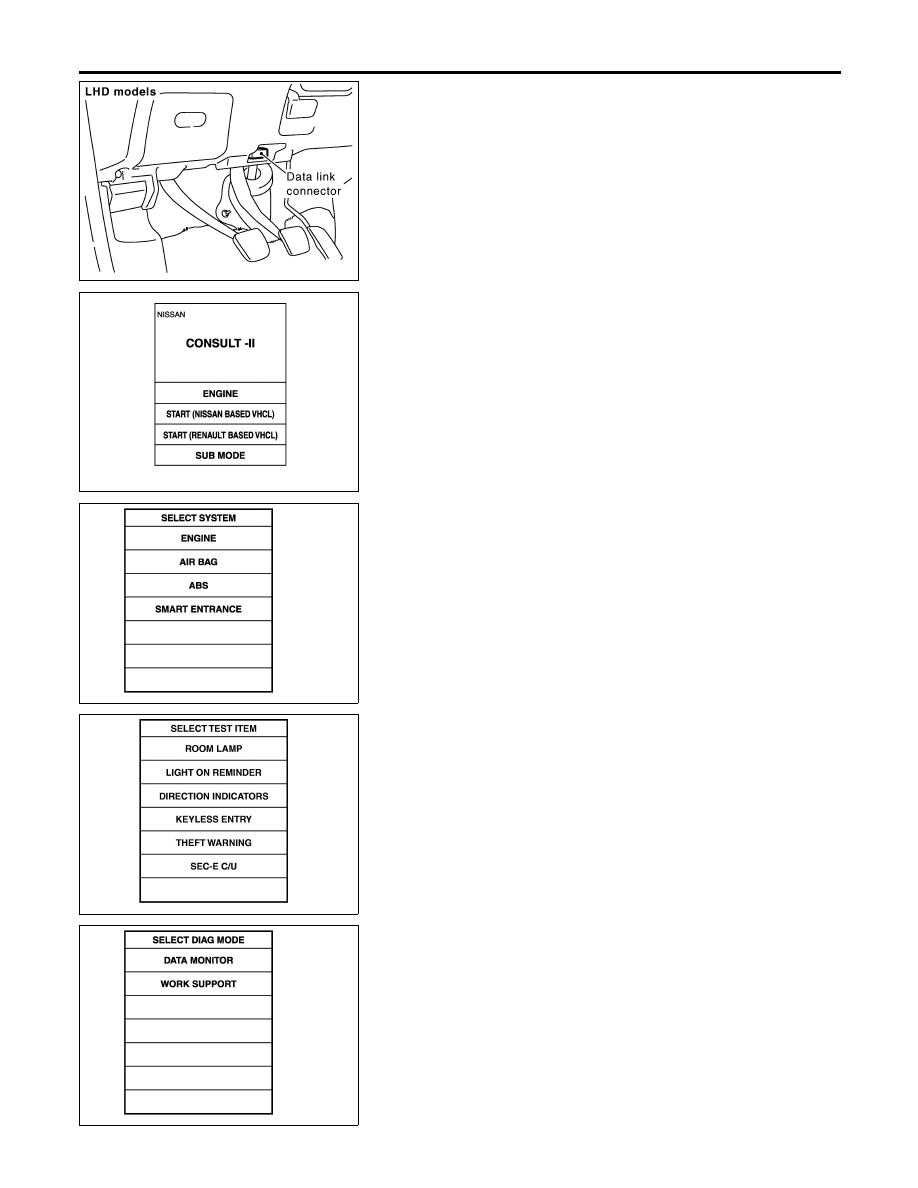

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to the data link connector.

MBIB0233E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SIIA1678E

5.

Touch “SMART ENTRANCE”.

SIIA1679E

6.

Touch “KEYLESS ENTRY”.

SIIA1677E

7.

Select diagnosis mode.
“DATA MONITOR” and “WORK SUPPORT” are available.

MULTI-REMOTE CONTROL SYSTEM

CONSULT-II Inspection Procedure

EL-328

CONSULT-II Application Items

NLEL0686

DATA MONITOR

Monitored Item

Description

IGNITION SW

Indicates [ON/OFF] condition of ignition switch in ON position.

TRUNK OPEN SW

Indicates [ON/OFF] condition of back door switch.

RKE LOCK

Indicates [ON/OFF] condition of lock signal from remote controller.

RKE UNLOCK

Indicates [ON/OFF] condition of unlock signal from remote controller.

RKE SEL UNLOCK

Indicates [ON/OFF] condition of select unlock signal from remote controller.

RKE TRUNK REL

Indicates [ON/OFF] condition of back door open signal from back door release switch.

BATTERY CHECK

Indicates [OK/NG] condition of remote controller battery.

MODE

Indicates [CMFRT/SCRTY] condition of multi-remote control system.

WORK SUPPORT

Test Item

Description

KEYLESS CHECK

It can be checked whether remote controller ID code is registered or not in this mode.

KEYLESS REGISTRATION

Remote controller ID code can be registered.

KEYLESS DI FLASH

This mode can be setting hazard reminder function.

I

MODE 1: Nothing

I

MODE 2: Lock operation only

I

MODE 3: Unlock operation only

I

MODE 4: Both lock and unlock operation

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

CONSULT-II Application Items

EL-329

Trouble Diagnoses

NLEL0482

SYMPTOM CHART

=NLEL0482S01

NOTE:
Always check remote controller battery before replacing remote
controller.

Symptom

Diagnoses/service procedure

Reference

page

(EL-

)

No doors can be locked or unlocked by remote
control operation.
(Make sure that power door lock operates properly.
If NG, check power door lock.)

1. Remote controller battery check

332

2. Power supply and ground circuit for time control unit check

331

3. Replace remote controller. Refer to ID Code Entry Proce-
dure.

336

The new ID of remote controller cannot be entered. 1. Remote controller battery check

332

2. Power supply and ground circuit for time control unit check

331

3. Ignition “ON” power supply circuit for time control unit

333

4. Replace remote controller. Refer to ID Code Entry Proce-
dure.

336

Hazard reminder does not activate properly when
pressing lock or unlock button of remote controller.

1. Remote controller battery

332

2. Hazard reminder check

334

3. Replace remote controller. Refer to ID Code Entry Proce-
dure.

336

Auto door lock does not activate properly. (All other
multi-remote control system functions are OK.)

1. Check auto door lock operation setting.

271

2. Replace smart entrance control unit.

Interior room lamp does not activate properly.

1. Check interior room lamp operation.

335

2. Check door switch.

282

3. Replace smart entrance control unit.

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses

EL-330

POWER SUPPLY AND GROUND CIRCUIT CHECK

=NLEL0482S03

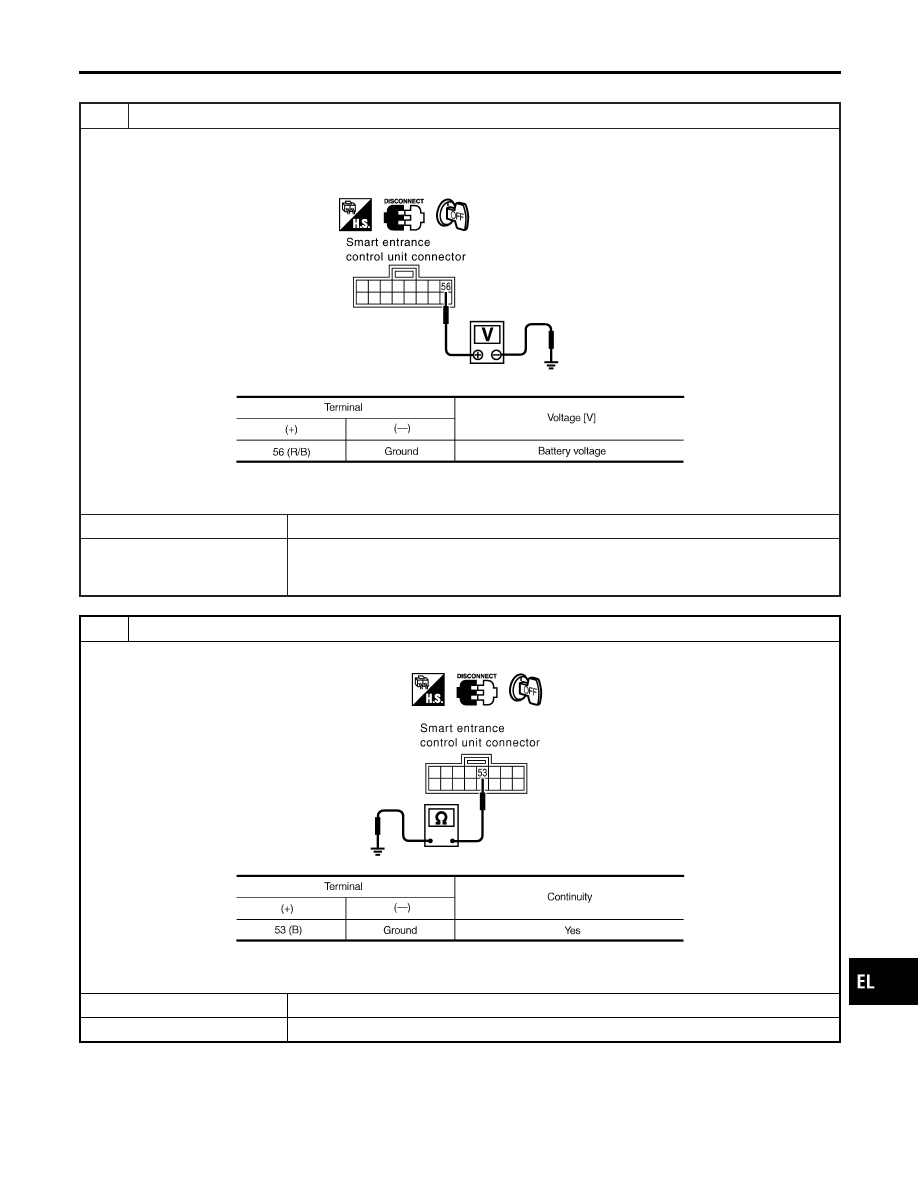

1

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect smart entrance control unit connector.
3. Check voltage between smart entrance control unit harness connector M101 terminal 56 (R/B) and ground.

YEL363E

MTBL1717

OK or NG

OK

©

GO TO 2.

NG

©

Check the following.

I

15A fuse [No. 5, located in fuse and fusible link box (J/B)]

I

Harness for open or short between smart entrance control unit and fuse

2

CHECK GROUND CIRCUIT

Check continuity between smart entrance control unit harness connector M101 terminal 53 (B) and ground.

SIIA1565E

MTBL1718

OK or NG

OK

©

Power supply and ground circuit is OK.

NG

©

Check smart entrance control unit ground circuit for open or short.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-331

REMOTE CONTROLLER BATTERY AND FUNCTION
CHECK

=NLEL0482S02

1

CHECK REMOTE CONTROLLER BATTERY

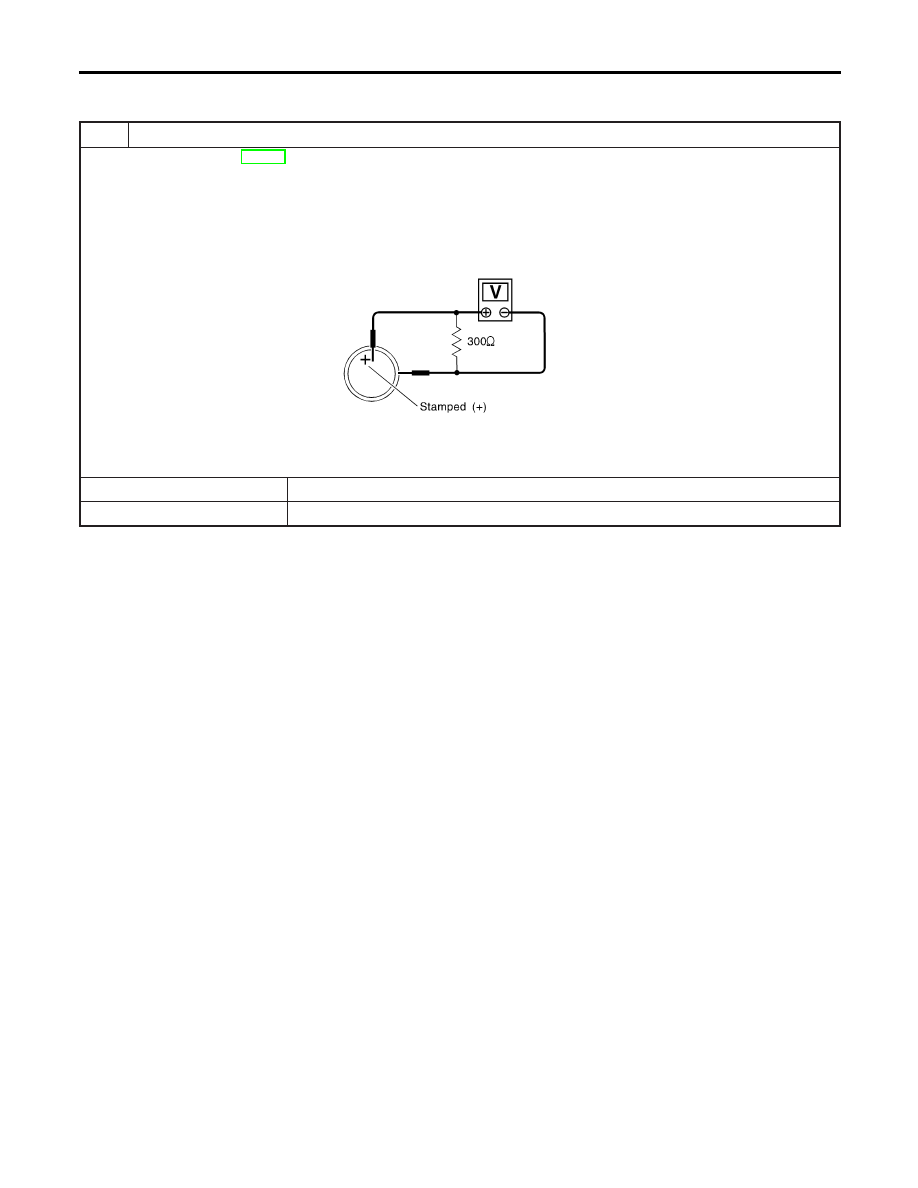

Remove battery (refer to EL-339) and measure voltage across battery positive and negative terminals, (+) and (−) with
using 300

resistor as shown in figure.

Voltage [V]:

2.5 - 3.0

NOTE:
Remote controller does not function if battery is not set correctly.

SEL237W

OK or NG

OK

©

Check remote controller battery terminals for corrosion or damage.

NG

©

Replace battery.

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-332

IGNITION “ON” POWER SUPPLY CIRCUIT FOR SMART
ENTRANCE CONTROL UNIT

=NLEL0482S17

1

CHECK IGNITION “ON” POWER SUPPLY CIRCUIT FOR SMART ENTRANCE CONTROL UNIT

1. Disconnected time control unit harness connector.

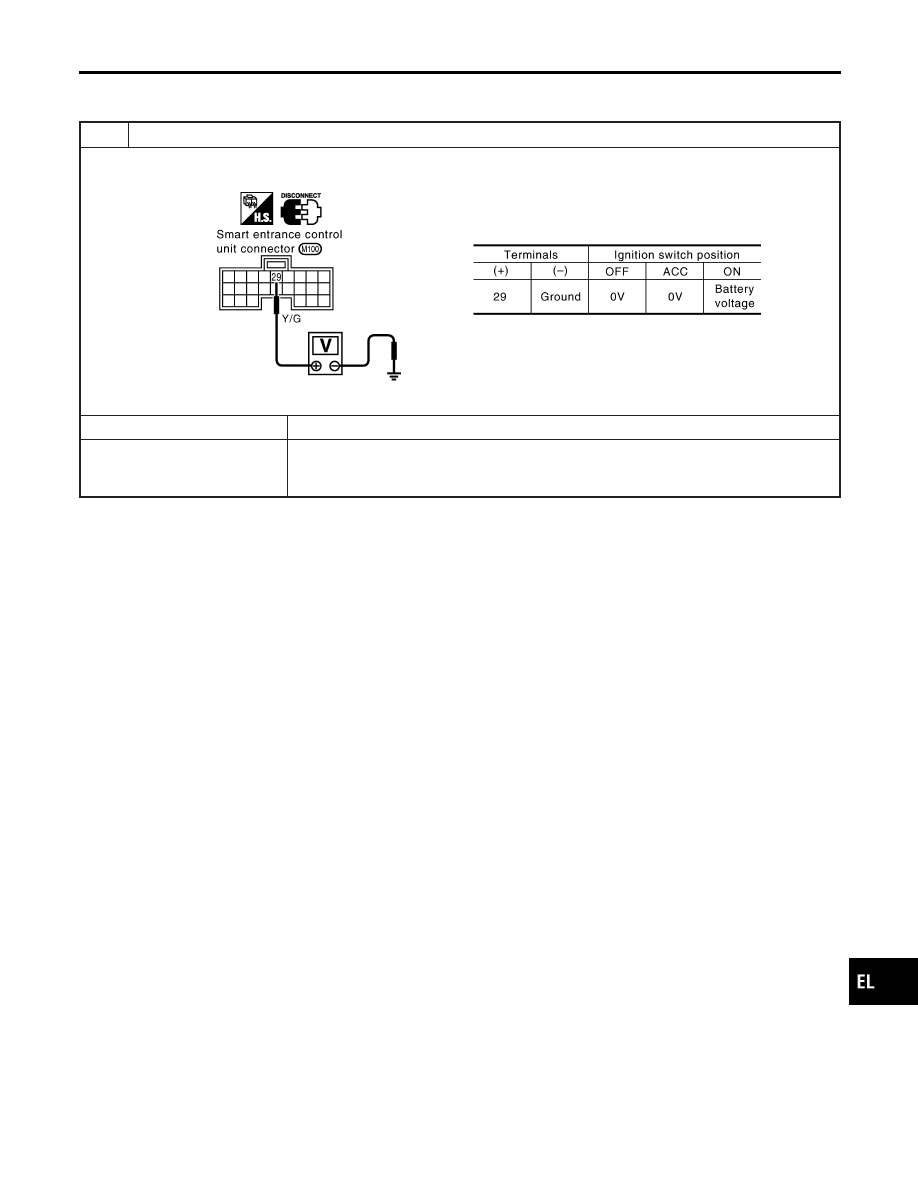

2. Check voltage between smart entrance control unit terminal 29 (Y/G) and ground.

YEL364E

OK or NG

OK

©

Ignition “ON” power supply circuit is OK.

NG

©

Check the following.

I

10A fuse [No. 10, located in fuse block (J/B)]

I

Harness for open or short between smart entrance control unit and fuse.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-333

HAZARD REMINDER CHECK

=NLEL0482S18

1

CHECK HAZARD WARNING LAMP

Check if hazard warning lamp flashes with hazard switch.

Does hazard warning lamp operate?

Yes

©

GO TO 2.

No

©

Check hazard warning lamp circuit.

2

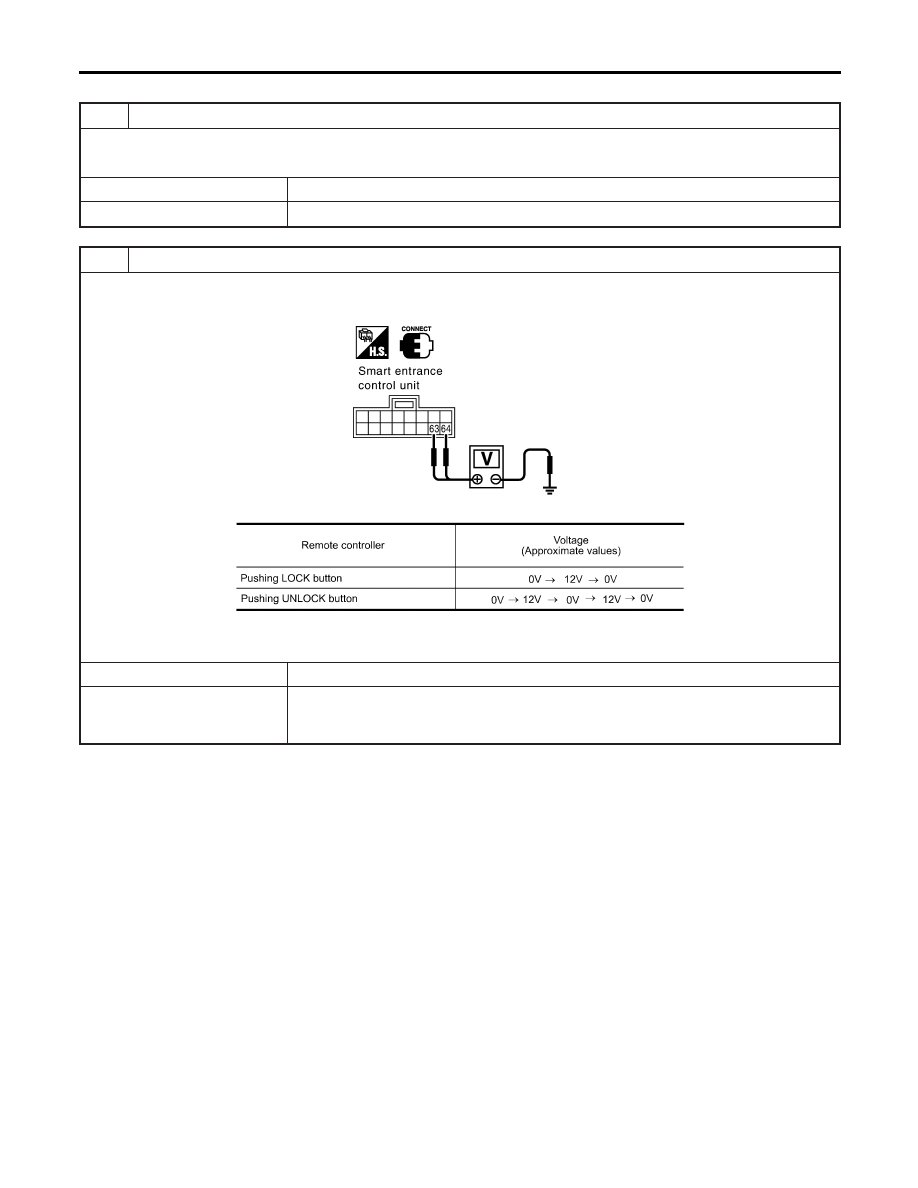

CHECK HAZARD REMINDER OPERATION

Check the following at when push the remote controller switch.
Check voltage between smart entrance control unit harness connector M101 terminal 63 (G/Y), 64 (G/B) and ground.

YEL365E

MTBL1515

OK or NG

OK

©

Check harness for open or short between smart entrance control unit and hazard switch.

NG

©

Check the following before replacing the smart entrance control unit.

I

Multi-remote controller ID is registered.

I

Multi-remote controller battery is OK.

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-334

INTERIOR ROOM LAMP OPERATION CHECK

=NLEL0482S22

1

CHECK ROOM INTERIOR LAMP

Check if the interior room lamp switch is in the “ON” position and the lamp illuminates.

Does interior room lamp illuminate?

Yes

©

GO TO 2.

No

©

Check the following.

I

Harness for open or short between smart entrance control unit and interior room lamp

I

Interior room lamp

2

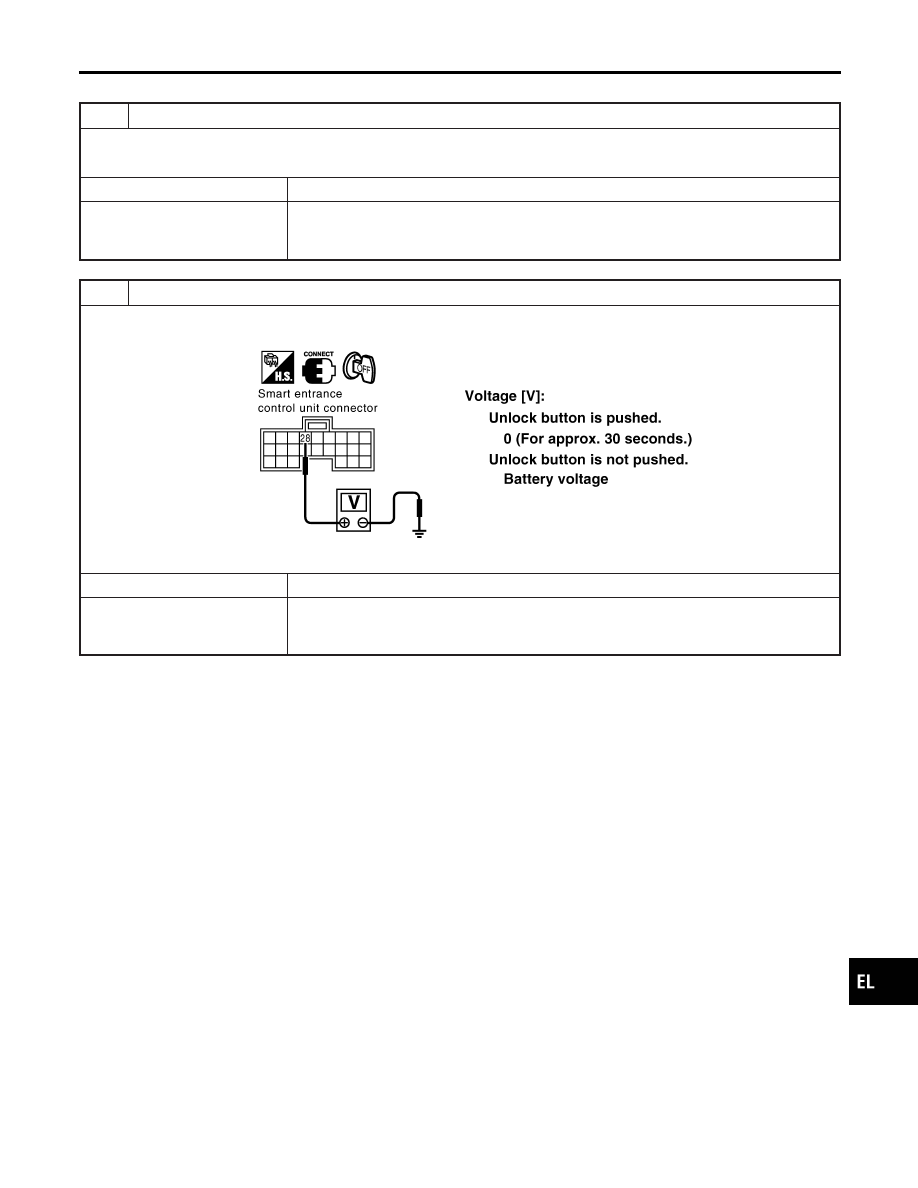

CHECK INTERIOR ROOM LAMP OPERATION

Push unlock button of multi-remote controller with all doors closed and driver’s door locked, and check voltage between
smart entrance control unit harness connector M100 terminal 28 (R/Y) and ground.

YEL366E

OK or NG

OK

©

System is OK.

NG

©

Check the following before replacing the smart entrance control unit.

I

Multi-remote controller ID is registered.

I

Multi-remote controller battery is OK.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-335

MBIB0906E

ID Code Entry Procedure

=NLEL0483

REMOTE CONTROLLER ID SET UP WITH CONSULT-II

NLEL0483S02

NOTE:
If a remote controller is lost, the ID code of the lost remote
controller must be erased to prevent unauthorized use. When
the ID code of a lost remote controller is not known, all con-
troller ID codes should be erased. After all ID codes are
erased, the ID codes of all remaining and/or new remote con-
trollers must be re-registered.

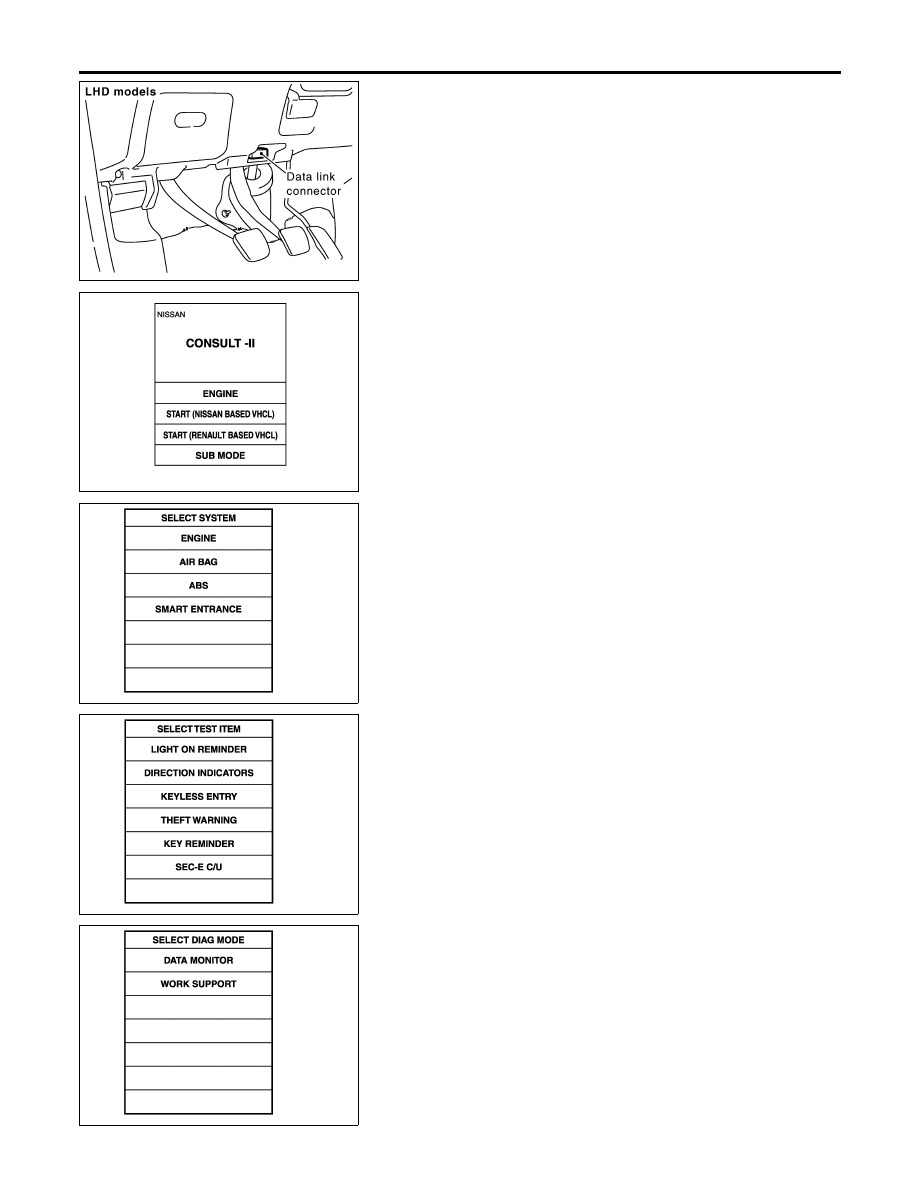

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to the data link connector.

MBIB0233E

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SIIA1678E

5.

Touch “SMART ENTRANCE”.

YEL324E

6.

Touch “KEYLESS ENTRY”.

SIIA1677E

7.

Touch “WORK SUPPORT”.

MULTI-REMOTE CONTROL SYSTEM

ID Code Entry Procedure

EL-336















Content      ..     175      176      177      178     ..
