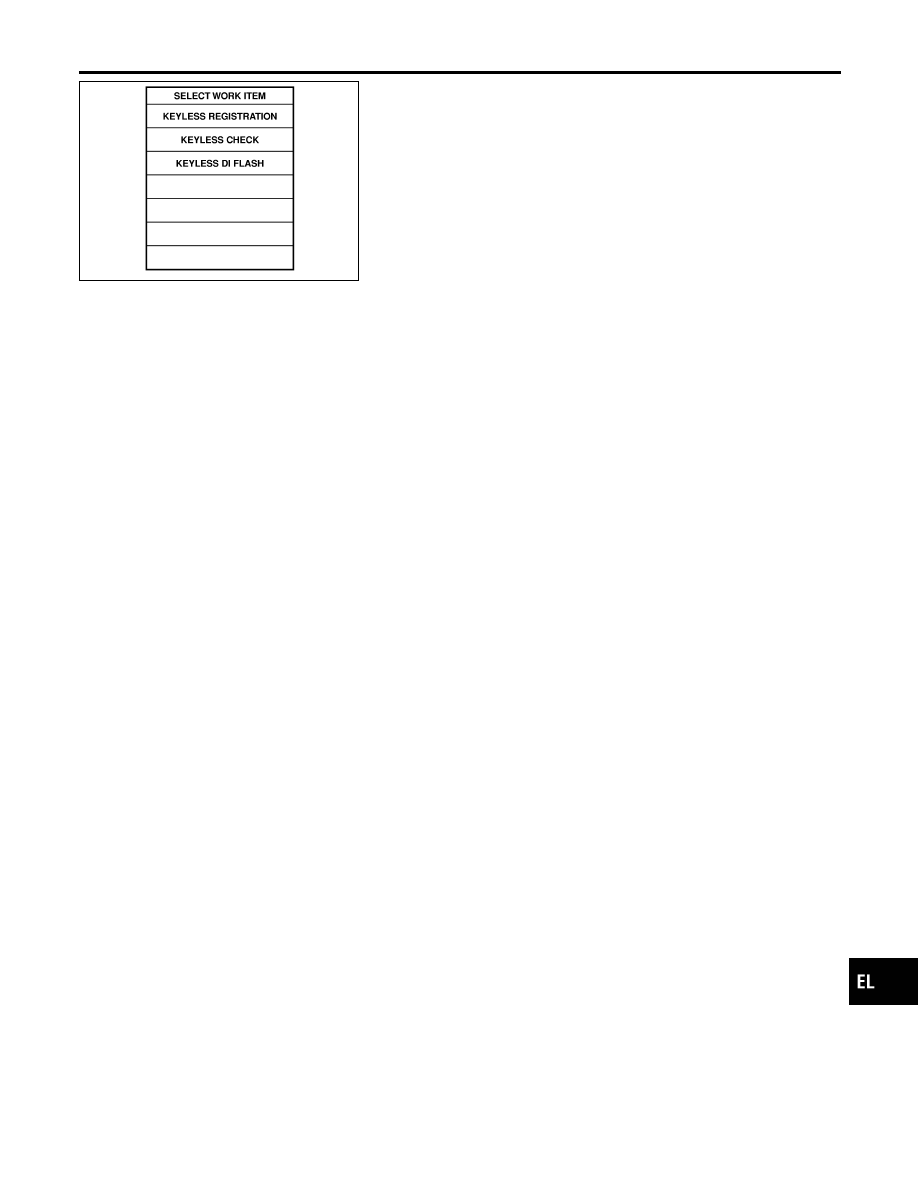

The items are shown on the figure at left can be set up.

“KEYLESS CHECK”

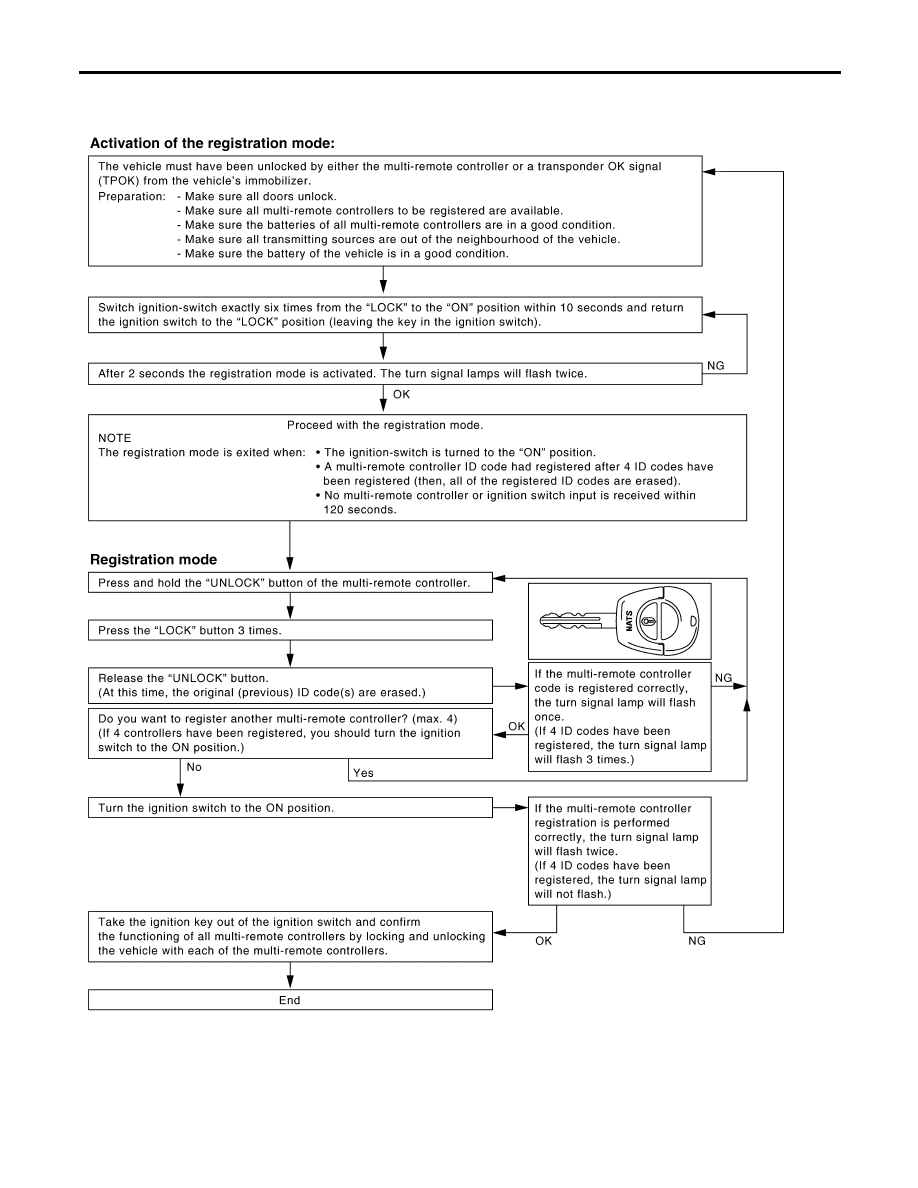

Use this mode to confirm if a remote controller ID code is reg-
istered or not.

“KEYLESS REGISTRATION”
Use this mode to register a remote controller ID code.

NOTE:
Register the ID code when remote controller or smart entrance
control unit is replaced, or when additional remote controller
is required.

“KEYLESS DI FLASH”
This mode can be setting remote controller function.

IDX

MULTI-REMOTE CONTROL SYSTEM

ID Code Entry Procedure (Cont’d)

EL-337

REMOTE CONTROLLER ID SET UP WITHOUT
CONSULT-II

NLEL0483S03

SEL497X

MULTI-REMOTE CONTROL SYSTEM

ID Code Entry Procedure (Cont’d)

EL-338

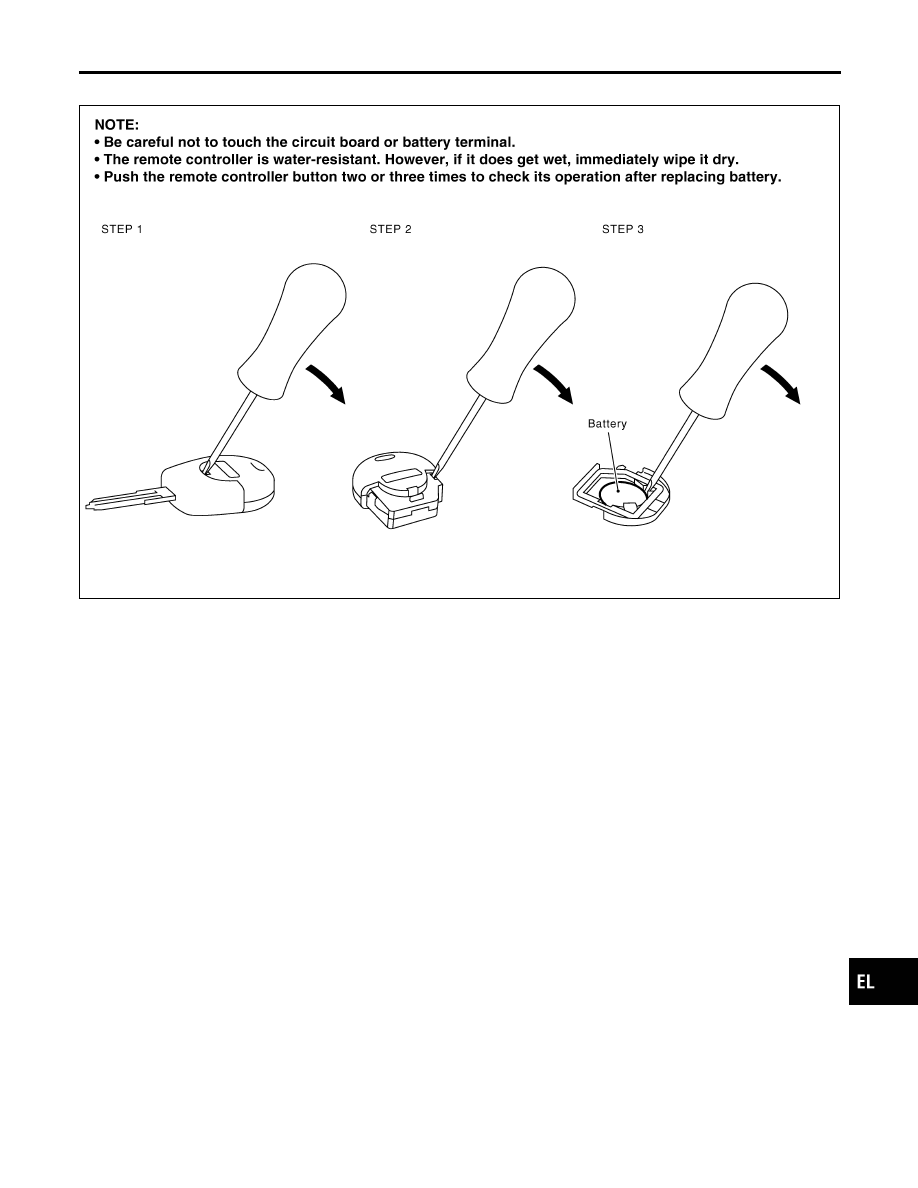

Remote Controller Battery Replacement

NLEL0484

SEL241X

IDX

MULTI-REMOTE CONTROL SYSTEM

Remote Controller Battery Replacement

EL-339

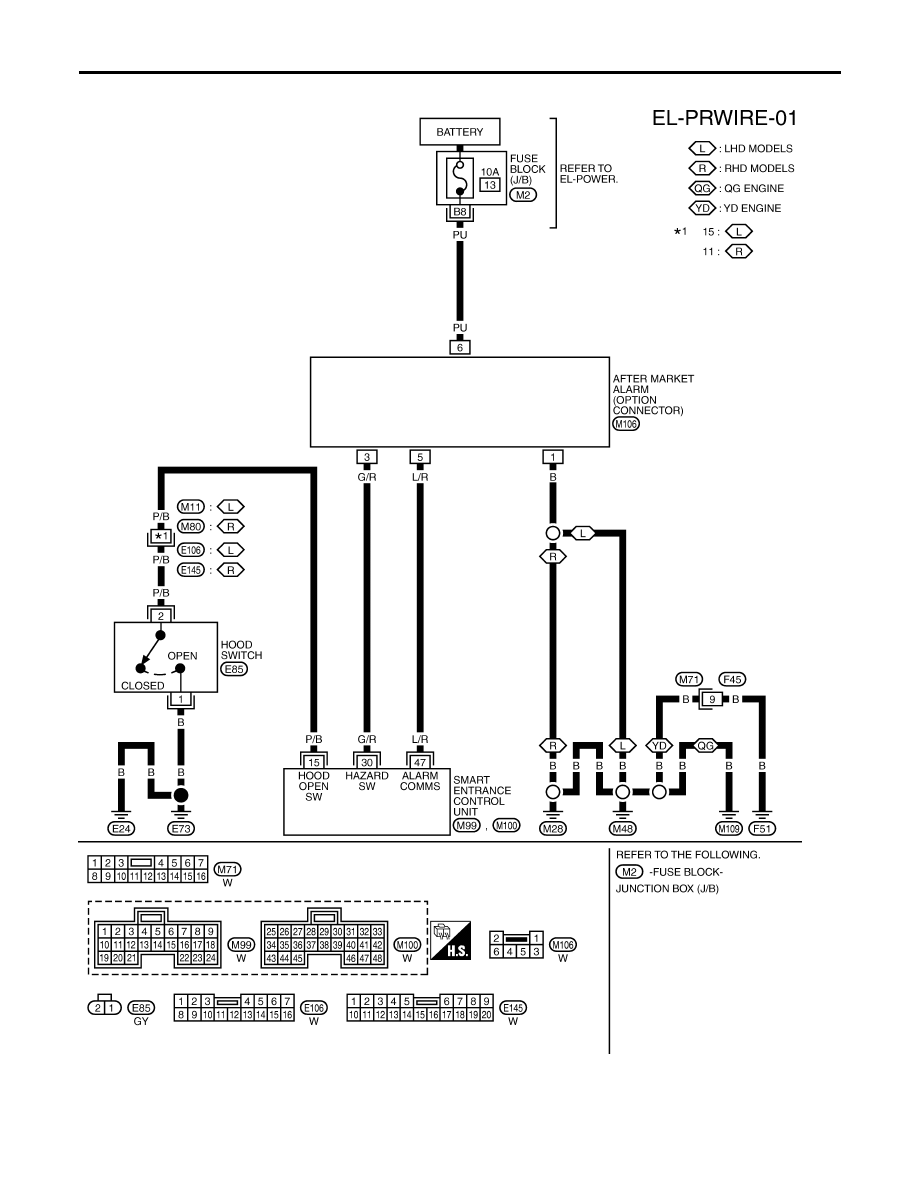

Wiring Diagram — PRWIRE —

NLEL0576

YEL035E

THEFT WARNING SYSTEM

Wiring Diagram — PRWIRE —

EL-340

Description

NLEL0577

OUTLINE

NLEL0577S01

The smart entrance control unit totally controls the following body electrical system operations.

Warning chime, refer to EL-125, “WARNING CHIME”.

Rear defogger and door mirror defogger, refer to EL-177, “REAR WINDOW DEFOGGER”.

Power door lock, refer to EL-264, “POWER DOOR LOCK SYSTEM”.

Power door lock - Super lock - (RHD models), refer to EL-290, “POWER DOOR LOCK — SUPER LOCK
—”.

Multi-remote control system, refer to EL-322, “MULTI-REMOTE CONTROL SYSTEM”.

NATS (Nissan Anti-Theft system), refer to EL-352, “NATS (NISSAN ANTI-THEFT SYSTEM)”.

Interior lamp, refer to EL-77, “INTERIOR ROOM LAMP”.

Also, smart entrance control unit has the “sleep/wake-up control” function. Smart entrance control unit puts
itself (the whole smart entrance control unit) to sleep under certain conditions to prevent unnecessary power
consumption. Then, when a certain input is detected, the system wakes itself up. For more detailed
information, refer to EL-341, “SLEEP/WAKE-UP CONTROL”.

INTERIOR LAMP/SPOT LAMP/VANITY MIRROR ILLUMINATION

NLEL0577S02

The lamps turn off automatically when the interior lamp, spot lamp or/and vanity mirror illumination are illumi-
nated with the ignition key in the OFF position, if the lamp remains lit by the door switch open signal or if the
lamp switch is in the ON position for more than 30 minutes.
After lamps are turned off by the smart entrance control unit, the lamps illuminate again when:

Driver’s door is locked or unlocked with remote controller, door lock/unlock switch or door key cylinder.

Ignition switch is turned to ON.

Door is opened or closed,

Key is inserted into ignition key cylinder.

REAR WINDOW DEFOGGER/DOOR MIRROR DEFOGGER

NLEL0577S03

Rear window defogger is turned off in approximately 15 minutes after the rear window defogger switch is turned
on.

SLEEP/WAKE-UP CONTROL

NLEL0577S04

Sleep Control

NLEL0577S0401

“Sleep” control prevents unnecessary power consumption. After the following conditions are met, the smart
entrance control unit suspends the operation. The whole smart entrance control unit is set in the “sleep” mode.

Ignition switch “OFF”

All electrical loads (in the smart entrance control unit) “OFF”

Timer “OFF”

Each switch do not input

Wake-up Control

NLEL0577S0402

When the smart entrance control unit detects a “wake-up” signal, it wakes up the whole system and starts
operating again. When any one of the following switches are turned ON, the “sleep” mode is canceled:

Ignition switch

Hazard switch

Headlamp switch

Hood switch

Luggage room lamp switch

Each door switch

IDX

SMART ENTRANCE CONTROL SYSTEM

Description

EL-341

INPUT/OUTPUT

=NLEL0577S05

System

Input

Output

Power door lock

Door lock/unlock switch
Key switch (Insert)
Door switches

Door lock actuators
Back door release actuator

Multi-remote control

Key switch (Insert) (For RHD models)
Ignition switch (ON)
Door switches
Multi-remote controller signal
Door lock/unlock switch

Hazard warning lamp
Door lock actuator
Interior room lamp

Warning chime

Key switch (Insert) (For RHD models)
Ignition switch (ON)
Lighting switch (1st)
Door switch driver side

Warning chime (located in smart entrance
control unit)

Rear window defogger and door mirror
defogger

Ignition switch (ON)
Rear window defogger switch

Rear window defogger relay

Interior room lamp

Door switches
Multi-remote controller signal (lock/unlock)
Door lock/unlock switches (lock/unlock)
Luggage room lamp switch (sedan mod-
els)
Ignition switch (ON)
Key switch (Insert)

Interior room lamp
Luggage room lamp
Step lamp
Spot lamp
Vanity mirror

SMART ENTRANCE CONTROL SYSTEM

Description (Cont’d)

EL-342

CONSULT-II

=NLEL0578

DIAGNOSTIC ITEMS APPLICATION

NLEL0578S01

Item (CONSULT-II screen

terms)

Diagnosed system

DATA MONITOR

WORK SUPPORT

DOOR LOCKING

Power door lock (For LHD
models)
Super lock (For RHD models)

RR DEFOG

Rear window defogger

KEY REMINDER

Warning chime (For LHD mod-
els)

LIGHT ON REMINDER

Warning chime

ROOM LAMP

Interior room lamps

THEFT WARNING

Theft warning system

KEYLESS ENTRY

Multi-remote control system

DIRECTION INDICATORS

Direction indicator sound

SEC-E C/U

SEC self-diagnosis

X: Applicable
For diagnostic item in each control system, refer to the relevant pages for each system.
The description of DATA MONITOR and WORK SUPORT, refer to EL-343, “DATA MONITOR MODE or EL-344, WORK SUPPORT
MODE”.

DATA MONITOR MODE

NLEL0578S02

Item (CONSULT-II screen terms)

Diagnosed system

IGNITION SW

Indicates [ON/OFF] condition of ignition switch.

KEY IN DETECT

Indicates [ON/OFF] condition of electronic key switch.

DOOR SW DR RR

Indicates [ON/OFF] condition of rear door switch (driver side).

DOOR SW AS RR

Indicates [ON/OFF] condition of rear door switch (passenger side).

AS DOOR SW

Indicates [ON/OFF] condition of front door switch (passenger side).

DR DOOR SW

Indicates [ON/OFF] condition of front door switch (driver side).

CDL LOCK SW

Indicates [ON/OFF] condition of door lock/unlock switch (lock signal).

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock/unlock switch (unlock signal).

TRUNK OPEN SW

Indicates [ON/OFF] condition of

HOOD OPEN SW

Indicates [ON/OFF] condition of hood switch.

HAZARD SW

Indicates [ON/OFF] condition of hazard switch.

RH TURN SW

Indicates [ON/OFF] condition of turn signal switch.

LH TURN SW

Indicates [ON/OFF] condition of turn signal switch.

REAR DEF SW

Indicates [ON/OFF] condition of multifunction switch (defogger switch).

RKE LOCK

Indicates [ON/OFF] condition of lock signal from remote controller.

RKE UNLOCK

Indicates [ON/OFF] condition of unlock signal from remote controller.

RKE SEL UNLOCK

Indicates [ON/OFF] condition of select unlock signal from remote controller.

RKE TRUNK REL

Indicates [ON/OFF] condition of trunk open signal from remote controller.

BATTERY CHECK

Indicates [ON/OFF] condition of remote controller battery.

TAIL LAMP ON

Indicates [ON/OFF] condition of lighting switch.

IDX

SMART ENTRANCE CONTROL SYSTEM

CONSULT-II

EL-343

Item (CONSULT-II screen terms)

Diagnosed system

KEY CYL LK

Indicates [ON/OFF] condition of lock signal from door key cylinder.

KEY CYL UNLK

Indicates [ON/OFF] condition of unlock signal from door key cylinder.

MODE

Indicates [CMFRT/SCRTY] condition of multi-remote control system.

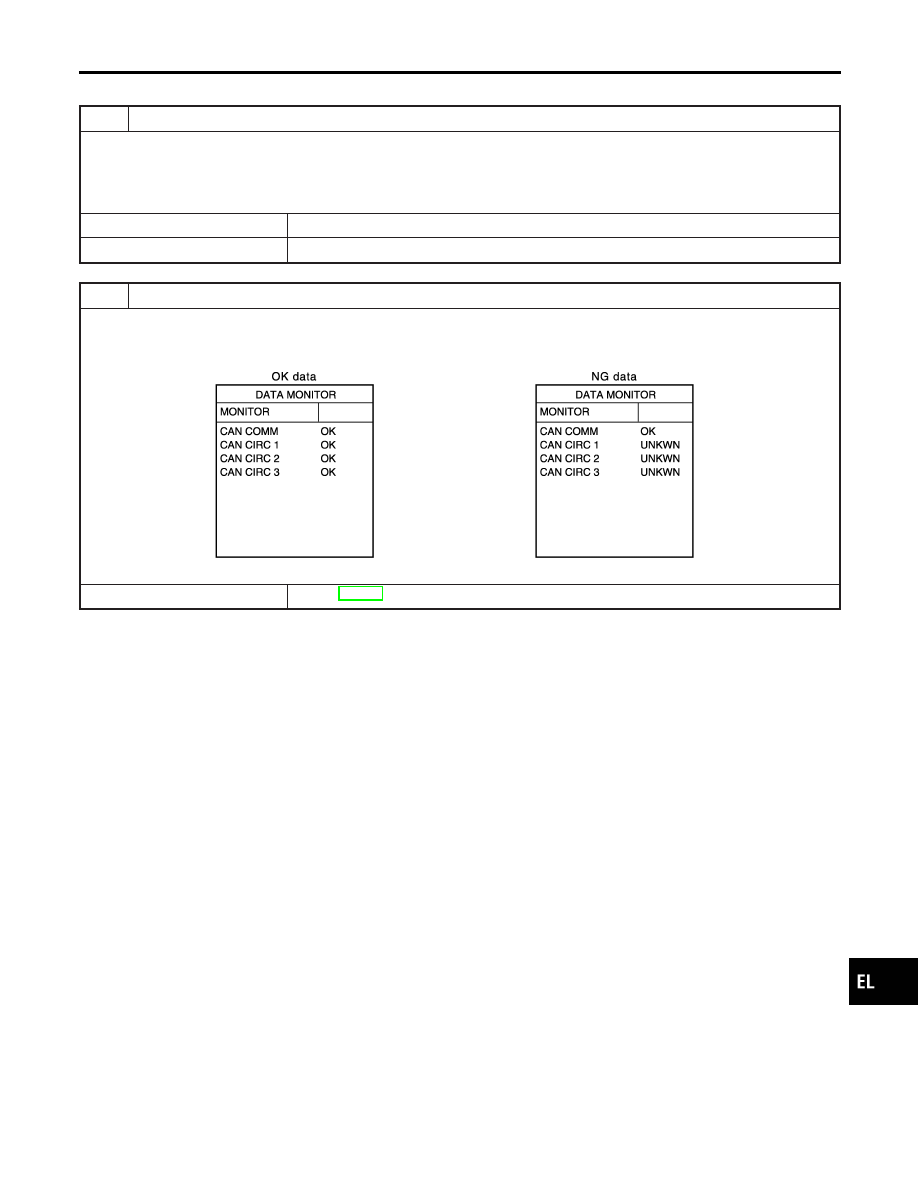

CAN COMM

Indicates the communication condition of CAN communication line.

CAN CIRC 1

CAN CIRC 2

CAN CIRC 3

WORK SUPPORT MODE

NLEL0578S03

Mode

Description

Test item

DOOR LOCKING

AUTO RE-LOCK

This mode can set auto re-lock function.

SELECTIVE UNLOCK

This mode can set select unlock function.

KEYLESS ENTRY

KEYLESS REGISTRATION

This mode can register remote controller ID.

KEYLESS CHECK

This mode can check whether water remote controller
ID code is registered or not.

KEYLESS DI FLASH

This mode can set remote controller function.

DIRECTION INDICATORS

AUDIBLE TRAILER WARNING

This mode can set audible trailer warning function.

SELF-DIAG RESULTS MODE

NLEL0578S04

Diagnosis item

Description

Repair order

RH FLASHER (S) BULB BROKEN

RH turn signal lamp system is mal-
functioning.

Check turn signal lamp system. Refer to EL-77,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.

LH FLASHER (S) BULB BROKEN

LH turn signal lamp system is mal-
functioning.

Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.

RH FLASHER CIRCUIT OVER
CURRENT

RH turn signal lamp circuit is open or
shorted.

Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.

LH FLASHER CIRCUIT OVER
CURRENT

LH turn signal lamp circuit is open or
shorted.

Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.

CAN COMM CIRCUIT*

CAN communication line is open or
shorted.

Check CAN communication line. Refer to EL-351,
“CAN Communication Line Check”.

*: If this malfunction is displayed, first perform the trouble diagnosis.

SMART ENTRANCE CONTROL SYSTEM

CONSULT-II (Cont’d)

EL-344

MBIB0906E

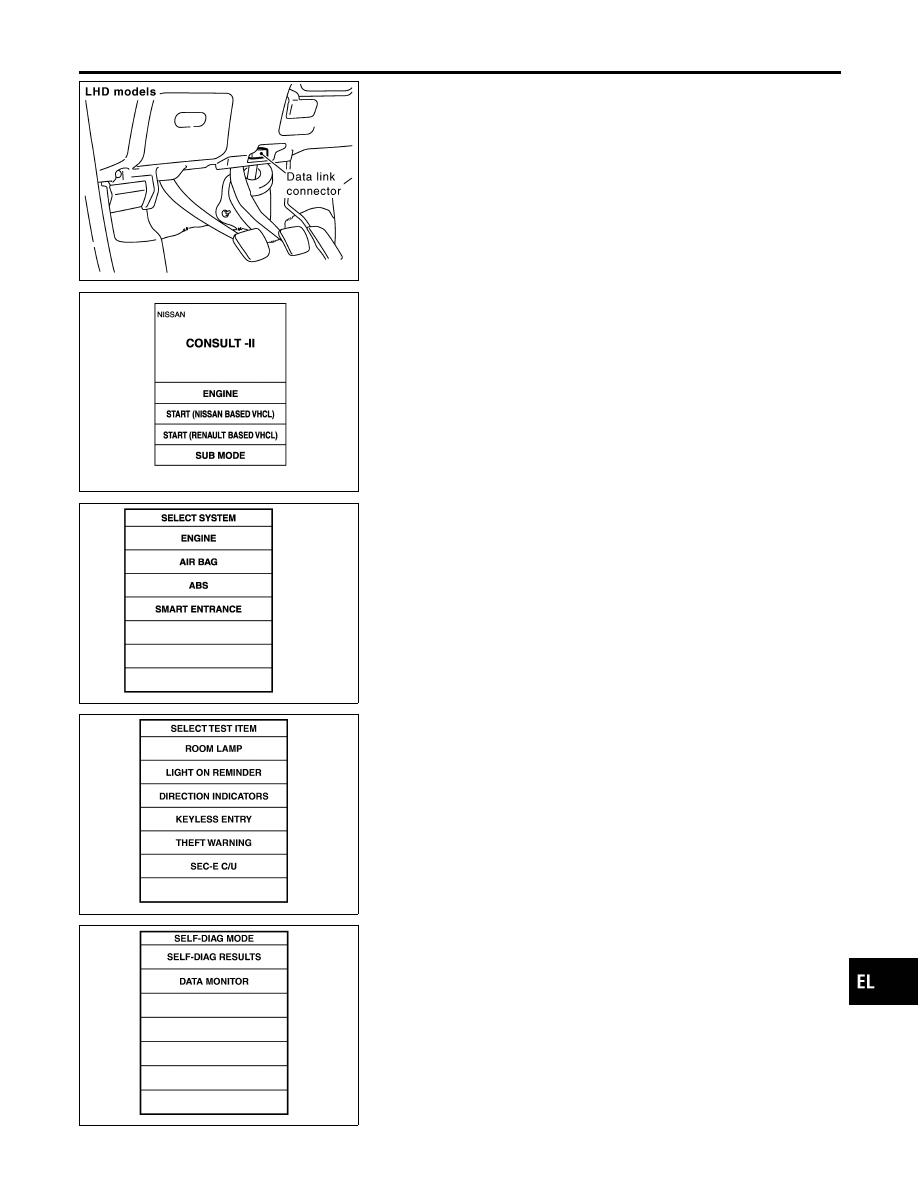

CONSULT-II INSPECTION PROCEDURE

=NLEL0578S05

Turn ignition switch “OFF”.

Connect “CONSULT-II” to the data link connector.

MBIB0233E

Turn ignition switch “ON”.

Touch “START”.

SIIA1678E

Touch “SMART ENTRANCE”.

YEL324E

Touch “SEC-E C/U”.

YEL575E

Select self-diag mode.
“SELF-DIAG RESULTS” and “DATA MONITOR” are available.

IDX

SMART ENTRANCE CONTROL SYSTEM

CONSULT-II (Cont’d)

EL-345

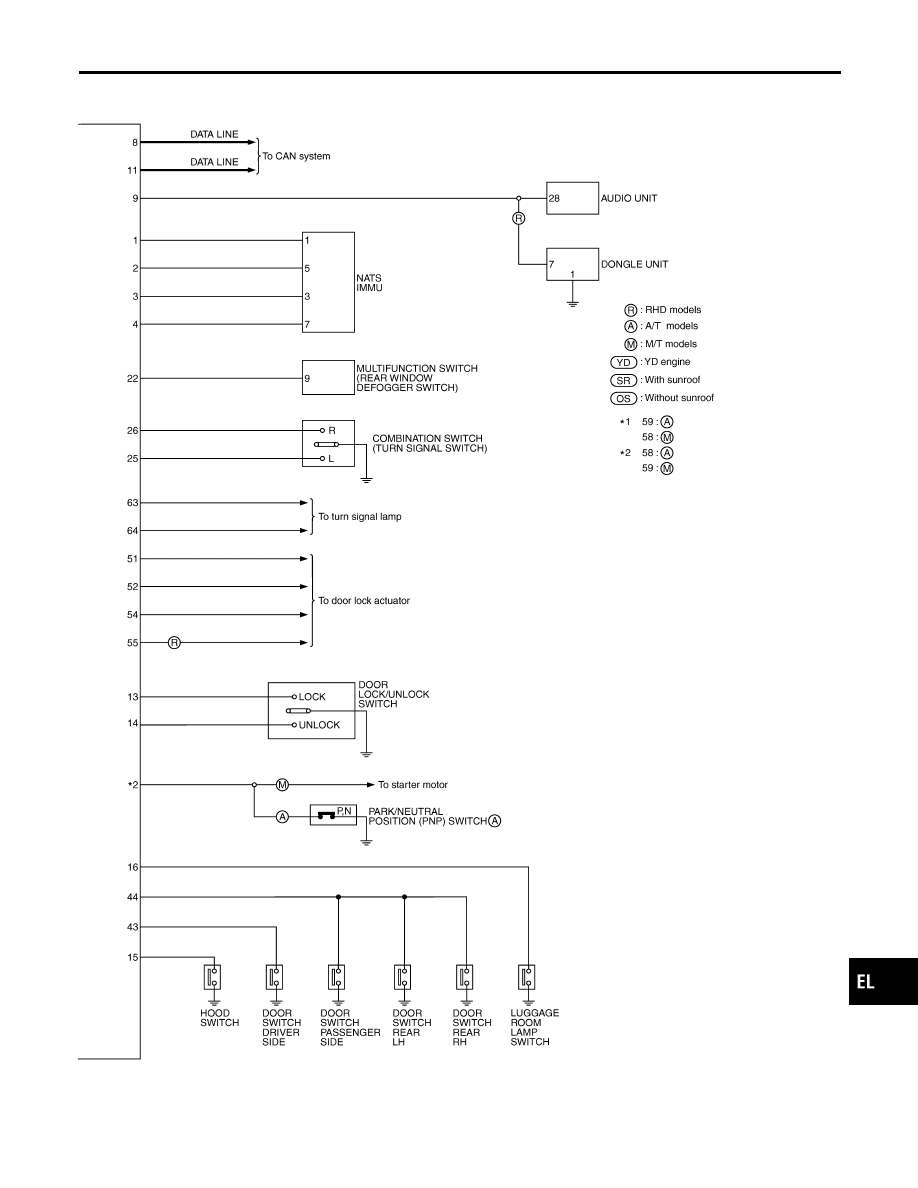

Schematic

NLEL0579

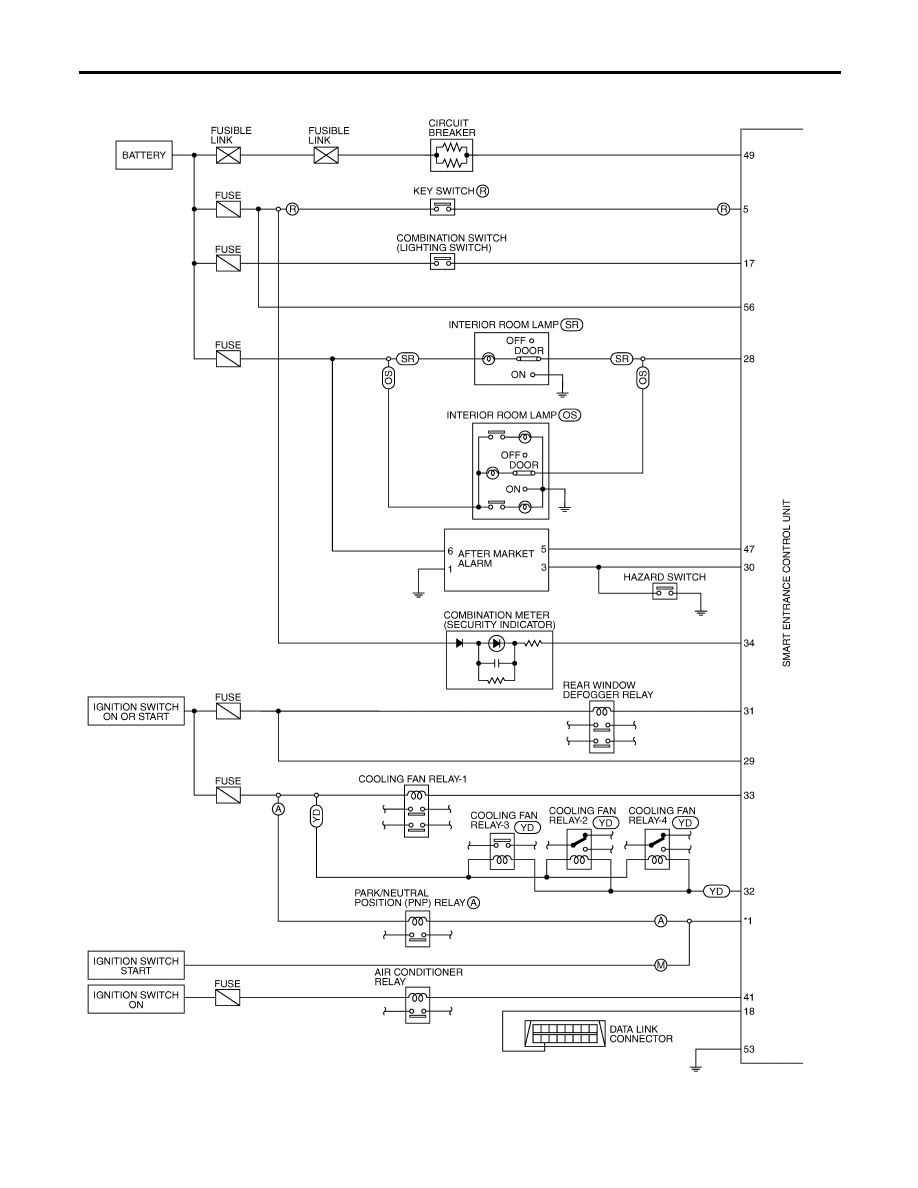

YEL018E

SMART ENTRANCE CONTROL SYSTEM

Schematic

EL-346

YEL019E

IDX

SMART ENTRANCE CONTROL SYSTEM

Schematic (Cont’d)

EL-347

Smart Entrance Control Unit Inspection Table

NLEL0580

Terminal

No.

Wire

color

Connections

Operated condition

Voltage (Approximate values)

NATS antenna amp.
(Power supply)

—

Approx. 5V

G/OR

NATS antenna amp.
(Ground)

—

G/W

NATS antenna amp.
(Signal line)

Moment when key was inserted.

The needle of analog tester
swings immediately after insert-
ing key.

G/Y

NATS antenna amp.
(Signal line)

Moment when key was inserted

The needle of analog tester
swings immediately after insert-
ing key.

B/R

Key switch

Ignition key Removed

Inserted

12V

CAN communication line

—

Audio unit

Ignition key removed or inserted

MKIB0191E

CAN communication line

—

Door lock/unlock switches

Neutral

Locks

12V

Door lock/unlock switches

Neutral

Unlocks

12V

Hood switch

Hood switch:
ON (Open)

OFF (Closed)

12V

R/G

Tail lamp switch

Lighting switch: OFF

1st or 2nd

12V

CONSULT-II

—

L/Y

Multifunction switch
(Rear window defogger switch)

[Ignition switch “ON”]
Multifunction switch: Press

Release (Only when pressed)

G/OR

Combination switch
(Turn signal switch)

Turn signal switch:
Neutral

Left turn position

12V

L/B

Combination switch
(Turn signal switch)

Turn signal switch:
Neutral

Right turn position

12V

Y/B

Vehicle security horn relay
(RHD models)

When theft warning system:
Armed

Disarmed

12V

R/Y

Interior room lamp

When interior lamp is operated using
remote controller (Lamp switch in
“DOOR” position)

12V

Y/G

Ignition key switch

Ignition key is in “ON” position

12V

G/R

Hazard switch

Hazard switch: OFF

12V

Rear window defogger relay

[Ignition switch “ON”]
Rear window defogger switch:
OFF

12V

SMART ENTRANCE CONTROL SYSTEM

Smart Entrance Control Unit Inspection Table

EL-348

Terminal

No.

Wire

color

Connections

Operated condition

Voltage (Approximate values)

LG/B

Cooling fan relay

[Ignition switch“ ON”]
Cooling fan: Operating

Not operat-

ing

12V

LG/R

Cooling fan relay

[Ignition switch “ON”]
Cooling fan: Operating

Not operat-

ing

12V

L/Y

Security indicator

Ignition switch ON

OFF

12V

Air conditioner relay

[Engine is running]
Air conditioner switch: ON

OFF

12V

R/W

Front door switch
(Driver side)

Front door (Driver side):
Open

Closed

12V

L/OR

Front door switch
(Passenger side)

Front door (Passenger side):
Open

Closed

12V

W/L

Power source

—

12V

L/R

Driver door lock actuator

Door lock & unlock switch:
Free

Lock

12V

Door lock actuators

Door lock & unlock switch:
Free

Unlock

12V

Ground

—

G/Y

Door lock actuators

Door lock & unlock switch:
Free

Unlock

12V

W/B

Power door super lock actuator
(Front)

Remote controller door lock switch:
Free

Unlock

12V

R/B

Power source

—

12V

Starter motor (M/T or A/T mod-
els)

Ignition switch: OFF

START posi-

tion

12V

Starter motor (M/T or A/T mod-
els)

Ignition switch: OFF

START posi-

tion

12V

L/R

Headlamp washer motor

[Headlamp switch 1st or 2nd position]
Washer switch: OFF

12V

G/Y

RH turn signal lamp

[When door lock or unlock is oper-
ated using remote controller]
Turn signal lamp: OFF

OFF

12V

G/B

LH turn signal lamp

[When door lock or unlock is oper-
ated using remote controller]
Turn signal lamp: OFF

OFF

12V

*1: B/Y (M/T models), G/OR (A/T models)
*2: B/W (M/T models), P (A/T models)

IDX

SMART ENTRANCE CONTROL SYSTEM

Smart Entrance Control Unit Inspection Table (Cont’d)

EL-349

Trouble Diagnoses

=NLEL0581

PRELIMINARY CHECK

NLEL0581S01

CHECK “SELF-DIAG RESULTS” MODE WITH CONSULT-II

Check smart entrance system trouble diagnosis (SELF-DIAG RESULTS) in “SEC-E CE” mode with CONSULT-II. Refer to
EL-344, “SELF-DIAG RESULTS MODE”.

Can “SELF-DIAG RESULTS” mode be displayed?

Yes

GO TO 2.

GO TO 3.

CHECK DISPLAY ITEM

Check display item in “SELF-DIAG RESULTS” mode.

Is any malfunction indicated in “SELF-DIAG RESULTS” mode?

Yes

GO TO EL-344, “SELF-DIAG RESULTS MODE”.

Inspection end.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Refer to EL-330, “Power Supply and Ground Circuit Check”.

OK or NG

Replace smart entrance control unit.

Repair or replace harness.

SMART ENTRANCE CONTROL SYSTEM

Trouble Diagnoses

EL-350

CAN Communication Line Check

=NLEL0583

CHECK CAN COMMUNICATION CIRCUIT

1. Turn ignition switch “ON”.
2. Select “SELF-DIAG RESULTS” in “SEC-E CE” mode with CONSULT-II.
3. The “CAN COMM CIRCUIT” is detected.

Yes or No

Yes

Print out CONSULT-II screen, GO TO 2.

INSPECTION END

CHECK CAN COMMUNICATION SIGNALS

1. Turn ignition switch “ON”.
2. Select “CAN DIAG SUPPORT MNTR” in ”SEC-E CE” mode with CONSULT-II.
3. Print out the CONSULT-II screen.

SEC898C

GO TO EL-459, “CAN COMMUNICATION”.

IDX

SMART ENTRANCE CONTROL SYSTEM

CAN Communication Line Check

EL-351

Component Parts and Harness Connetor
Location

NLEL0584

For details, refer to “ELECTRICAL UNIT LOCATION” (EL-600) and
“HARNESS LAYOUT” (EL-596).

System Description

NLEL0585

NATS (Nissan Anti-Theft System) has the following immobilizer functions:

Since only NATS ignition keys, whose ID nos. have been registered into the ECM and IMMU of NATS,
allow the engine to run, operation of a stolen vehicle without a NATS registered key is prevented by NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.

This version of NATS has dongle unit to improve its anti-theft performance (RHD models for Europe).
Dongle unit has its own ID which is registered into NATS IMMU. So if dongle unit is replaced, initialization
must be carried out.

When malfunction of dongle unit is detected:
The security indicator lamp illuminates for about 15 minutes after ignition switch is turned to ON.

−

When dongle unit has a malfunction and the indicator lamp is illuminated, engine can not be started.
However engine can be started only one time when security indicator lamp turns off in about 15 minutes
after ignition switch is turned to ON.

All of the originally supplied ignition key IDs have been NATS registered.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NATS compo-
nents.

The security indicator blinks when the ignition switch is in “OFF” or “ACC” position. Therefore, NATS warns
outsiders that the vehicle is equipped with the anti-theft system.

When NATS detects trouble, the security indicator lamp lights up as follows.

Condition IGN ON and

With dongle

Without dongle

MIL

Security indicator

MIL

Security indicator

NATS malfunction
(except dongle unit) is
detected

—

1. 6 times blinking
2. Staying ON after igni-

tion switch is turned
ON

—

Staying ON

Only malfunction of
dongle unit is detected.

—

Staying ON for about 15
minutes after ignition
switch is turned ON

—

Malfunction of NATS
and engine related parts
are detected.

Staying ON

1. 6 times blinking
2. Staying ON after igni-

tion switch is turned
ON

Staying ON

Only engine related part
malfunction is detected.

Staying ON

—

Staying ON

—

Just after initialization of
NATS

—

6 times blinking

—

NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs
must be carried out using CONSULT-II hardware and CONSULT-II NATS software.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULT-II
operation manual, NATS.

When servicing a malfunction of the NATS (indicated by lighting up of Security Indicator Lamp) or

NATS (NISSAN ANTI-THEFT SYSTEM)

Component Parts and Harness Connetor Location

EL-352

Content .. 176 177 178 179 ..
