Almera Tino V10 (2003 year). Manual

VSS

EC-891

[QG (WITHOUT EURO-OBD)]

VSS

PFP:32702

Description

EBS00R35

NOTE:
If DTC U1000 or U1001 is displayed, first perform the trouble diagnosis for DTC U1000, U1001. Refer to

EC-651, "DTC U1000, U1001 CAN COMMUNICATION LINE"

The vehicle speed signal is sent to the combination meter from ABS actuator and electric unit (control unit)
through CAN communication line. The combination meter then sends a signal to the ECM through CAN com-
munication line.

Diagnostic Procedure

EBS00R36

CHECK VEHICLE SPEED SIGNAL OVERALL FUNCTION

With CONSULT-II

Lift up the vehicle.

Start engine.

Select “VHCL SPEED SE” in “DATA MONITOR” mode with
CONSULT-II.

Make sure that “VHCL SPEED SE” indication exceeds 10 km/h
(6 MPH) when rotating wheels with suitable gear position.

Without CONSULT-II

Lift up the vehicle.

Start engine.

Read vehicle speed with combination meter.
Make sure that vehicle speed indication exceeds 10 km/h (6 MPH) when rotating wheels with suitable
gear position.

OK or NG

>> INSPECTION END

>> GO TO 2.

CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Check DTC with ABS actuator and electric unit (control unit), Refer to “TROUBLEDIAGNOSIS-BASIC
INSPECTION”, BR-70.

OK or NG

>> GO TO 2.

>> Repair or replace.

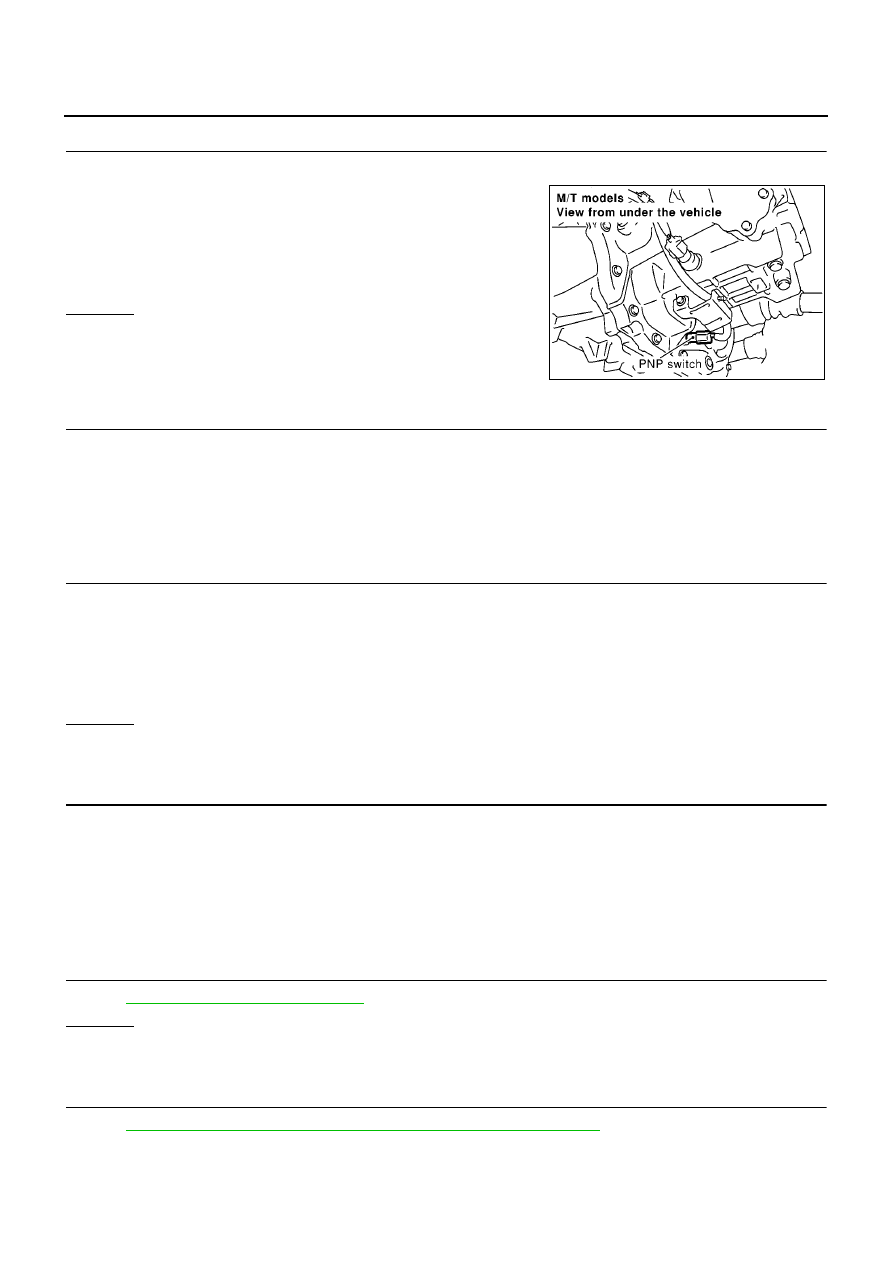

CHECK COMBINATION METER

Check combination meter function.
Refer to “METERS AND GAUGES”, EL-100.

>> INSPECTION END

SEF196Y

EC-892

[QG (WITHOUT EURO-OBD)]

POWER STEERING PRESSURE SENSOR

PFP:49763

Component Description

EBS00R37

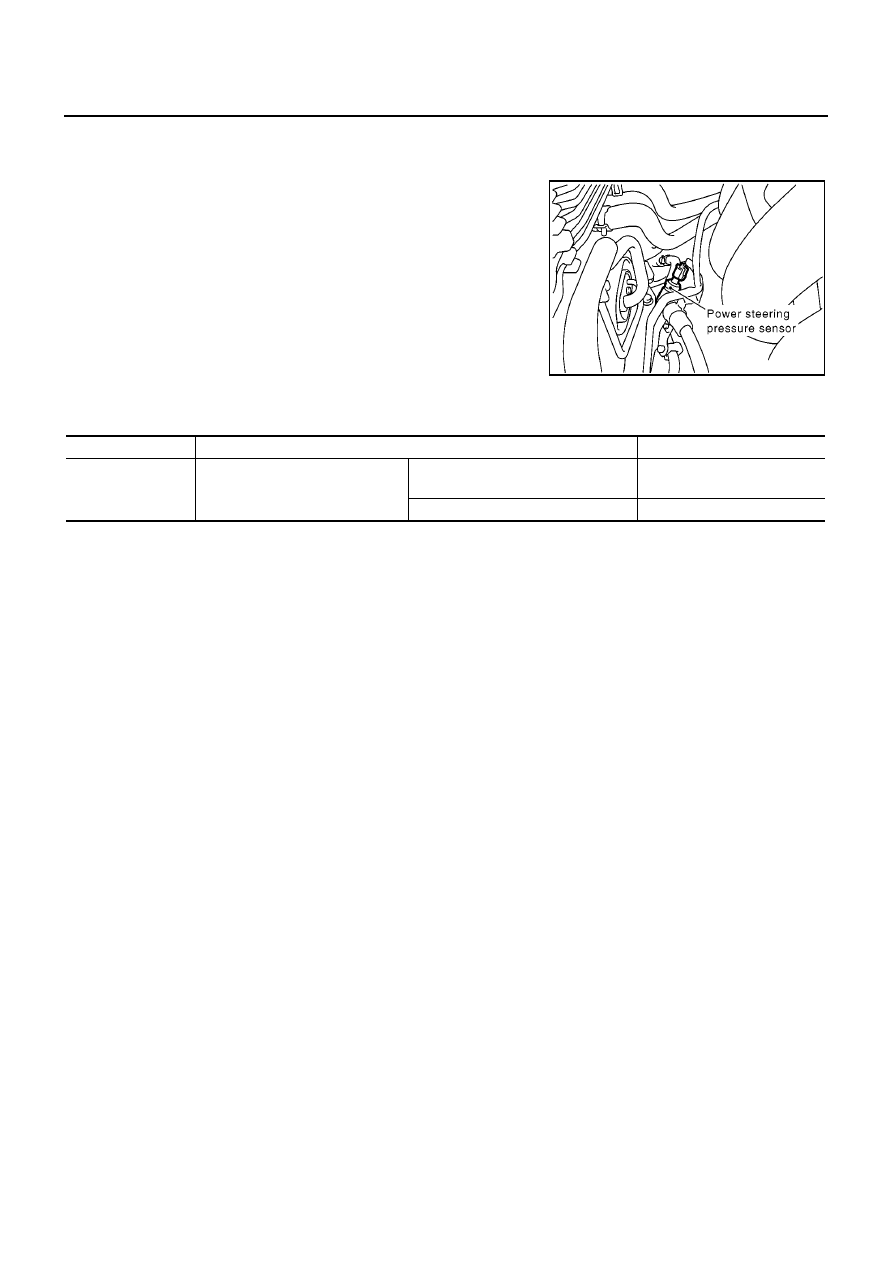

Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.

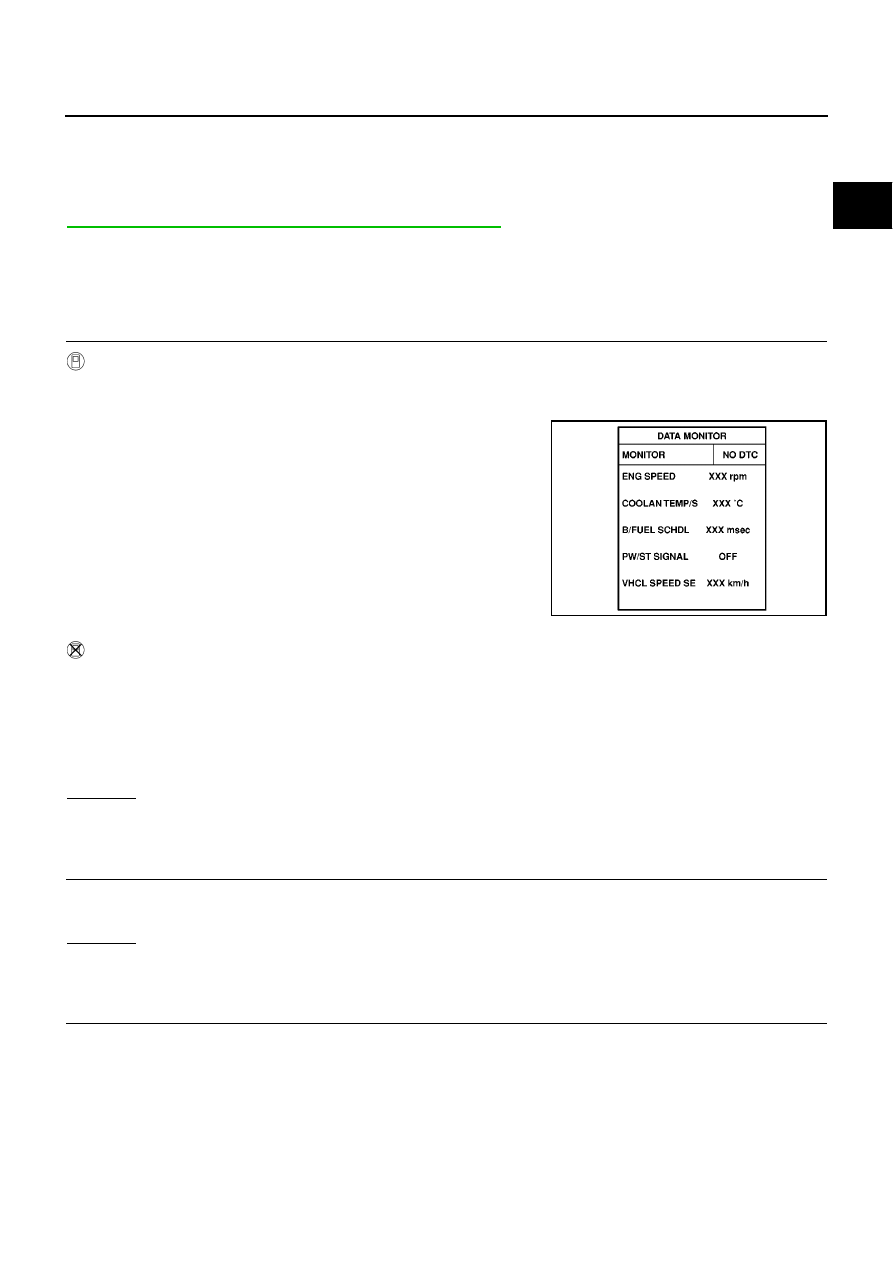

CONSULT-II Reference Value in Data Monitor Mode

EBS00R38

Specification data are reference values.

MBIB1006E

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

●

Engine: After warming up, idle
the engine

Steering wheel is in neutral position.
(Forward direction)

OFF

Steering wheel is turned.

EC-894

[QG (WITHOUT EURO-OBD)]

POWER STEERING PRESSURE SENSOR

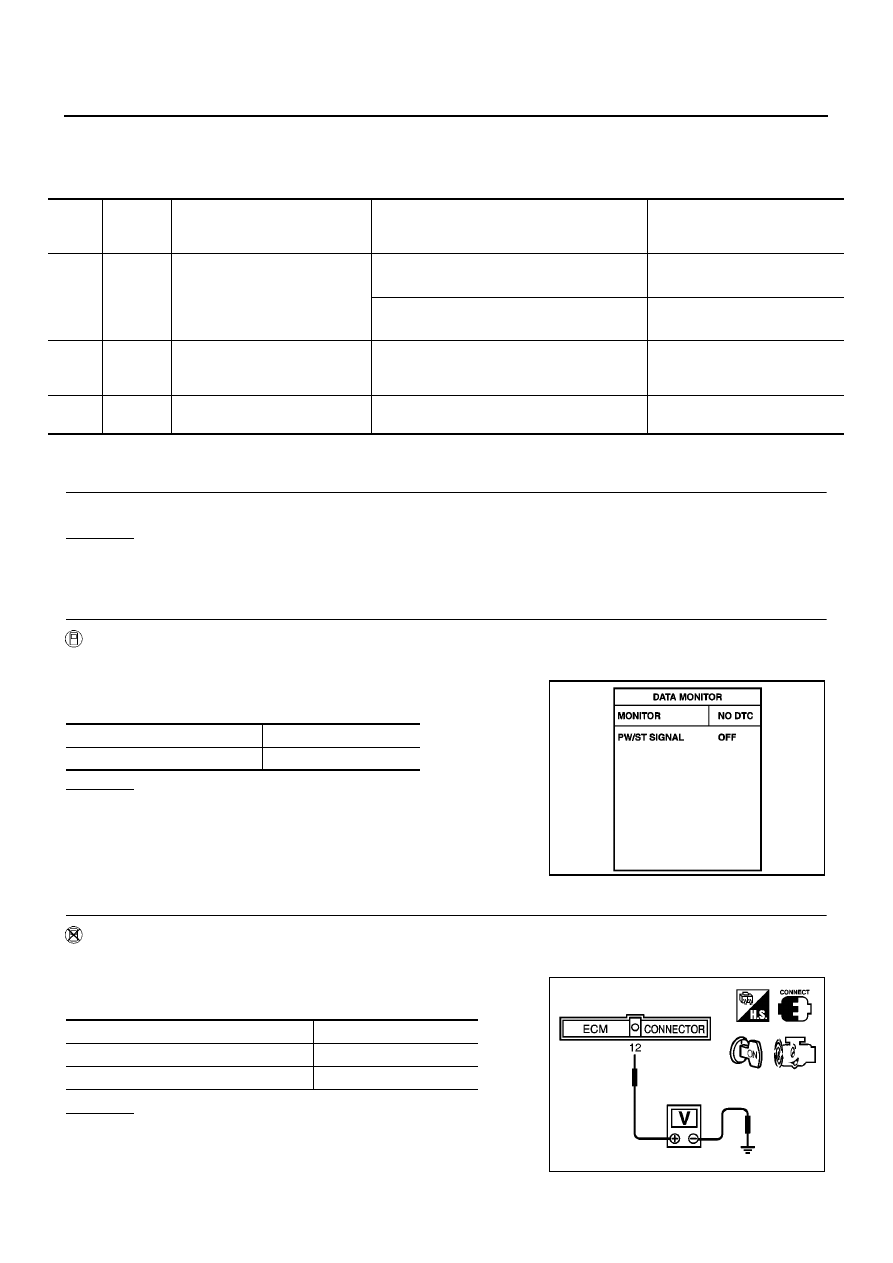

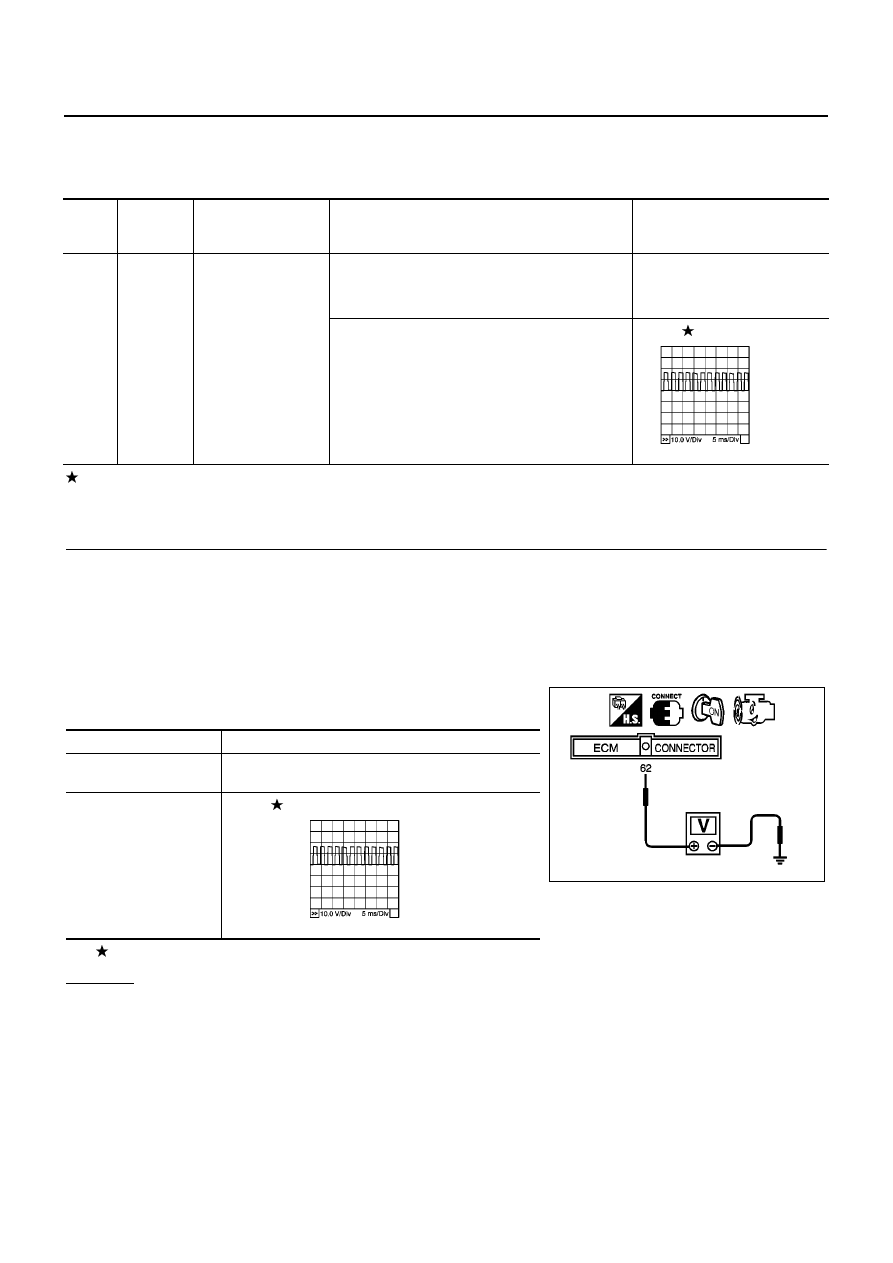

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00R3A

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

>> GO TO 2.

>> GO TO 3.

CHECK POWER STEERING PRESSURE SENSOR OVERALL FUNCTION

With CONSULT-II

Start engine.

Check “PW/ST SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.

OK or NG

>> INSPECTION END

>> GO TO 4.

CHECK POWER STEERING PRESSURE SENSOR OVERALL FUNCTION

Without CONSULT-II

Start engine.

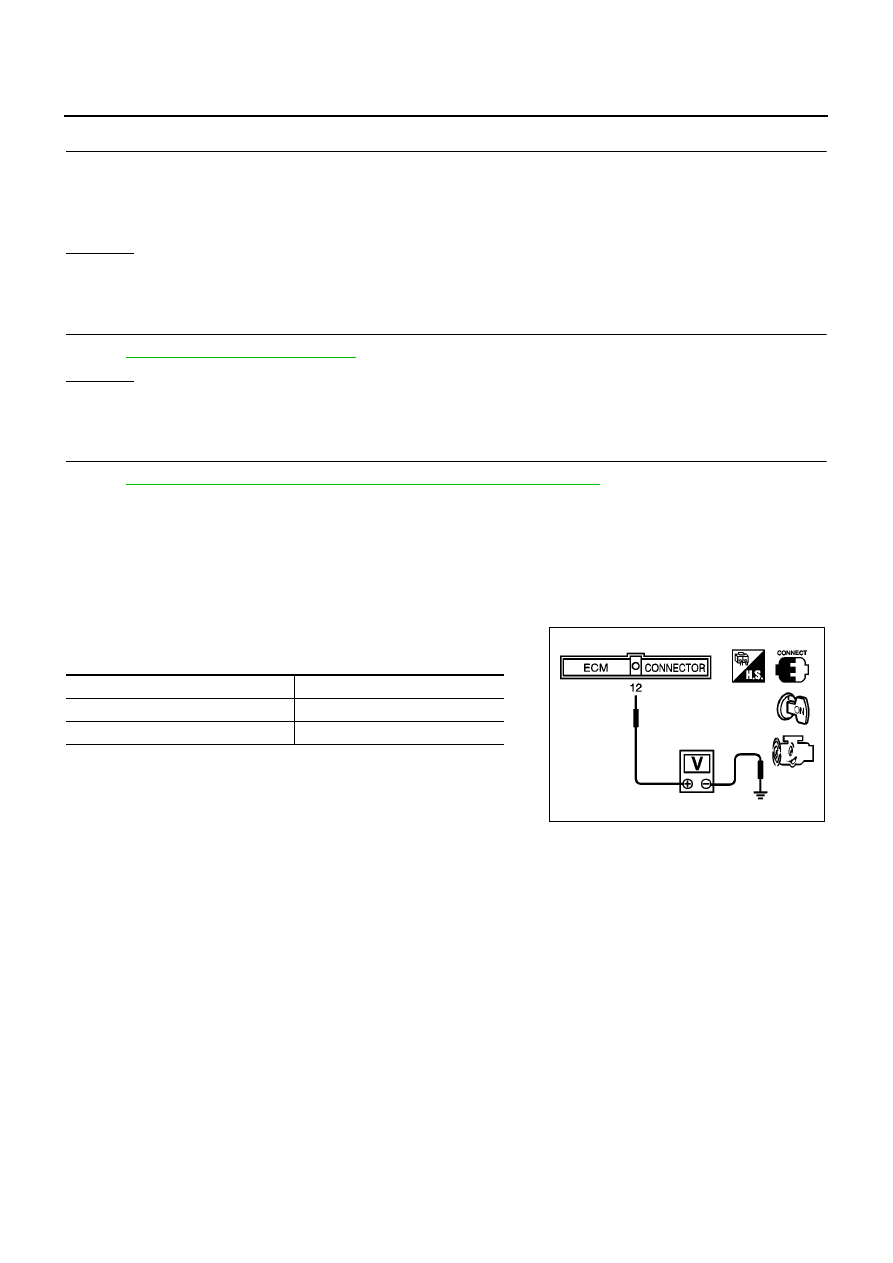

Check voltage between ECM terminal 12 and ground under the
following conditions.

OK or NG

>> INSPECTION END

>> GO TO 4.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Power steering pressure sensor

[Engine is running]

●

Steering wheel is being turned.

0.5 - 4.0V

[Engine is running]

●

Steering wheel is not being turned.

0.4 - 0.8V

Sensors' ground
(Power steering pressure sensor/
Refrigerant pressure sensor)

[Engine is running]

●

Idle speed

Approximately 0V

Sensor power supply (Power
steering pressure sensor)

[Ignition switch “ON”]

Approximately 5V

Steering in neutral position

OFF

Steering is turned

PBIB0646E

Condition

Voltage

Steering wheel is being turned.

0.5 - 4.0V

Steering wheel is not being turned.

0.4 - 0.8V

MBIB0126E

POWER STEERING PRESSURE SENSOR

EC-895

[QG (WITHOUT EURO-OBD)]

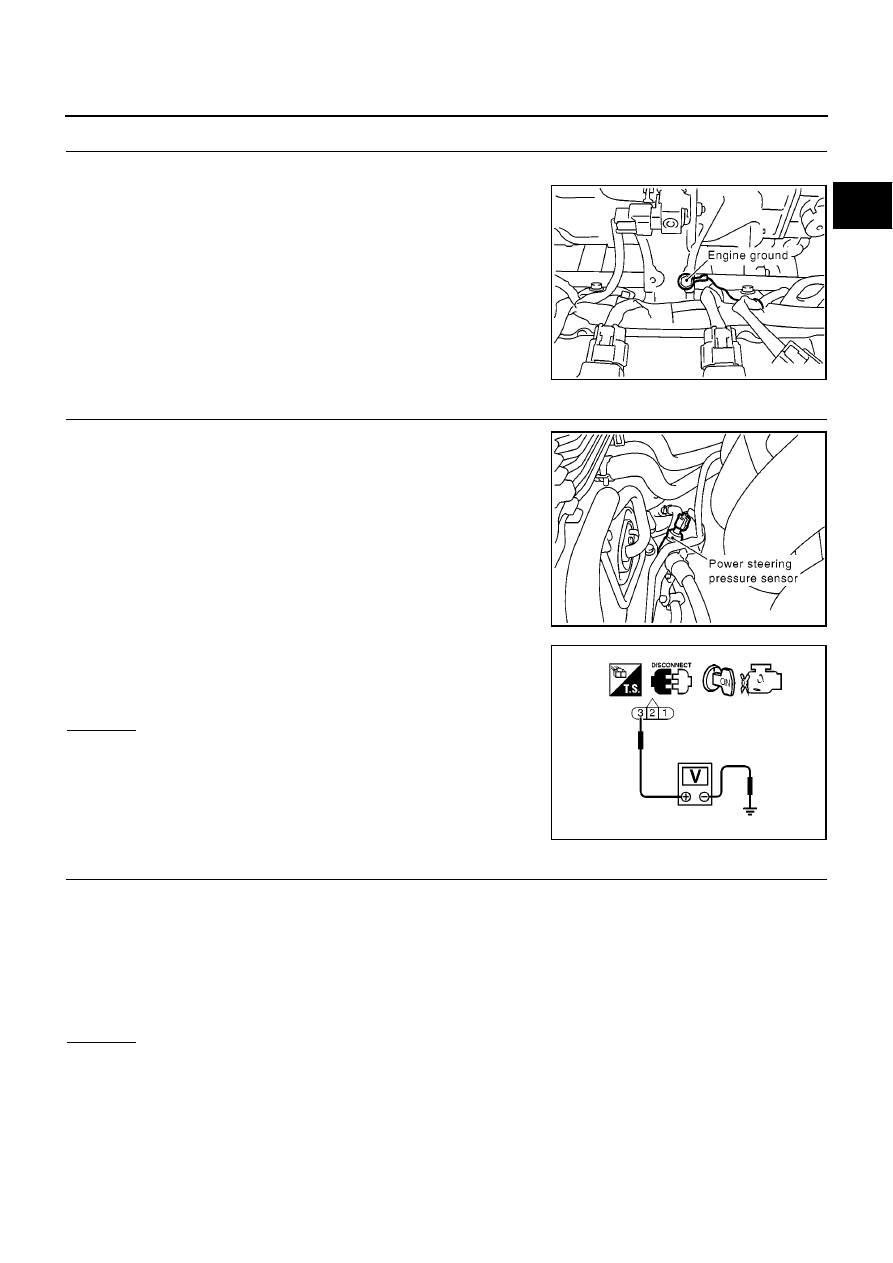

RETIGHTEN GROUND SCREWS

Turn ignition switch “OFF”.

Loosen and retighten engine ground screws.

>> GO TO 5.

CHECK PSP SENSOR POWER SUPPLY CIRCUIT

Disconnect PSP sensor harness connector.

Turn ignition switch “ON”.

Check voltage between PSP sensor terminal 3 and ground with
CONSULT-II or tester.

OK or NG

>> GO TO 6.

>> Repair open circuit or short to ground or short to power

in harness or connectors.

CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

Turn ignition switch “OFF”.

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 57 and PSP sensor terminal 1.

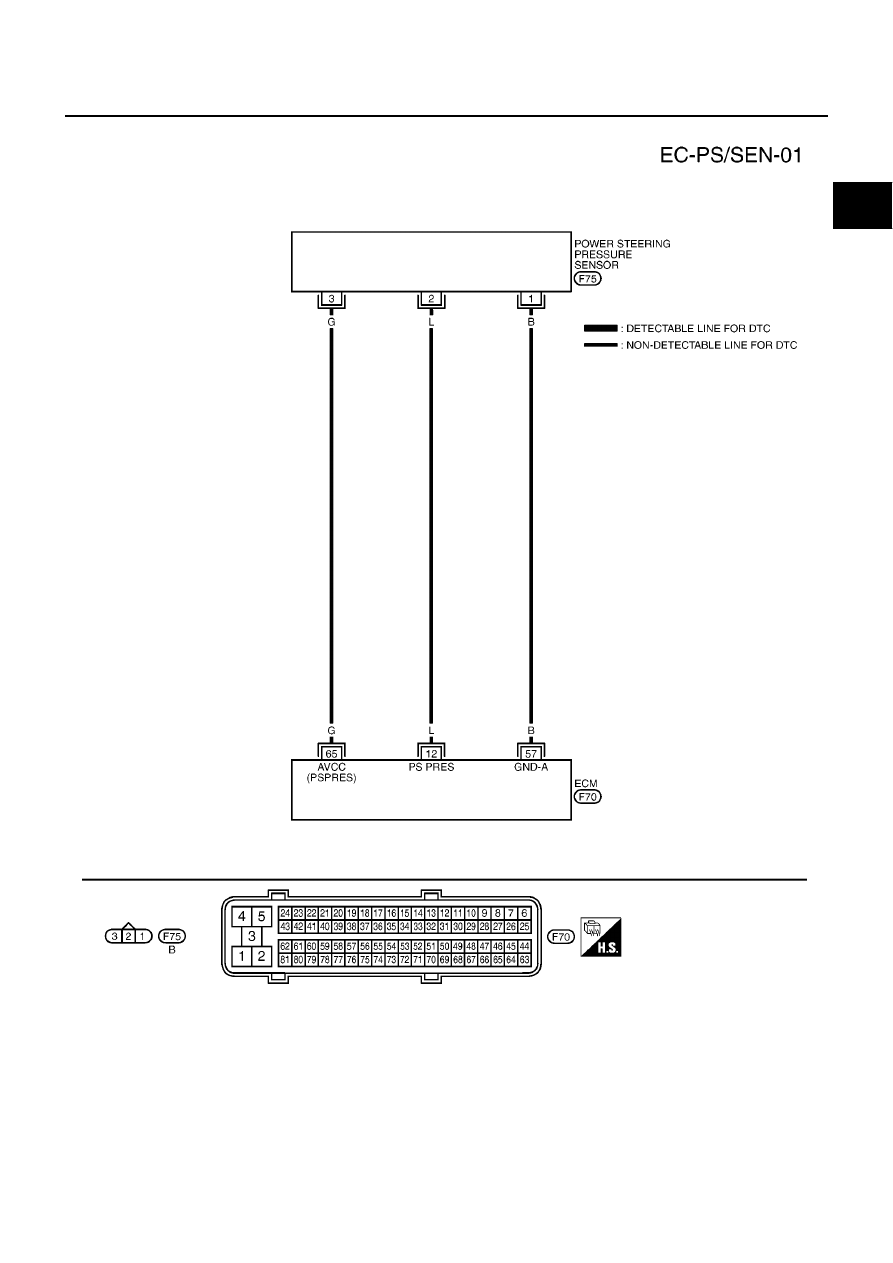

Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 7.

>> Repair open circuit or short to ground or short to power in harness or connectors.

MBIB0095E

MBIB1006E

Voltage: Approximately 5V

SEF509Y

Continuity should exist.

EC-896

[QG (WITHOUT EURO-OBD)]

POWER STEERING PRESSURE SENSOR

CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Check harness continuity between ECM terminal 12 and PSP sensor terminal 2.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 8.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK PSP SENSOR

Refer to

EC-896, "Component Inspection"

OK or NG

>> GO TO 9.

>> Replace PSP sensor.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Component Inspection

EBS00R3B

POWER STEERING PRESSURE SENSOR

Reconnect all harness connectors disconnected.

Start engine and let it idle.

Check voltage between ECM terminal 12 and ground under the
following conditions.

Continuity should exist.

Condition

Voltage

Steering wheel is being turned fully.

0.5 - 4.0V

Steering wheel is not being turned.

0.4 - 0.8V

MBIB0025E

IVT CONTROL SOLENOID VALVE

EC-897

[QG (WITHOUT EURO-OBD)]

IVT CONTROL SOLENOID VALVE

PFP:23796

Description

EBS00R3C

SYSTEM DESCRIPTION

*: This signal is sent to the ECM through CAN communication line.

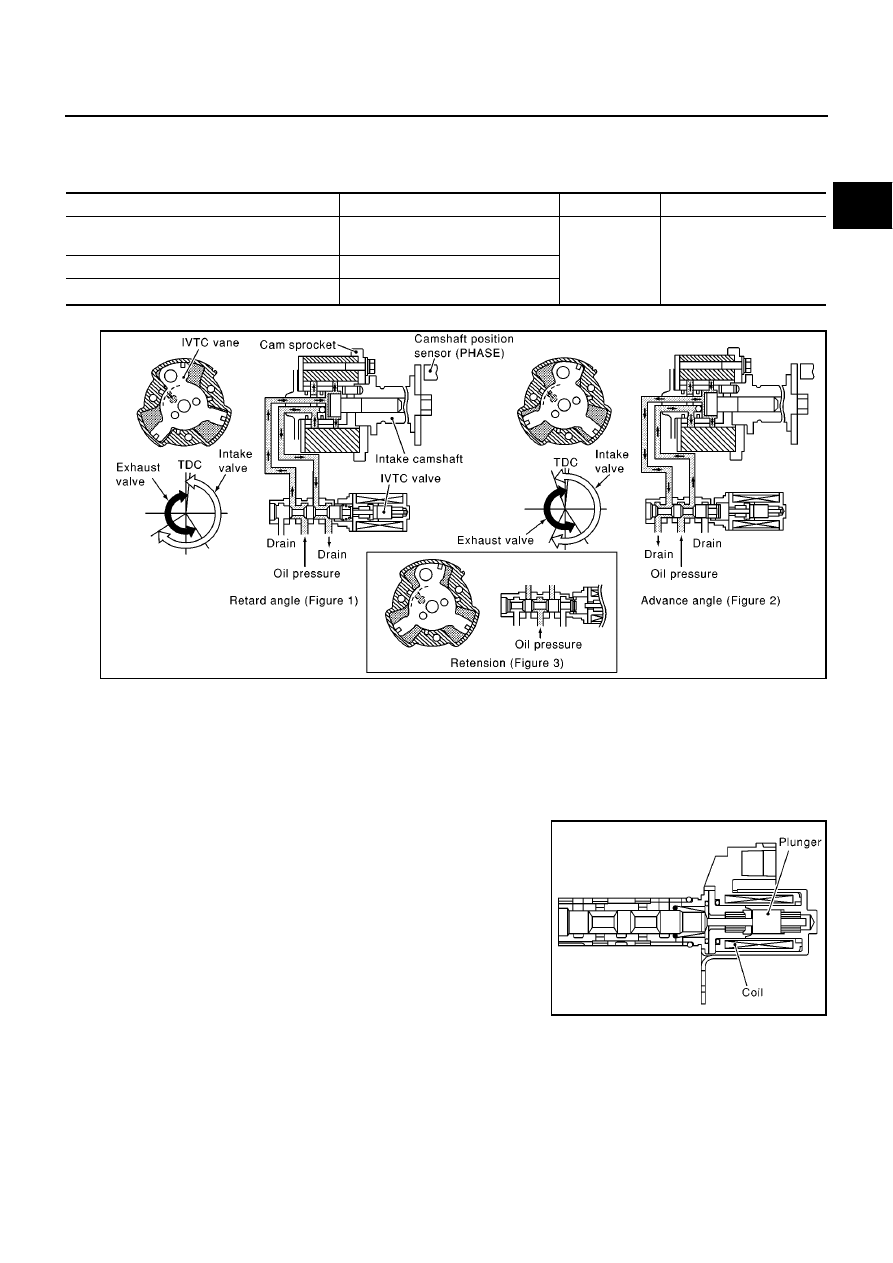

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.

COMPONENT DESCRIPTION

Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R3D

Specification data are reference values.

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

Intake valve
timing control

Intake valve timing control
solenoid valve

Engine coolant temperature sensor

Engine coolant temperature

Vehicle speed signal

Vehicle speed

MBIB0121E

PBIB0195E

EC-898

[QG (WITHOUT EURO-OBD)]

IVT CONTROL SOLENOID VALVE

MONITOR ITEM

CONDITION

SPECIFICATION

INT/V TIM (B1)

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

−

- 5

When revving engine up to 2,000 rpm
quickly

Approx. 0

- 30

INT/V SOL (B1)

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

0% - 2%

When revving engine up to 2,000 rpm
quickly

Approx. 0% - 60%

EC-900

[QG (WITHOUT EURO-OBD)]

IVT CONTROL SOLENOID VALVE

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00R3F

CHECK IVT CONTROL SOLENOID VALVE OVERALL FUNCTION CHECK

Start engine and warm it up to normal operating temperature.

Turn ignition switch “OFF” and wait at least 10 seconds.

Turn ignition switch “ON”.

Set the tester probe between ECM terminals 62 (IVT control solenoid valve signal) and ground.

Start engine and let it idle.

Check the voltage under the following conditions.
Verify that the oscilloscope screen shows the signal wave as
shown below.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

OK or NG

>> INSPECTION END

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Y/R

Intake valve timing
control solenoid valve

[Engine is running]

●

Warm-up condition

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

●

Warm-up condition

●

When revving engine up to 2,000 rpm quickly

7 - 10V

PBIB0532E

Conditions

Voltage

At idle

BATTERY VOLTAGE

(11 - 14V)

When revving engine up
to 2,000 rpm quickly

7 - 10V

MBIB0042E

PBIB0532E

IVT CONTROL SOLENOID VALVE

EC-901

[QG (WITHOUT EURO-OBD)]

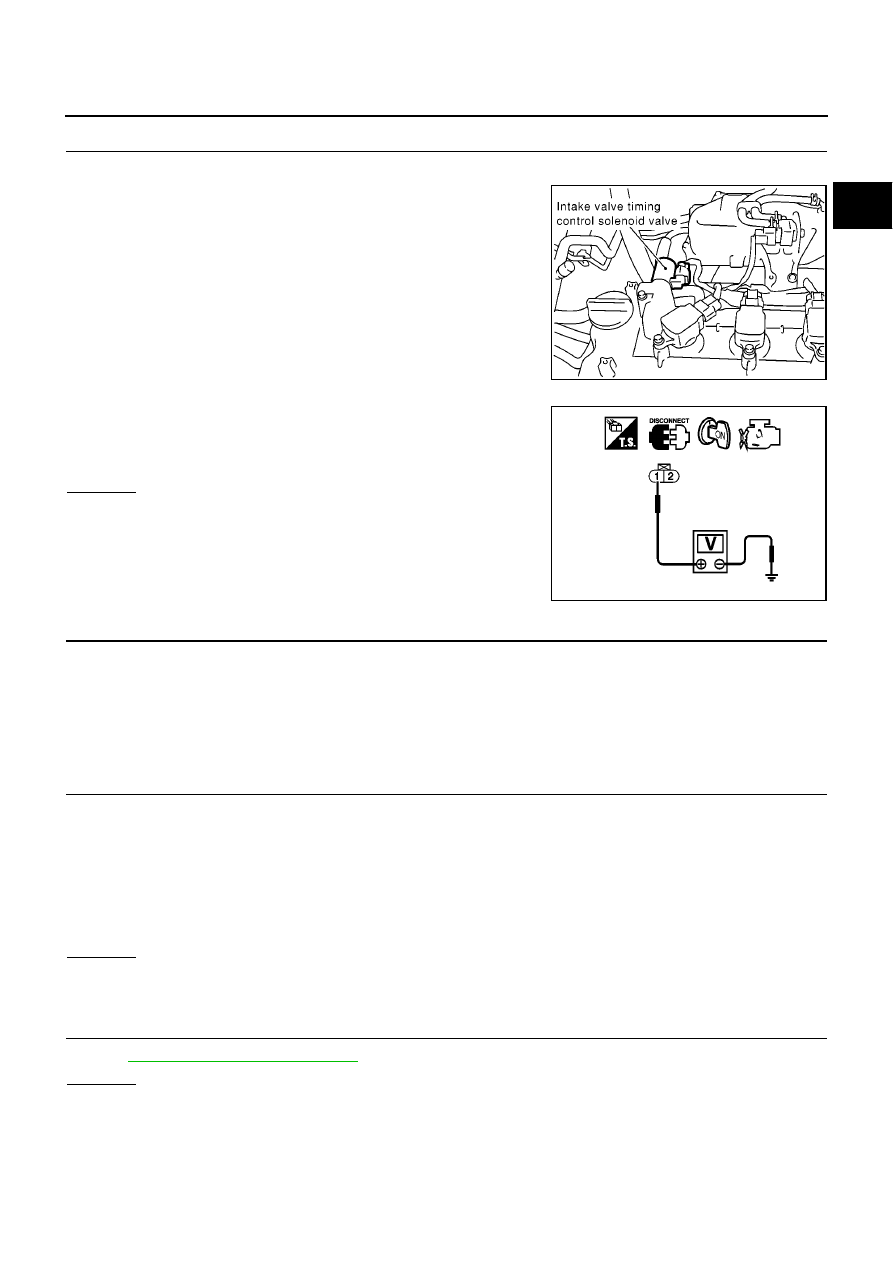

CHECK IVT CONTROL SOLENOID VALVE POWER SUPPLY CIRCIUT

Turn ignition switch “OFF”.

Disconnect intake valve timing control solenoid valve harness
connector.

Turn ignition switch “ON”.

Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.

OK or NG

>> GO TO 4.

>> GO TO 3.

DETECT MALFUNCTION PART

Check the following.

●

Harness connectors M71, F45

●

Harness for open or short between intake valve timing control solenoid valve and ECM relay

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK IVT CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Turn ignition switch “OFF”.

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 62 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 5.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

EC-902, "Component Inspection"

OK or NG

>> GO TO 6.

>> Replace intake valve timing control solenoid valve.

MBIB0106E

Voltage: Battery voltage

PBIB0285E

Continuity should exist.

EC-902

[QG (WITHOUT EURO-OBD)]

IVT CONTROL SOLENOID VALVE

CHECK CRANKSHAFT POSITION SENSOR (POS)

Refer to

EC-743, "Component Inspection"

OK or NG

>> GO TO 7.

>> Replace crankshaft position sensor (POS).

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Refer to

EC-750, "Component Inspection"

OK or NG

>> GO TO 8.

>> Replace camshaft position sensor (PHASE).

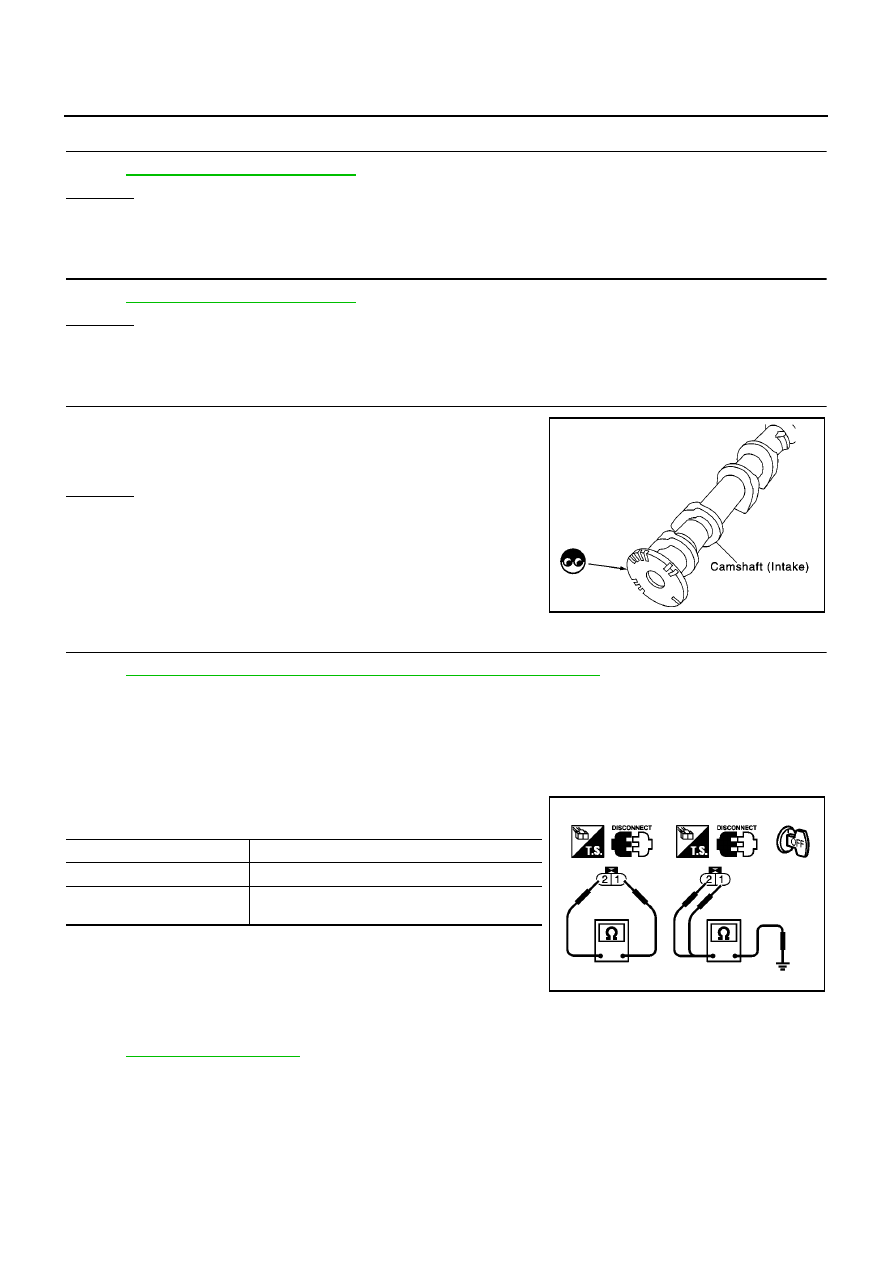

CHECK CAMSHAFT (INTAKE)

Check the following.

●

Accumulation of debris to the signal plate of camshaft rear end

●

Chipping signal plate of camshaft rear end

OK or NG

>> GO TO 9.

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Component Inspection

EBS00R3G

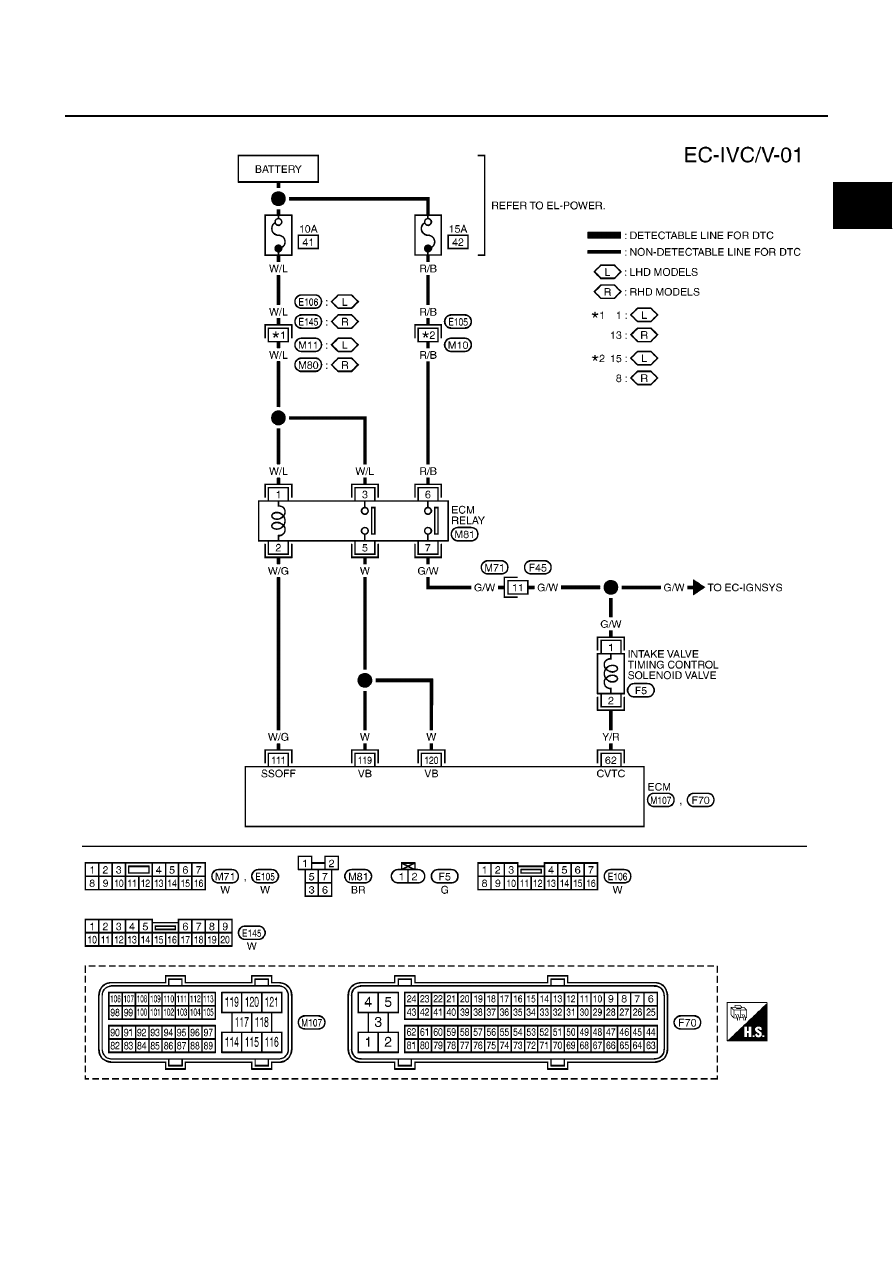

INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Disconnect intake valve timing control solenoid valve harness connector.

Check resistance between intake valve timing control solenoid
valve terminals 1 and 2.

Removal and Installation

EBS00R3H

INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

EM-50, "TIMING CHAIN"

PBIB0565E

Terminals

Resistance

1 and 2

Approximately 8

Ω

at 20

C (68

1 or 2 and ground

∞Ω

(Continuity should not exist)

PBIB0574E

PNP SWITCH

EC-903

[QG (WITHOUT EURO-OBD)]

PNP SWITCH

PFP:32006

Component Description

EBS00R3I

When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R3J

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

●

Ignition switch: ON

Shift lever:
P or N (A/T models)
Neutral (M/T models)

Shift lever: Except above

OFF

PNP SWITCH

EC-905

[QG (WITHOUT EURO-OBD)]

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00R3L

CHECK OVERALL FUNCTION

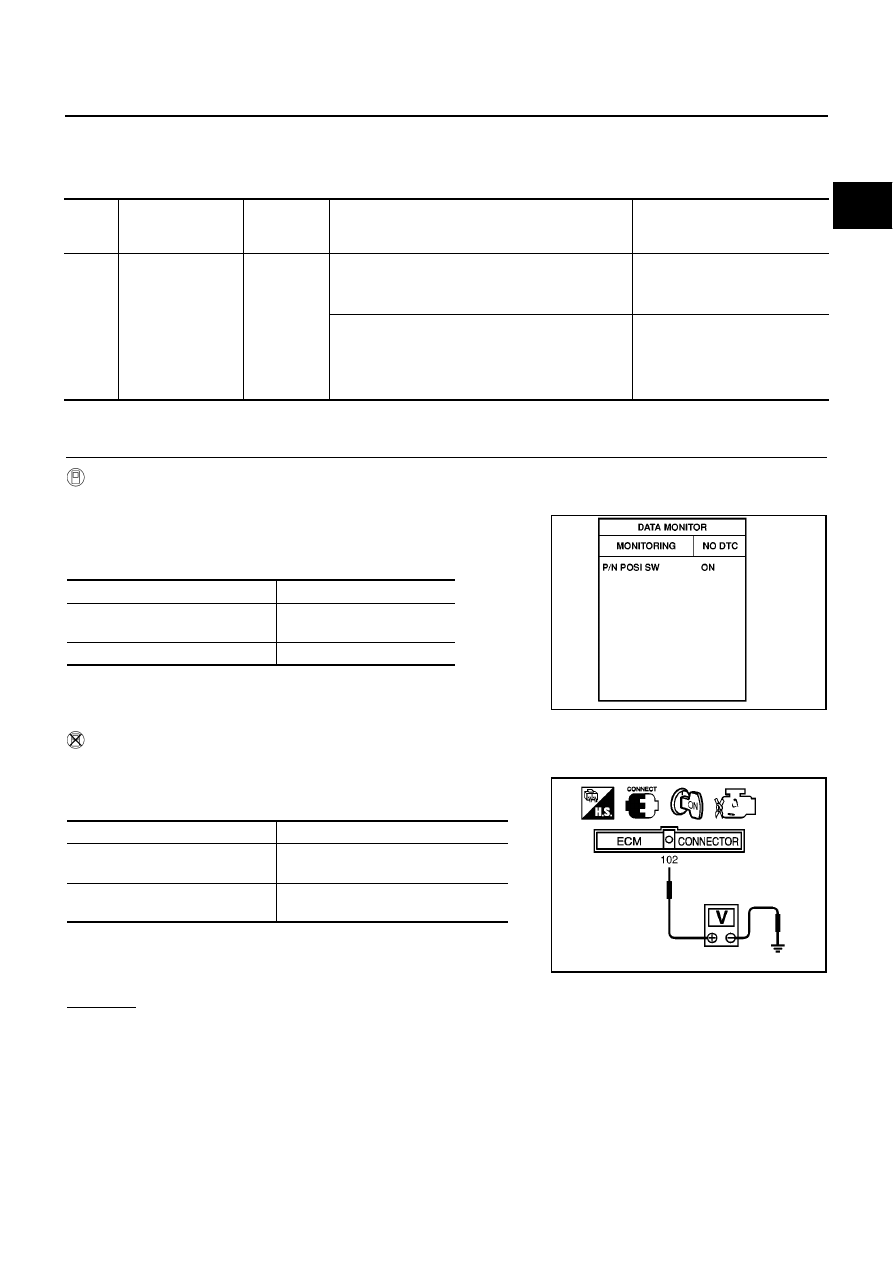

With CONSULT-II

Turn ignition switch “ON”.

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.

Check the “P/N POSI SW” signal under the following conditions.

Without CONSULT-II

Turn ignition switch “ON”.

Check voltage between ECM terminal 102 and ground under the
following conditions.

OK or NG

>> INSPECTION END

>> GO TO 2.

TER-

MINAL

NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

102

P (A/T models)
G/OR (M/T models)

PNP switch

[Ignition switch “ON”]

●

Shift lever position is “P” or “N” (A/T models),
“Neutral” (M/T models).

Approximately 0V

[Ignition switch “ON”]

●

Except the above gear position

A/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V

Selector lever position

P/N POSI SW signal

“P” and “N” position (A/T models)
Neutral position (M/T models)

Except the above position

OFF

PBIB0102E

Selector lever position

Voltage

“P” and “N” position (A/T models)
Neutral position (M/T models)

Approximately 0V

Except the above position

A/T models: Battery voltage

M/T models: Approximately 5V

MBIB0043E

EC-906

[QG (WITHOUT EURO-OBD)]

PNP SWITCH

CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

Turn ignition switch “OFF”.

Disconnect PNP switch harness connector.

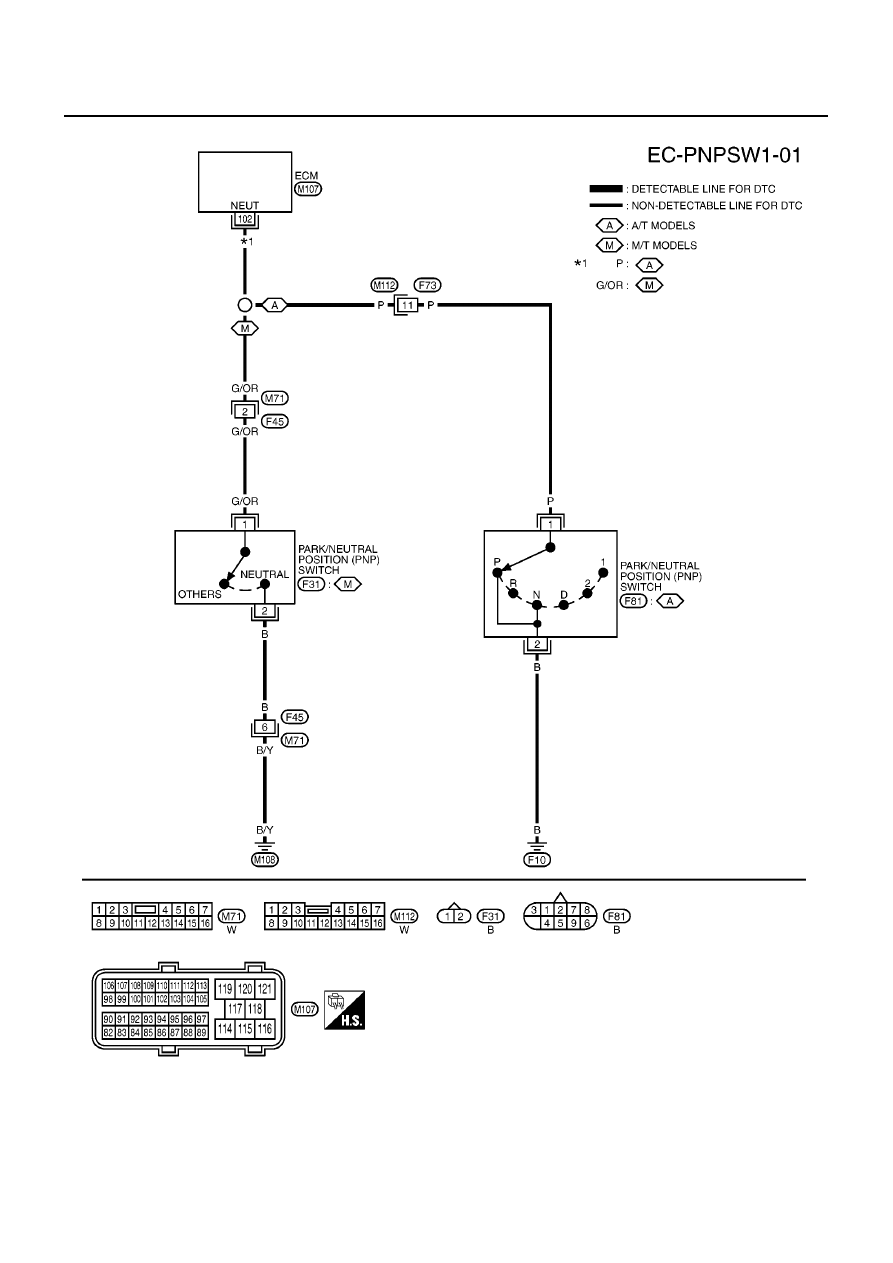

Check harness continuity between PNP switch terminal 2 and
body ground. Refer to Wiring Diagram.

Also check harness for short to power.

OK or NG

>> GO TO 4.

>> GO TO 3. (M/T models)

>> Repair open circuit or short to power in harness or con-

nectors. (A/T models)

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M71, F45

●

Harness for open or short between Park/Neutral position (PNP) switch and ground

>> Repair open circuit or short to power in harness or connectors.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 102 and PNP switch terminal 1.
Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 6.

>> GO TO 5.

Check the following.

●

Harness connectors M112, F73 (A/T models)

●

Harness connectors M71, F45 (M/T models)

●

Harness for open or short between Park/Neutral position (PNP) switch and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK PNP SWITCH

Refer to

AT-410, "ON-VEHICLE SERVICE"

(A/T models) or “PNP SWITCH”, MT-17 (5MT) (M/T models).

OK or NG

>> GO TO 7.

>> Replace PNP switch.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Continuity should exist.

MBIB0110E

Continuity should exist.

Almera Tino V10 (2003 year). Manual - part 117
