Almera Tino V10 (2003 year). Manual - part 113





HO2S1 HEATER (A/T MODELS)

EC-827

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CHECK HEATED OXYGEN SENSOR 1 HEATER

Refer to

EC-827, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace heated oxygen sensor 1.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

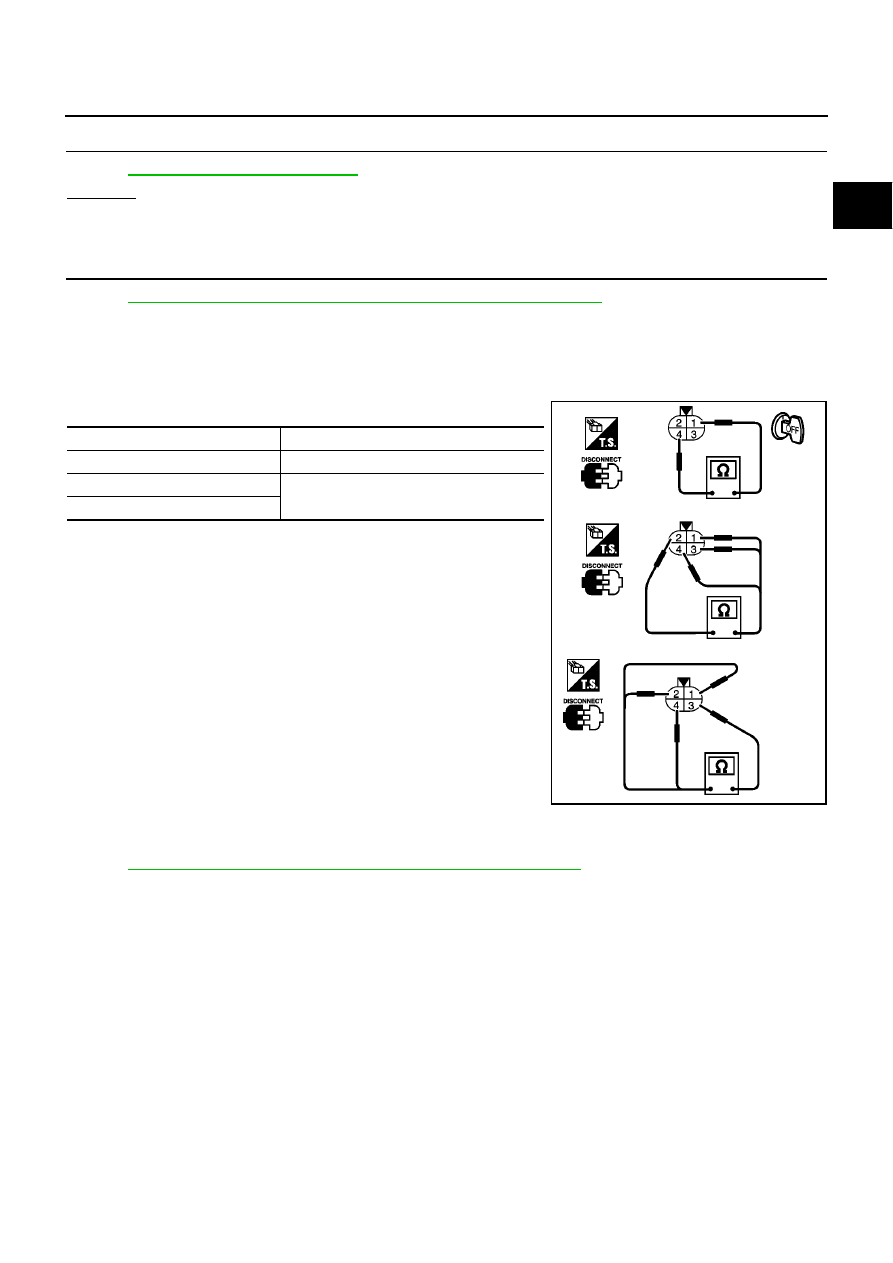

Component Inspection

EBS00R1N

HEATED OXYGEN SENSOR 1 HEATER

1.

Check resistance between HO2S1 terminals as follows.

2.

If NG, replace heated oxygen sensor 1.

CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.

Removal and Installation

EBS00R1O

HEATED OXYGEN SENSOR 1

Refer to

EM-21, "EXHAUST MANIFOLD AND CATALYTIC CONVERTER"

.

Terminal No.

Resistance

1 and 4

8 - 10

at 25

°

C (77

°

F)

2 and 3, 4

∞ Ω

(Continuity should not exist)

3 and 1, 2, 4

PBIB0542E

EC-828

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (M/T MODELS)

HO2S2 HEATER (M/T MODELS)

PFP:226A0

Description

EBS00R1P

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.

OPERATION

CONSULT-II Reference Value in Data Monitor Mode

EBS00R1Q

Specification data are reference values.

Sensor

Input Signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2 heater

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed rpm

Heated oxygen sensor 2 heater

Above 3,800

OFF

Below 3,800 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for
one minute and at idle for one minute under no load

ON

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)

Engine speed: Below 3,800 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for one
minute and at idle for one minute under no load

ON

Engine speed: Above 3,800 rpm

OFF

HO2S2 HEATER (M/T MODELS)

EC-829

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

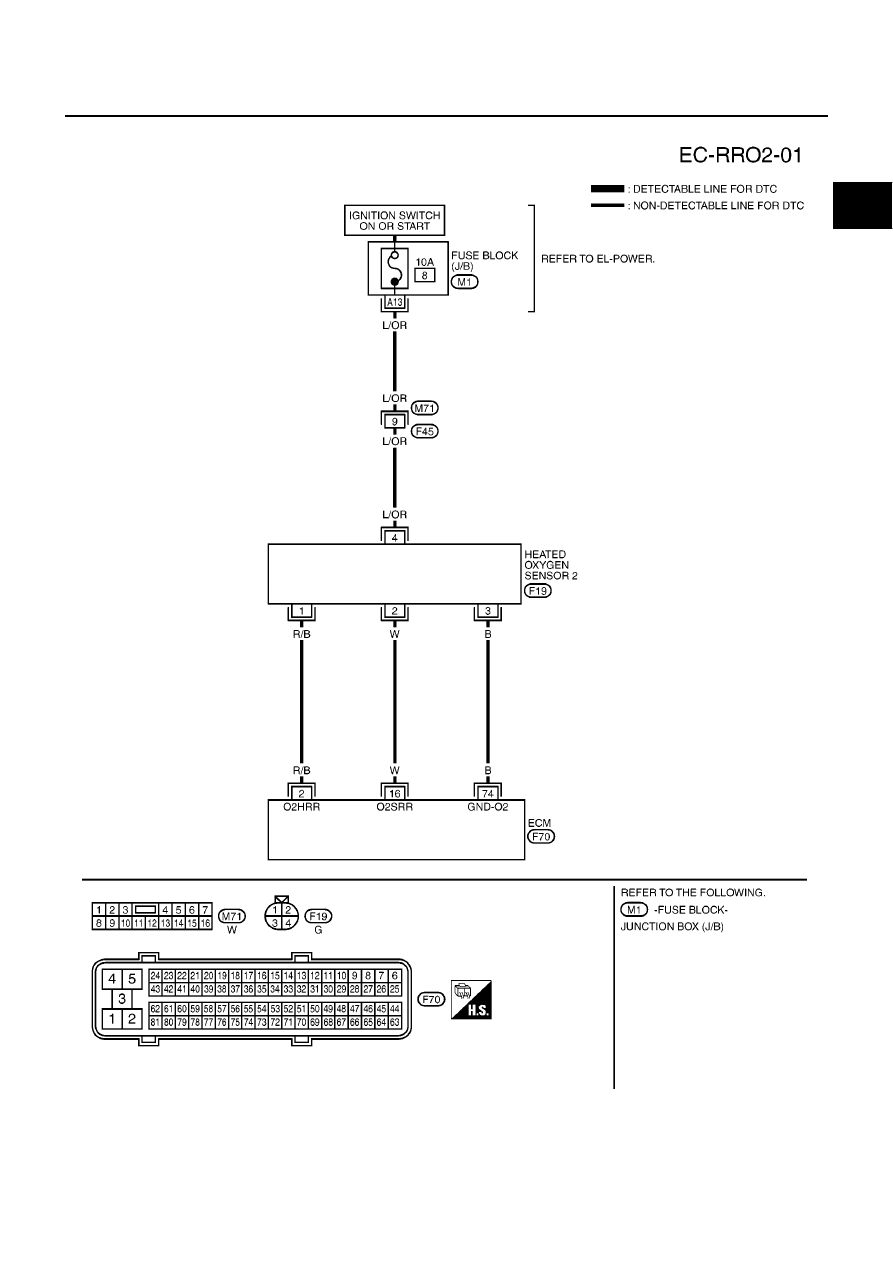

Wiring Diagram

EBS00R1R

YEC485A

EC-830

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (M/T MODELS)

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

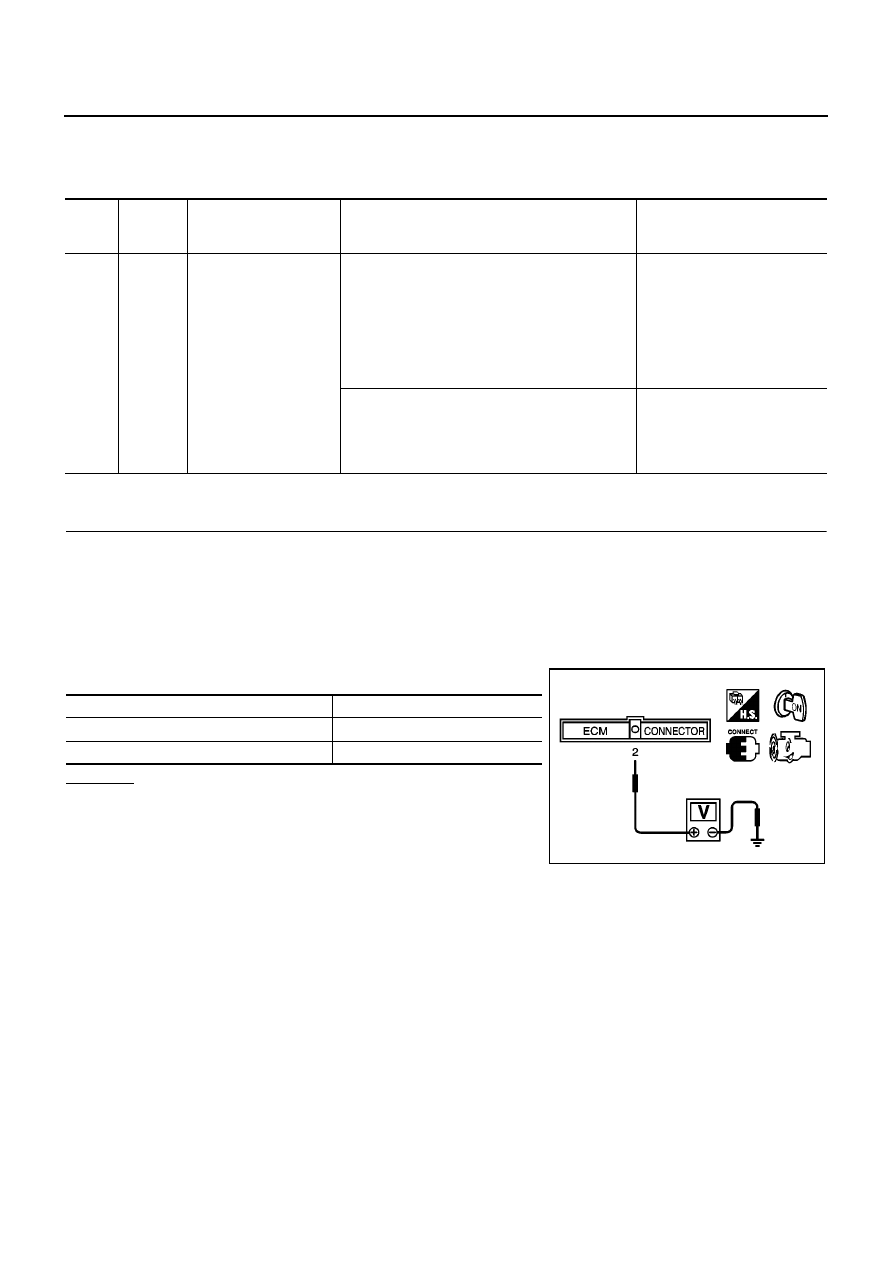

Diagnostic Procedure

EBS00R1S

1.

CHECK OVERALL FUNCTION CHECK

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.

4.

Let engine idle for one minute.

5.

Set the voltmeter probe between ECM terminal 2 (HO2S2 heater signal) and ground.

6.

Check the voltage under the following conditions.

OK or NG

OK

>> INSPECTION END.

NG

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

R/B

Heated oxygen sensor 2
heater

[Engine is running]

Engine speed: Below 3,800 rpm after the follow-
ing conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load.

0 - 1.0V

[Ignition switch “ON”]

Engine stopped

[Engine is running]

Engine speed is above 3,800 rpm.

BATTERY VOLTAGE
(11 - 14V)

Conditions

Voltage

At idle

0 - 1V

Engine speed is above 3,800 rpm

Battery voltage

PBIB0673E

HO2S2 HEATER (M/T MODELS)

EC-831

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

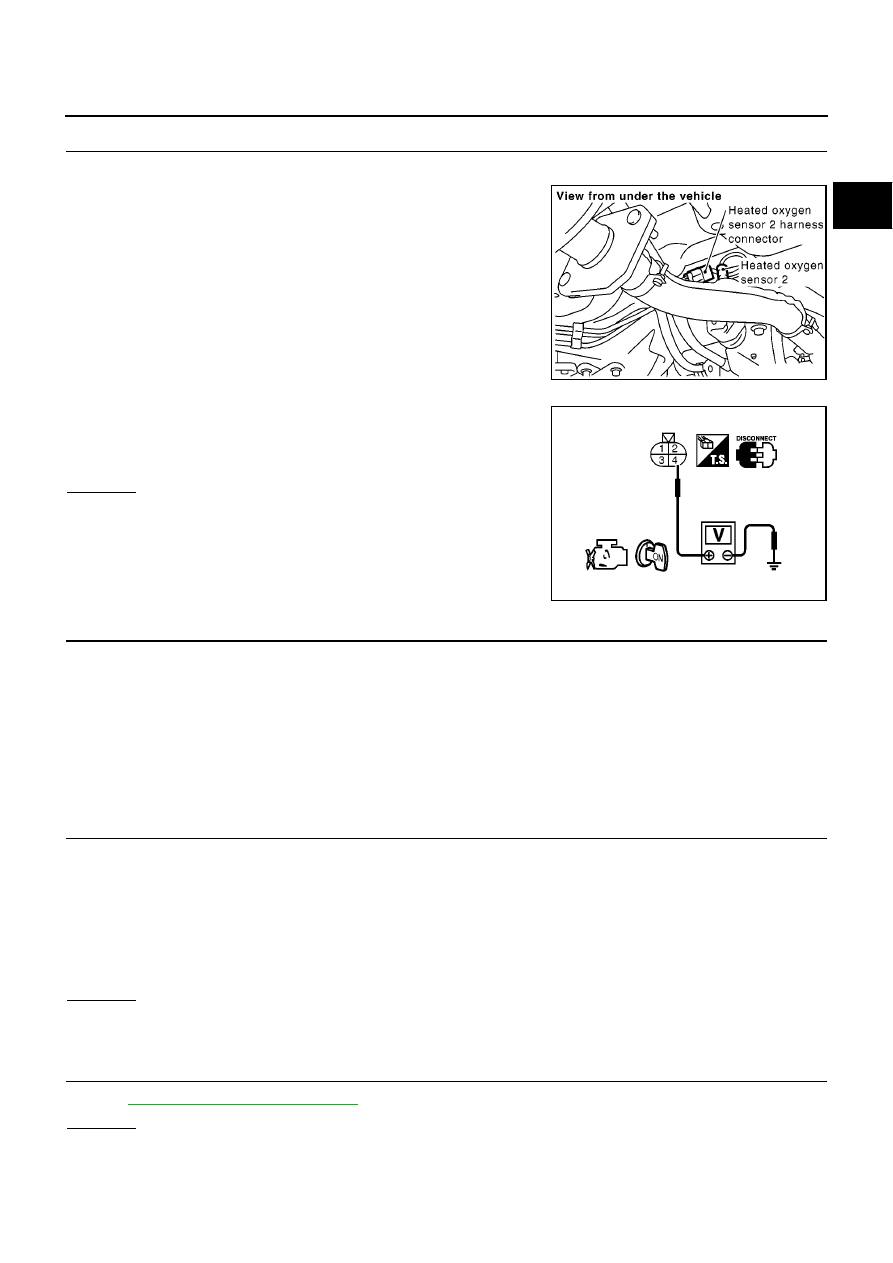

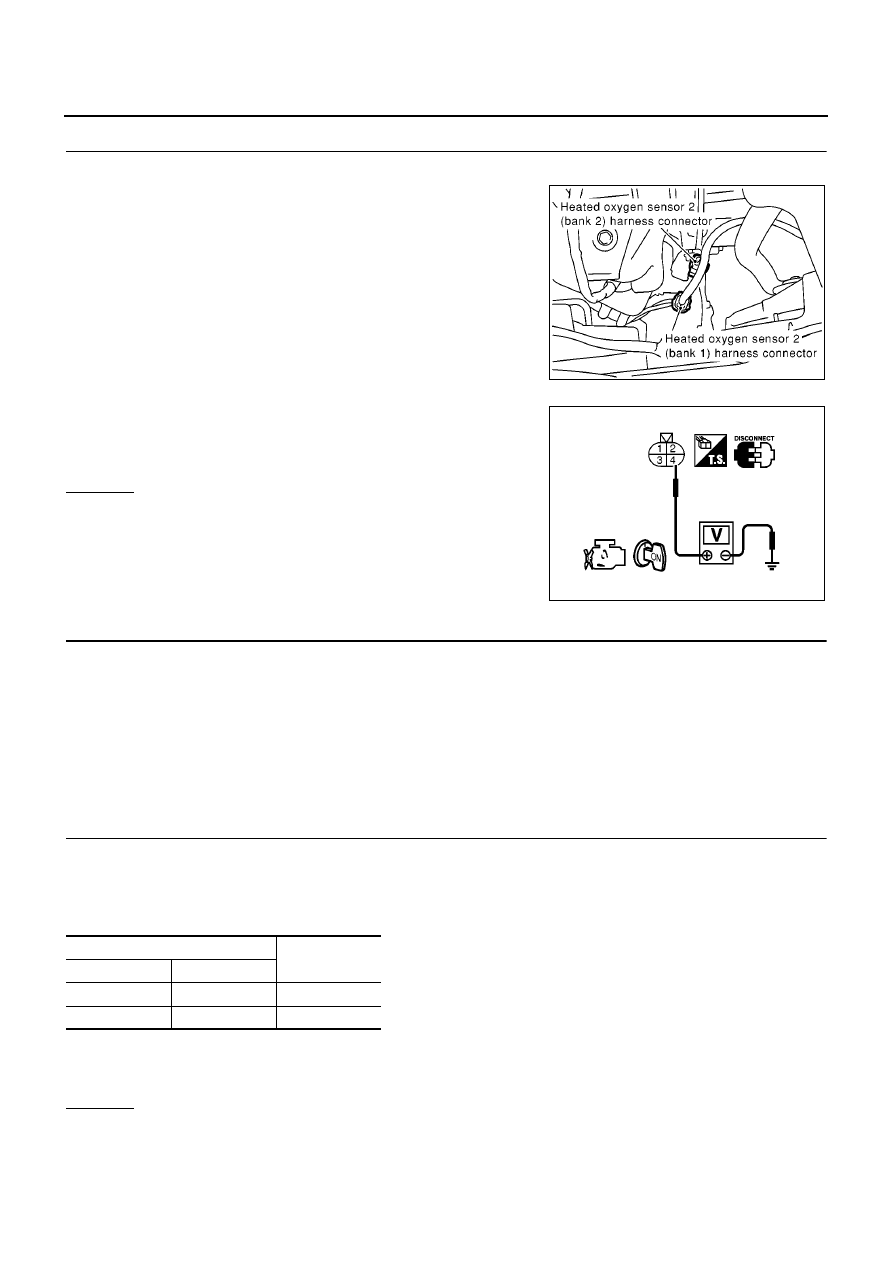

2.

CHECK HO2S2 POWER SUPPLY CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect heated oxygen sensor 2 harness connector.

3.

Turn ignition switch “ON”.

4.

Check voltage between HO2S2 terminal 4 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 2 and HO2S2 terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK HEATED OXYGEN SENSOR 2 HEATER

Refer to

EC-832, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace heated oxygen sensor 2.

MBIB0256E

Voltage: Battery voltage

PBIB0541E

Continuity should exist.

EC-832

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (M/T MODELS)

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

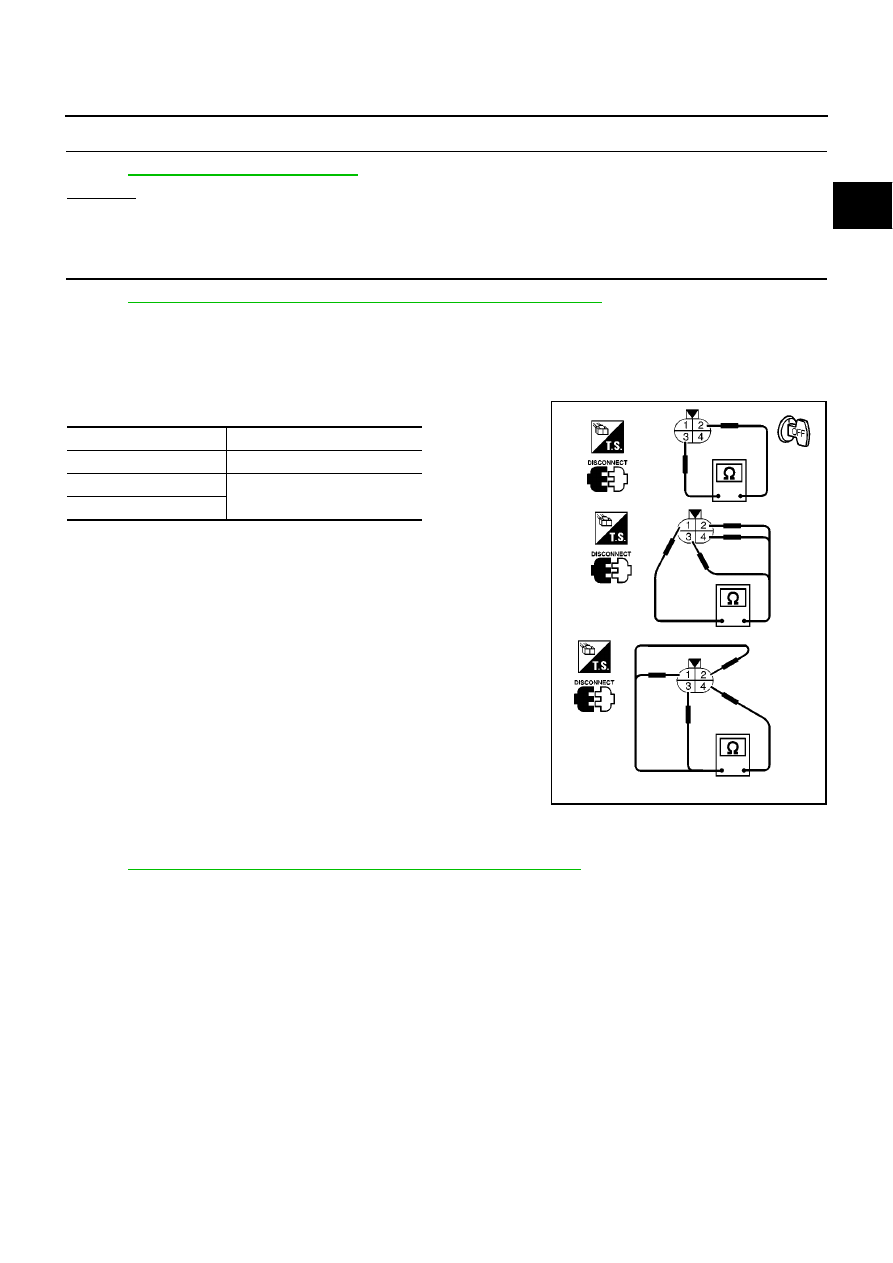

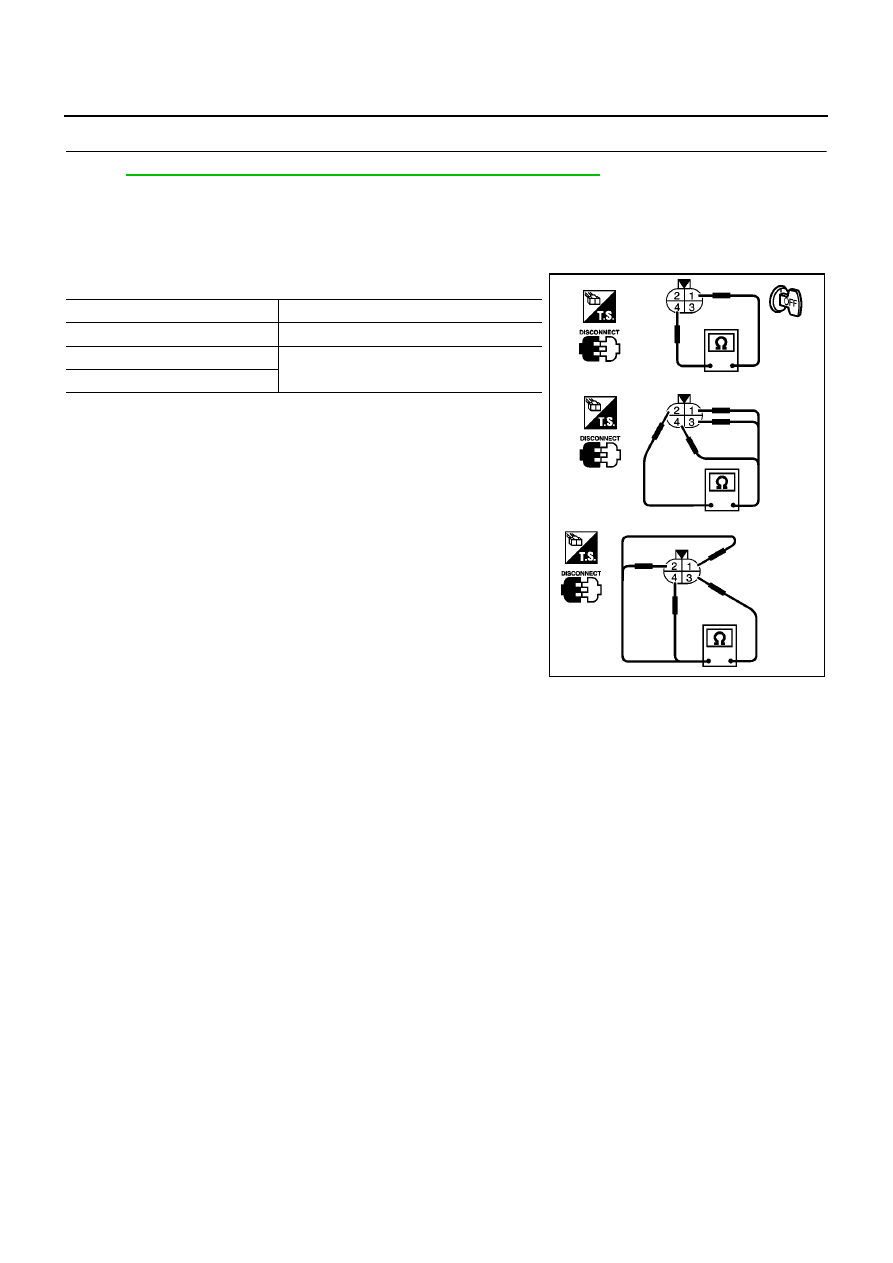

Component Inspection

EBS00R1T

HEATED OXYGEN SENSOR 2 HEATER

1.

Check resistance between HO2S2 terminals as follows.

2.

If NG, replace heated oxygen sensor 2.

CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.

Removal and Installation

EBS00R1U

HEATED OXYGEN SENSOR 2

Refer to “EXHAUST SYSTEM”, FE-11.

Terminal No.

Resistance

1 and 4

5.0 - 7.0

at 25

°

C (77

°

F)

2 and 1, 3, 4

∞ Ω

(Continuity should not exist)

3 and 1, 2, 4

PBIB0542E

HO2S2 HEATER (A/T MODELS)

EC-833

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

HO2S2 HEATER (A/T MODELS)

PFP:226A0

Description

EBS00R1V

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heaters corresponding to the engine
speed, amount of intake air and engine coolant temperature.

OPERATION

CONSULT-II Reference Value in Data Monitor Mode

EBS00R1W

Specification data are reference values.

Sensor

Input Signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2
heaters

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed rpm

Heated oxygen sensor 2 heaters

Above 3,600

OFF

Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for
one minute and at idle for one minute under no load

ON

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)
HO2S2 HTR (B2)

Ignition switch: ON (Engine stopped)

Engine is running above 3,600 rpm.

OFF

Engine speed: Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for one
minute and at idle for one minute under no load

ON

EC-834

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (A/T MODELS)

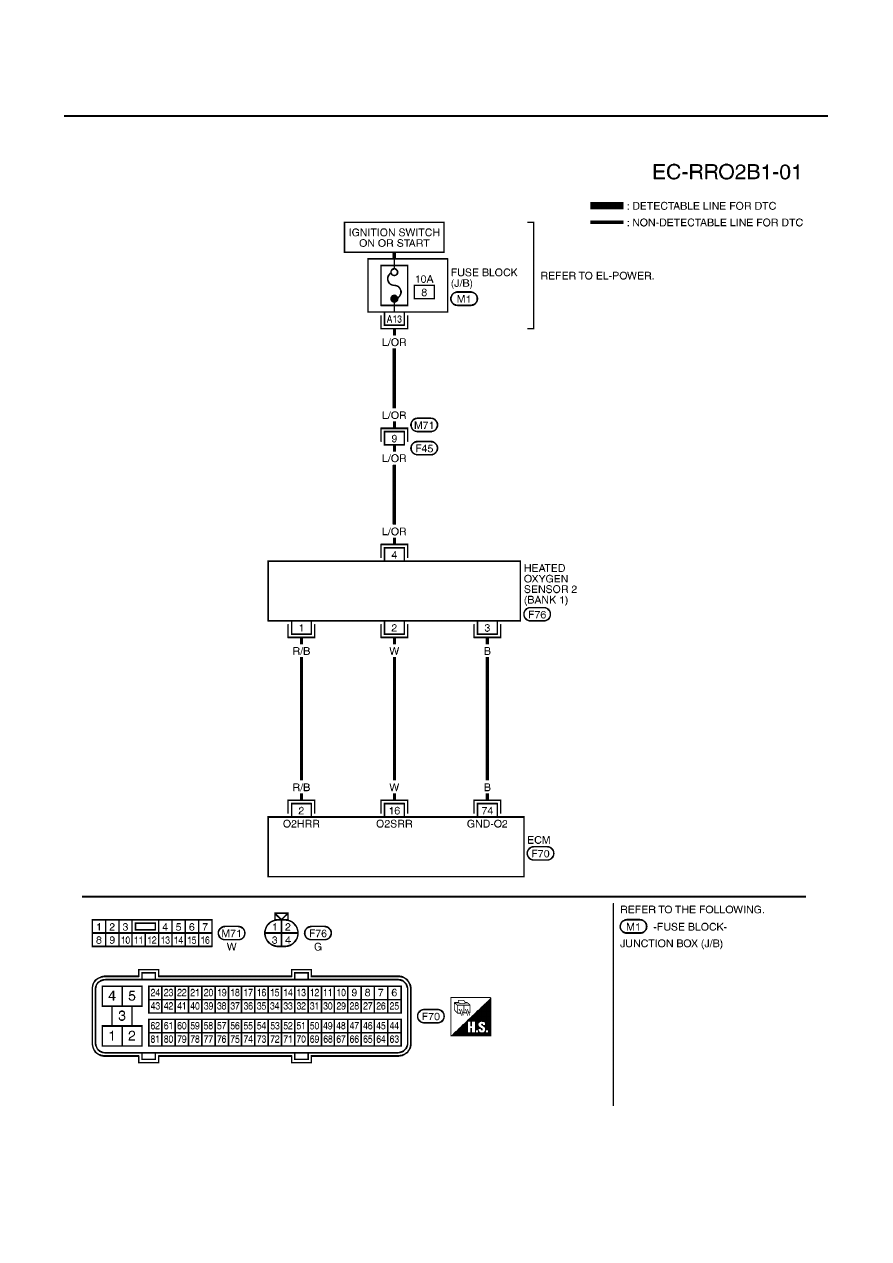

Wiring Diagram

EBS00R1X

BANK 1

YEC486A

HO2S2 HEATER (A/T MODELS)

EC-835

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

R/B

Heated oxygen sensor 2
heater (bank 1)

[Engine is running]

Engine speed: Below 3,600 rpm after the follow-
ing conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load

0 - 1.0V

[Ignition switch “ON”]

Engine stopped

[Engine is running]

Engine speed is above 3,600 rpm.

BATTERY VOLTAGE
(11 - 14V)

EC-836

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (A/T MODELS)

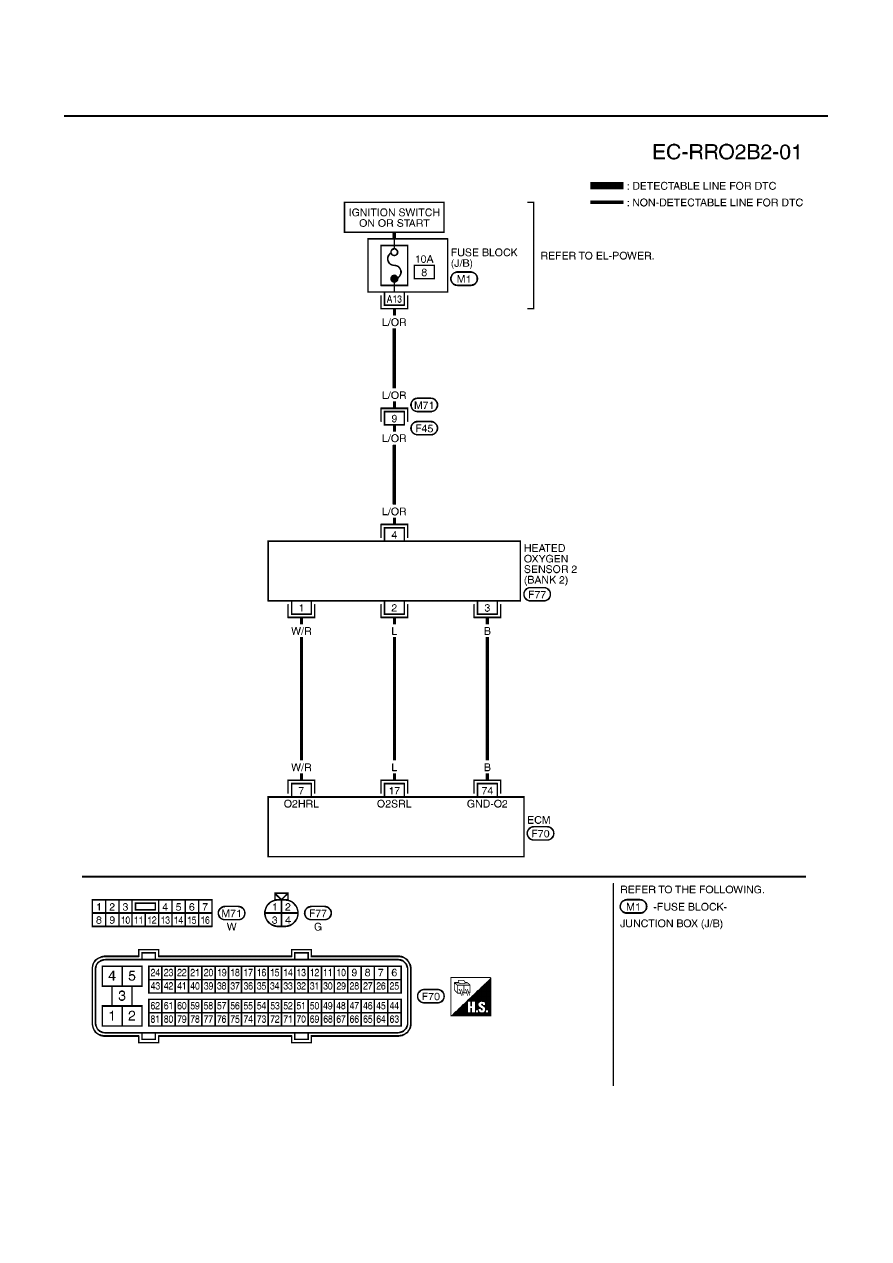

BANK 2

YEC487A

HO2S2 HEATER (A/T MODELS)

EC-837

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and body ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

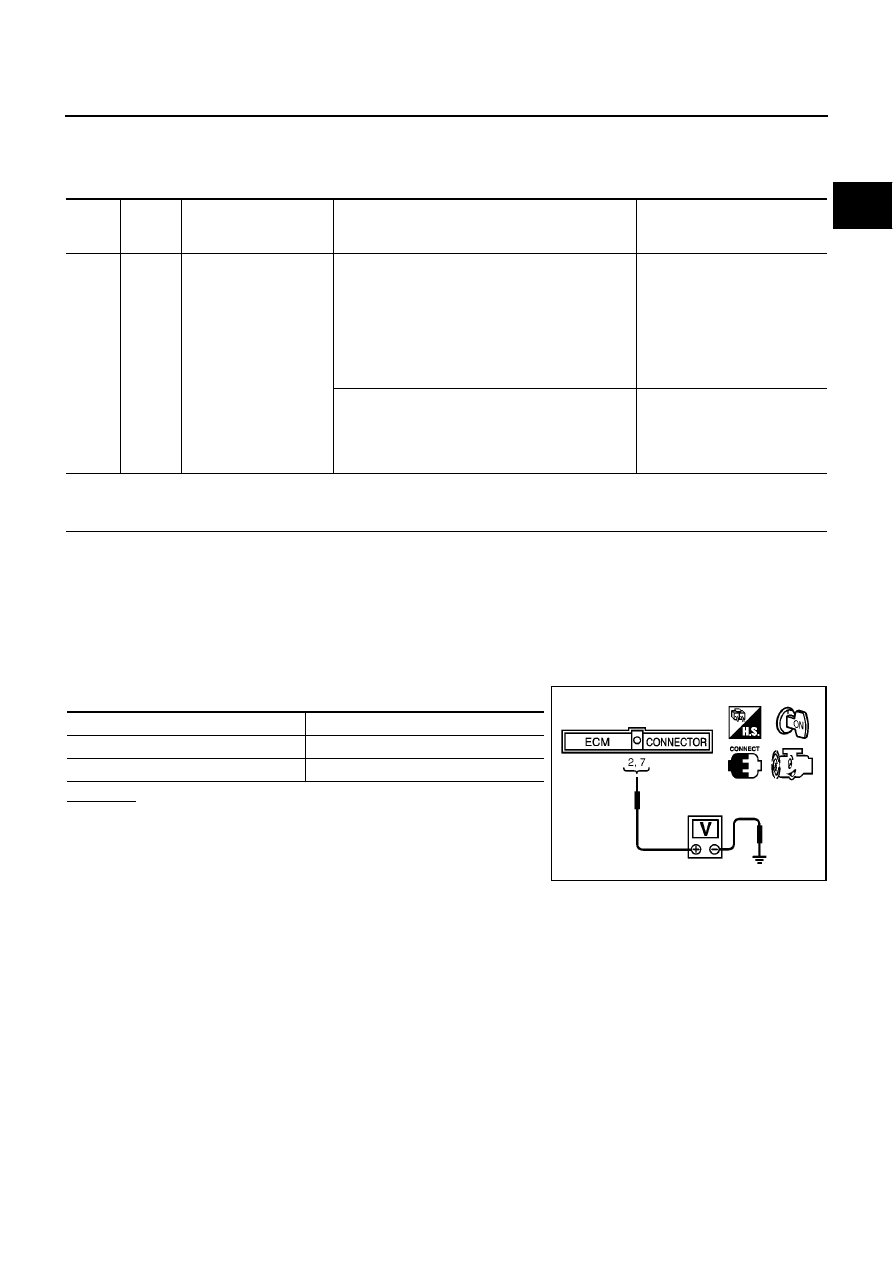

Diagnostic Procedure

EBS00R1Y

1.

CHECK OVERALL FUNCTION

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.

4.

Let engine idle for one minute.

5.

Set voltmeter probes between ECM terminal 2 [HO2S2(B1) heater signal] or 7 [HO2S2(B2) heater signal]
and ground.

6.

Check the voltage under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

7

W/R

Heated oxygen sensor 2
heater (bank 2)

[Engine is running]

Engine speed: Below 3,600 rpm after the follow-
ing conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load

0 - 1.0V

[Ignition switch “ON”]

Engine stopped

[Engine is running]

Engine speed is above 3,600 rpm.

BATTERY VOLTAGE
(11 - 14V)

Conditions

voltage

At idle

0 - 1V

Engine speed is above 3,600 rpm.

Battery voltage

MBIB0040E

EC-838

[QG (WITHOUT EURO-OBD)]

HO2S2 HEATER (A/T MODELS)

2.

CHECK HO2S2 POWER SUPPLY CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect heated oxygen sensor 2 harness connector.

3.

Turn ignition switch “ON”.

4.

Check voltage between HO2S2 terminal 4 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

MBIB0094E

Voltage:

Battery voltage

PBIB0541E

Terminals

Bank

ECM

Sensor

7

1

1

2

1

2

Continuity should exist.

HO2S2 HEATER (A/T MODELS)

EC-839

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CHECK HEATED OXYGEN SENSOR 2 HEATER

Refer to

EC-839, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace malfunctioning heated oxygen sensor 2.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS00R1Z

HEATED OXYGEN SENSOR 2 HEATER

1.

Check resistance between HO2S2 terminals as follows.

2.

If NG, replace heated oxygen sensor 2.

CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.

Removal and Installation

EBS00R20

HATED OXYGEN SENSOR 2

Refer to

EM-21, "EXHAUST MANIFOLD AND CATALYTIC CONVERTER"

.

Terminal No.

Resistance

2 and 3

5.0 - 7.0

at 25

°

C (77

°

F)

1 and 2, 3, 4

∞ Ω

(Continuity should not exist)

4 and 1, 2, 3

SEF249Y

EC-840

[QG (WITHOUT EURO-OBD)]

IAT SENSOR

IAT SENSOR

PFP:22630

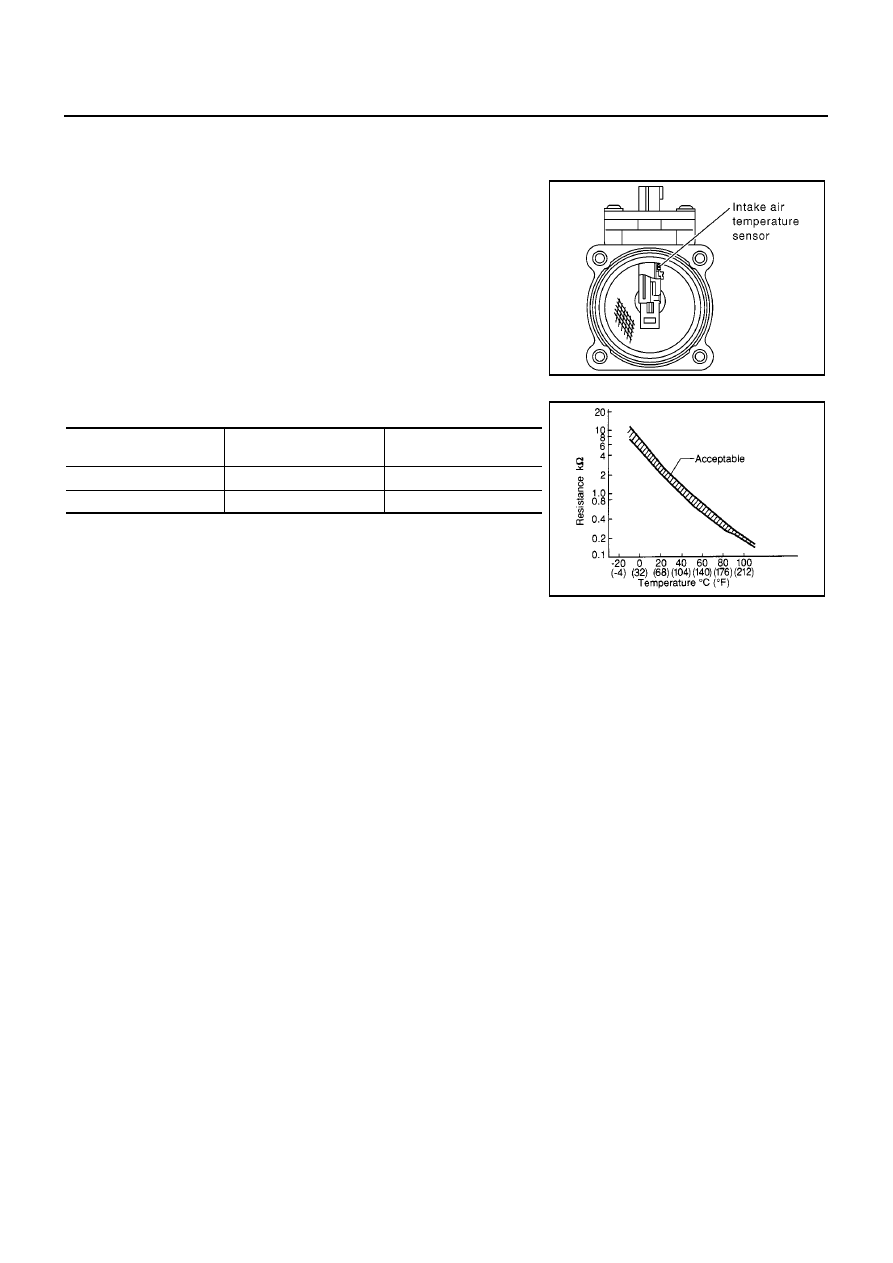

Component Description

EBS00R21

The intake air temperature sensor is built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

<Reference data>

*: These data are reference values and are measured between ECM terminal 34
(Intake air temperature sensor) and body ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.

SEC266C

Intake air

temperature

°

C (

°

F)

Voltage*

V

Resistance

k

25 (77)

3.32

1.9 - 2.1

80 (176)

1.23

0.31 - 0.37

SEF012P

IAT SENSOR

EC-841

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

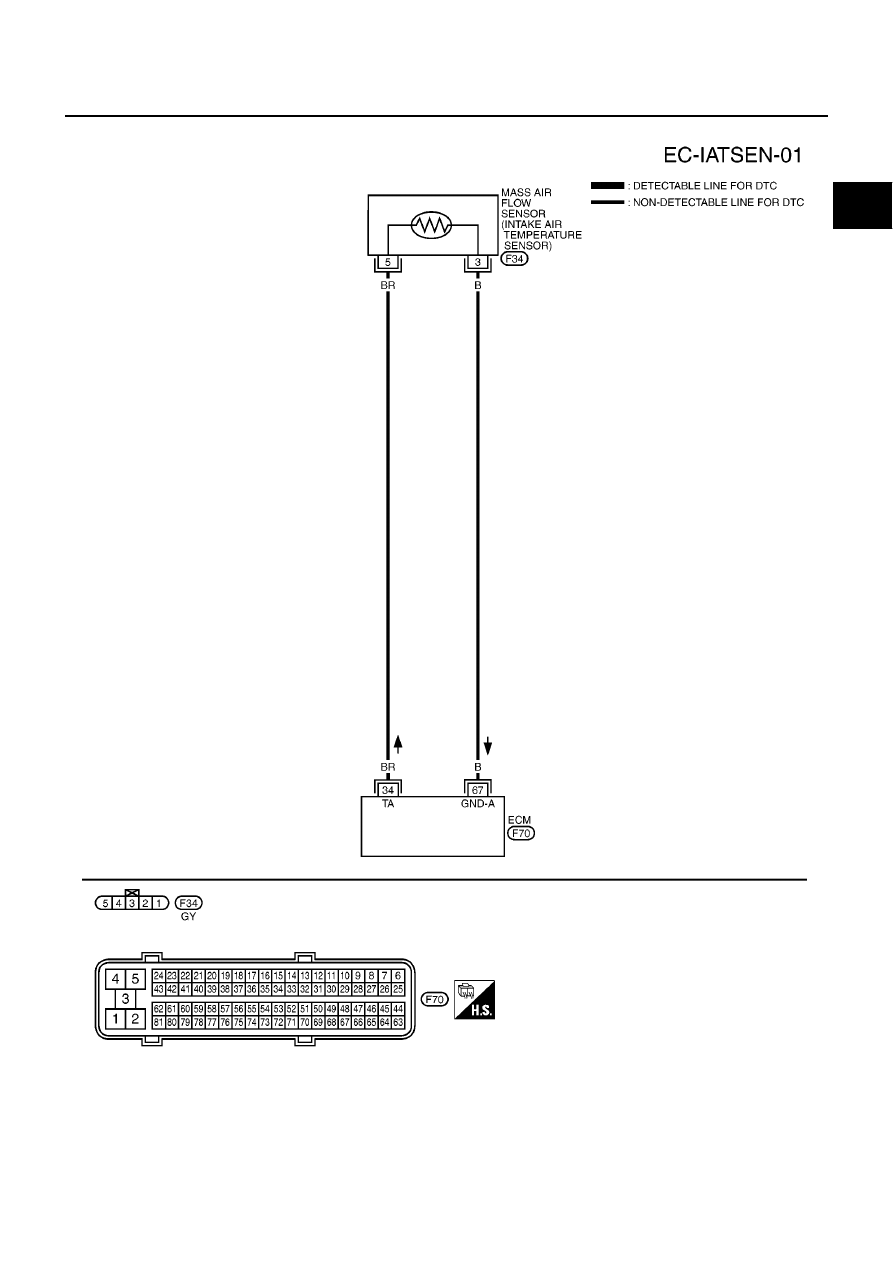

Wiring Diagram

EBS00R22

YEC488A

EC-842

[QG (WITHOUT EURO-OBD)]

IAT SENSOR

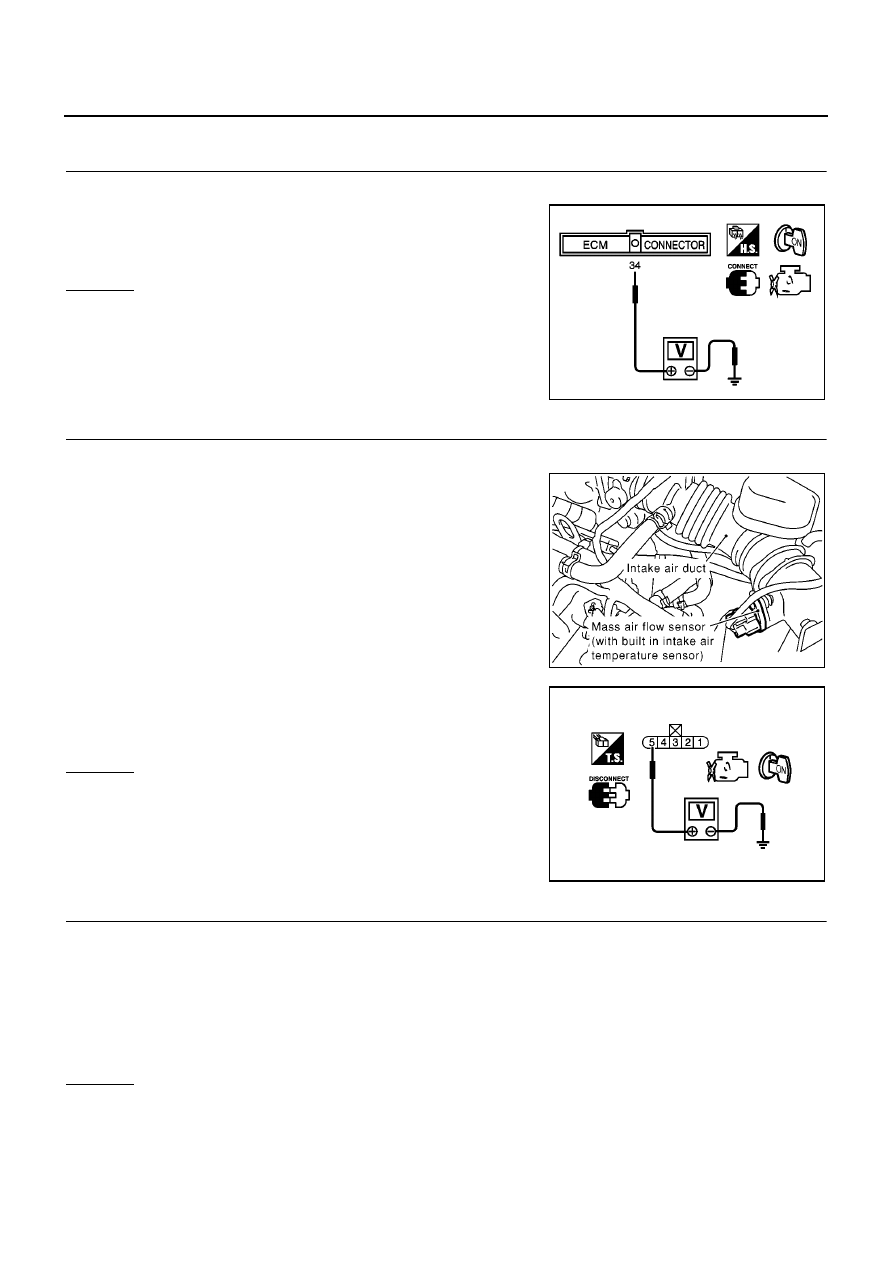

Diagnostic Procedure

EBS00R23

1.

CHECK OVERALL FUNCTION

1.

Turn ignition switch “ON”.

2.

Check voltage between ECM terminal 34 and ground with CON-
SULT-II or tester.

OK or NG

OK

>> INSPECTION END.

NG

>> GO TO 2.

2.

CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.

3.

Turn ignition switch “ON”.

4.

Check voltage between mass air flow sensor terminal 5 and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 67 and mass air flow sensor terminal 3.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

Voltage: Approximately 0 - 4.8V

MBIB0041E

MBIB0096E

Voltage: Approximately 5V

PBIB0066E

Continuity should exist.















Content      ..     111      112      113      114     ..
