TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

AT-305

[EXC.F/EURO-OBD]

GY/R

Torque converter
clutch solenoid
valve

When A/T performs lock-up.

8 - 15V

When A/T does not perform lock-up.

CAN (H)

—

CAN (L)

—

BR/R

Power source

When turning ignition switch to “ON”.

Battery voltage

When turning ignition switch to
“OFF”.

L/W

Shift solenoid
valve A

When shift solenoid valve A oper-
ates.
(When driving in “D

” or “D

”.)

Battery voltage

When shift solenoid valve A does not
operate.
(When driving in “D

” or “D

”.)

L/Y

Shift solenoid
valve B

When shift solenoid valve B oper-
ates.
(When driving in “D

” or “D

”.)

Battery voltage

When shift solenoid valve B does not
operate.
(When driving in “D

” or “D

”.)

BR/R

Power source

Same as No. 10

L/B

Overrun clutch
solenoid valve

When overrun clutch solenoid valve
operates.

Battery voltage

When overrun clutch solenoid valve
does not operate.

Ground

—

BR/Y

PNP switch “1”
position

and

When setting selector lever to “1”
position.

Battery voltage

When setting selector lever to other
positions.

PNP switch “2”
position

When setting selector lever to “2”
position.

Battery voltage

When setting selector lever to other
positions.

R/B

Power source
(Memory back-up)

When turning ignition switch to
“OFF”.

Battery voltage

When turning ignition switch to “ON”.

Battery voltage

Revolution sensor

When moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency

measuring function.*

CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.

150 Hz

When vehicle parks.

Under 1.3V or
over 4.5V

Termi-

nal No.

Wire color

Item

Condition

Judgementstan-

dard(Approx.)

AT-306

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

*1: A circuit tester cannot be used to test this item.
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.

30 *

G/B

CONSULT- II (RX)

—

31 *

GY/L

CONSULT- II (TX)

—

32 *

Throttle position
sensor
(Power source)

When turning ignition switch to “ON”.

4.5 - 5.5V

When turning ignition switch to
“OFF”.

W/G

PNP switch “D”
position

and

When setting selector lever to “D”
position.

Battery voltage

When setting selector lever to other
positions.

G/W

PNP switch “R”
position

When setting selector lever to “R”
position.

Battery voltage

When setting selector lever to other
positions.

PNP switch “N” or
“P” position

When setting selector lever to “N” or
“P” position.

Battery voltage

When setting selector lever to other
positions.

39 *

L/OR

Engine speed sig-
nal

and

EC-XX, “ECM INSPECTION TABLE”.

L/B

Vehicle speed
sensor

When moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.

Voltage varies
between less
than 0V and
more than 4.5V

41*

Throttle position
sensor

When depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)

Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V

Throttle position
sensor
(Ground)

—

A/T fluid tempera-
ture sensor

When ATF temperature is 20

(68

F).

1.5V

When ATF temperature is 80

(176

F).

0.5V

Ground

—

Termi-

nal No.

Wire color

Item

Condition

Judgementstan-

dard(Approx.)

CAN COMMUNICATION

AT-307

[EXC.F/EURO-OBD]

CAN COMMUNICATION

PFP:23710

System Description

ECS00A0J

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

ECS00A0K

CAN COMMUNICATION UNIT FOR MODELS WITH ESP
System diagram

Input/output signal chart

T: Transmit R: Receive

YEL465E

Signals

ECM

TCM

ESP/TCS/

ABS control

unit

Smart

entrance

control unit

Steering

angle sensor

Combination

meter

Engine speed signal

Brake switch signal

Rear window defogger signal

Heater fan switch signal

Air conditioner switch signal

MI signal

Engine coolant temperature signal

Fuel consumption signal

Vehicle speed signal

Seat belt reminder signal

Headlamp switch signal

Flashing indicator signal

Engine cooling fan speed signal

Door switches state signal

A/C compressor signal

A/C compressor feedback signal

Accelerator pedal position signal

Output shaft revolution signal

OD OFF switch signal

OD OFF indicator signal

A/T self-diagnosis signal

P range signal

AT-308

[EXC.F/EURO-OBD]

CAN COMMUNICATION

CAN COMMUNICATION UNIT FOR MODELS WITHOUT ESP
System diagram

Input/output signal chart

T: Transmit R: Receive

Steering angle sensor signal

A/T position indicator signal

ABS warning lamp signal

Slip indicator lamp signal

VDC Off indicator lamp signal

Brake warning lamp signal

N range switch signal

P range switch signal

Signals

ECM

TCM

ESP/TCS/

ABS control

unit

Smart

entrance

control unit

Steering

angle sensor

Combination

meter

YEL468E

Signals

ECM

TCM

ABS actuator

and electric

unit (control

unit)

Smart entrance

control unit

Combination

meter

Engine speed signal

Brake switch signal

Rear window defogger signal

Heater fan switch signal

Air conditioner switch signal

MI signal

Engine coolant temperature signal

Fuel consumption signal

Vehicle speed signal

Seat belt reminder signal

Headlamp switch signal

Flashing indicator signal

Engine cooling fan speed signal

Door switches state signal

A/C compressor signal

A/C compressor feedback signal

Accelerator pedal position signal

Output shaft revolution signal

CAN COMMUNICATION

AT-309

[EXC.F/EURO-OBD]

ABS operation signal

OD OFF switch signal

OD OFF indicator signal

A/T self-diagnosis signal

ABS warning lamp signal

N range switch signal

P range switch signal

Signals

ECM

TCM

ABS actuator

and electric

unit (control

unit)

Smart entrance

control unit

Combination

meter

AT-310

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

PFP:00100

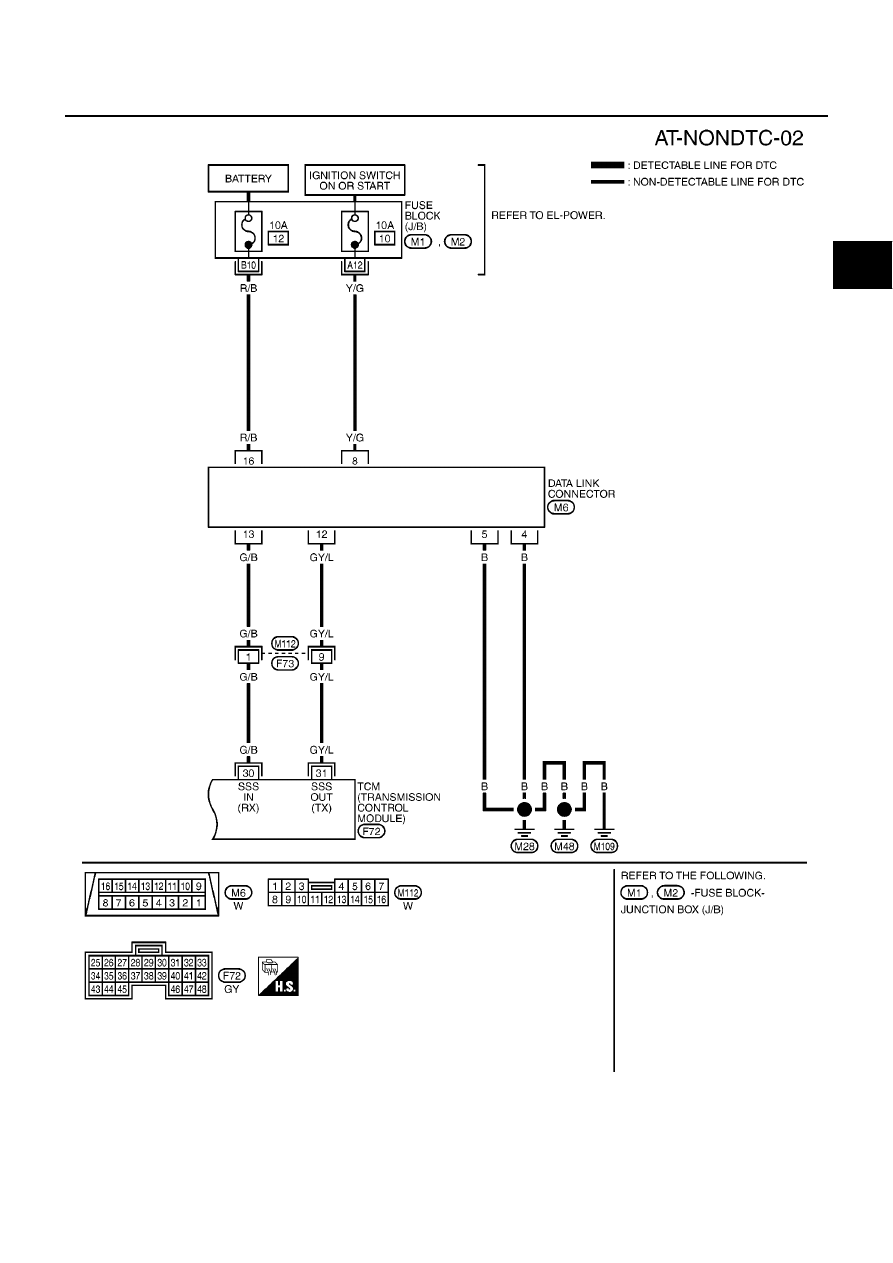

Wiring Diagram — AT — NONDTC

ECS009A6

YAT386A

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-311

[EXC.F/EURO-OBD]

YAT387A

AT-312

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

1. O/D OFF Indicator Lamp Does Not Come On

ECS009A7

SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to “ON”.

CHECK TCM POWER SOURCE

Turn ignition switch to “ON” position.
(Do not start engine.)

Check voltage between TCM terminals 10, 19, 28 and ground.

Turn ignition switch to “OFF” position.

Check voltage between TCM terminal 28 and ground.

OK or NG

>> GO TO 2

>> Check the following items:

●

Harness for short or open between ignition switch and
TCM terminals 10, 19 and 28 (Main harness).

●

Refer to

AT-344, "Wiring Diagram — AT — MAIN"

●

Ignition switch and fuse. Refer to EL-11, “Power Supply Routing”.

CHECK TCM GROUND CIRCUIT

Turn ignition switch to “OFF” position.

Disconnect TCM harness connector.

Check continuity between TCM terminals 25, 48 and ground.

If OK, check harness for short to ground and short to power.

OK or NG

>> GO TO 3

>> Repair open circuit or short to ground or short to power

in harness or connectors. Refer to

AT-344, "Wiring Dia-

gram — AT — MAIN"

CHECK LAMP CIRCUIT

Turn ignition switch to “OFF” position.

Check resistance between TCM terminals 13 and 10, 19.

Reinstall any part removed.

OK or NG

>> GO TO 4

>> Check the following items:

●

O/D OFF indicator lamp.
Refer to EL-102, ”Combination Meter”.

●

Harness and fuse for short or open between ignition
switch and O/D OFF indicator lamp (Main harness)
Refer to EL-11, “Power Supply Routing”.

●

Harness for short or open between O/D OFF indicator lamp and TCM.

Voltage:

Battery voltage

Voltage:

Battery voltage

SCIA0713E

Continuity should exist.

SCIA0766E

Resistance:

50 - 100

Ω

SCIA0767E

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-313

[EXC.F/EURO-OBD]

CHECK SYMPTOM

Check again.

OK or NG

>> INSPECTION END

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

2. Engine Cannot Be Started In “P” and “N” Position

ECS009A8

SYMPTOM:

●

Engine cannot be started with selector lever in “P” or “N” position.

●

Engine can be started with selector lever in “D”, “2”, “1” or “R” position.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-337, "21. TCM

Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)"

>> GO TO 2

CHECK PNP SWITCH INSPECTION

Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to

AT-337, "21. TCM Self-diagnosis Does Not Activate (PNP &

Overdrive Control Switches, and Throttle Position Sensor Circuit
Checks)"

OK or NG

>> GO TO 3

>> Repair or replace PNP switch.

CHECK STARTING SYSTEM

Check starting system. Refer to SC-13, “Starting System”.

OK or NG

>> INSPECTION END

>> Repair or replace damaged parts.

3. In “P” Position, Vehicle Moves Forward Or Backward When Pushed

ECS009A9

SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.

SCIA0706E

MCIA0102E

AT-314

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

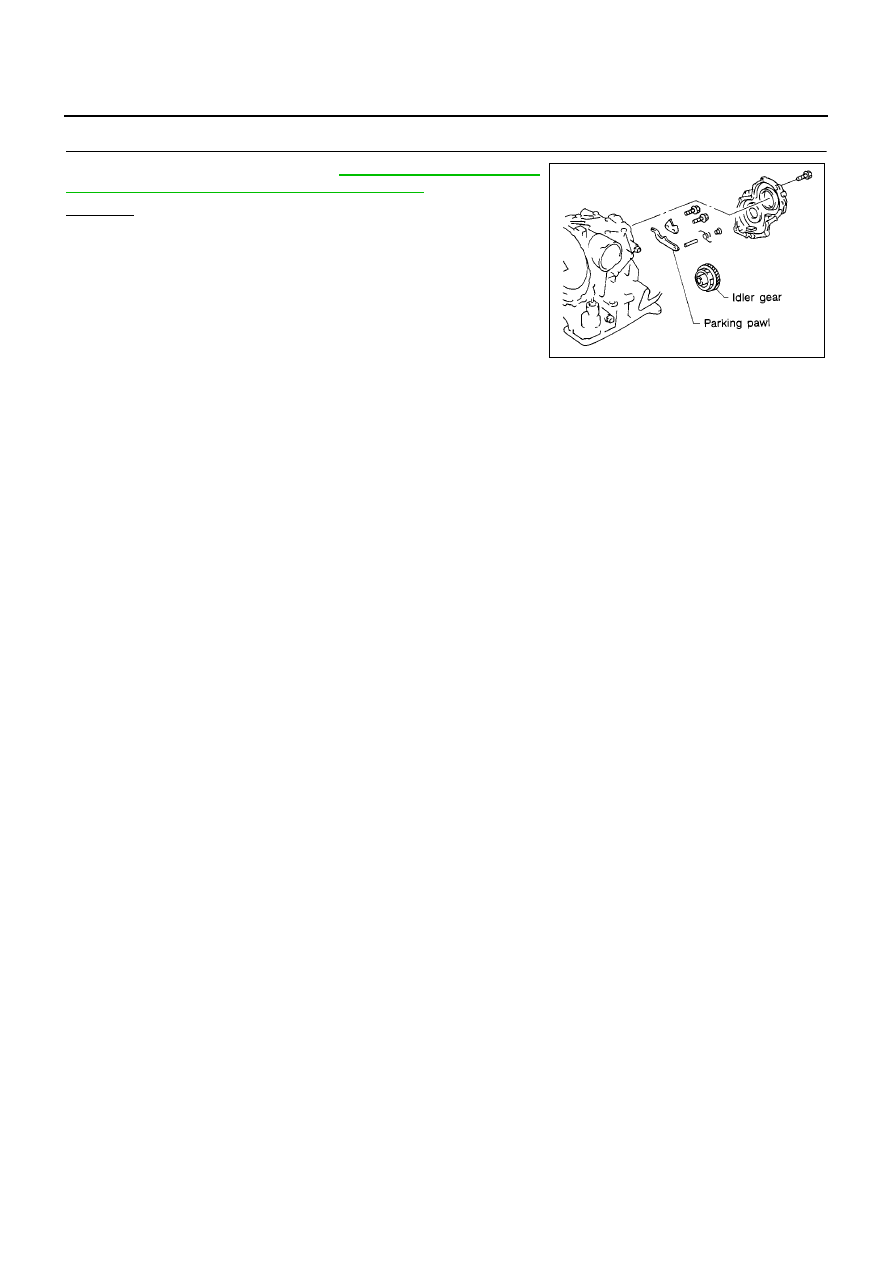

CHECK PARKING COMPONENTS

Check parking components. Refer to

AT-417, "Output Shaft, Idler

Gear, Reduction Pinion Gear and Bearing Retainer"

OK or NG

>> INSPECTION END

>> Repair or replace damaged parts.

SAT282F

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-315

[EXC.F/EURO-OBD]

4. In “N” Position, Vehicle Moves

ECS009AA

SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-337, "21. TCM

Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)"

>> GO TO 2

CHECK CONTROL CABLE

Check control cable. Refer to

AT-412, "Control Cable Adjustment"

OK or NG

>> GO TO 3

>> Adjust control cable. Refer to

AT-412, "Control Cable

Adjustment"

CHECK A/T FLUID LEVEL

Check A/T fluid level again.

OK or NG

>> GO TO 4

>> Refill ATF.

SCIA0706E

SAT023JB

SAT638A

AT-316

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

CHECK A/T FLUID CONDITION

Remove oil pan, refer to

AT-410, "REMOVAL"

Check A/T fluid condition.

OK or NG

>> GO TO 5

>> 1. Disassemble A/T.

2. Check the following items:

–

Forward clutch assembly

–

Overrun clutch assembly

–

Reverse clutch assembly

CHECK SYMPTOM

Check again.
OK or NG

>> INSPECTION END

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

5. Large Shock. “N”

→

“R” Position

ECS009AB

SYMPTOM:
There is large shock when changing from “N” to “R” position.

CHECK SELF-DIAGNOSTIC RESULTS

Does self-diagnosis show damage to A/T fluid temperature sensor,
line pressure solenoid valve or throttle position sensor circuit?

Yes or No

Yes

●

Check damaged circuit. Refer to the following items.

–

AT-392, "LINE PRESSURE SOLENOID VALVE"

–

THROTTLE POSITION SENSOR:

AT-356, "ACCELE

RATOR PEDAL POSITION (APP) SENSOR"

–

AT-381, "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"

>> GO TO 2

CHECK THROTTLE POSITION SENSOR*

*: This sensor means accelerator pedal position (APP) sensor.
Refer to

AT-356, "ACCELE RATOR PEDAL POSITION (APP) SEN-

SOR"

OK or NG

>> GO TO 3

>> Repair or replace Accelerator pedal position(APP)sen-

sor.

SAT171B

SCIA0769E

MCIA0096E

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-317

[EXC.F/EURO-OBD]

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer
to

AT-267, "Line Pressure Test"

OK or NG

>> GO TO 4

>> 1. Remove control valve assembly. Refer to

AT-410,

"Control Valve Assembly and Accumulators"

2. Check the following items:

–

Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)

–

Line pressure solenoid valve

CHECK SYMPTOM

Check again.

OK or NG

>> INSPECTION END

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

6. Vehicle Does Not Creep Backward In “R” Position

ECS009AC

SYMPTOM:
Vehicle does not creep backward when selecting “R” position.

CHECK A/T FLUID LEVEL

Check A/T fluid level again.

OK or NG

>> GO TO 2

>> Refill ATF.

SAT494G

SAT638A

AT-318

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

CHECK STALL TEST

Check stall revolution with selector lever in “1” and “R” positions.
Refer to

AT-264, "Stall Test"

OK or NG

>> GO TO 3

OK in “1” position, NG in “R” position>>1.Remove

control

valve

assembly. Refer to

AT-410, "Control Valve Assembly

and Accumulators"

2. Check the following items:

–

Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)

–

Line pressure solenoid valve (

AT-392, "LINE PRES-

SURE SOLENOID VALVE"

)

3. Disassemble A/T.

4. Check the following items:

–

Oil pump assembly

–

Torque converter

–

Reverse clutch assembly

–

High clutch assembly

–

Low & reverse brake assembly

–

Low one-way clutch

NG in both “1” and “R” positions>>GO TO 6

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “R” position. Refer
to

AT-267, "Line Pressure Test"

OK or NG

>> GO TO 4

>> 1. Remove control valve assembly. Refer to

AT-410,

"Control Valve Assembly and Accumulators"

2. Check the following items:

–

Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)

–

Line pressure solenoid valve (

AT-392, "LINE PRES-

SURE SOLENOID VALVE"

)

3. Disassemble A/T.

4. Check the following item:

–

Oil pump assembly

SAT493G

SAT494G

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-319

[EXC.F/EURO-OBD]

CHECK A/T FLUID CONDITION

Remove oil pan, refer to

AT-410, "REMOVAL"

Check A/T fluid condition.

OK or NG

>> GO TO 5

>> GO TO 6

CHECK SYMPTOM

Check again.
OK or NG

>> INSPECTION END

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

DETECT MALFUNCTIONING ITEM

Remove control valve assembly. Refer to

AT-410, "Control Valve Assembly and Accumulators"

Check the following items:

–

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)

–

Line pressure solenoid valve (

AT-392, "LINE PRESSURE SOLENOID VALVE"

)

Disassemble A/T.

Check the following items:

–

Oil pump assembly

–

Torque converter

–

Reverse clutch assembly

–

High clutch assembly

–

Low & reverse brake assembly

–

Low one-way clutch

OK or NG

>> GO TO 5

>> Repair or replace damaged parts.

SAT171B

AT-320

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

7. Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position

ECS009AD

SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.

CHECK A/T FLUID LEVEL

Check A/T fluid level again.

OK or NG

>> GO TO 2

>> Refill ATF.

CHECK STALL TEST

Check stall revolution with selector lever in “D” position. Refer to

AT-

264, "Stall Test"

OK or NG

>> GO TO 3

>> GO TO 6

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer
to

AT-267, "Line Pressure Test"

OK or NG

>> GO TO 4

>> 1. Remove control valve assembly. Refer to

AT-410,

"Control Valve Assembly and Accumulators"

2. Check the following items:

–

Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)

–

Line pressure solenoid valve (

AT-392, "LINE PRES-

SURE SOLENOID VALVE"

)

3. Disassemble A/T.

4. Check the following item:

–

Oil pump assembly

SAT638A

SAT493G

SAT494G

Content .. 18 19 20 21 ..
