Nissan Almera Tino V10. Manual - part 870





EM-136

[YD]

EXHAUST MANIFOLD AND TURBOCHARGER

TROUBLE DIAGNOSIS OF TURBOCHARGER

Preliminary check:

Check that the engine oil level is between MIN and MAX of the dipstick. (When the engine oil amount is
more than MAX, the oil flows into the inlet duct through the blow-by gas passage, and the turbocharger is
misjudged failure.)

Ask the customer if he/she always runs the vehicle in idle engine speed to cool the oil down after driving.

Replace the turbocharger assembly when any malfunction is found after unit inspections specified in the
table below.

If no malfunction is found after the unit inspections, judge that the turbocharger body has no failure. Check
the other parts again.

A: Large possibility
B: Medium possibility
C: Small possibility

Inspection item

Inspection result

Symptom

(when each inspection item meets each inspection result)

Oil leakage

Smoke

Noise

Insufficient power/

acceleration failure

Turbine wheel

Oil leaks

C

A

C

C

Carbon is accumulated

C

A

B

B

Friction with housing

C

B

A

B

Blades are bent or broken

A

A

Compressor wheel

Inside the air inlet is seriously con-
taminated by oil.

B

B

Friction with housing

C

B

A

B

Blades are bent or broken

A

A

After checking both turbine and
compressor, inspect rotor shaft
end play.

There is resistance when the rotor
shaft is rotated by your fingertips.

C

C

B

The rotor shaft sometimes does not
rotate by your fingertips.

A

There is too much play in the bear-
ing.

C

C

B

C

Oil return port

Carbon or sludge is accumulated in
the waste oil hole.

C

A

C

C

OIL PAN AND OIL STRAINER

EM-137

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

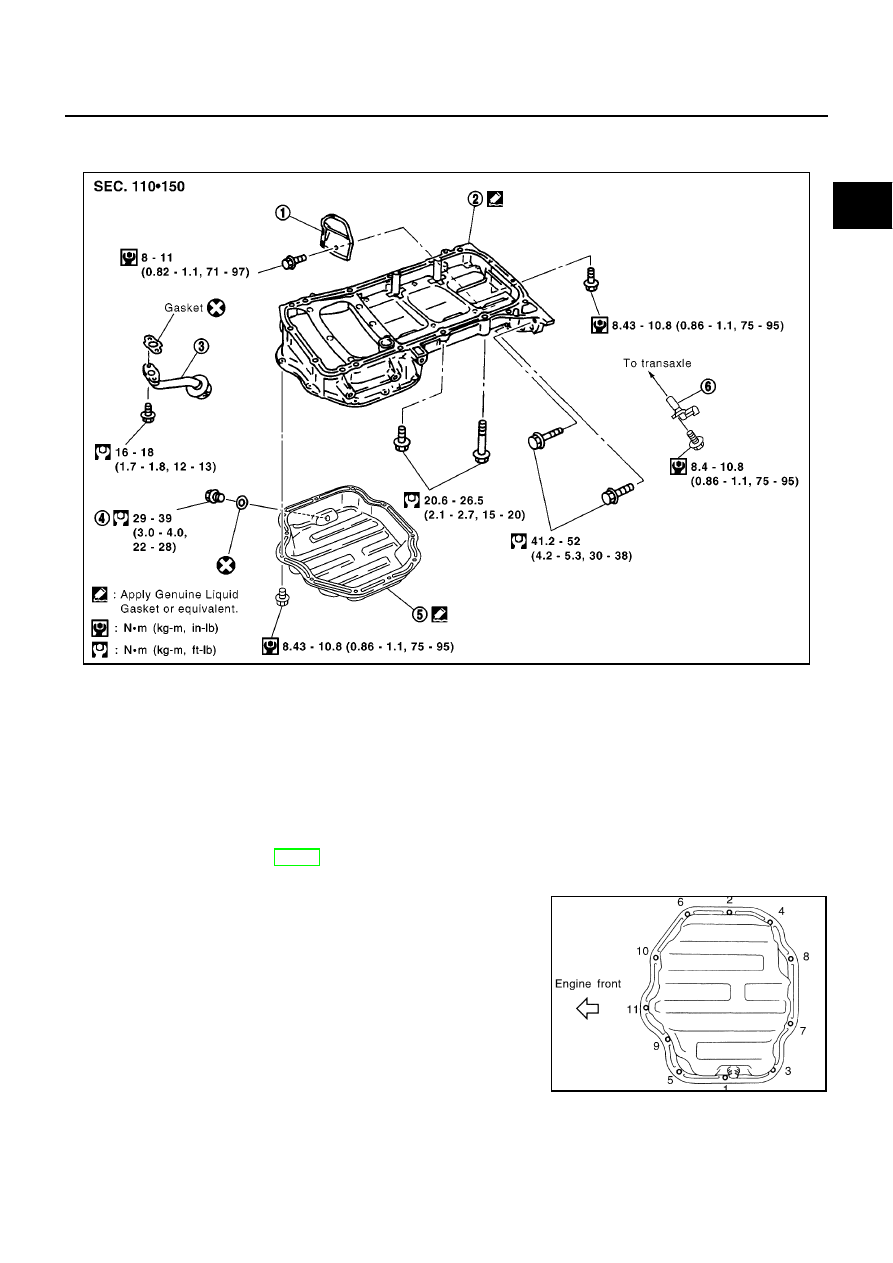

OIL PAN AND OIL STRAINER

PFP:11110

Removal and Installation

EBS00QFI

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
When removing the transaxle, first remove the crankshaft position sensor from the assembly.
Be careful not to damage sensor edges and signal plate teeth.

1.

Remove engine undercover.

2.

Drain engine oil. Refer to LC-27, “Changing Engine Oil”.

3.

Remove A/C compressor bracket.

4.

Remove lower oil pan bolts. Loosen bolts in the reverse order of
that shown in the figure.

MBIA0029E

1.

Rear plate cover

2.

Oil pan upper

3.

Oil strainer

4.

Drain plug

5.

Oil pan lower

6.

Crankshaft position sensor

JEM114G

EM-138

[YD]

OIL PAN AND OIL STRAINER

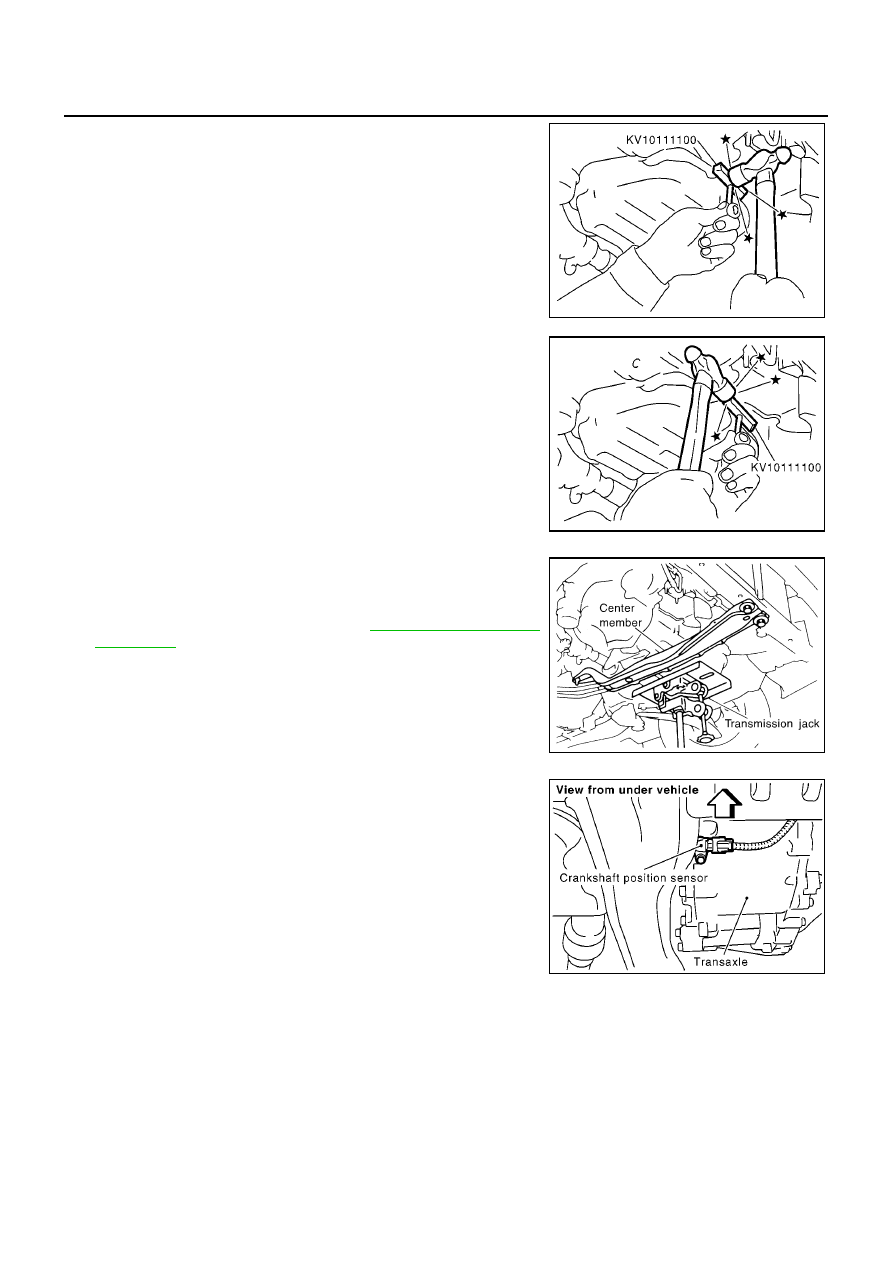

5.

Remove lower oil pan.

a.

Insert Tool between upper oil pan and lower oil pan.

Be careful not to damage aluminum mating surface.

Do not insert screwdriver, or oil pan flange will be
deformed.

b.

Slide Tool by tapping on the side of the Tool with a hammer.

c.

Remove lower oil pan.

6.

Remove oil strainer.

7.

Remove front exhaust tube and its support.

8.

Set a suitable transmission jack under transaxle and hoist
engine with engine slinger. Refer to

EM-197, "Removal and

Installation"

.

9.

Remove front and rear engine mounting nuts and bolts.

10. Remove center member.

11. Remove crankshaft position sensor from transaxle.

12. Remove rear plate cover.

SEM544G

SEM545G

JEM553G

MBIA0048E

OIL PAN AND OIL STRAINER

EM-139

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

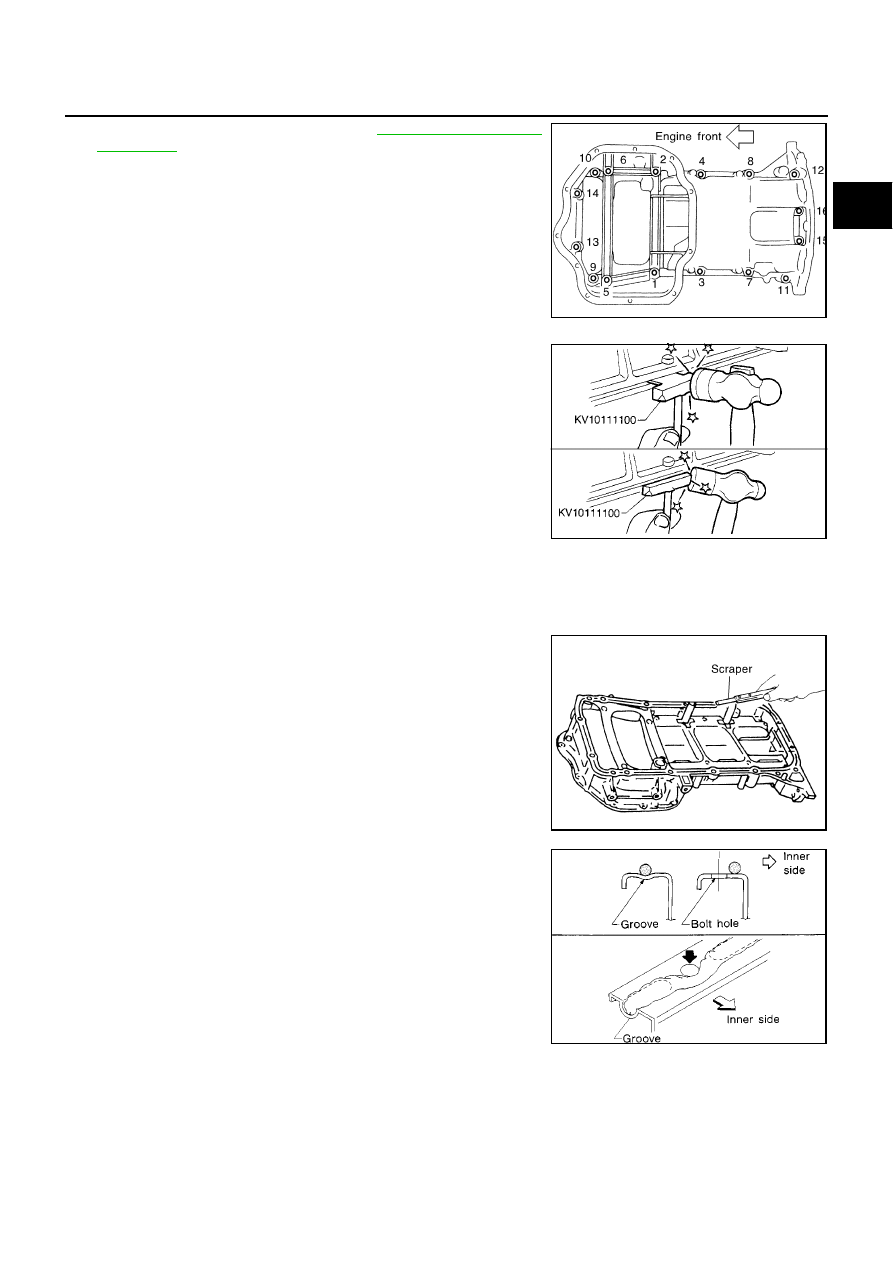

13. Remove catalyst rear diffuser. Refer to

EM-126, "Removal and

Installation"

.

14. Loosen bolts in reverse order of illustration to remove upper oil

pan.

15. Remove four engine - to - transaxle bolts using a universal

socket. (Commercial Service Tool).

16. Remove upper oil pan.

Insert Tool (Seal cutter) between upper oil pan and cylinder
block. Slide tool by tapping on the side of the tool with a ham-
mer. Remove oil pan.

Be careful not to damage aluminum mating surface.

Do not insert screwdriver, or oil pan flange will be
deformed.

Be careful to prevent No.15 and 16 bolts from falling into
transaxle case.

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSTALLATION

1.

Install upper oil pan in the order below.

a.

Use a scraper to remove old liquid gasket from mating surfaces.

Also remove old liquid gasket from mating surface of cyl-
inder block, front cover and lower oil pan.

Remove old liquid gasket from the bolt hole and thread.

b.

Apply a continuous bead of liquid gasket to mating surface of
aluminum oil pan.

Use Genuine Liquid Gasket or equivalent.

JEM116G

SEM365EA

JEM117G

SEM159F
