Nissan Almera Tino V10. Manual - part 841





EM-20

[QG]

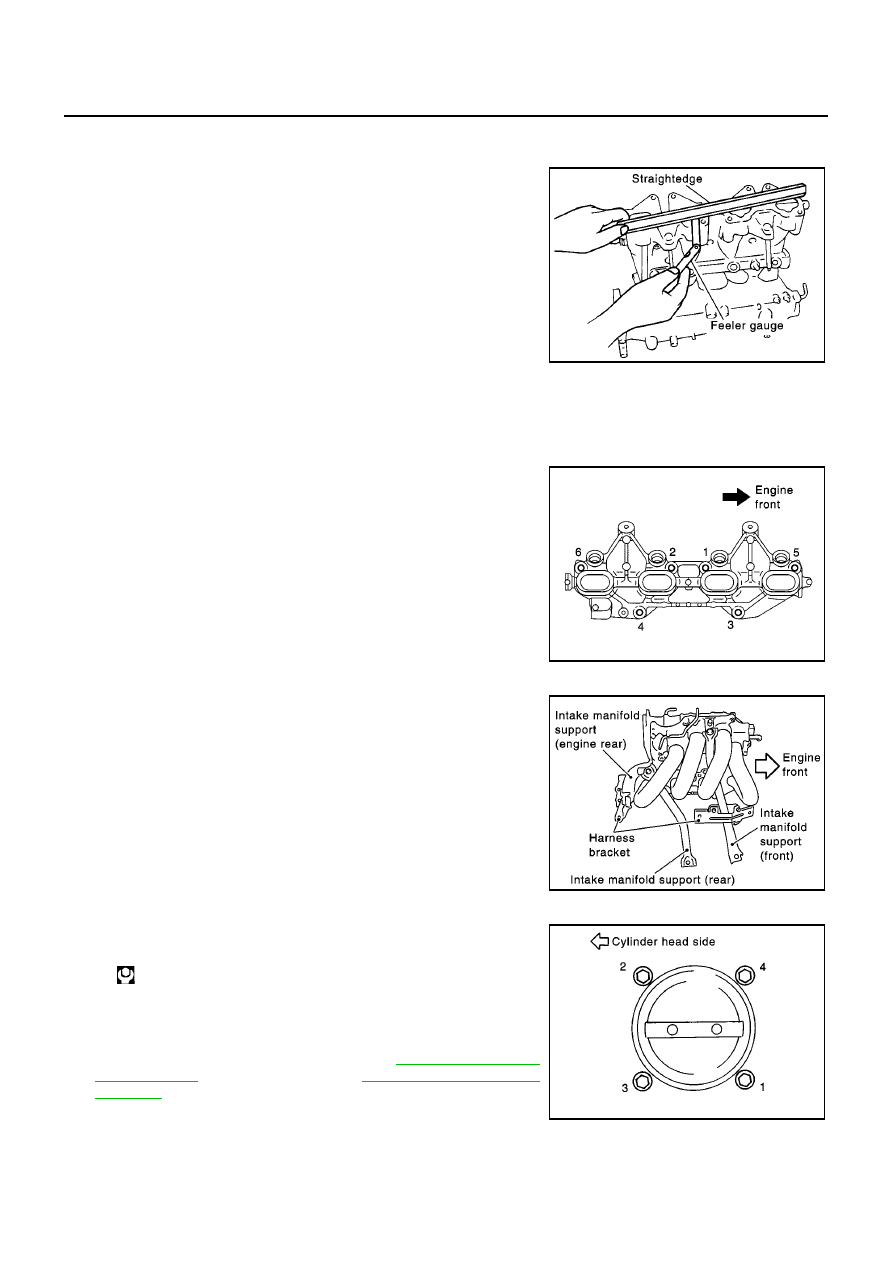

INTAKE MANIFOLD

INSPECTION AFTER REMOVAL
Surface Distortion

Using straightedge and feeler gauge, inspect surface distortion
of intake manifold collector and intake manifold surface.

INSTALLATION

Install in the reverse order of removal paying attention to the following.

Tightening Intake Manifold

Temporarily attach before installing intake manifold collector.

Tighten in numerical order as shown in the figure.

Tightening Intake Manifold Collector

Temporarily attach before installing intake manifold.

Tighten in numerical order as shown in the figure.

Installation of Electric Throttle Control Actuator

Tighten mounting bolts for electric throttle control actuator in
numerical order shown in figure.

CAUTION:

When electric throttle control actuator is replaced, perform
idle air volume learning.

Refer to BASIC SERVICE PROCEDURE,

EC-49, "Idle Air Vol-

ume Learning"

(WITH EURO-OBD),

EC-576, "Idle Air Volume

Learning"

(WITHOUT EURO-OBD).

Limit

: 0.1 mm (0.004 in)

PBIC0536E

PBIC0535E

KBIA1366E

: 17.7 - 21.6 N·m (1.8 - 2.2 kg-m, 13 - 15 ft-lb)

PBIC0534E

EXHAUST MANIFOLD AND CATALYTIC CONVERTER

EM-21

[QG]

C

D

E

F

G

H

I

J

K

L

M

A

EM

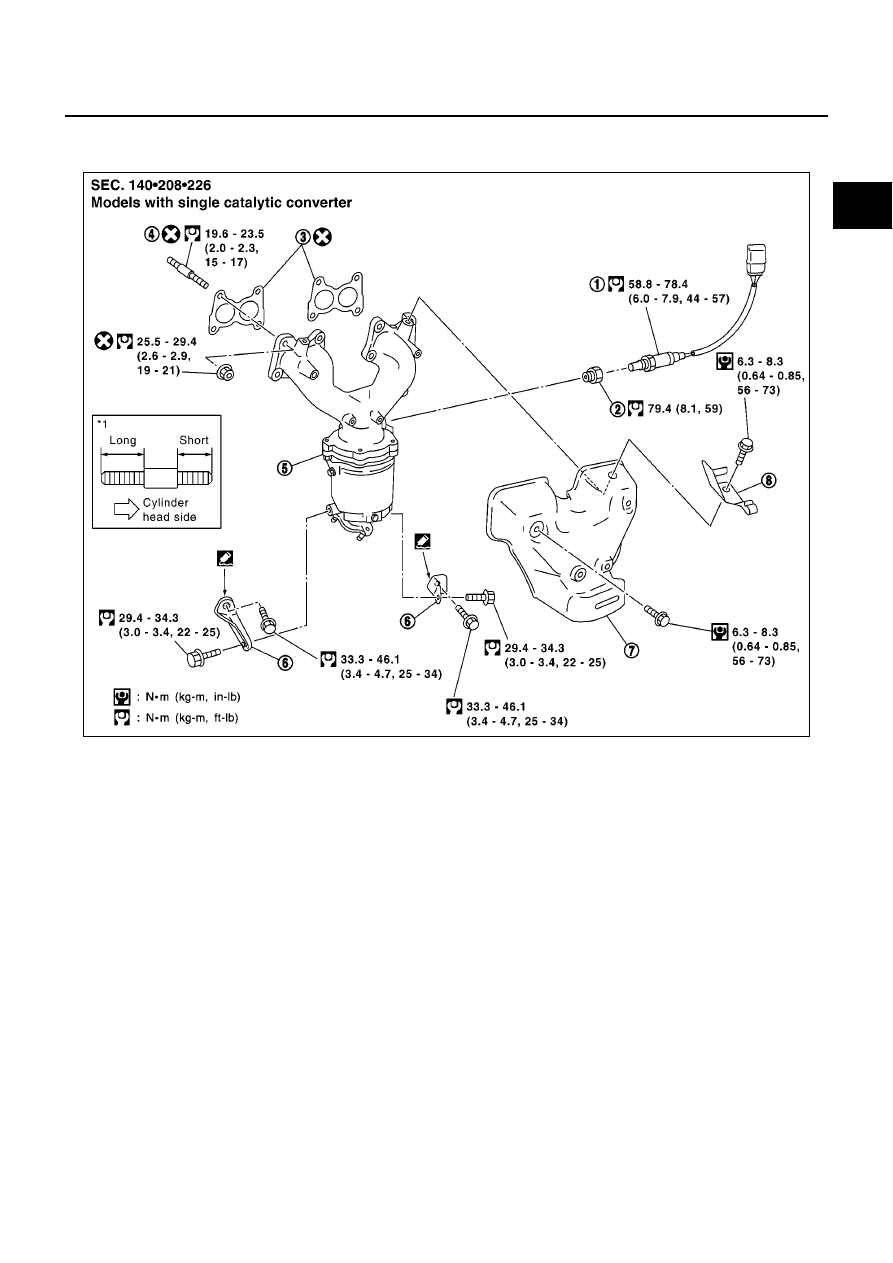

EXHAUST MANIFOLD AND CATALYTIC CONVERTER

PFP:14004

Removal and Installation

EBS00QEA

MBIA0035E

1.

Heated oxygen sensor 1

2.

Ground nut

3.

Gasket

4.

Stud bolt

5.

Exhaust manifold and catalytic con-
verter assembly

6.

Support

7.

Exhaust manifold cover

8.

Heated oxygen sensor harness
bracket

EM-22

[QG]

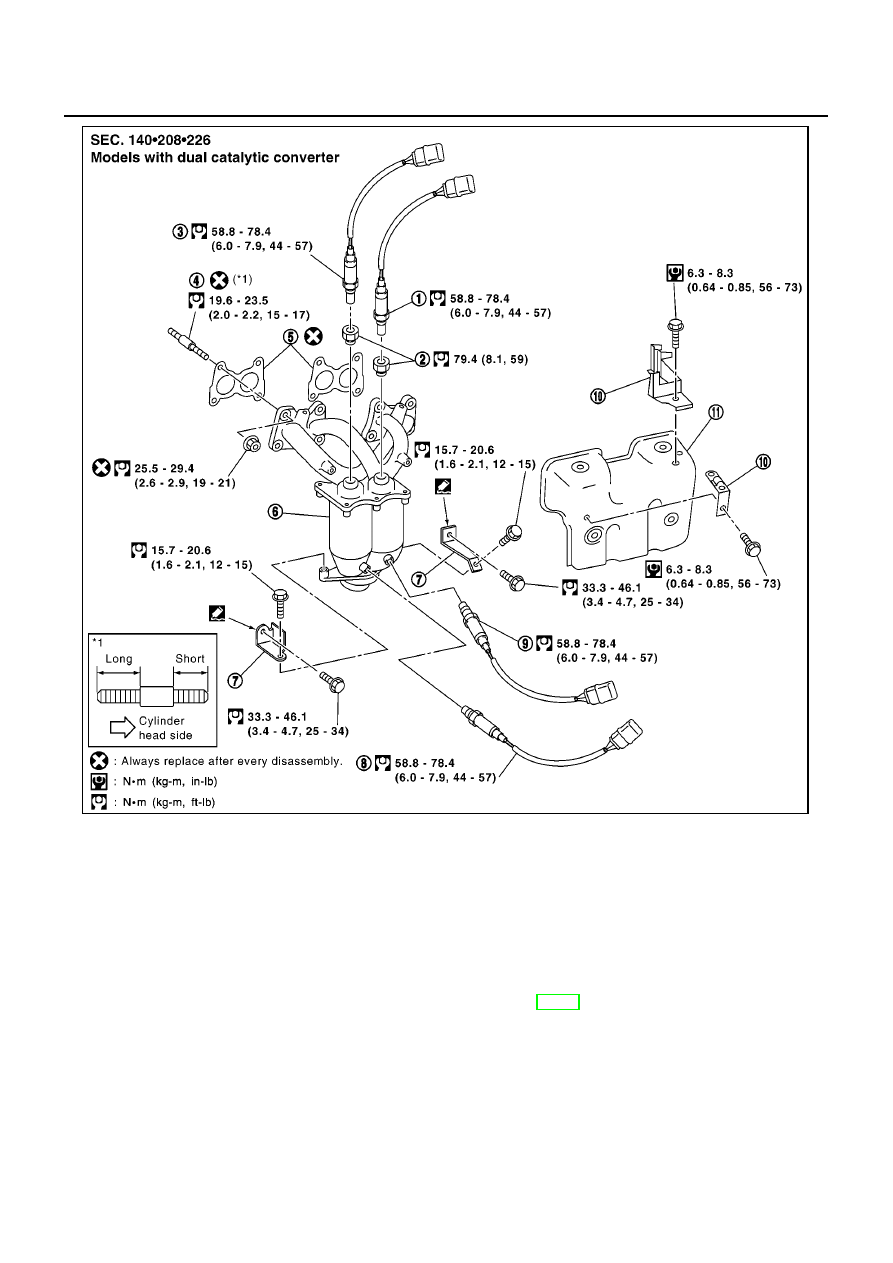

EXHAUST MANIFOLD AND CATALYTIC CONVERTER

REMOVAL

1.

Remove undercover.

2.

Disconnect exhaust front tube from catalytic converter. Refer to FE-11, “Exhaust System”.

3.

Remove exhaust manifold support from both sides of catalytic converter.

4.

Disconnect heated oxygen sensor harness connector.

5.

Remove heated oxygen sensors.

Follow below steps to remove each heated oxygen sensor.

1.

Heated oxygen sensor 1 (bank 2)

2.

Ground nut

3.

Heated oxygen sensor 1 (bank 1)

4.

Stud bolt

5.

Gasket

6.

Exhaust manifold and catalytic con-
verter assembly

7.

Support

8.

Heated oxygen sensor 2 (bank 1)

9.

Heated oxygen sensor 2 (bank 2)

10.

Heated oxygen sensor harness
bracket

11. Exhaust manifold cover

MBIA0036E

EXHAUST MANIFOLD AND CATALYTIC CONVERTER

EM-23

[QG]

C

D

E

F

G

H

I

J

K

L

M

A

EM

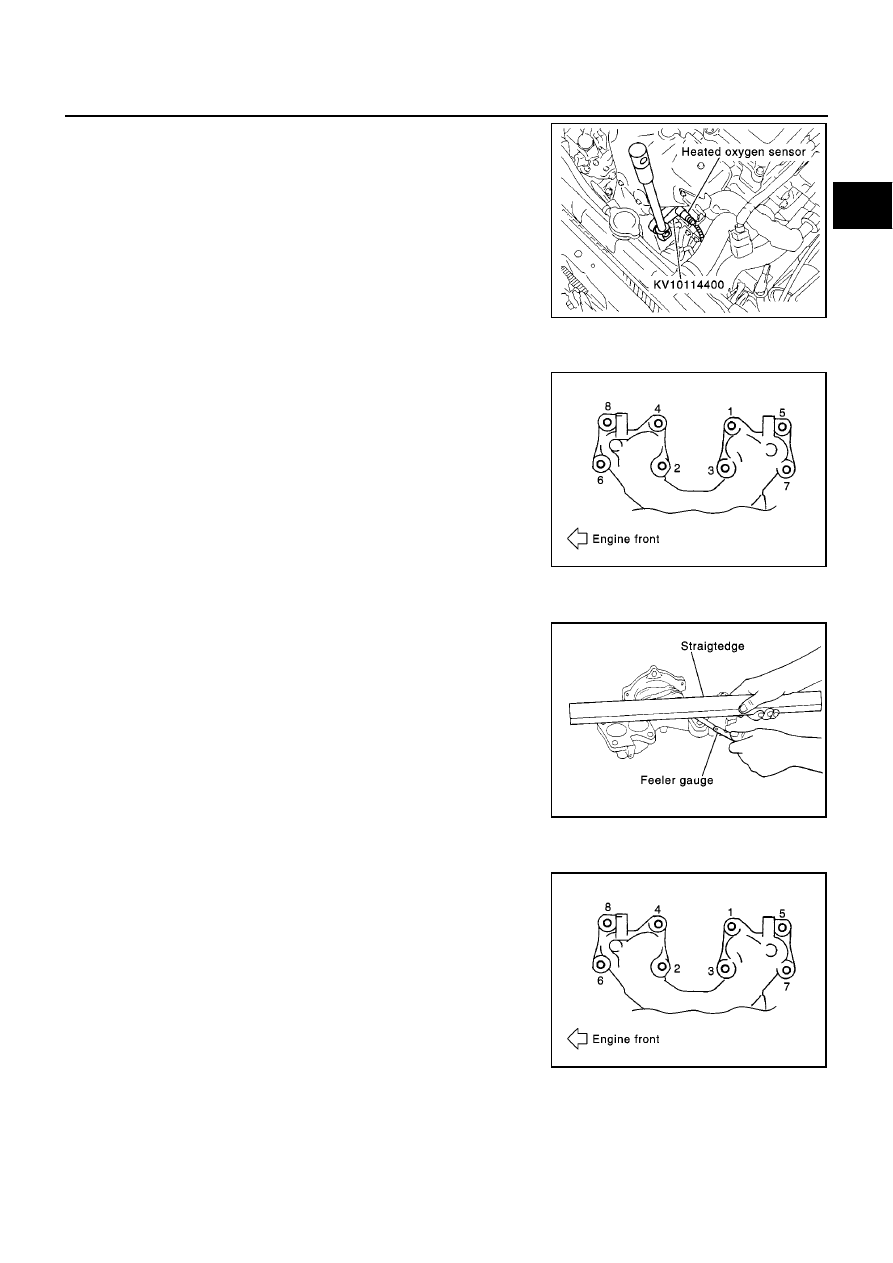

Using heated oxygen sensor wrench, remove heated oxygen
sensor.

CAUTION:

Be careful not to damage heated oxygen sensor.

When using heated oxygen sensor wrench, tighten to the
middle of specified torque because length of tool may
induce sight indication increase. (Do not tighten to the
maximum specified torque)

Do not over torque the heated oxygen sensor. Doing so
may cause damage to the heated oxygen sensor, result-
ing in the MI coming on.

6.

Remove exhaust manifold cover.

7.

Loosen mounting nuts in reverse order shown in figure to
remove exhaust manifold and catalytic converter assembly.

INSPECTION AFTER REMOVAL

Surface Distortion

Use a reliable straightedge and feeler gauge to check the flat-
ness of exhaust manifold fitting surface.

INSTALLATION

Install in the reverse order of removal after this step.

Tighten mounting nuts for exhaust manifold and catalytic con-
verter assembly in order shown in figure.

Before installing exhaust manifold support, apply liquid gasket to
contact surface on engine side.
Use Genuine Liquid Gasket or equivalent.

Installation of Heated Oxygen Sensor

CAUTION:

Do not over torque the heated oxygen sensor. Doing so may cause damage to the heated oxygen
sensor, resulting in the MI coming on.

PBIC0541E

PBIC0542E

Limit

: 0.3 mm (0.012 in)

PBIC0543E

PBIC0542E
