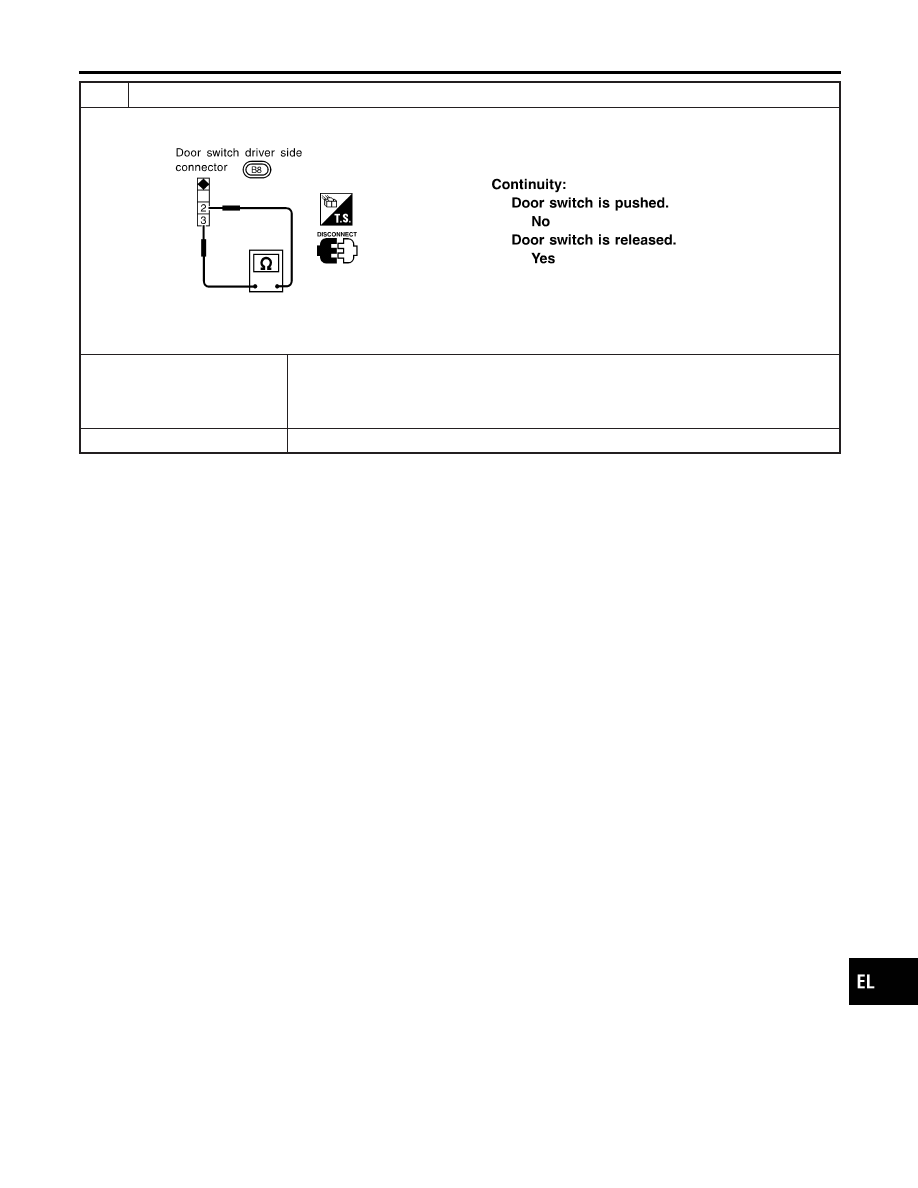

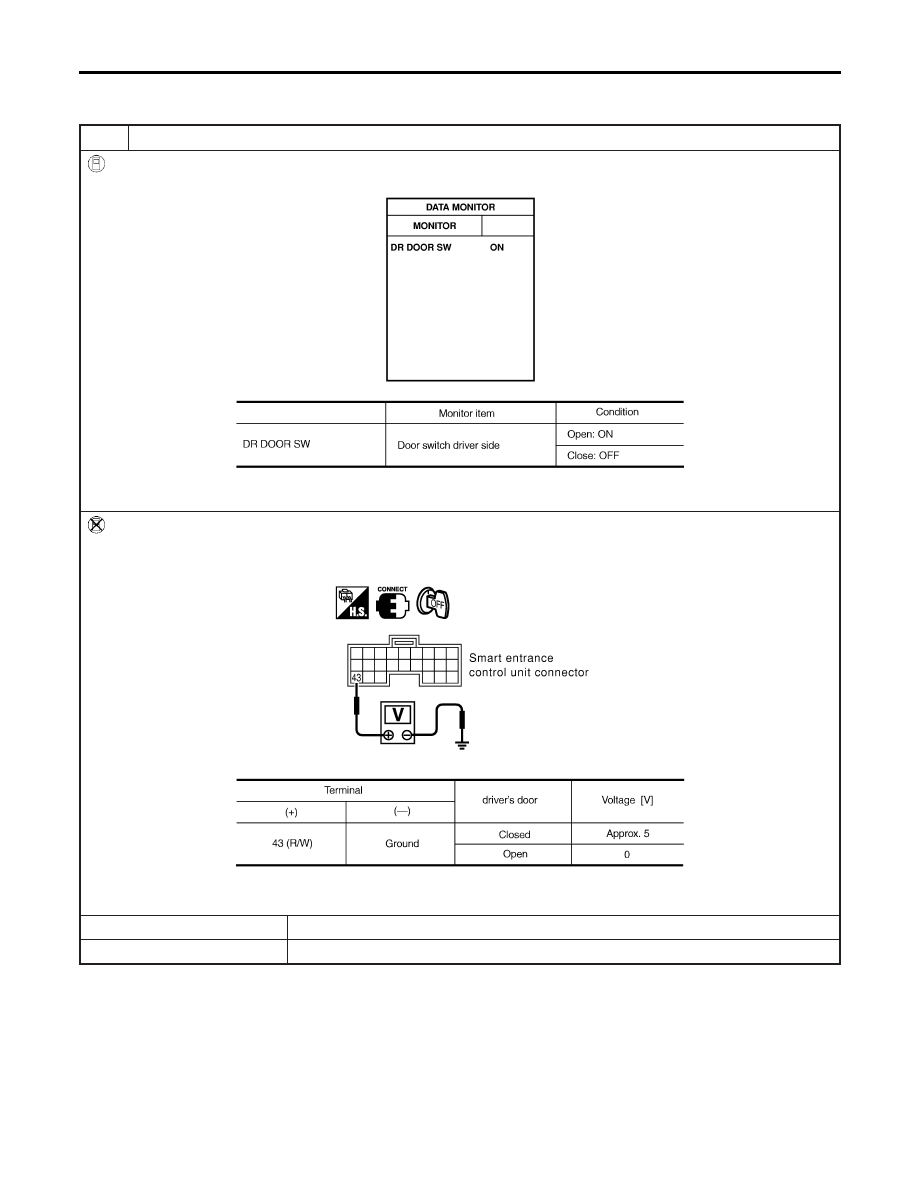

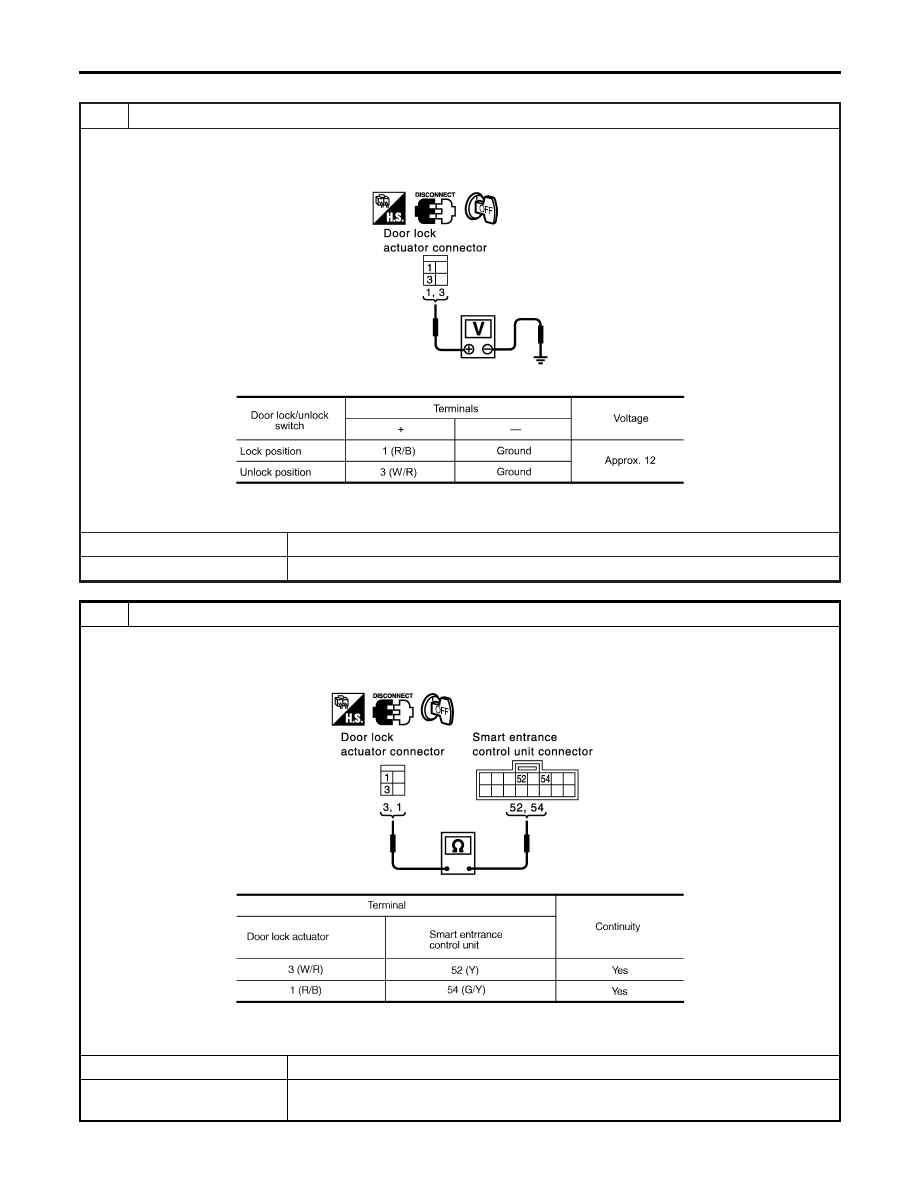

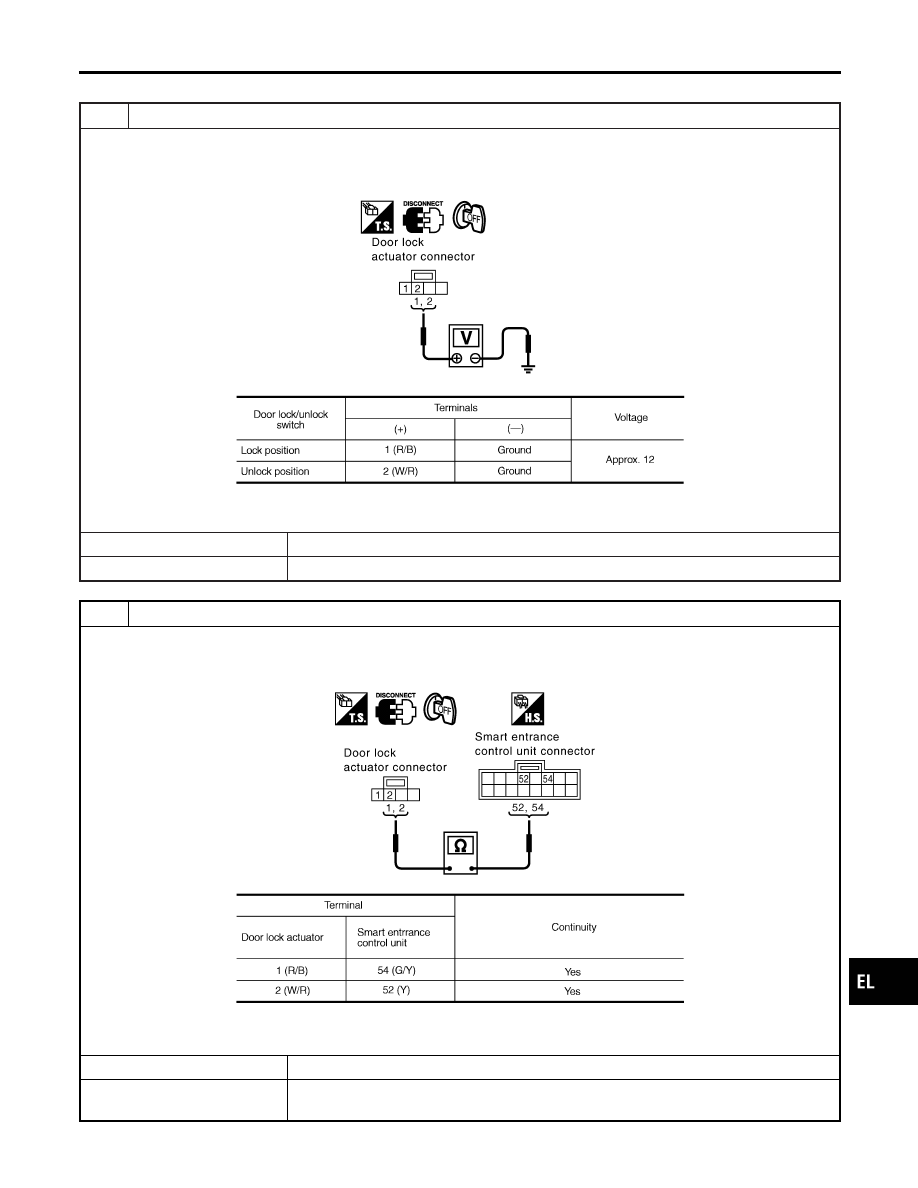

Rear RH Side =NLEL0572S0604 1 CHECK DOOR LOCK SIGNAL 1. Disconnect door lock actuator assembly rear RH harness connector. ground. YEL834D MTBL1493 OK or NG OK © Replace door lock actuator assembly rear RH. NG © GO TO 2. 2 CHECK DOOR LOCK ACTUATOR CIRCUIT 1. Disconnect smart entrance control unit harness connector. entrance control unit harness connector M101 terminal 52 (Y), 54 (G/Y). YEL837D MTBL1681 OK or NG OK © Replace smart entrance control unit. NG © Check harness for open or short between smart entrance control unit and rear door lock POWER DOOR LOCK Trouble Diagnosis (Cont’d) EL-280 |
