Nissan Almera Tino V10. Manual - part 605





EC-1246

[YD (WITH EURO-OBD)]

PSP SWITCH

4.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Harness for open and short between power steering pressure switch and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK POWER STEERING PRESSURE SWITCH

Refer to

EC-1246, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace power steering pressure switch.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS013IA

POWER STEERING PRESSURE SWITCH

1.

Disconnect power steering pressure switch harness connector and then start engine.

2.

Check continuity between power steering pressure switch termi-
nal 1 and 2 under the following conditions.

Conditions

Continuity

Steering wheel is being fully turned.

Yes

Steering wheel is not being turned.

No

MBIB0624E

START SIGNAL

EC-1247

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

START SIGNAL

PFP:48750

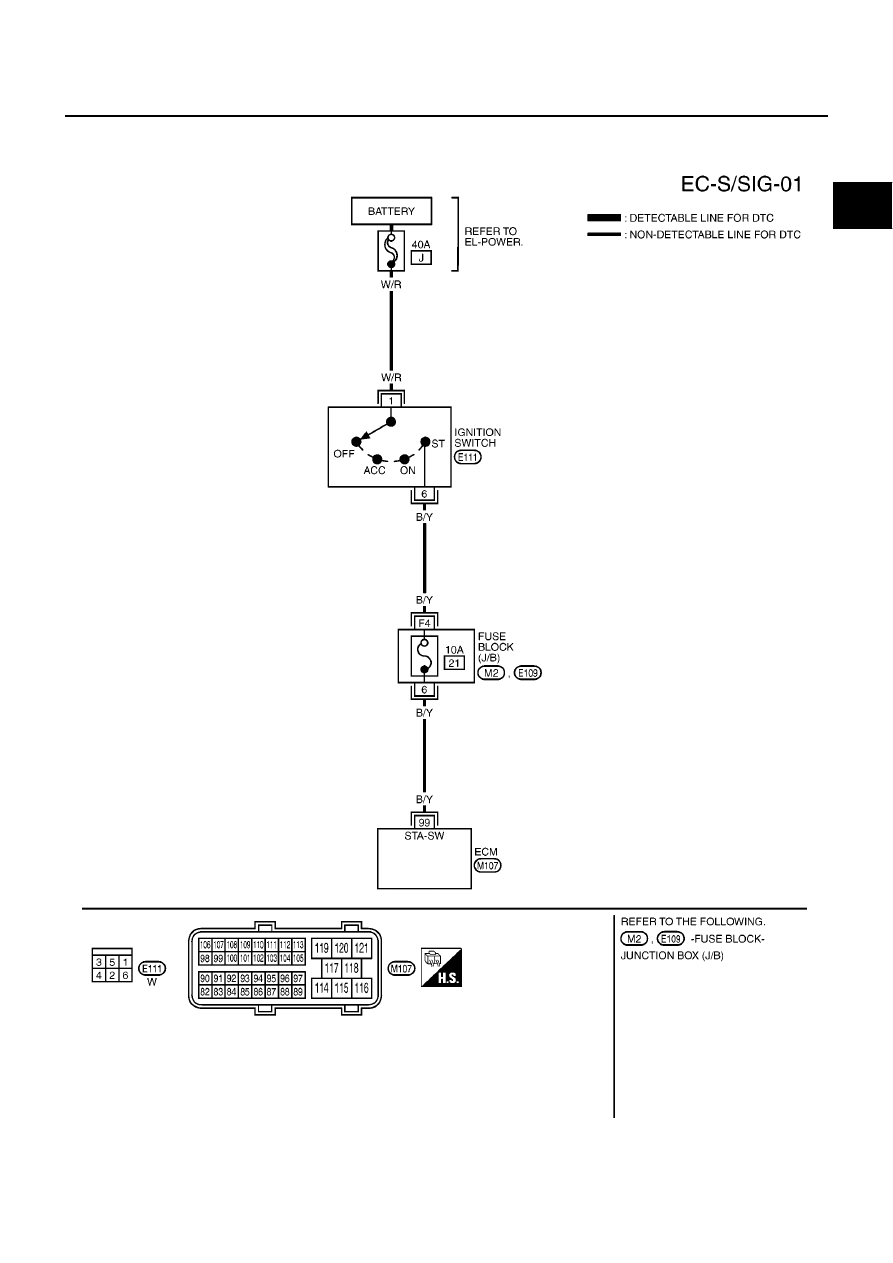

Wiring Diagram

EBS013II

YEC516A

EC-1248

[YD (WITH EURO-OBD)]

START SIGNAL

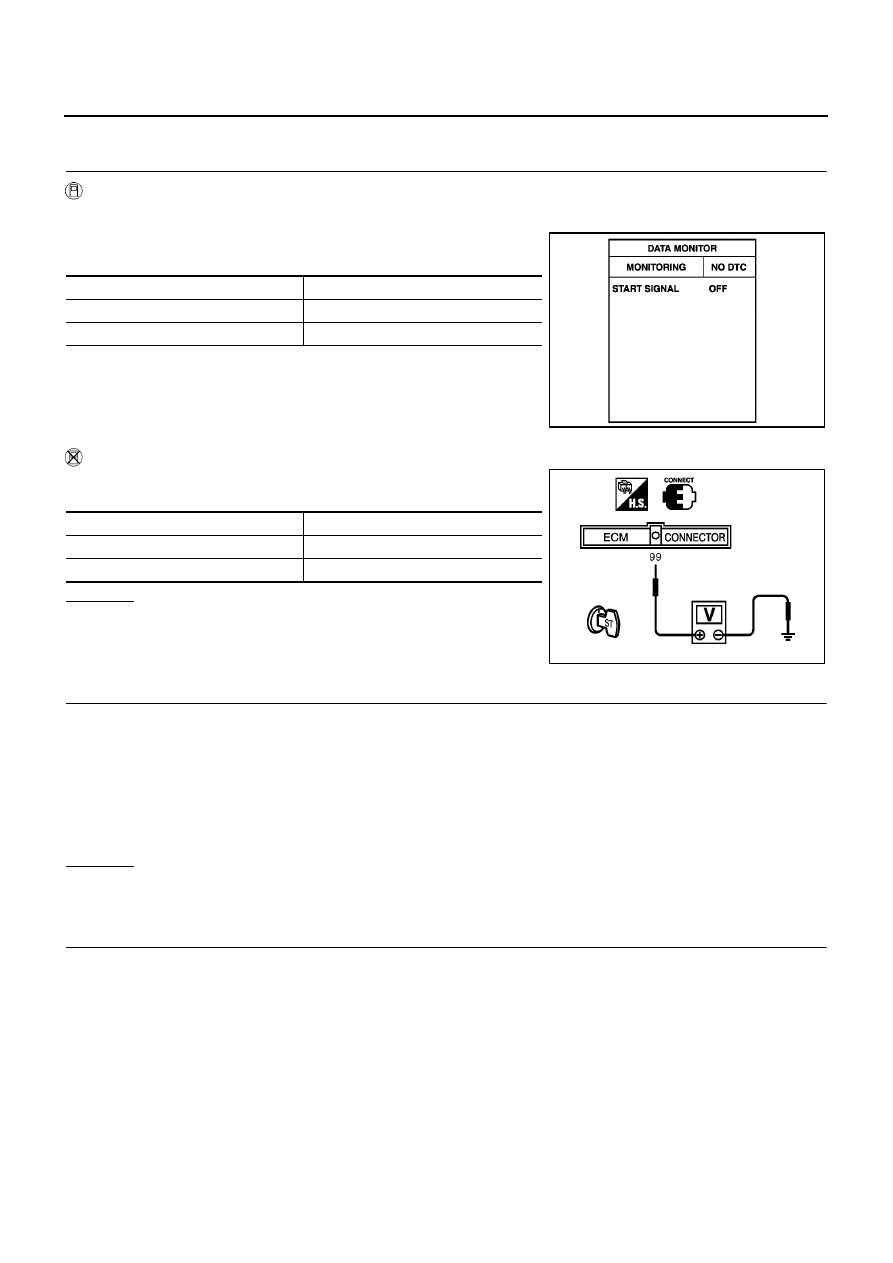

Diagnostic Procedure

EBS013IJ

1.

CHECK START SIGNAL OVERALL FUNCTION

With CONSULT-II

1.

Turn ignition switch ON.

2.

Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.

Without CONSULT-II

Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK START SIGNAL INPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector and ignition switch harness connector.

3.

Check harness continuity between ECM terminal 99 and ignition switch terminal 6.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

10A fuse

Fuse block (J/B) connectors M2, E109

Harness for open or short between ECM and ignition switch

>> Repair open circuit or short to ground or short to power in harness or connectors.

Condition

START SIGNAL

Ignition switch ON

OFF

Ignition switch START

ON

PBIB0433E

Condition

Voltage

Ignition switch ON

Approximately 0V

Ignition switch START

Battery voltage

PBIB1949E

Continuity should exist.

START SIGNAL

EC-1249

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END
