AT-432

[ALL]

DISASSEMBLY

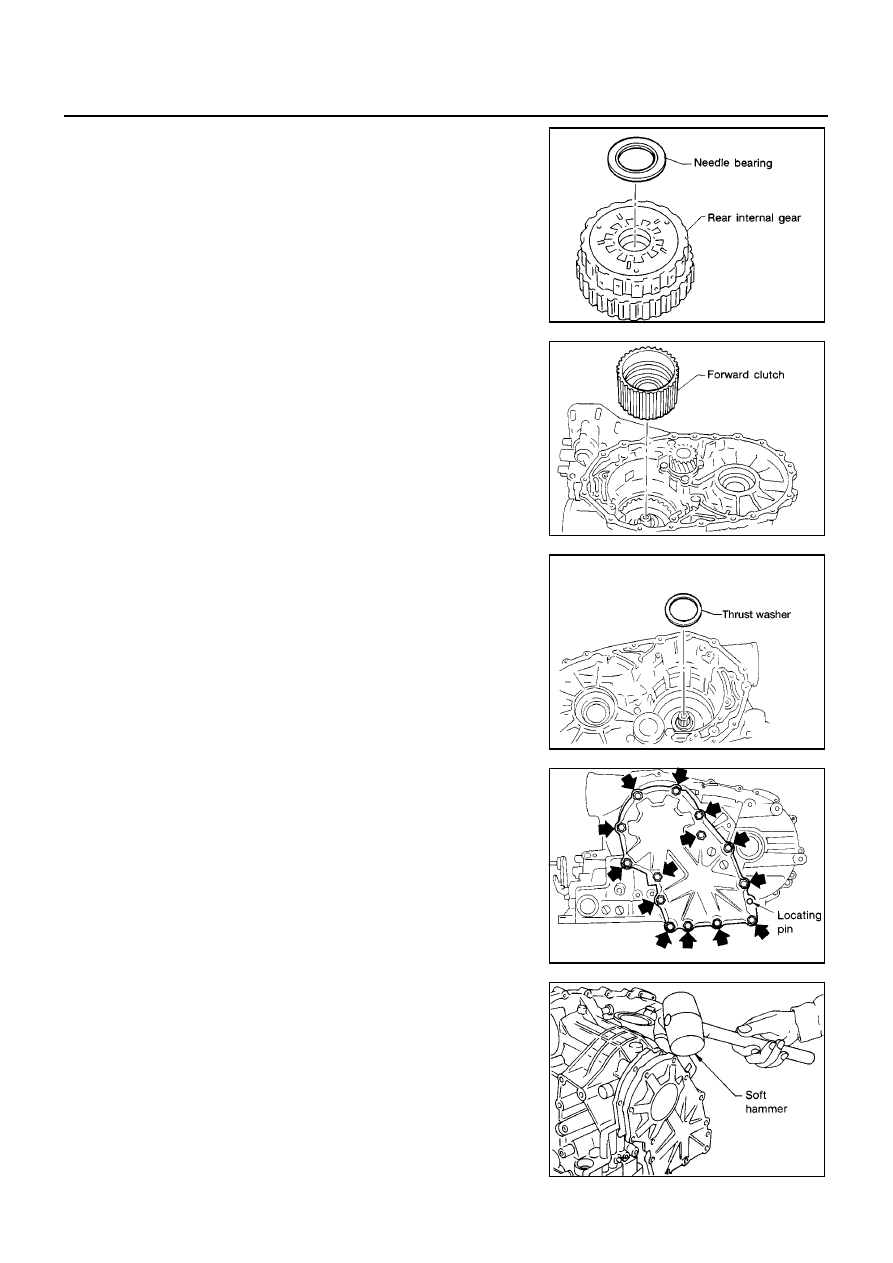

37. Remove needle bearing from rear internal gear.

Check needle bearing for damage or wear.

38. Remove forward clutch assembly from transmission case.

39. Remove thrust washer from transmission case.

40. Remove output shaft assembly according to the following proce-

dures.

a.

Remove side cover bolts.

b.

Remove side cover by lightly tapping it with a soft hammer.

Be careful not to drop output shaft assembly. It might
come out when removing side cover.

SAT056D

SAT272E

AAT215A

SAT059D

SAT434D

DISASSEMBLY

AT-433

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

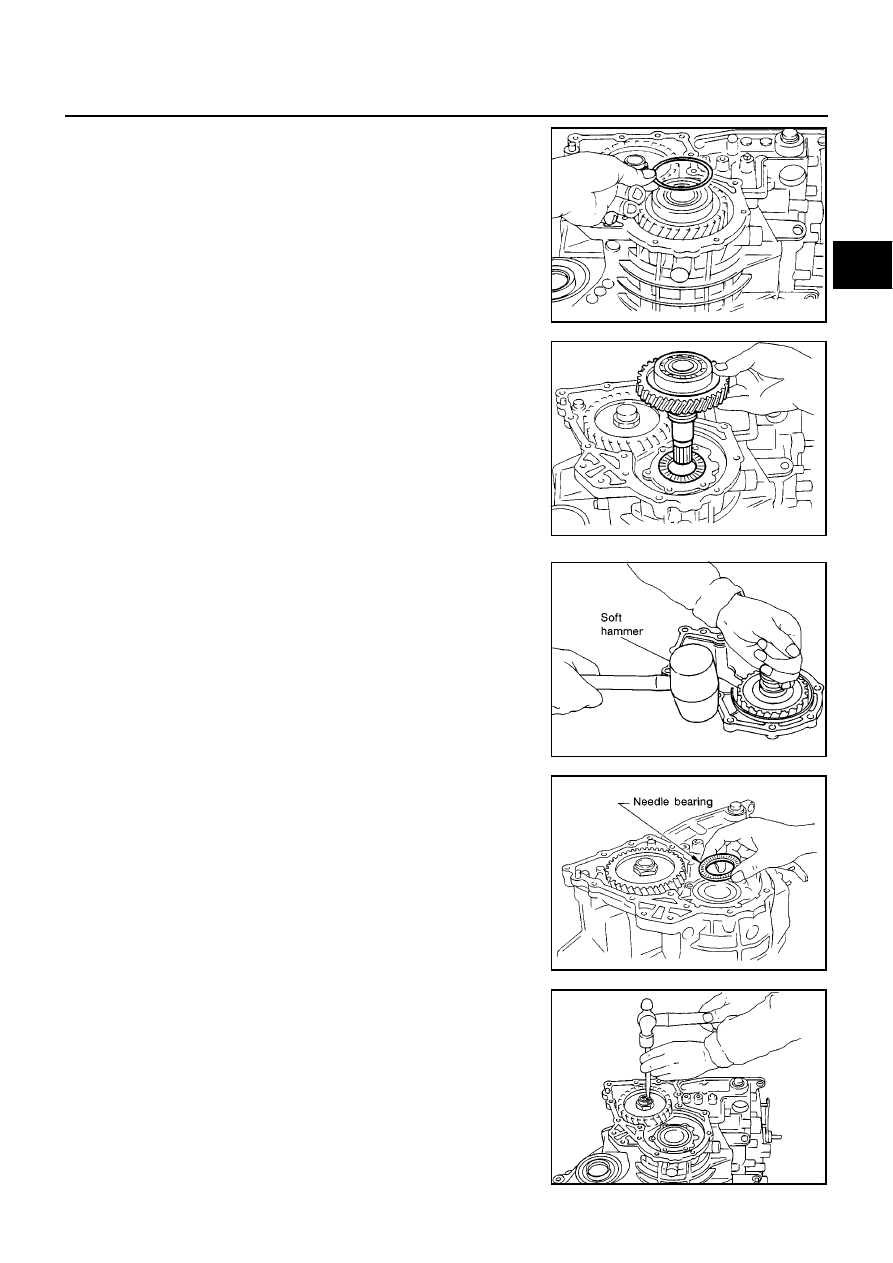

c.

Remove adjusting shim.

d.

Remove output shaft assembly.

If output shaft assembly came off with side cover, tap cover
with a soft hammer to separate.

e.

Remove needle bearing.

41. Disassemble reduction pinion gear according to the following

procedures.

a.

Set manual shaft to position “P” to fix idler gear.

b.

Unlock idler gear lock nut using a pin punch.

SAT440D

SAT439D

SAT435D

SAT453D

SAT060D

AT-434

[ALL]

DISASSEMBLY

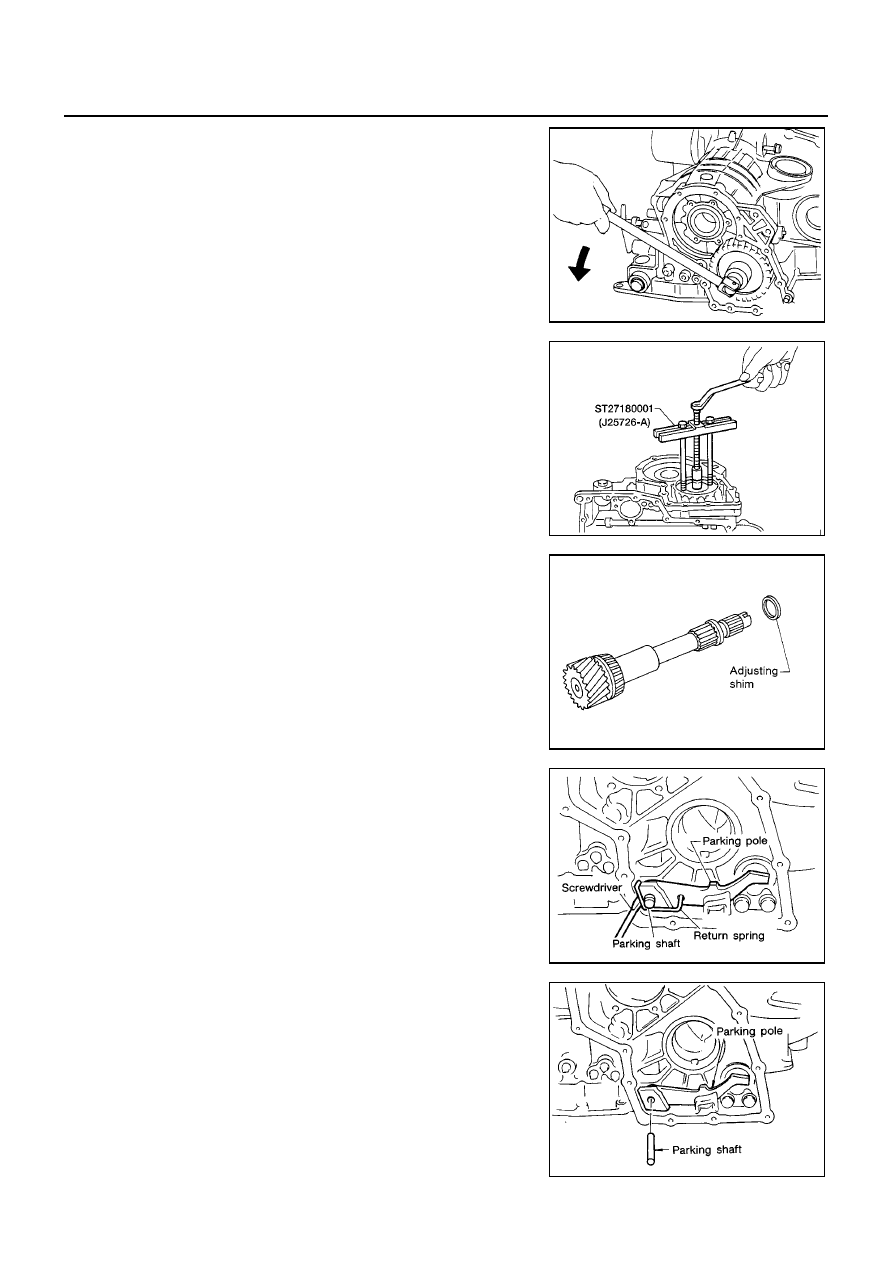

c.

Remove idler gear lock nut.

Do not reuse idler gear lock nut.

d.

Remove idler gear with puller.

e.

Remove reduction pinion gear.

f.

Remove adjusting shim from reduction pinion gear.

42. Remove return spring from parking shaft with screwdriver.

43. Draw out parking shaft and remove parking pawl from transmis-

sion case.

SAT061D

AAT480

SAT310G

SAT064D

SAT065D

DISASSEMBLY

AT-435

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

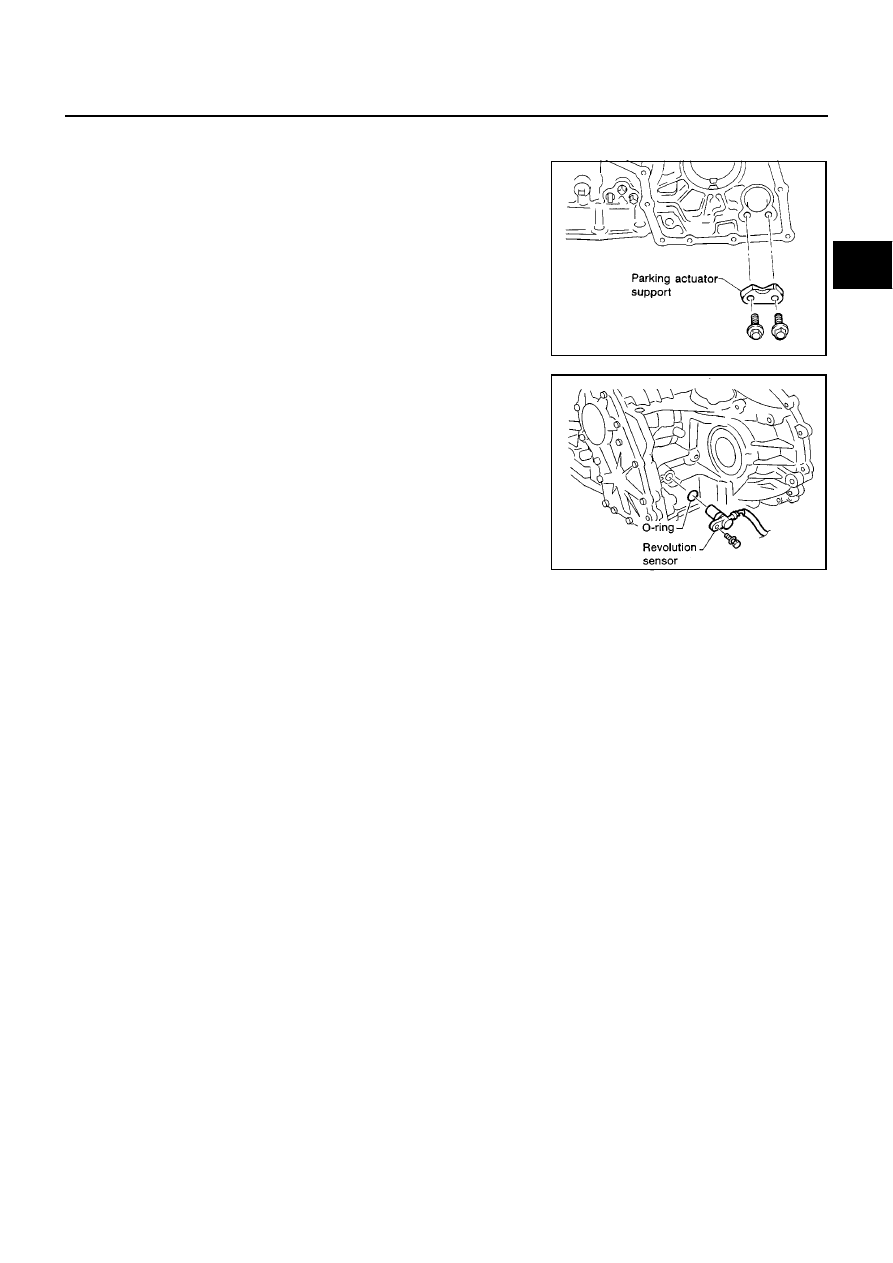

44. Check parking pawl and shaft for damage or wear.

45. Remove parking actuator support from transmission case.

Check parking actuator support for damage or wear.

46. Remove revolution sensor from transmission case.

SAT066D
