Nissan Almera Tino V10. Manual - part 176





AT-428

[ALL]

DISASSEMBLY

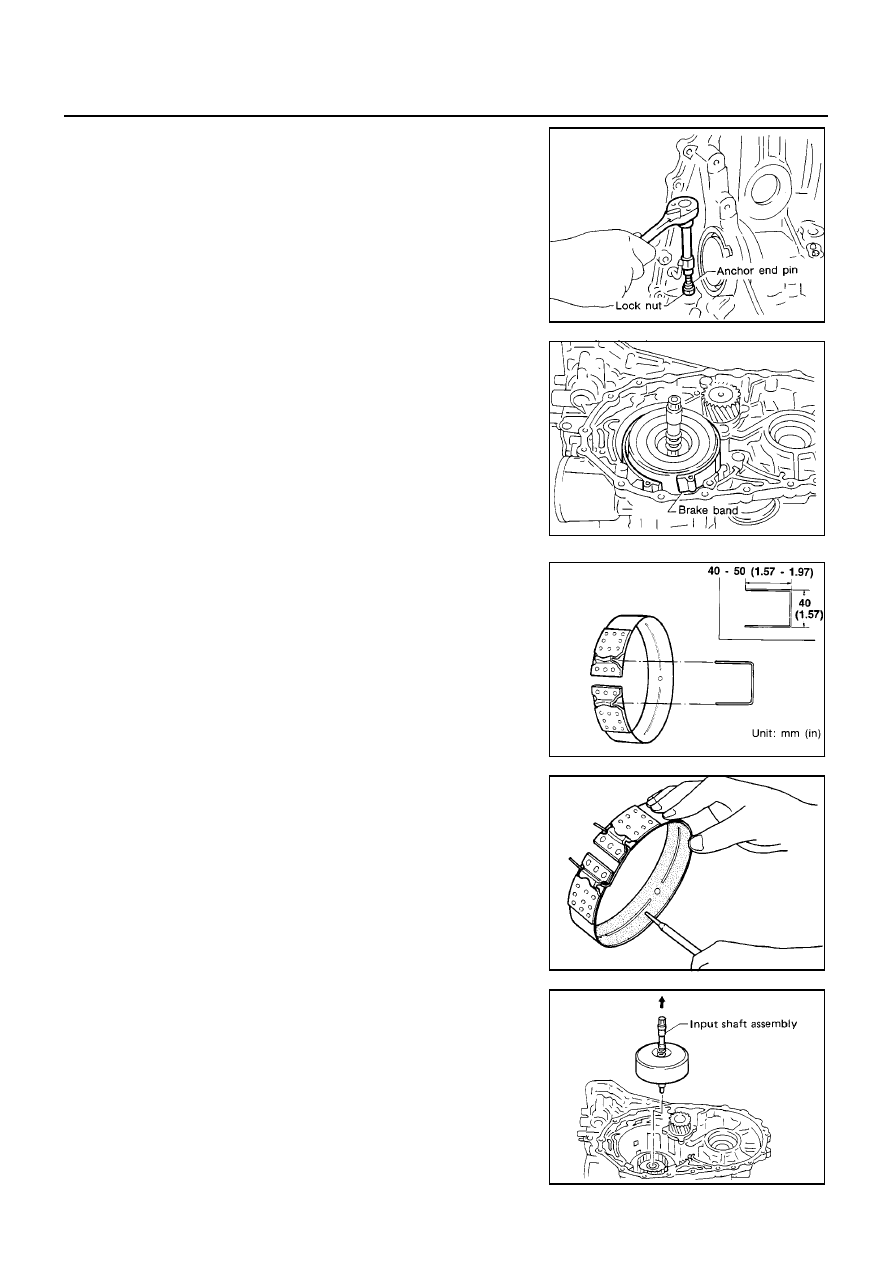

28. Remove brake band according to the following procedures.

a.

Loosen lock nut, then back off anchor end pin.

Do not reuse anchor end pin.

b.

Remove brake band and strut from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.

c.

Check brake band facing for damage, cracks, wear or burns.

29. Remove input shaft assembly (high clutch) and reverse clutch

according to the following procedures.

a.

Remove input shaft assembly (high clutch) with reverse clutch.

SAT037DA

SAT038D

SAT039D

SAT040D

SAT041D

DISASSEMBLY

AT-429

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

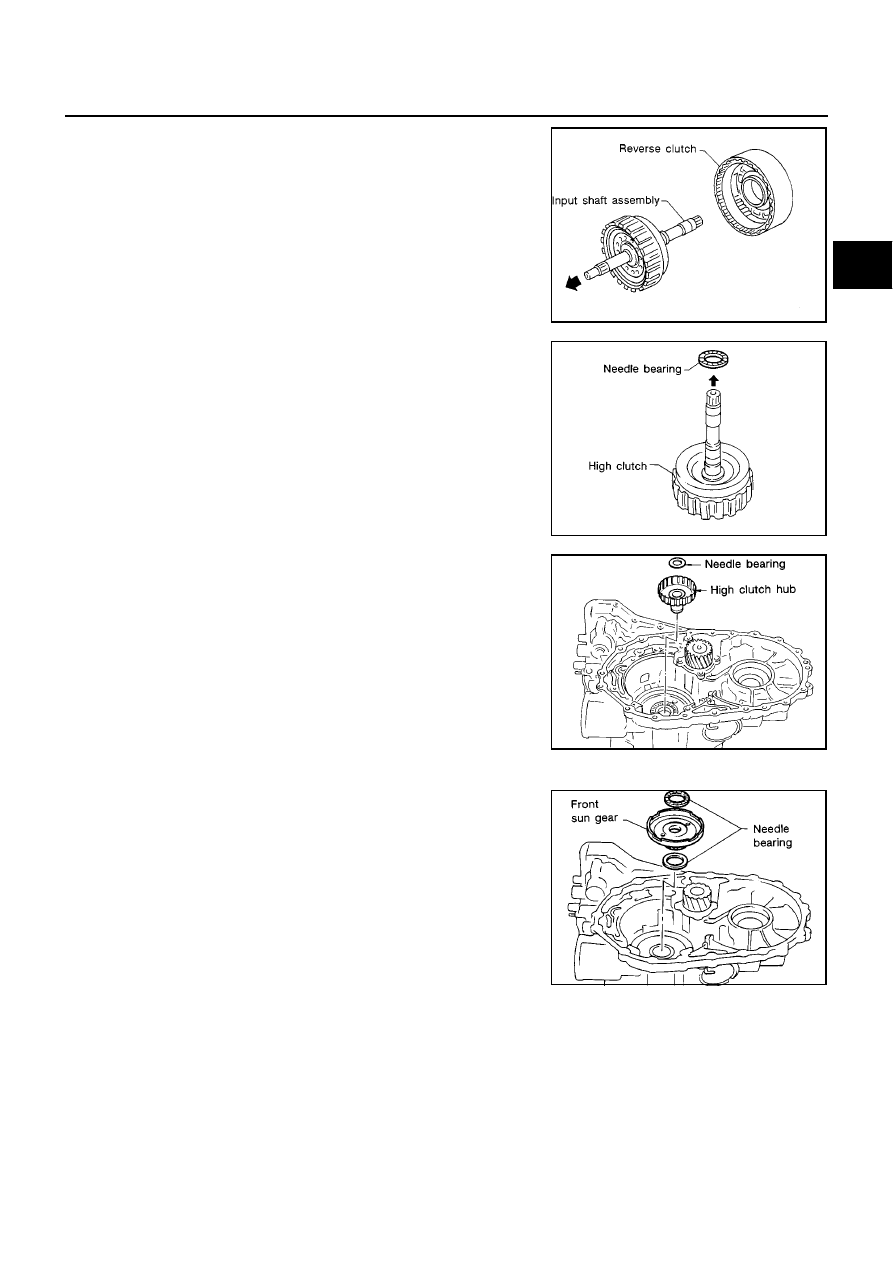

b.

Remove input shaft assembly (high clutch) from reverse clutch.

c.

Remove needle bearings from high clutch drum.

d.

Check input shaft assembly and needle bearing for damage or
wear.

30. Remove high clutch hub and needle bearing from trans mission

case.

31. Check high clutch hub and needle bearing for damage or wear.

32. Remove high clutch hub and front sun gear from transmission

case.

33. Check front sun gear and needle bearings for damage or wear.

SAT042D

SAT043D

SAT044D

SAT579D

AT-430

[ALL]

DISASSEMBLY

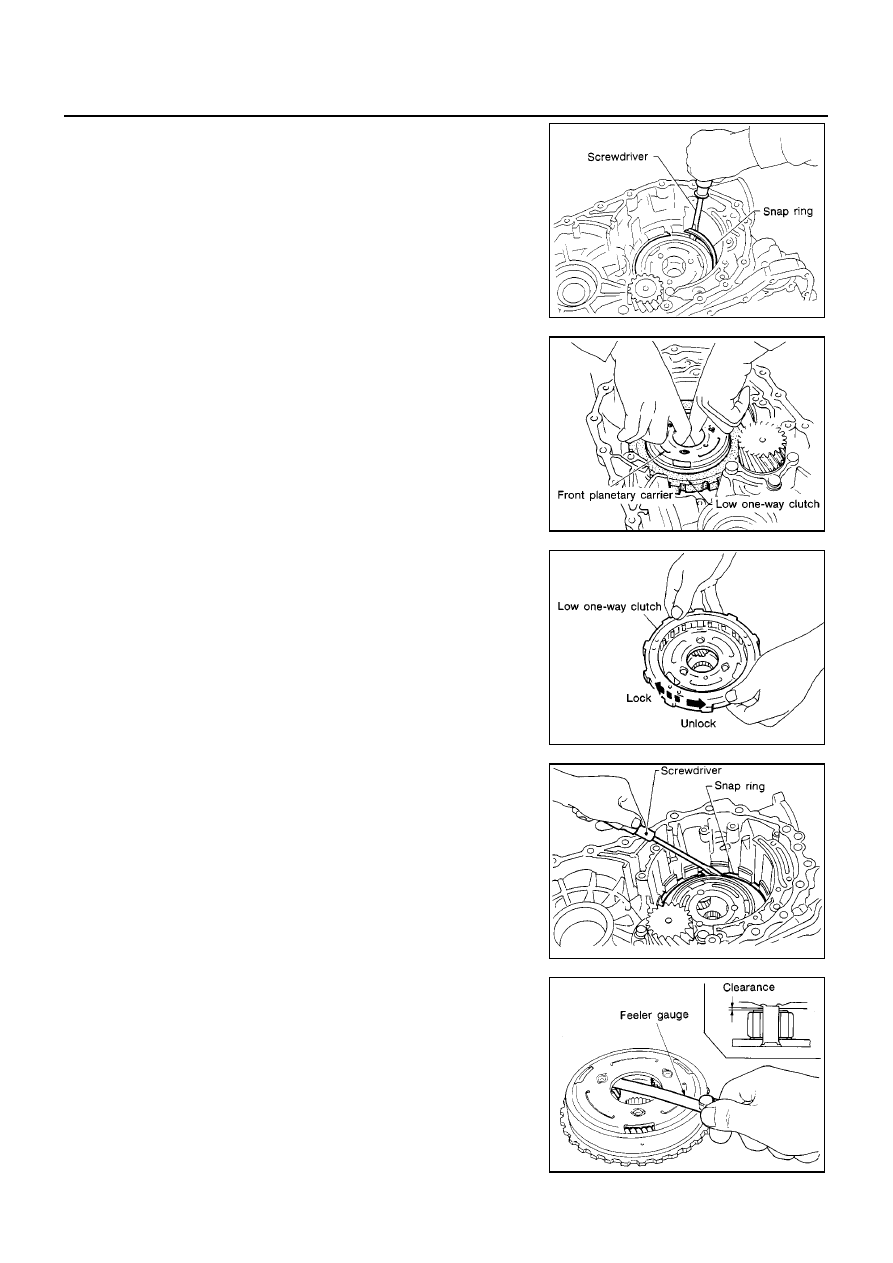

34. Remove low one-way clutch and front planetary carrier assem-

bly according to the following procedures.

a.

Remove snap ring with flat-bladed screwdriver.

b.

Remove front planetary carrier with low one-way clutch.

c.

Check that low one-way clutch rotates in the direction of the
arrow and lochs in the opposite direction.

d.

Remove low one-way clutch front planetary carrier by rotating it
in the direction of arrow.

e.

Remove needle bearing front planetary carrier.

f.

Check front planetary carrier, low one-way clutch and needle
bearing for damage or wear.

g.

Check clearance between pinion washer and planetary carrier
using feeler gauge.

Replace front planetary carrier if the clearance exceeds allow-
able limit.

SAT046D

SAT047D

SAT048D

SAT022F

Standard clearance:

0.15 - 0.70 mm (0.0059 - 0.0276 in)

Allowable limit:

0.80 mm (0.0315 in)

SAT050D

DISASSEMBLY

AT-431

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

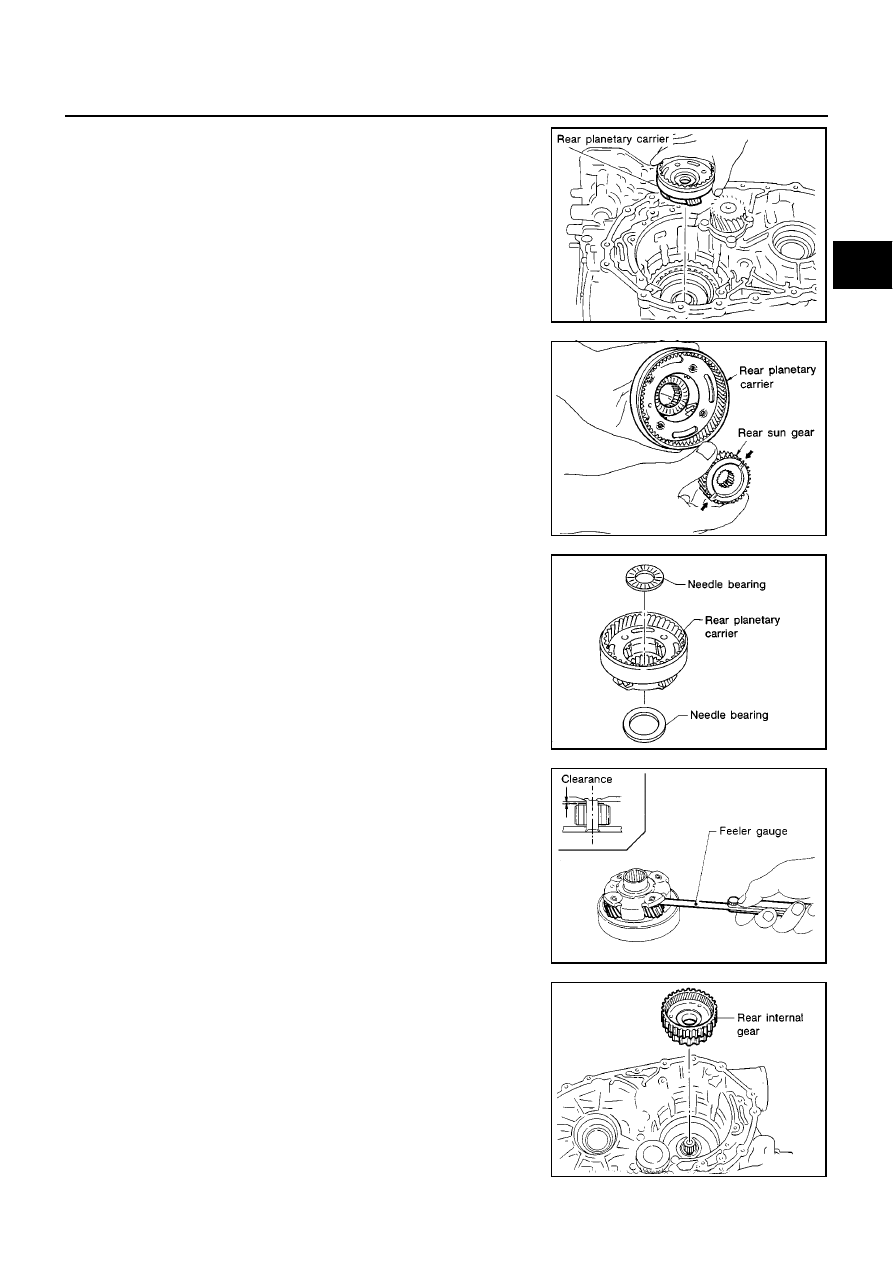

35. Remove rear planetary carrier assembly and rear sun gear

according to the following procedures.

a.

Remove rear planetary carrier assembly from transmission
case.

b.

Remove rear sun gear from rear planetary carrier.

c.

Remove needle bearings from rear planetary carrier assembly.

d.

Check rear planetary carrier, rear sun gear and needle bearings
for damage or wear.

e.

Check clearance between pinion washer and rear planetary car-
rier with feeler gauge.

Replace rear planetary carrier if the clearance exceeds allow-
able limit.

36. Remove rear internal gear from transmission case.

SAT051D

SAT052D

SAT053D

Standard clearance: 0.15 - 0.70 mm (0.0059 - 0.0276 in)

Allowable limit: 0.80 mm (0.0315 in)

SAT054D

SAT055D
