AT-424

[ALL]

DISASSEMBLY

b.

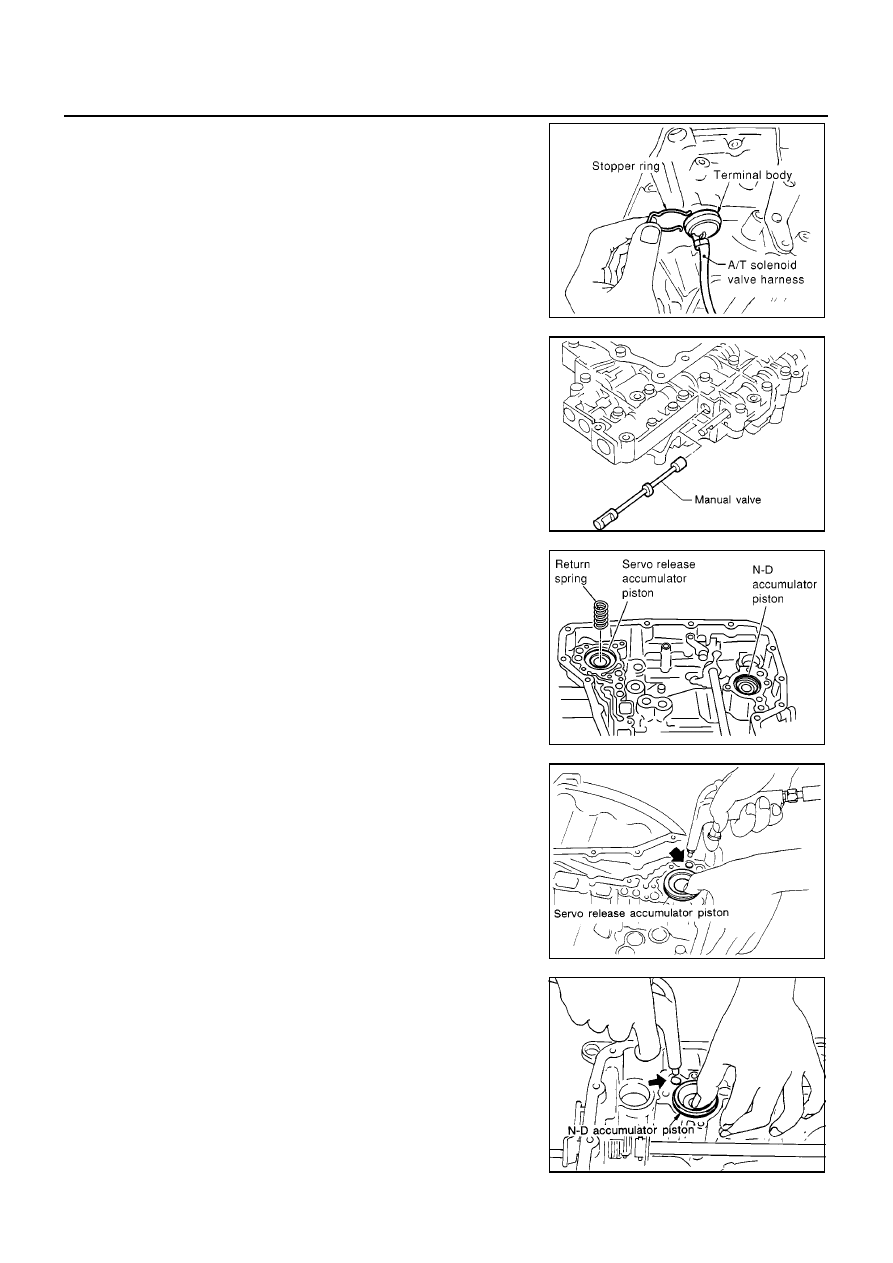

Remove snap ring from terminal body.

c.

Push terminal body into transmission case and draw out sole-
noid valve harness.

10. Remove manual valve from control valve assembly as a precau-

tion.

11. Remove return spring from servo release accumulator piston.

12. Remove servo release accumulator piston with compressed air.

13. Remove O-rings from servo release accumulator piston.

14. Remove N-D accumulator piston and return spring with com-

pressed air.

15. Remove O-rings from N-D accumulator piston.

MCIB9013E

SAT017D

SAT877J

SAT019DA

SAT020D

DISASSEMBLY

AT-425

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

16. Check accumulator pistons and contact surface of transmission

case for damage.

17. Check accumulator return springs for damage and free length.

18. Remove lip seals from band servo oil port.

19. Remove converter housing according to the following proce-

dures.

a.

Remove converter housing mounting bolts A and B.

b.

Remove converter housing by tapping it lightly.

c.

Remove O-ring from differential oil port.

Return spring:

Refer to

AT-519, "SERVICE DATA AND

SPECIFICATIONS (SDS)"

.

SAT023DA

SAT129E

SAT027D

SAT028D

SAT131E

AT-426

[ALL]

DISASSEMBLY

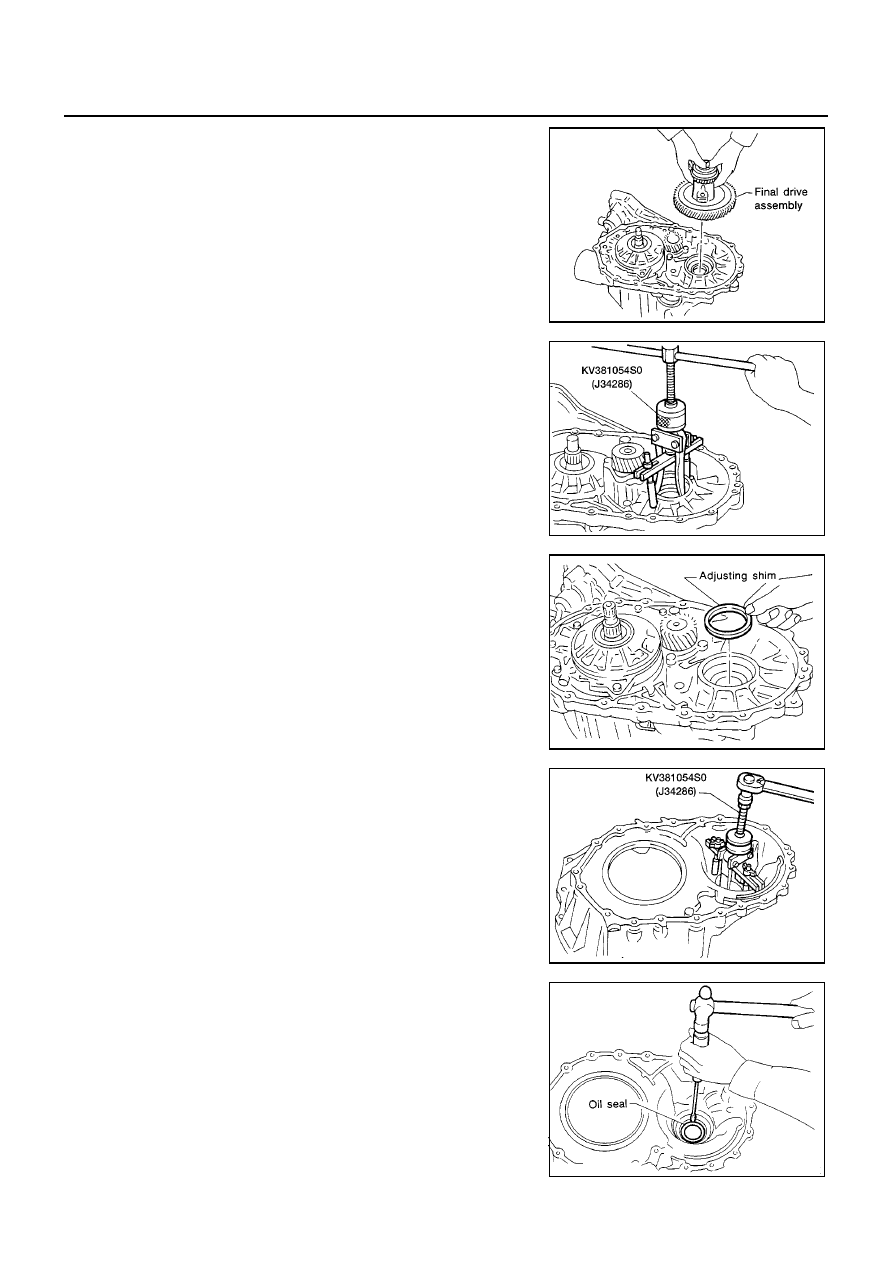

20. Remove final drive assembly from transmission case.

21. Remove differential side bearing outer race and side bearing

adjusting shim from transmission case.

22. Remove differential side bearing adjusting shim from transmis-

sion case.

23. Remove differential side bearing outer race from converter

housing.

24. Remove oil seal with screwdriver from converter housing.

Be careful not to damage case.

SAT030D

AAT477

SAT132E

AAT478

SAT133E

DISASSEMBLY

AT-427

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

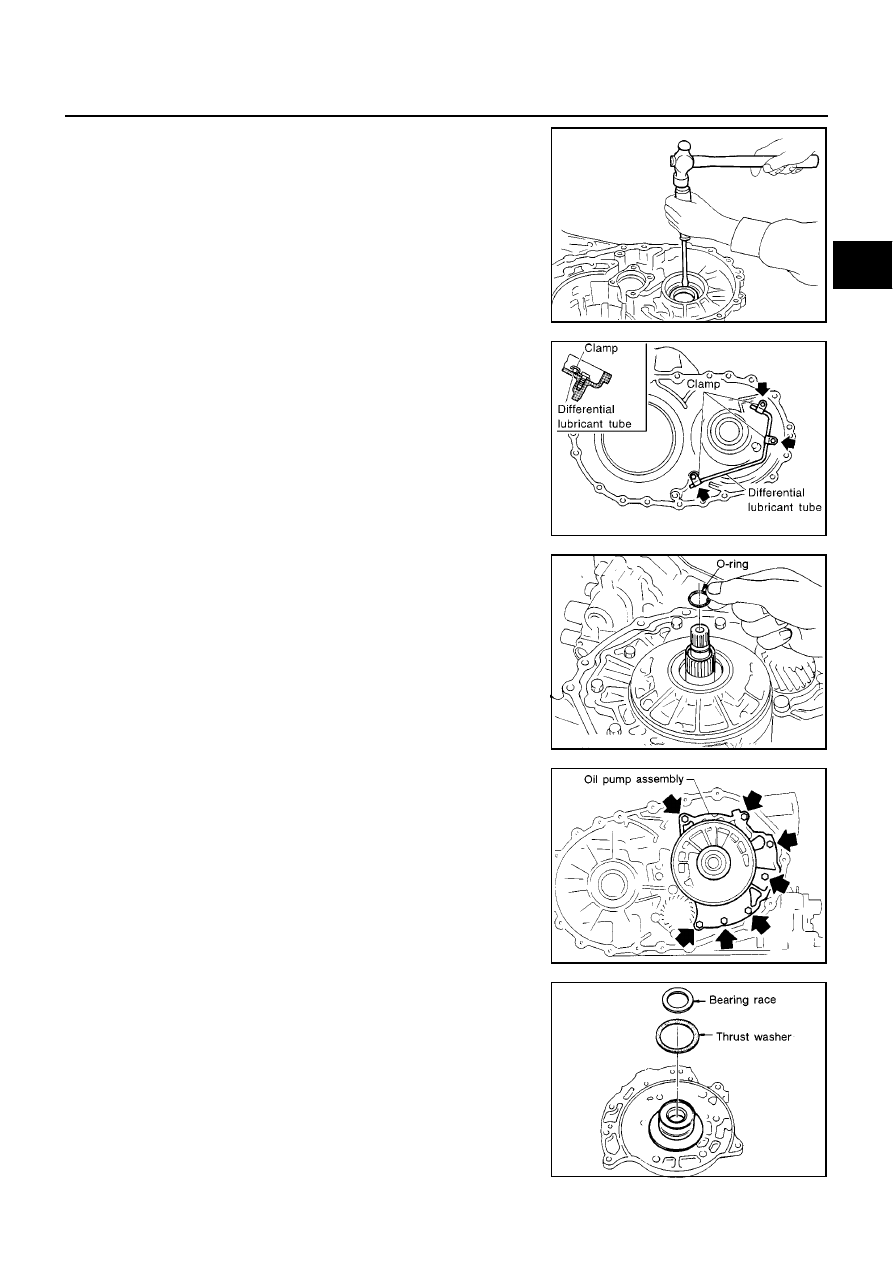

25. Remove side oil seal from trans mission case using a screw

driver.

26. Remove differential lubricant tube from converter housing.

27. Remove oil pump according to the following procedures.

a.

Remove O-ring from input shaft.

b.

Remove oil pump assembly from transmission case.

c.

Remove thrust washer and bearing race from oil pump assem-
bly.

SAT072D

SAT063K

SAT127E

SAT035D

SAT036D
