AT-356

[ALL]

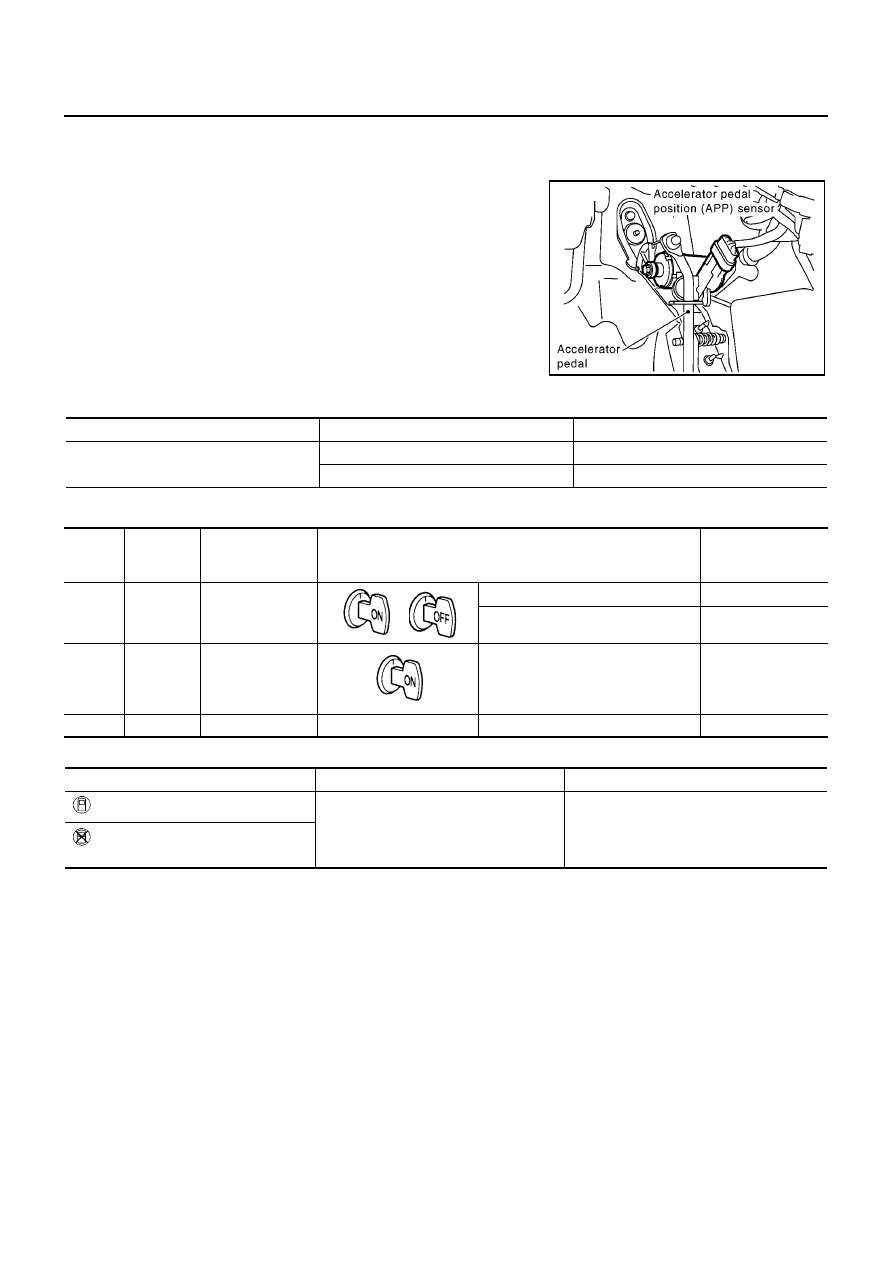

ACCELE RATOR PEDAL POSITION (APP) SENSOR

ACCELE RATOR PEDAL POSITION (APP) SENSOR

PFP:22620

Description

ECS009B0

Accelerator pedal position (APP) sensor (Throttle position sensor)
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc. The
actuator sends a signal to the TCM.

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Remarks: Specification data are reference values.

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

ON BOARD DIAGNOSIS LOGIC

*:This code means Accelerator pedal position (APP) sensor in reality.

MCIA0096E

Monitor item

Condition

Specification

Accelerator pedal position (APP) sensor
(Throttle position sensor)

Fully-closed throttle

Approximately 0.5V

Fully-open throttle

Approximately 4V

Termi-

nal No.

Wire color

Item

Condition

Judgement stan-

dard

(Approx.)

32

R

Throttle position
sensor
(Power source)

or

When turning ignition switch “ON”.

4.5 - 5.5V

When turning ignition switch “OFF”.

0V

41

GY

Throttle position
sensor

When depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)

Fully-closed throttle:
0.5V
Fully-open throttle:
4V

42

B

Sensor ground

—

—

—

Diagnostic trouble code

Malfunction is detected when...

Check items (Possible cause)

: THROTTLE POSI SEN*

TCM receives an excessively low or high
voltage from the sensor.

●

Harness or connectors
(The sensor circuit is open or shorted.)

●

Accelerator pedal position (APP) sensor
(Throttle position sensor)

: 3rd judgement flicker

ACCELE RATOR PEDAL POSITION (APP) SENSOR

AT-357

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

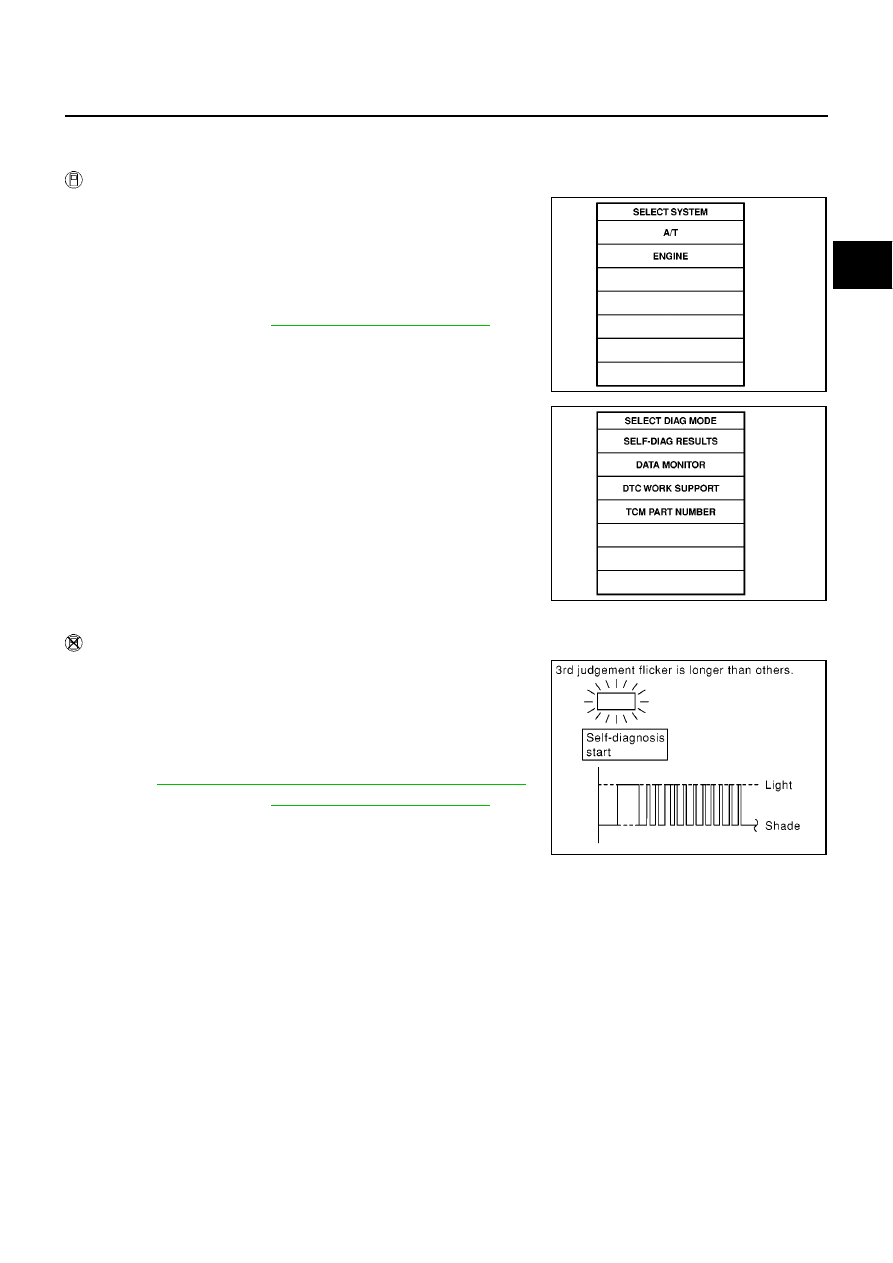

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1.

Start engine.

2.

Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.

3.

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.

4.

If DTC is detected, go to

AT-359, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.

3.

Perform self-diagnosis.
Refer to

AT-252, "Diagnostic Procedure Without CONSULT-II"

.

4.

If DTC is detected, go to

AT-359, "Diagnostic Procedure"

.

SAT014K

SAT971J

MCIB9027E

AT-358

[ALL]

ACCELE RATOR PEDAL POSITION (APP) SENSOR

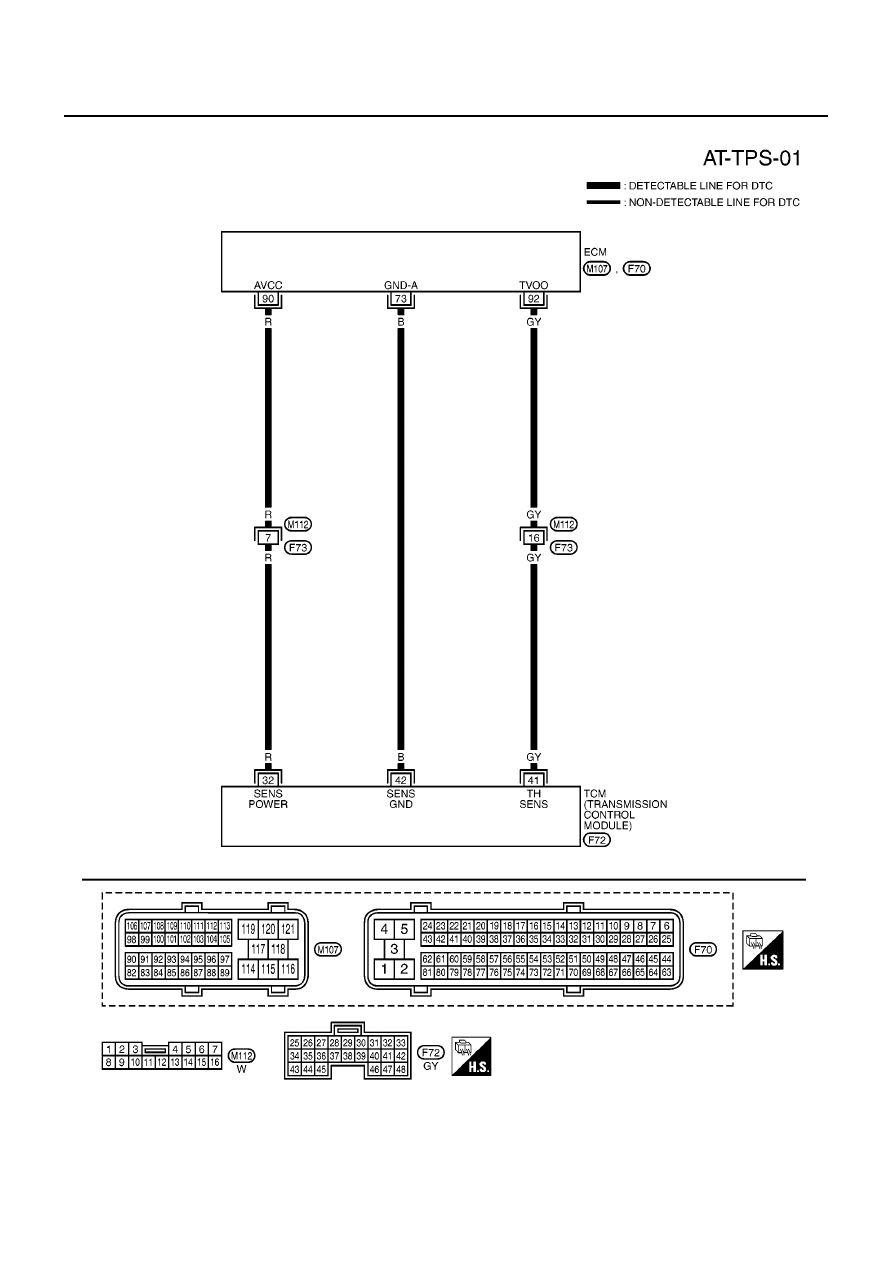

Wiring Diagram — AT — TPS

ECS009B1

YAT381A

ACCELE RATOR PEDAL POSITION (APP) SENSOR

AT-359

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

ECS009B2

1.

CHECK DTC WITH ECM

●

Check DTC with CONSULT-II “ENGINE”.

Turn ignition switch ON and select “SELF DIAGNOSTIC RESULTS” mode for “ENGINE” with CONSULT-II.
Refer to

EC-55, "Emission-related Diagnostic Information"

(EURO OBD) or

EC-581, "Emission-related Diag-

nostic Information"

(Except EURO OBD).

OK or NG

OK (With CONSULT-II)>>GO TO 2
OK (Without CONSULT-II)>>GO TO 3
NG

>> Perform trouble diagnosis for the DTC for engine control.

2.

CHECK INPUT SIGNAL (WITH CONSULT-II)

With CONSULT-II

1.

Turn ignition switch to “ON” position.
(Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “THRTL POS SEN”.

OK or NG

OK

>> GO TO 4

NG

>> Check harness for short or open between ECM and TCM regarding throttle position sensor circuit.

(Main harness)

SAT014K

Voltage:

Fully-closed throttle

:Approximately 0.5V

Fully-open throttle

:Approximately 4V

SAT614J
