AT-348

[ALL]

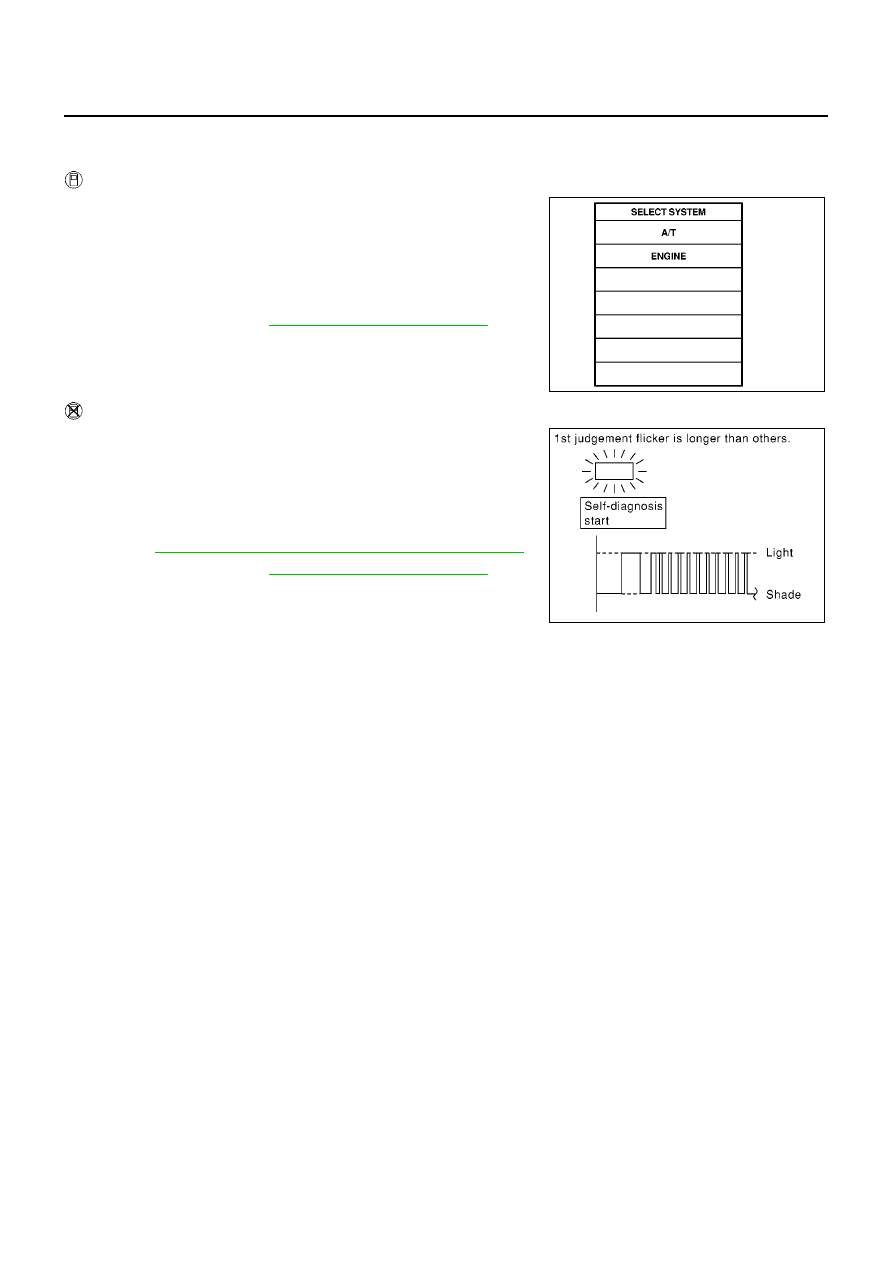

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1.

Start engine.

2.

Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.

3.

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.

4.

If DTC is detected, go to

AT-350, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.

3.

Perform self-diagnosis.
Refer to

AT-252, "Diagnostic Procedure Without CONSULT-II"

.

4.

If DTC is detected, go to

AT-350, "Diagnostic Procedure"

.

SAT014K

MCIB9025E

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

AT-349

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

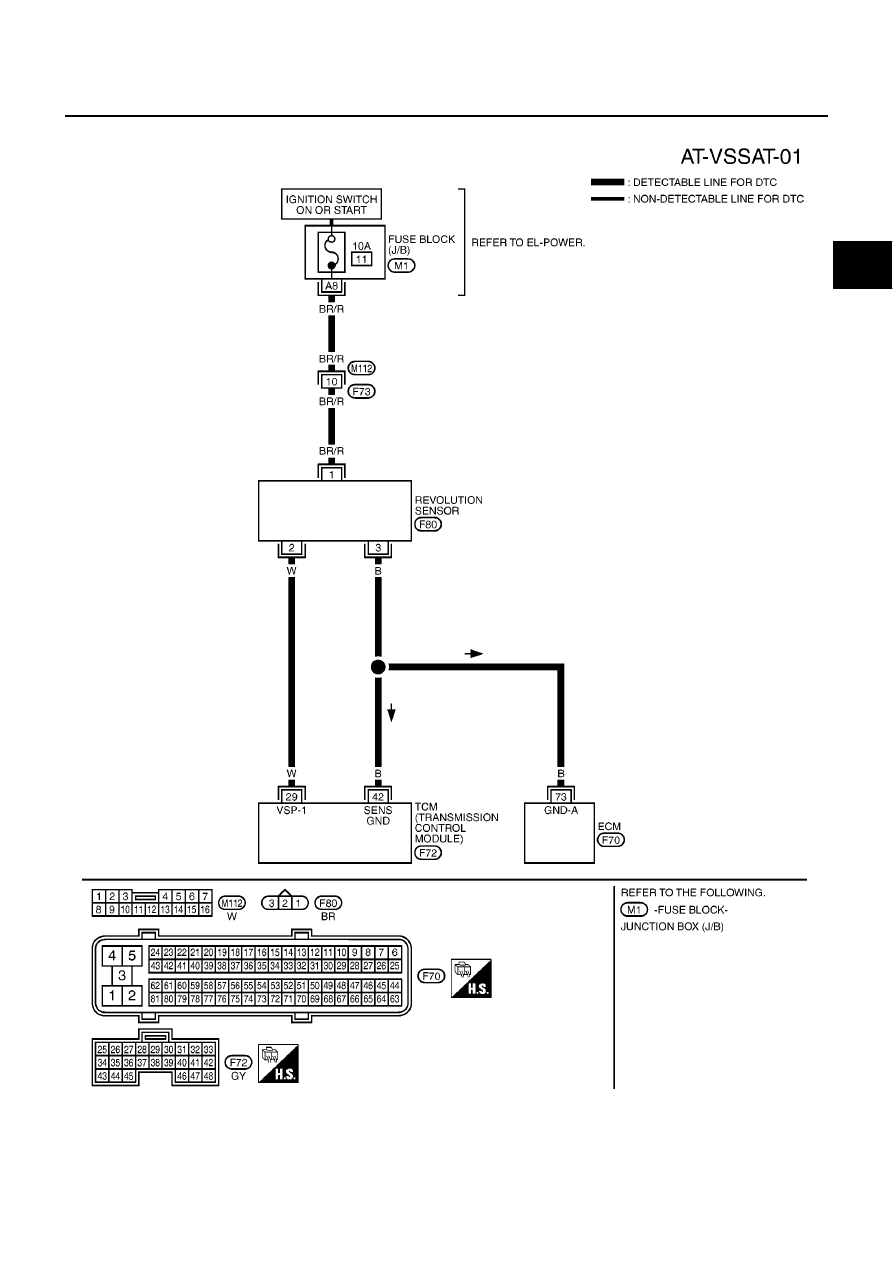

Wiring Diagram — AT — VSSAT

ECS009AV

YAT371A

AT-350

[ALL]

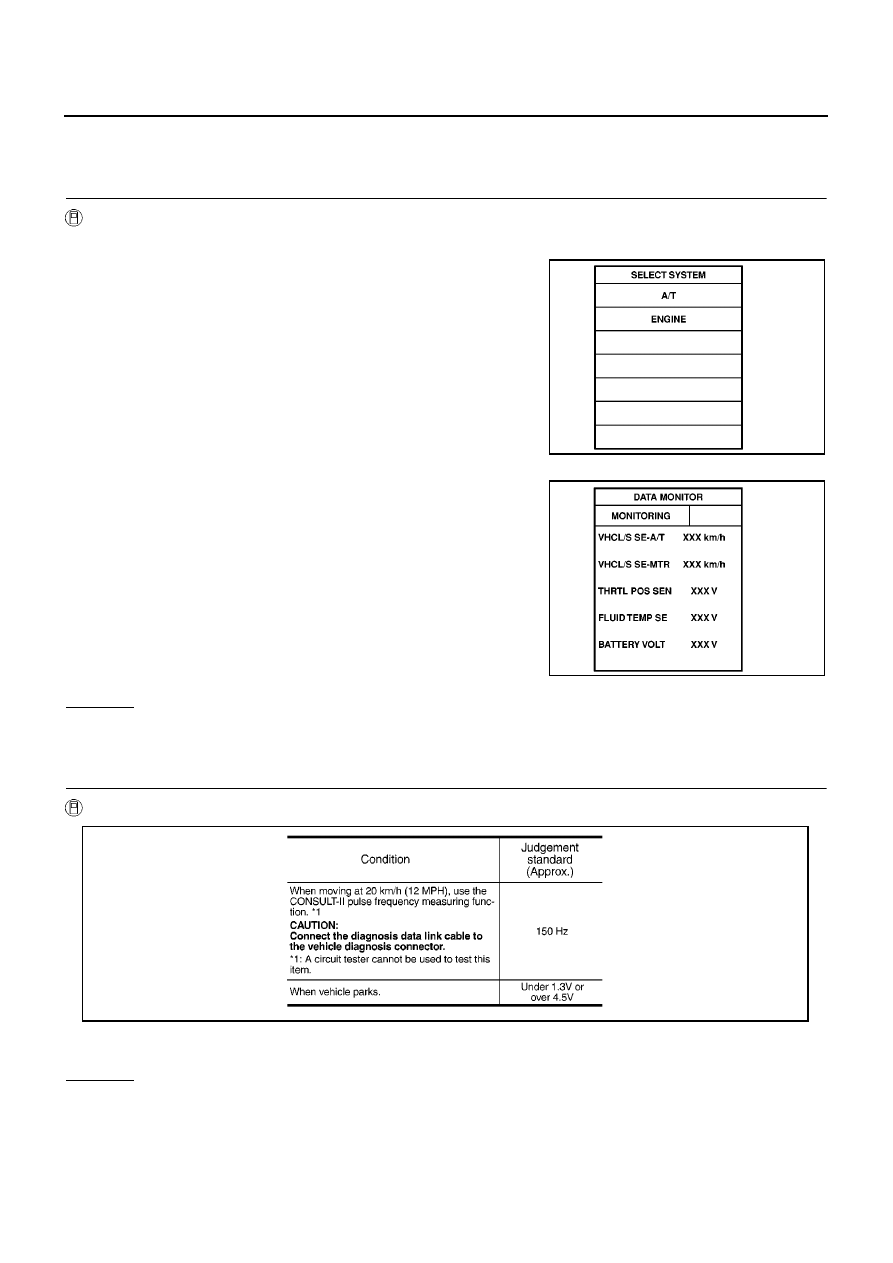

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

Diagnostic Procedure

ECS009AW

1.

CHECK INPUT SIGNAL (WITH CONSULT-II)

With CONSULT-II

1.

Start engine.

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “VHCL/S SE·A/T” while driving.

Check the value changes according to driving speed.

OK or NG

OK

>> GO TO 3

NG

>> GO TO 2

2.

CHECK REVOLUTION SENSOR (WITH CONSULT-II)

With CONSULT-II

1.

Start engine.
Harness for short or open between TCM, ECM and revolution sensor (Main harness)

OK or NG

OK

>> GO TO 3

NG

>> Repair or replace damaged parts.

SAT014K

SAT614J

MTBL0575

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

AT-351

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

CHECK DTC

Perform

AT-348, "SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4

4.

CHECK TCM INSPECTION

1.

Perform TCM input/output signal inspection.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.
