AT-212

[EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

YAT387A

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-213

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

1. O/D OFF Indicator Lamp Does Not Come On

ECS00999

SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to “ON”.

1.

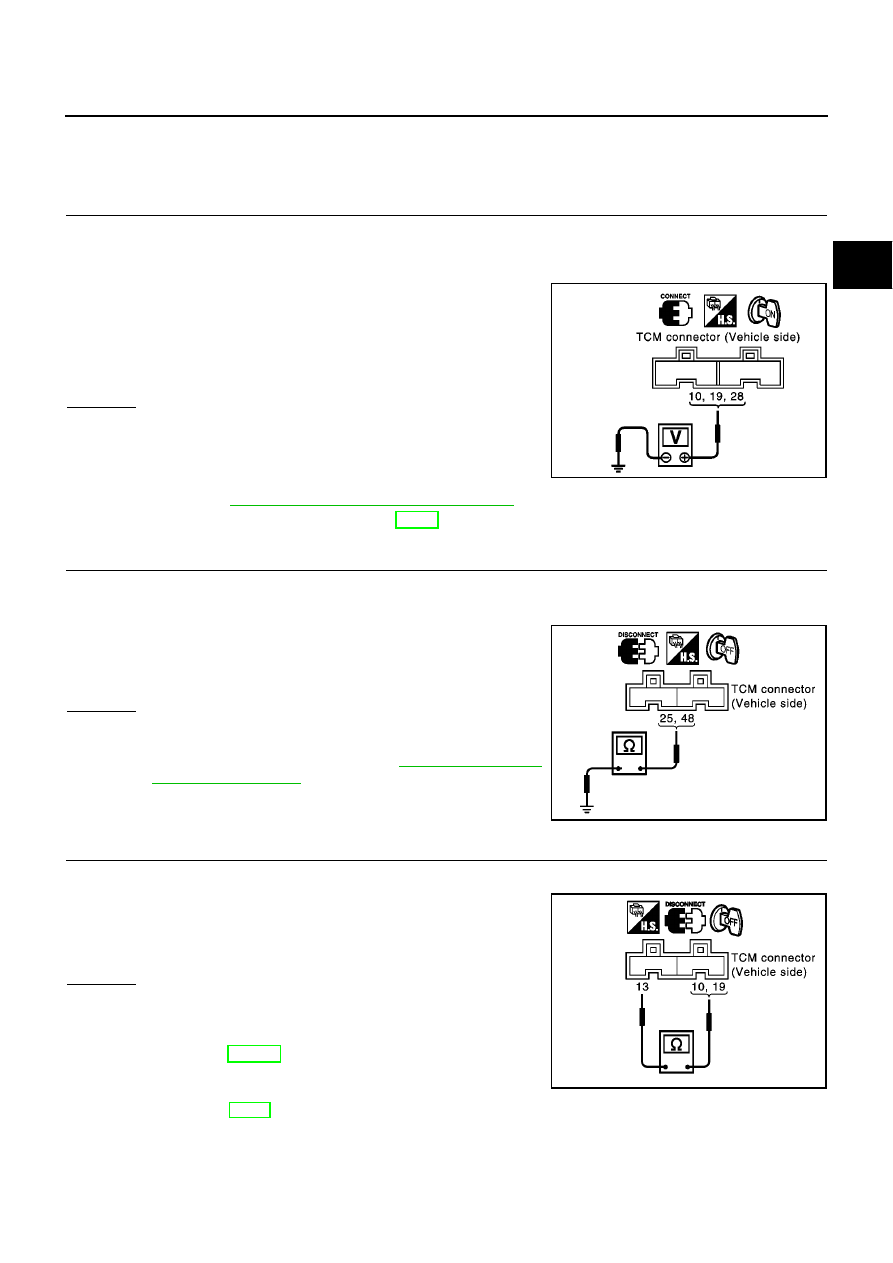

CHECK TCM POWER SOURCE

1.

Turn ignition switch to “ON” position.
(Do not start engine.)

2.

Check voltage between TCM terminals 10, 19, 28 and ground.

3.

Turn ignition switch to “OFF” position.

4.

Check voltage between TCM terminal 28 and ground.

OK or NG

OK

>> GO TO 2

NG

>> Check the following items:

Harness for short or open between ignition switch and
TCM terminals 10, 19 and 28 (Main harness).

Refer to

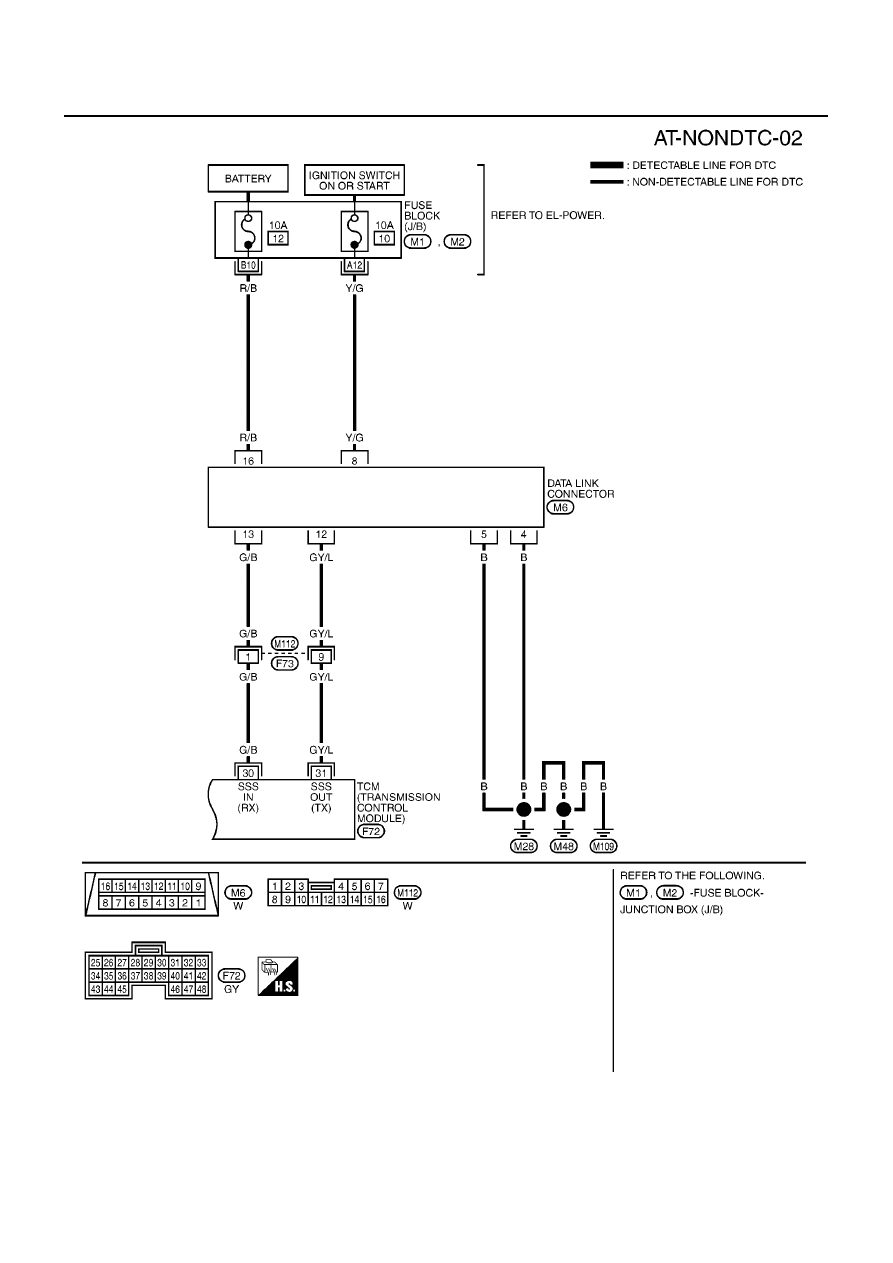

AT-344, "Wiring Diagram — AT — MAIN"

.

Ignition switch and fuse Refer to EL-11, “Power Supply Routing”.

2.

CHECK TCM GROUND CIRCUIT

1.

Turn ignition switch to “OFF” position.

2.

Disconnect TCM harness connector.

3.

Check continuity between TCM terminals 25, 48 and ground.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors. Refer to

AT-344, "Wiring Dia-

gram — AT — MAIN"

.

3.

CHECK LAMP CIRCUIT

1.

Turn ignition switch to “OFF” position.

2.

Check resistance between TCM terminals 13 and 10, 19.

3.

Reinstall any part removed.

OK or NG

OK

>> GO TO 4

NG

>> Check the following items:

O/D OFF indicator lamp.
Refer to EL-102, “Combination Meter”.

Harness and fuse for short or open between ignition
switch and O/D OFF indicator lamp (Main harness)
Refer to EL-11, “Power Supply Routing”.

Harness for short or open between O/D OFF indicator lamp and TCM.

Voltage:

Battery voltage

Voltage:

Battery voltage

SCIA0713E

Continuity should exist.

SCIA0766E

Resistance:

50 - 100

SCIA0767E

AT-214

[EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

4.

CHECK SYMPTOM

Check again.

OK or NG

OK

>> INSPECTION END

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

2. Engine Cannot Be Started In “P” and “N” Position

ECS0099A

SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”, “2”, “1” or “R” position.

1.

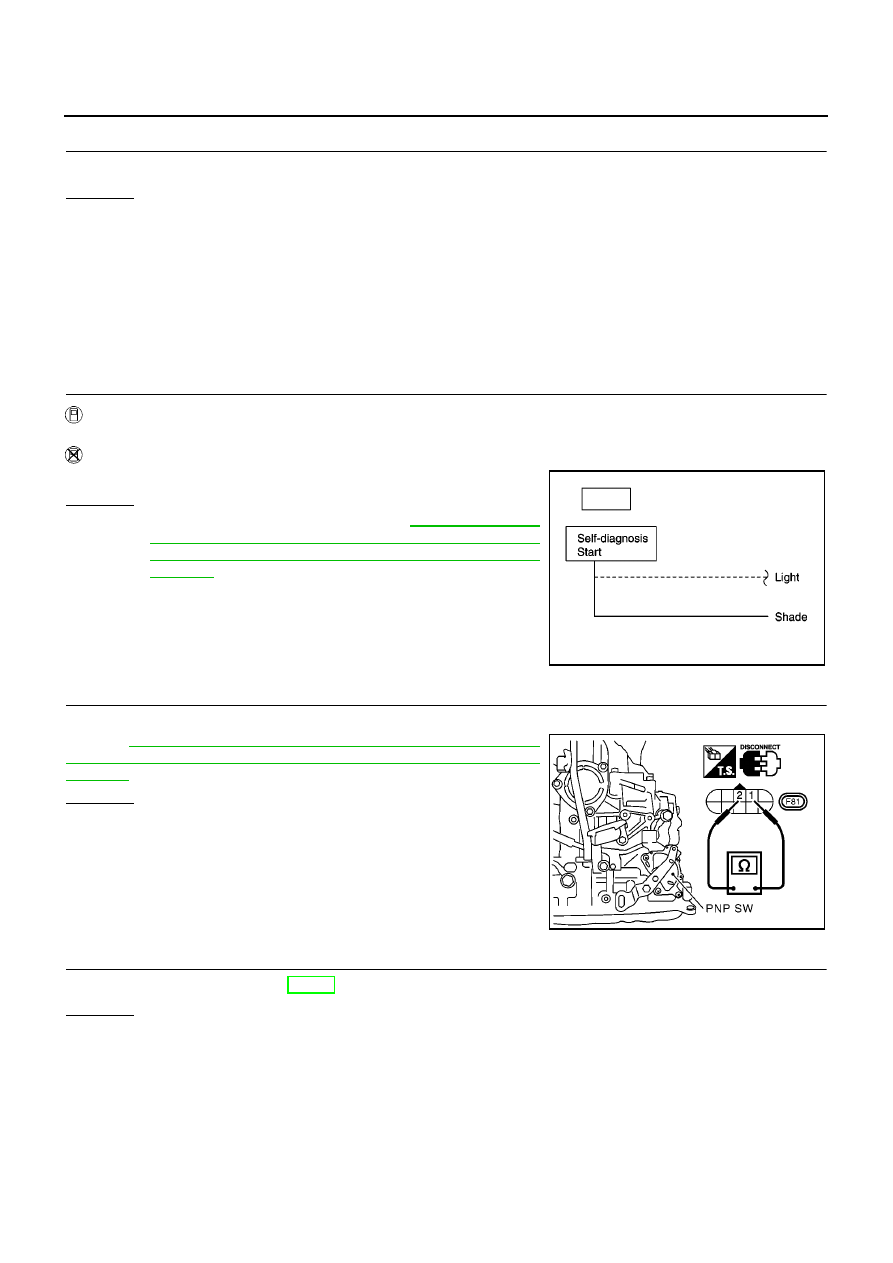

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-239, "21. TCM

Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)"

.

No

>> GO TO 2

2.

CHECK PNP SWITCH INSPECTION

Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to

AT-239, "21. TCM Self-diagnosis Does Not Activate (PNP &

Overdrive Control Switches, and Throttle Position Sensor Circuit
Checks)"

.

OK or NG

OK

>> GO TO 3

NG

>> Repair or replace PNP switch.

3.

CHECK STARTING SYSTEM

Check starting system. Refer to SC-13, “Starting System”.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

3. In “P” Position, Vehicle Moves Forward Or Backward When Pushed

ECS0099B

SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.

SCIA0706E

MCIA0102E

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-215

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

1.

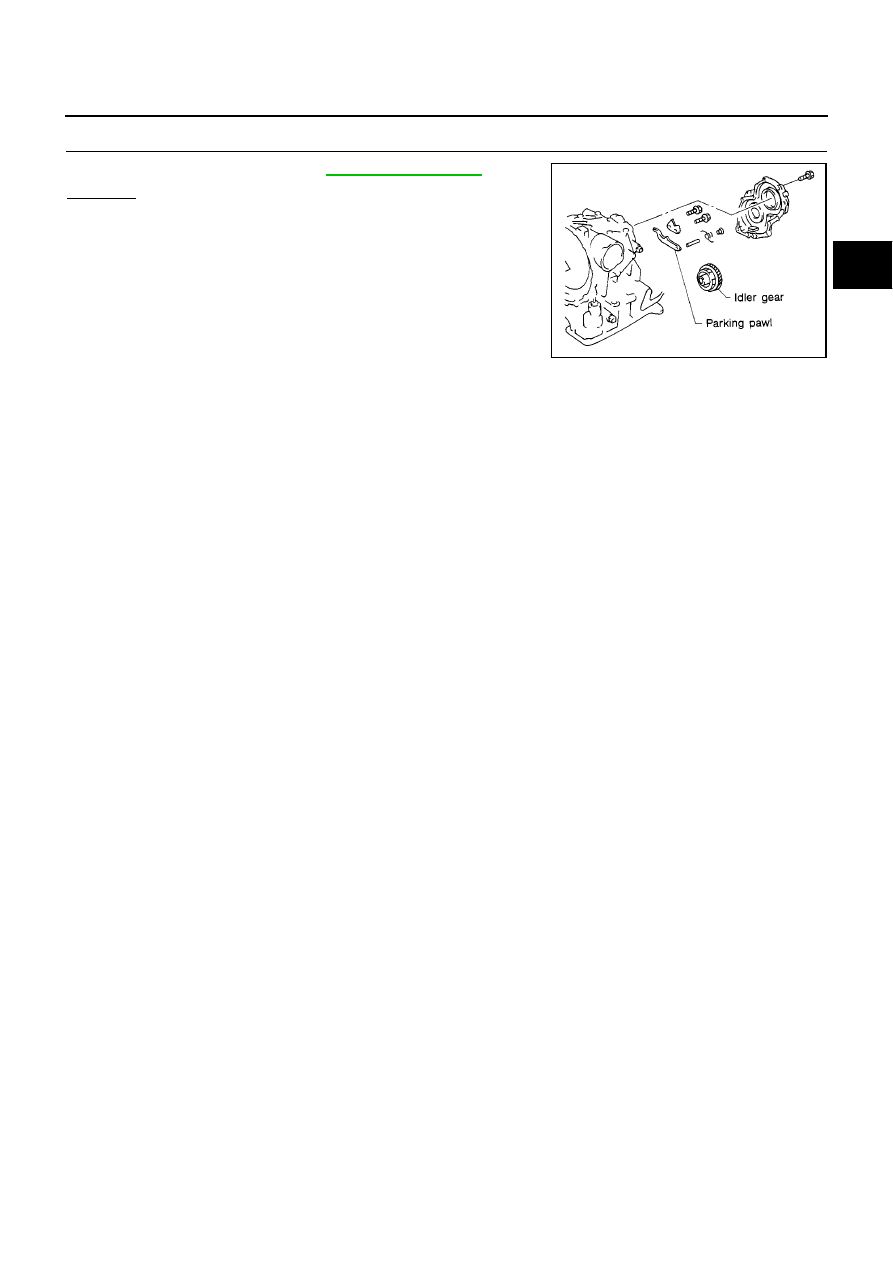

CHECK PARKING COMPONENTS

Check parking components. Refer to

AT-417, "OVERHAUL"

.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

SAT282F
