Nissan Almera Tino V10. Manual - part 99





AT-120

[EURO-OBD]

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

After the repair, perform the following procedure to confirm the malfunction is eliminated.

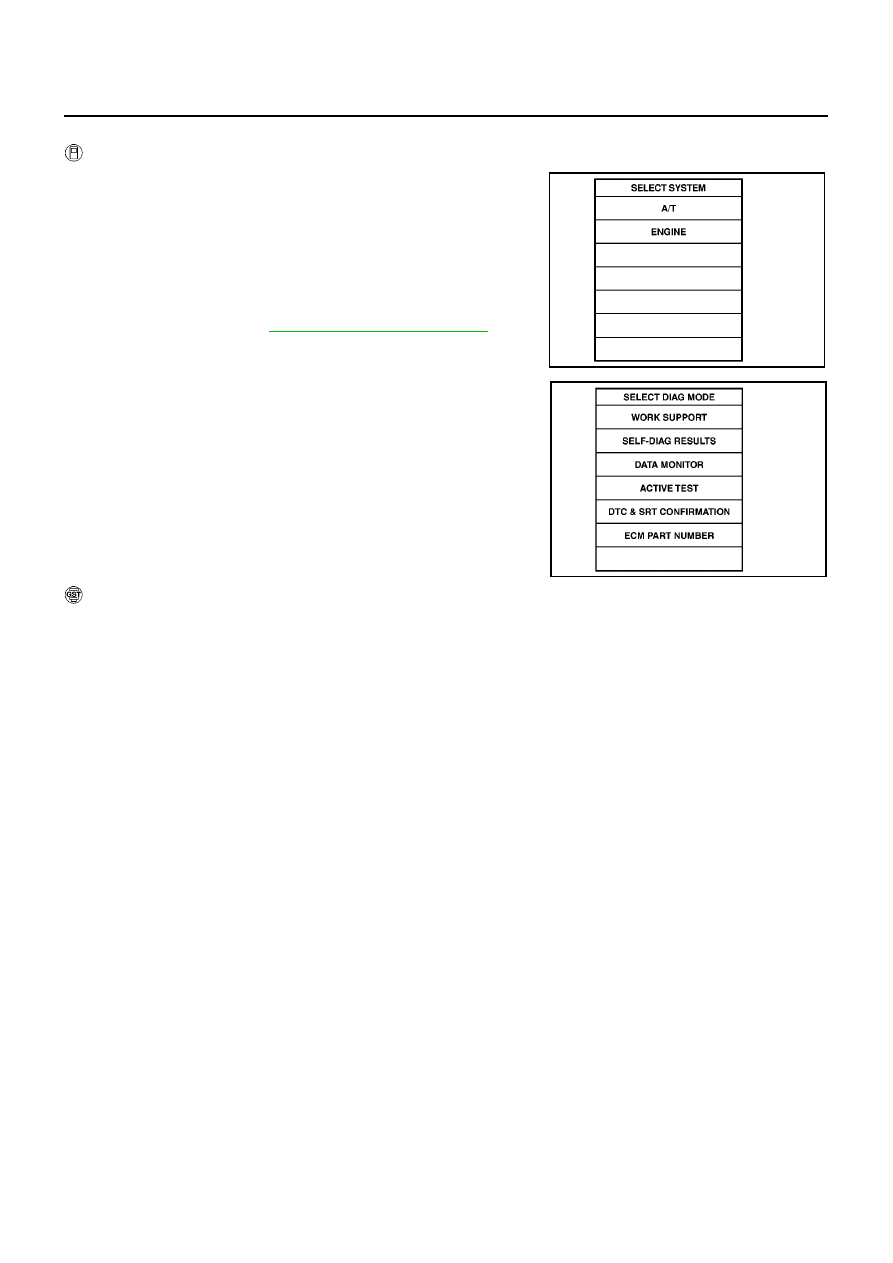

With CONSULT-II

1.

Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.

2.

Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
CMPS·RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD “ON”)

3.

If DTC is detected, go to

AT-122, "Diagnostic Procedure"

.

With GST

Follow the procedure “With CONSULT-II”.

SAT014K

SAT020K

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-121

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

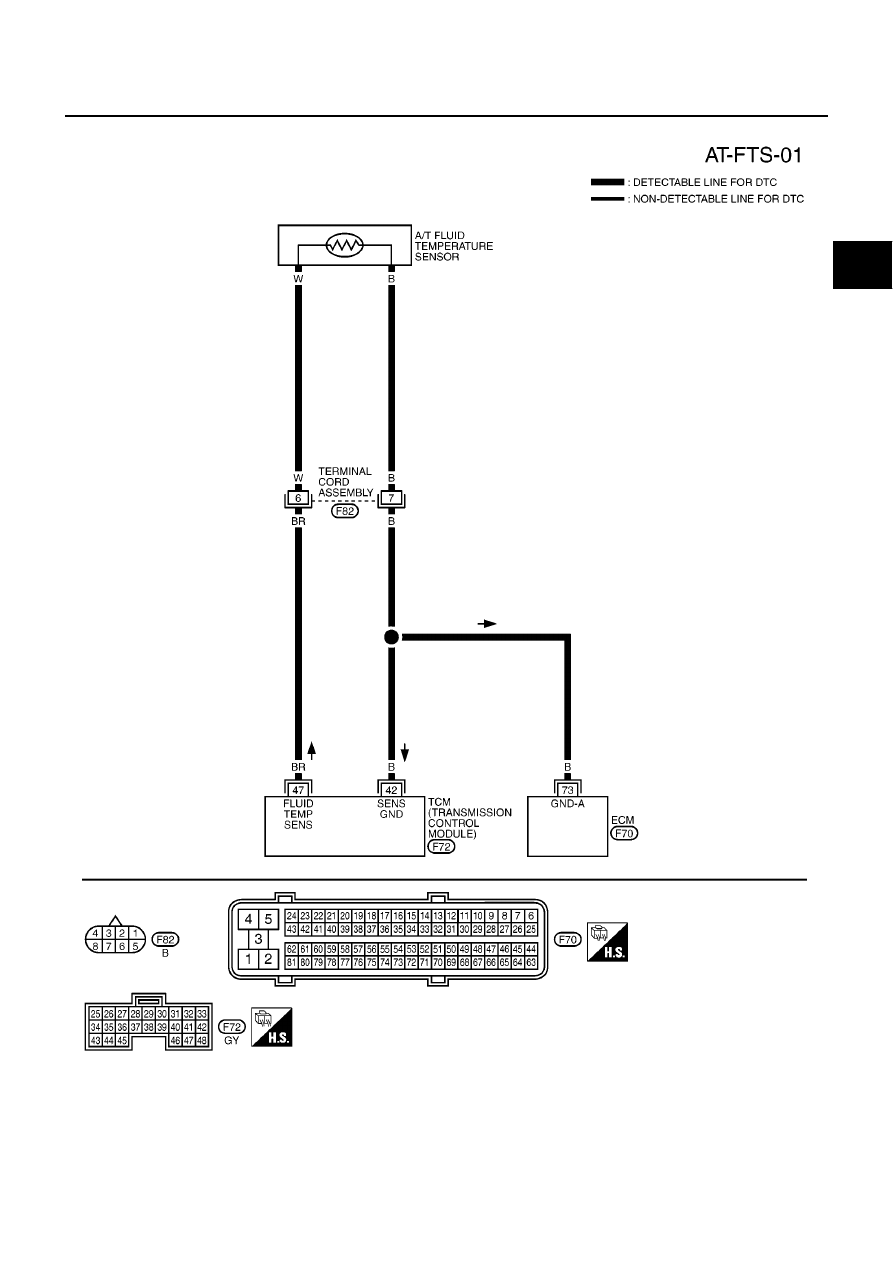

Wiring Diagram — AT — FTS

ECS0097G

YAT370A

AT-122

[EURO-OBD]

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure

ECS0097H

1.

INSPECTION START

Do you have CONSULT-II?
Yes or No

Yes

>> GO TO 2

No

>> GO TO 3

2.

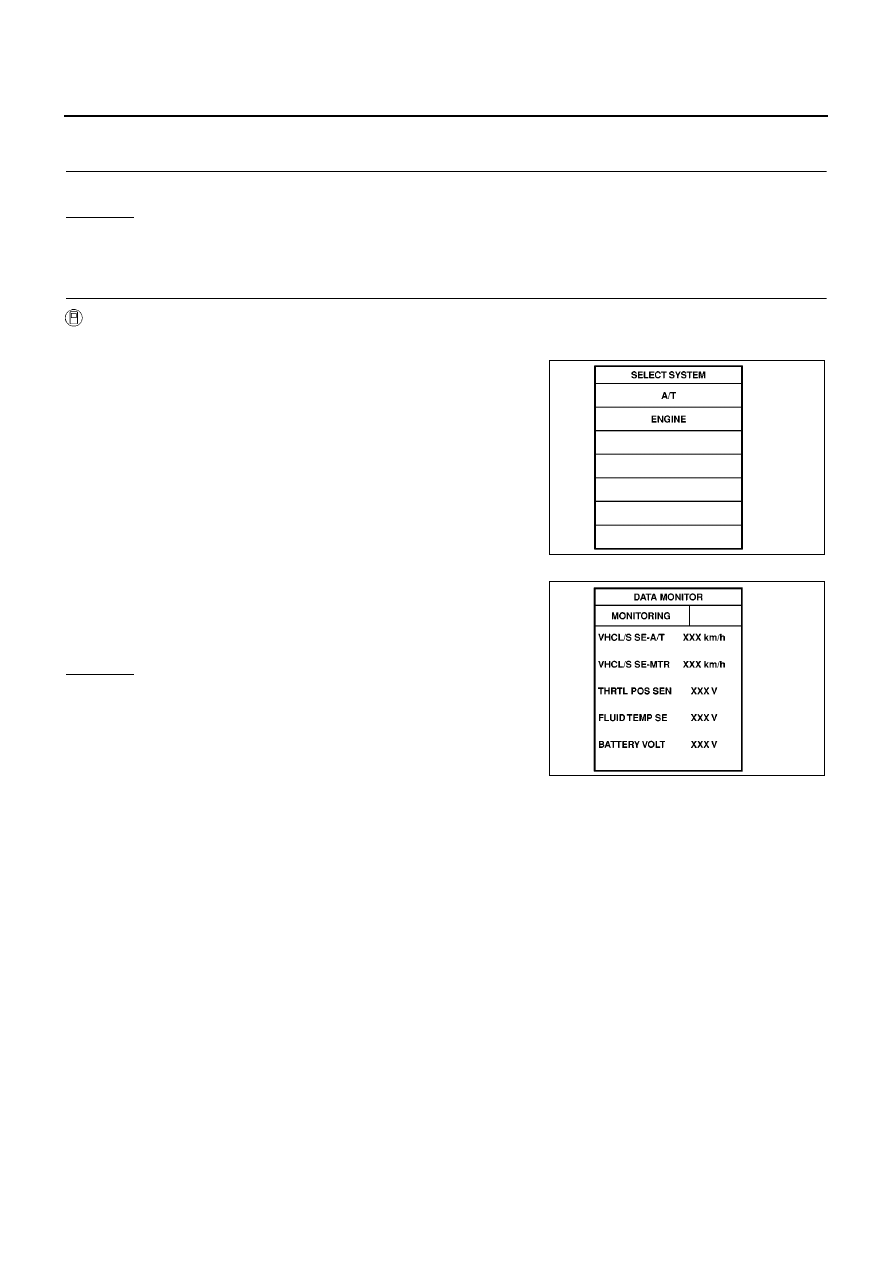

CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)

With CONSULT-II

1.

Start engine.

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “FLUID TEMP SE”.

OK or NG

OK

>> GO TO 4

NG

>> GO TO 5

SAT014K

Voltage:

Cold [20

°

C (68

°

F)]

Hot [80

°

C (176

°

F)]

Approximately 1.5V

0.5V

SAT614J

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-123

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

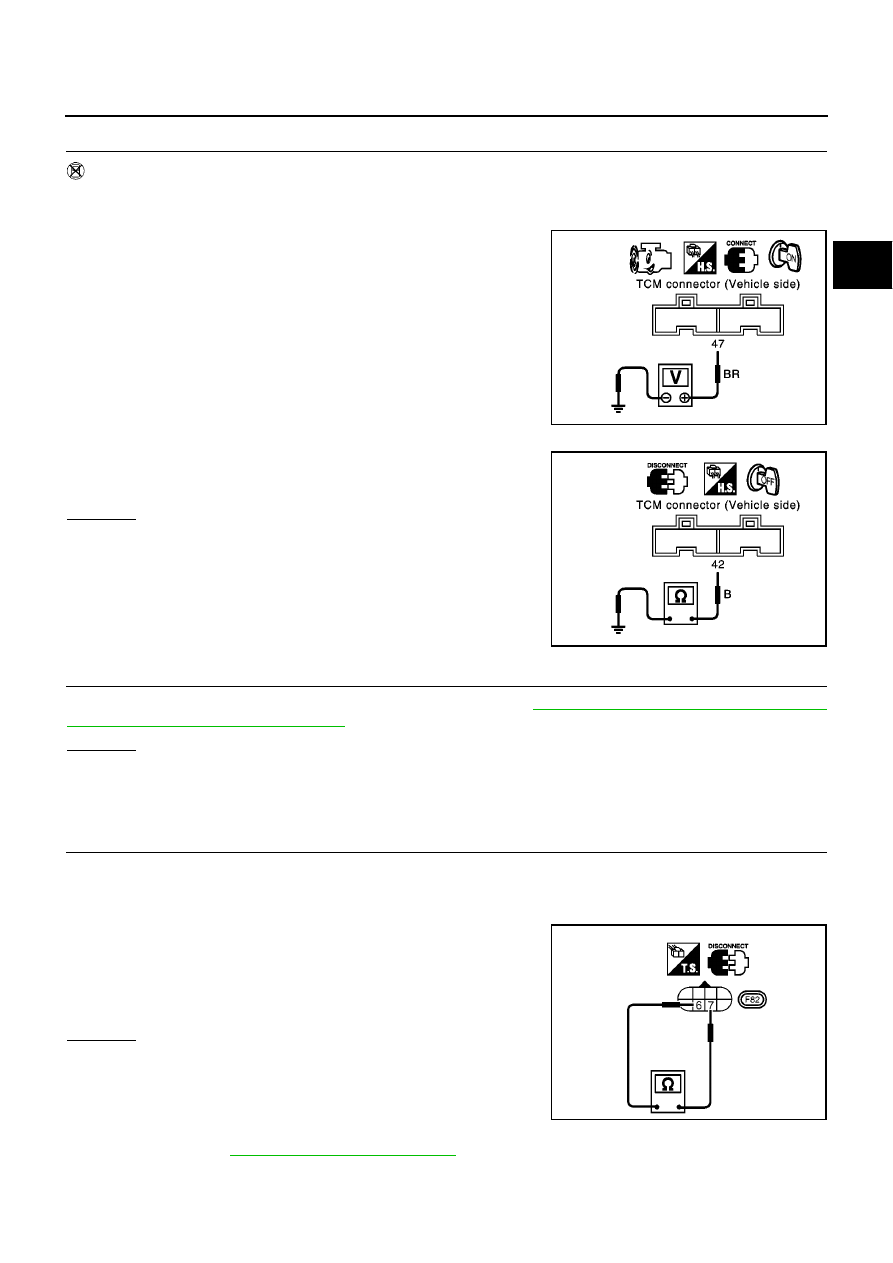

3.

CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)

Without CONSULT-II

1.

Start engine.

2.

Check voltage between TCM terminal 47 and ground while warming up A/T.

3.

Turn ignition switch to “OFF” position.

4.

Disconnect TCM harness connector.

5.

Check continuity between terminal 42 and ground.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4

NG

>> GO TO 5

4.

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure,

AT-119, "DIAGNOSTIC TROUBLE CODE

(DTC) CONFIRMATION PROCEDURE"

.

OK or NG

OK

>> INSPECTION END

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

5.

CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY

1.

Turn ignition switch to “OFF” position.

2.

Disconnect terminal cord assembly connector in engine compartment.

3.

Check resistance between terminals 6 and 7 when A/T is cold.

4.

Reinstall any part removed.

OK or NG

OK (With CONSULT-II)>>GOTO2
OK (Without CONSULT-II)>>GOTO3
NG

>> 1. Remove oil pan.

2. Check the following items:

A/T fluid temperature sensor
Refer to

AT-124, "Component Inspection"

.

Harness of terminal cord assembly for short or open

Voltage:

Cold [20

°

C (68

°

F)]

Hot [80

°

C (176

°

F)]

Approximately 1.5V

0.5V

SCIA0738E

Continuity should exist.

SCIA0739E

Resistance:

Cold [20

°

C (68

°

F)]

Approximately 2.5 k

MCIA0069E
