Nissan Almera Tino V10. Manual - part 65





SFA508A

ASSEMBLY

NLSU0012

I

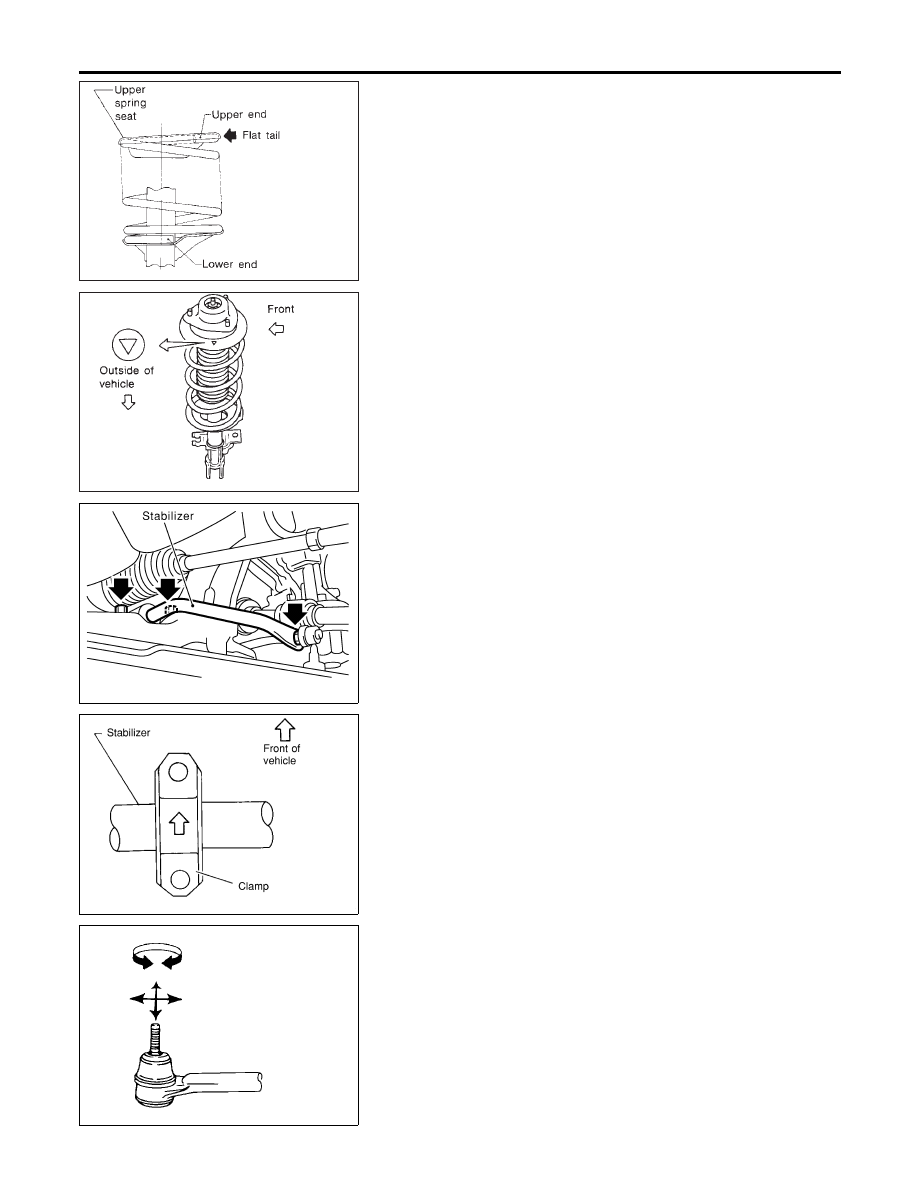

When installing coil spring on strut, it must be positioned as
shown in the figure at left.

SFA957A

I

When installing spring seat, make sure that it is positioned as
shown.

SSU035

Stabilizer Bar

REMOVAL AND INSTALLATION

NLSU0017

I

Remove stabilizer bar.

NFA053

I

When installing stabilizer, make sure clamp faces in correct
direction.

ARA027

I

Check stabilizer for deformation or cracks. Replace if neces-
sary.

I

Check rubber bushings for deterioration or cracks. Replace if
necessary.

I

Check ball joint can rotate in all directions. If movement is not
smooth and free, replace stabilizer bar connecting rod.

FRONT SUSPENSION

Coil Spring and Shock Absorber (Cont’d)

SU-12

SFA181A

Transverse Link and Lower Ball Joint

REMOVAL AND INSTALLATION

NLSU0018

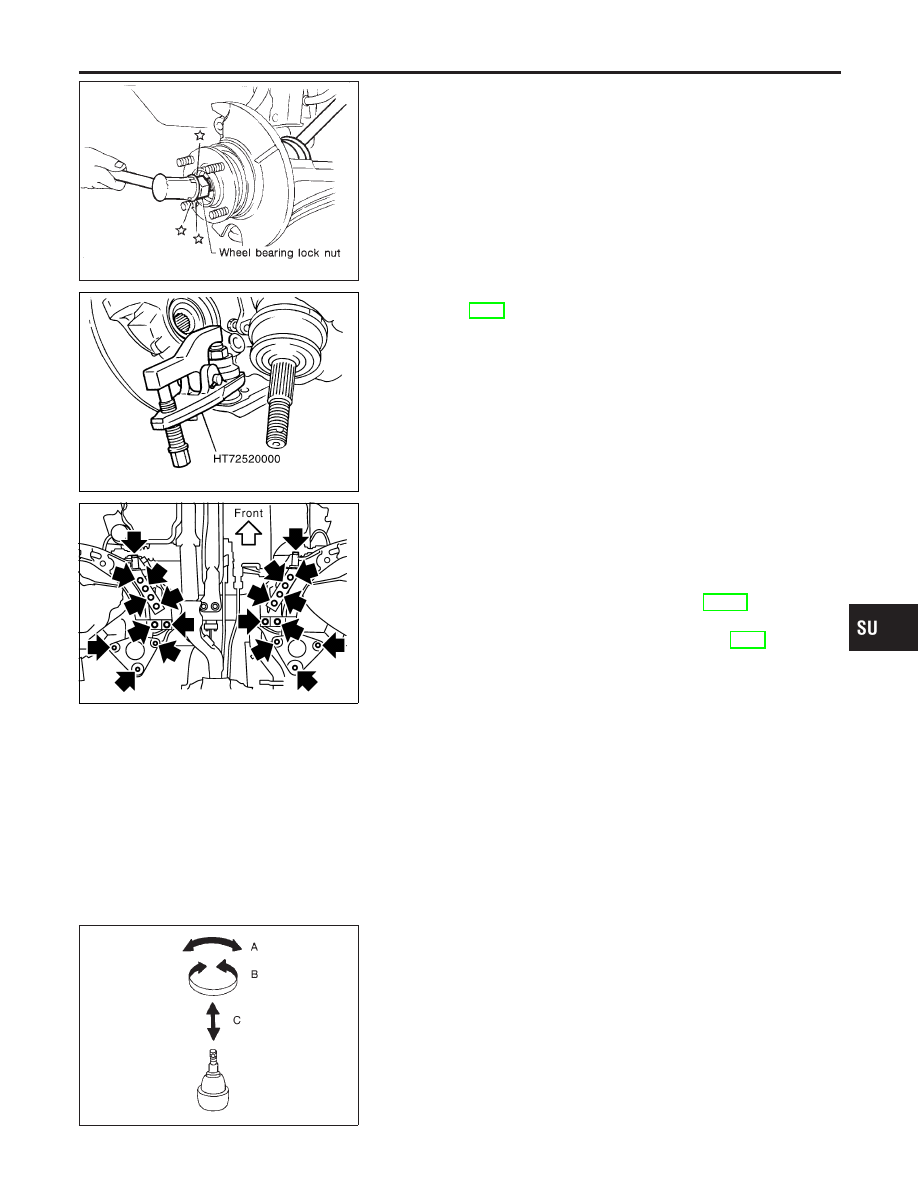

1.

Remove wheel bearing lock nut.

2.

Remove tie-rod ball joint.

3.

Remove strut lower bracket fixing bolts and nuts.

4.

Separate drive shaft from knuckle by slightly tapping drive
shaft end.

Cover boots with shop towel so as not to damage them when
removing drive shaft.

SFA113AD

5.

Separate lower ball joint stud from knuckle with tool.
Refer to AX-5, “FRONT AXLE — Wheel Hub and Knuckle”.

YSU004

6.

Remove fixing bolts.

7.

Remove transverse link and lower ball joint.

8.

During installation, final tightening must be carried out at curb
weight with tires on the ground.

Tightening torque:

Refer to “FRONT SUSPENSION”, SU-10.

9.

After installation, check wheel alignment. Refer to “ON-VE-
HICLE SERVICE — Front Wheel Alignment”, SU-8.

INSPECTION

NLSU0019

Transverse Link

NLSU0019S01

I

Check transverse link for damage, cracks or deformation.
Replace it if necessary.

I

Check rubber bushing for damage, cracks and deformation.
Replace transverse link if necessary.

SFA858A

Lower Ball Joint

NLSU0019S02

I

Check ball joint for play. Replace transverse link assembly if
any of the following cases occur. Ball stud is worn, play in axial
direction is excessive or joint is hard to swing.
Before checking, turn ball joint at least 10 revolutions so that
ball joint is properly broken in.

Swinging force “A”:
(measuring point: cotter pin hole of ball stud):

7.8 - 82.4 N (0.8 - 8.4 kg, 1.8 - 18.5 lb)

Turning torque “B”:

0.50 - 4.90 N·m (5.1 - 50 kg-cm, 4.4 - 43.4 in-lb)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT SUSPENSION

Transverse Link and Lower Ball Joint

SU-13

Vertical end play “C”:

0 mm (0 in)

I

Check dust cover for damage. Replace it and cover clamp if
necessary.

FRONT SUSPENSION

Transverse Link and Lower Ball Joint (Cont’d)

SU-14

Service Data and Specifications (SDS)

GENERAL SPECIFICATIONS (FRONT)

=NLSU0020

Suspension type

Independent MacPherson strut

Shock absorber type

Double-acting hydraulic

Stabilizer bar

Standard equipment

FRONT WHEEL ALIGNMENT (UNLADEN*1)

NLSU0021

QG engine

YD engine

Camber
Degree minute (Decimal degree)

Minimum

−1°05

(−1.08°)

Nominal

−0°20

(−0.33°)

Maximum

0°25

(0.42°)

Left and right difference

45

(0.75°)

Caster
Degree minute (Decimal degree)

Minimum

2°04

(2.07°)

2°01

(2.02°)

Nominal

2°49

(2.82°)

2°46

(2.77°)

Maximum

3°34

(3.57°)

3°31

(3.52°)

Left and right difference

45

(0.75°)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

13°40

(13.67°)

Nominal

14°25

(14.42°)

Maximum

15°10

(°15.17)

Total toe-in

Distance (A − B)
mm (in)

Minimum

1 (0.04)

Nominal

2 (0.08)

Maximum

3 (0.12)

Angle (left plus right)
Degree minute (Decimal degree)

Minimum

0°01

(0.02°)

Nominal

0°04

(0.07°)

Maximum

0°07

(0.12°)

Wheel turning angle
Full turn*2

Inside
Degree minute (Decimal degree)

Minimum

34°30

(34.50°)

Nominal

38°00

(38.00°)

Maximum

39°00

(39.00°)

Outside
Degree minute (Decimal degree)

Nominal

31°00

(31.00°)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: On power steering models, wheel turning force (at circumference of steering wheel) of 98 to 147 N (10 to 15 kg, 22 to 33 lb) with
engine idle.
*3: “Ground clearance up” model

LOWER BALL JOINT

NLSU0022

Swinging force “A”
(Measuring point: cotter pin hole of ball stud)

N (kg, lb)

7.8 - 82.4 (0.8 - 8.4, 1.8 - 18.5)

Turning torque “B”

N·m (kg-cm, in-lb)

0.50 - 4.90 (5.1 - 50.0, 4.4 - 43.4)

Vertical end play “C”

mm (in)

0 (0)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT SUSPENSION

Service Data and Specifications (SDS)

SU-15
