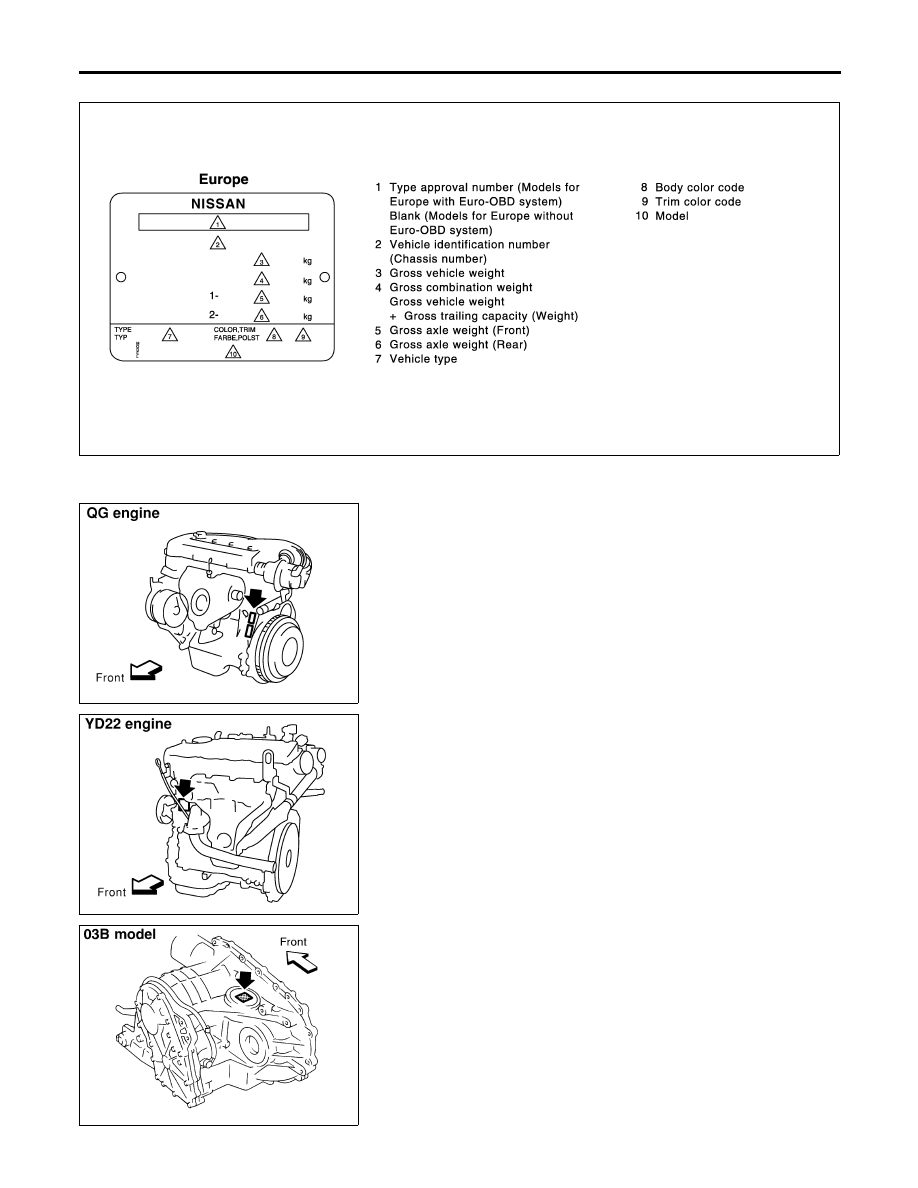

IDENTIFICATION PLATE

NLGI0008S0202

PAIA0148E

SGI117A

SGI118A

ENGINE SERIAL NUMBER

NLGI0008S0203

SGI113A

AUTOMATIC TRANSAXLE NUMBER

NLGI0008S0204

IDENTIFICATION INFORMATION

Identification Number (Cont’d)

GI-40

SGI115A

SGI116A

YGI013

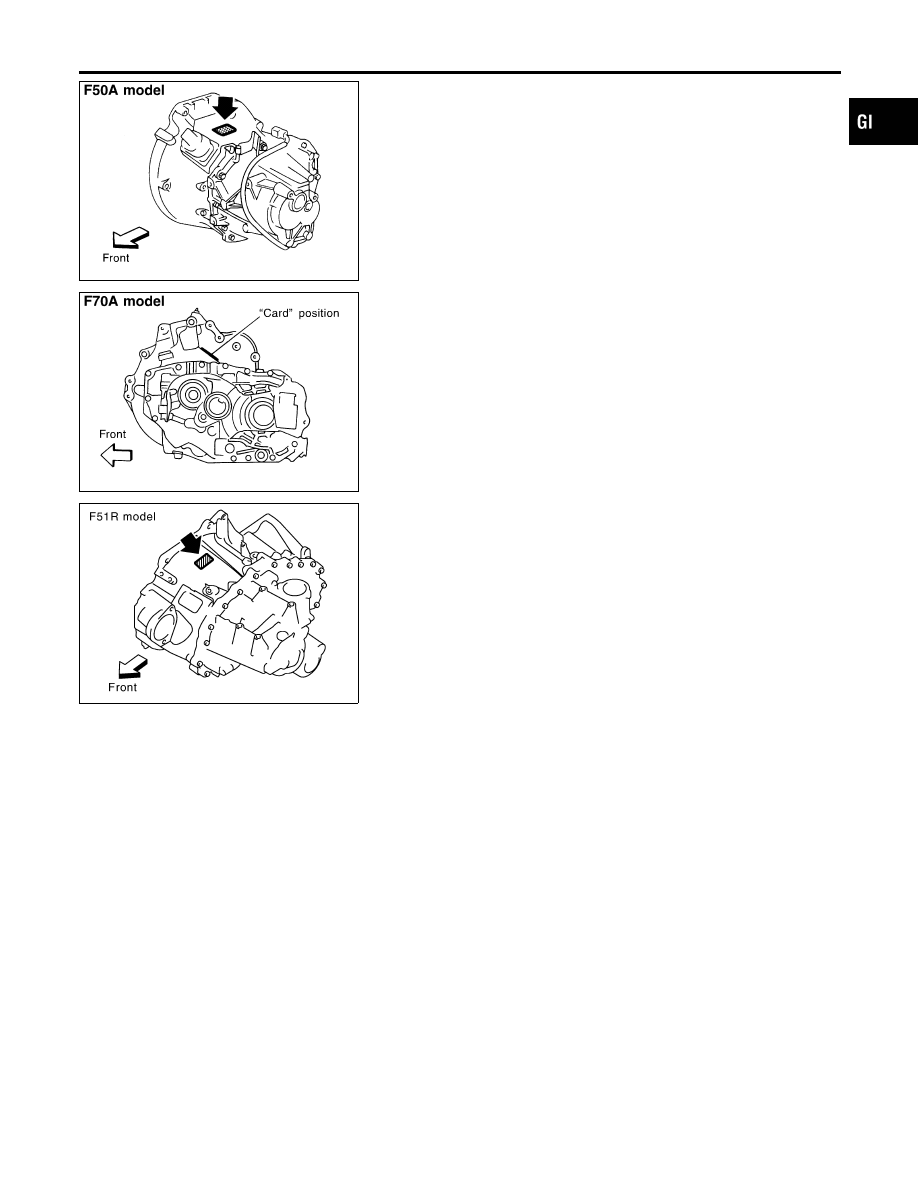

MANUAL TRANSAXLE NUMBER

NLGI0008S0205

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

IDENTIFICATION INFORMATION

Identification Number (Cont’d)

GI-41

Dimensions

=NLGI0008S03

Unit: mm (in)

Item

Overall length

4,270 (168.1)

Overall width

1,760 (69.3)

Overall height

1,610 (63.4)

Front tread

1,535 (60.4)

Rear tread

1,510 (59.4)

Wheelbase

2,535 (99.8)

Wheels and Tires

NLGI0008S04

Road
wheel

Steel

15

×

6J

—

Offset

mm (in)

40 (1.57)

Aluminium

15

×

6J

16

×

6.5JJ

Offset

mm (in)

40 (1.57)

45 (1.77)

Tire size

Conventional

185/65R15

(*1)

195/65R15

(*2)

205/55R16

Spare

Conven-

tional*3

Conven-

tional*4

Conven-

tional*4

*1: For QG engine models
*2: For YD engine models
*3: 185/65R15
*4: 195/65R15

IDENTIFICATION INFORMATION

Dimensions

GI-42

NLGI0009

Preparation

NLGI0009S01

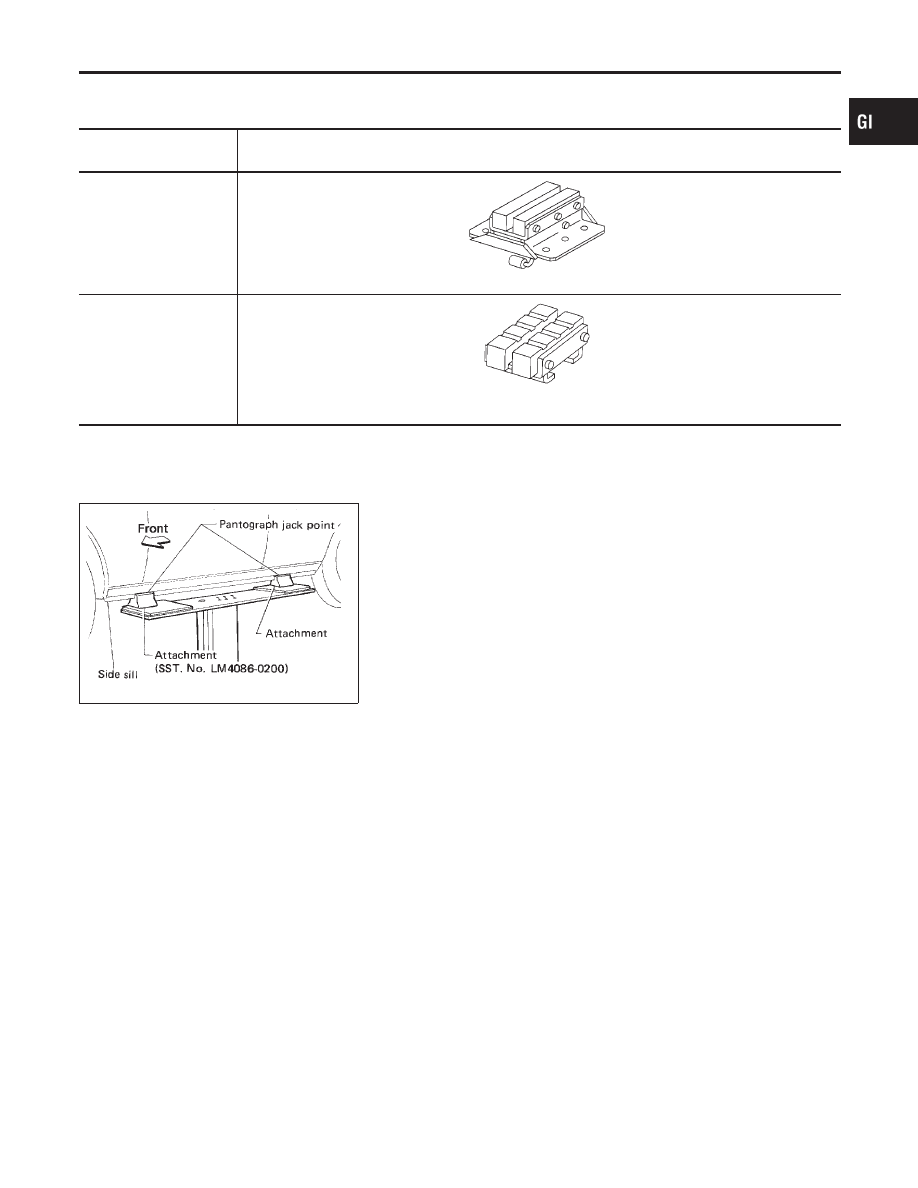

SPECIAL SERVICE TOOLS

NLGI0009S0101

Tool number
Tool name

Description

LM4086-0200
Board on attachment

NT001

LM4519-0000
Safety stand attachment

NT002

AGI016

Board-on Lift

NLGI0009S02

CAUTION:

Make sure vehicle is empty when lifting.

I

The board-on lift attachment (LM4086-0200) set at front
end of vehicle should be set on the front of the sill under
the front door opening.

I

Position attachments at front and rear ends of board-on
lift.

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

LIFTING POINTS AND TOW TRUCK TOWING

Preparation

GI-43
