CLUTCH

SECTION

CL

CONTENTS

RS5F70A, RS5F50A

PRECAUTIONS ...............................................................2

Precautions ..................................................................2

PREPARATION ...............................................................3

Special Service Tools ..................................................3
Commercial Service Tools ...........................................3

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING
.....................................................4

NVH Troubleshooting Chart.........................................4

CLUTCH

...................................................................4

CLUTCH SYSTEM...........................................................5

Components - RHD Model with QG Engine - .............5
Components - LHD Model with QG Engine -..............6
Components - RHD Model with YD Engine -..............7
Components - LHD Model with YD Engine - ..............8
Inspection and Adjustment ..........................................9

CLUTCH PEDAL INSPECTION

...................................9

CLUTCH PEDAL ADJUSTMENT

...............................10

AIR BLEEDING PROCEDURE

..................................10

CLUTCH MASTER CYLINDER..................................... 11

Components............................................................... 11
Removal.....................................................................12
Installation..................................................................12
Disassembly...............................................................12
Inspection...................................................................12
Assembly ...................................................................13

OPERATING CYLINDER...............................................14

Components...............................................................14
Removal.....................................................................14
Disassembly...............................................................14
Inspection...................................................................14
Assembly ...................................................................15
Installation..................................................................15

PIPING ...........................................................................16

Removal.....................................................................16

Installation..................................................................16

RS5F70A

CLUTCH RELEASE MECHANISM ...............................17

Components...............................................................17
Removal.....................................................................17
Inspection...................................................................17
Installation..................................................................17

RS5F50A

CLUTCH RELEASE MECHANISM ...............................20

Components...............................................................20
Removal.....................................................................20
Inspection...................................................................20
Installation..................................................................20

RS5F70A, RS5F50A

CLUTCH DISC, CLUTCH COVER AND
FLYWHEEL
....................................................................22

Components...............................................................22
Inspection and Adjustment ........................................22

CLUTCH DISC

.........................................................22

CLUTCH COVER

.....................................................23

FLYWHEEL

.............................................................23

Installation..................................................................23

SERVICE DATA AND SPECIFICATIONS (SDS) .........24

Clutch Control System...............................................24
Clutch Master Cylinder ..............................................24
Clutch Operating Cylinder .........................................24
Clutch Disc.................................................................24
Clutch Cover ..............................................................24
Clutch Pedal ..............................................................24

GI

MA

EM

LC

EC

FE

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SBR820BA

Precautions

NLCL0001

I

Recommended fluid is brake fluid “DOT 4”. Refer to MA-20,
“Fluid and Lubricants”.

I

Never reuse drained brake fluid.

I

Be careful not to splash brake fluid on painted areas.

I

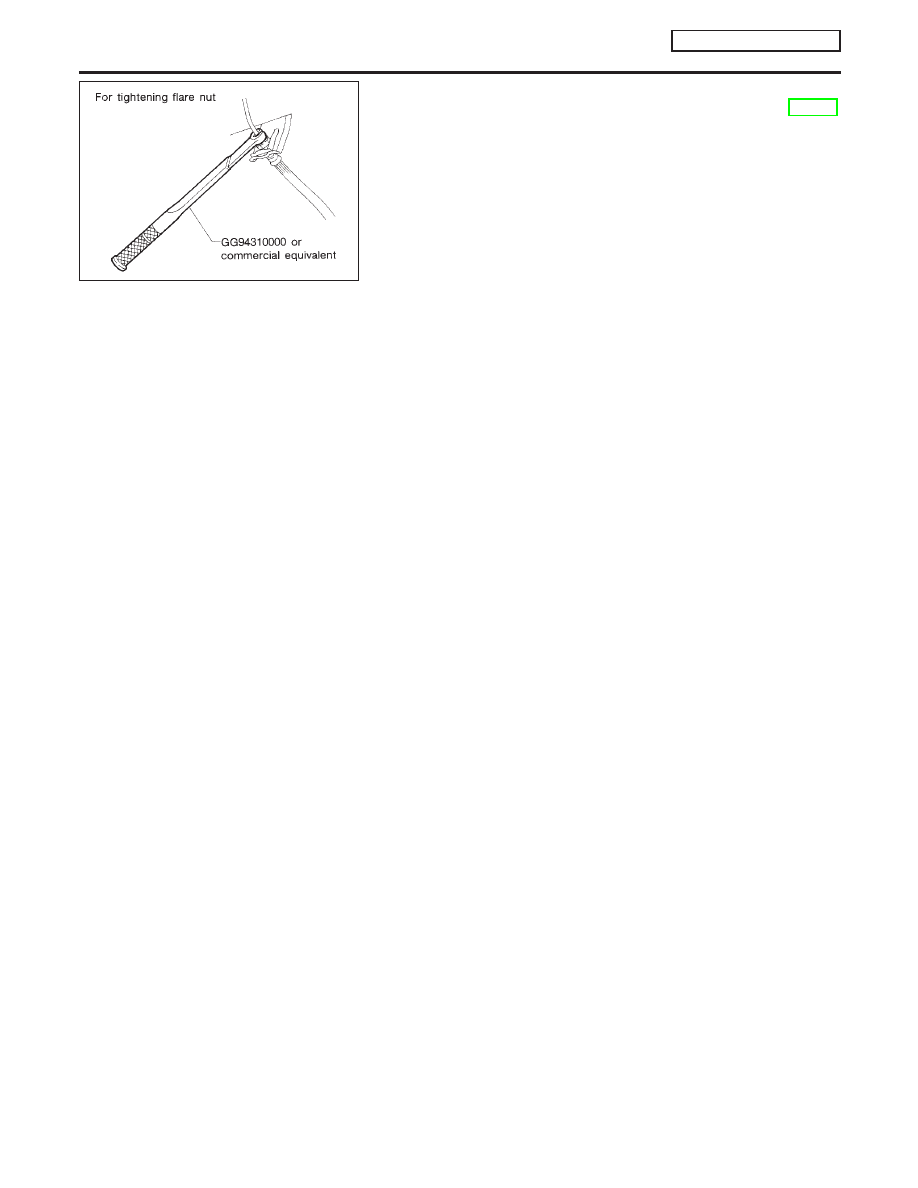

When removing and installing clutch piping, use Tool.

I

Use new brake fluid to clean or wash all parts of master
cylinder and operating cylinder.

I

Never use mineral oils such as gasoline or kerosene. It will
ruin the rubber parts of the hydraulic system.

WARNING:

After cleaning clutch disc, wipe it with a dust collector. Do not
use compressed air.

PRECAUTIONS

RS5F70A, RS5F50A

Precautions

CL-2

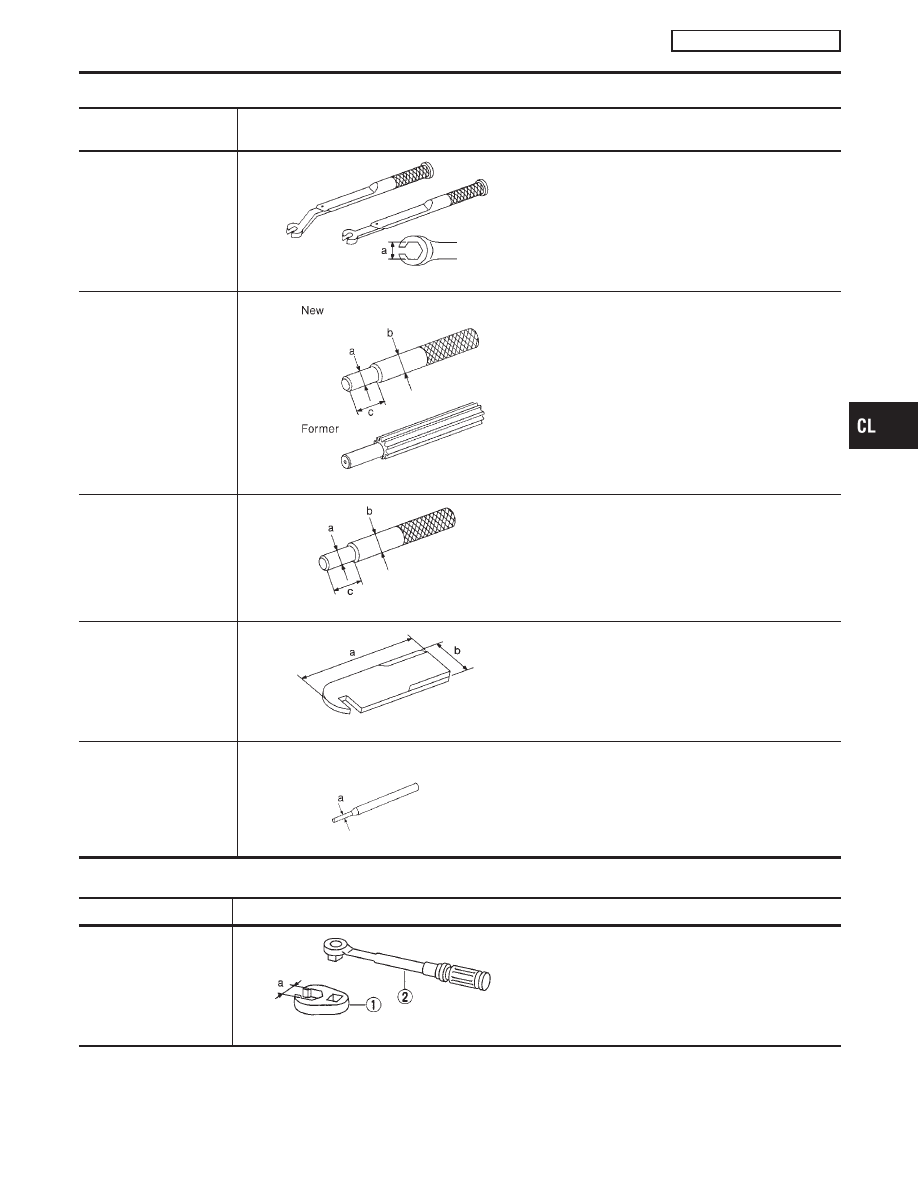

Special Service Tools

NLCL0002

Tool number
Tool name

Description

GG94310000
Flare nut torque wrench

NT406

Removing and installing clutch piping
a: 10 mm (0.39 in)

KV30101600 (New)
KV30101000 (Former)
Clutch aligning bar

NT645

Installing clutch cover and clutch disc
(F70A)
a: 15.9 mm (0.626 in) dia.
b: 17.9 mm (0.705 in) dia.
c: 40 mm (1.57 in)

ST20630000
Clutch aligning bar

NT405

Installing clutch cover and clutch disc
(F50A)
a: 15.8 mm (0.622 in) dia.
b: 22.9 mm (0.902 in) dia.
c: 45.0 mm (1.772 in)

ST20050240
Diaphragm spring adjust-
ing wrench

NT404

Adjusting unevenness of diaphragm spring of
clutch cover
a: 150 mm (5.91 in)
b: 25 mm (0.98 in)

KV32101000
Pin punch

NT410

Removing and installing spring pin
a: 4 mm (0.16 in) dia.

Commercial Service Tools

NLCL0003

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing clutch piping
a: 10 mm (0.39 in)

GI

MA

EM

LC

EC

FE

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

PREPARATION

RS5F70A, RS5F50A

Special Service Tools

CL-3

NLCL0004

NVH

T

roubleshooting

Chart

NLCL0004S01

Use

the

chart

below

to
help

you

find

the

cause

of
the

symptom.

The

numbers

indicate

the

order

of
the

inspec-

tion.

If

necessary

,

repair

or
replace

these

parts.

CLUTCH

NLCL0004S0101

Reference

page

CL-10

CL-10

CL-11

CL-14

Refer to EM-70, “Removal and Installation” (QG engine model) and

EM-197, “Removal and Installation” (YD engine model).

CL-17 (RS5F70A), CL-20 (RS5F50A)

CL-22

CL-22

CL-22

CL-22

CL-22

CL-22

CL-22

CL-22

CL-23

CL-23

CL-23

CL-23

SUSPECTED

P

A

R

T

S

(Possible

cause)

CLUTCH PEDAL (Free play out of adjustment)

CLUTCH LINE (Air in line)

MASTER CYLINDER PISTON CUP (Damaged)

OPERATING CYLINDER PISTON CUP (Damaged)

ENGINE MOUNTING (Loose)

RELEASE BEARING (Worn, dirty or damaged)

CLUTCH DISC (Out of true)

CLUTCH DISC (Runout is excessive)

CLUTCH DISC (Lining broken)

CLUTCH DISC (Dirty or burned)

CLUTCH DISC (Oily)

CLUTCH DISC (Worn out)

CLUTCH DISC (Hardened)

CLUTCH DISC (Lack of spline grease)

DIAPHRAGM SPRING (Damaged)

DIAPHRAGM SPRING (Out of tip alignment)

PRESSURE PLATE (Distortion)

FLYWHEEL (Distortion)

Symptom

Clutch

grabs/chatters

1

2

2

2

2

2

Clutch

pedal

spongy

1

2

2

Clutch

noisy

1

Clutch

slips

1

2

2

3

4

5

Clutch

does

not

disen-

gage

1234

55555

5667

NOISE,

V

IBRATION

AND

HARSHNESS

(NVH)

T

ROUBLESHOOTING

RS5F70A,

RS5F50A

NVH

T

roubleshooting

Chart

CL-4
