Nissan Almera Tino V10. Manual - part 13

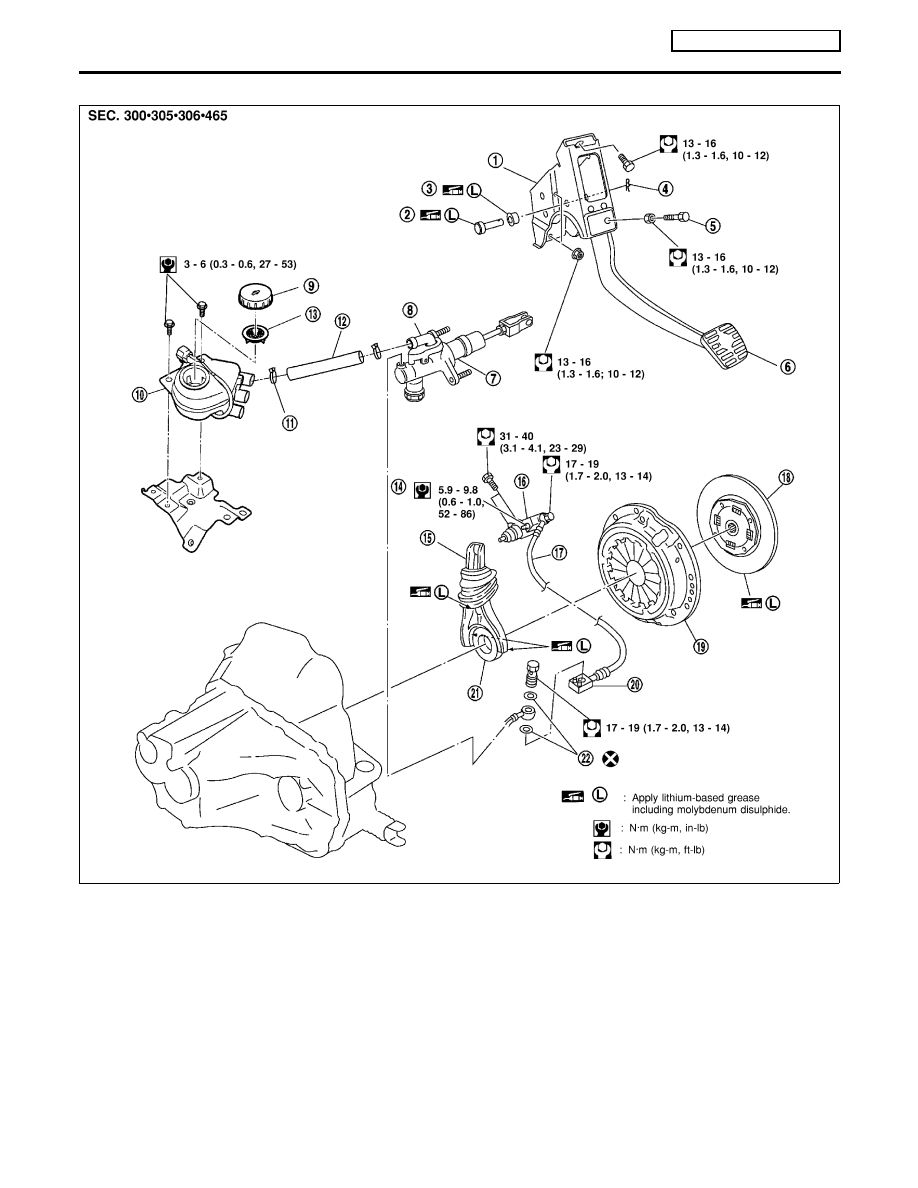

Components — RHD Model with QG Engine —
NLCL0041
YCL038
1.
Clutch pedal bracket
2.
Pedal stopper bolt
3.
Clutch pedal
4.
Clevis pin
5.
Bushing
6.
Snap pin
7.
Clutch master cylinder
8.
Nipple
9.
Reservoir cap
10. Reservoir tank
11. Hose clamp
12. Hose
13. Filter
14. Clutch disc
15. Clutch cover
16. Withdrawal lever
17. Spacer
18. Operating cylinder
19. Clutch hose
20. Clutch lever
21. Spring pin
22. Release bearing
23. Release bearing spring
GI
MA
EM
LC
EC
FE
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
CLUTCH SYSTEM
RS5F70A, RS5F50A
Components — RHD Model with QG Engine —
CL-5
