VTL-16

< REMOVAL AND INSTALLATION >

BLOWER UNIT

BLOWER UNIT

BLOWER UNIT : Removal and Installation

INFOID:0000000009160152

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-12, "Exploded View"

.

2.

Remove front floor spacer RH. Refer to

INT-22, "Exploded View"

.

3.

Disconnect E-SUS control unit connector. (This work should be performed by GT-R certified NISSAN
dealer.)

4.

Remove mounting nuts (A).

5.

Disconnect connectors, and then remove ECM (1) with bracket
attached.

6.

Remove power steering control unit. (This work should be performed by GT-R certified NISSAN dealer.)

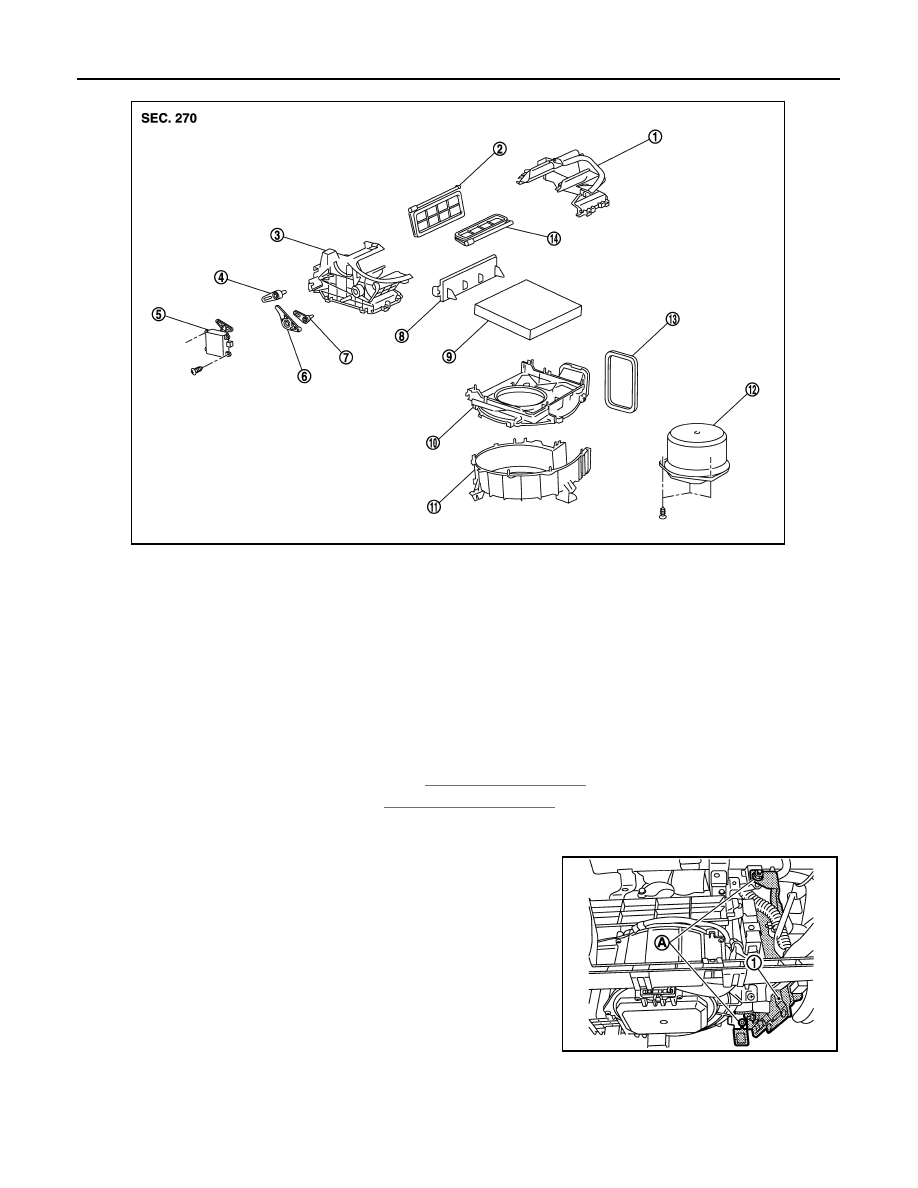

1.

Intake box RH

2.

Intake door 2

3.

Intake box LH

4.

Intake door lever 2

5.

Intake door motor

6.

Intake door link

7.

Intake door lever 1

8.

Filter cover

9.

In-cabin microfilter

10. Intake upper case

11.

Intake lower case

12. Blower motor assembly

13. Seal

14.

Intake door 1

JSIIA1195ZZ

JSIIA1196ZZ

BLOWER UNIT

VTL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

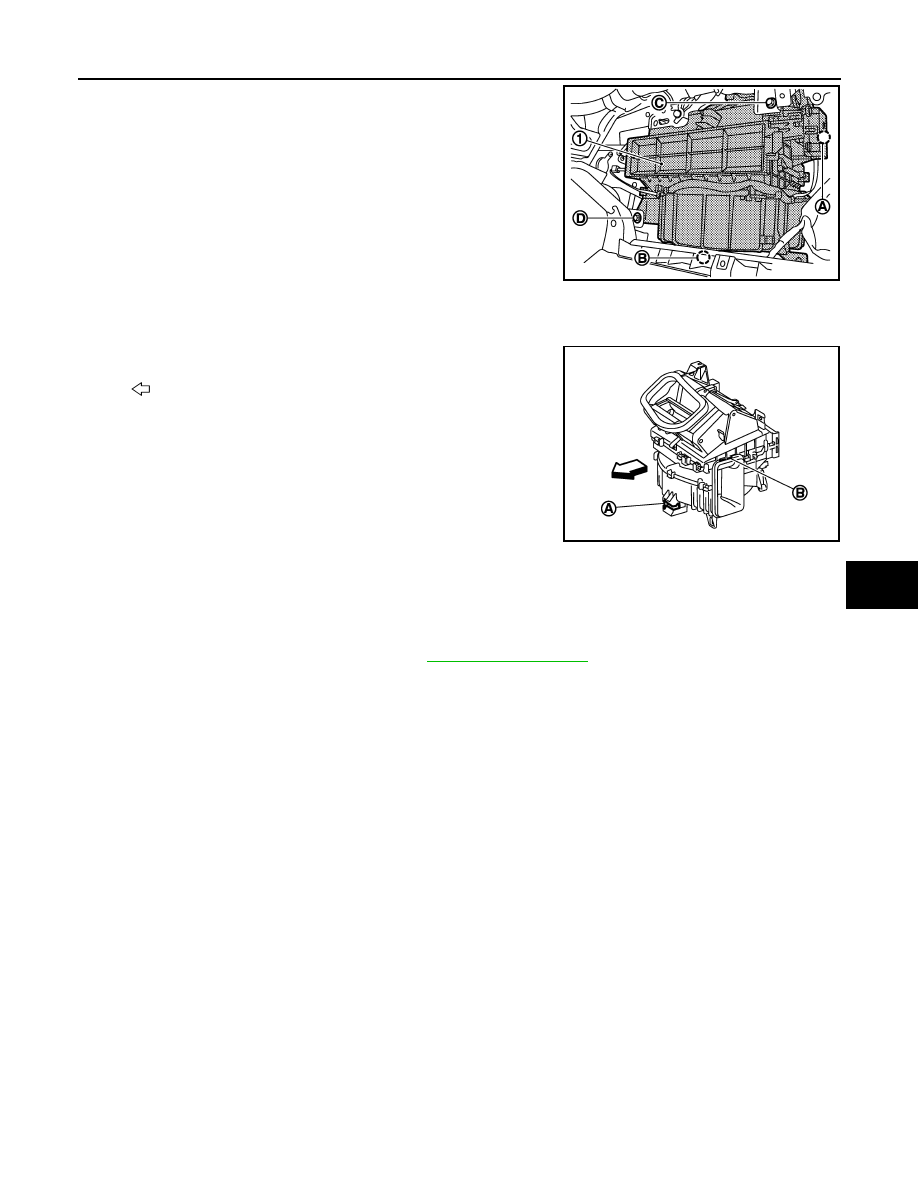

7.

Disconnect intake door motor connector (A).

8.

Disconnect the blower motor connector (B).

9.

Remove mounting bolt (C) and screw (D), from blower unit (1).

10. Remove blower unit.

CAUTION:

Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Make sure locating pin (A) and joint (B) are securely inserted.

BLOWER MOTOR

BLOWER MOTOR : Removal and Installation

INFOID:0000000009160153

REMOVAL

1.

Remove instrument lower cover RH. Refer to

IP-12, "Exploded View"

.

2.

Disconnect the blower motor connector.

3.

Remove mounting screws, and then remove the blower motor.

INSTALLATION

Installation is basically the reverse order of removal.

JSIIA1197ZZ

: Vehicle front

JSIIA1198ZZ

WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

WCS

A

O

P

CONTENTS

WARNING CHIME SYSTEM
