WCS

WARNING CHIME SYSTEM

WCS-3

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

WARNING CHIME SYSTEM

WARNING CHIME SYSTEM

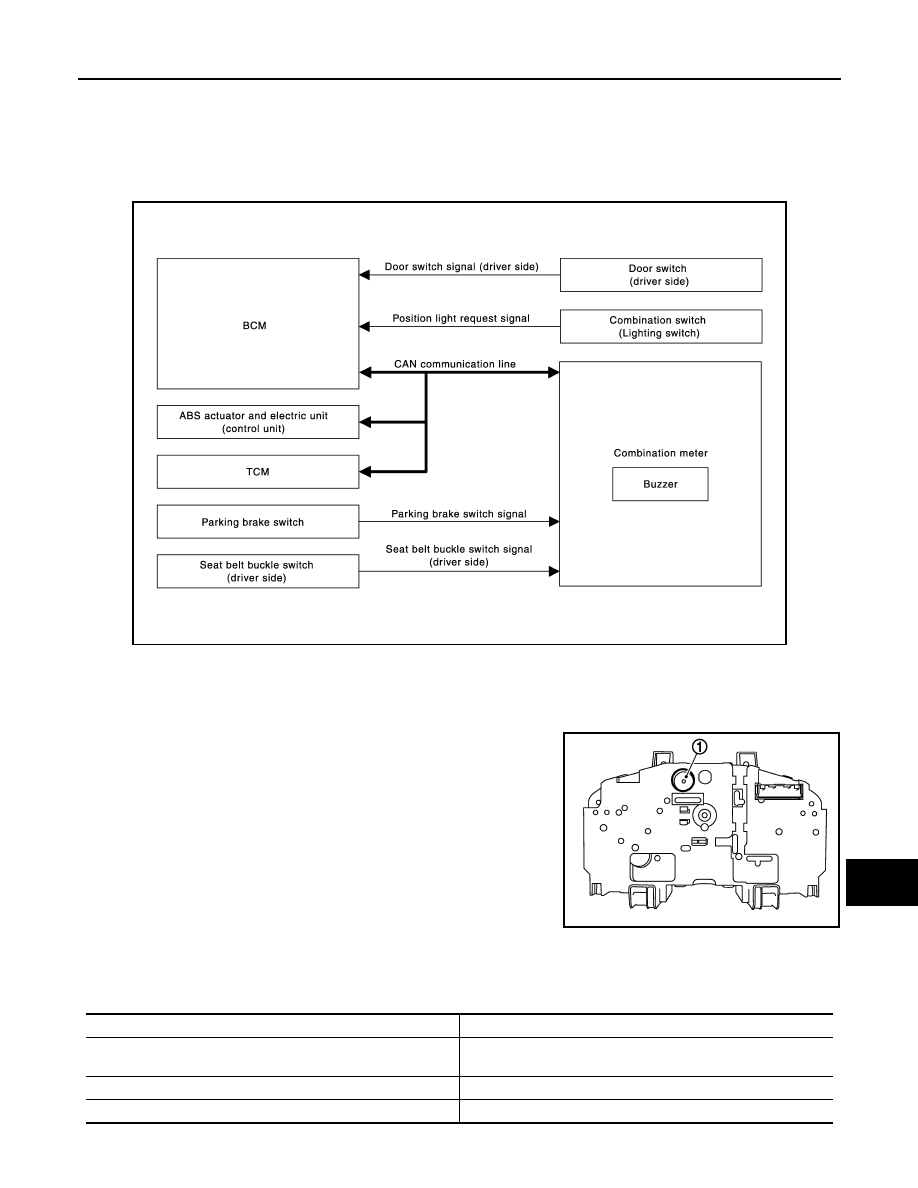

WARNING CHIME SYSTEM : System Diagram

INFOID:0000000009188766

WARNING CHIME SYSTEM : System Description

INFOID:0000000009188767

COMBINATION METER

• The buzzer (1) for the warning chime system is integrated in the

combination meter.

• The combination meter sounds the alarm buzzer installed in the

combination meter when receiving the signal from various units
and switches.

BCM

BCM receives signals from various units and switches, and transmits the buzzer output signal to the combina-
tion meter via CAN communication if it judges that the warning buzzer should be activated.

BCM warning function list

NNNIA0183GB

NNNIA0016ZZ

Warning functions

Signal name

Light reminder warning chime

• Position light request signal
• Door switch signal (driver side)

Seat belt warning chime

Seat belt buckle switch signal (driver side)

Reverse warning chime (For Canada)

Shift position signal

WCS-4

< SYSTEM DESCRIPTION >

WARNING CHIME SYSTEM

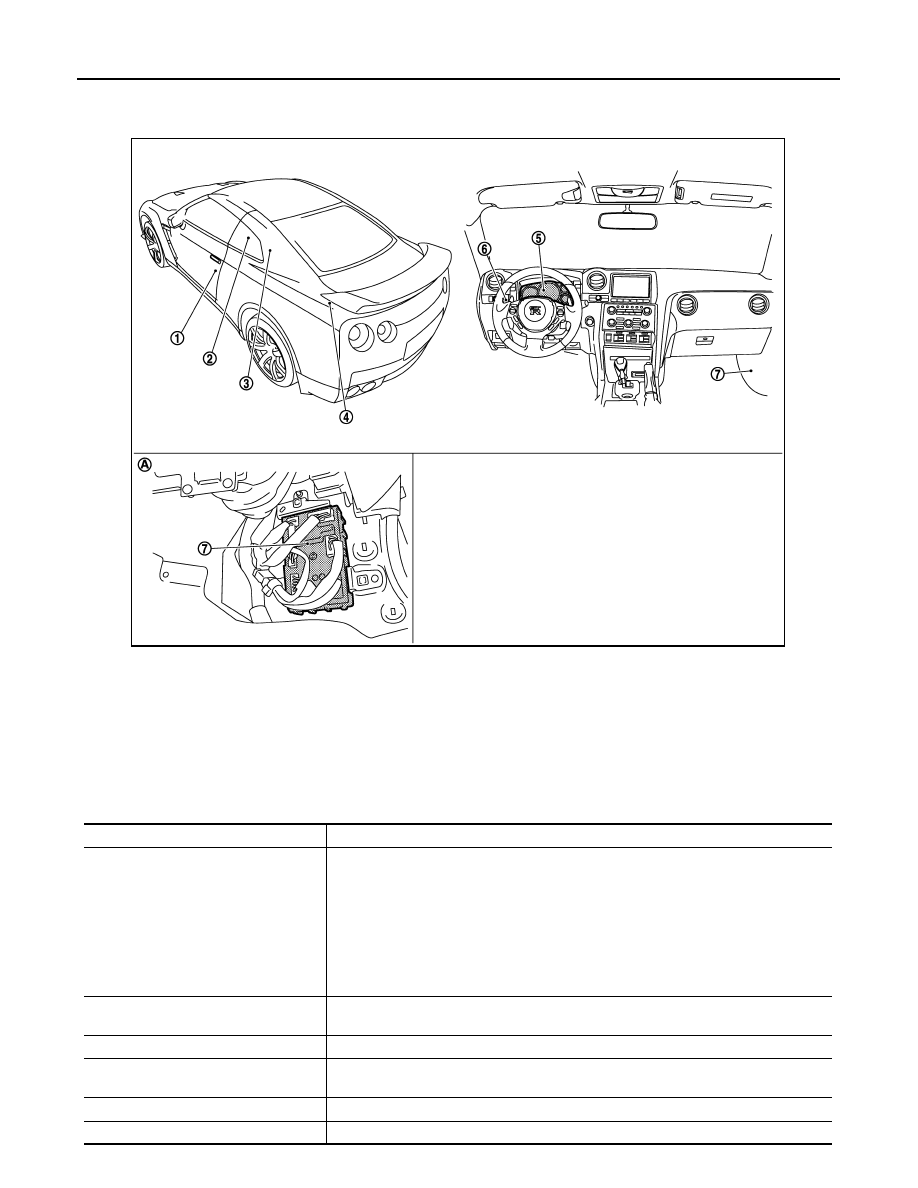

WARNING CHIME SYSTEM : Component Parts Location

INFOID:0000000009188768

WARNING CHIME SYSTEM : Component Description

INFOID:0000000009188769

1.

Door switch (driver side)

2.

Seat belt buckle switch (driver side)

3.

Parking brake switch

4.

TCM

5.

Combination meter

6.

Combination switch (lighting switch)

7.

BCM

A.

Lower part of passenger side dash-
board

NNNIA0184ZZ

Unit

Description

Combination meter

• Receives the buzzer output signal from BCM via the CAN communication and sounds

the buzzer.

• Judges that the parking brake is still applied according to the vehicle speed signal re-

ceived from the ABS actuator and electric unit (control unit) via CAN communication
and the parking brake switch signal from the parking brake switch and sounds the
warning buzzer.

• Receives the vehicle speed signal from the ABS actuator and electric unit (control unit)

and the seat belt buckle switch signal (driver side) from the seat belt buckle switch (driv-
er side) and transmits them to BCM via CAN communication.

BCM

Based on the signals received from various units and switches, transmits the buzzer out-
put signal to the combination meter via CAN communication.

TCM

Transmits the shift position signal to the BCM via CAN communication.

ABS actuator and electric unit (control
unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

Seat belt buckle switch (driver side)

Transmits the seat belt buckle switch signal (driver side) to the combination meter.

Combination switch (lighting switch)

Transmits the position light request signal to BCM.

WCS

WARNING CHIME SYSTEM

WCS-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

LIGHT REMINDER WARNING CHIME

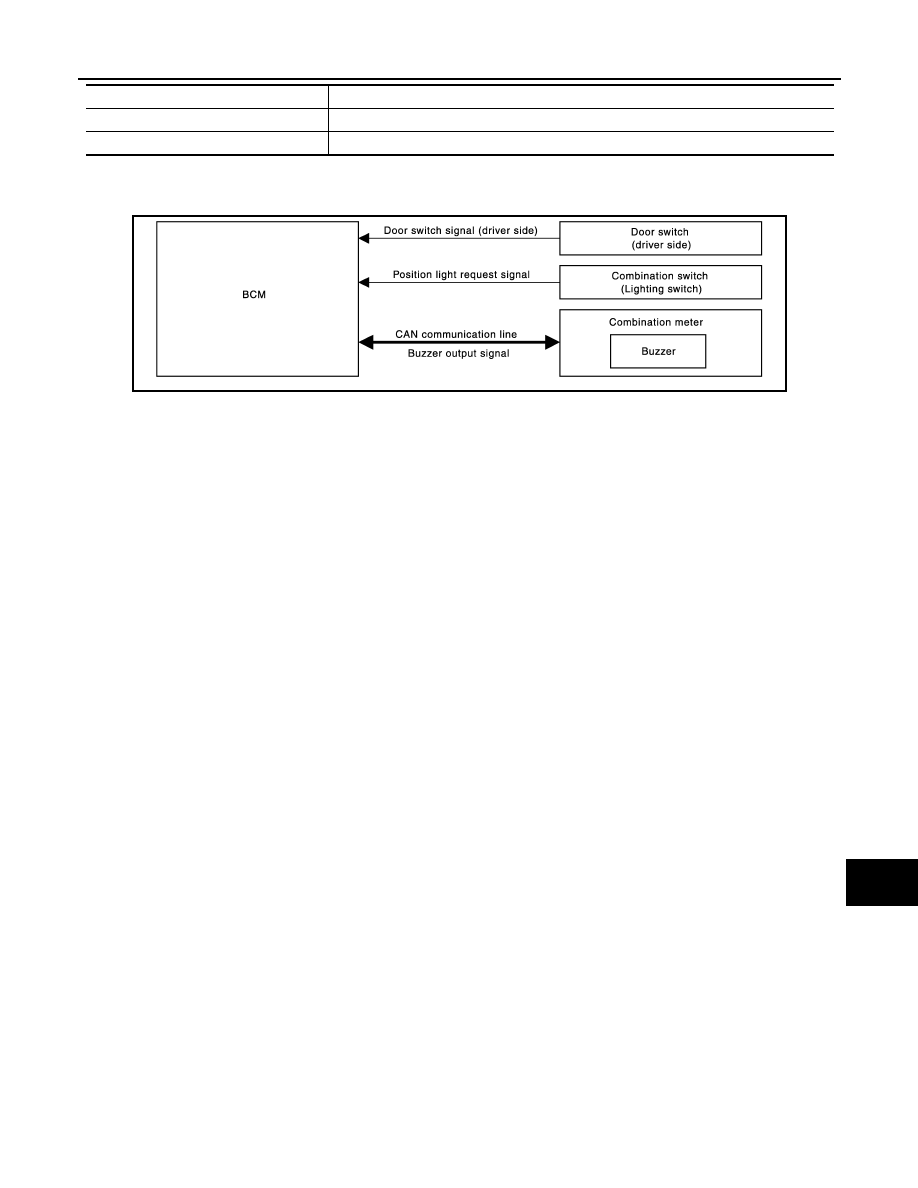

LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000009188770

LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000009188771

DESCRIPTION

With ignition switch in the OFF or ACC position, when the driver door is open and the lighting switch is the 1st
or 2nd position, the light warning chime will sound.
• BCM detects ignition switch in the OFF or ACC position, door switch (driver side) ON, and lighting switch in

1st or 2nd position. Then the BCM transmits the buzzer output signal (light reminder warning chime) to com-
bination meter with CAN communication line.

• When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.
• Ignition switch is in the OFF or ACC
• Lighting switch is in the 1st or 2nd position
• Door switch (driver side) is ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.
• Lighting switch OFF
• Ignition switch ON
• Door switch (driver side) is OFF

Door switch (driver side)

Transmits the door switch signal (driver side) to BCM.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

Unit

Description

JPNIA1151GB

WCS-6

< SYSTEM DESCRIPTION >

WARNING CHIME SYSTEM

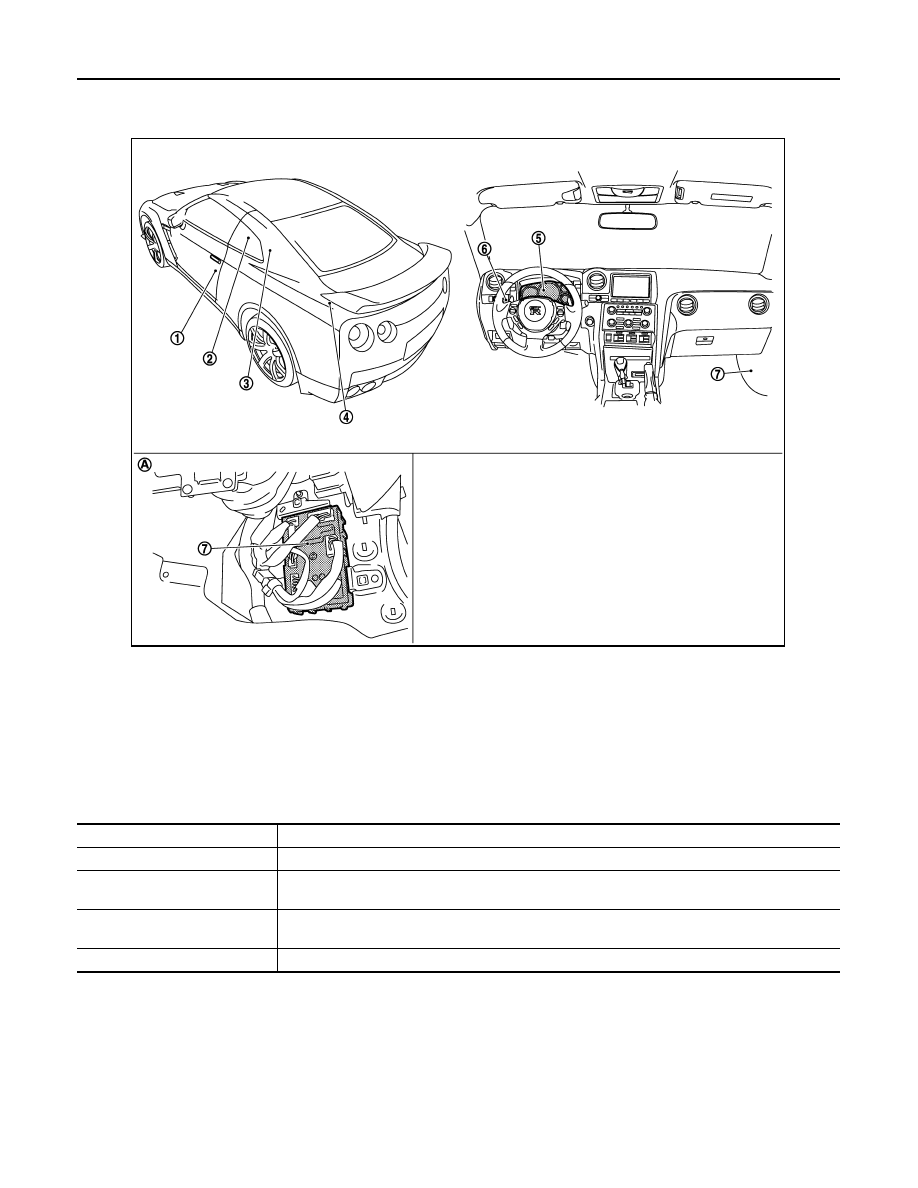

LIGHT REMINDER WARNING CHIME : Component Parts Location

INFOID:0000000009188772

LIGHT REMINDER WARNING CHIME : Component Description

INFOID:0000000009188773

SEAT BELT WARNING CHIME

1.

Door switch (driver side)

2.

Seat belt buckle switch (driver side)

3.

Parking brake switch

4.

TCM

5.

Combination meter

6.

Combination switch (lighting switch)

7.

BCM

A.

Lower part of passenger side dash-
board

NNNIA0184ZZ

Unit

Description

Combination meter

Receives a buzzer output signal from the BCM and sounds the buzzer.

BCM

Judges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the combination meter via CAN communication line if necessary.

Combination switch
(Lighting switch)

Transmits the position light request signal to BCM.

Door switch (driver side)

Transmits the door switch signal (driver side) to BCM.
