Nissan GT-R. Manual - part 215





MWI

METER SYSTEM

MWI-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

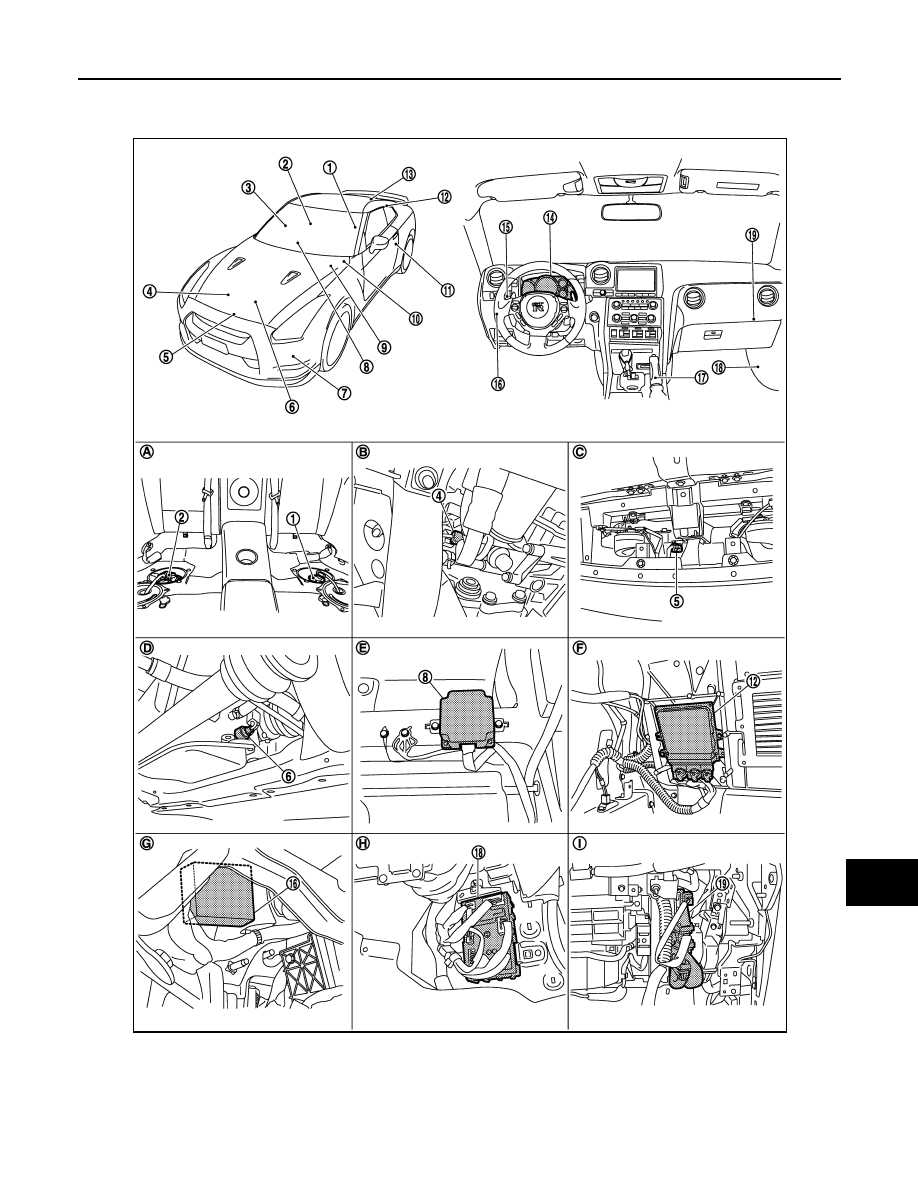

ODO/TRIP METER : Component Parts Location

INFOID:0000000009189312

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-20

< SYSTEM DESCRIPTION >

METER SYSTEM

ODO/TRIP METER : Component Description

INFOID:0000000009189313

SHIFT POSITION INDICATOR

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000009189314

SHIFT POSITION INDICATOR : System Description

INFOID:0000000009189315

• The combination meter receives the shift position signal from TCM via CAN communication, and displays

the shift position to the shift position indicator.

• The combination meter receives the shift position signal from TCM via CAN communication. If the status

does not allow a shift change, it blinks the shift position indicator.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit)
via CAN communication to mileage, and displays the accumulated mileage to the odometer and
tripmeter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

JPNIA1146GB

MWI

METER SYSTEM

MWI-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000009189316

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-22

< SYSTEM DESCRIPTION >

METER SYSTEM

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000009189317

OIL PRESSURE WARNING LAMP

OIL PRESSURE WARNING LAMP : System Diagram

INFOID:0000000009189318

OIL PRESSURE WARNING LAMP : System Description

INFOID:0000000009189319

OIL PRESSURE WARNING LAMP

Control Outline

The combination meter reads the oil pressure sensor signal from oil pressure sensor, and illuminates/turns off
the oil pressure warning lamp.
NOTE:
The display of engine oil pressure warning on the information display is shown/turned off simultaneously with
the illumination/turning off of the oil pressure warning lamp.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

• Receives the shift position signal from TCM via CAN communication, and displays the shift po-

sition to the shift position indicator.

• Receives the shift position signal from TCM via CAN communication, and if the status does not

allow a shift change, it blinks the shift position display in the shift position indicator.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JPNIA1144GB
