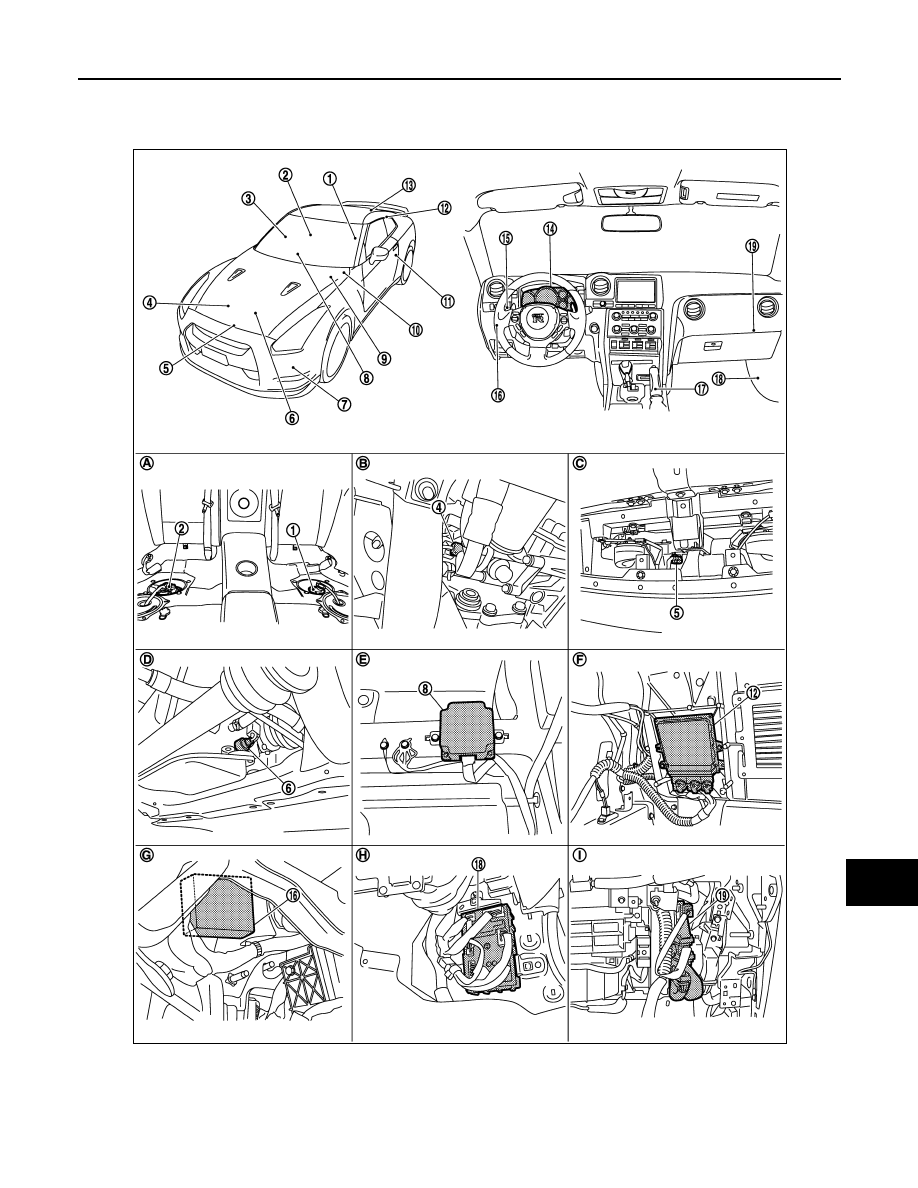

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000009189304

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-16

< SYSTEM DESCRIPTION >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000009189305

FUEL GAUGE

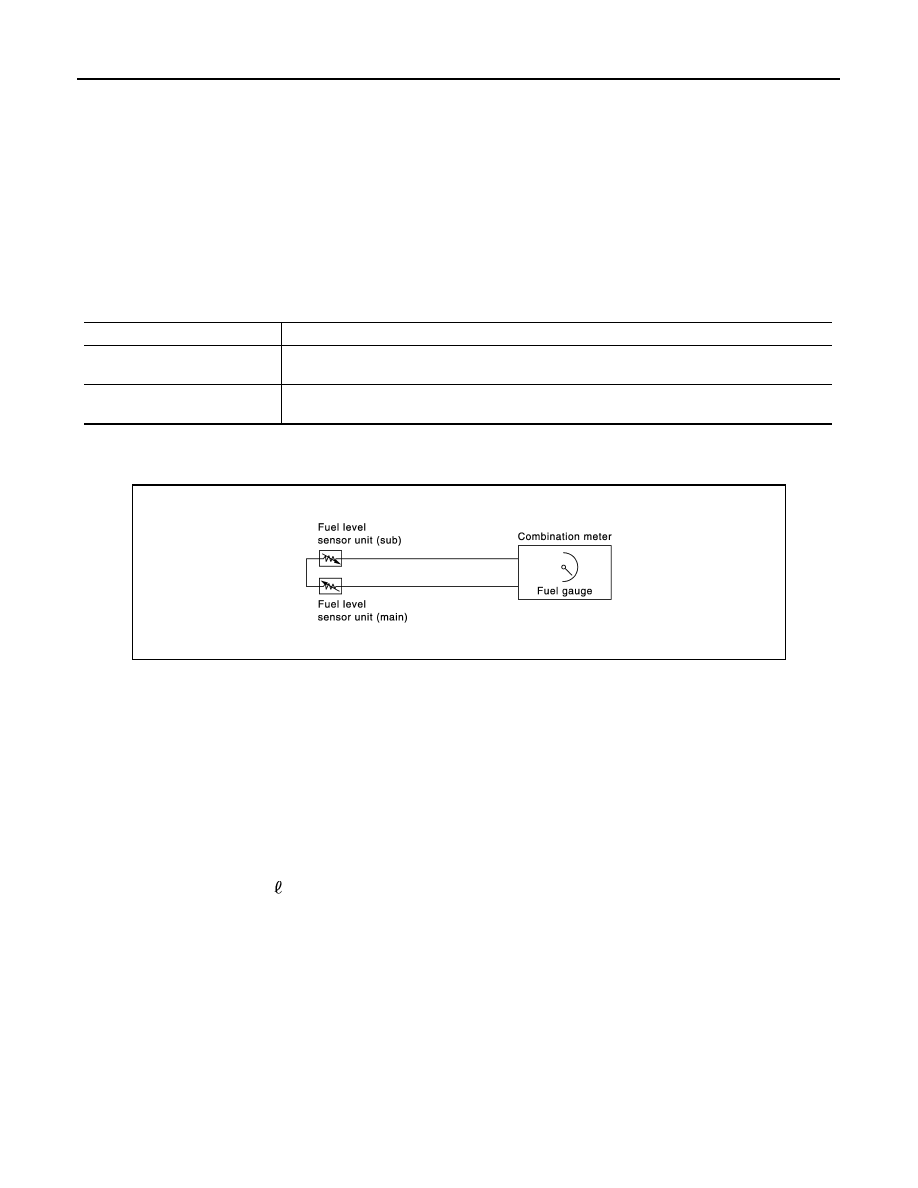

FUEL GAUGE : System Diagram

INFOID:0000000009189306

FUEL GAUGE : System Description

INFOID:0000000009189307

CONTROL OUTLINE

The combination meter reads the fuel level sensor signal (resistance value) from the fuel level sensor unit, and
indicates the fuel level to the fuel gauge.

REFUEL CONTROL

When the ignition switch is turned from OFF to ON, or when all the following conditions are met, it performs a
control to move the fuel gauge pointer faster than normal.
• Ignition switch ON
• Vehicle stop status
• Fuel level fluctuation is 15  (4 US gal, 3-1/4 lmp gal) or more.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Using the engine coolant temperature signal received from ECM via CAN communication, indi-
cates the engine coolant temperature.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communica-
tion.

JPNIA1143GB

MWI

METER SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

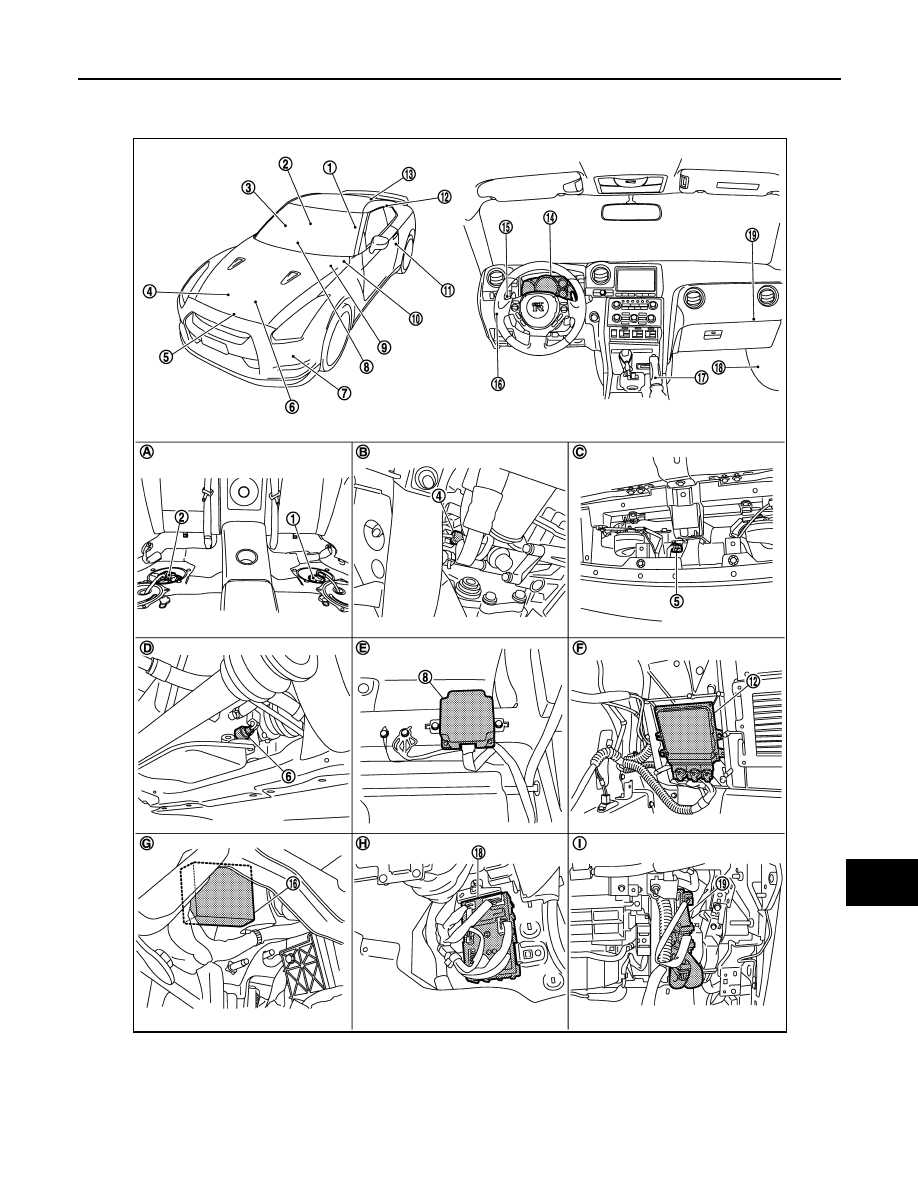

FUEL GAUGE : Component Parts Location

INFOID:0000000009189308

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-18

< SYSTEM DESCRIPTION >

METER SYSTEM

FUEL GAUGE : Component Description

INFOID:0000000009189309

ODO/TRIP METER

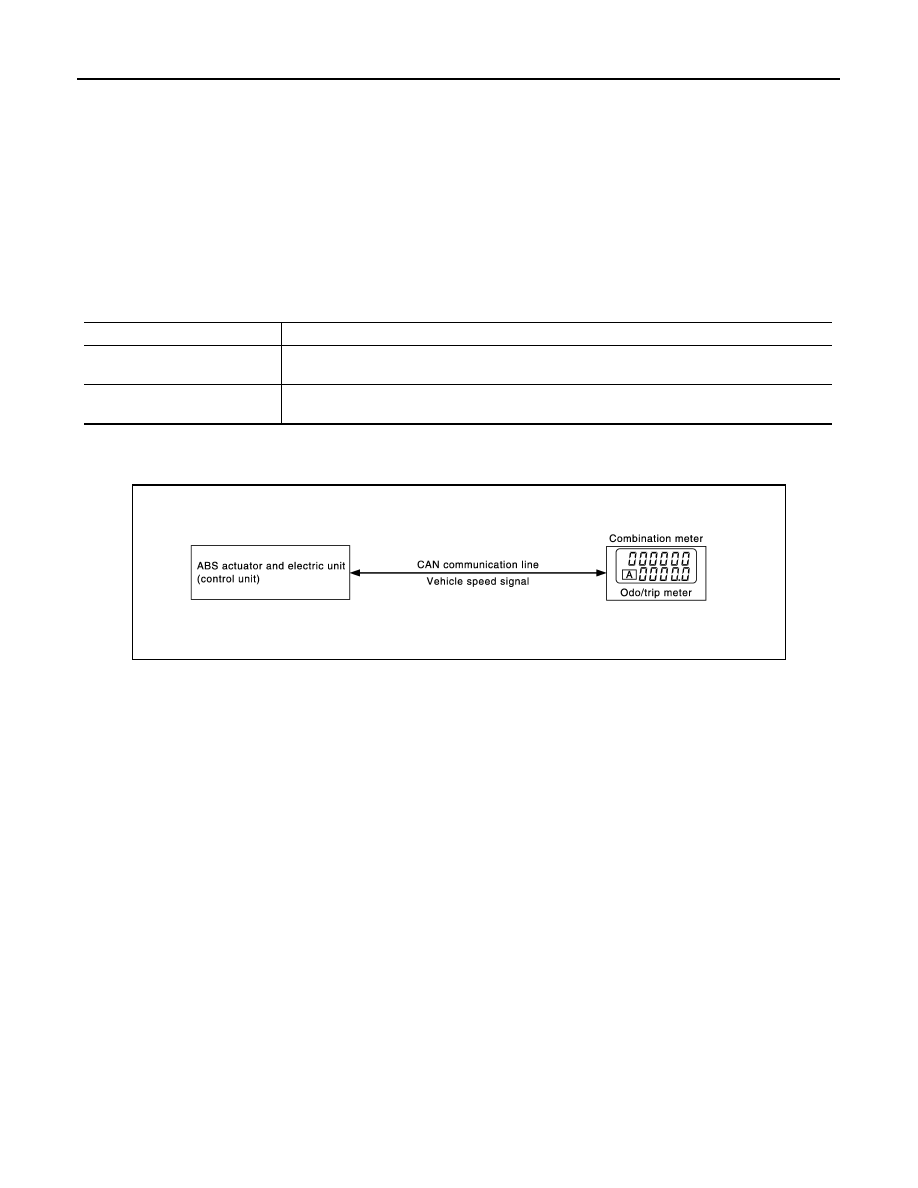

ODO/TRIP METER : System Diagram

INFOID:0000000009189310

ODO/TRIP METER : System Description

INFOID:0000000009189311

• ABS actuator control unit reads the rectangular wave signal received from wheel sensor, and transmits the

vehicle speed signal to the combination meter via CAN communication.

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication, then calculates and displays the travel distance.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Reads the fuel level sensor signal (resistance value) from the fuel level sensor unit, and indicates
the remaining fuel level.

Fuel level sensor unit

Detects the fuel level in fuel tank using the fuel level sensor unit, and transmits the fuel level sen-
sor signal to the combination meter.

JPNIA1015GB
