MWI

METER SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

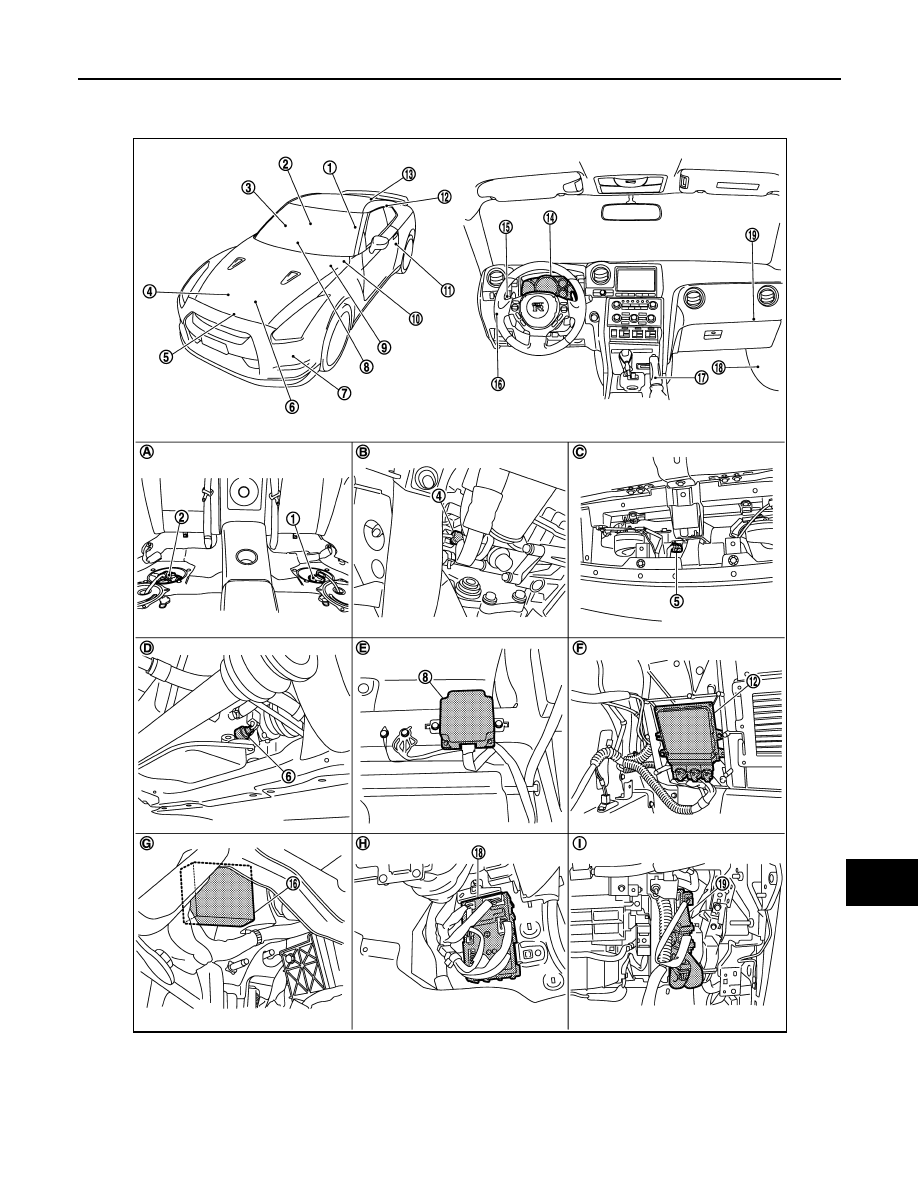

SPEEDOMETER : Component Parts Location

INFOID:0000000009189296

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-12

< SYSTEM DESCRIPTION >

METER SYSTEM

SPEEDOMETER : Component Description

INFOID:0000000009189297

TACHOMETER

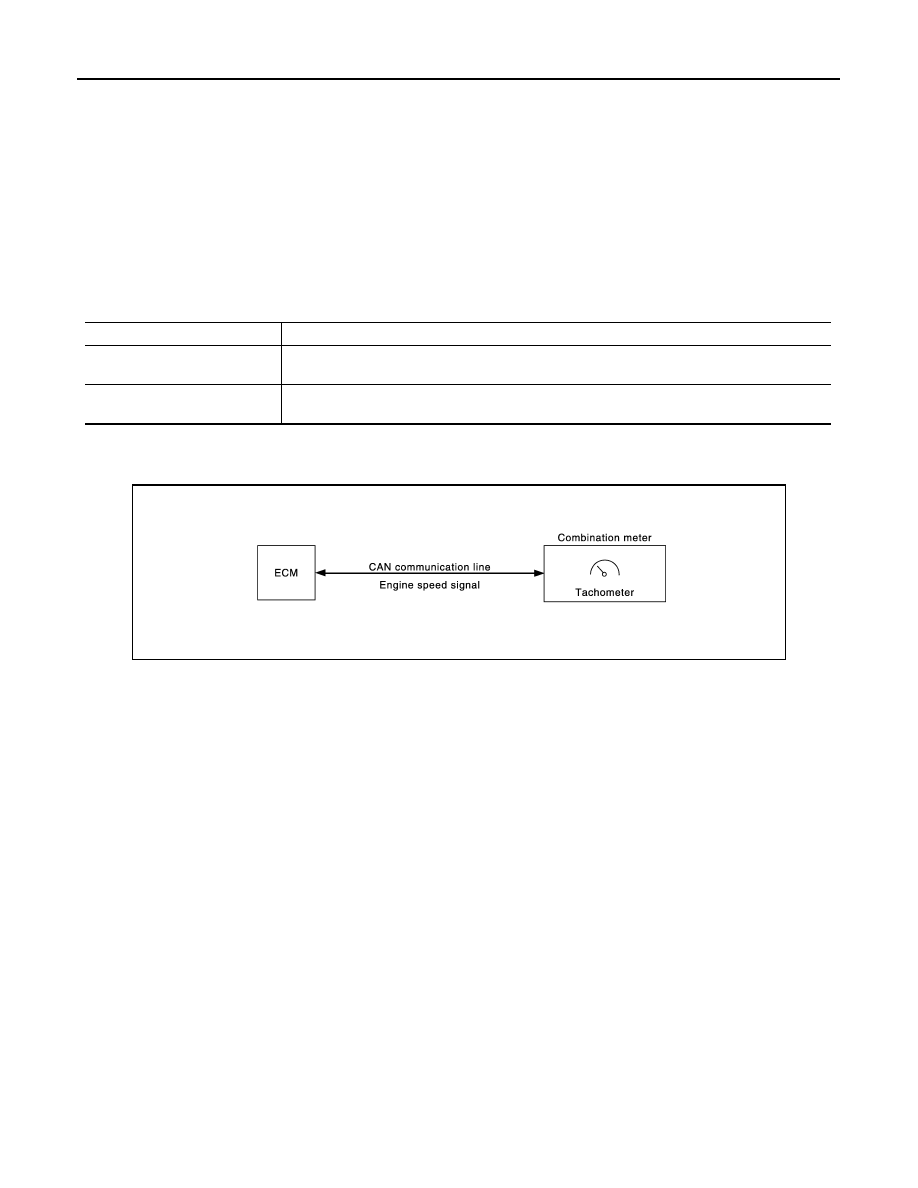

TACHOMETER : System Diagram

INFOID:0000000009189298

TACHOMETER : System Description

INFOID:0000000009189299

• ECM reads the crankshaft position signal from the crankshaft position sensor, and transmits the engine

speed signal to the combination meter via CAN communication.

• The combination meter receives the engine speed signal from ECM via CAN communication, and indicates

the engine speed.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Using the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication, indicates the vehicle speed.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

JPNIA1013GB

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TACHOMETER : Component Parts Location

INFOID:0000000009189300

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-14

< SYSTEM DESCRIPTION >

METER SYSTEM

TACHOMETER : Component Description

INFOID:0000000009189301

ENGINE COOLANT TEMPERATURE GAUGE

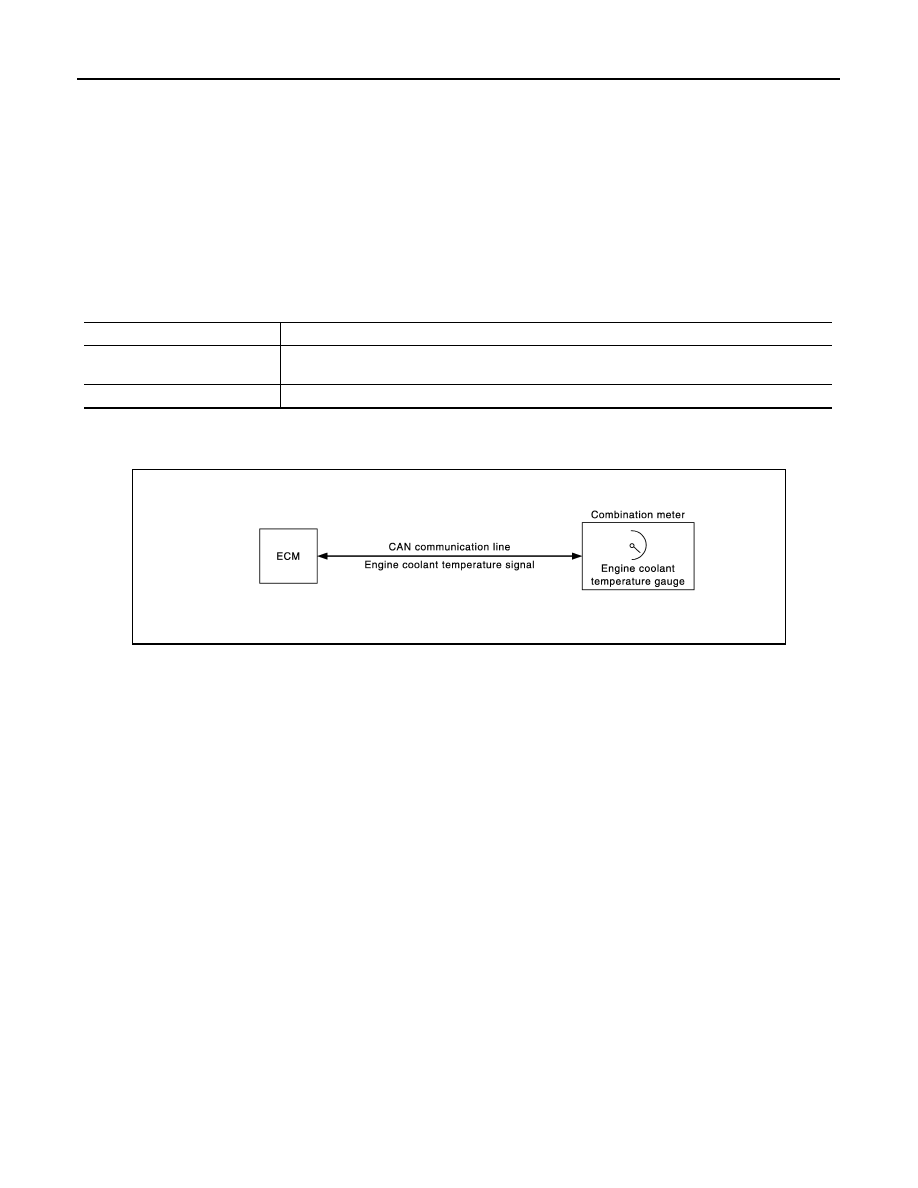

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000009189302

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000009189303

• ECM reads the engine coolant temperature signal from the engine coolant temperature sensor, and trans-

mits the signal to the combination meter via CAN communication.

• The combination meter receives the engine coolant temperature signal from ECM via CAN communication,

and indicates the engine coolant temperature.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Using the engine speed signal received from ECM via CAN communication, indicates the engine
speed.

ECM

Transmits the engine speed signal to the combination meter via CAN communication.

JPNIA1014GB
