SYSTEM DESCRIPTION

METER SYSTEM

METER SYSTEM

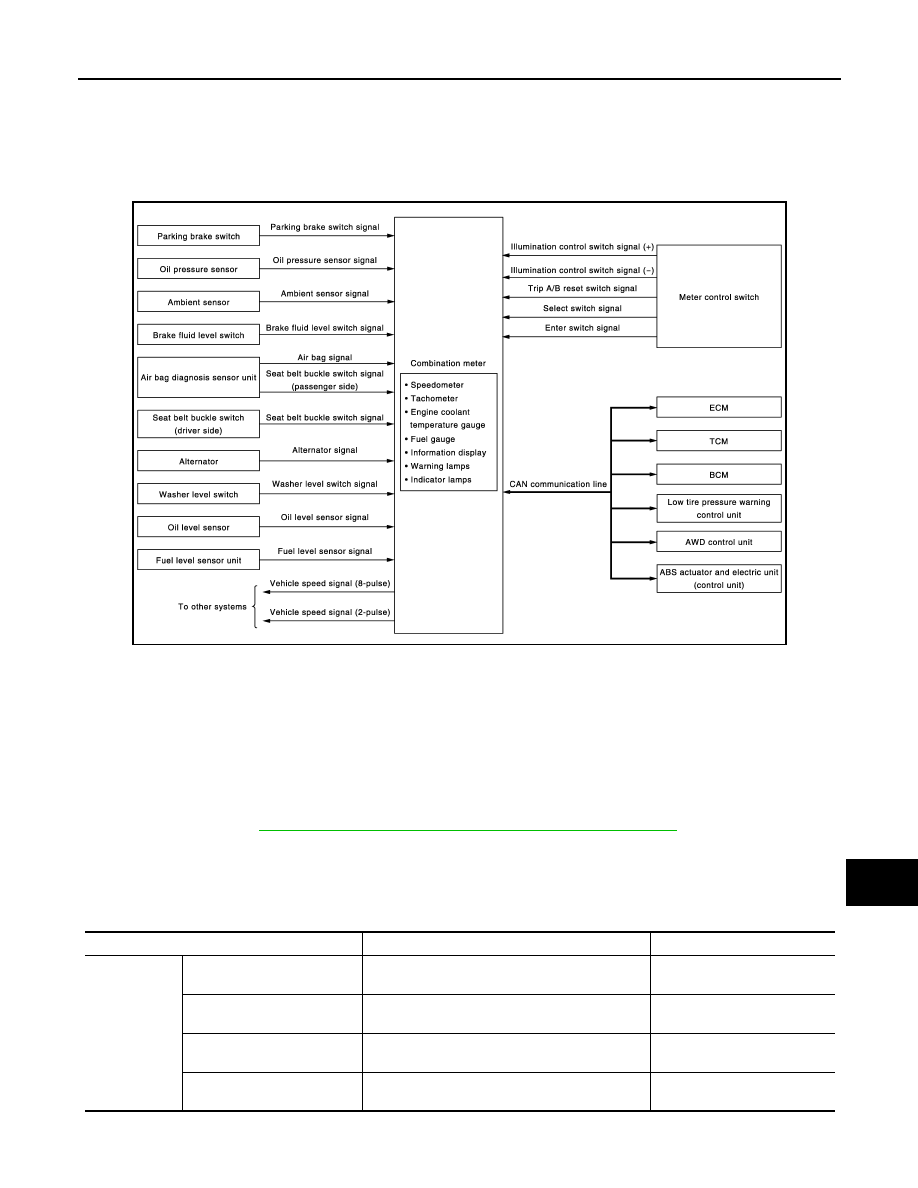

METER SYSTEM : System Diagram

INFOID:0000000009189290

METER SYSTEM : System Description

INFOID:0000000009189291

COMBINATION METER

• The combination meter receives the signals that are required to control the operation of each meter gauge,

indicator lamp/warning lamp, and information display from each unit, switch, and sensor.

• The combination meter is equipped with the drive computer function. Using the signal obtained from each

unit, switch, and sensor, the combination meter displays warnings and information to the information display.

• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer device. Refer to

WCS-3, "WARNING CHIME SYSTEM : System Description"

 for details.

• The combination meter integrates the meter circuit check function, the dot matrix check function that checks

the information display operation, and the segment check function that checks the shift position indicator
operation.

METER CONTROL FUNCTION LIST

JPNIA1140GB

System

Description

Signal source

Meter gauges

Speedometer

Receives the vehicle speed signal, and indicates
the vehicle speed.

ABS actuator and electric unit
(control unit)

Tachometer

Receives the engine speed signal, and indicates
the engine speed.

ECM

Fuel gauge

Receives the fuel level sensor signal, and indi-
cates the remaining fuel level.

Fuel level sensor unit

Engine coolant temperature
gauge

Receives the engine coolant temperature signal,
and indicates the engine coolant temperature.

ECM

MWI-4

< SYSTEM DESCRIPTION >

METER SYSTEM

Shift position
indicator

Shift position indicator

Receives the shift position signal, and displays
the shift position.

TCM

Oil pressure
warning lamp

Oil pressure warning lamp

Receives the oil pressure sensor signal, and illu-
minates the lamp.

Oil pressure sensor

Up-shift indica-
tor

Up-shift indicator

Receives the engine speed signal and shift posi-
tion signal (manual mode status), and illuminates/
turns off/blinks the indicator.

ECM

TCM

Master warn-
ing lamp

Master warning lamp

Illuminates the lamp according to warning output
on information display.

—

Information
display

Instantaneous fuel consump-
tion display

Calculates the instantaneous fuel consumption
based on received vehicle speed signal and fuel
consumption monitor signal, and displays the re-
sult.

ECM

ABS actuator and electric unit
(control unit)

Vehicle speed display

Based on the received vehicle speed signal, dis-
plays the vehicle speed.

ABS actuator and electric unit
(control unit)

CRUISE control system sta-
tus display

Based on the received ASCD status signal, dis-
plays the CRUISE control system setting status.

ECM

System

Description

Signal source

MWI

METER SYSTEM

MWI-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Information
display

Average fuel consumption
display

Based on the received vehicle speed signal and
fuel consumption monitor signal, calculates the
average fuel consumption from the previous reset
to the next reset, and displays the result.

ECM

ABS actuator and electric unit
(control unit)

Average vehicle speed dis-
play

Calculates average vehicle speed in a reset-to-
reset interval based on received vehicle speed
signal and displays it.

ABS actuator and electric unit
(control unit)

Travel time display

Displays the accumulated key switch ON time
from a previous reset to the next reset.

—

Travel distance display

Calculates accumulated travel distance in a re-
set-to-reset interval based on received vehicle
speed signal and displays it.

ABS actuator and electric unit
(control unit)

Possible driving distance dis-
play

Based on the received fuel consumption monitor
signal, vehicle speed signal, and fuel level sensor
signal, calculates the possible driving distance,
and displays the result.

ECM

ABS actuator and electric unit
(control unit)

Fuel level sensor unit

Ambient air temperature dis-
play

Based on the received ambient sensor signal,
corrects the ambient air temperature value, and
displays the result.

Ambient sensor

Illumination control display

Based on the received illumination control switch
signal, displays the illumination status.

Meter control switch

Travel time interruption dis-
play

Displays a warning of duration after IGN ON. (If
enabled)

—

Low ambient air temperature
display

Based on the ambient sensor signal, displays a
warning when the ambient air temperature be-

comes 3

°

C (37

°

F) or less. (If enabled)

Ambient sensor

Engine oil maintenance dis-
play

The distance for engine oil replacement can be
set.

—

Engine oil maintenance warn-
ing display

Displays a warning when the arbitrarily set engine
oil replacement distance is reached.

—

Engine oil level normal dis-
play

Based on the received oil level sensor signal, dis-
plays that the engine oil level is at a normal value.

Oil level sensor

Engine oil level display

Based on the received oil level sensor signal, dis-
plays the engine oil level.

Oil level sensor

Engine oil level warning dis-
play

Based on the received oil level sensor signal, dis-
plays a warning on engine oil level.

Oil level sensor

Transmission oil maintenance
display

The distance for transmission oil replacement can
be set.

—

Transmission oil maintenance
warning display

Displays a warning when the arbitrarily set trans-
mission oil replacement distance is reached.

—

Oil filter maintenance display

The distance for oil filter replacement can be set.

—

Oil filter maintenance warning
display

Displays a warning when the arbitrarily set oil filter
replacement distance is reached.

—

Tire maintenance display

The distance for tire replacement can be set.

—

Tire maintenance warning dis-
play

Displays a warning when the arbitrarily set tire re-
placement distance is reached.

—

Other maintenance display

The replacement distance for the arbitrarily set
parts can be set.

—

Other maintenance warning
display

Displays a warning when the arbitrarily set parts
replacement distance is reached.

—

System

Description

Signal source

MWI-6

< SYSTEM DESCRIPTION >

METER SYSTEM

Information
display

Door open warning display

Based on the received door switch signal, dis-
plays a warning that a door is ajar.

BCM

Trunk open warning display

Based on the received trunk switch signal, dis-
plays a warning that the trunk is ajar.

BCM

Parking brake release warn-
ing display

Based on the received parking brake switch sig-
nal and vehicle speed signal, displays a warning
that the parking brake is not released.

Parking brake switch

ABS actuator and electric unit
(control unit)

Low fuel warning display

Receives the fuel level sensor signal, and dis-
plays a warning if the fuel level decreases to ap-

proximately 13.5

 (3-5/8 US gal, 3 lmp gal) or

less [1.0

 (1/4 US gal, 1/4 Imp gal) fuel residues

included].

Fuel level sensor unit

Low washer fluid warning dis-
play

Based on the received washer level switch signal,
displays a warning for washer level.

Washer level switch

Engine oil level sensor abnor-
mality warning display

Based on the received oil level sensor signal, dis-
plays the engine oil level sensor malfunction
warning.

Oil level sensor

Shift lever position warning
display

Based on the received shift lever position warning
display signal, displays the shift lever position
warning.

TCM

Shift “ P ” warning display

Based on the received shift lever position check
display signal, issues a warning to change the
shift position to P range.

TCM

Transmission system check
display

Based on the received transmission system
check display signal, displays that the transmis-
sion system check is in progress.

TCM

Run-flat tire warning display

Based on the received run-flat tire warning dis-
play signal, displays a warning that the tire is
punctured.

Low tire pressure warning con-
trol unit

Transmission clutch high tem-
perature warning display

Based on the received transmission clutch high
temperature warning display signal, displays a
warning that the transmission clutch temperature
is high.

TCM

Transmission oil high temper-
ature warning display

Based on the received transmission oil high tem-
perature warning display signal, displays a warn-
ing that the transmission oil temperature is high.

TCM

Low tire pressure warning dis-
play

Based on the received low tire pressure warning
display signal, displays a warning that the tire in-
ternal pressure is low.

Low tire pressure warning con-
trol unit

AWD clutch high temperature
warning display

Based on the received AWD clutch high tempera-
ture warning display signal, displays a warning
that the AWD clutch temperature is high.

AWD control unit

Front/rear tire size discrepan-
cy warning display

Based on the received front/rear tire size discrep-
ancy warning display signal, displays a warning
that there is a difference between front and rear
tire speed.

AWD control unit

Transmission system warning
display

Based on the received transmission system
warning display signal, displays a warning that a
malfunction is present in the transmission sys-
tem.

TCM

Tire pressure monitoring sys-
tem warning display

Based on the received tire pressure monitoring
system warning display signal, displays a warning
that an abnormality is present in the tire pressure
warning system.

Low tire pressure warning con-
trol unit

AWD system warning display

Based on the received AWD system warning dis-
play signal, displays a warning that a malfunction
is present in the AWD system.

AWD control unit

System

Description

Signal source
