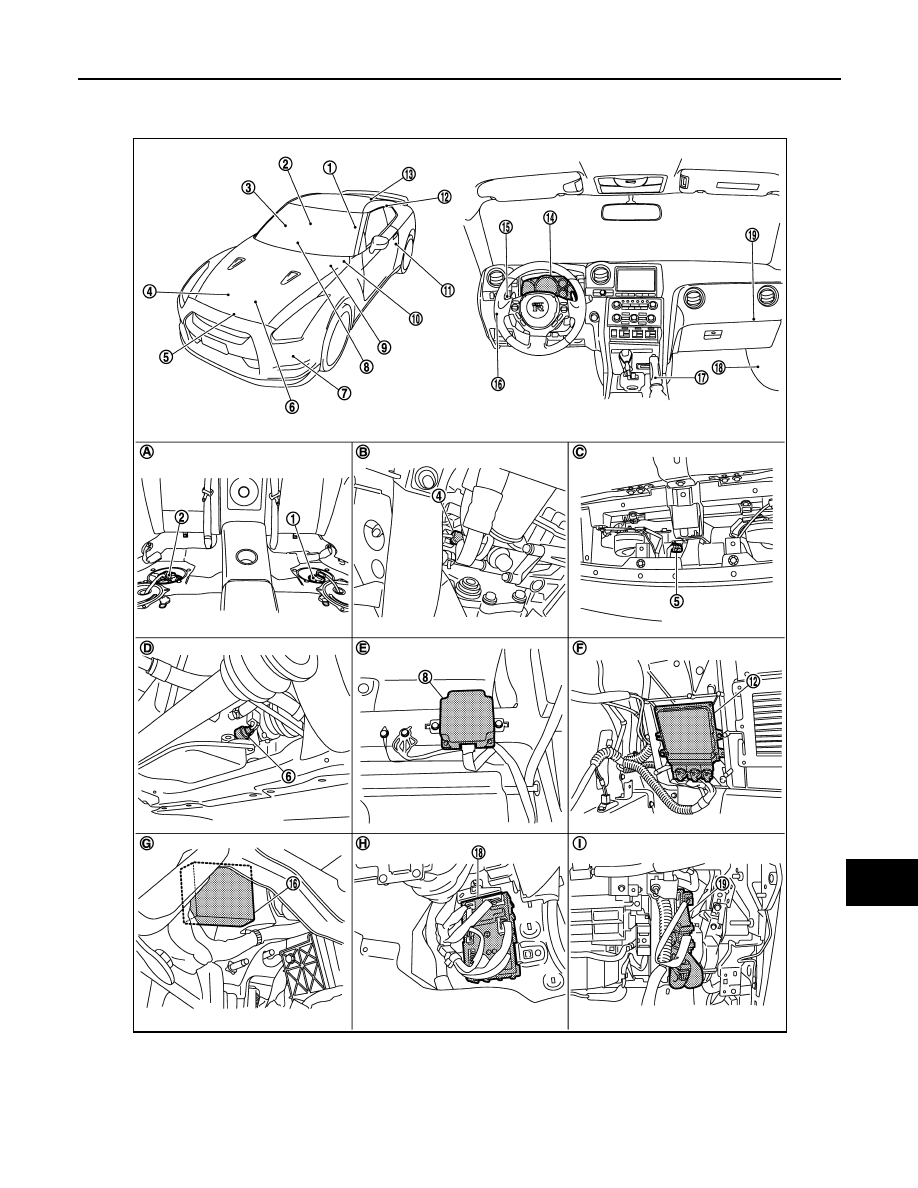

OIL PRESSURE WARNING LAMP : Component Parts Location

INFOID:0000000009189320

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-24

< SYSTEM DESCRIPTION >

METER SYSTEM

OIL PRESSURE WARNING LAMP : Component Description

INFOID:0000000009189321

METER ILLUMINATION CONTROL

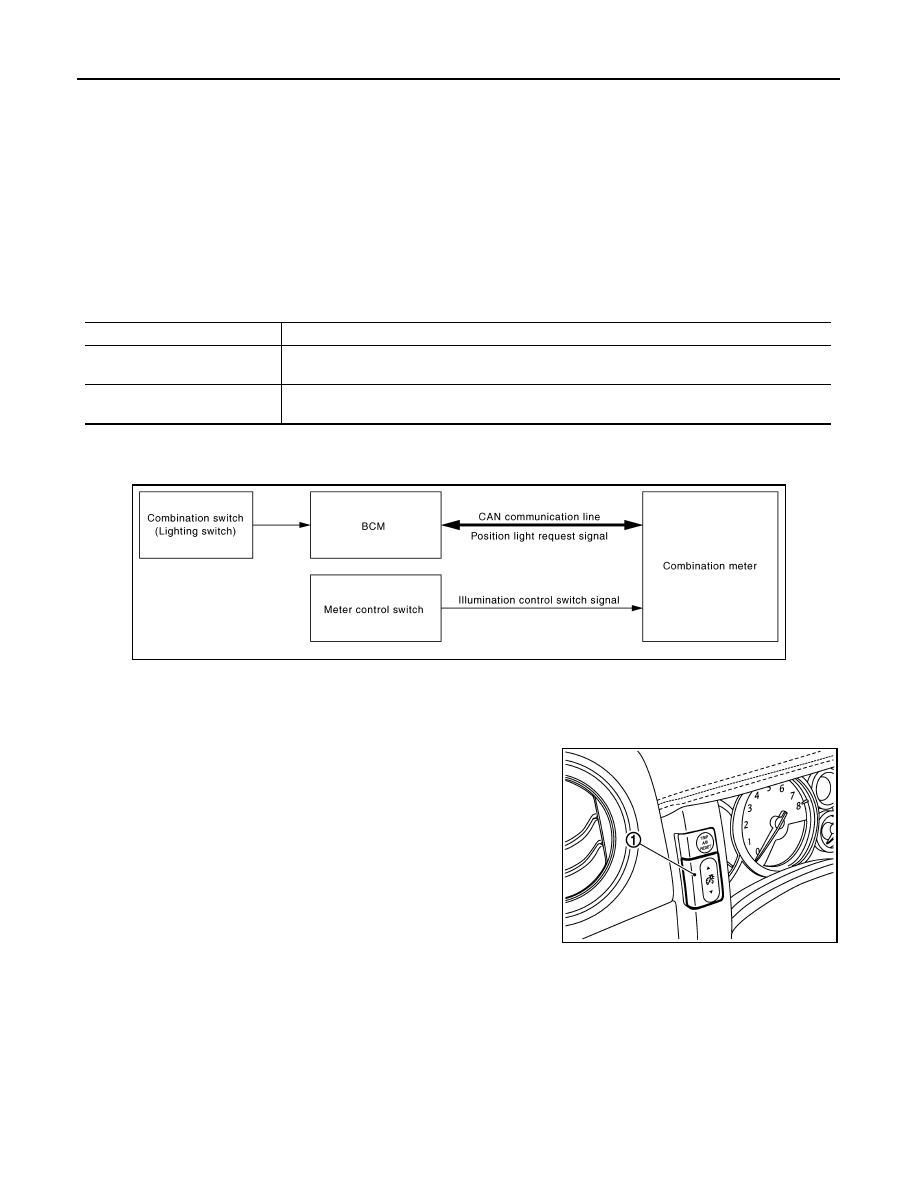

METER ILLUMINATION CONTROL : System Diagram

INFOID:0000000009189322

METER ILLUMINATION CONTROL : System Description

INFOID:0000000009189323

METER ILLUMINATION CONTROL FUNCTION

Every time when the illumination control switch (1) is pressed, the
illuminance of meter illumination can be adjusted in 22 steps. (Illumi-
nance can be adjusted both in daytime and nighttime modes.)

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Using the oil pressure sensor signal received from oil pressure sensor, illuminates/turns off the oil
pressure warning lamp.

Oil pressure sensor

Detects the oil pressure of engine oil, and transmits the oil pressure sensor signal to the combi-
nation meter.

JPNIA1147GB

NNNIA0018ZZ

MWI

METER SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER ILLUMINATION CONTROL : Component Parts Location

INFOID:0000000009189324

1.

Fuel level sensor unit
(Sub)

2.

Fuel level sensor unit
(Main)

3.

Door switch (passenger side)

4.

Oil pressure sensor

5.

Ambient sensor

6.

Oil level sensor

7.

Washer level switch

8.

AWD control unit

9.

Brake fluid level switch

JPNIA1142ZZ

MWI-26

< SYSTEM DESCRIPTION >

METER SYSTEM

METER ILLUMINATION CONTROL : Component Description

INFOID:0000000009189325

INFORMATION DISPLAY

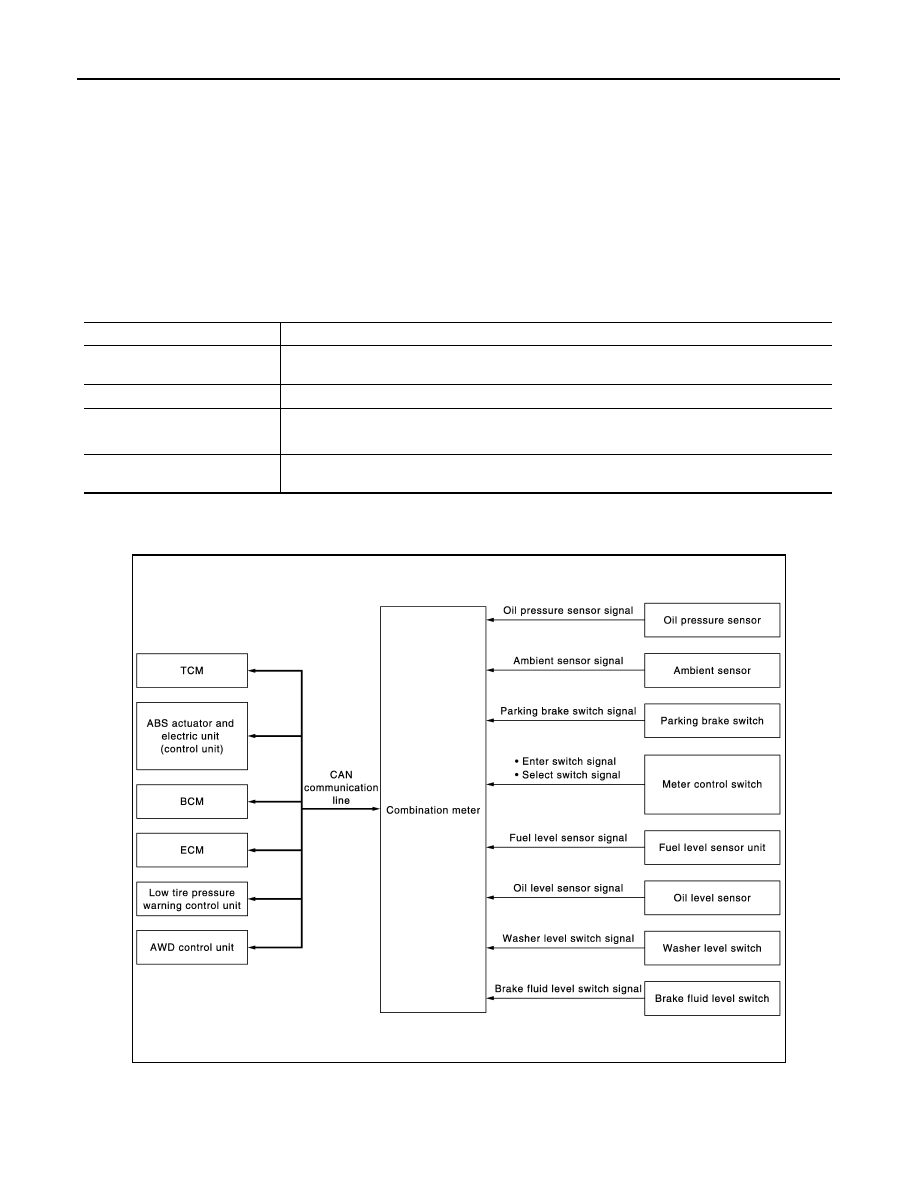

INFORMATION DISPLAY : System Diagram

INFOID:0000000009189326

INFORMATION DISPLAY : System Description

INFOID:0000000009189327

DESCRIPTION

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

A.

Under rear seat

B.

Right side of engine

C.

Radiator core support (center)

D.

Oil pan LH upper

E.

Front RH seat under

F.

Trunk room left back

G.

Lower instrument panel LH

H.

Dashboard side lower (passenger
seat side)

I.

Glove box assembly back

Unit

Description

Combination meter

Controls the meter illumination with the illumination control switch signal from the meter control
switch and the position light request signal from BCM via CAN communication.

BCM

Transmits the position light request signal to the combination meter via CAN communication.

Meter control switch

Transmits the following signals to the combination meter.

• Illumination control switch signal (+)

• Illumination control switch signal (-)

Combination switch
(Lighting switch)

Using the combination switch reading function, BCM reads the combination switch status.

JPNIA1145GB
