1.

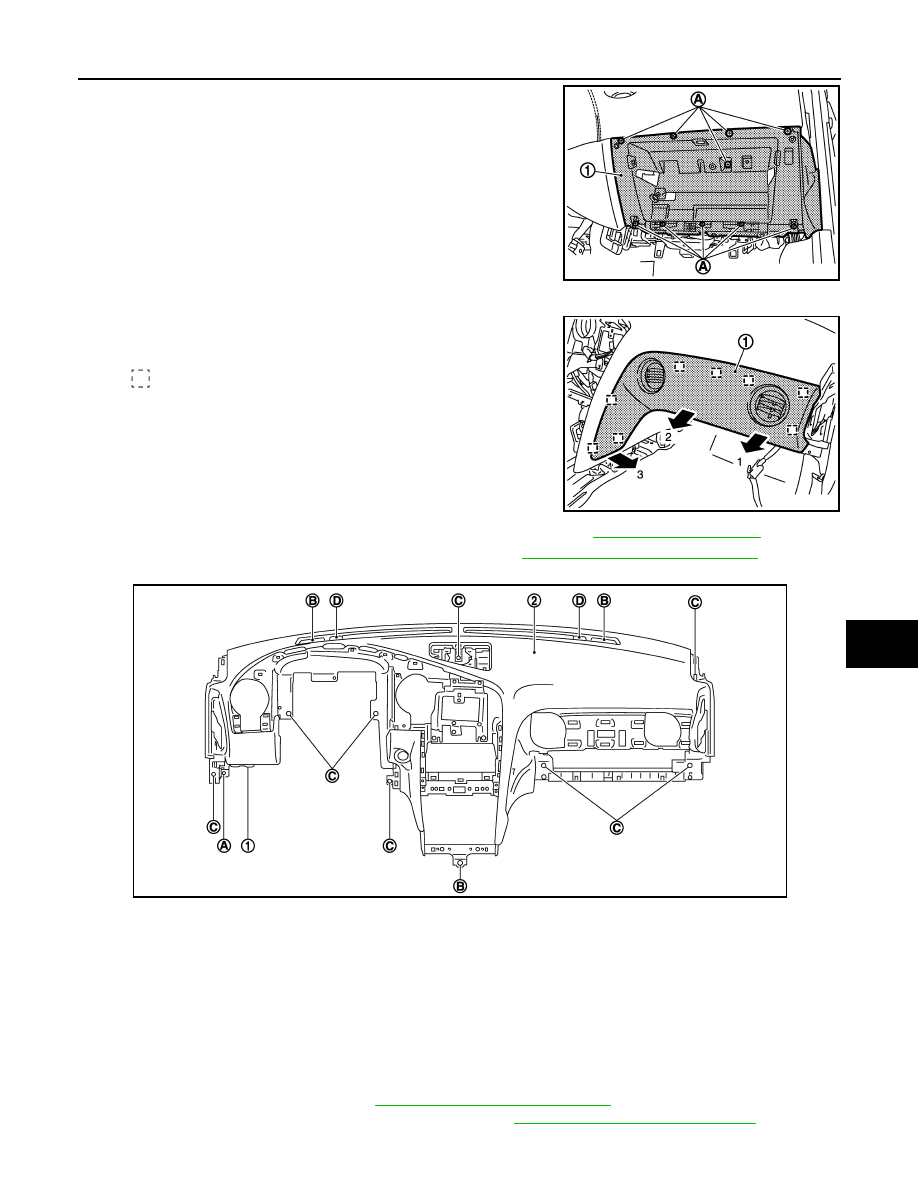

Remove fixing screws (A).

2.

Pull back out instrument lower panel (assist) (1).

3.

Disconnect harness connector of back side and remove
harness clamp.

40. Remove instrument pad C.

Pull instrument pad C (1) in order from 1 - 3, and then disengage
metal clips.

41. Disconnect harness connector of passenger air bag module. Refer to

SR-17, "Exploded View"

.

42. Remove passenger air bag module mounting bolt. Refer to

SR-17, "Removal and Installation"

.

43. Remove instrument panel assembly.

1.

Remove mounting bolt (A) of instrument side bracket (1).

2.

Remove mounting bolt (B) of instrument panel assembly (2).

3.

Remove fixing screw (C) of instrument panel assembly.

4.

Remove front defroster nozzle mounting clip (D).

CAUTION:

Cover tool with a shop cloth to prevent windshield glass from being damaged.

5.

Pull out instrument panel assembly toward rear of vehicle, and then remove it from door opening.

CAUTION:

When removing instrument panel assembly, 2 workers are required to prevent it from drop-
ping.

44. Remove following parts after removing instrument panel assembly.

• Passenger air bag module: Refer to

SR-17, "Removal and Installation"

.

• GPS antenna (BOSE audio with NAVI models): Refer to

AV-184, "Removal and Installation"

.

• Antenna feeder

JMJIA2196ZZ

: Metal clip

JMJIA2197ZZ

JMJIA2198ZZ

IP-22

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

- BASE audio with NAVI models: Refer to

AV-93, "Feeder layout"

.

- BOSE audio with NAVI models: Refer to

AV-186, "Feeder layout"

.

• Monitor bracket

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use steering wheel mounting nut after removal, replace with new nut.
• Never use driver air bag module mounting bolts after removal, replace with new bolts.
• Never use passenger air bag module mounting bolt after removal, replace with new bolt.

CENTER CONSOLE ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

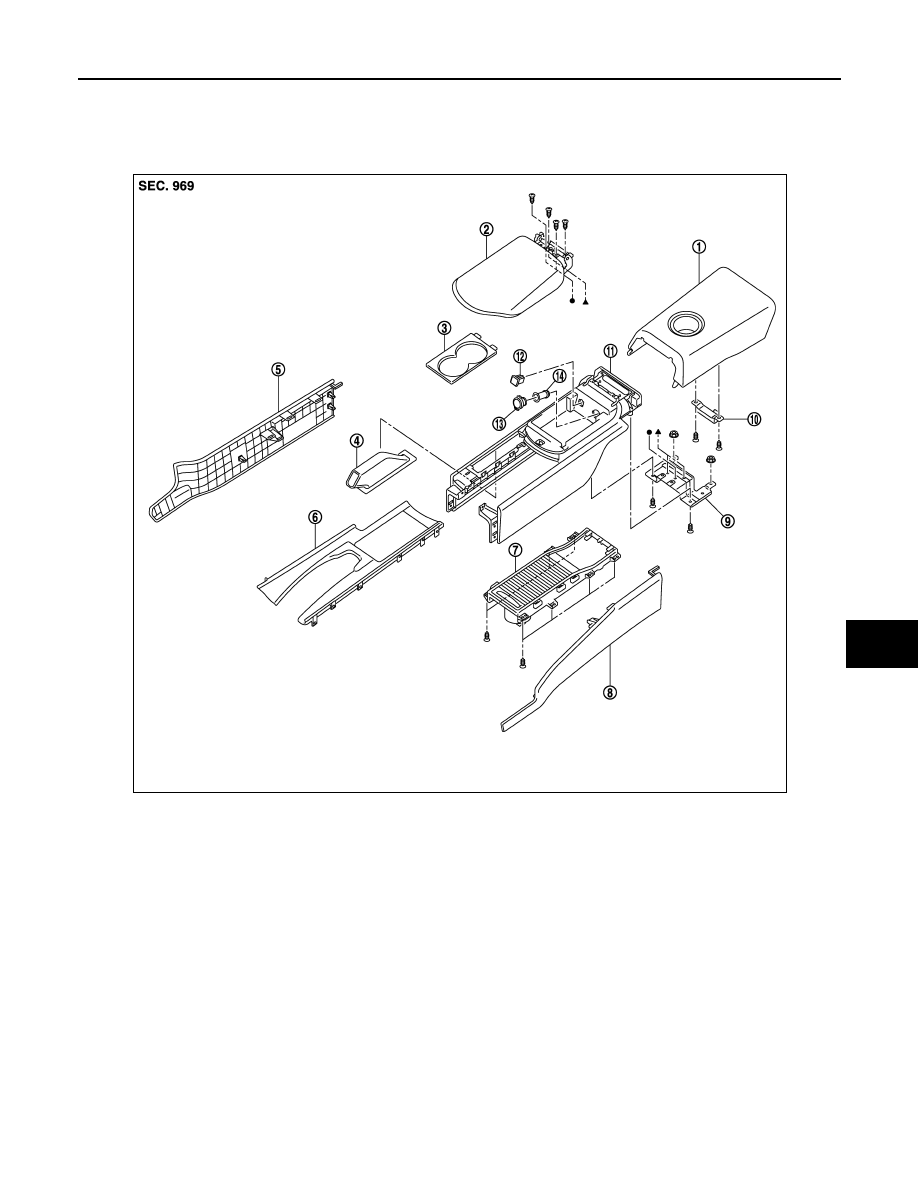

Exploded View

INFOID:0000000009162797

Removal and Installation

INFOID:0000000009162798

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Remove rear console assembly.

1.

Rear console assembly

2.

Console lid

3.

Cup holder finisher

4.

Parking brake lever boot

5.

Instrument side panel RH

6.

Console finisher assembly

7.

Cup holder assembly

8.

Instrument side panel LH

9.

Console bracket

10. Inside key antenna

11.

Center console assembly

12. USB connector

13. Socket knob

14. Power socket

JMJIA3736ZZ

IP-24

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

1.

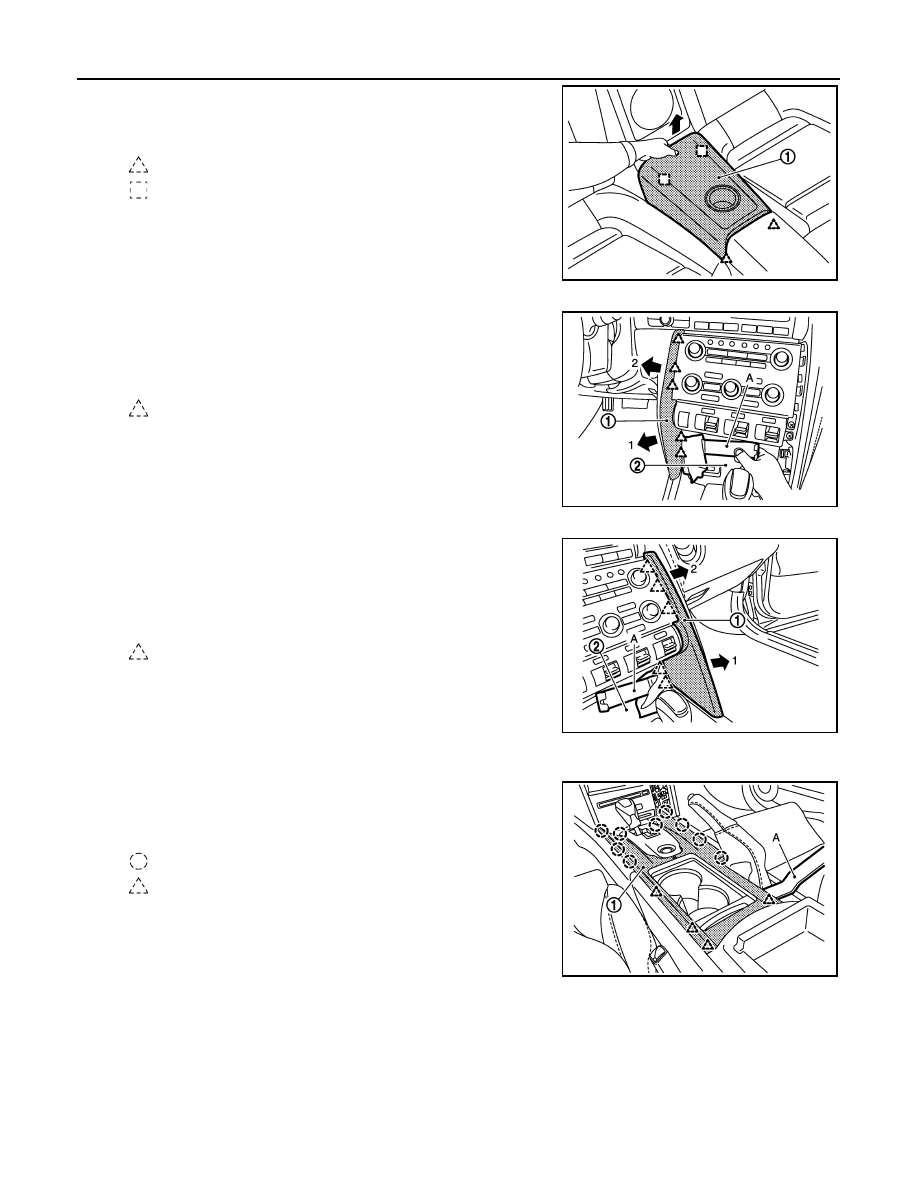

Lift up rear side of rear console assembly (1), and then dis-
engage pawls and metal clips.

2.

Disconnect harness connector on the back.

2.

Remove instrument garnish LH.
1.

Insert remover tool (A), wrapped in a shop cloth, into clear-
ance between lower side of instrument garnish LH (1) and
cluster lid C (lower) (2).

2.

Pull back instrument garnish LH, and then disengage pawls.

3.

Remove instrument garnish RH.
1.

Insert remover tool (A), wrapped in a shop cloth, into clear-
ance between lower side of instrument garnish RH (1) and
cluster lid C (lower) (2).

2.

Pull back instrument garnish RH, and then disengage
pawls.

4.

Remove console finisher.
1.

Open console lid.

2.

Insert remover tool (A) between console finisher (1) and
center console, lift up console finisher, and then disengage
clips and pawls.

5.

Remove instrument side panel LH.

: Pawl

: Metal clip

NNJIA0052ZZ

: Pawl

JMJIA2177ZZ

: Pawl

JMJIA2176ZZ

: Clip

: Pawl

JMJIA2178ZZ
