Nissan GT-R. Manual - part 186





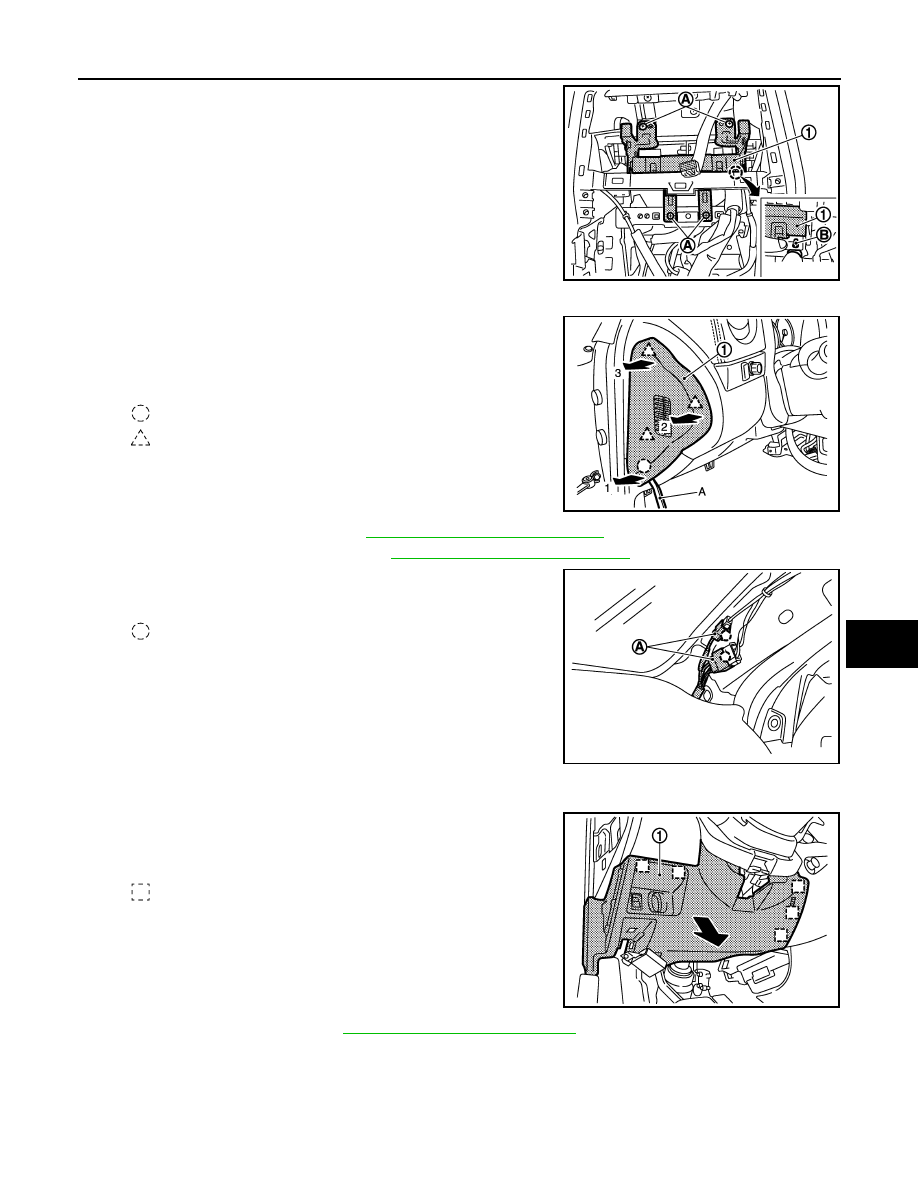

INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

1.

Remove fixing screws (A) of A/C auto amp (1).

2.

Disengage joint of harness clamp (B).

3.

Pull back A/C auto amp.

4.

Disconnect harness connectors on the back.

14. Remove instrument side finisher LH.

1.

Insert remover tool (A) between instrument side finisher LH
(1) and instrument panel assembly.

2.

Pull instrument side finisher LH in lateral direction of vehicle
in order from 1 - 3, and then disengage clip and pawls.

15. Remove body side welt LH. Refer to

INT-15, "Removal and Installation"

16. Remove front pillar garnish LH. Refer to

INT-15, "Removal and Installation"

17. Disconnect harness connectors (A) from front pillar LH and

remove clips.

18. Remove instrument lower panel (driver).

1.

Remove hood opener lever mounting bolts.

2.

Pull back instrument lower panel (driver) (1) toward vehicle
lower, and then disengage metal clips.

3.

Disconnect harness connectors on the back.

19. Remove steering wheel. Refer to

ST-10, "Removal and Installation"

20. Remove steering column front lower cover.

NNJIA0063ZZ

: Clip

: Pawl

JMJIA2184ZZ

: Clip

JMJIA2185ZZ

: Metal clip

JMJIA2186ZZ

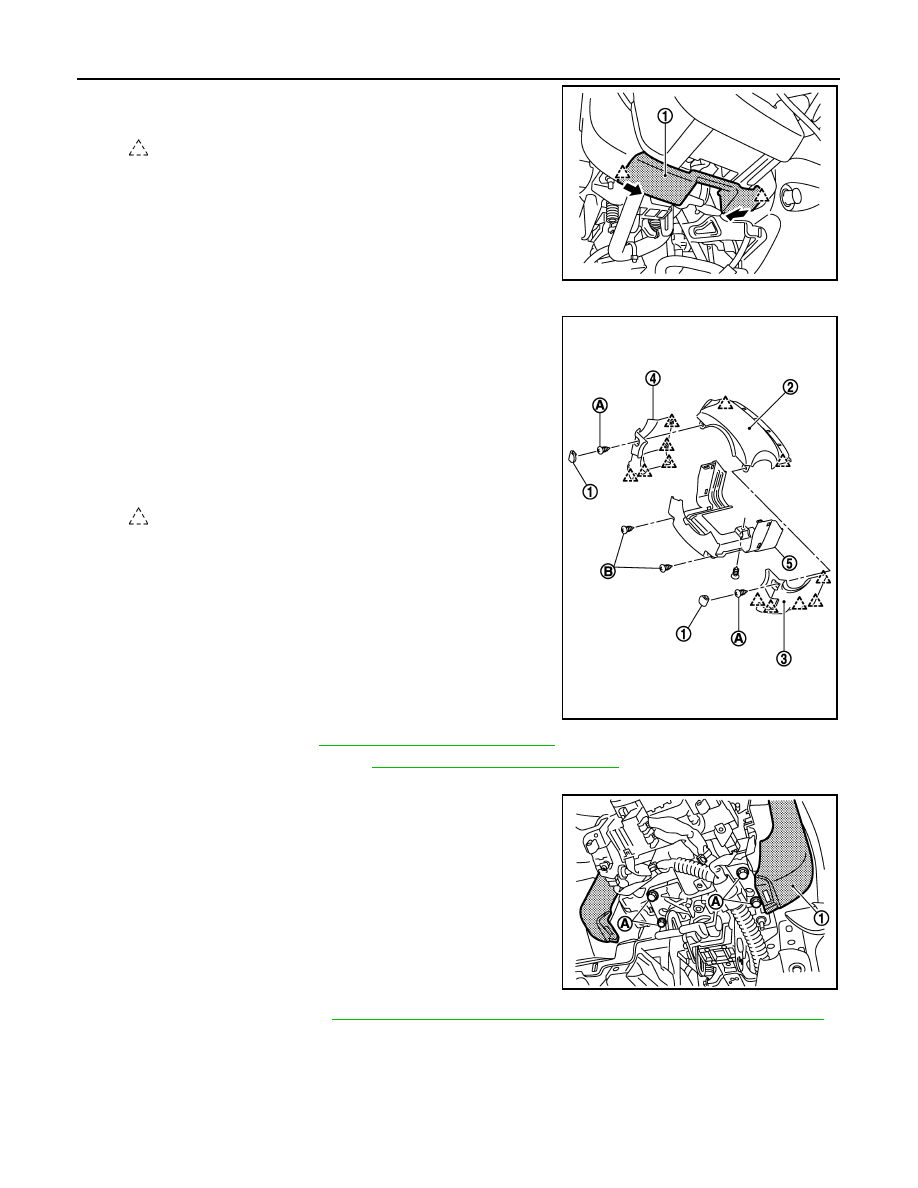

IP-18

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

Pull down steering column front lower cover (1) toward vehicle
lower, and then disengage clips.

NOTE:
Move steering column position frontward using telescopic func-
tion.

21. Remove steering column cover.

1.

Remove steering column mask LH and RH (1), and then
remove screws (A).

2.

Pull up steering column upper cover (2), and then disen-
gage pawls.

3.

Disengage pawls of steering column side cover RH (3), and
then remove it in lateral direction of vehicle.

4.

Disengage pawls of steering column side cover LH (4), and
then remove it in lateral direction of vehicle.

5.

Remove fixing screws (B), and then remove steering col-
umn lower cover (5).

22. Remove spiral cable. Refer to

SR-14, "Removal and Installation"

23. Remove combination switch. Refer to

BCS-21, "Removal and Installation"

24. Remove cluster lid A.

1.

Remove mounting bolts (A) from lower side of cluster lid A
(1).

2.

Pull cluster lid A toward vehicle upper.

3.

Disconnect harness connector on the back.

25. Remove power socket. Refer to

PWO-7, "INSTRUMENT POWER SOCKET : Removal and Installation"

: Pawl

JMJIA2187ZZ

: Pawl

NNJIA0068ZZ

JMJIA2188ZZ

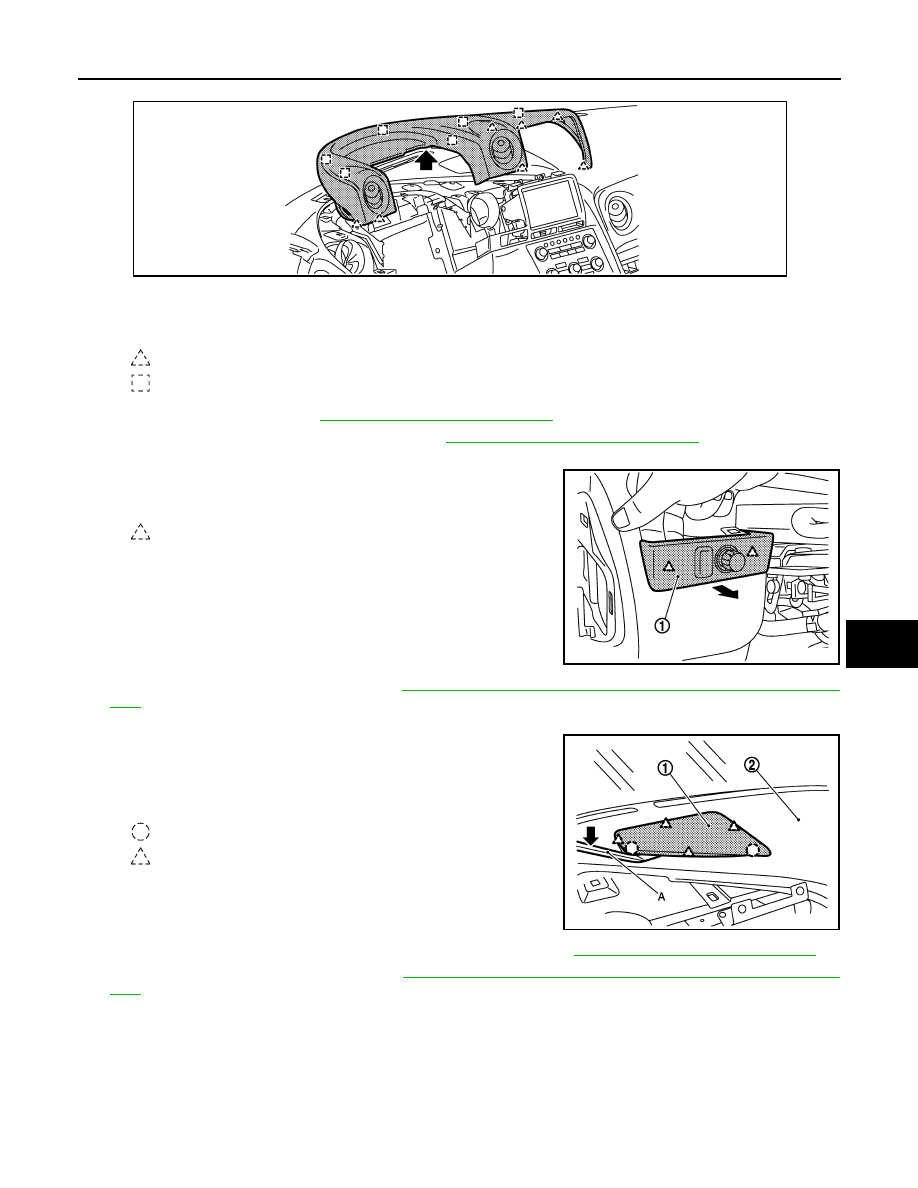

INSTRUMENT PANEL ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

26. Remove instrument pad A.

1.

Lift up portion around side ventilator grille LH, and then disengage pawls and metal clips.

2.

Lift up portion around center ventilator grille LH, and then disengage pawls and metal clips.

3.

Lift up portion around display unit RH, and then disengage pawls and metal clips.

27. Remove display unit. Refer to

AV-79, "Removal and Installation"

28. Remove remote keyless entry receiver. Refer to

DLK-172, "Removal and Installation"

.

29. Remove instrument pad B.

1.

Pull back instrument pad B (1), and then disengage clips.

2.

Disconnect harness connector on the back.

30. Remove front defroster grille LH. Refer to

VTL-9, "FRONT DEFROSTER GRILLE : Removal and Installa-

tion"

31. Remove center speaker grille.

1.

Insert remover tool (A) between center speaker grille (1)
and instrument panel assembly (2), and then disengage
clips and pawls.

2.

Lift upward.

32. Remove center speaker (BOSE audio with NAVI models). Refer to

AV-174, "Removal and Installation"

33. Remove front defroster grille RH. Refer to

VTL-9, "FRONT DEFROSTER GRILLE : Removal and Installa-

tion"

34. Remove instrument side finisher RH.

: Pawl

: Metal clip

JMJIA2189ZZ

: Pawl

JMJIA2190ZZ

: Clip

: Pawl

JMJIA2191ZZ

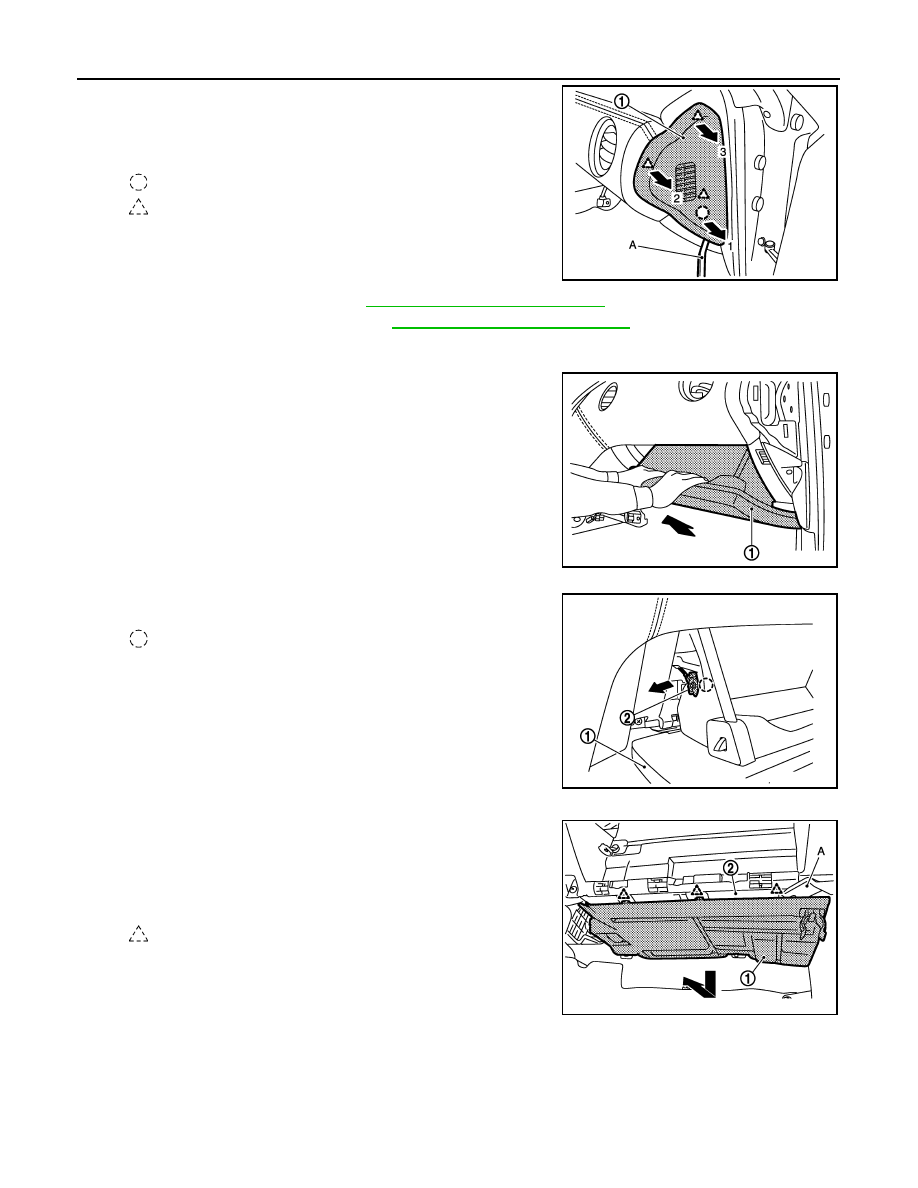

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

1.

Insert remover tool (A) between instrument side finisher RH
(1) and instrument panel assembly.

2.

Pull instrument side finisher RH in lateral direction in order
of 1 - 3, and then disengage clip and pawls.

35. Remove body side welt RH. Refer to

INT-15, "Removal and Installation"

36. Remove front pillar garnish RH. Refer to

INT-15, "Removal and Installation"

37. Remove glove box assembly.

1.

Open glove box.

2.

Pull back glove box assembly (1) toward vehicle upper, and
then disengage joint from instrument lower panel RH.

3.

Remove damper pin (2) from glove box assembly (1).

38. Remove instrument lower cover RH.

1.

Insert remover tool (A) between instrument lower cover RH
(1) and instrument panel assembly (2), and then disengage
pawls.

2.

Pull out instrument lower cover RH toward vehicle lower,
then back.

39. Remove instrument lower panel (assist).

: Clip

: Pawl

JMJIA2192ZZ

JMJIA2193ZZ

: Clip

JMJIA2194ZZ

: Pawl

JMJIA2195ZZ
