INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000009162796

Work item table

1.

Sunload sensor

2.

Front defroster grille RH

3.

Front defroster grille LH

4.

Security indicator

5.

Center speaker grille

6.

Center speaker

7.

Instrument panel assembly

8.

Instrument side finisher LH

9.

Instrument pad A

10. Side ventilator grille LH

11.

Mirror control switch

12. Instrument pad B

13. Cluster lid A

14. Steering column upper cover

15. Steering column side cover LH

16. Steering column mask LH

17. Instrument lower panel (driver)

18. Cluster lid C (lower)

19. Instrument lower cover LH

20. Glove box assembly

21. Instrument lower panel (assist)

22. Globe box damper

23. Side ventilator grille RH

24. Instrument pad C

25. Instrument side finisher RH

26. Display unit

27. Center ventilator grille LH

28. Steering column front lower cover

29. Steering column lower cover

30. Steering column mask RH

31. AV C/U

32. Set-up switch assembly

33. Socket & bulb

34. Instrument garnish RH

35. Center ventilator grille RH

36. A/C auto amp.

37. Multifunction switch

38. Cluster lid C (upper)

39. Instrument garnish LH

40. Steering column side cover RH

41. Preset switch assembly

42. Instrument garnish (upper)

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

DISPLAY UNIT

AV control unit

CENTER

CONSOLE

ASSEMBLY

Rear console assembly

[1]

[1]

Instrument garnish LH

[2]

[1]

[1]

[2]

Instrument garnish RH

[3]

[2]

[2]

[3]

Console finisher assembly

[4]

[3]

[4]

Instrument side panel LH

[5]

[5]

Instrument side panel RH

[6]

[6]

Center console assembly

[7]

[7]

A/T shift selector assembly

[8]

Preset switch assembly

[9]

[3]

[4]

Set-up switch assembly

[10]

[5]

Cluster lid C (lower)

[11]

[6]

AV control unit

[12]

[7]

A/C auto amp.

[13]

Instrument side finisher LH

[14]

Body side welt LH

[15]

Front pillar garnish LH

[16]

Instrument lower panel (driver)

[17]

Driver air bag module

[18]

[1]

[4]

Steering wheel

[19]

[2]

[5]

Steering column front lower cover

[20]

[3]

[6]

Steering column cover

[21]

[4]

[7]

Combination switch

[22]

[5]

[8]

Cluster lid A

[23]

[6]

[9]

Power socket

[24]

Instrument pad A

[25]

[10]

Display unit

[26]

[11]

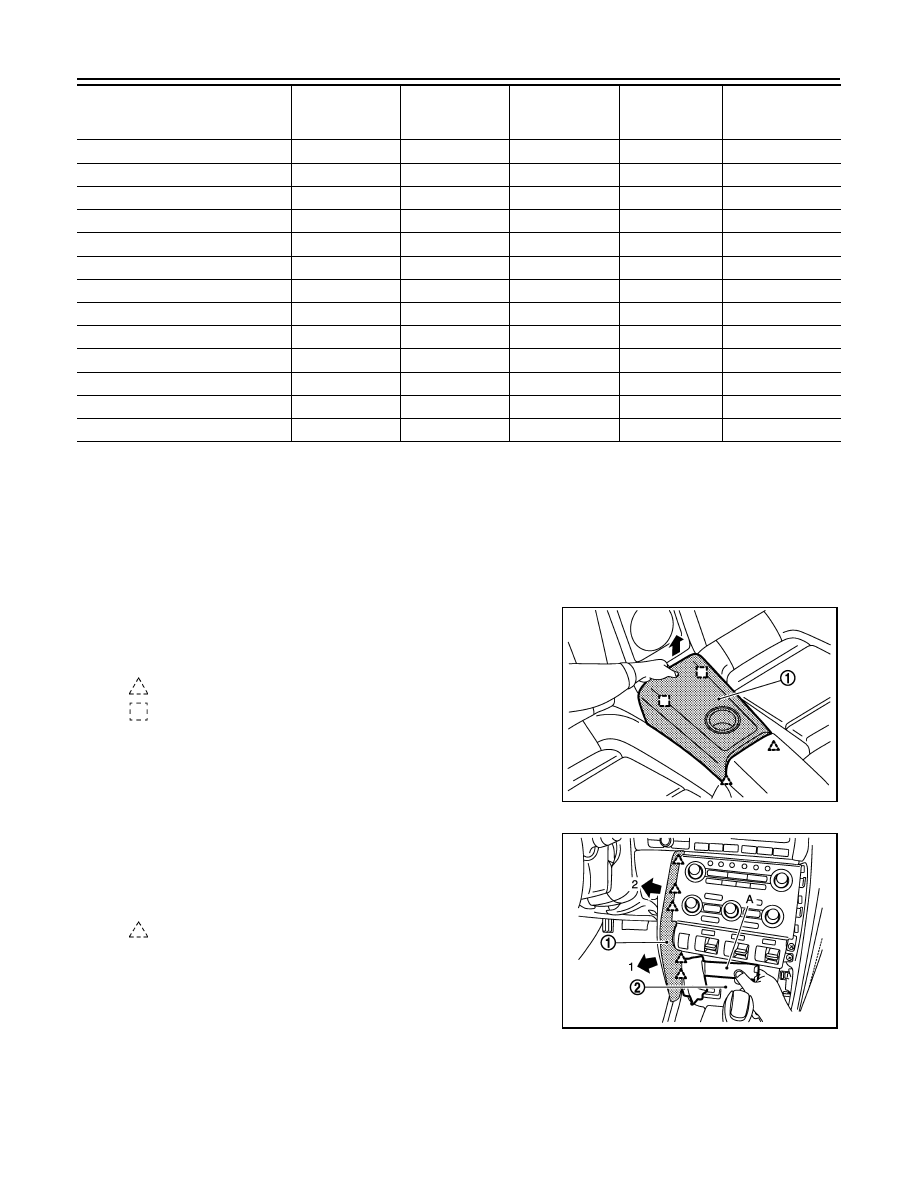

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

[ ]: Number indicates step in removal procedure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Remove rear console assembly.
1.

Lift up rear side of rear console assembly (1), and then dis-
engage pawls and metal clips.

2.

Disconnect harness connector on the back.

2.

Remove instrument garnish LH.
1.

Insert remover tool (A), wrapped in a shop cloth, into clear-
ance between lower side of instrument garnish LH (1) and
cluster lid C (lower) (2).

2.

Pull back instrument garnish LH, and then disengage pawls.

3.

Remove instrument garnish RH.

Instrument pad B

[27]

Front defroster grille LH

[28]

Center speaker grille

[29]

Center speaker

[30]

Front defroster grille RH

[31]

Instrument side finisher RH

[32]

Body side welt RH

[33]

Front pillar garnish RH

[34]

Glove box lid

[35]

Instrument lower cover RH

[36]

Instrument lower panel (assist)

[37]

Instrument pad C

[38]

Instrument panel assembly

[39]

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

DISPLAY UNIT

AV control unit

CENTER

CONSOLE

ASSEMBLY

: Pawl

: Metal clip

NNJIA0052ZZ

: Pawl

JMJIA2177ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

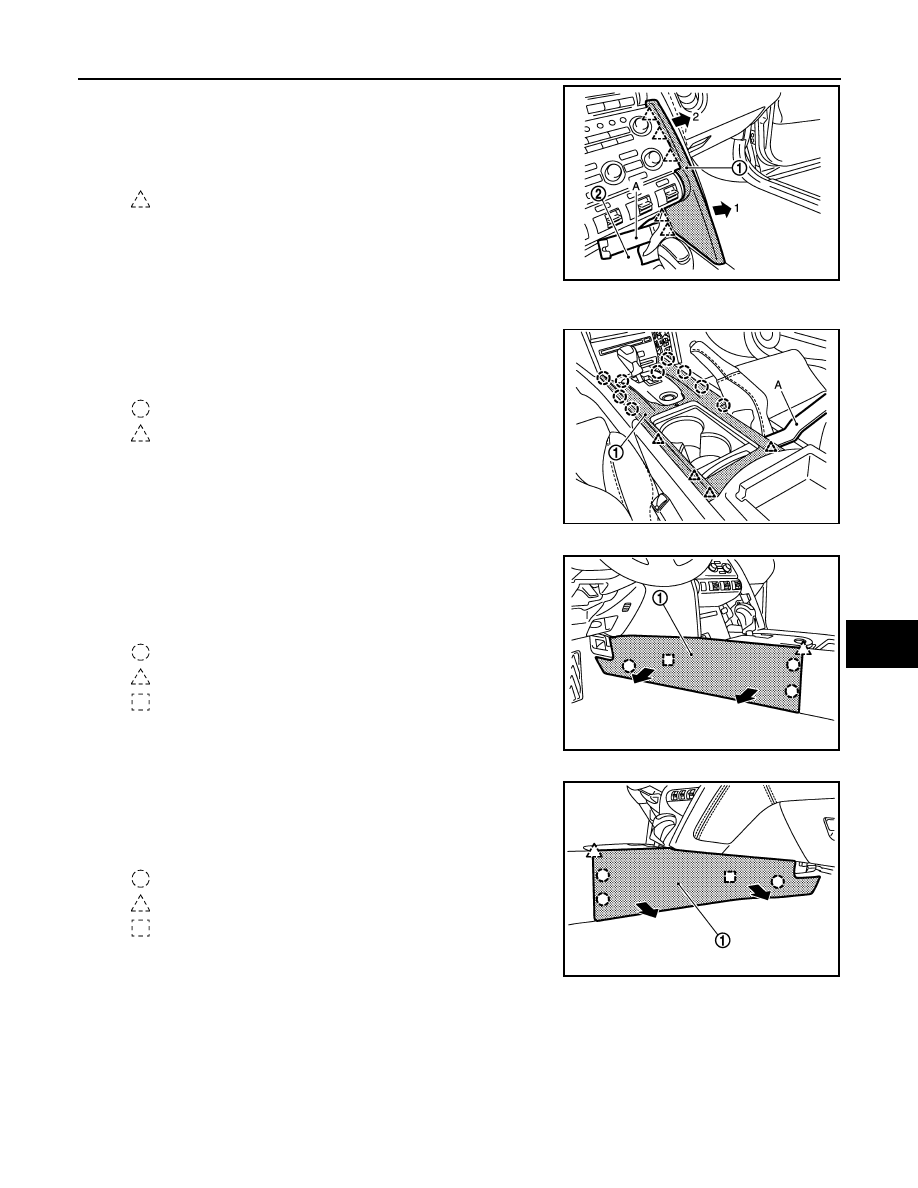

1.

Insert remover tool (A), wrapped in a shop cloth, into clear-
ance between lower side of instrument garnish RH (1) and
cluster lid C (lower) (2).

2.

Pull back instrument garnish RH, and then disengage
pawls.

4.

Remove console finisher.
1.

Open console lid.

2.

Insert remover tool (A) between console finisher (1) and
center console, lift up console finisher, and then disengage
clips and pawls.

5.

Remove instrument side panel LH.
Pull instrument side panel LH (1) from vehicle front in lateral
direction, then disengage clips, pawl and metal clips.

CAUTION:

Be careful of pawl when disengaging clips.

6.

Remove instrument side panel RH.
Pull instrument side panel RH (1) from vehicle front in lateral
direction, then disengage clips, pawl and metal clips.

CAUTION:

Be careful of pawl when disengaging clips.

7.

Remove center console assembly.

: Pawl

JMJIA2176ZZ

: Clip

: Pawl

JMJIA2178ZZ

: Clip

: Pawl

: Metal clip

JMJIA2179ZZ

: Clip

: Pawl

: Metal clip

JMJIA2180ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

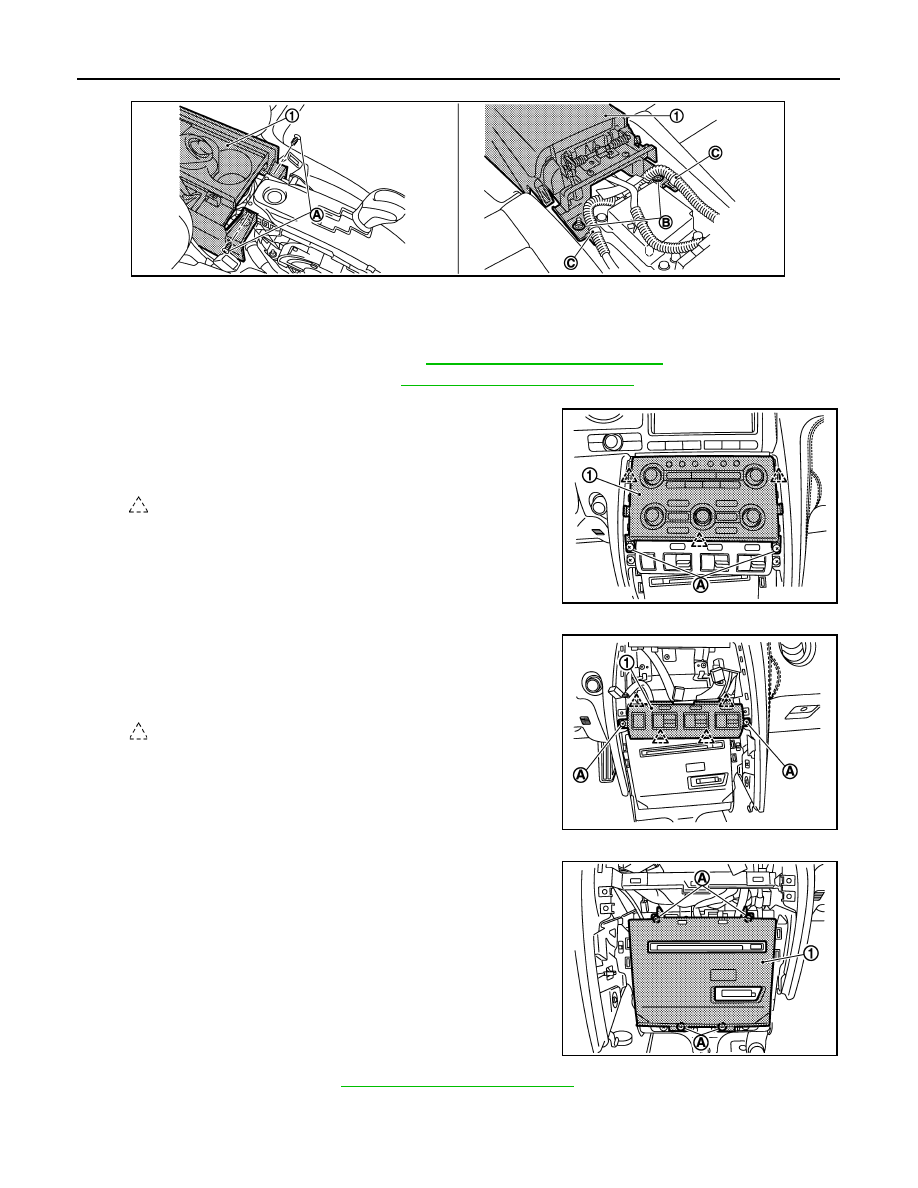

1.

Remove fixing screws (A) from front end of center console (1).

2.

Remove mounting nuts (B) from rear end of center console.

3.

Lift up center console, and then remove harness clamps (C) and disconnect harness connector from
back side.

8.

Remove A/T shift selector assembly. Refer to

TM-16, "Removal and Installation"

.

9.

Remove preset switch assembly. Refer to

AV-87, "Removal and Installation"

.

1.

Remove instrument garnish (upper) using remover tool.

2.

Remove fixing screw (A) of preset switch assembly (1).

3.

Pull back preset switch assembly, and then disengage
pawls.

4.

Disconnect harness connectors on the back.

10. Remove set-up switch assembly.

1.

Remove fixing screws (A) of set-up switch assembly (1).

2.

Pull back set-up switch assembly, and then disengage
pawls.

3.

Disconnect harness connector on the back.

11. Remove cluster lid C (lower).

1.

Remove fixing screws (A) of cluster lid C (lower) (1).

2.

Pull back cluster lid C (lower).

3.

Disconnect harness connector of back side and harness
connector of inside key antenna.

12. Remove AV control unit. Refer to

AV-77, "Removal and Installation"

13. Remove A/C auto amp.

: Pawl

NNJIA0058ZZ

JMJIA2181ZZ

: Pawl

JMJIA2182ZZ

JMJIA2183ZZ
