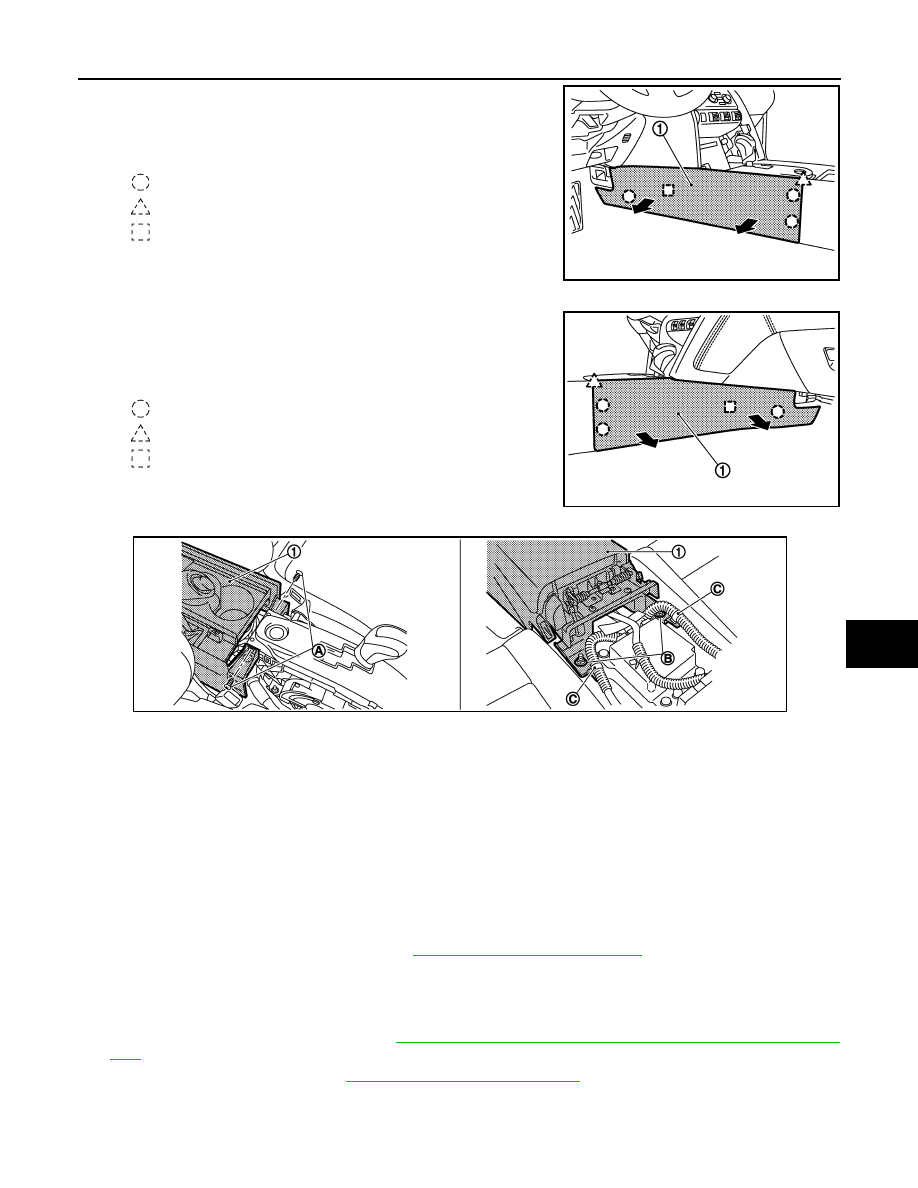

Pull instrument side panel LH (1) from vehicle front in lateral
direction, then disengage clips, pawl and metal clips.

CAUTION:

Be careful of pawl when disengaging clips.

6.

Remove instrument side panel RH.
Pull instrument side panel RH (1) from vehicle front in lateral
direction, then disengage clips, pawl and metal clips.

CAUTION:

Be careful of pawl when disengaging clips.

7.

Remove center console assembly.

1.

Remove fixing screws (A) from front end of center console (1).

2.

Remove mounting nuts (B) from rear end of center console.

3.

Lift up center console, and then remove harness clamps (C) and disconnect harness connector from
back side.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009162799

CAUTION:

When disassembling, always use a remover tool that is made of plastic.

Disassembly

1.

Remove center console assembly. Refer to

IP-23, "Removal and Installation"

.

2.

Remove fixing screws, and then remove console lid.

3.

Remove fixing screws, and then remove cup holder assembly.

4.

Remove parking brake lever boot from center console assembly.

5.

Remove console power socket. Refer to

PWO-8, "CONSOLE POWER SOCKET : Removal and Installa-

tion"

.

6.

Remove USB connector. Refer to

AV-94, "Removal and Installation"

.

Assembly

Assemble in the reverse order of disassembly.

: Clip

: Pawl

: Metal clip

JMJIA2179ZZ

: Clip

: Pawl

: Metal clip

JMJIA2180ZZ

NNJIA0058ZZ

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precautions for Trouble Diagnosis  ............................

2

Precautions for Harness Repair  ................................

2

SYSTEM DESCRIPTION  ..............................

3

CAN COMMUNICATION SYSTEM  .....................

3

System Description  ...................................................

3

System Diagram ........................................................

3

CAN Communication Control Circuit .........................

4

DIAG ON CAN  .....................................................

5

Description ................................................................

5

System Diagram ........................................................

5

TROUBLE DIAGNOSIS  ......................................

6

How to Use CAN Communication Signal Chart  ........

6

CAN

HOW TO USE THIS MANUAL ......................

7

HOW TO USE THIS SECTION ............................

7

Caution ......................................................................

7

Abbreviation List ........................................................

7

PRECAUTION ...............................................

8

PRECAUTIONS ..................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ..................................................................

8

Precaution for Battery Service ..................................

8

Precaution for Working Range at a Regular Deal-
ership ........................................................................

8

Precautions for Trouble Diagnosis  ...........................

8

Precautions for Harness Repair  ...............................

9

BASIC INSPECTION  ...................................

10

DIAGNOSIS AND REPAIR WORKFLOW  ........

10

Interview Sheet ........................................................

10

SYSTEM DESCRIPTION  .............................

11

CAN COMMUNICATION SYSTEM  ...................

11

CAN System Specification Chart .............................

11

CAN Communication Signal Chart  ..........................

11

DTC/CIRCUIT DIAGNOSIS  .........................

15

CAN COMMUNICATION SYSTEM  ...................

15

Component Parts Location  ......................................

15

Wiring Diagram - CAN SYSTEM -  ...........................

16

LAN-2

< PRECAUTION >

[CAN FUNDAMENTAL]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precautions for Trouble Diagnosis

INFOID:0000000009163475

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.
• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precautions for Harness Repair

INFOID:0000000009163476

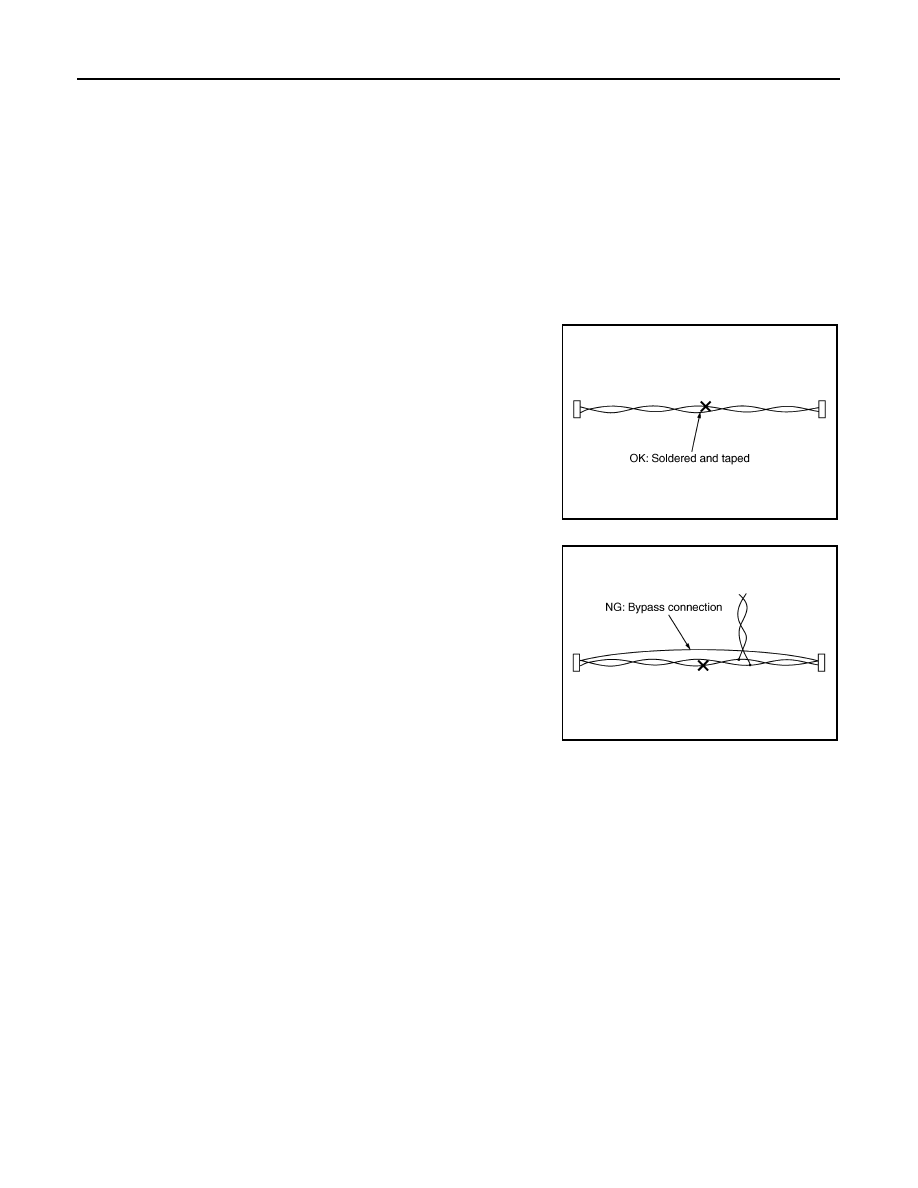

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

LAN

CAN COMMUNICATION SYSTEM

LAN-3

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000009163477

• CAN communication is a multiplex communication system. This enables the system to transmit and receive

large quantities of data at high speed by connecting control units with two communication lines (CAN-H and
CAN-L).

• Control units on the CAN network transmit signals using the CAN communication control circuit. They

receive only necessary signals from other control units to operate various functions.

• CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity.

System Diagram

INFOID:0000000009163478

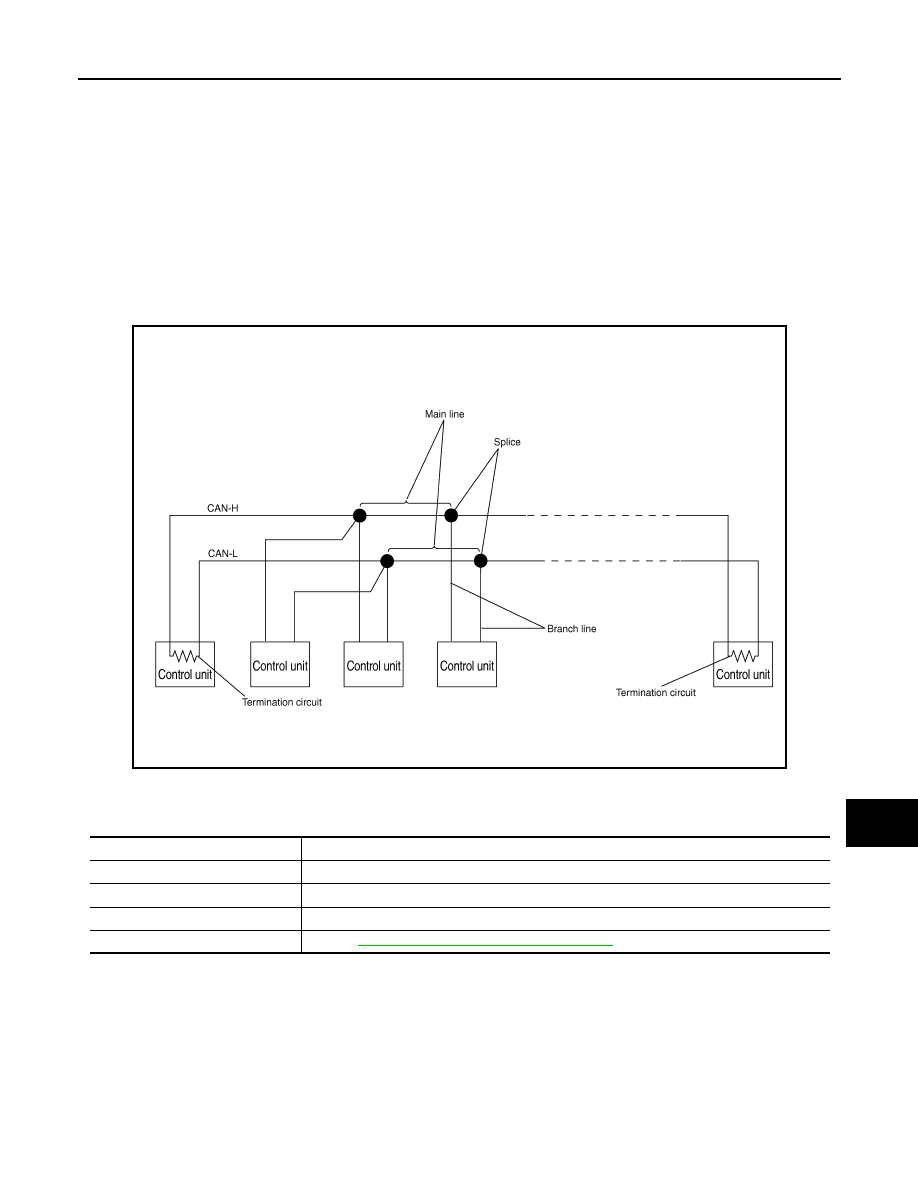

Each control unit passes an electric current to the termination circuits when transmitting CAN communication
signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN
communication system transmits and receives CAN communication signals by the potential difference.

SKIB8887E

Component

Description

Main line

CAN communication line between splices

Branch line

CAN communication line between splice and a control unit

Splice

A point connecting a branch line with a main line

Termination circuit

Refer to

LAN-4, "CAN Communication Control Circuit"

.
