INT-22

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

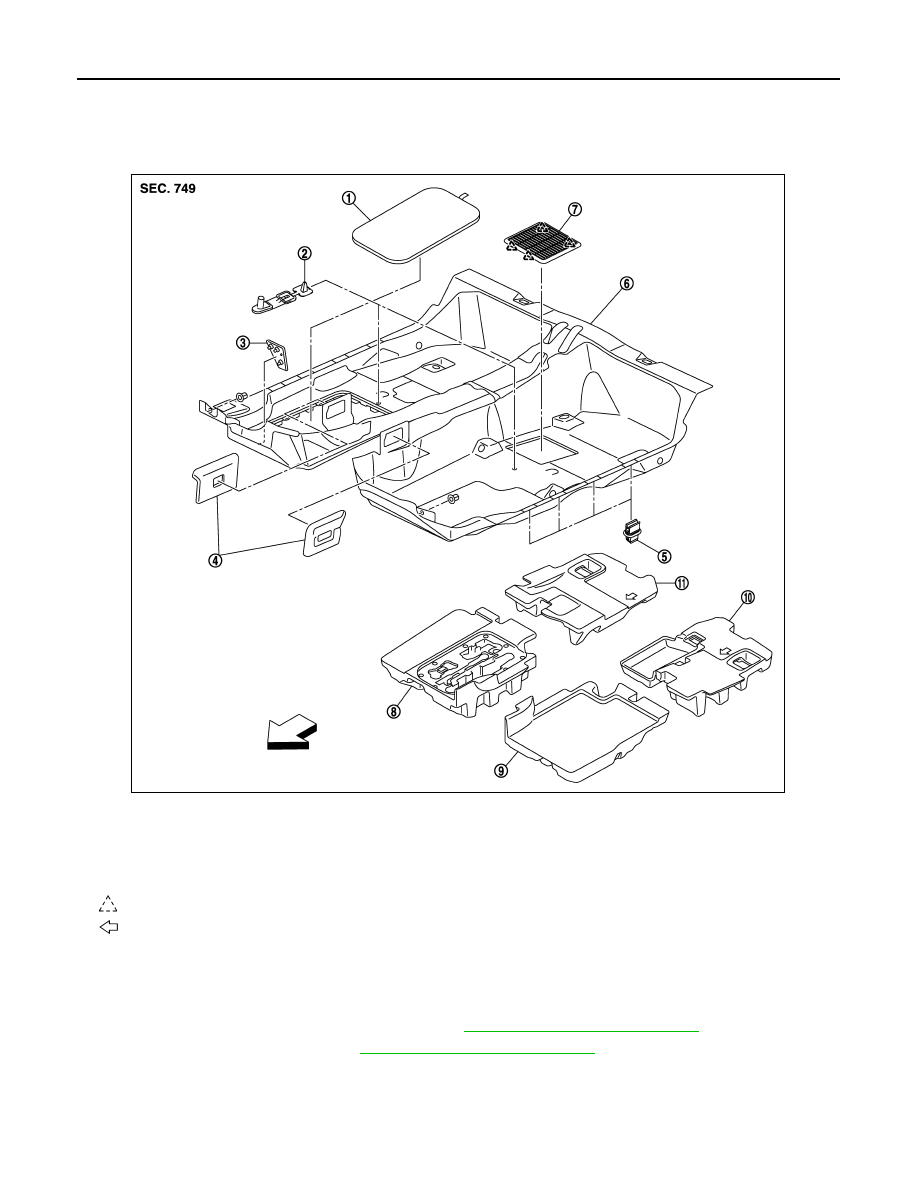

Exploded View

INFOID:0000000009162335

Removal and Installation

INFOID:0000000009162336

REMOVAL

1.

Remove the front seat assembly (LH/RH). Refer to

SE-49, "Removal and Installation"

.

2.

Remove rear seat cushion. Refer to

SE-56, "Removal and Installation"

.

3.

Remove the footrest.

1.

Seal box cover

2.

Floor carpet hook

3.

Footrest

4.

Foot duct

5.

Floor carpet fixing clip

6.

Floor carpet

7.

Grille

8.

Front floor spacer (RH)

9.

Front floor spacer (LH)

10. Rear floor spacer (LH)

11.

Rear floor spacer (RH)

: Pawl

: Vehicle front

JMJIA2170ZZ

FLOOR TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

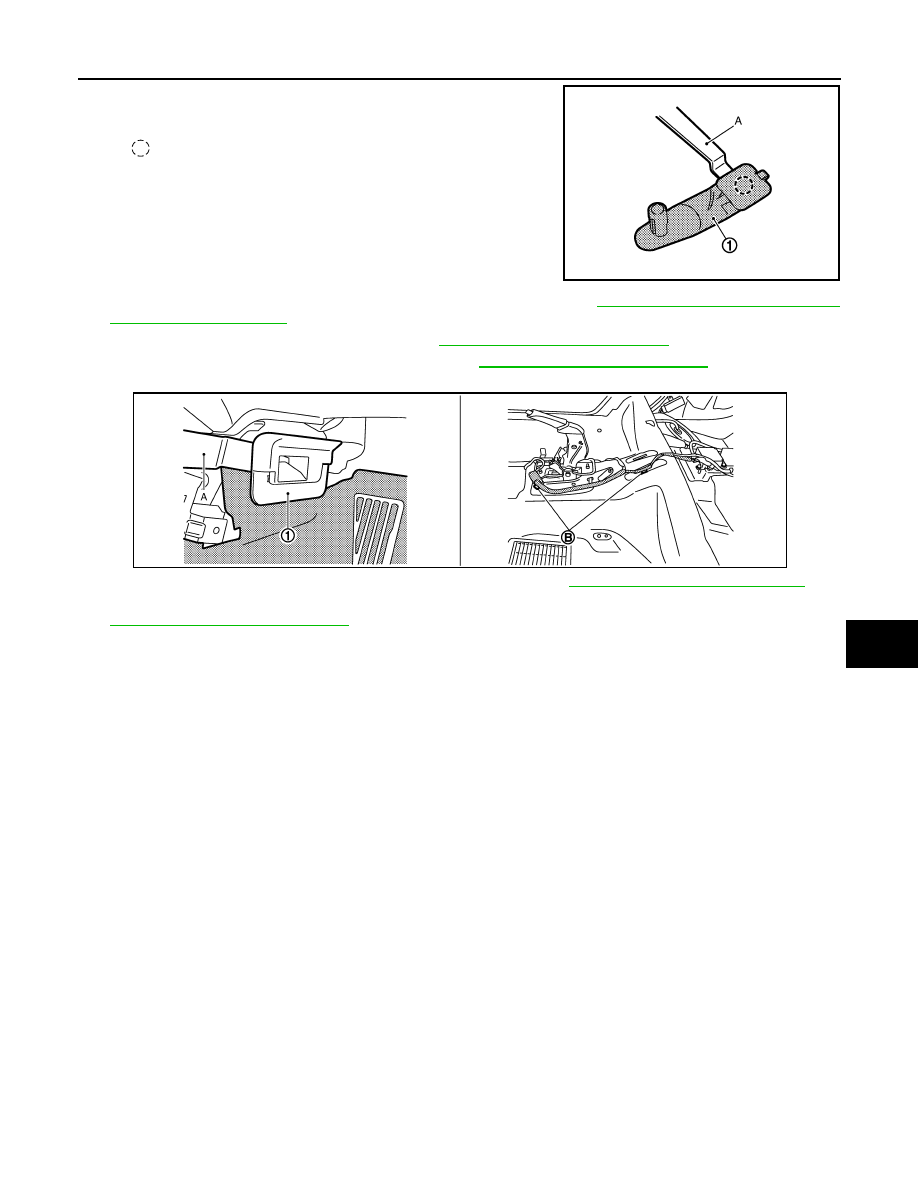

4.

Disengage and remove the clips of floor carpet hook (1) using
the remover tool (A).

5.

Remove the floor side anchor bolt of front seat belt (LH/RH). Refer to

SB-6, "SEAT BELT RETRACTOR :

Removal and Installation"

.

6.

Remove the center console assembly. Refer to

IP-23, "Removal and Installation"

.

7.

Remove the side instrument panel (LH/RH). Refer to

IP-13, "Removal and Installation"

.

8.

Remove the foot duct (LH/RH) (1) and floor harness fixing clamp (B) using the remover tool (A).

9.

Disconnect the center connector of diagnosis sensor unit. Refer to

SR-25, "Removal and Installation"

 .

10. Remove the dash side finisher (LH/RH), kicking plate inner (LH/RH), and body side welt (LH/RH). Refer to

INT-15, "Removal and Installation"

.

11. Remove the front side of rear side finisher to obtain the space between rear side finisher and floor carpet.

12. Disengage the floor carpet fixing clip and then remove the tool box cover and the amplifier cover.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMJIA0092GB

NNJIA0024ZZ

INT-24

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

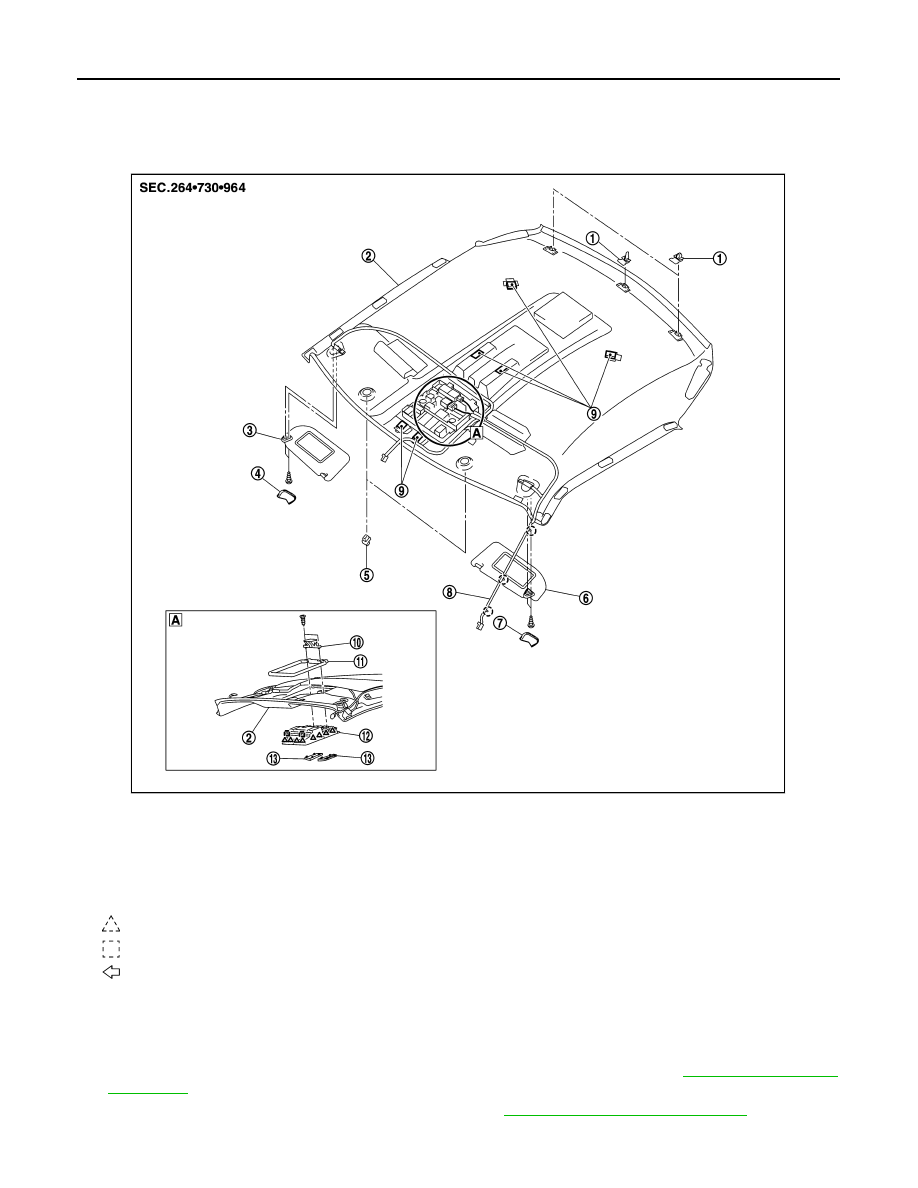

Exploded View

INFOID:0000000009162337

Removal and Installation

INFOID:0000000009162338

REMOVAL

1.

Remove the body side welt (LH/RH) and the front pillar garnish (LH/RH). Refer to

INT-15, "Removal and

Installation"

.

2.

Disconnect the inside mirror harness connector. Refer to

MIR-15, "Removal and Installation"

.

1.

Headlining clip

2.

Headlining

3.

Sun-visor assembly RH

4.

Sun-visor cover RH

5.

Sun-visor holder

6.

Sun-visor assembly LH

7.

Sun-visor cover LH

8.

Roof harness

9.

Dual-lock fastener

10. Roof bracket

11. Roof plate

12. Map lamp lens

13. Map lamp lens

: Pawl

: Metal clip

: Vehicle front

JMJIA5350ZZ

HEADLINING

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

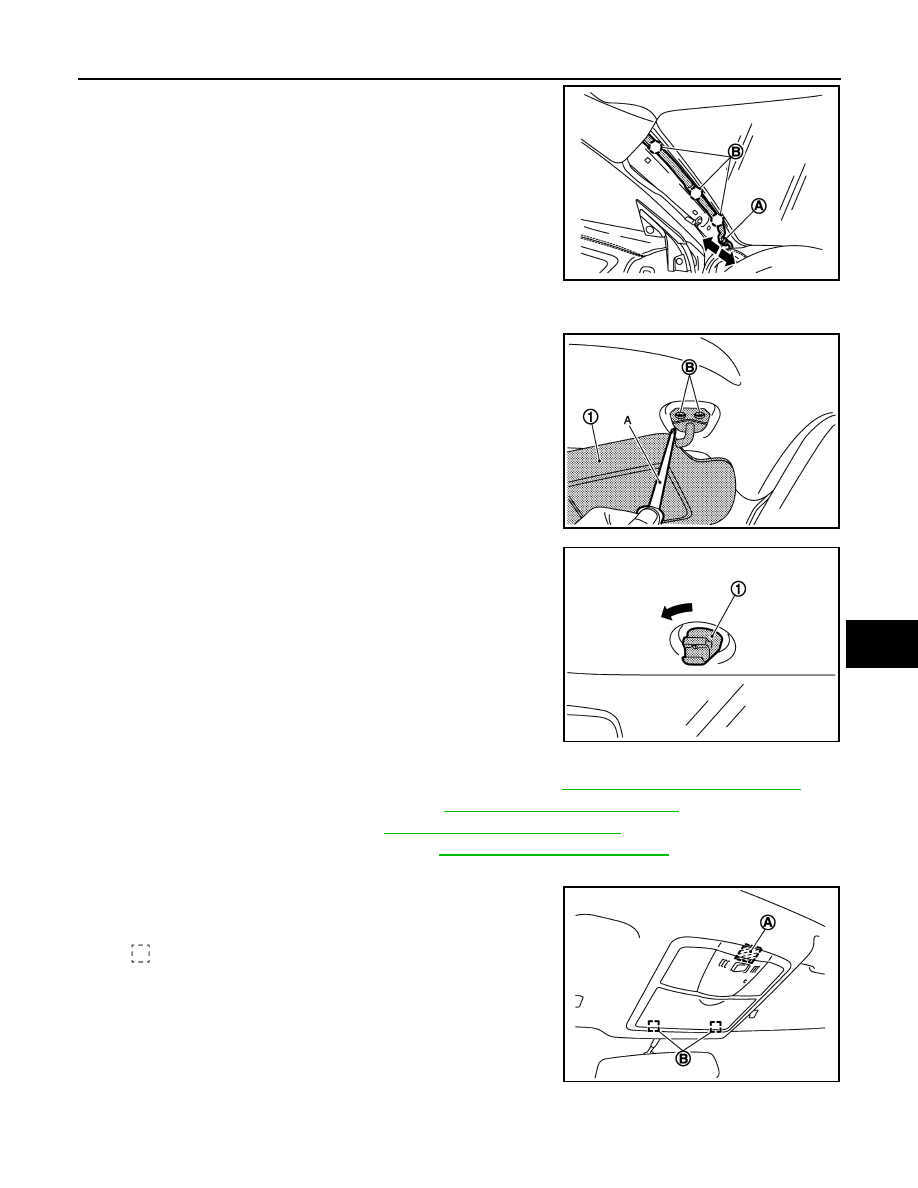

3.

Disengage the clips (B) and then, disconnect the connector (A)
of roof harness of front pillar LH.

4.

Remove the sun-visor assembly (LH/RH).
• Remove the sun-visor cover (LH/RH).
• Remove the mounting screw (B) of sun-visor (1) (LH/RH)

using screwdriver (A).

• Disconnect the vanity mirror lamp harness connector.

5.

Rotate the sun-visor holder (1) 90 degrees counterclockwise,
pull it downward, and then remove.

6.

Remove the kicking plate inner (LH/RH), rear seat cushion back (LH/RH), rear side finisher (LH/RH), rear
pillar finisher (LH/RH), and rear body side welt (LH/RH). Refer to

INT-15, "Removal and Installation"

.

7.

Remove the passenger side front seat. Refer to

SE-49, "Removal and Installation"

.

8.

Remove the A/T shift selector. Refer to

TM-16, "Removal and Installation"

.

9.

Remove the center console assembly. Refer to

IP-23, "Removal and Installation"

.

10. Remove the rear hidden clips from the roof panel at the rear end of the headlining, using a remover tool.
11. Disengage the joint of dual-lock fastener (A) and metal clip (B) of

roof console assembly.

12. Check that the dual-lock fastener on the front end of the headlin-

ing is removed. If it is not removed, use a remover tool to
remove it.

CAUTION:

• Roof console assembly is crimped from the back of head-

lining. Remove it by disengaging the crimped area from
back of roof console assembly after removing headlining
from the vehicle.

• Never wrinkle the headlining by bending during work.

JMJIA2168ZZ

JMJIA2169ZZ

NNJIA0027ZZ

: Metal clip

JMJIA1008ZZ
