BODY SIDE TRIM

Note the following, and install in the reverse order of removal.

CAUTION:

When installing body side trim, check that clips are securely fitted in panel holes on the body, and then
press them in.

REAR PARCEL SHELF FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR PARCEL SHELF FINISHER

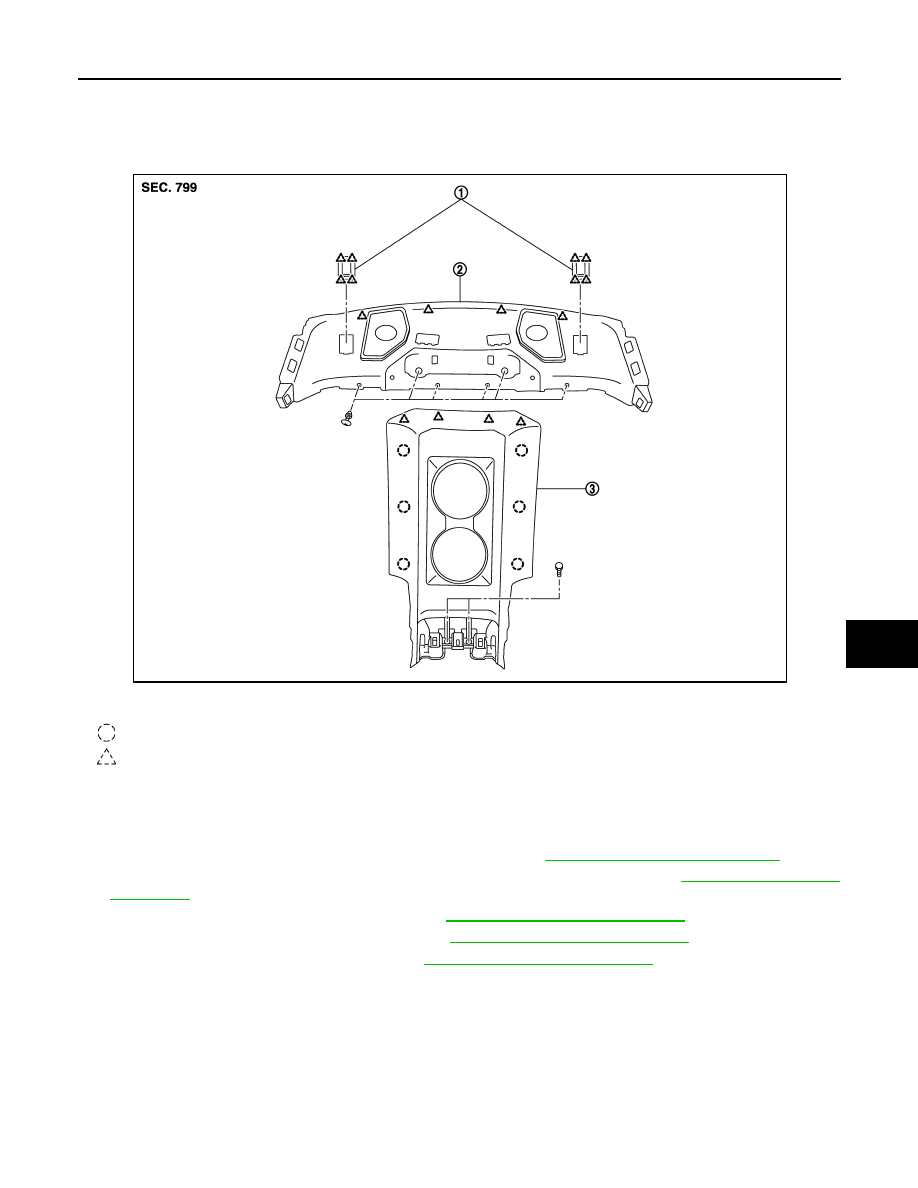

Exploded View

INFOID:0000000009162333

Removal and Installation

INFOID:0000000009162334

REMOVAL

1.

Remove the rear seat cushion and the rear seatback. Refer to

SE-56, "Removal and Installation"

.

2.

Remove the kicking plate inner (LH/RH) and body side welt (LH/RH). Refer to

INT-15, "Removal and

Installation"

.

3.

Remove the rear side finisher (LH/RH). Refer to

INT-15, "Removal and Installation"

.

4.

Remove the rear pillar finisher (LH/RH). Refer to

INT-15, "Removal and Installation"

.

5.

Remove the rear console assembly. Refer to

IP-23, "Removal and Installation"

.

1.

Child anchor cover

2.

Rear parcel shelf finisher

3.

Rear seat center finisher

: Clip

: Pawl

JMJIA2166ZZ

INT-20

< REMOVAL AND INSTALLATION >

REAR PARCEL SHELF FINISHER

6.

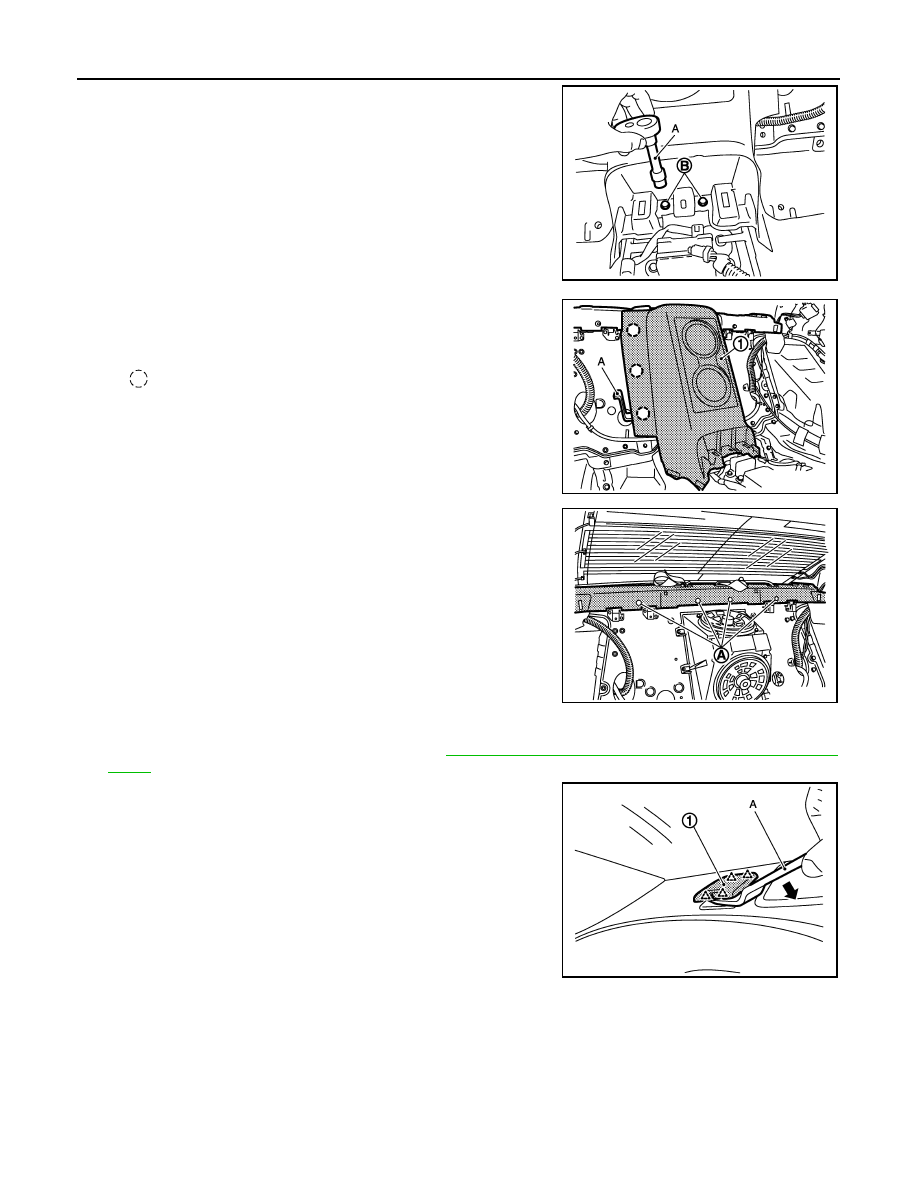

Remove the rear seat center finisher mounting bolts (B) using
socket wrench (A).

7.

Insert the remover tool (A) into the clearance between the rear
seat center finisher (1) and the vehicle body, and then disen-
gage the clips.

8.

Remove the rear parcel shelf finisher mounting clips (A).

9.

Remove the rear seat belt escutcheon.

10. Remove the rear seat belt inner anchor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Instal-

lation"

.

11. Disengage the child anchor cover (1) fixing pawls, with a

remover tool (A) and then remove the child anchor cover (LH/
RH).

NNJIA0106ZZ

: Clip

NNJIA0107ZZ

NNJIA0022ZZ

NNJIA0181ZZ

REAR PARCEL SHELF FINISHER

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

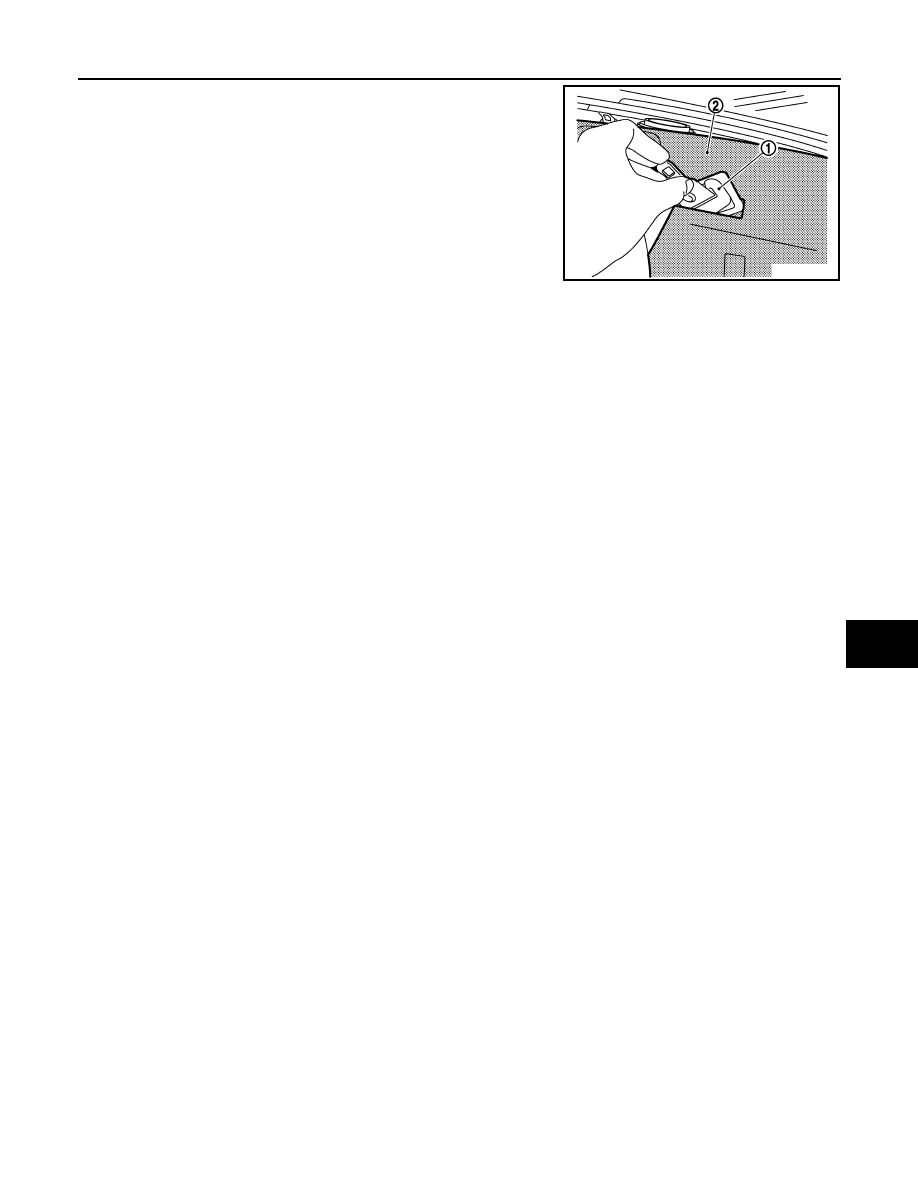

12. Remove the rear seat belt (1) through the hole of rear parcel

shelf finisher (2) as shown in the figure.

13. Pull and remove the rear parcel shelf finisher after disengaging the clip from the back side of rear parcel

shelf finisher.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Check that clips are securely fitted in panel holes on body when installing the rear parcel shelf finisher
and then press in.

NNJIA0109ZZ
