PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009162326

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009162327

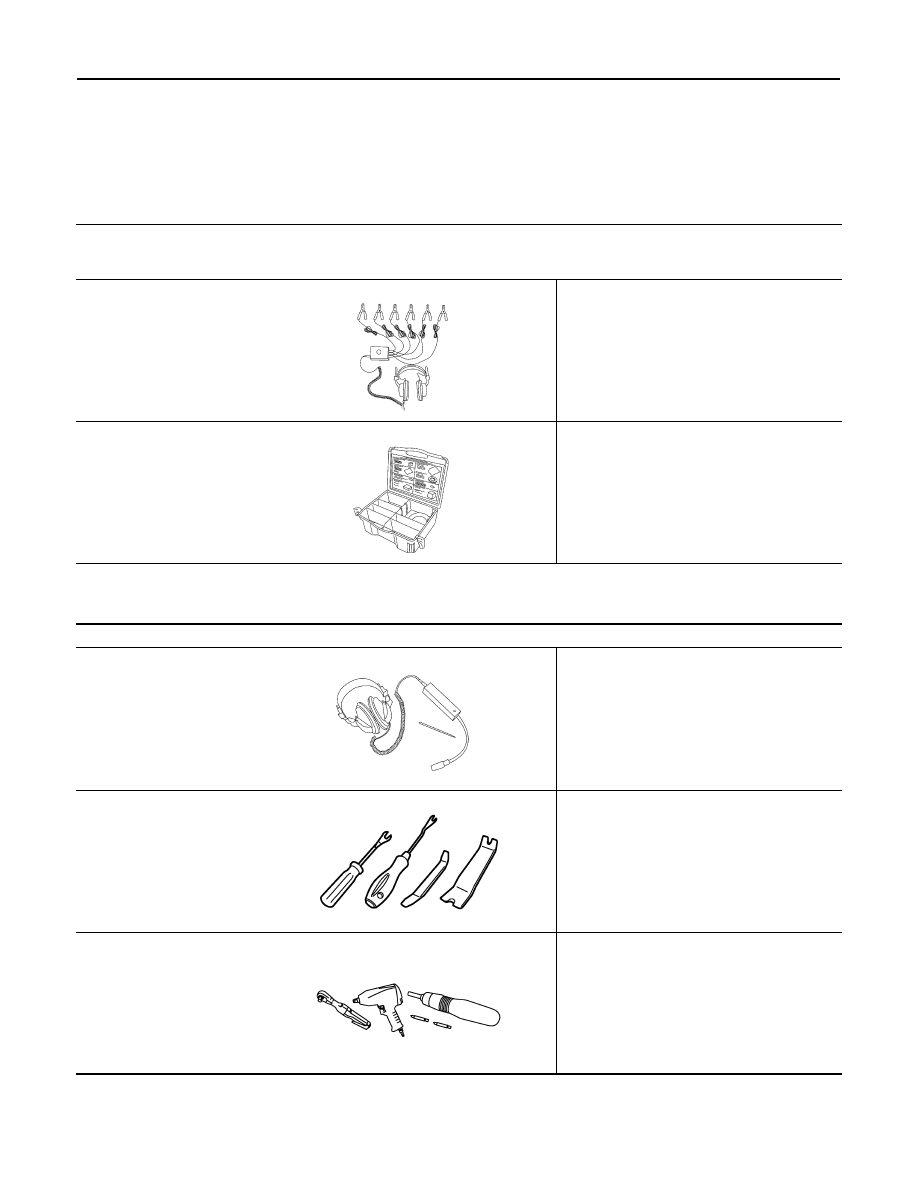

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips,  pawls and metal clips

Power tool

SIIA0995E

JMKIA3050ZZ

PIIB1407E

CLIP LIST

INT-11

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

CLIP LIST

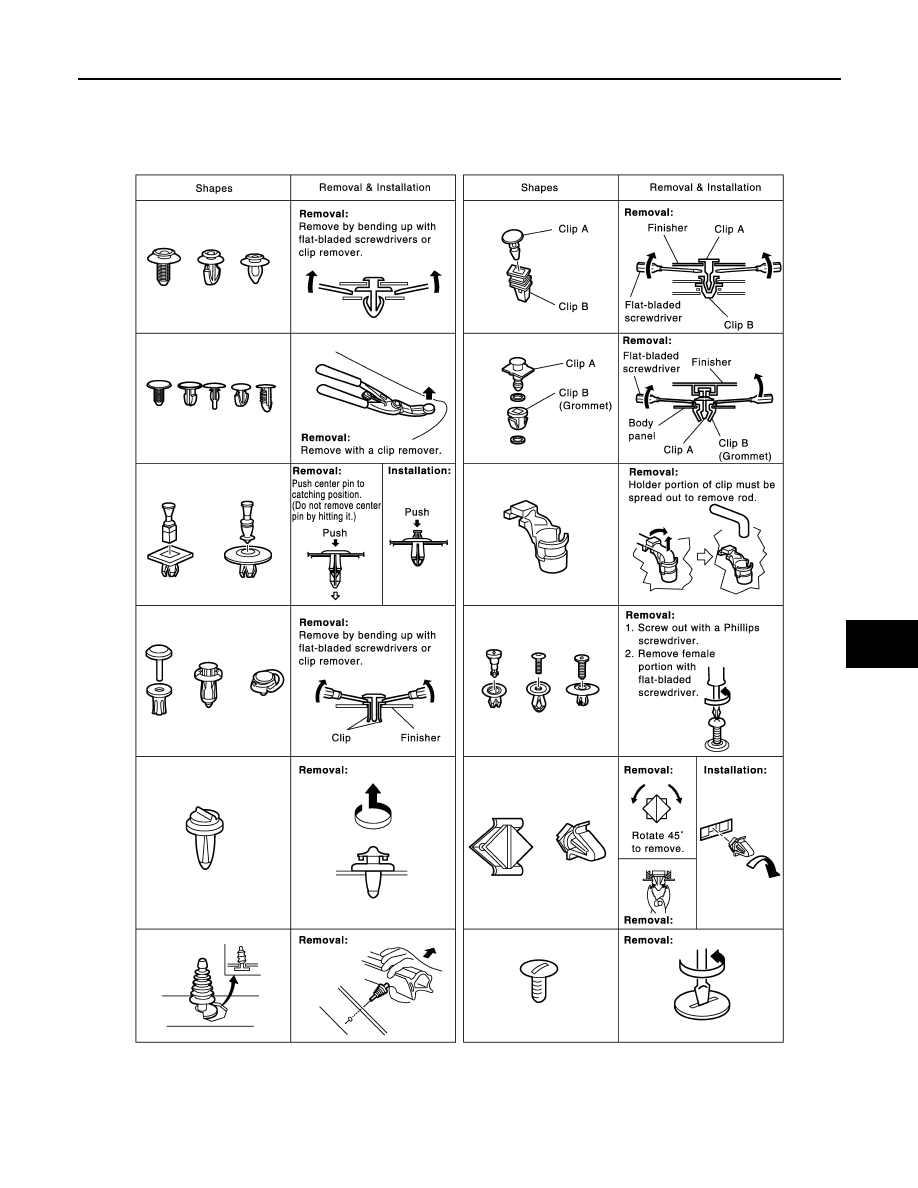

Clip List

INFOID:0000000009162328

JMJIA3734GB

INT-12

< REMOVAL AND INSTALLATION >

DOOR FINISHER

REMOVAL AND INSTALLATION

DOOR FINISHER

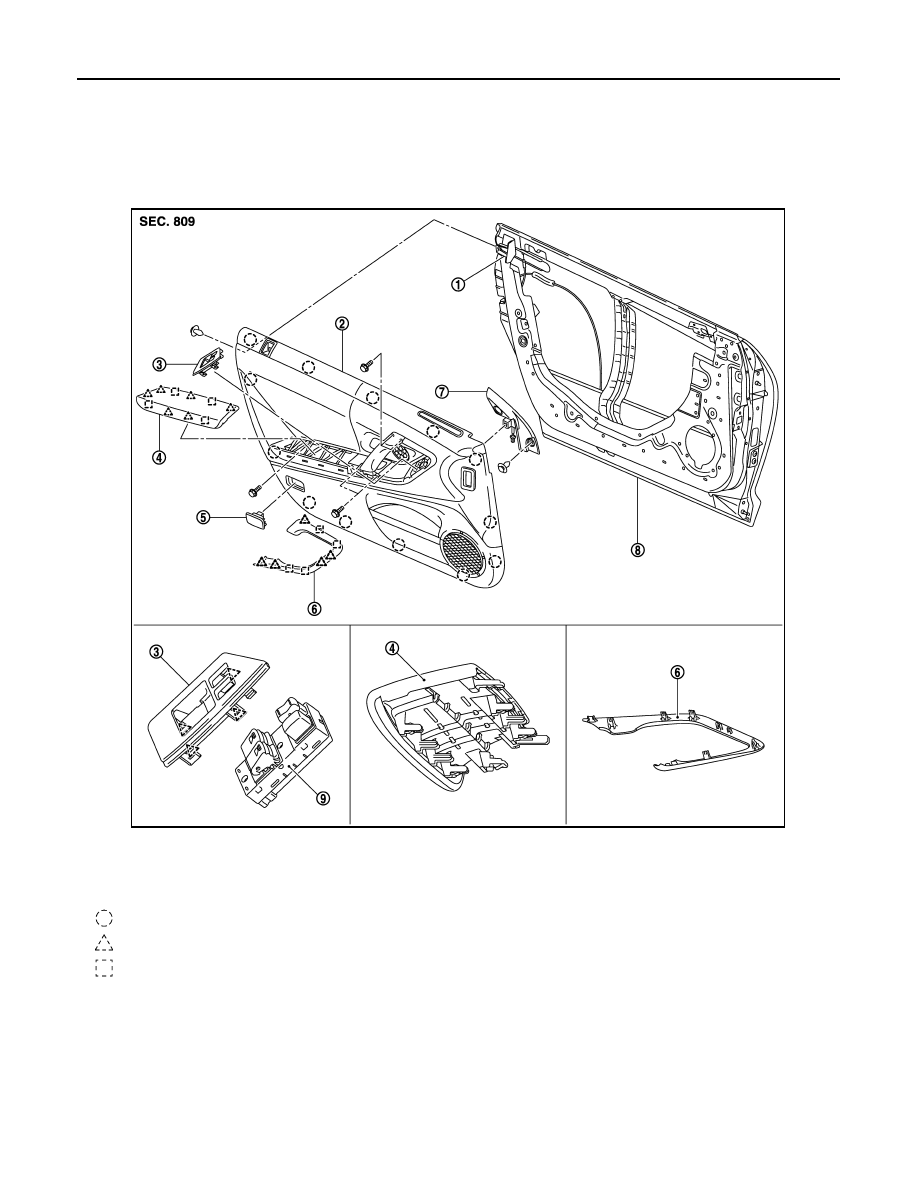

Exploded View

INFOID:0000000009162329

Removal and Installation

INFOID:0000000009162330

CAUTION:

Wrap the tip of flat-bladed screwdriver with a shop cloth before remove.

REMOVAL

1.

Fully open the door window.

1.

Bracket

2.

Door finisher

3.

Power window switch finisher

4.

Armrest

5.

Step lamp

6.

Door grip cap

7.

Door corner cover inner

8.

Door panel

9.

Power window switch

  : Clip

  : Pawl

  : Metal clip

JMJIA2155ZZ

DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

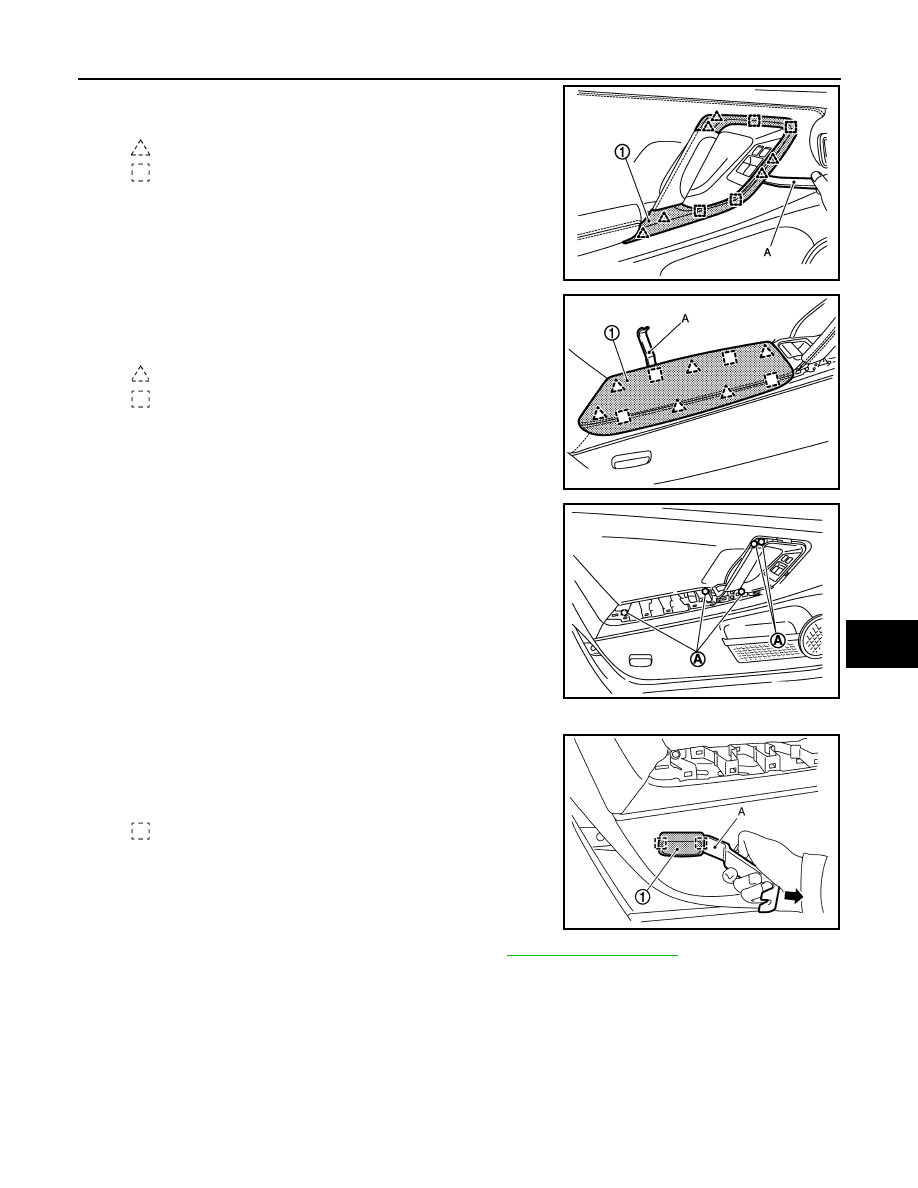

Insert a remover tool (A) into the lower side of door grip cap (1),
then disengage and remove the pawls and metal clips.

3.

Insert a remover tool (A) between the door finisher and rear of
armrest (1), disengage the pawls and metal clips and then
remove the armrest.

4.

Remove the door finisher tightening bolts (A) shown in the fig-
ure.

5.

Remove the step lamp.
1.

Insert a remover tool (A) between the door finisher and the
step (1) to disengage the metal clips and remove the step
lamp.

2.

Remove the bolt located behind the step lamp.

6.

Remove the clip from the door finisher rear end. Refer to

INT-12, "Exploded View"

.

: Pawl

: Metal clip

JMJIA2156ZZ

: Pawl

: Metal clip

JMJIA2157ZZ

NNJIA0175ZZ

: metal clip

JMJIA6123ZZ
