Nissan GT-R. Manual - part 181

INT-26

< REMOVAL AND INSTALLATION >

HEADLINING

13. Remove the headlining from passenger side door opening.

CAUTION:

• 2 workers are required for removal in order to prevent damage.
• Apply protective tape to the portion where contact may occur during work.
• Never bend headlining when removing.

14. Remove the following parts after removing the headlining.

• Remove roof console assembly.
• Map lamp assembly. Refer to

INL-18, "Removal and Installation"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• First install the metal clip of map lamp and the clip of the rear end of the headlining for positioning.
• Never bend headlining when installing.

TRUNK ROOM TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

TRUNK ROOM TRIM

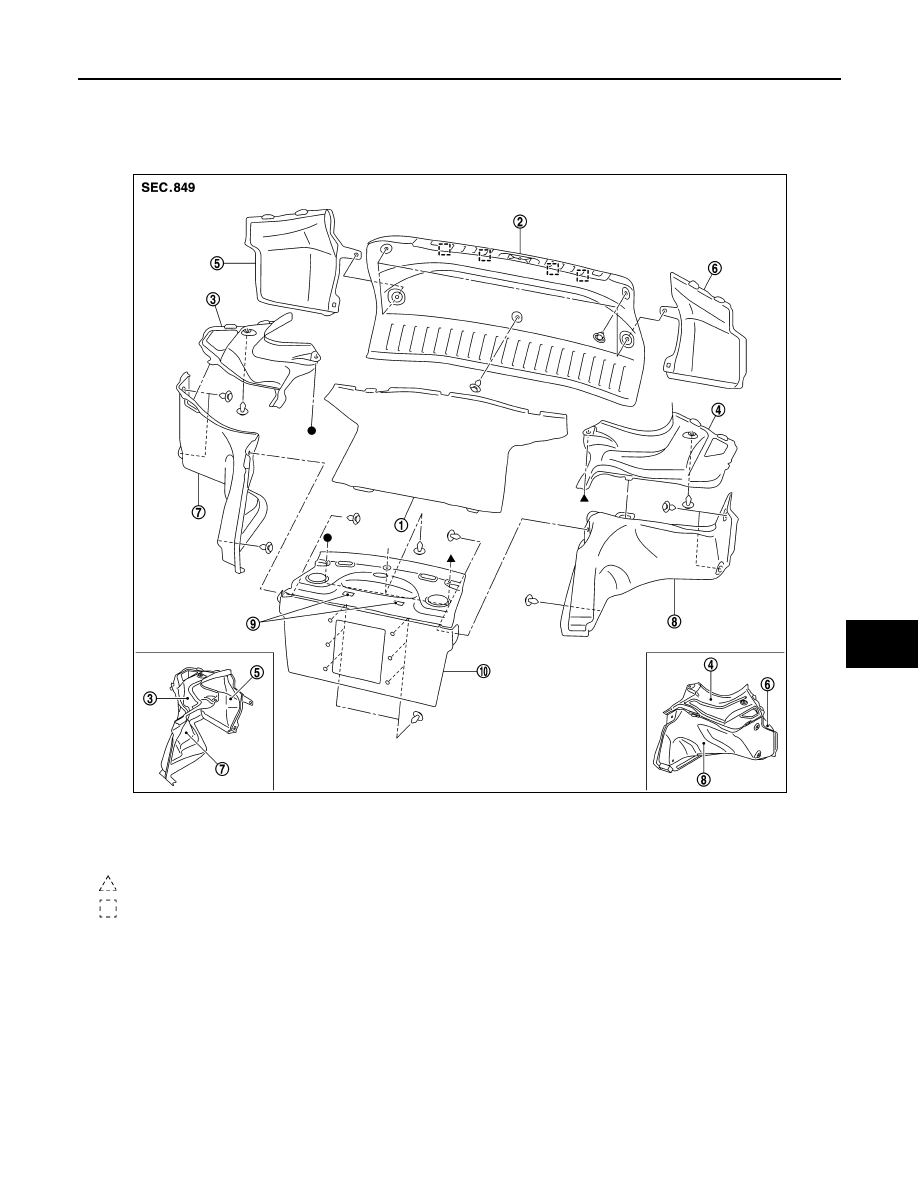

Exploded View

INFOID:0000000009162339

CAUTION:

Each 3-5-7 and 4-6-8 is fixed by tuck.

Removal and Installation

INFOID:0000000009162340

REMOVAL

1.

Fully open the trunk lid.

2.

Remove the trunk weather-strip.

3.

Remove the trunk front finisher.

4.

Remove the trunk side finisher (LH/RH).

5.

Remove the trunk rear finisher.

1.

Trunk floor carpet

2.

Trunk rear finisher

3.

Trunk side finisher upper RH

4.

Trunk side finisher upper LH

5.

Trunk side finisher back RH

6.

Trunk side finisher back LH

7.

Trunk side finisher lower RH

8.

Trunk side finisher lower LH

9.

Trunk front finisher

: Pawl

: Metal clip

JMJIA5243ZZ

INT-28

< REMOVAL AND INSTALLATION >

TRUNK ROOM TRIM

6.

Remove the trunk floor carpet.

INSTALLATION

Install in the reverse order of removal.

TRUNK LID TRIM

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

TRUNK LID TRIM

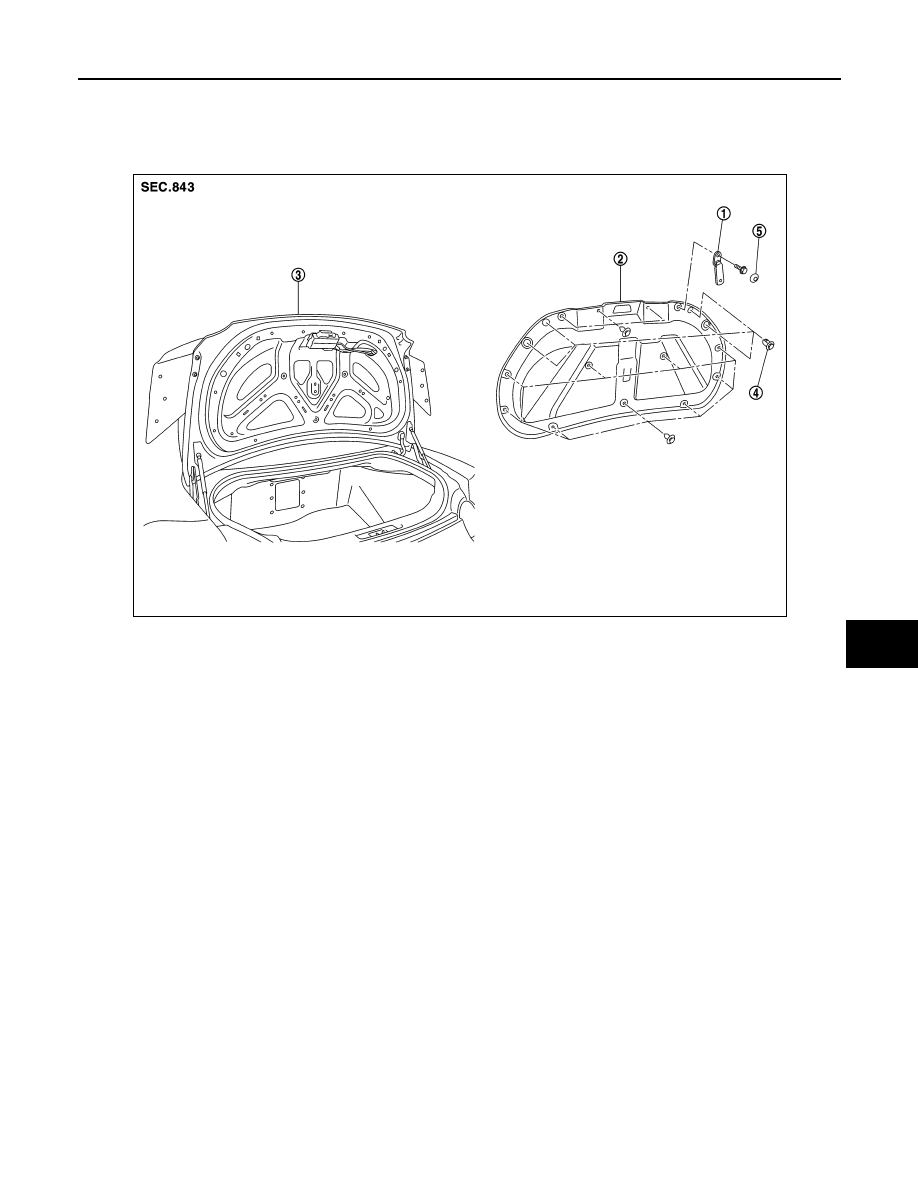

Exploded View

INFOID:0000000009162341

Removal and Installation

INFOID:0000000009162342

REMOVAL

1.

Fully open the trunk lid.

2.

Remove the trunk lid finisher inner mounting clip and the trunk lid bumper rubber.

3.

Remove the trunk lid finisher inner from the trunk lid assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Trunk lid bumper rubber

2.

Trunk lid finisher inner

3.

Trunk lid assembly

JMJIA5351ZZ
