UNIT DISASSEMBLY AND ASSEMBLY

OVERHAUL

Exploded View

INFOID:0000000007357317

VQ40DE MODELS

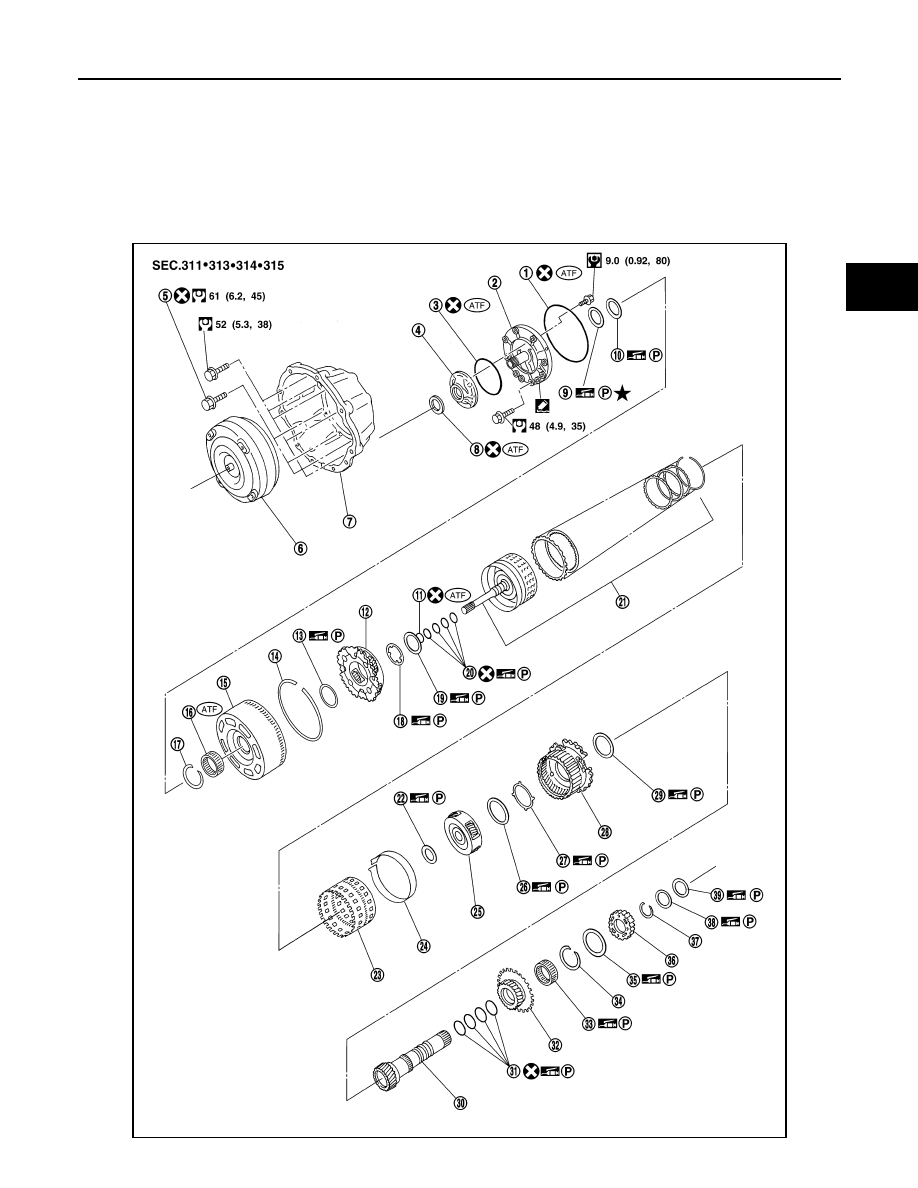

Bell Housing Components

WCIA0661E

August 2012

2012 Pathfinder

TM-204

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolts

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11. O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

:

Apply Genuine RTV silicone sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and

Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

August 2012

2012 Pathfinder

OVERHAUL

TM-205

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

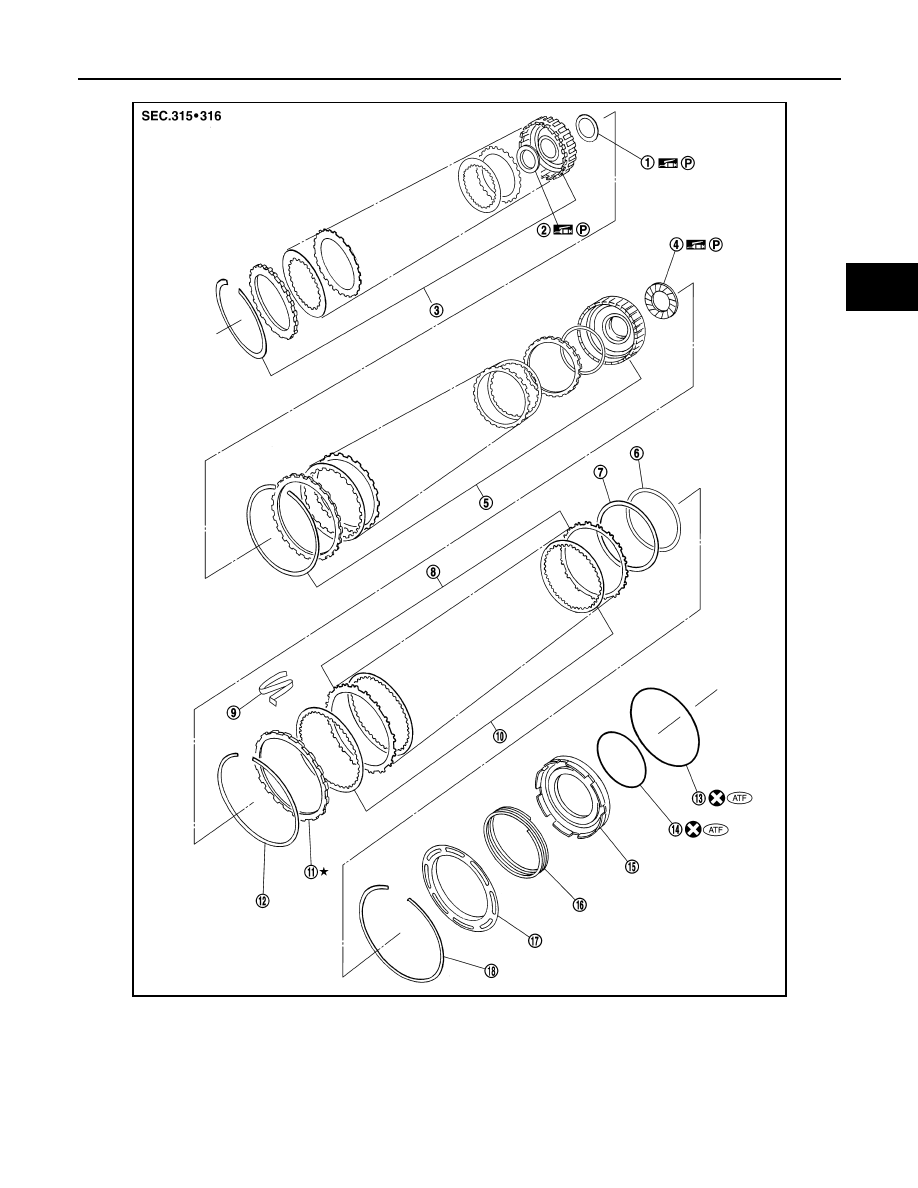

Clutch Pack Components

SCIA7001E

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assem-
bly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Reverse brake drive plate

11. Reverse brake retaining

plate

12. Snap ring

13. D-ring

14. D-ring

15. Reverse brake piston

August 2012

2012 Pathfinder

TM-206

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

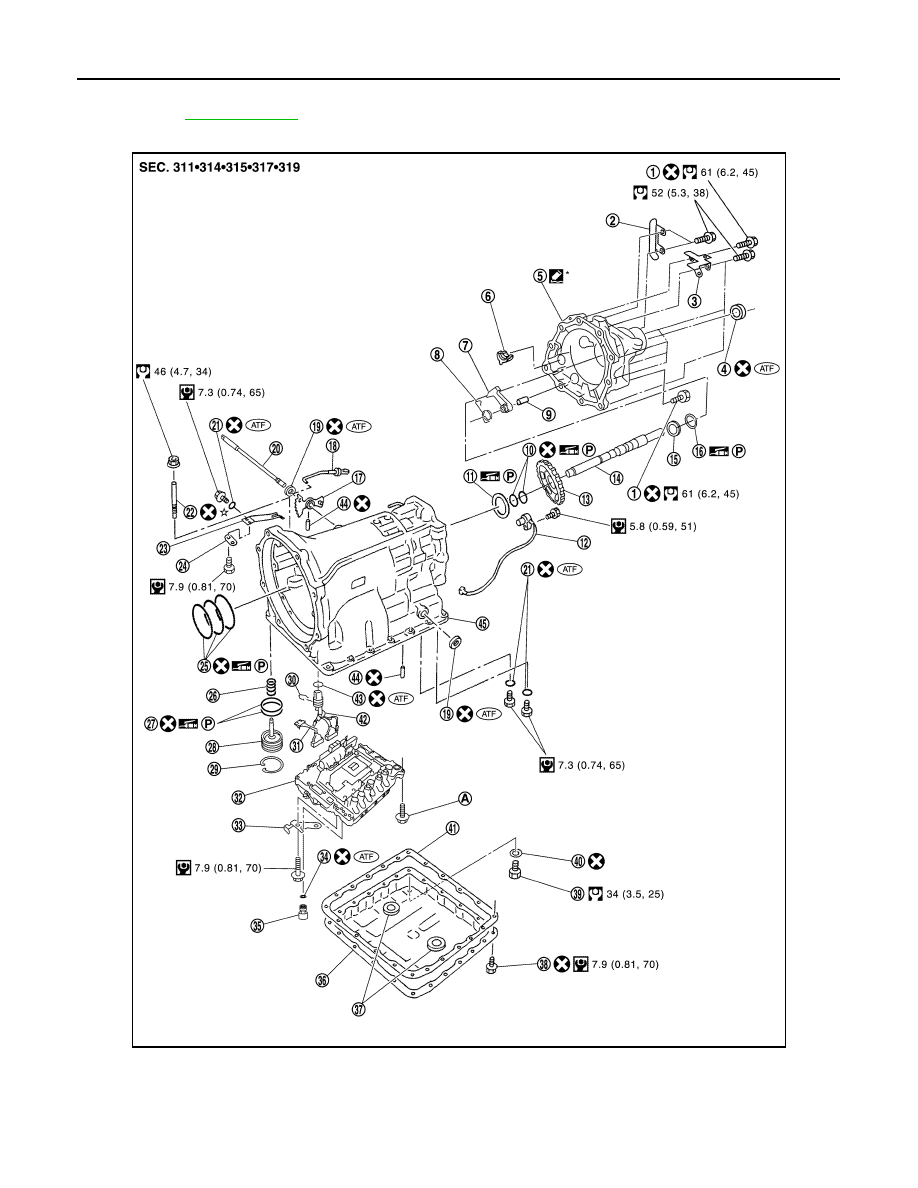

Transmission Case Components for 2WD

16. Return spring

17. Spring retainer

18. Snap ring

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA2264GB

1.

Self-sealing bolt

2.

Bracket-

3.

Bracket

4.

Rear oil seal

5.

Rear extension

6.

Parking actuator support

7.

Parking pawl

8.

Return spring

9.

Pawl shaft

10. Seal ring

11. Needle bearing

12. Output speed sensor

August 2012

2012 Pathfinder

OVERHAUL

TM-207

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Return spring

27. O-ring

28. Servo assembly

29. Snap ring

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. O-ring

35. Plug

36. Oil pan

37. Magnet

38. Oil pan bolt

39. Drain plug

40. Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43. O-ring

44. Retaining pin

45. Transmission case

46. Plug
A.

Tightening must be done following the assembly procedure. Refer to

TM-275, "Assembly (2)"

.

*: Apply Genuine Anaerobic Liquid Gasket or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

August 2012

2012 Pathfinder

TM-208

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

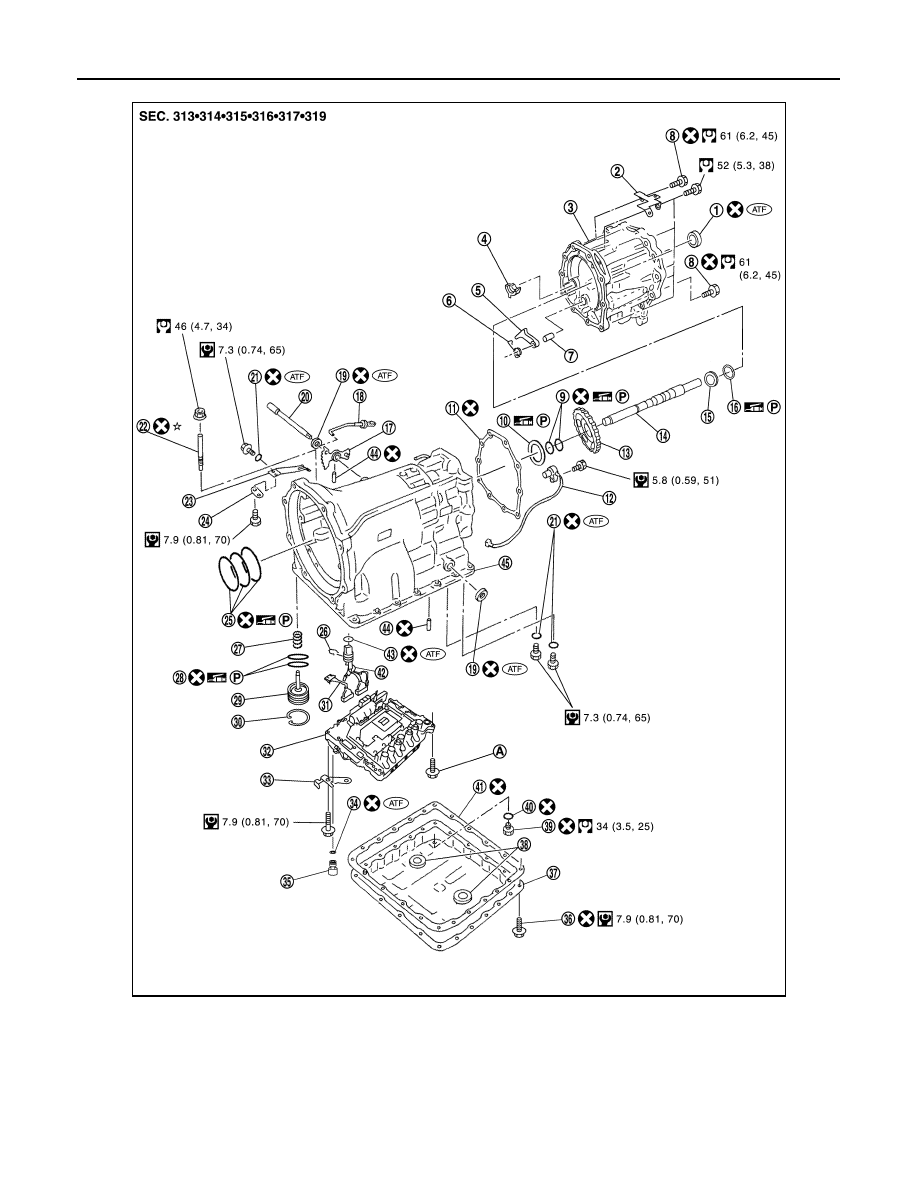

Transmission Case Components for 4WD

JSDIA2265GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10. Needle bearing

11. Gasket

12. Output speed sensor

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

August 2012

2012 Pathfinder

OVERHAUL

TM-209

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

VK56DE MODELS

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. O-ring

35. Plug

36. Oil pan

37. Magnet

38. Oil pan bolt

39. Drain plug

40. Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43. O-ring

44. Retaining pin

45. Transmission case

46. Plug
A.

Tightening must be done following the assembly procedure. Refer to

TM-275, "Assembly (2)"

.

Refer to

GI-4, "Components"

 for symbols in the figure.

August 2012

2012 Pathfinder

TM-210

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

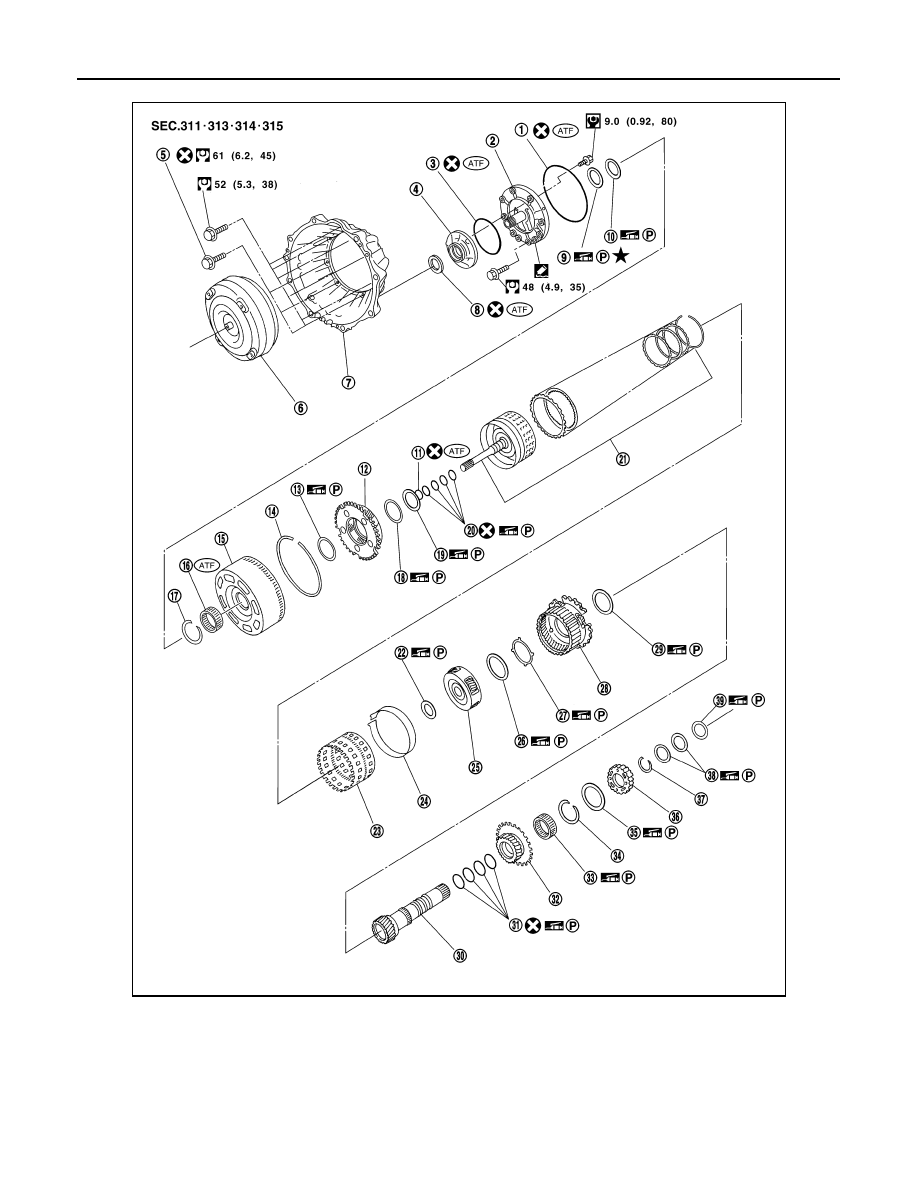

Bell Housing Components

WCIA0622E

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolts

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11. O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

August 2012

2012 Pathfinder
