KEY INTERLOCK CABLE

TM-187

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

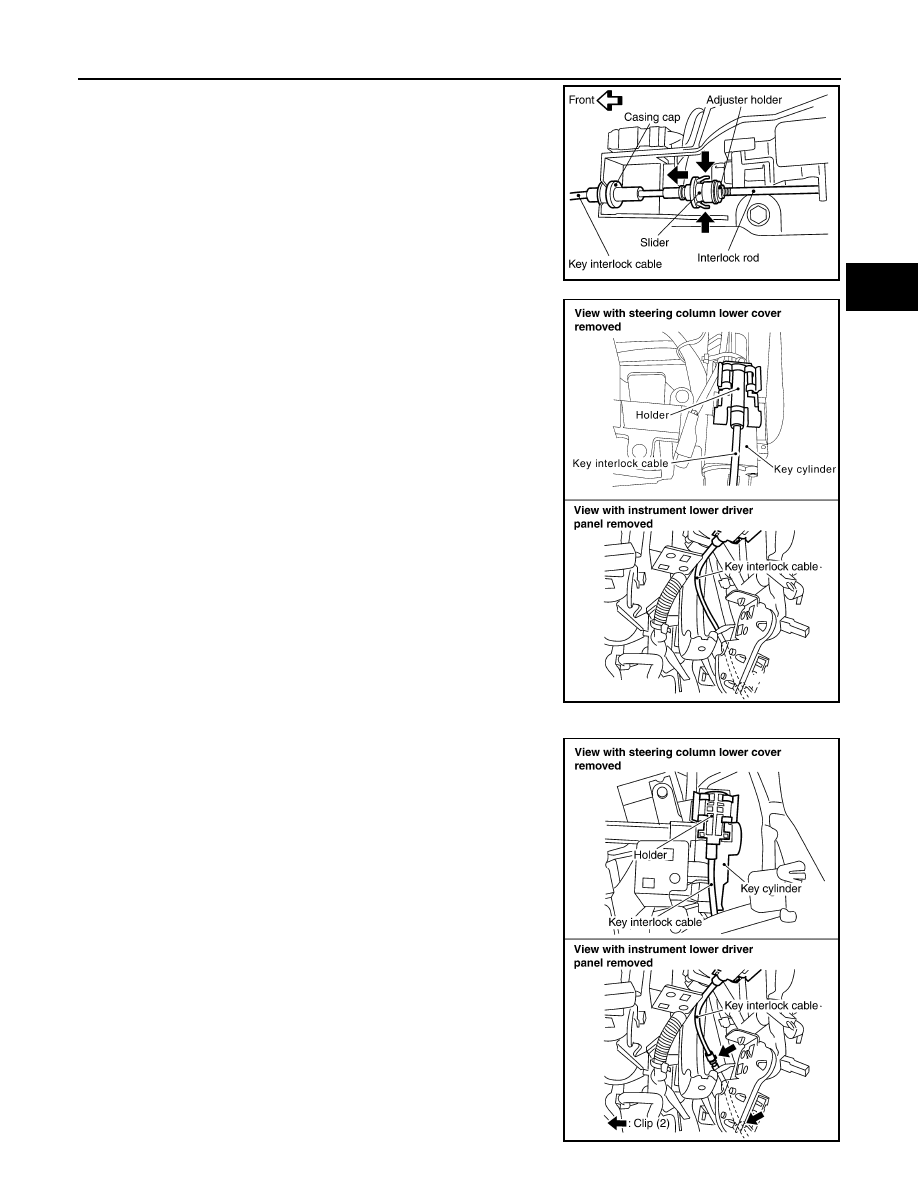

3. Unlock slider from adjuster holder by squeezing lock tabs.
4. Remove casing cap from bracket of control device assembly

and remove interlock rod from adjuster holder.

5. Remove holder from key cylinder and remove key interlock

cable.

INSTALLATION

1. Set key interlock cable to key cylinder and install holder.
2. Set shift selector to (P) position.
3. Turn ignition key to (LOCK) position.

SCIA1230E

LCIA0375E

SCIA2258E

August 2012

2012 Pathfinder

TM-188

< REMOVAL AND INSTALLATION >

KEY INTERLOCK CABLE

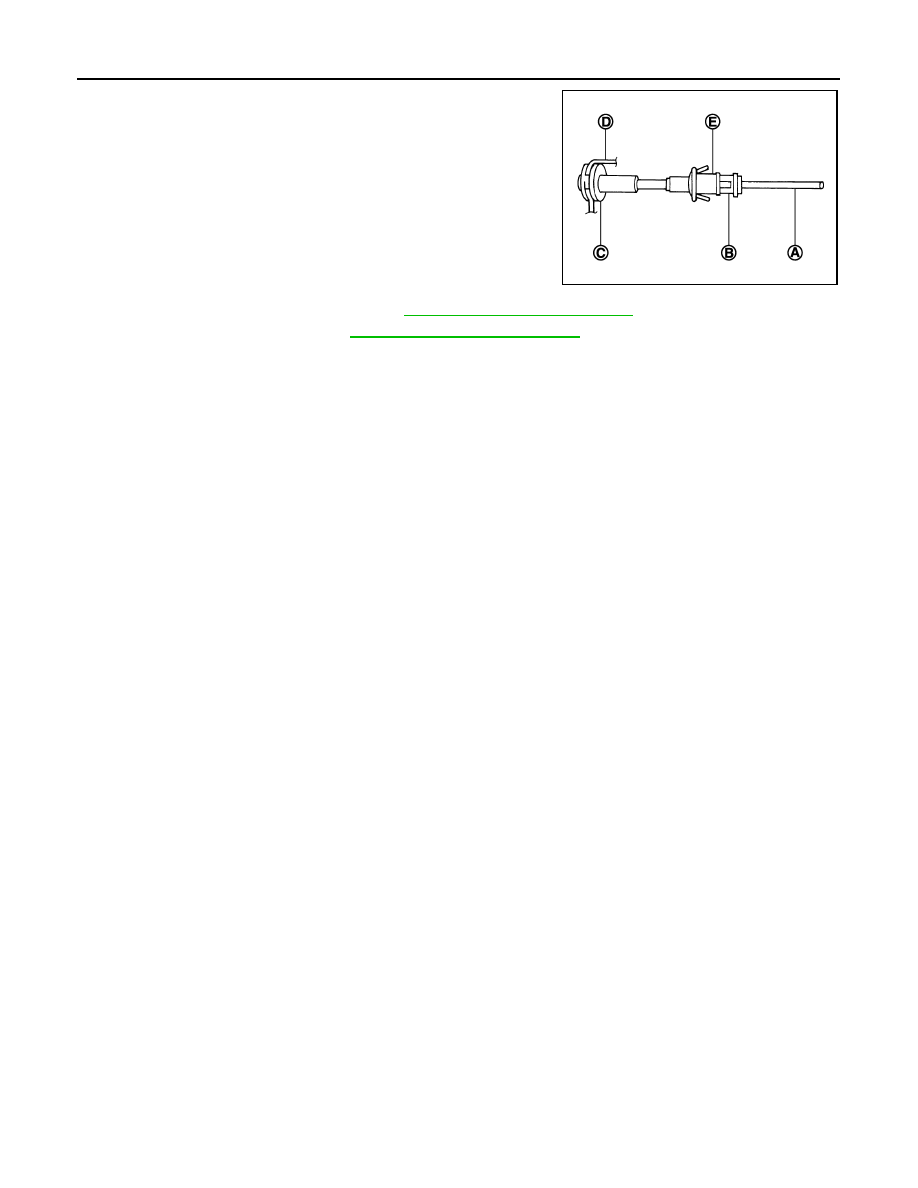

4. Insert key interlock rod (A) into adjuster holder (B).
5. Install casing cap (C) to bracket (D).
6. Move slider (E) toward key interlock rod (A) to secure adjuster

holder (B) to key interlock rod (A).

7. Install instrument lower panel LH. Refer to

IP-15, "Removal and Installation"

.

8. Install the center console. Refer to

IP-22, "Removal and Installation"

.

JSDIA0698ZZ

August 2012

2012 Pathfinder

AIR BREATHER HOSE

TM-189

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

2WD
2WD : Removal and Installation

INFOID:0000000007357310

COMPONENTS

REMOVAL

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

4WD
4WD : Removal and Installation

INFOID:0000000007357311

COMPONENTS (VQ40DE MODELS)

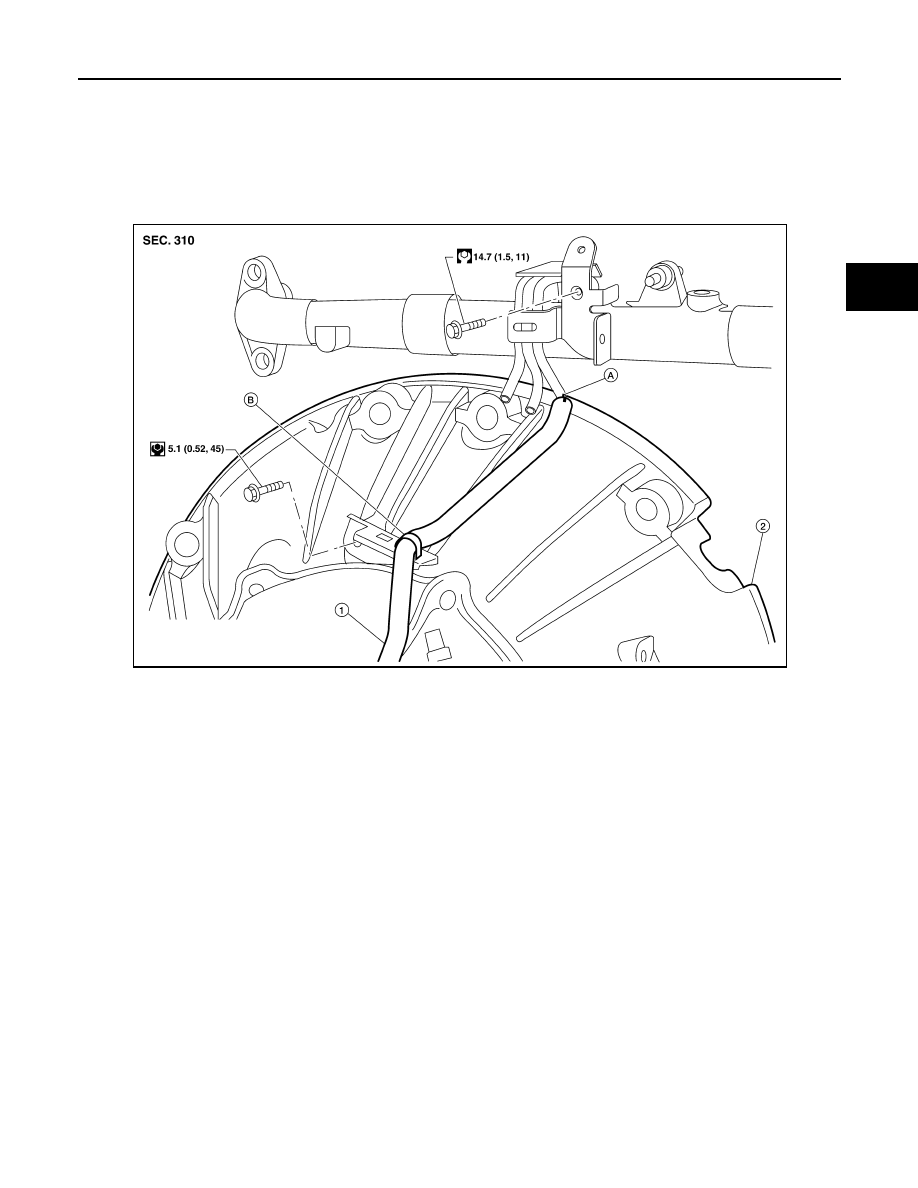

1.

Air breather hose

2.

Transmission assembly

A.

Paint mark

B.

Clip

WCIA0663E

August 2012

2012 Pathfinder

TM-190

< REMOVAL AND INSTALLATION >

AIR BREATHER HOSE

REMOVAL

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing an air breather hose, do not crush or block by folding or bending the hose.

• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

COMPONENTS (VK56DE MODELS)

1.

Air breather hose

2.

Transmission assembly

A.

Paint mark

B.

Clip

WCIA0664E

August 2012

2012 Pathfinder

AIR BREATHER HOSE

TM-191

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

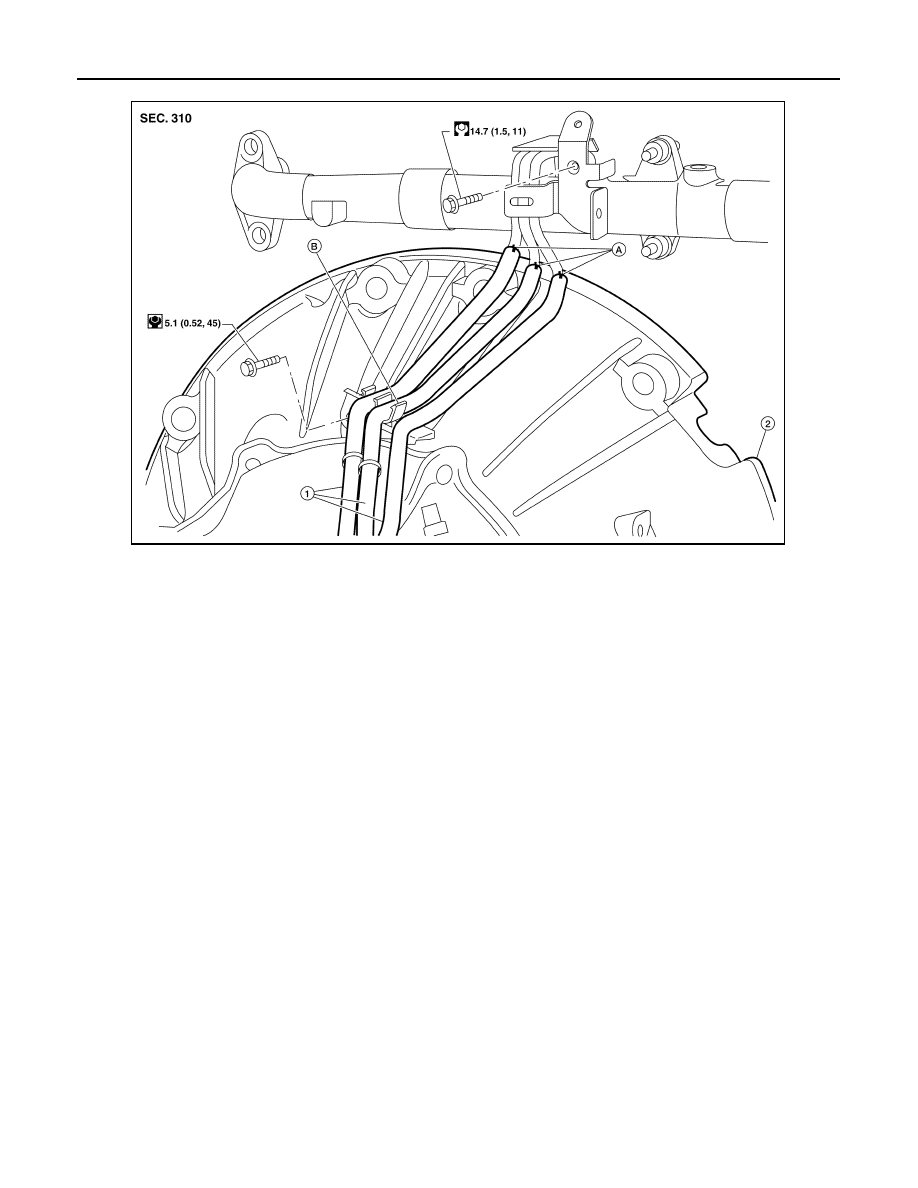

1. Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

• A/T breather hose (1)

• Transfer breather hose (2)

• Actuator/transfer motor breather hose (3)

• Paint marks (A)

2. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (A) with the paint mark (B) facing

upward.

:Front

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

AWDIA0010ZZ

ALDIA0110ZZ

ALDIA0111ZZ

August 2012

2012 Pathfinder

TM-192

< REMOVAL AND INSTALLATION >

AIR BREATHER HOSE

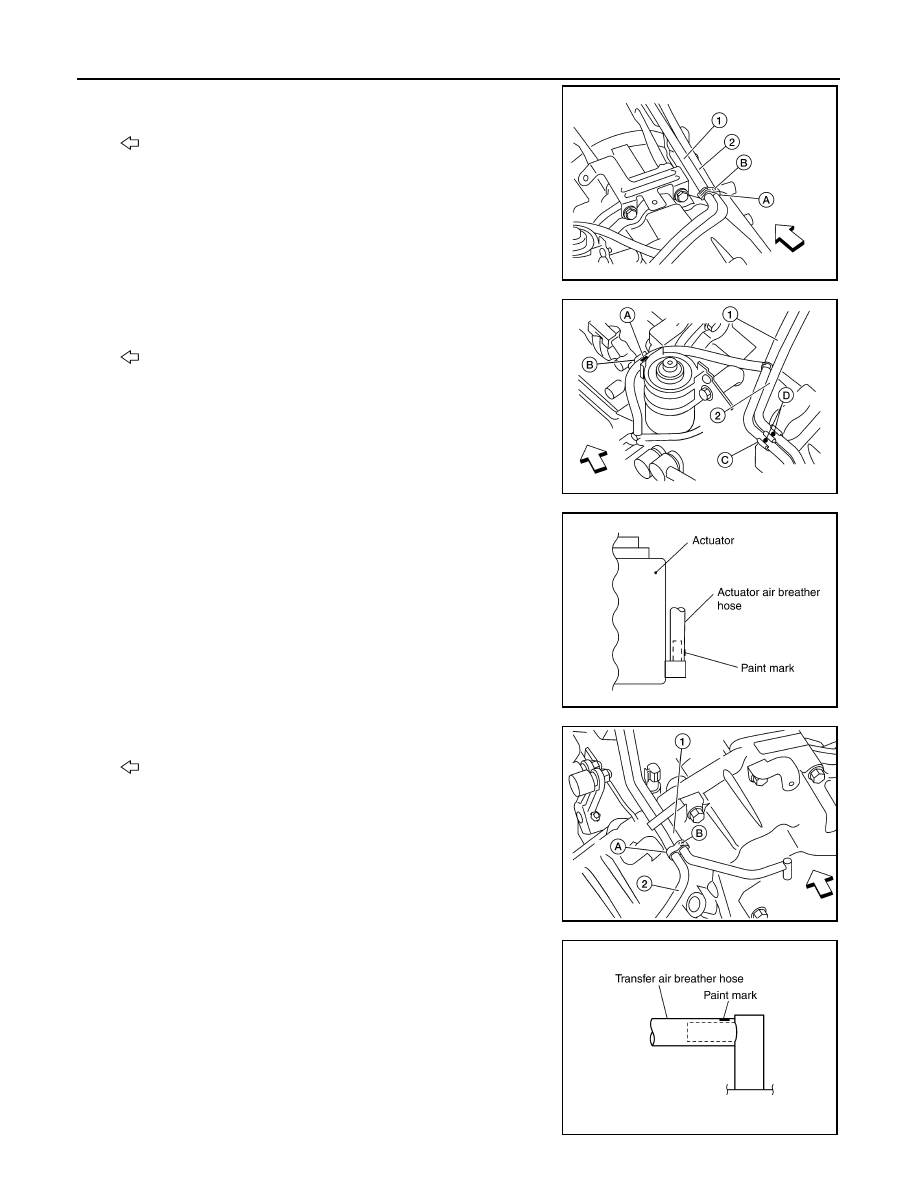

3. Install clip (B) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (A)

matched.

:Front

4. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (B) and clip (C) with the paint mark

(A) and (D) facing upward.

:Front

5. Install the actuator air breather hose into the actuator (case con-

nector) until the hose end reaches the base of the tube. Set

actuator air breather hose with paint mark facing leftward.

6. Install clip (B) on transfer motor air breather hose (2) and trans-

fer air breather hose (1) with the paint mark (A) matched.

:Front

7. Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark facing

upwards.

AWDIA0011ZZ

AWDIA0012ZZ

SDIA3226E

AWDIA0013ZZ

SDIA3196E

August 2012

2012 Pathfinder

AIR BREATHER HOSE

TM-193

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

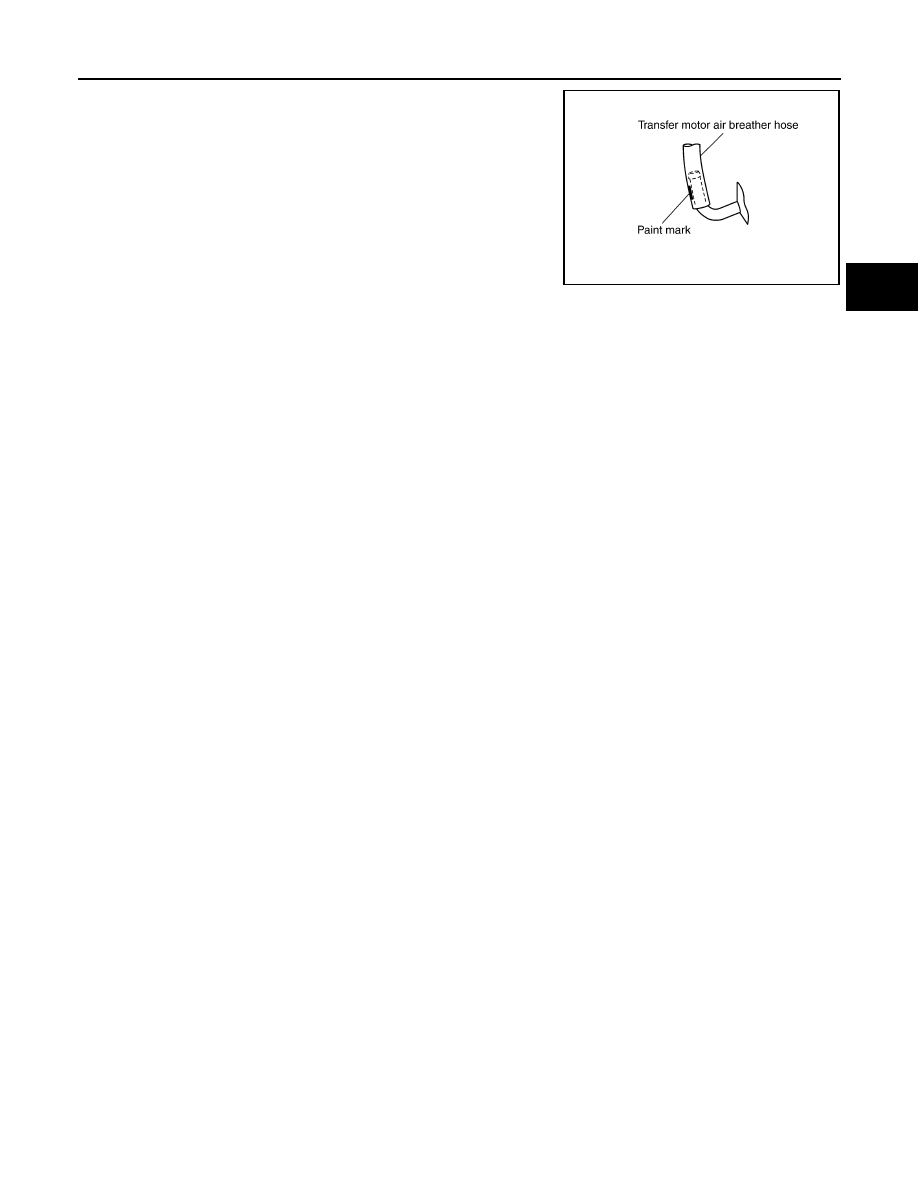

8. Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of

the curved section. Set transfer motor air breather hose with

paint mark facing leftward.

SDIA3194E

August 2012

2012 Pathfinder

TM-194

< REMOVAL AND INSTALLATION >

A/T FLUID COOLER

A/T FLUID COOLER

Removal and Installation

INFOID:0000000007357312

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove front grille. Refer to

EXT-20, "Removal and Installation"

.

2. Remove A/T fluid cooler hoses from fluid cooler.
3. Remove A/T fluid cooler.

INSTALLATION

Installation is in the reverse order of removal.

• After completing installation, check fluid level and check for fluid leaks. Refer to

TM-157, "Checking the A/T

Fluid (ATF)"

.

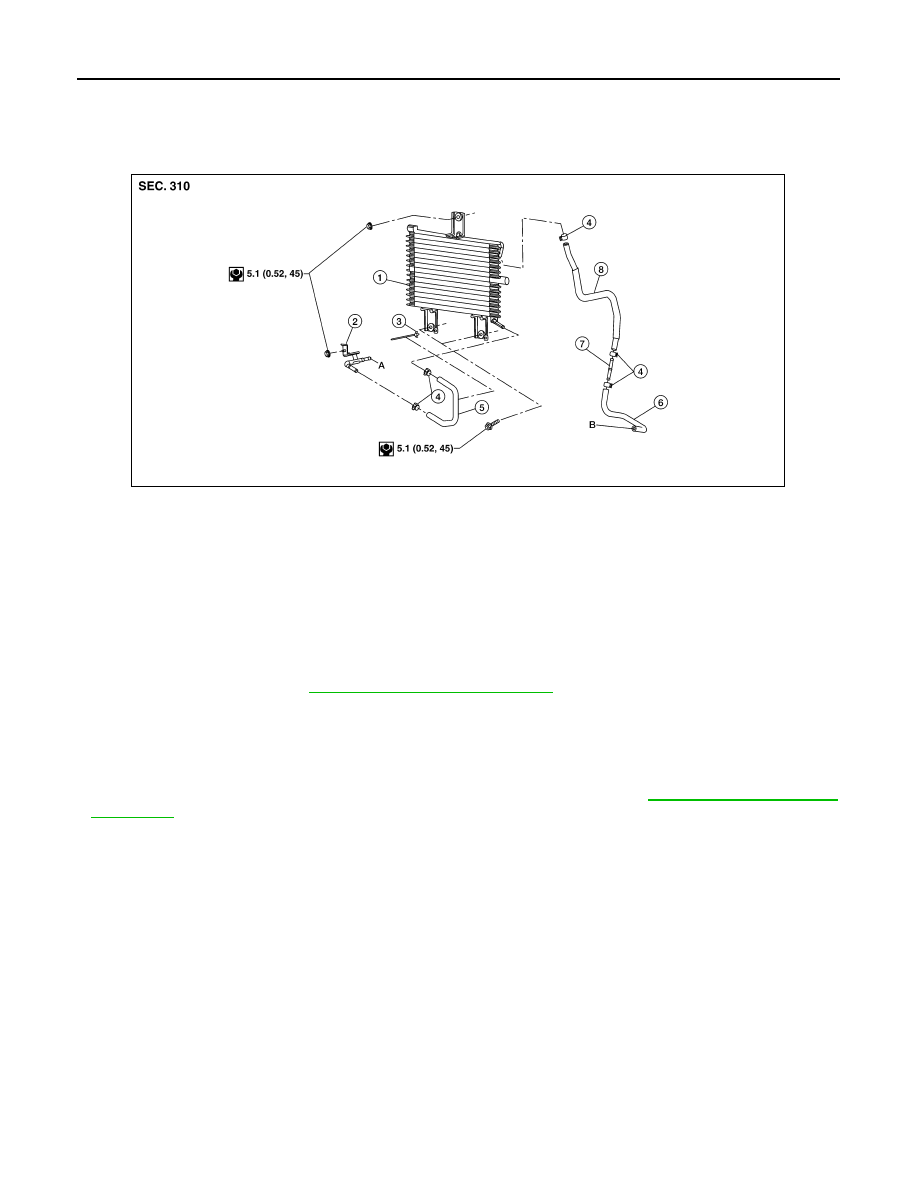

1.

A/T fluid cooler

2.

Fluid cooler tube

3.

Clip

4.

Hose clamp

5.

Cooler hose (lower)

6.

Cooler hose

7.

Tube joint

8.

Cooler hose (upper)

A.

To transmission

B.

From radiator

AWDIA0624GB

August 2012

2012 Pathfinder
