CONTROL VALVE WITH TCM

TM-179

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

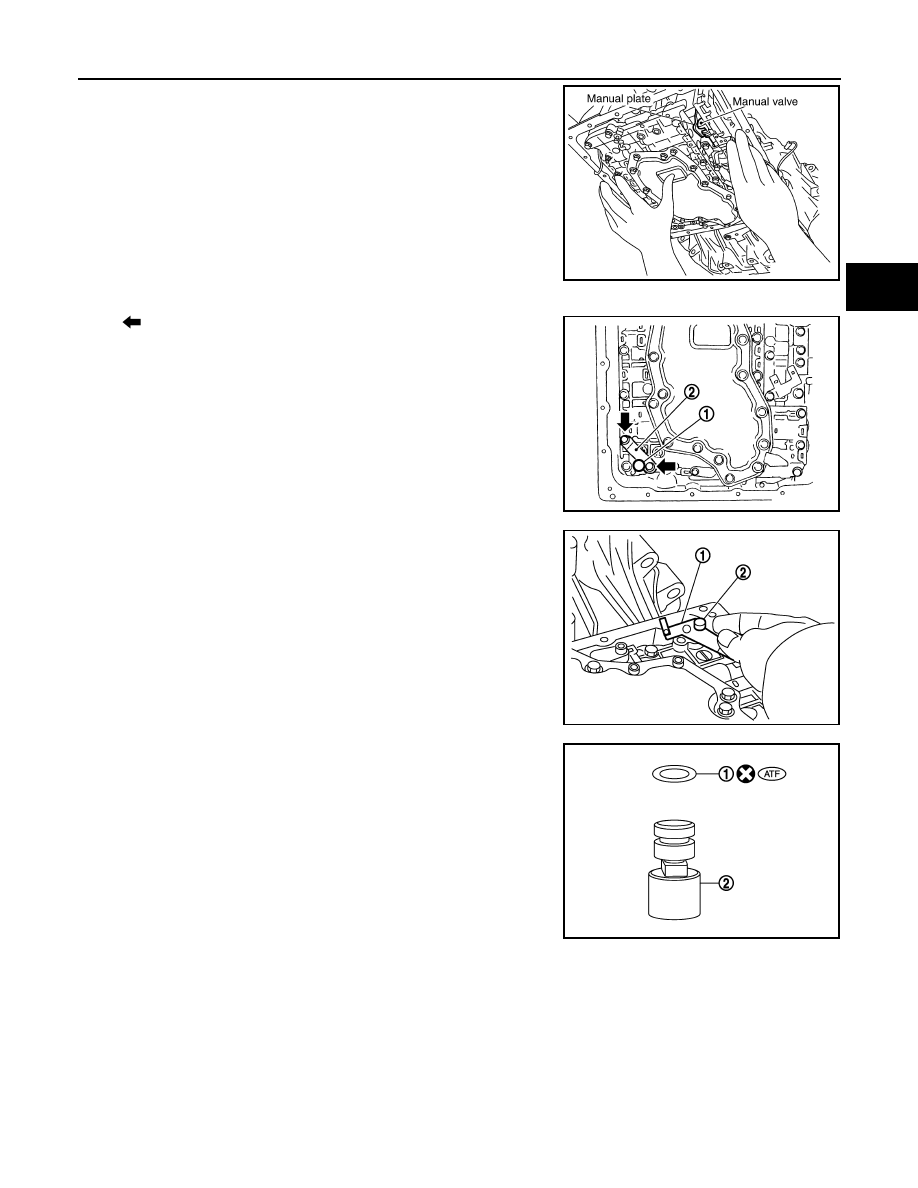

10. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

11. Remove plug (1) with bracket (2) from control valve with TCM.

:Bolt

12. Remove the bracket (1) from plug (2).

13. Remove O-ring (1) from plug (2).

CAUTION:

Do not reuse O-ring.

SCIA5142E

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ

August 2012

2012 Pathfinder

TM-180

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

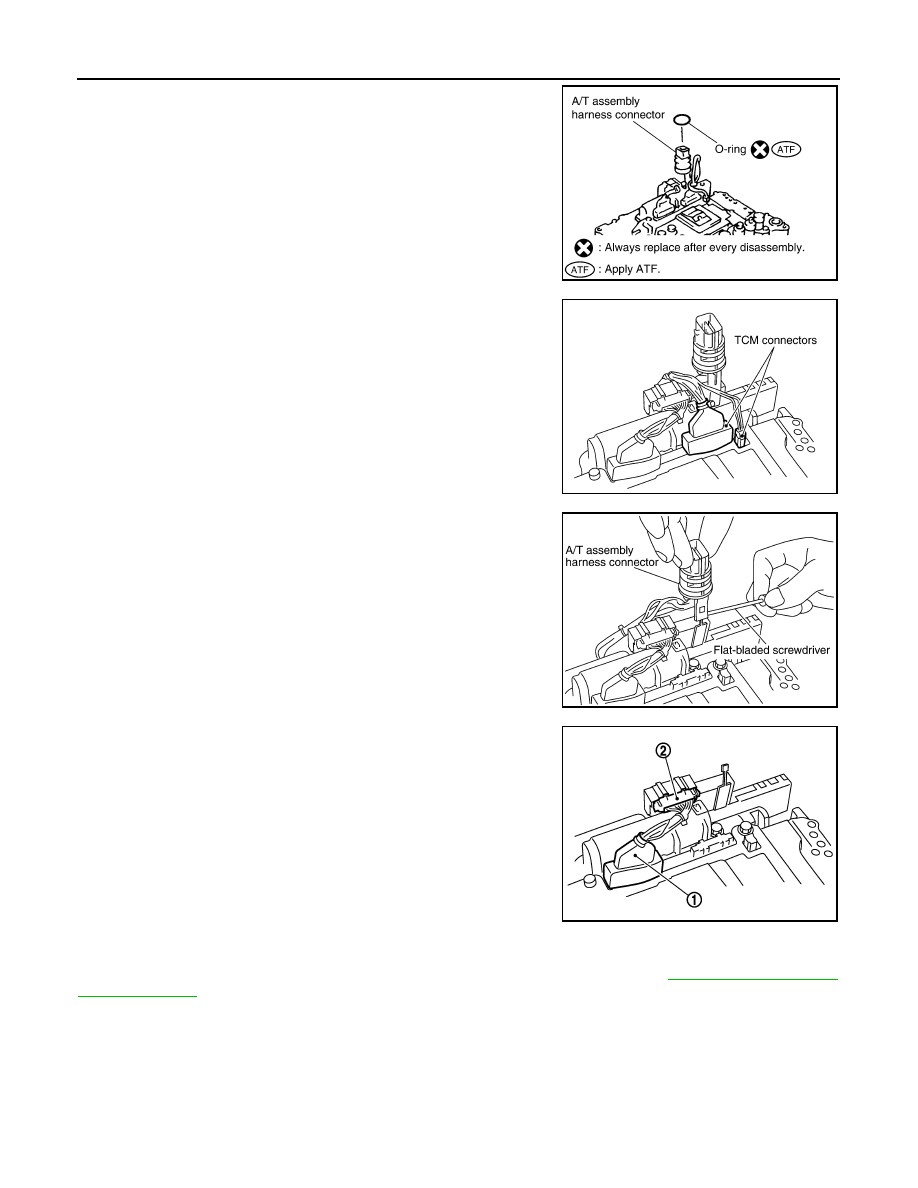

14. Remove O-ring from A/T assembly harness connector.

CAUTION:

Do not reuse O-ring.

15. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

16. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

17. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

Installation

CAUTION:

After completing installation, check for A/T fluid leaks and fluid level. Refer to

TM-157, "Checking the

A/T Fluid (ATF)"

.

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

August 2012

2012 Pathfinder

CONTROL VALVE WITH TCM

TM-181

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

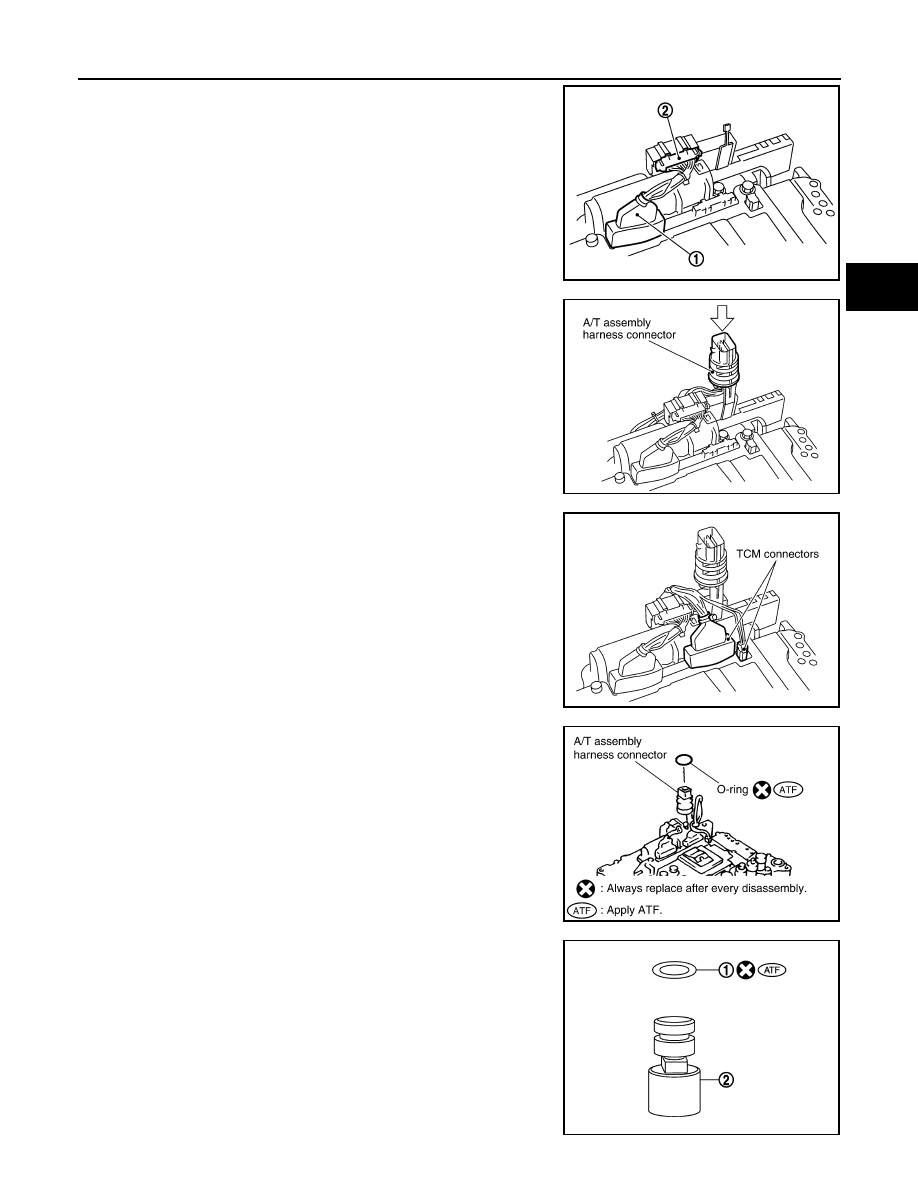

1. Connect TCM connector (1) and transmission range switch con-

nector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

5. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

JSDIA1313ZZ

August 2012

2012 Pathfinder

TM-182

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

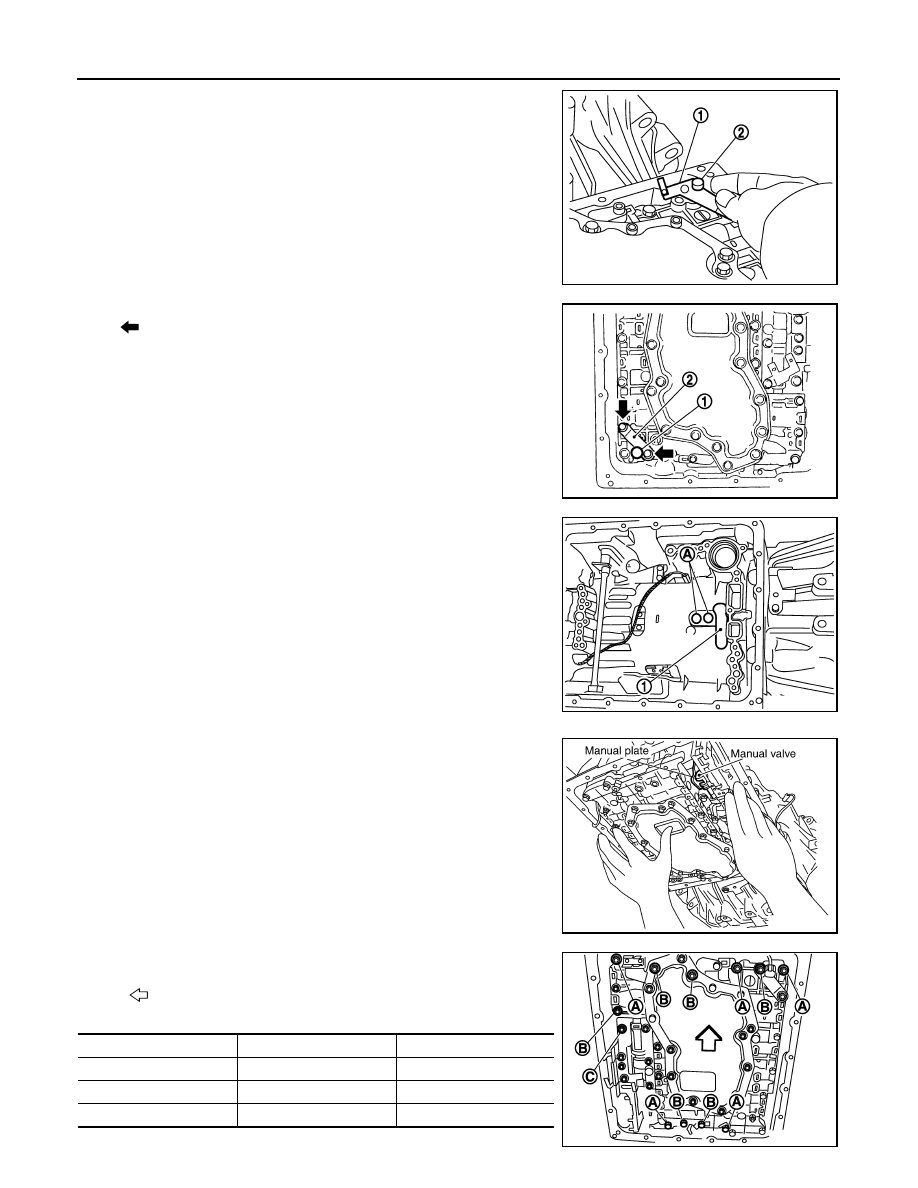

6. Install plug (2) to bracket (1).

7. Install plug (1) [with bracket (2)] to control valve with TCM.

:Bolt

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

8. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

9. Install bolts (A), (B) and (C) in control valve with TCM.

JSDIA1312ZZ

JSDIA1311ZZ

(1)

: Brake band

JSDIA1318ZZ

SCIA5142E

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

August 2012

2012 Pathfinder

CONTROL VALVE WITH TCM

TM-183

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

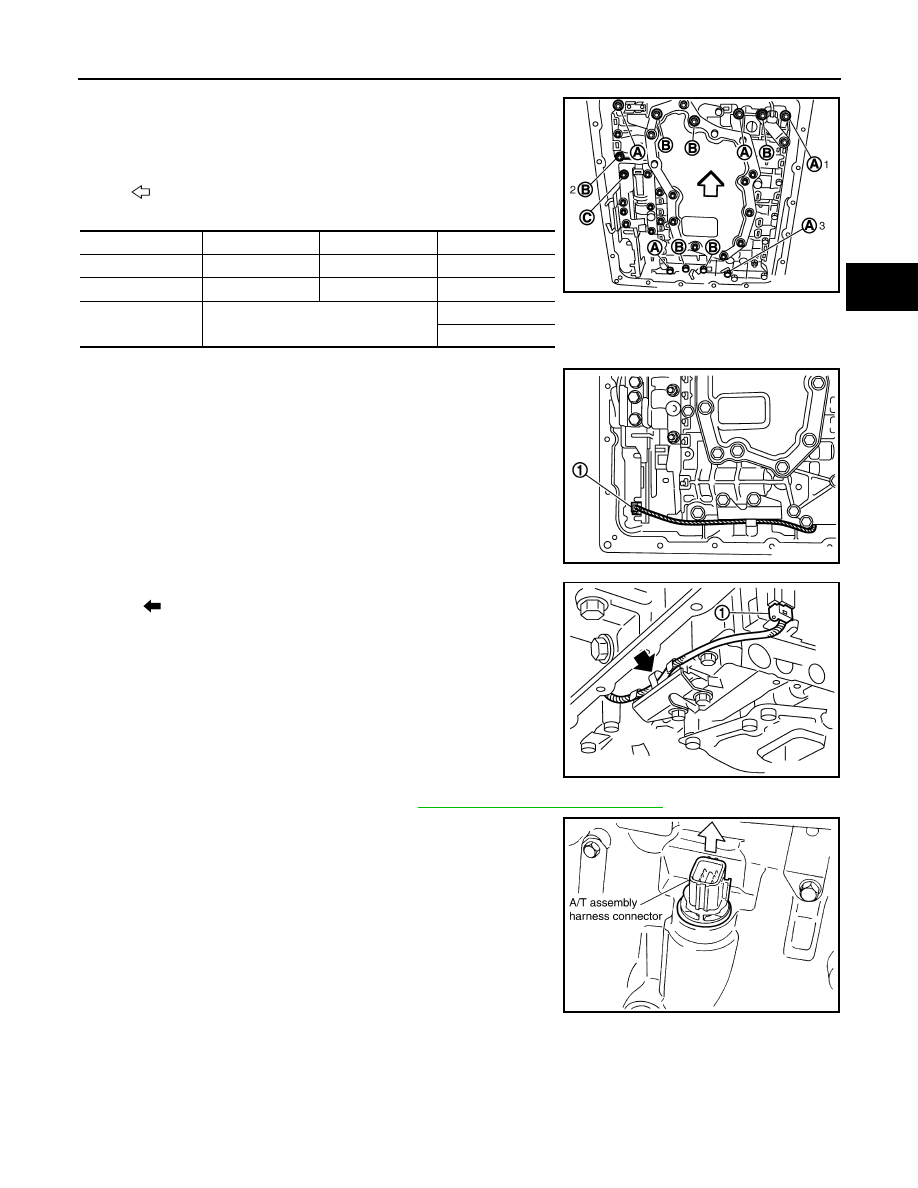

10. Tighten bolt (1A), (2B) and (3A) temporarily to prevent disloca-

tion. After that tighten them in order (1

 2

 3). Then tighten

other bolts. Tighten control valve with TCM bolts to the specified

torque.

11. Connect output speed sensor connector (1).

12. Securely fasten output speed sensor (1) harness with terminal

clip (

).

13. Install oil pan to transmission case. Refer to

TM-174, "Removal and Installation"

.

14. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (kg-m, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8075E

JSDIA1319ZZ

JSDIA1316ZZ

SCIA5038E

August 2012

2012 Pathfinder

TM-184

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

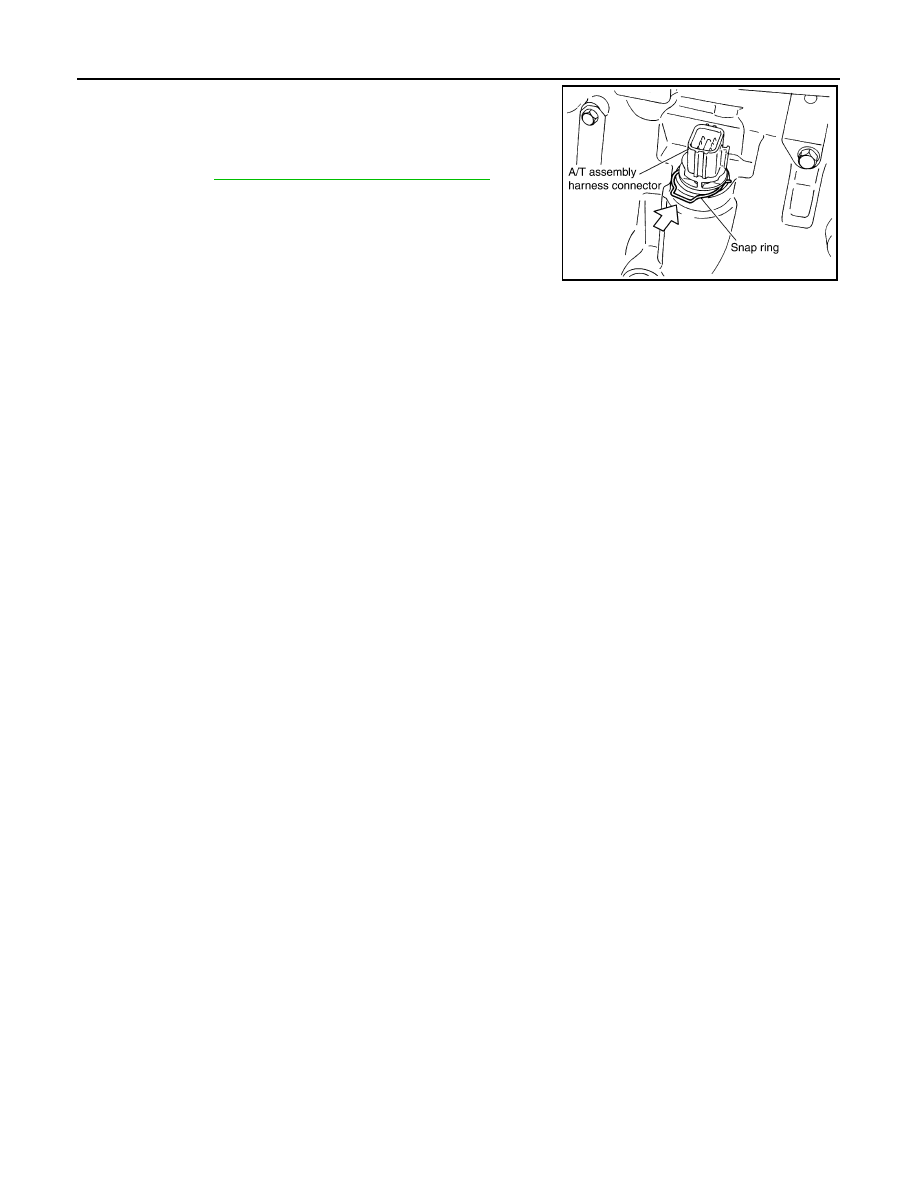

15. Install snap ring to A/T assembly harness connector.
16. Connect A/T assembly harness connector.
17. Connect the negative battery terminal.
18. Refill the A/T with fluid and check the fluid level and for fluid

leaks. Refer to

TM-157, "Checking the A/T Fluid (ATF)"

.

SCIA5039E

August 2012

2012 Pathfinder

REAR OIL SEAL

TM-185

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REAR OIL SEAL

Removal and Installation

INFOID:0000000007357307

REMOVAL

1. Remove rear propeller shaft. Refer to

DLN-329, "Removal and Installation"

 (2S1330),

DLN-340, "Removal

and Installation"

 (2S1350).

2. Remove transfer from transmission (4WD models). Refer to

DLN-153, "Removal and Installation"

(ATX14B),

DLN-287, "Removal and Installation"

 (TX15B).

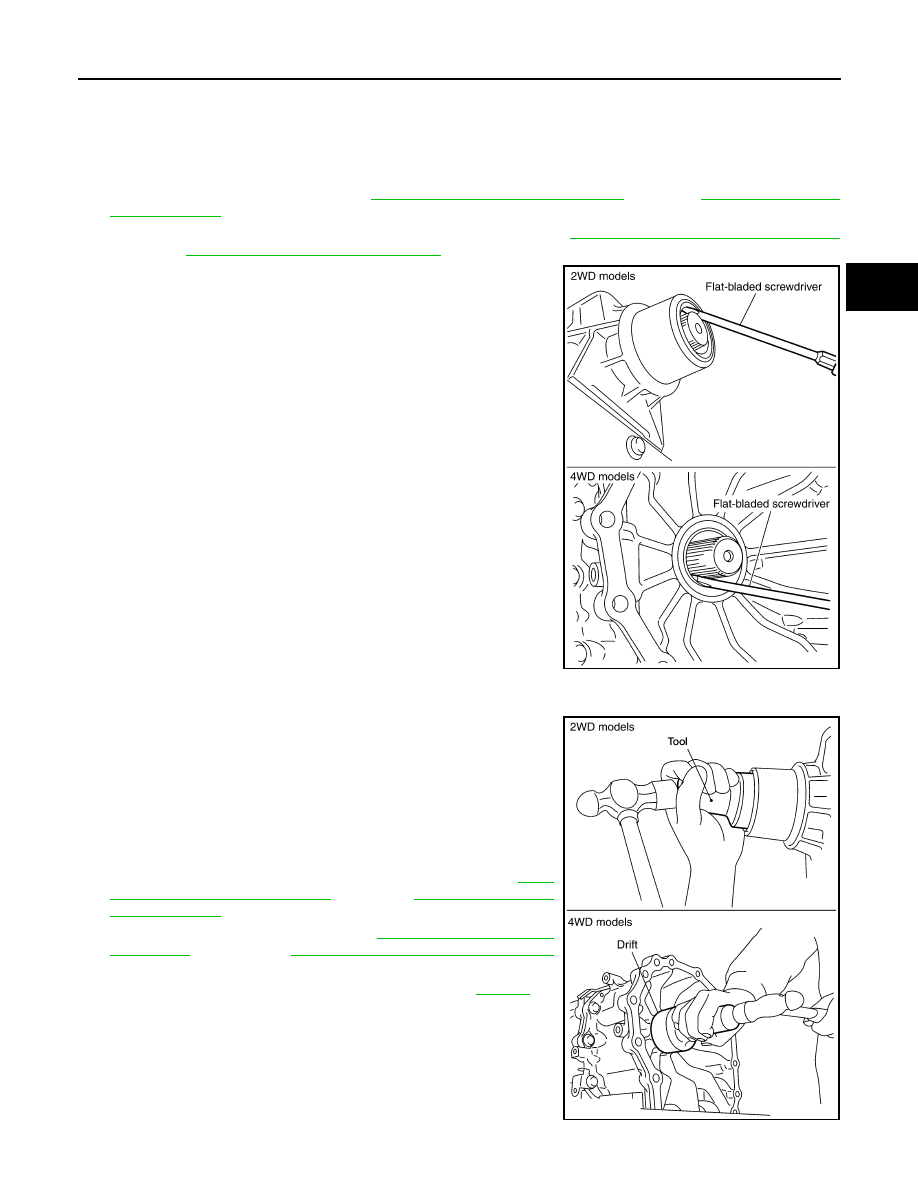

3. Remove rear oil seal using suitable tool.

CAUTION:

Do not scratch rear extension assembly (2WD models) or

adapter case assembly (4WD models).

INSTALLATION

1. Install new rear oil seal until it is flush into the rear extension

case (2WD models) using Tool or adapter case (4WD models)

using suitable tool.

CAUTION:

• Apply ATF to rear oil seal.

• Do not reuse rear oil seal.

2. Install transfer to transmission (4WD models). Refer to

DLN-

153, "Removal and Installation"

 (ATX14B),

DLN-287, "Removal

and Installation"

 (TX15B).

3. Install rear propeller shaft. Refer to

DLN-329, "Removal and

Installation"

 (2S1330) or

DLN-340, "Removal and Installation"

(2S1350).

4. Check the A/T fluid level and for fluid leaks. Refer to

TM-157

.

SCIA5254E

Tool number

: ST33400001 (J-26082)

WCIA0475E

August 2012

2012 Pathfinder

TM-186

< REMOVAL AND INSTALLATION >

KEY INTERLOCK CABLE

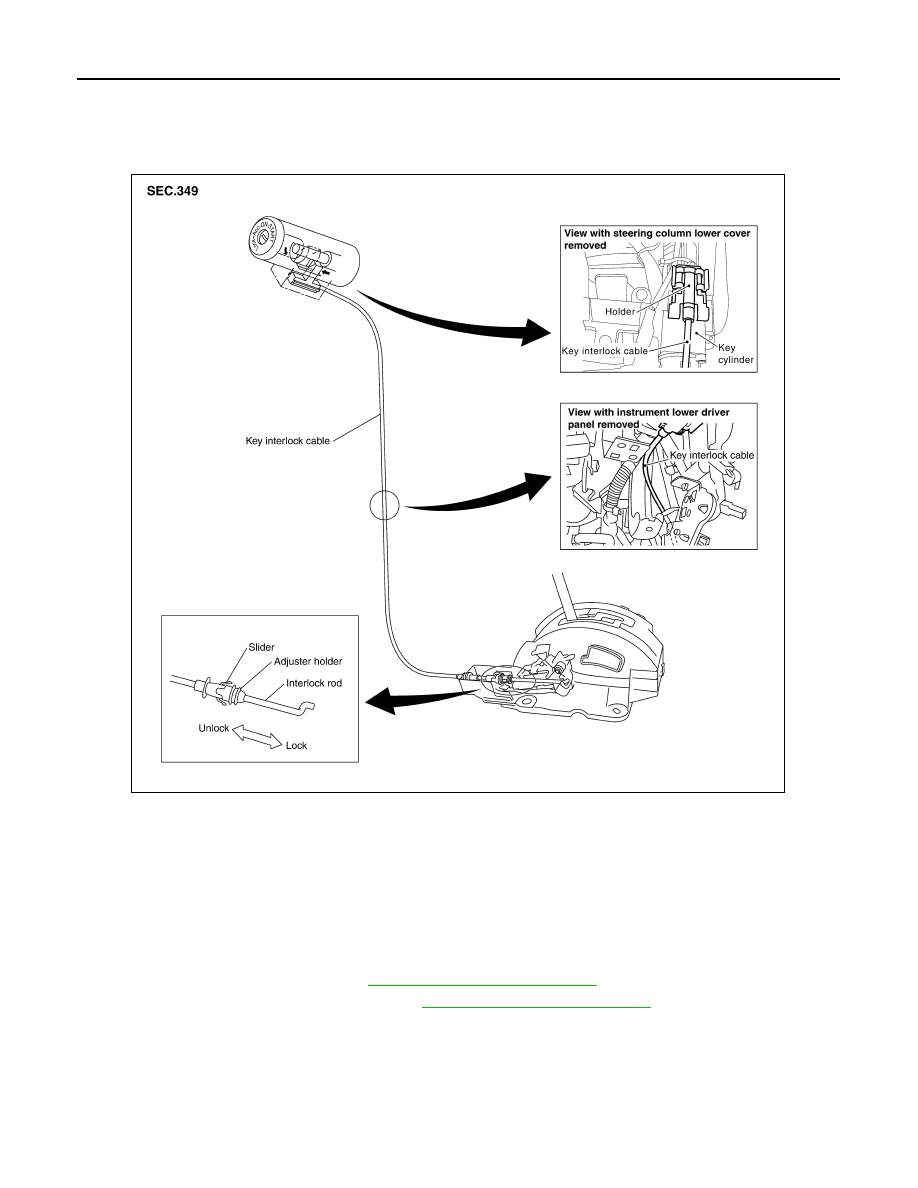

KEY INTERLOCK CABLE
