ROAD TEST

TM-171

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

CHECK SHIFT-DOWN

During manual mode driving, move gear selector from M5

 M4

 M3

 M2

 M1.

With CONSULT

Read the gear position.
Is downshifting correctly performed?

YES

>> GO TO 6.

NO

>> Record the malfunction, GO TO 6.

4.

CHECK SHIFT-DOWN

1. Confirm overdrive control switch is ON position.

2. Confirm gear shift selector is in “D” position.

3. Accelerate vehicle using half-throttle to D

5

.

4. Release accelerator pedal.

5. Set overdrive control switch to OFF position while driving in D

5

.

With CONSULT

Read the gear position.

Does A/T shift from D

5

 to D

4

 (O/D OFF)?

YES

>> GO TO 5.

NO

>> Record the malfunction, GO TO 5.

5.

CHECK SHIFT-DOWN

During D

driving, move gear selector from D

 3

 2

 1.

 With CONSULT

Read the gear position.
Is downshifting correctly performed?

YES

>> GO TO 6.

NO

>> Record the malfunction, GO TO 6.

6.

CHECK ENGINE BRAKE

Does engine braking effectively reduce speed in M

1

 position (with manual mode) or 1

1

 position (without man-

ual mode)?

YES

>> 1. Stop the vehicle.

2. Carry out the self-diagnostics. Refer to

TM-37, "CONSULT Function (TRANSMISSION)"

.

NO

>> Record the malfunction, then continue the trouble diagnosis.

August 2012

2012 Pathfinder

TM-172

< REMOVAL AND INSTALLATION >

SHIFT CONTROL SYSTEM

REMOVAL AND INSTALLATION

SHIFT CONTROL SYSTEM

Exploded view

INFOID:0000000007357302

Removal and Installation

INFOID:0000000007357303

REMOVAL

1. Remove the center console. Refer to

IP-22, "Removal and Installation"

.

2. Disconnect the following from the shift selector assembly.

• A/T shift selector control cable

• A/T key interlock cable

• A/T shift selector harness connector

3. Remove the shift selector assembly.

INSTALLATION

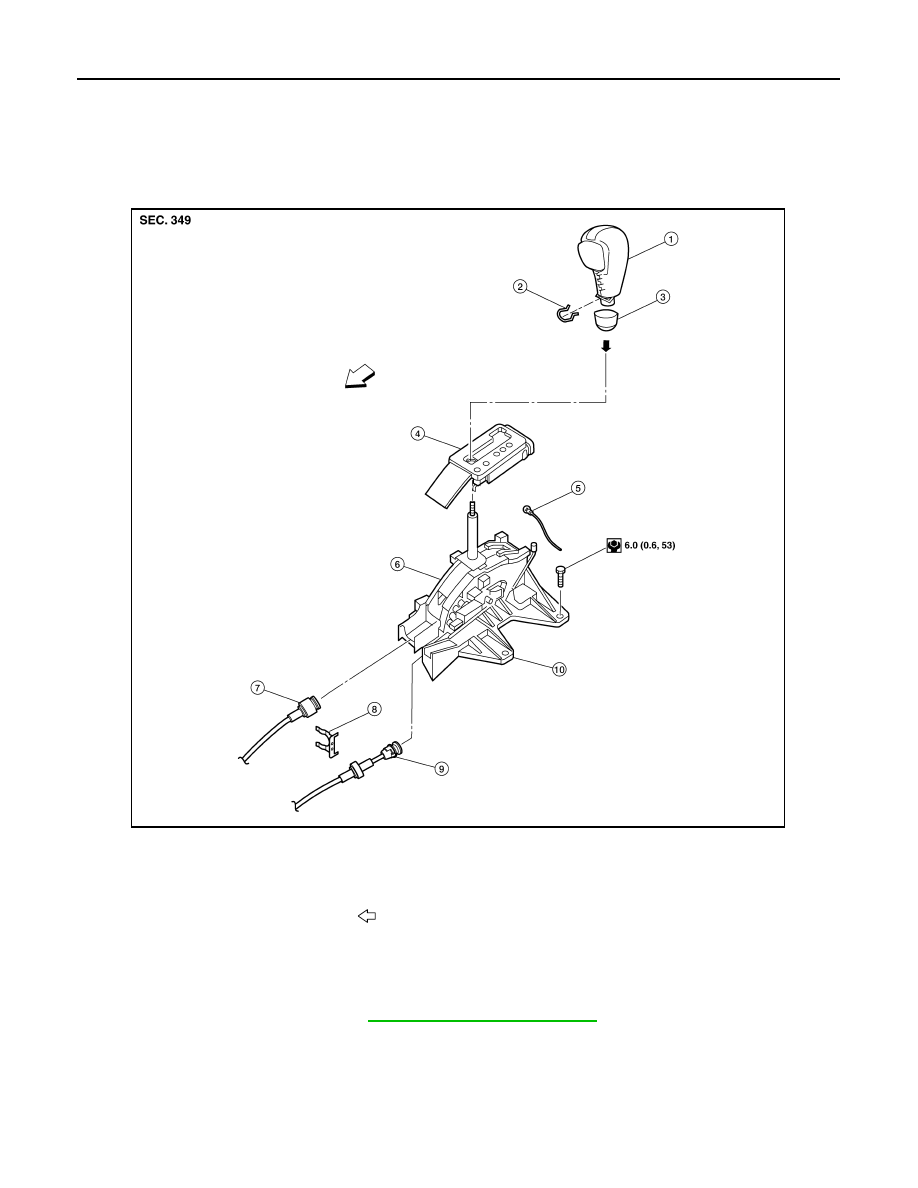

1.

Shift selector handle

2.

Shift selector handle clip

3.

Shift selector handle cover

4.

A/T finisher

5.

Position lamp

6.

Position indicator

7.

A/T shift selector control cable

8.

Lock plate

9.

A/T key interlock cable

10. Shift selector assembly

Front

AWDIA0754GB

August 2012

2012 Pathfinder

SHIFT CONTROL SYSTEM

TM-173

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Installation is in the reverse order of removal.

• Be sure to adjust A/T shift selector control cable. Refer to

TM-173, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000007357304

INSPECTION

With the shift selector in the “P” position, turn the ignition switch to the ON position with the engine OFF.

Confirm that the following conditions apply.

• The shift selector can be moved from the “P” position only when the brake pedal is depressed.

• The shift selector stops at each position with the feel of engagement when it is moved through all the posi-

tions.

• There is no excessive effort, sticking, noise or rattle.

• The actual position of the shift selector matches the position shown by the shift position indicator and the A/

T body.

• The back-up lamps illuminate only when the shift selector is placed in the “R” position.

• The back-up lamps do not illuminate when the shift selector is pushed against the “R” position when in the

“P” or “N” position.

• The engine can only be started with the shift selector in the “P” and “N” positions.

• The A/T is locked completely when the shift selector is in the “P” position.

ADJUSTMENT

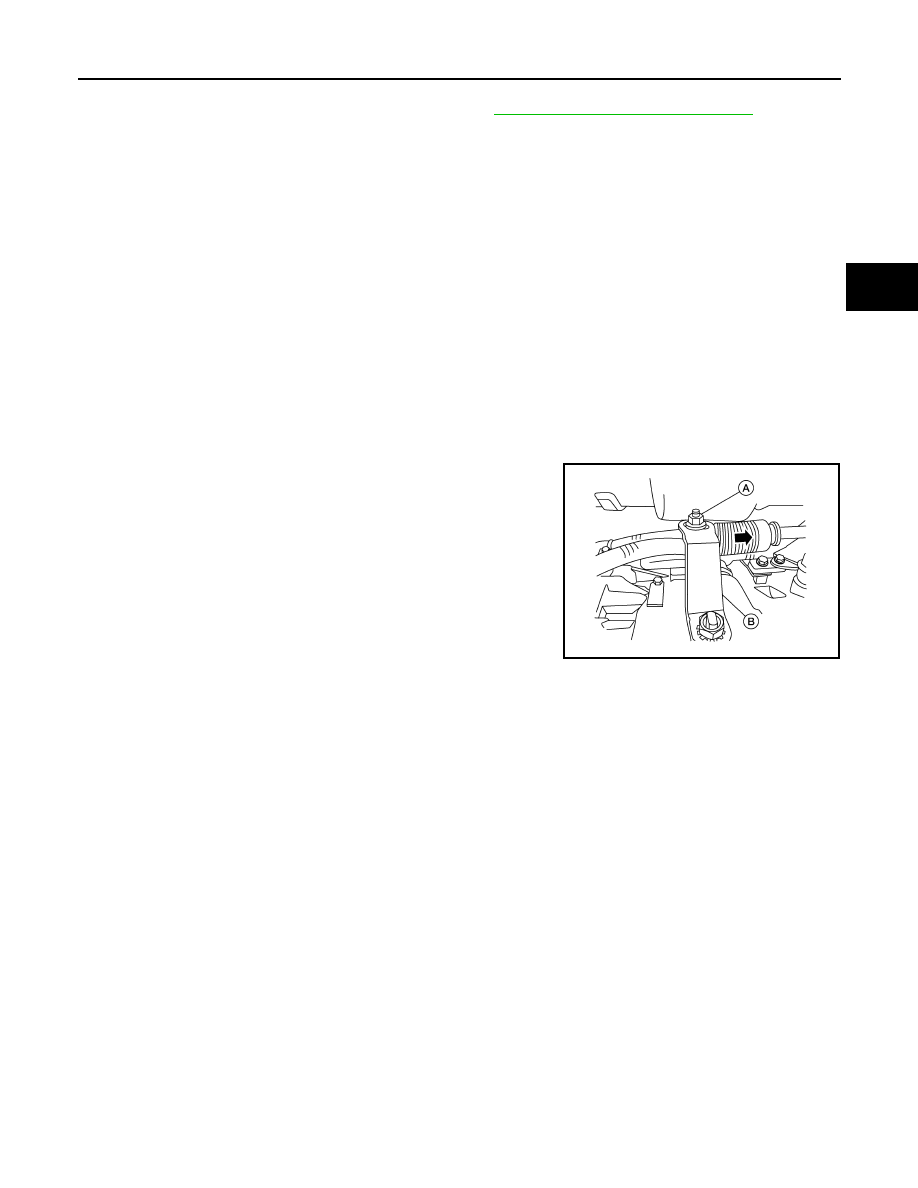

1. Loosen nut (A) of A/T shift selector control cable.
2. Place the manual lever (B) and shift selector in “P” position.
3. Push the A/T shift selector control cable in the direction shown

with a force of 9.8 N (1kg, 2.2 lb), and release it, this is in the

natural state. Tighten A/T shift selector control cable nut (A) to

specifications.

A/T shift selector
control cable nut

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

AWDIA0755ZZ

August 2012

2012 Pathfinder

TM-174

< REMOVAL AND INSTALLATION >

OIL PAN

OIL PAN

Removal and Installation

INFOID:0000000007357305

Removal

1. Drain A/T fluid. Refer to

TM-159, "Changing the A/T Fluid (ATF)"

.

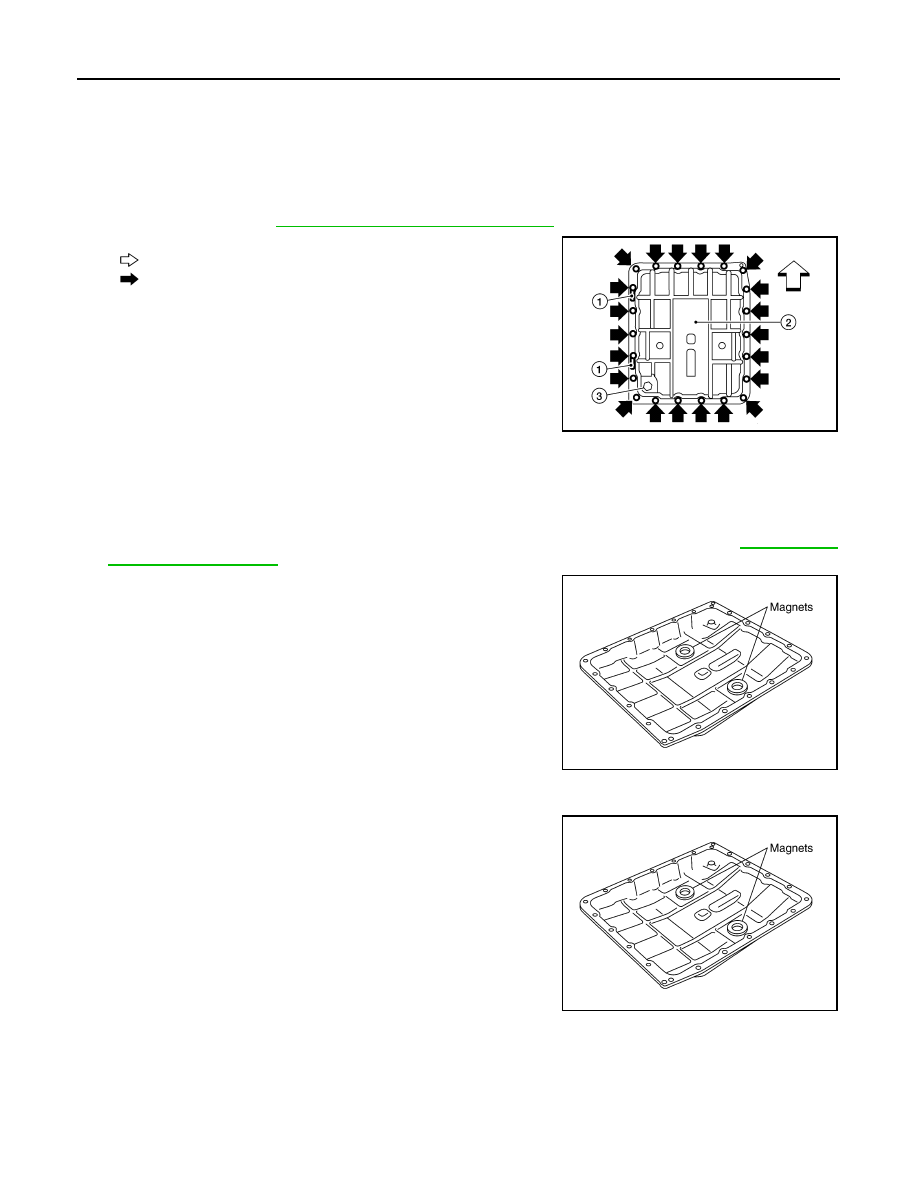

2. Remove clips (1) (VK56DE engine models) and oil pan bolts.

 Vehicle front

 Oil pan bolts

• Drain plug (3)

3. Remove oil pan (2) and oil pan gasket.

4. Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,

has some burned smell, or contains foreign particles then friction material (clutches, band) may need

replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,

servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-160, "A/T

Fluid Cooler Cleaning"

.

5. Remove the oil pan magnets from oil pan.

Installation

1. Install the oil pan magnets as shown.

AWDIA0023ZZ

SCIA5200E

SCIA5200E

August 2012

2012 Pathfinder

OIL PAN

TM-175

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

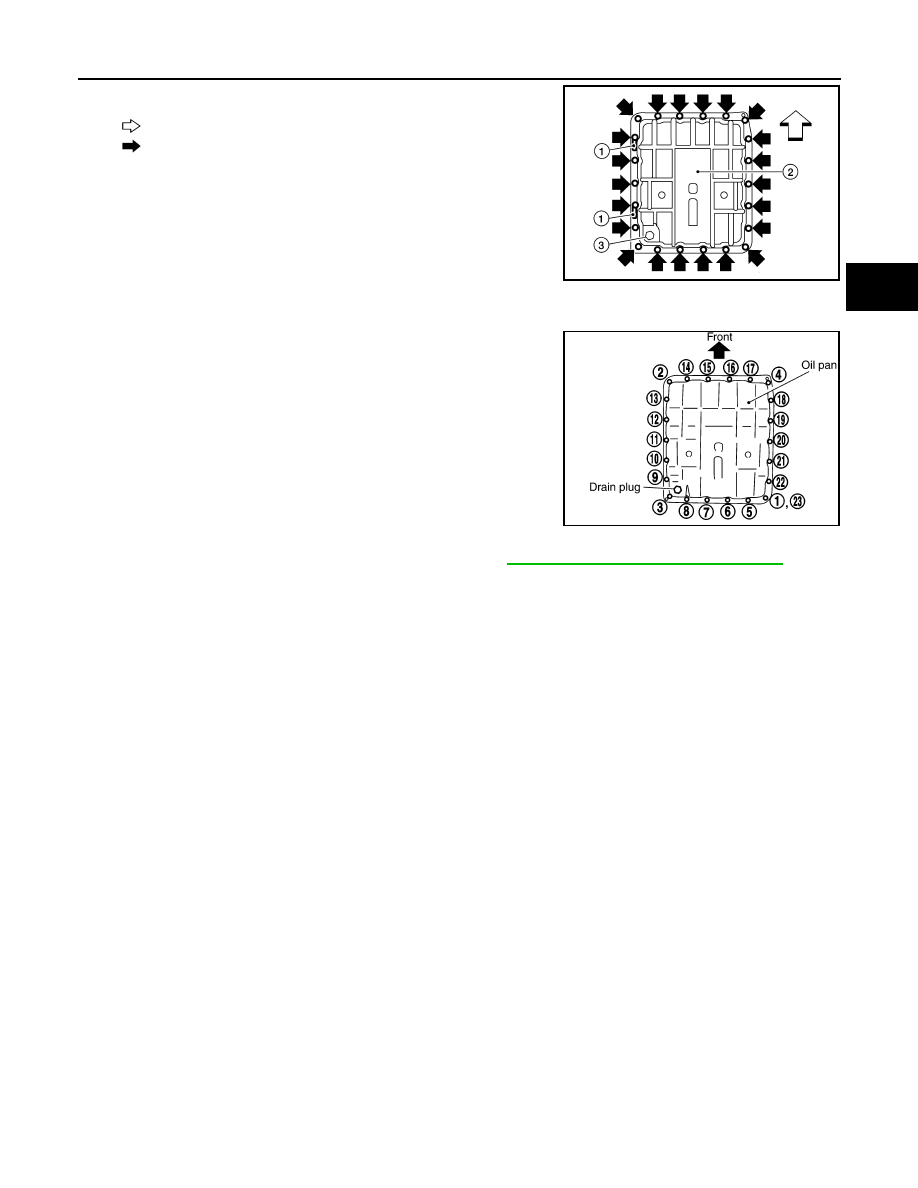

2. Install the oil pan (2) with new oil pan gasket and clips (1)

(VK56DE engine models).

: Vehicle Front

: Oil pan bolts

• Drain plug (3)

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.

• Always replace the oil pan bolts as they are self-sealing.

• Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.

3. Tighten oil pan bolts in numerical order as shown.

4. Install drain plug with new gasket to oil pan and tighten to speci-

fication.

CAUTION:

Do not reuse drain plug gasket.

5. Refill the A/T with fluid and check for fluid leaks. Refer to

TM-157, "Checking the A/T Fluid (ATF)"

.

AWDIA0023ZZ

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

Drain plug

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

August 2012

2012 Pathfinder

TM-176

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

CONTROL VALVE WITH TCM

Removal and Installation

INFOID:0000000007357306

VQ40DE MODELS

VK56DE MODELS

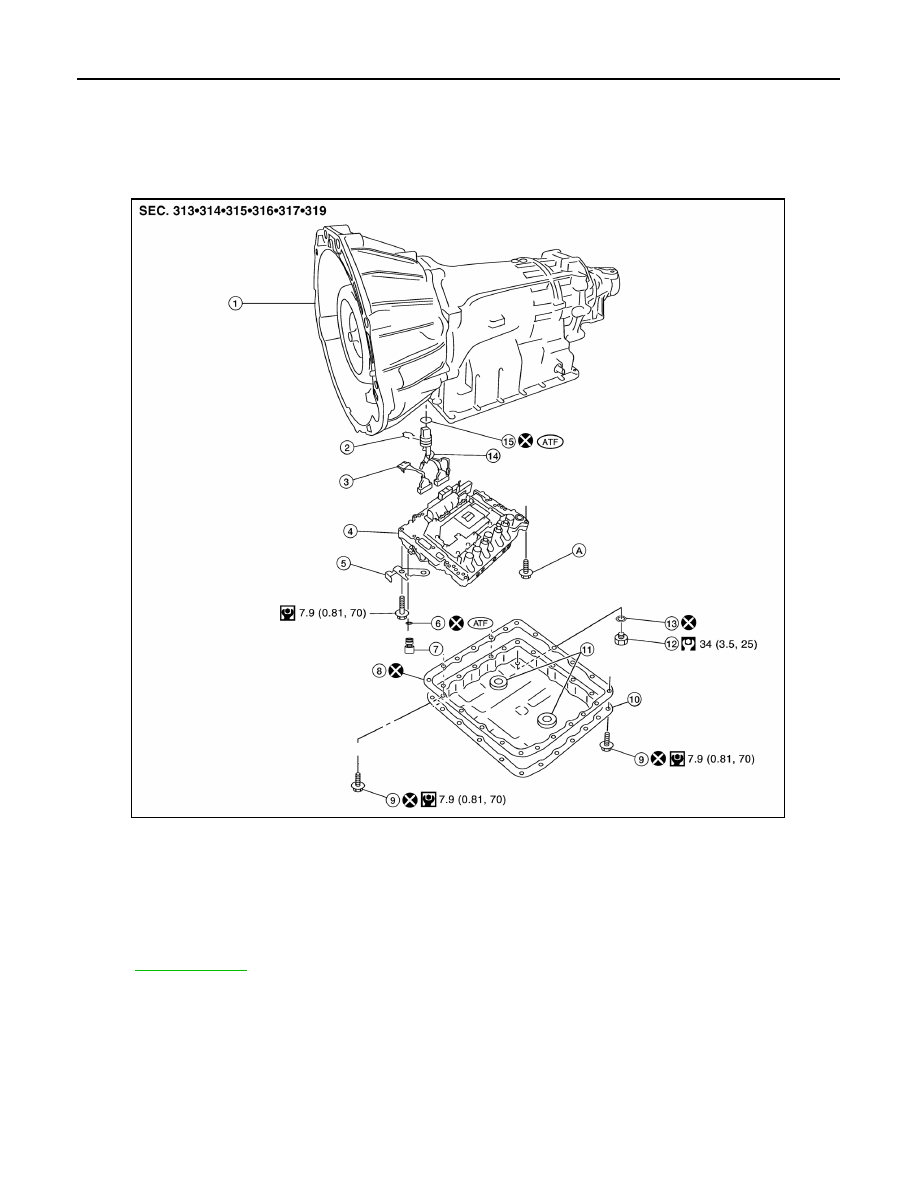

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Oil pan bolts

10. Oil pan

11. Magnet

12. Drain plug

13. Drain plug gasket

14. Terminal cord assembly

15.  O-ring

A.

For tightening torque, refer to "Installation"

Refer to

GI-4, "Components"

 for symbols in the figure.

AWDIA0890GB

August 2012

2012 Pathfinder

CONTROL VALVE WITH TCM

TM-177

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION OF CONTROL VALVE WITH TCM

Removal

1. Disconnect negative battery terminal. Refer to

PG-76, "Removal and Installation"

.

2. Drain A/T fluid. Refer to

TM-159, "Changing the A/T Fluid (ATF)"

.

3. Disconnect A/T assembly harness connector.

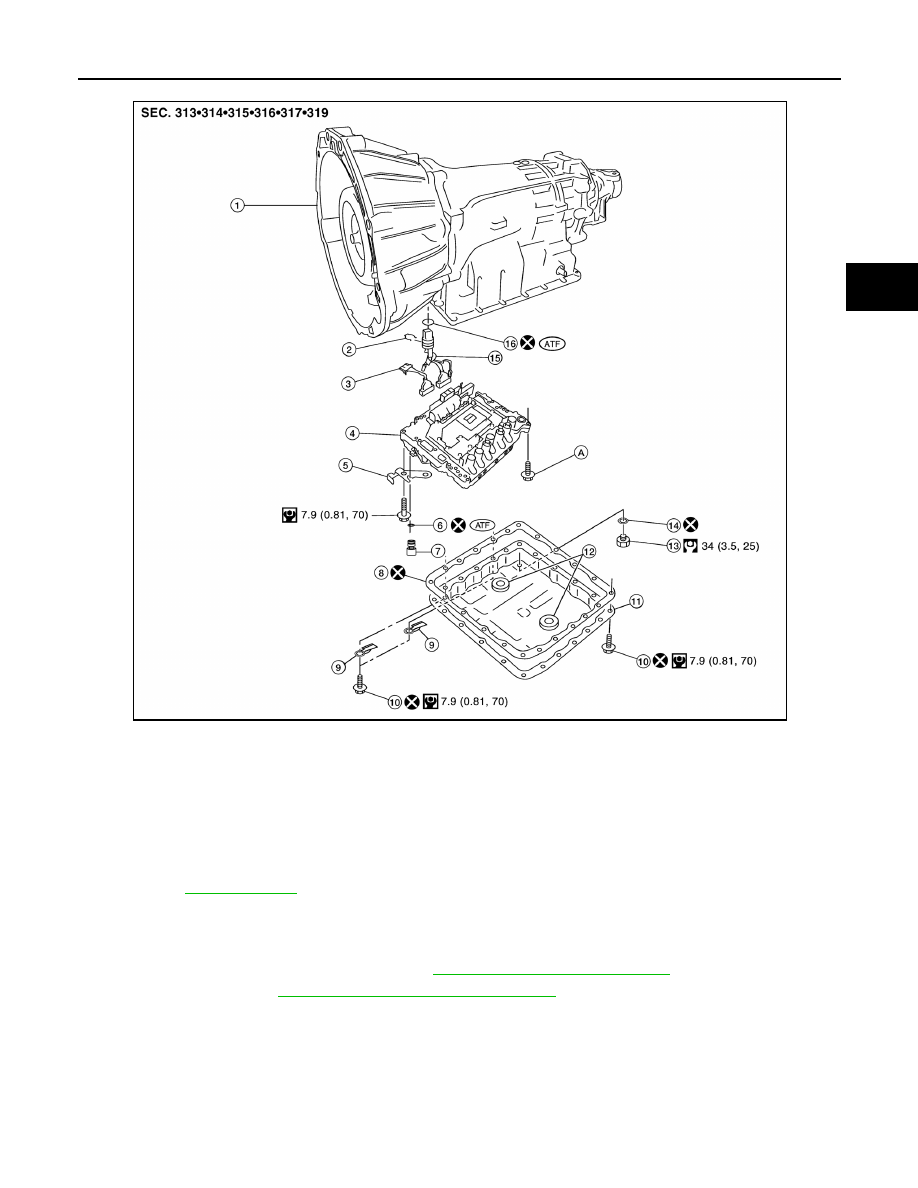

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Brackets

10. Oil pan bolt

11. Oil pan

12. Magnet

13. Drain plug

14. Drain plug gasket

15.  Terminal cord assembly

16. O-ring
A.

For tightening torque, refer to "Installation"

Refer to

GI-4, "Components"

 for symbols in the figure.

AWDIA0886GB

August 2012

2012 Pathfinder

TM-178

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

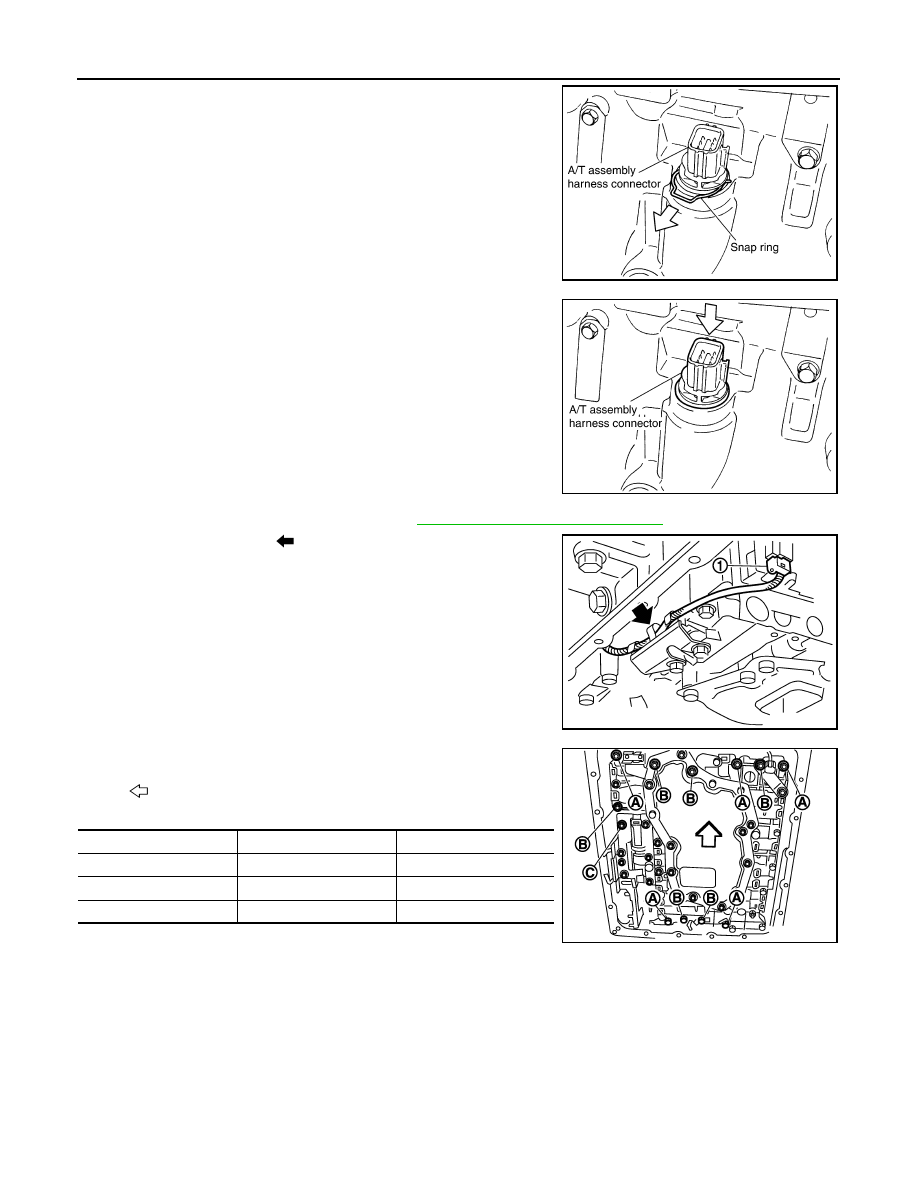

4. Remove snap ring from A/T assembly harness connector.

5. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6. Remove oil pan and oil pan gasket. Refer to

TM-174, "Removal and Installation"

.

7. Straighten terminal clip (

) to free the output speed sensor har-

ness.

8. Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

9. Remove bolts (A), (B) and (C) from control valve with TCM.

SCIA5021E

SCIA5022E

JSDIA1316ZZ

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

August 2012

2012 Pathfinder
