OVERHAUL

TM-211

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

:

Apply Genuine RTV silicone sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and

Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

August 2012

2012 Pathfinder

TM-212

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

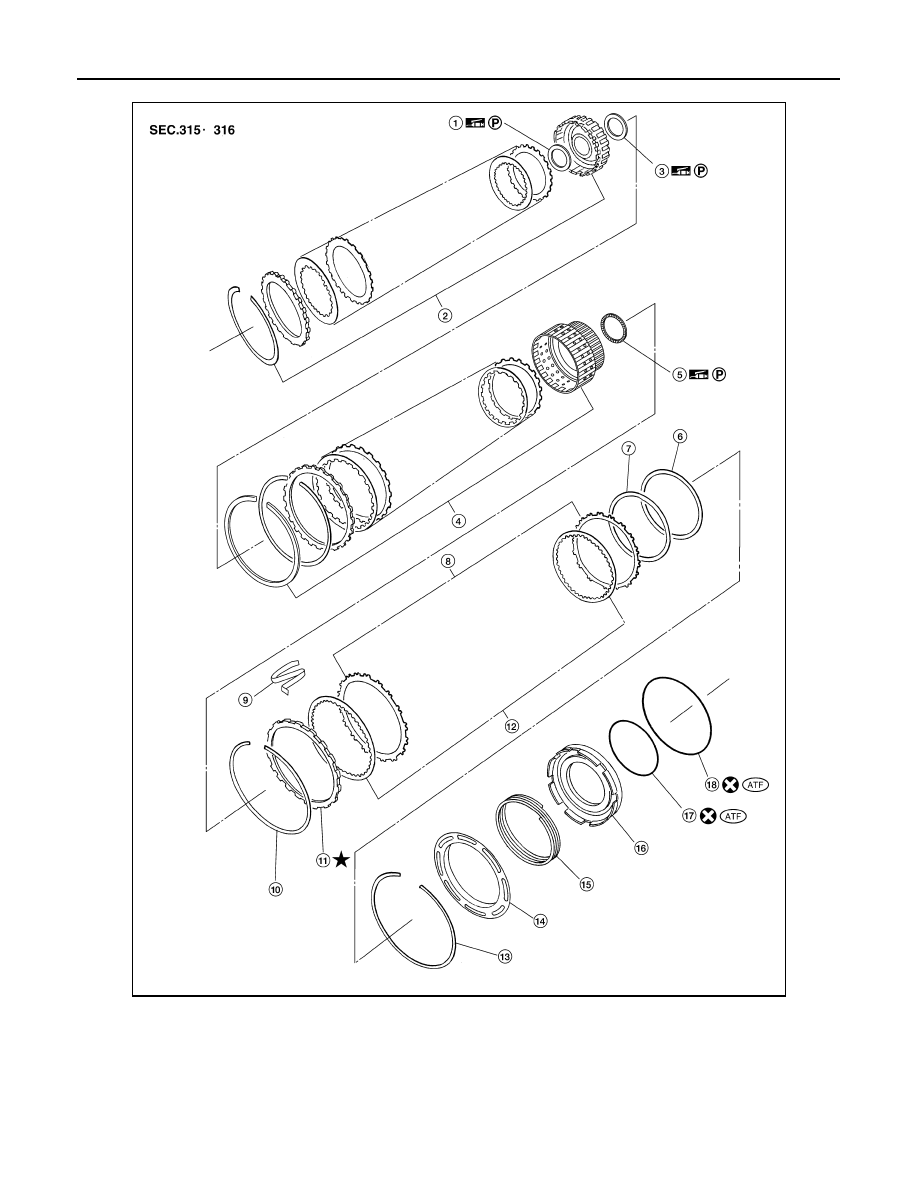

Clutch Pack Components

WCIA0623E

1.

Bearing race

2.

Needle bearing

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Snap ring

11. Reverse brake retaining plate 12. Reverse brake drive plate

13. D-ring

14. D-ring

15. Reverse brake piston

August 2012

2012 Pathfinder

OVERHAUL

TM-213

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

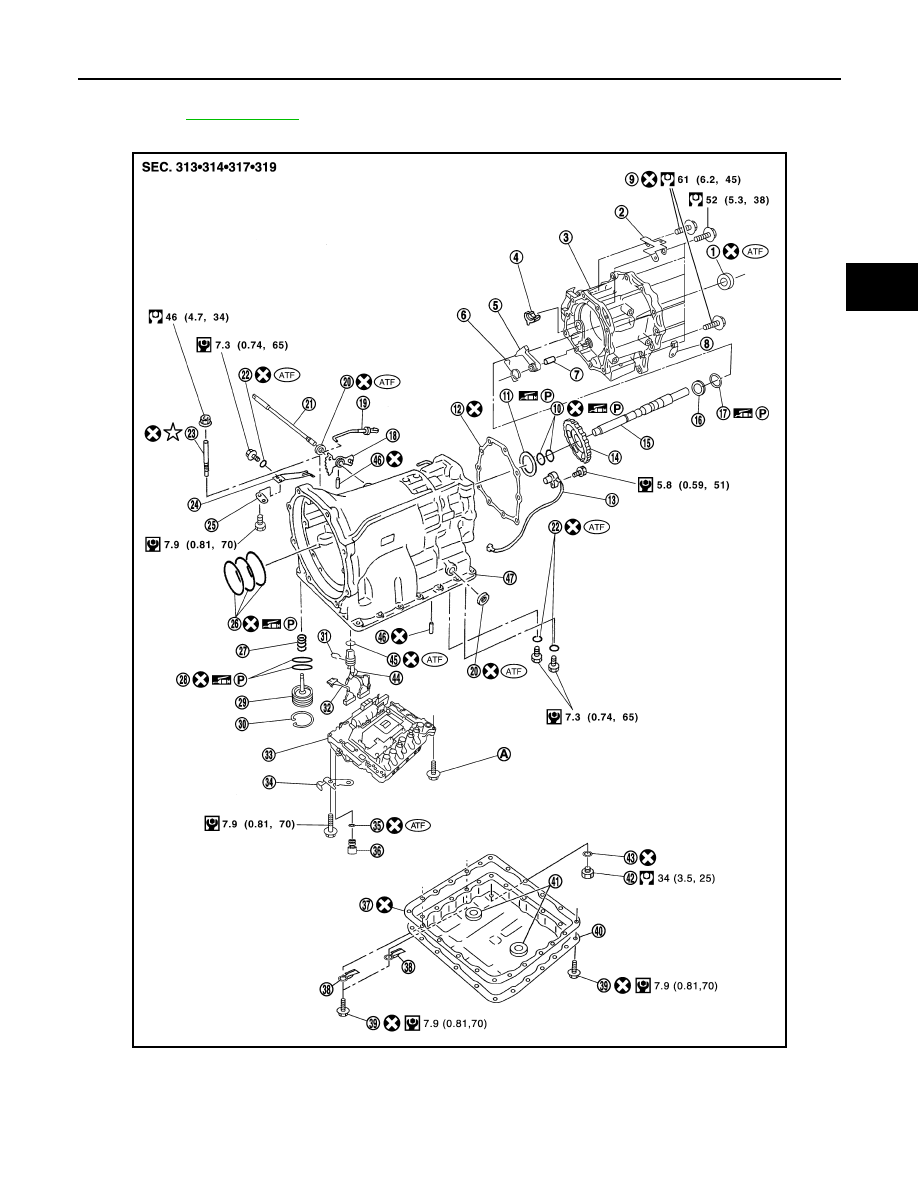

Transmission Case Components for 4WD

16. Return spring

17. Spring retainer

18. Snap ring

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1973GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Bracket

9.

Self-sealing bolt

10. Seal ring

11. Needle bearing

12. Gasket

August 2012

2012 Pathfinder

TM-214

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

13. Output speed sensor

14. Parking gear

15. Output shaft

16. Bearing race

17. Needle bearing

18. Manual plate

19. Parking rod

20. Manual shaft oil seal

21. Manual shaft

22. O-ring

23. Band servo anchor end pin

24. Detent spring

25. Spacer

26. Seal rings

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Snap ring

32. Sub-harness

33. Control valve with TCM

34. Bracket

35. O-ring

36. Plug

37. Oil pan gasket

38. Brackets

39. Oil pan bolt

40. Oil pan

41. Magnets

42. Drain plug

43. Drain plug gasket

44. A/T assembly harness connec-

tor

45. O-ring

46. Retaining pin

47. Transmission case

A.

Tightening must be done following the assembly procedure. Refer to

TM-275, "Assembly (2)"

.

Refer to

GI-4, "Components"

 for symbols in the figure.

August 2012

2012 Pathfinder

OVERHAUL

TM-215

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

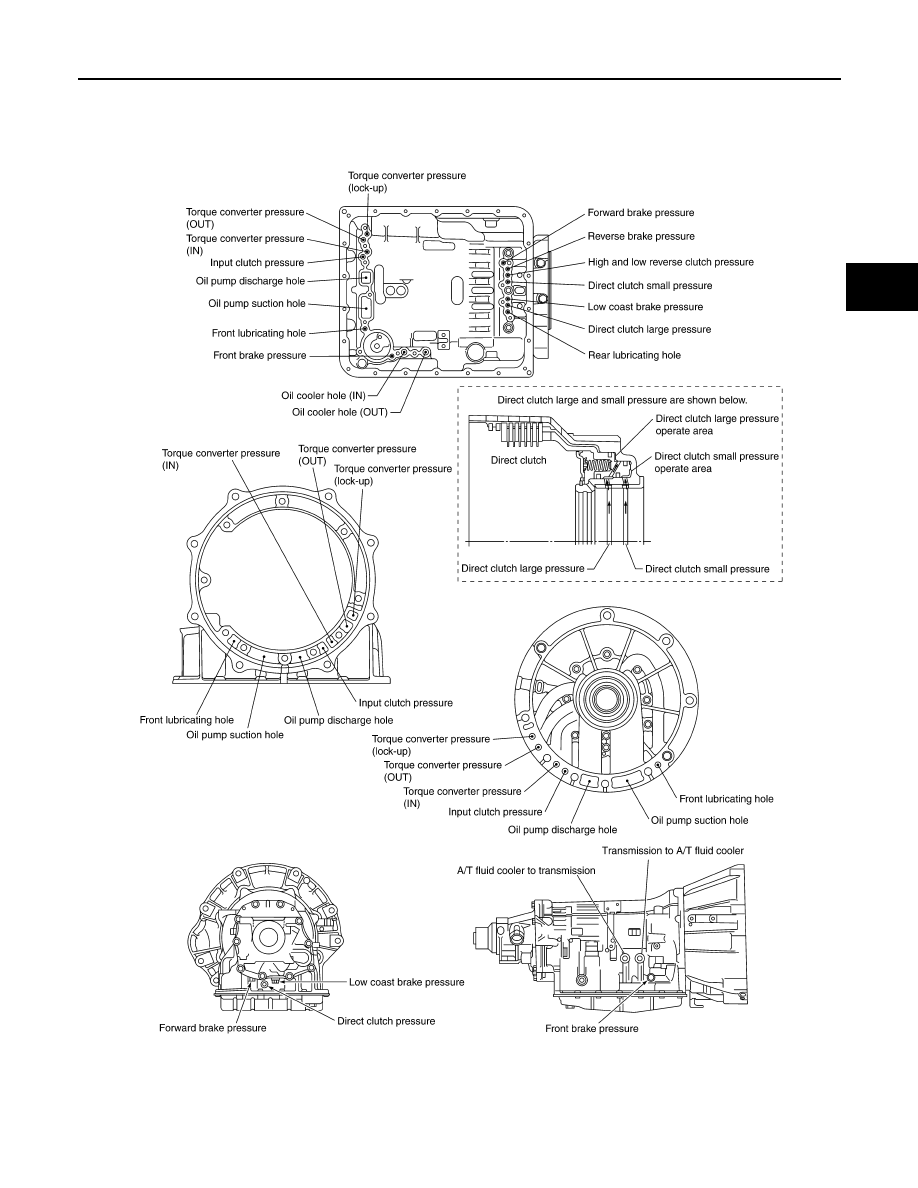

Oil Channel

INFOID:0000000007357318

2WD models

SCIA5185E

August 2012

2012 Pathfinder

TM-216

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

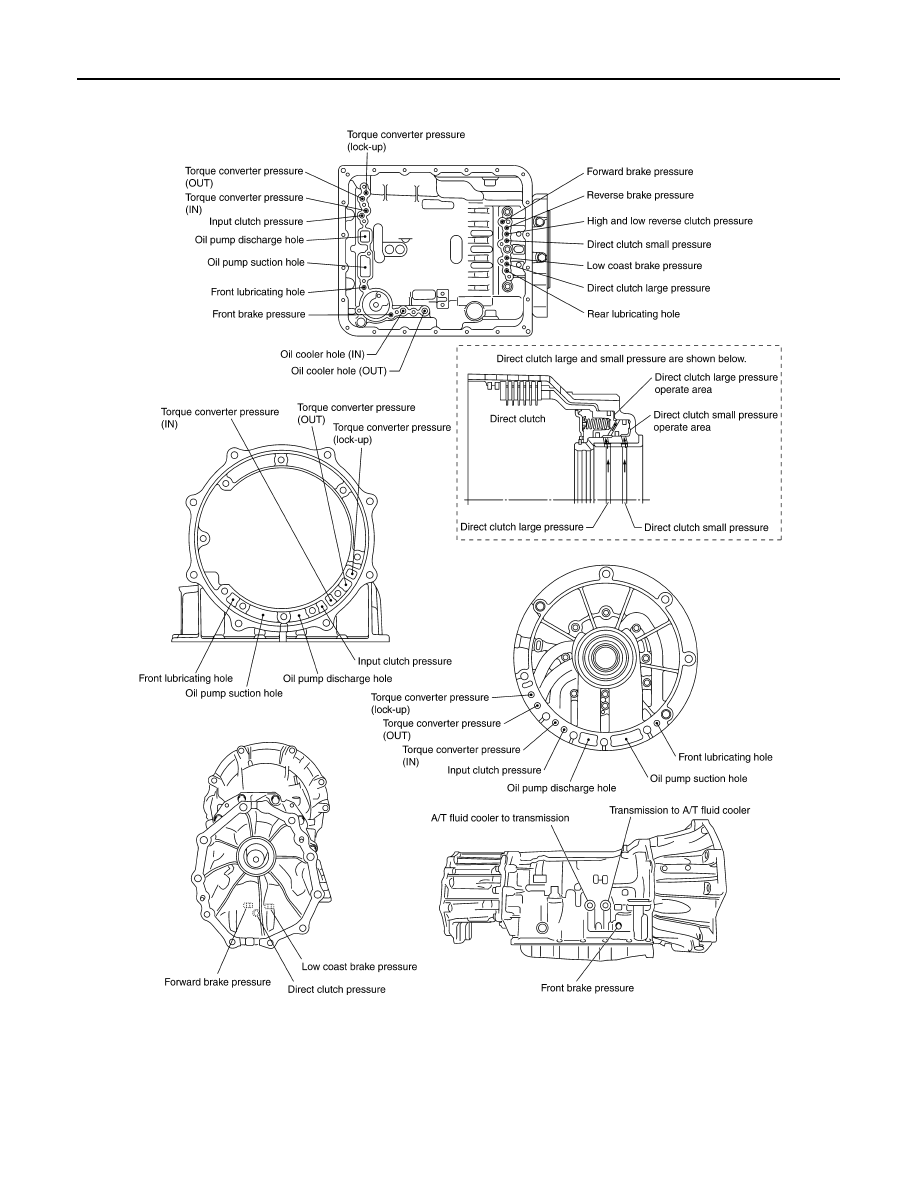

4WD models

SCIA5189E

August 2012

2012 Pathfinder

OVERHAUL

TM-217

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

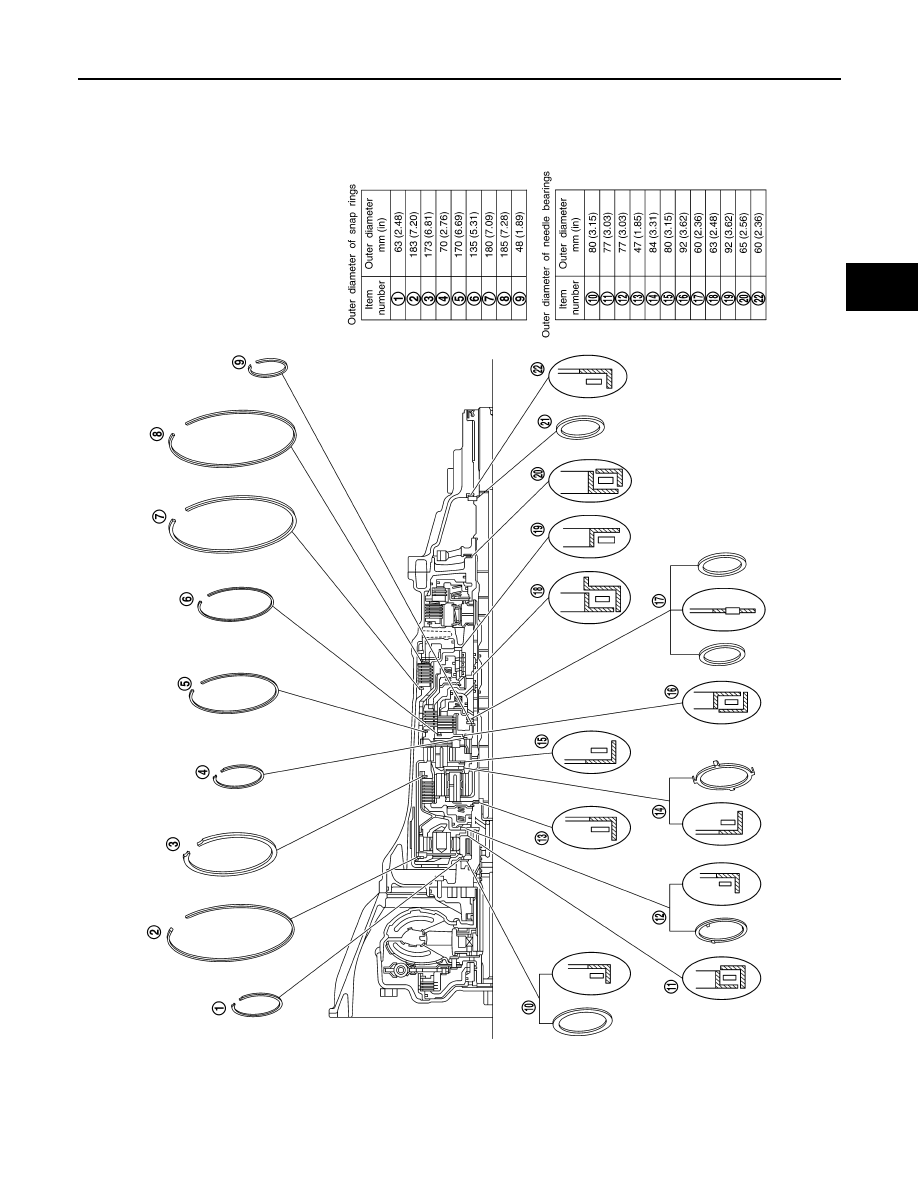

Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

INFOID:0000000007357319

VQ40DE models 2WD

SCIA7019E

August 2012

2012 Pathfinder

TM-218

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

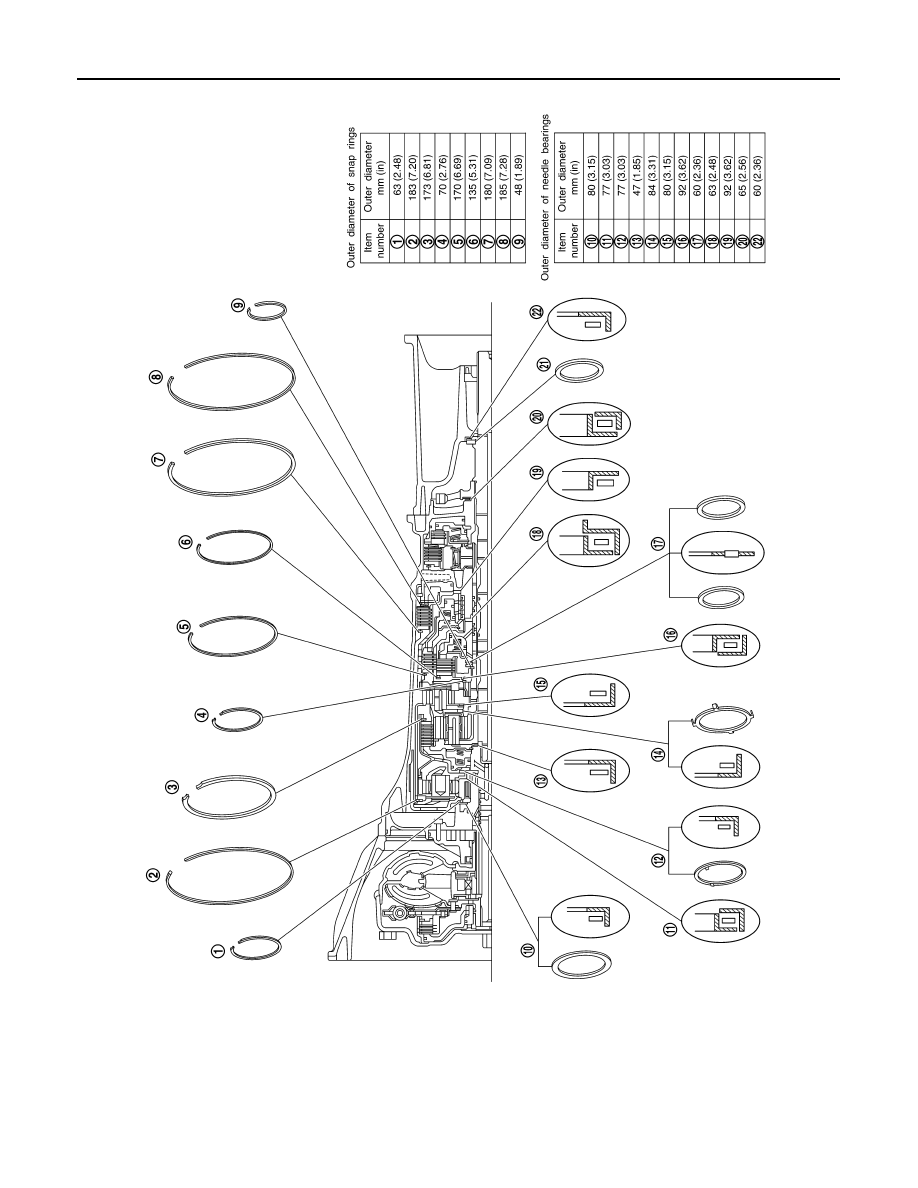

VQ40DE models 4WD

SCIA7020E
