Nissan Pathfinder (2012 year). Manual - part 525





SE-40

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

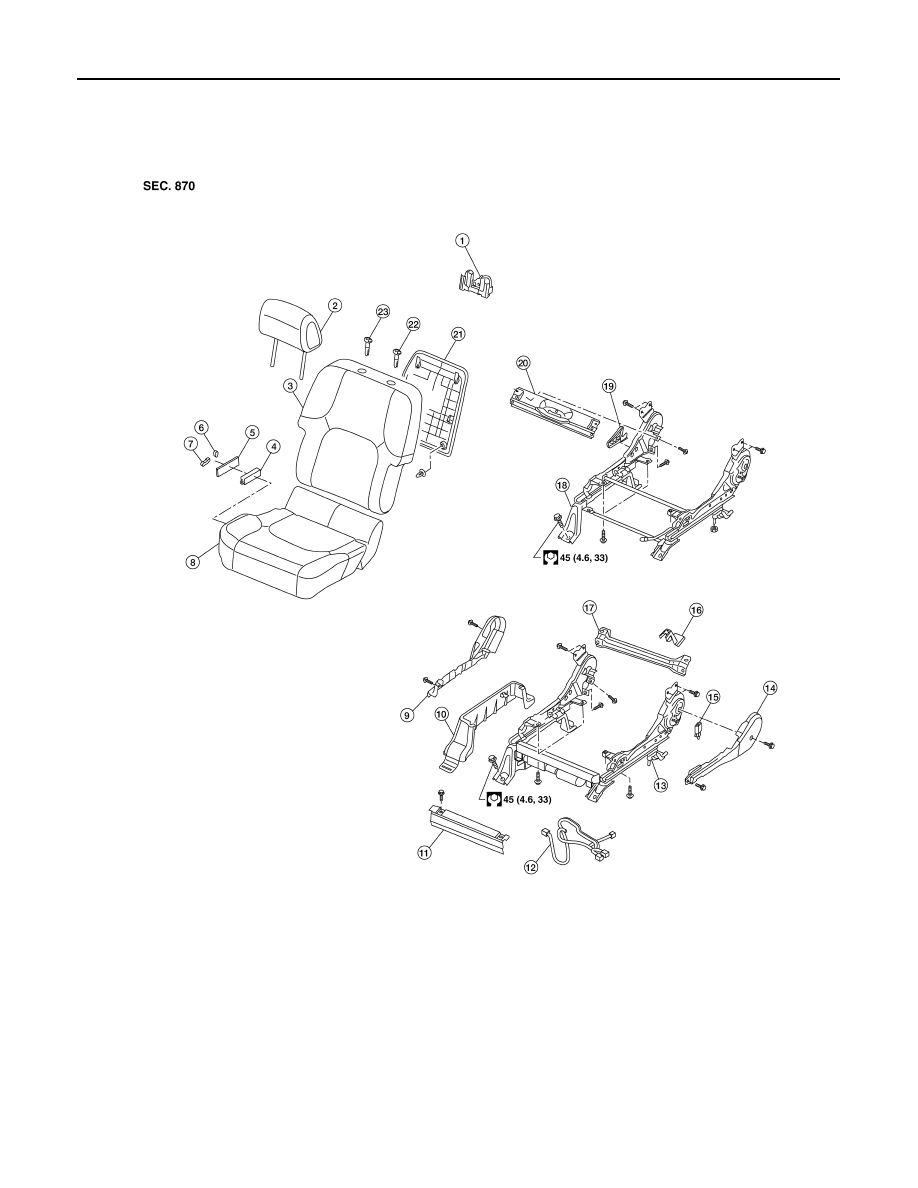

Conventional Passenger Seat

19. Headrest holder with multi position

lock

20. Headrest holder

21. Lumbar support lever knob

22 Snap ring

AWJIA0552ZZ

1.

Damper assembly

2.

Headrest

3.

Seatback assembly

4.

Switch assembly

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Seat cushion assembly

9.

Seat cushion outer cover

10. Leg cover

11. Seat cushion front finisher

12. Passenger seat wiring harness

13. Power seat frame assembly

14. Seat cushion inner finisher

15. Seat belt buckle assembly

16. Leg cover

17. Seat cushion rear finisher

18. Manual seat frame assembly

August 2012

2012 Pathfinder

FRONT SEAT

SE-41

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

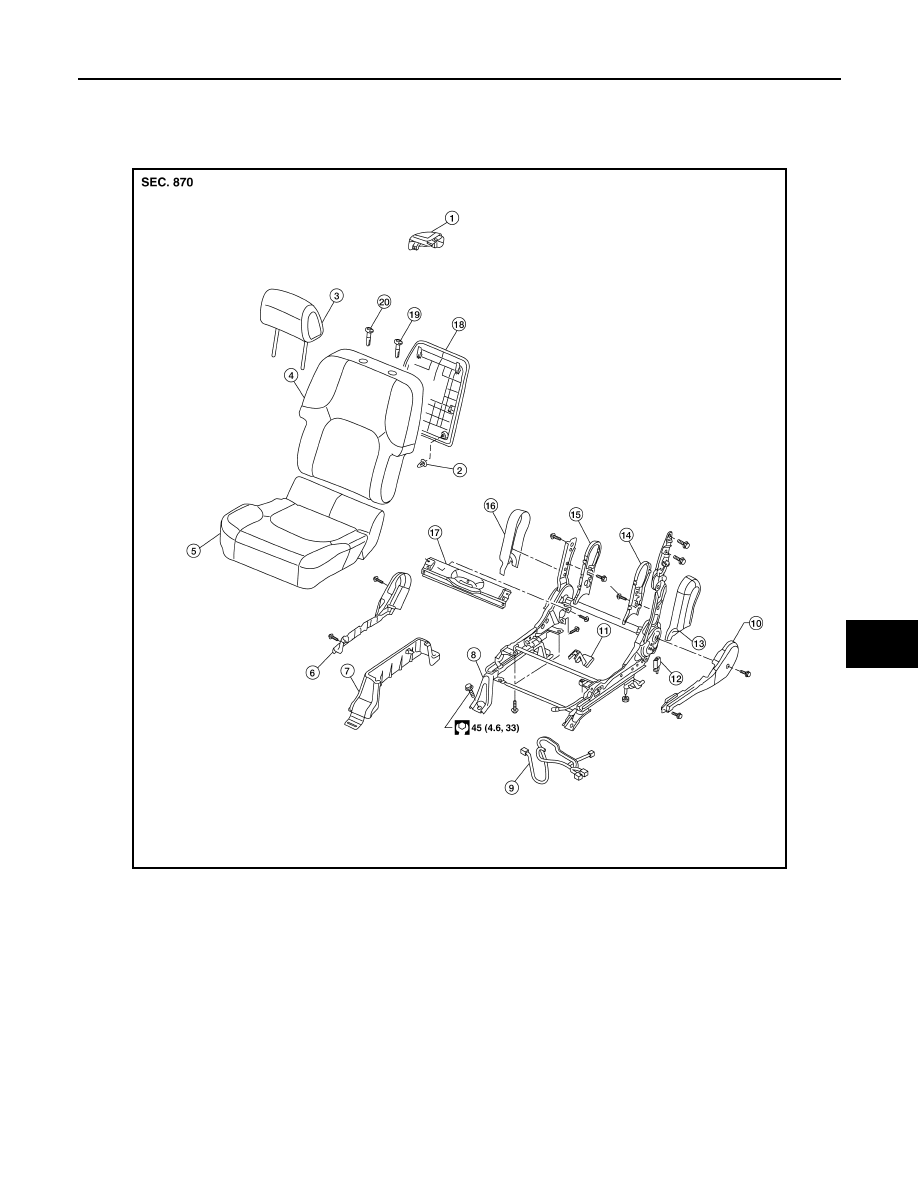

Fold Flat Passenger Seat

Seatback Assembly

INFOID:0000000007356074

REMOVAL

CAUTION:

19. Recline lever

20. Seat cushion rear finisher

21. Seatback board

22. Headrest holder with multi position

lock

23. Headrest holder

AWJIA0553ZZ

1.

Front seatback lever

2.

Trim clip

3.

Headrest

4.

Seatback assembly

5.

Seat cushion assembly

6.

Seat cushion outer finisher

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

August 2012

2012 Pathfinder

SE-42

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

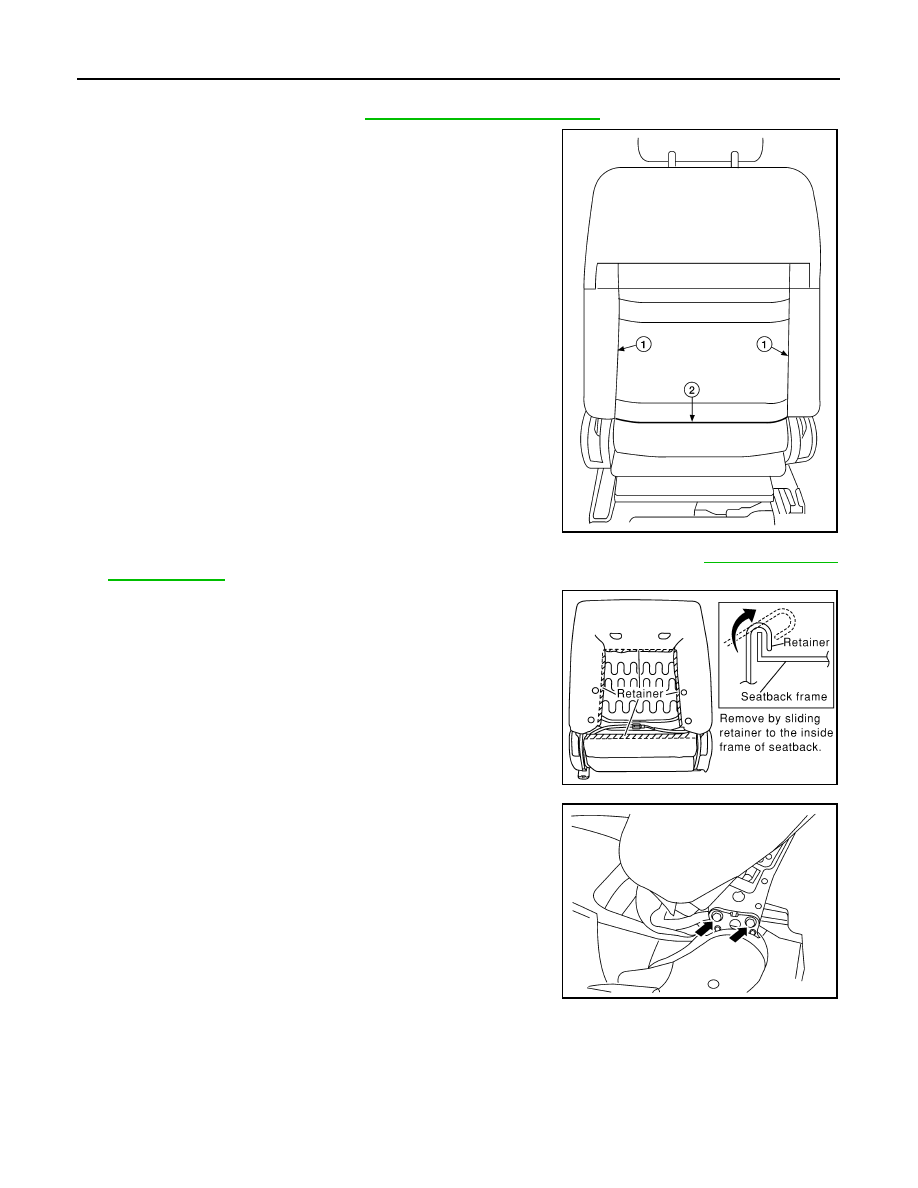

Seats equipped with side air bags can only be serviced as an assembly.

1. Remove the seat assembly. Refer to

SE-33, "Removal and Installation"

.

2. Unzip the seatback trim flap (1).
3. Unclip the lower retainer (2).

4. For the passenger seatback, remove the seatback board from the seatback. Refer to

SE-43, "Passenger

Seatback Board"

.

5. Unclip the seatback trim J-clips.

6. Remove the bolts (two for each side) and the seatback assem-

bly.

DISASSEMBLY

CAUTION:

Seats equipped with side air bags can only be serviced as an assembly.

1. Remove the seatback assembly.
2. Remove the headrest.

LIIA2419E

SIIA0113E

LIIA2420E

August 2012

2012 Pathfinder

FRONT SEAT

SE-43

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

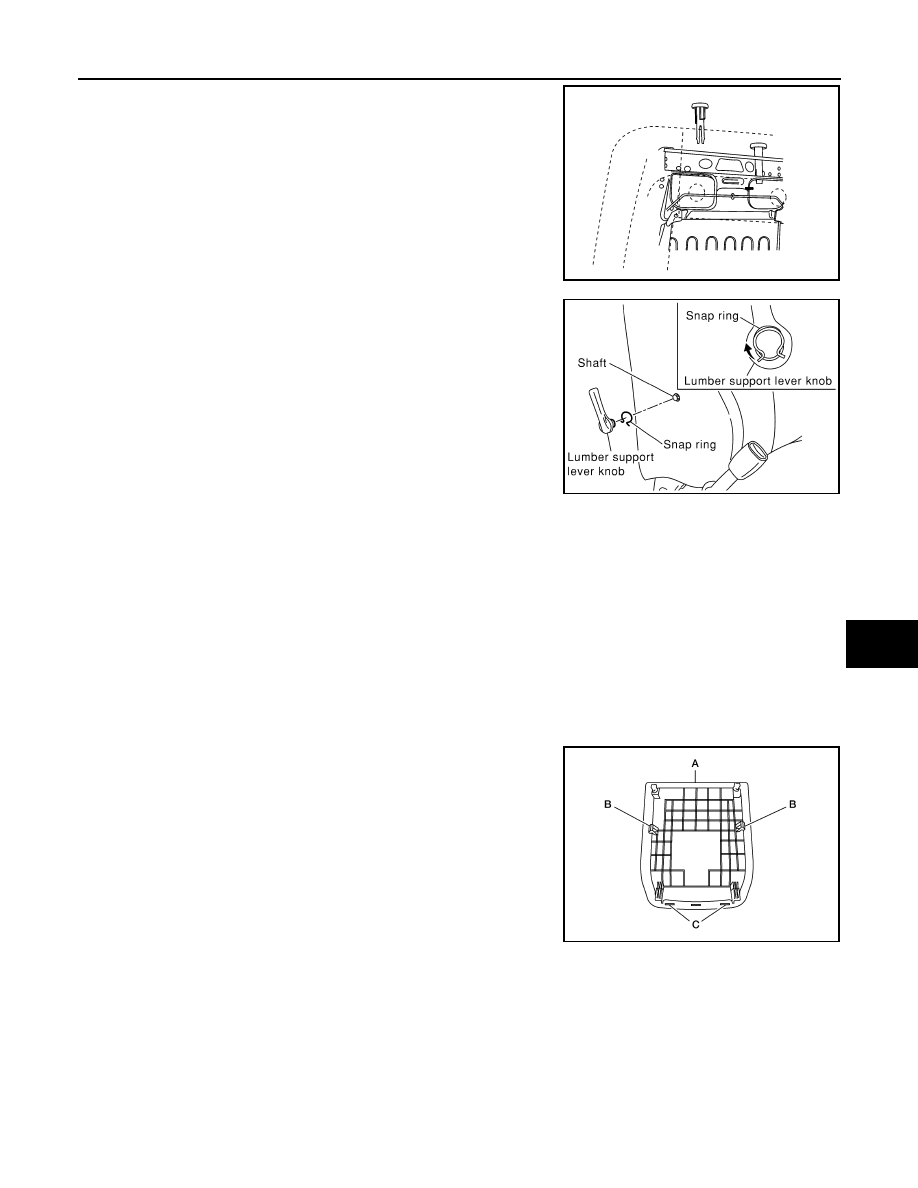

3. From inside of the seatback, squeeze the headrest holder tabs

at the base of the stay pipe and pull up to remove.

NOTE:

Before installing the headrest holder, check its orientation (front/

rear and right/left).

4. Remove the snap ring and the lumbar support lever knob.

5. Remove the seatback trim and pad assembly.
6. Remove the hog rings to separate the seatback trim from the pad and the heating element (if equipped).

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

Passenger Seatback Board

INFOID:0000000007356075

SOFT SEATBACK

Removal

1. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

2. Move seat to forward position.

LRS023

PIIA1156E

ALIIA0366ZZ

August 2012

2012 Pathfinder

SE-44

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

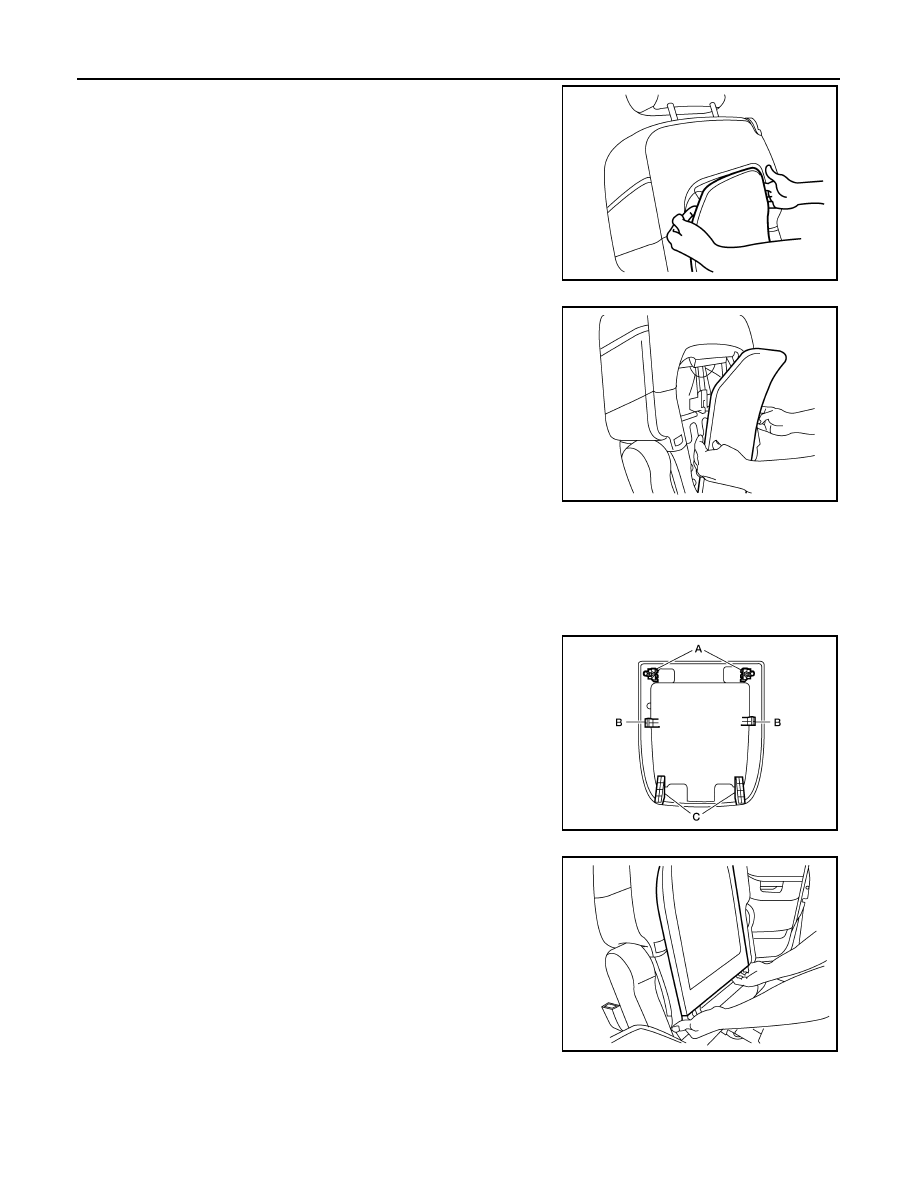

3. Hold the seatback board as shown and pull the top of the seat-

back board away from the seat back frame.

4. Pull the middle part of the seatback board to disengage the side

tabs (A) from the seatback frame.

5. Pull the lower part of the seatback board to disengage the bot-

tom clips from the seatback frame.

Installation

Installation is in the reverse order of removal.

HARD SEATBACK

Removal

1. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

2. Move seat to forward position.

3. Hold the seatback board as shown and pull the bottom of the

seatback board away from the seat back frame.

ALIIA0368ZZ

ALIIA0367ZZ

ALIIA0369ZZ

ALIIA0370ZZ

August 2012

2012 Pathfinder

FRONT SEAT

SE-45

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

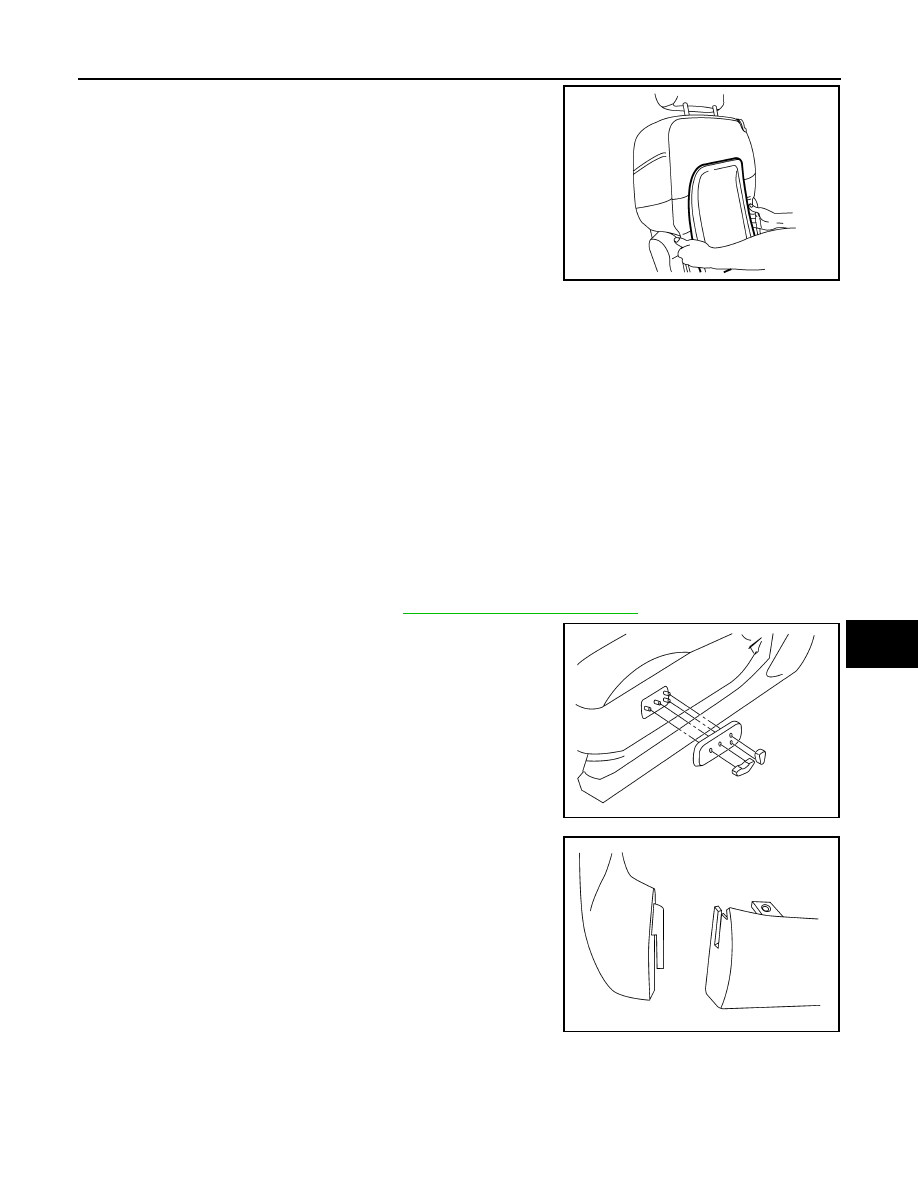

4. Pull the middle part of the seatback board to disengage the side

tabs (A) from the seatback frame.

5. Lift the upper part of the seatback board to disengage the top

tabs from the seatback frame.

Installation

Installation is in the reverse order of removal.

Seat Cushion Trim and Pad

INFOID:0000000007356076

REMOVAL

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.

• When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.

• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

• The Occupant Classification System control module can only be replaced as part of the seat cushion

assembly.

1. Remove the front seat assembly. Refer to

SE-33, "Removal and Installation"

.

2. Remove the power seat switch knobs and power seat switch

escutcheon (if equipped) or lift knobs on manual seats.

3. Remove the seat cushion outer finisher.

4. Remove the power seat switch screws.
5. Remove four bolts and the seat cushion assembly.

ALIIA0371ZZ

LIIA0681E

LIIA0285E

August 2012

2012 Pathfinder

SE-46

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

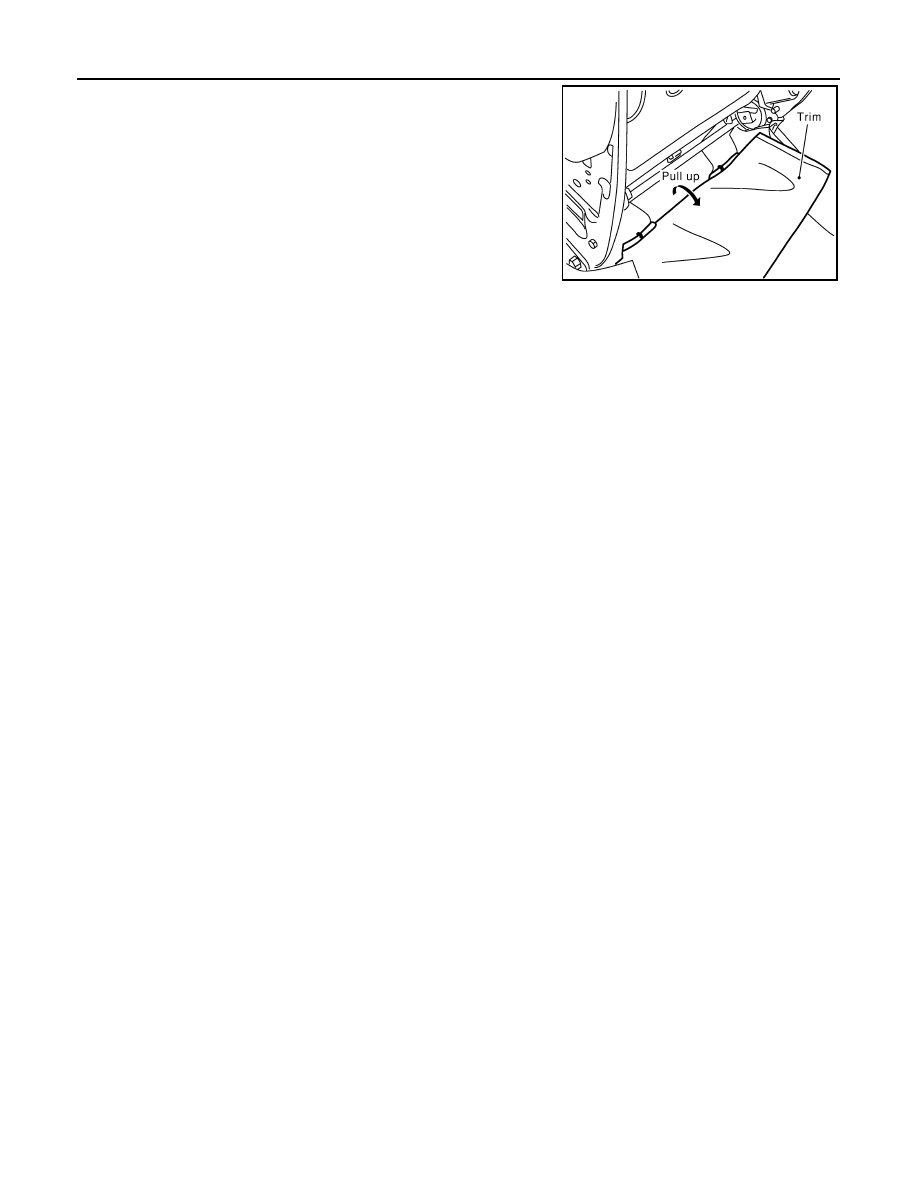

• On the fold flat passenger seat it is necessary to unclip the

rear flap j-clip from the seat pan.

6. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat cushion

heater (if equipped).

DISASSEMBLY

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

1. Remove the seat cushion assembly.
2. On the drivers seat only, remove the hog rings to separate the trim cover from the pad and seat cushion

heater unit.

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

SIIA0503E

August 2012

2012 Pathfinder

REAR SEAT

SE-47

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

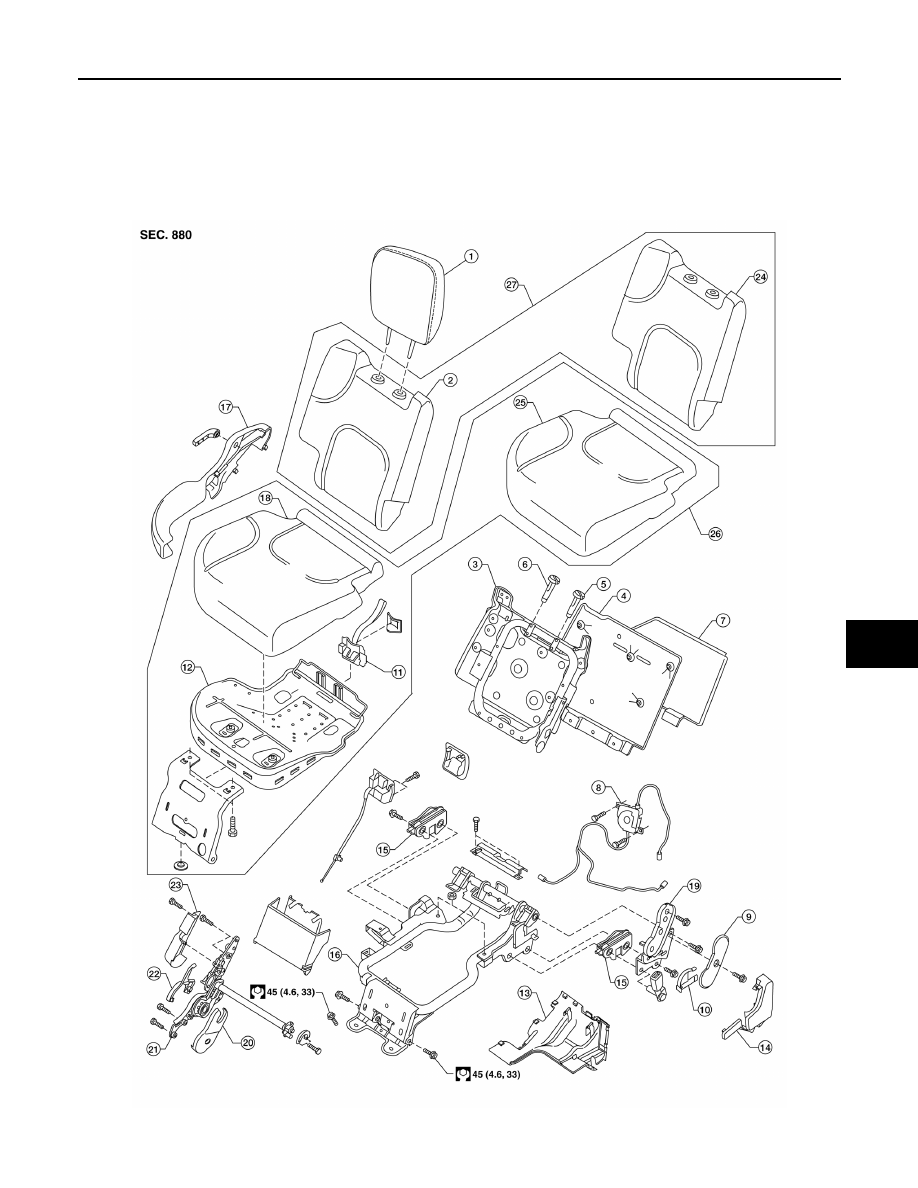

REAR SEAT

Exploded View

INFOID:0000000007356077

Disassembly and Assembly

INFOID:0000000007356078

Second Row Outer

AWJIA0788GB
