Nissan Pathfinder (2012 year). Manual - part 526

SE-48

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

1.

Headrest

2.

Seatback pad

3.

Seatback frame

4.

Seatback panel

5.

LH Headrest locking guide

6.

RH Headrest guide

7.

Flipper panel

8.

Seat actuator assembly

9.

Reclining device inner cover

10. Reclining device inner mid cover

11. Latch assembly

12. Seat cushion frame assembly

13. Lower rear seat cover

14. Lower rear seat cover inner

15. Cushion floor latch

16. Seat cushion support frame assem-

bly

17. Lower rear seat cover outer

18. Seat cushion pad

19. Inner inboard reclining device cover  20. Inner outboard reclining device cover  21. Reclining device lever
22. Reclining device outer mid cover

23. Reclining device outer cover

24. Seatback trim cover

25. Seat cushion trim cover

26. Seat cushion assembly

27. Seatback assembly

August 2012

2012 Pathfinder

REAR SEAT

SE-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

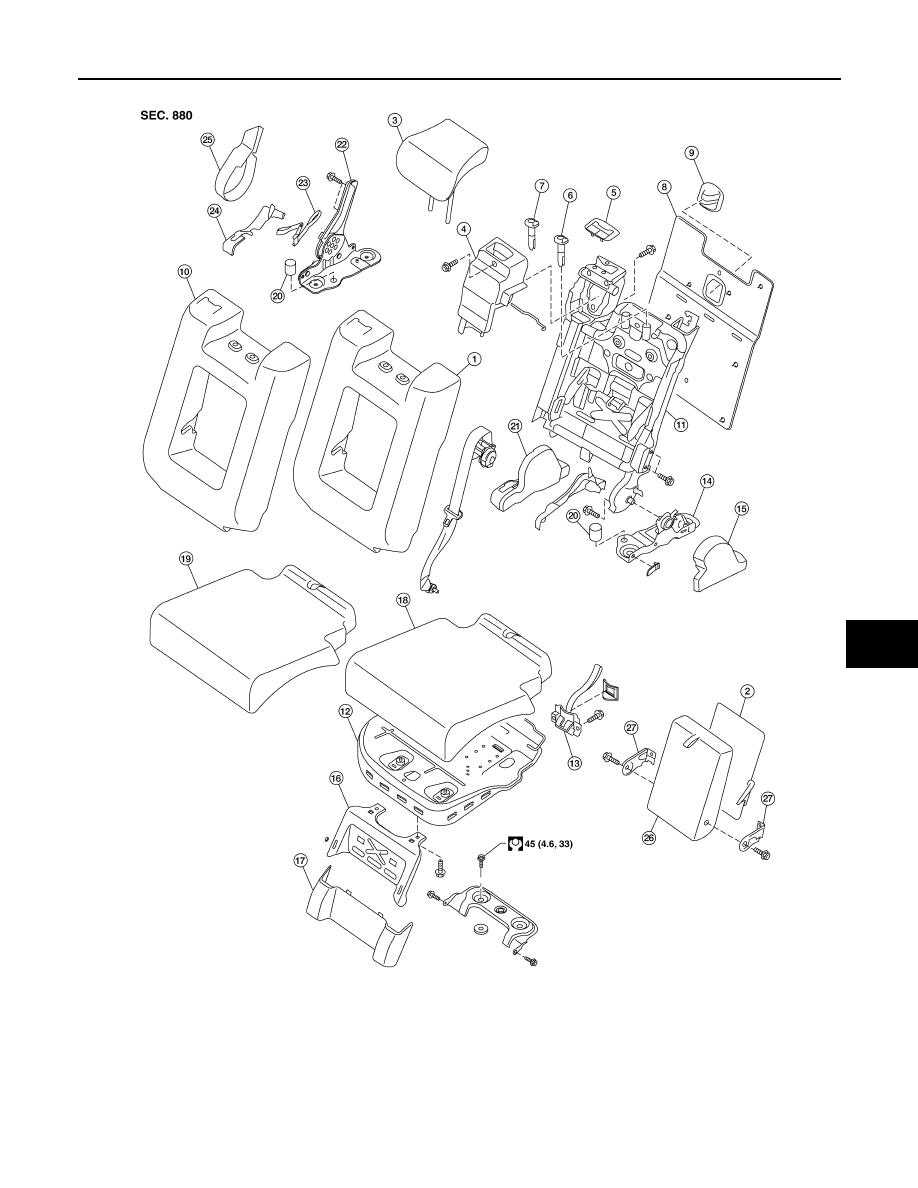

Second row center

AWJIA0414GB

1.

Seatback pad

2.

Armrest finisher

3.

Headrest

4.

Seat belt retractor cover

5.

Seat belt bezel

6.

LH headrest guide locking

7.

RH headrest guide free

8.

Seatback board

9.

Seat bracket cover

10. Seatback trim cover

11. Seatback frame

12. Seat cushion frame

13. Latch assembly

14. Lower rear pivot bracket support

15. Outer hinge cover

16. Center seat base assembly

17. Link and pivot bracket apron

18. Seat cushion pad

19. Seat cushion trim cover

20. Cushion stop bumper

21. Inner lever cover

August 2012

2012 Pathfinder

SE-50

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

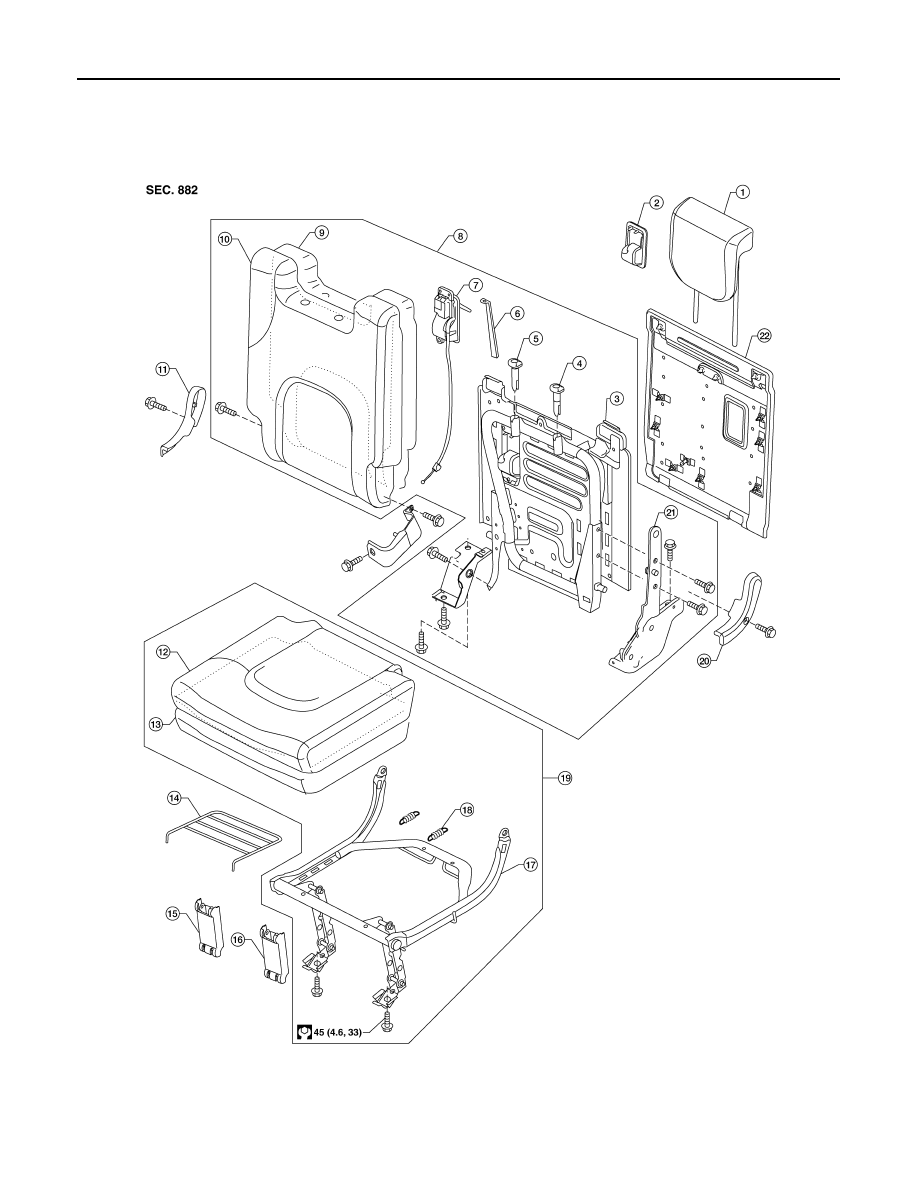

Third row

22. Seatback hinge assembly

23. Seat lever assembly

24. Outer lever cover

25. Seat lock cover

26

Armrest

27. Armrest bracket

28. Seat cushion assembly

29. Seatback assembly

ALJIA0477GB

1.

Headrest

2.

Release handle cover

3.

Seatback frame

4.

Headrest locking guide

5.

Headrest guide free

6.

Strap

7.

Release handle and cable

8.

Seatback assembly

9.

Seatback pad

August 2012

2012 Pathfinder

REAR SEAT

SE-51

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

10. Seatback trim cover

11. RH side link cover

12. Seat cushion trim cover

13. Seat cushion pad

14. Flex mat

15. Front link cover RH

16. Front link cover LH

17. Seat cushion frame

18. Extension spring

19. Seat cushion assembly

20. RH side link cover

21. Seatback latch

22. Seatback panel

August 2012

2012 Pathfinder
