Nissan Pathfinder (2012 year). Manual - part 524





SE-32

< REMOVAL AND INSTALLATION >

FRONT SEAT

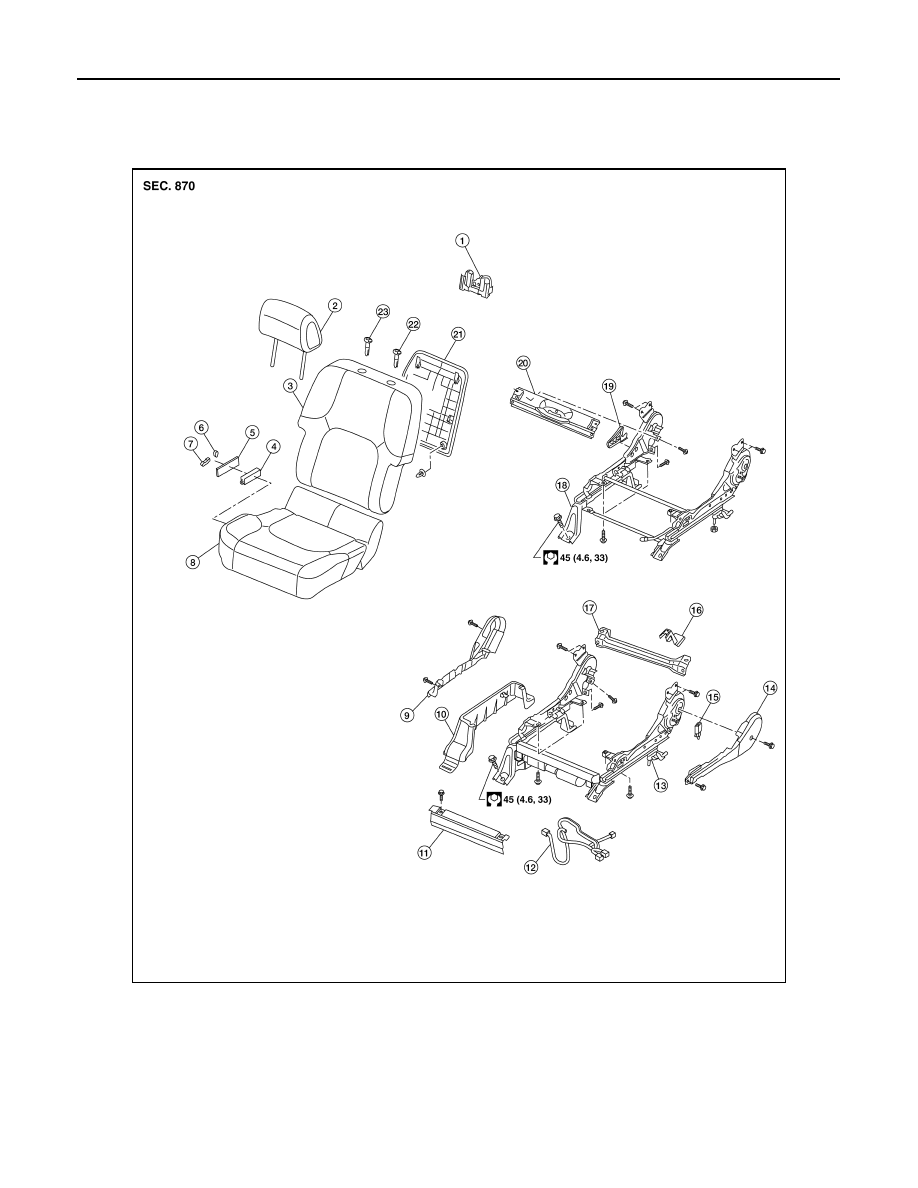

Conventional Passenger Seat

19. Headrest holder with multi position

lock

20. Headrest holder

21. Lumbar support lever knob

22. Snap ring

AWJIA0552ZZ

1.

Damper assembly

2.

Headrest

3.

Seatback assembly

4.

Switch assembly

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Seat cushion assembly

9.

Seat cushion outer cover

10. Leg cover

11. Seat cushion front finisher

12. Passenger seat wiring harness

13. Power seat frame assembly

14. Seat cushion inner finisher

15. Seat belt buckle assembly

16. Leg cover

17. Seat cushion rear finisher

18. Manual seat frame assembly

19. Recline lever

20. Seat cushion rear finisher

21. Seatback board

August 2012

2012 Pathfinder

FRONT SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

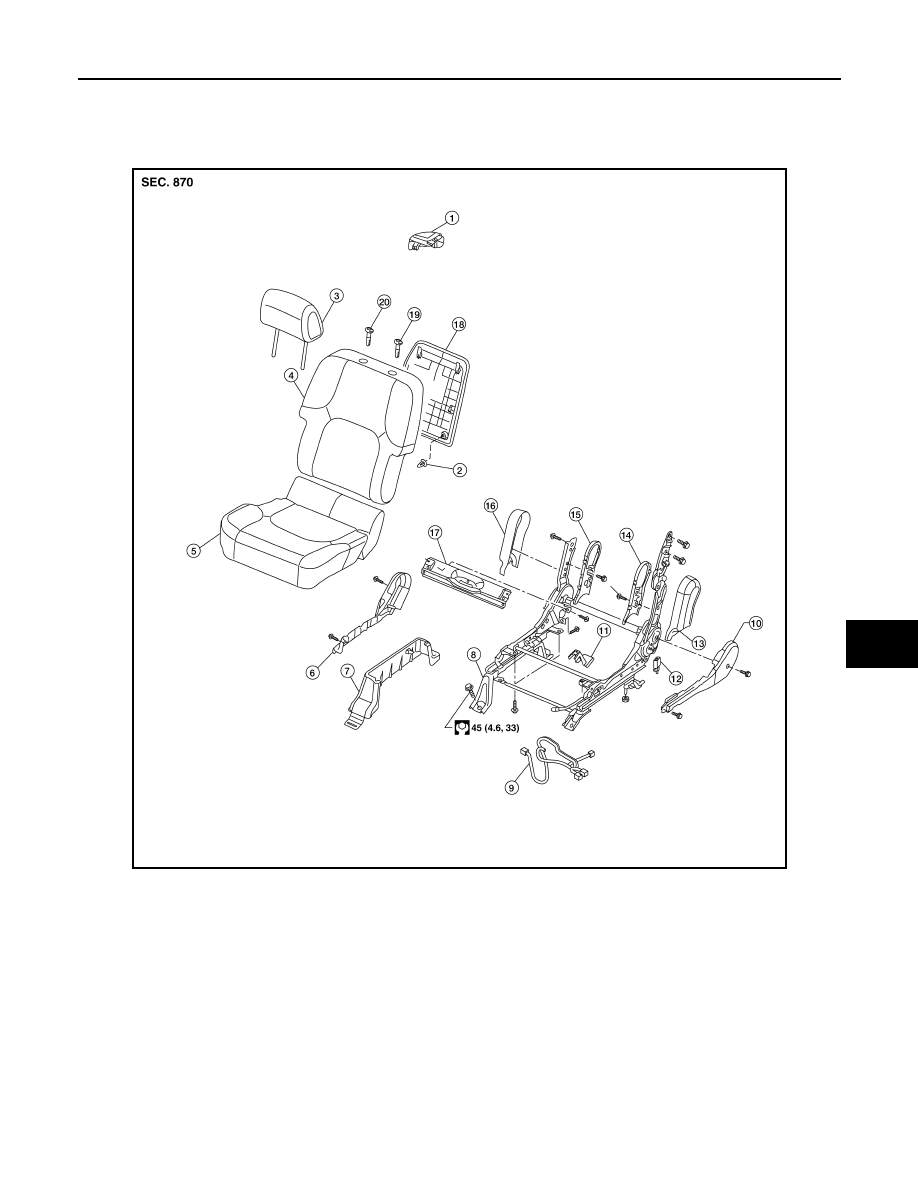

Fold Flat Passenger Seat

Removal and Installation

INFOID:0000000007356071

REMOVAL

22. Headrest holder with multi position

lock

23. Headrest holder

AWJIA0553ZZ

1.

Front seatback lever

2.

Trim clip

3.

Headrest

4.

Seatback assembly

5.

Seat cushion assembly

6.

Seat cushion outer finisher

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

August 2012

2012 Pathfinder

SE-34

< REMOVAL AND INSTALLATION >

FRONT SEAT

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and

wait at least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.

1. Slide the seat until the four front seat bolts are visible and a tool can be inserted.

NOTE:

Set the front/rear cushion lifters to the top position.

2. Disconnect both the negative and positive battery terminals and wait at least three minutes.
3. Disconnect the side air bag module harness connector.
4. If removing the passenger seat, disconnect the Occupant Classification System harness.
5. Remove the four front seat bolts.
6. Disconnect the power seat harness connectors (if equipped) and remove the seat from the vehicle.

CAUTION:

When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

REAR SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

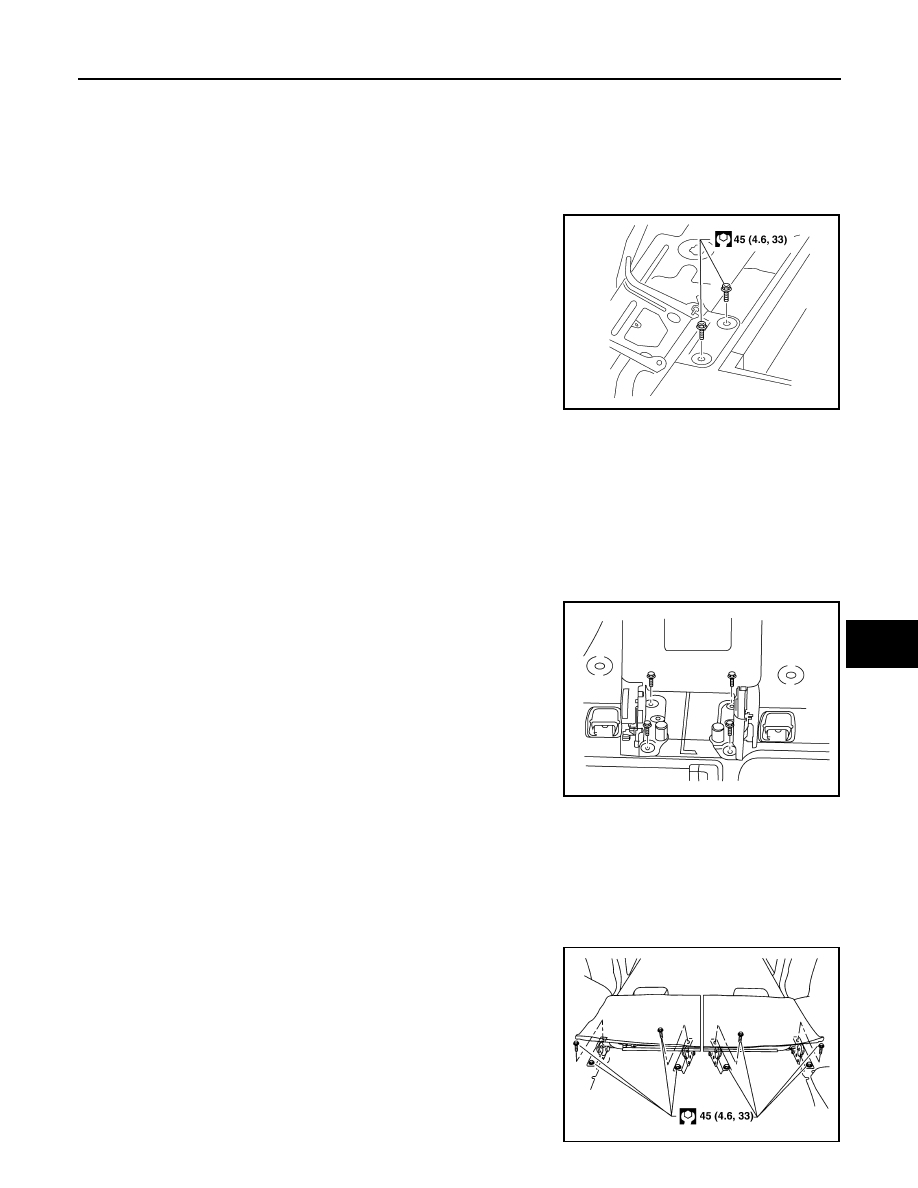

REAR SEAT

Removal and Installation

INFOID:0000000007356072

SECOND ROW OUTBOARD

Removal

1. Tilt seat cushion forward.
2. Remove two seat bolts.

3. Lower seat cushion and tilt seatback forward.
4. Remove seat base trim cover.
5. Remove forward seat nuts and assembly.

Installation

Installation is in the reverse order of removal.

SECOND ROW CENTER

Removal

1. Tilt the seat cushion forward.
2. Remove the seat cushion bolts and assembly.
3. Remove the seatback bolts and assembly.

Installation

Installation is in the reverse order of removal.

THIRD ROW

Removal

1. Remove the lower base trim covers.
2. Remove front anchor bolts.
3. Lower the seatback into the cargo floor position.
4. Remove the rear anchor bolts from the seat assembly.
5. Remove the seat assembly.

ALJIA0226GB

AWIIA0113ZZ

WIIA0764E

August 2012

2012 Pathfinder

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

Installation

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

FRONT SEAT

SE-37

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Exploded View

INFOID:0000000007356073

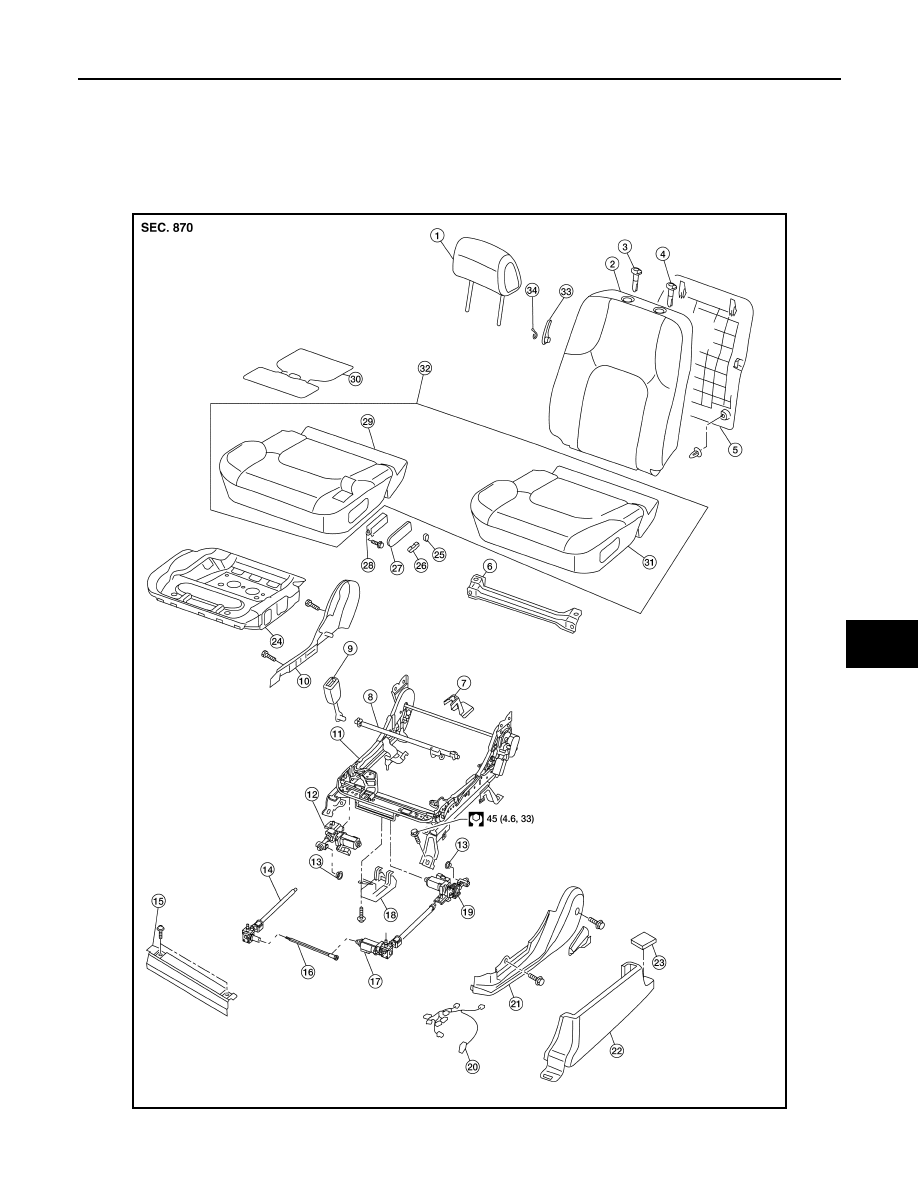

Power Driver Seat

AWJIA0550ZZ

August 2012

2012 Pathfinder

SE-38

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1.

Headrest

2.

Seatback assembly

3.

Headrest holder

4.

Headrest holder with multi position
lock

5.

Seatback board

6.

Power seat cushion rear finisher

7.

Leg Cover

8.

Lifter motor link bar

9.

Seat belt buckle assembly

10. Seat cushion inner finisher

11. Seat frame assembly

12. Seat lifter motor assembly

13. Seat spacer

14. Lock gear

15. Seat cushion front finisher

16. Flexible seat wire

17. Front seat slide motor assembly (LH) 18. Power seat control assembly

19. Lifter motor bracket assembly

20. Driver seat wiring harness

21. Seat cushion outer finisher

22 Leg cover

23 Bolt cover

24. Seat cushion frame

25. Recliner switch knob

26. Slide switch knob

27. Power seat switch escutcheon

28. Switch assembly

29. Seat cushion pad

30. Seat cushion heating element

31. Seat cushion trim

32. Seat cushion assembly

33. Lumbar support lever knob

34. Snap ring

August 2012

2012 Pathfinder

FRONT SEAT

SE-39

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

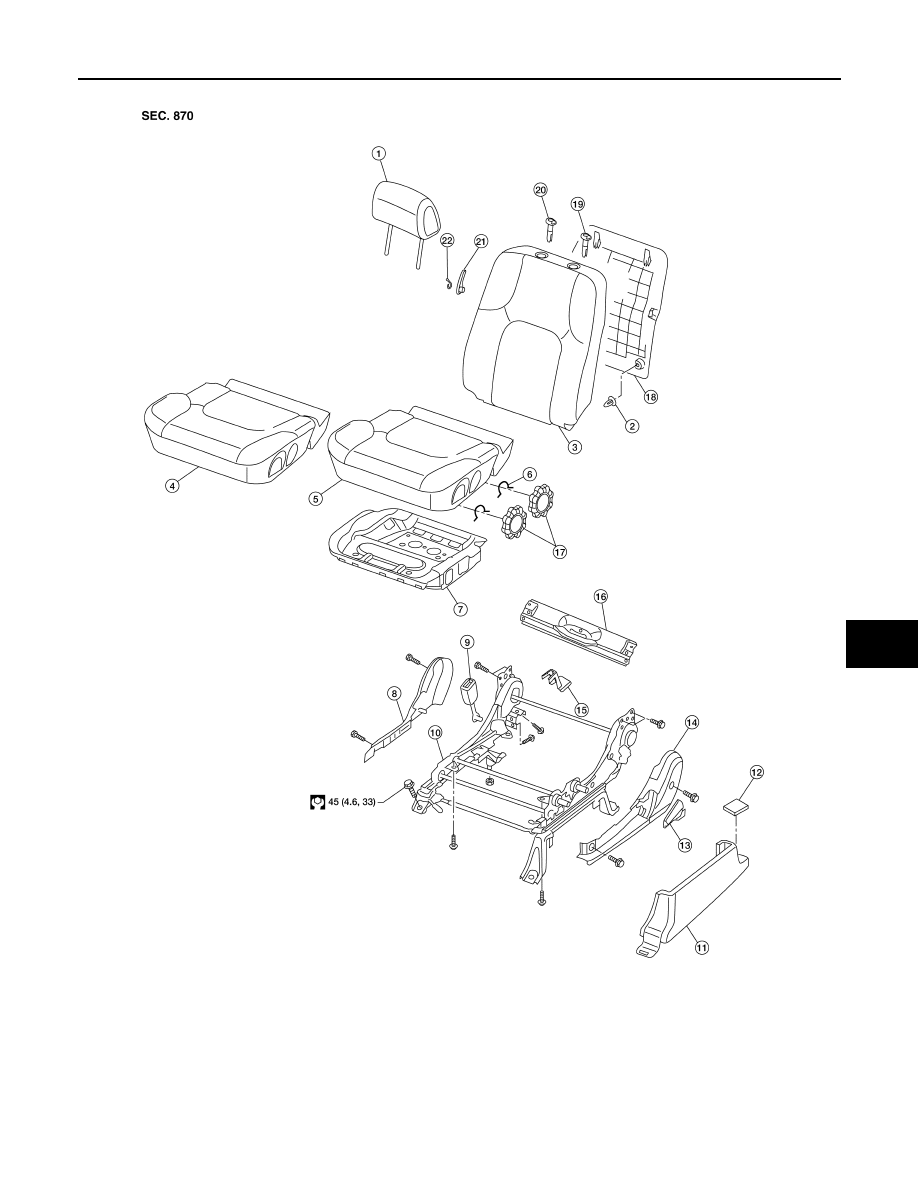

Manual Driver Seat

AWJIA0551ZZ

1.

Headrest

2.

Trim clip

3.

Seatback assembly

4.

Seat cushion trim cover

5.

Seat cushion pad

6.

Snap ring

7.

Seat cushion frame

8.

Seat cushion inner finisher

9.

Seat belt buckle assembly

10. Seat frame assembly

11. Leg cover

12. Bolt cover

13. Recline lever

14. Seat cushion outer finisher

15. Leg cover

16. Seat cushion rear finisher

17. Seat cushion lift knobs

18. Seatback board

August 2012

2012 Pathfinder
