SE-24

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

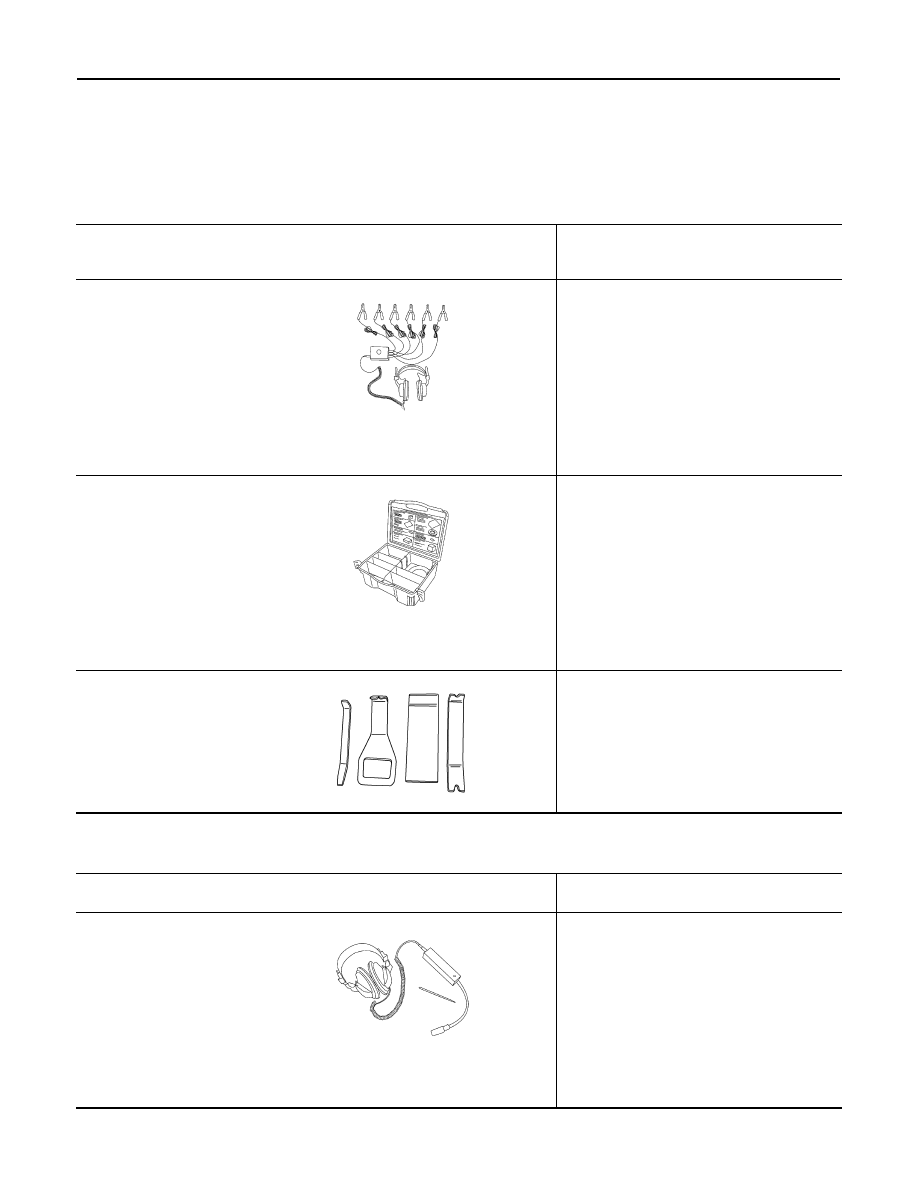

Special Service Tool

INFOID:0000000007356068

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000007356069

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rattle
Kit

Repairing the cause of noise

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

SIIA0994E

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

August 2012

2012 Pathfinder

CLIP LIST

SE-25

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

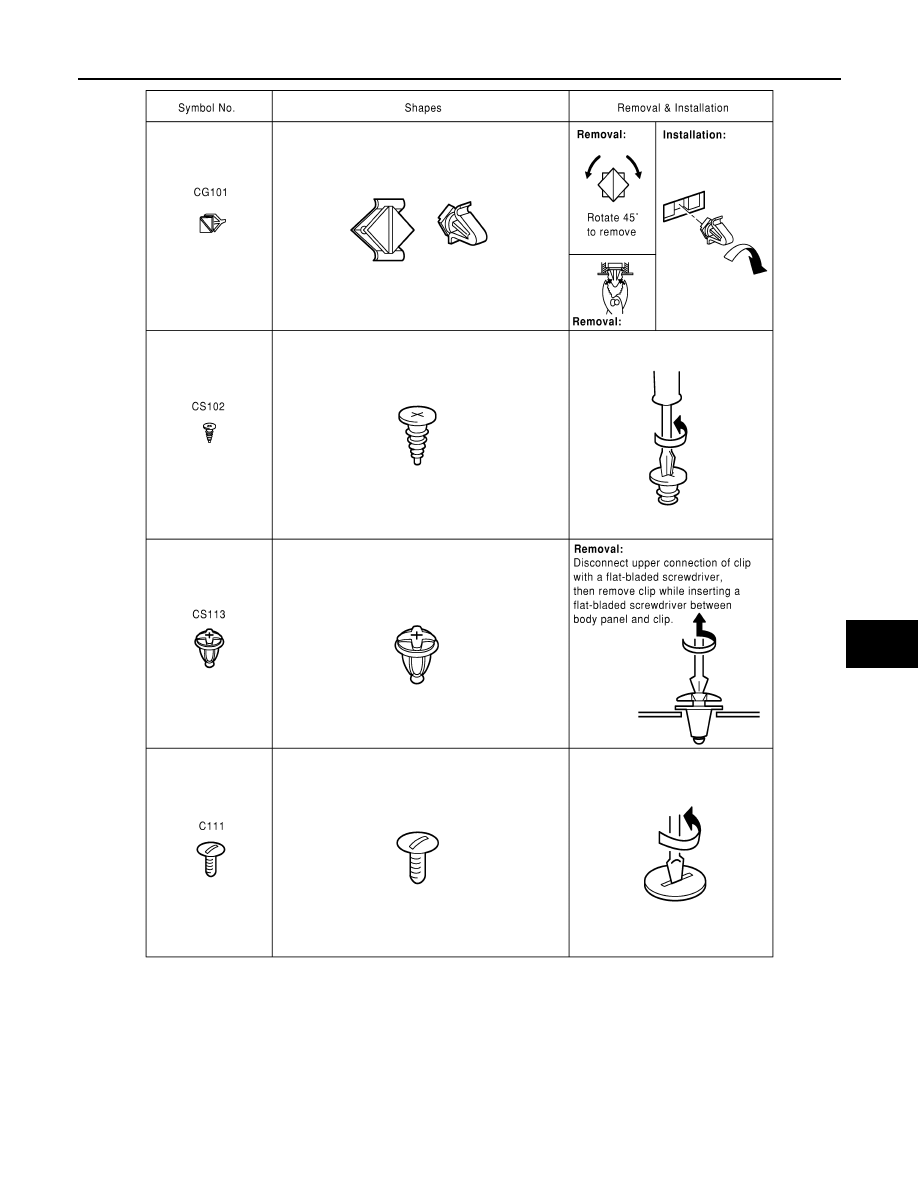

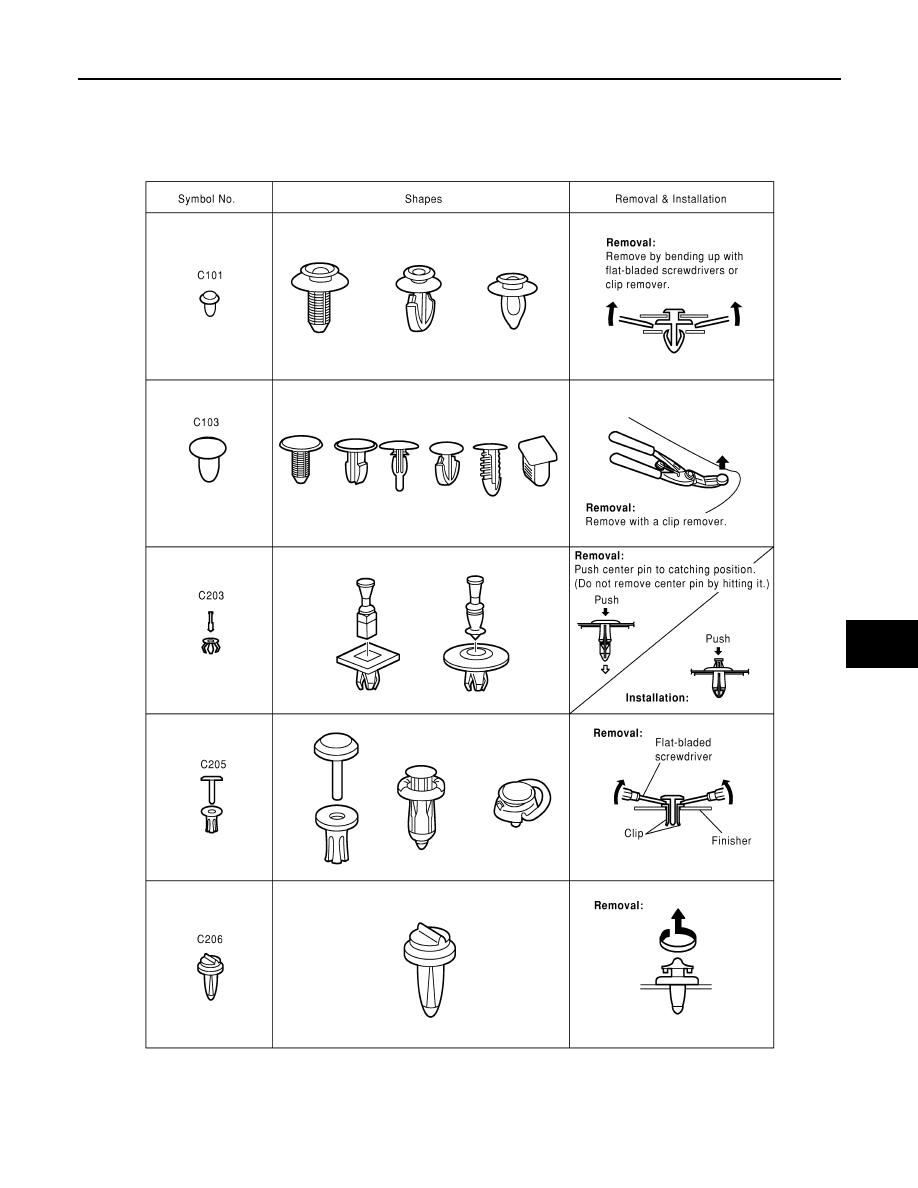

CLIP LIST

Descriptions for Clips

INFOID:0000000007836150

Replace any clips which are damaged during removal or installation.

SIIA0315E

August 2012

2012 Pathfinder

SE-26

< PREPARATION >

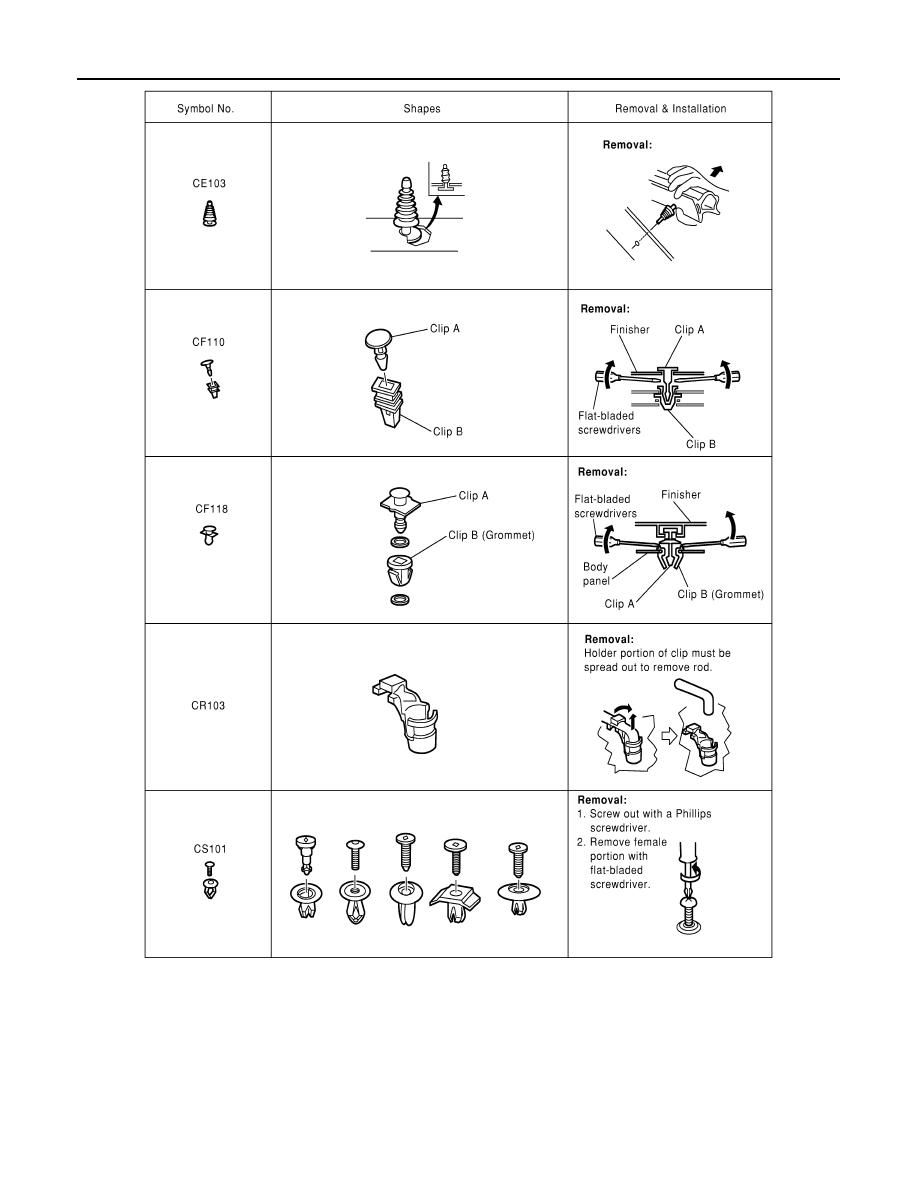

CLIP LIST

SIIA0316E

August 2012

2012 Pathfinder

CLIP LIST

SE-27

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SIIA0317E

August 2012

2012 Pathfinder

SE-28

< PREPARATION >

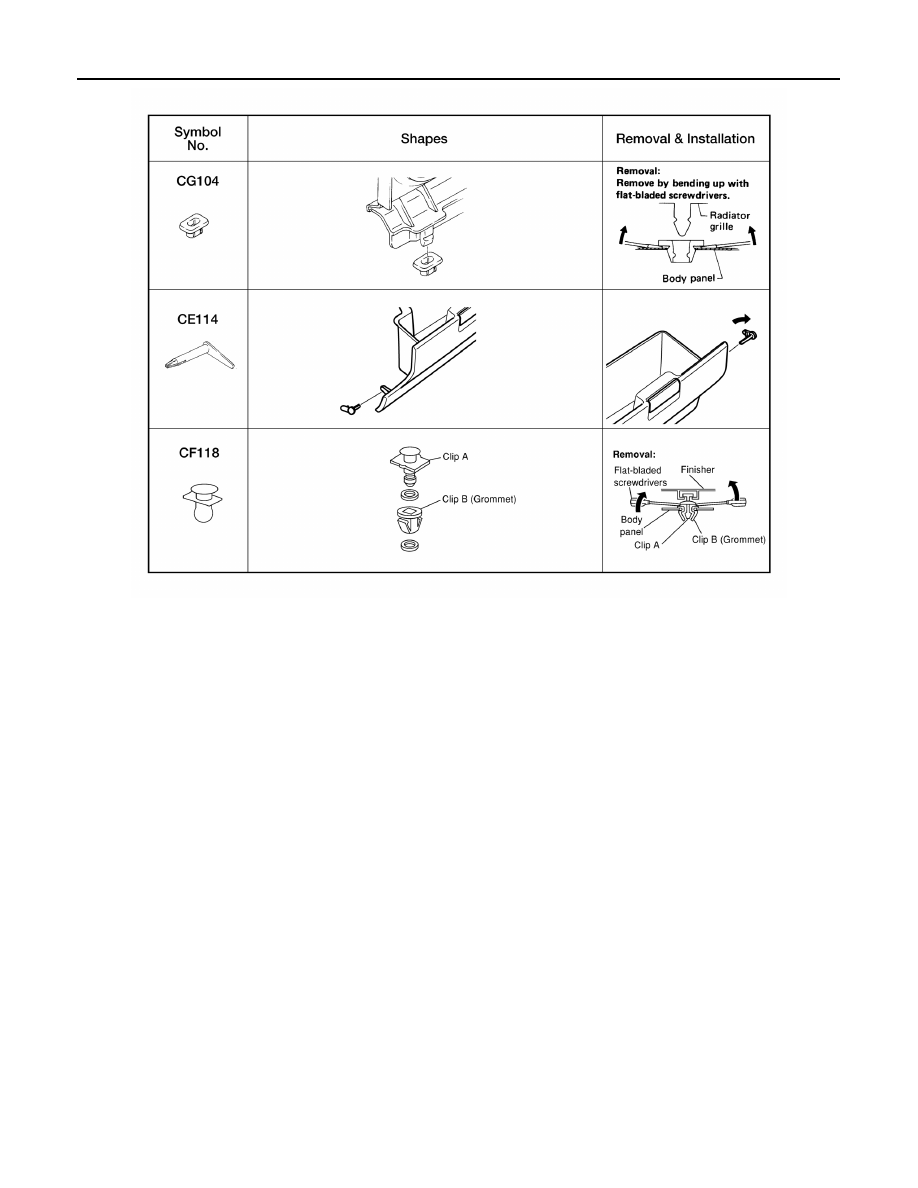

CLIP LIST

ALJIA0564GB

August 2012

2012 Pathfinder

FRONT SEAT

SE-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

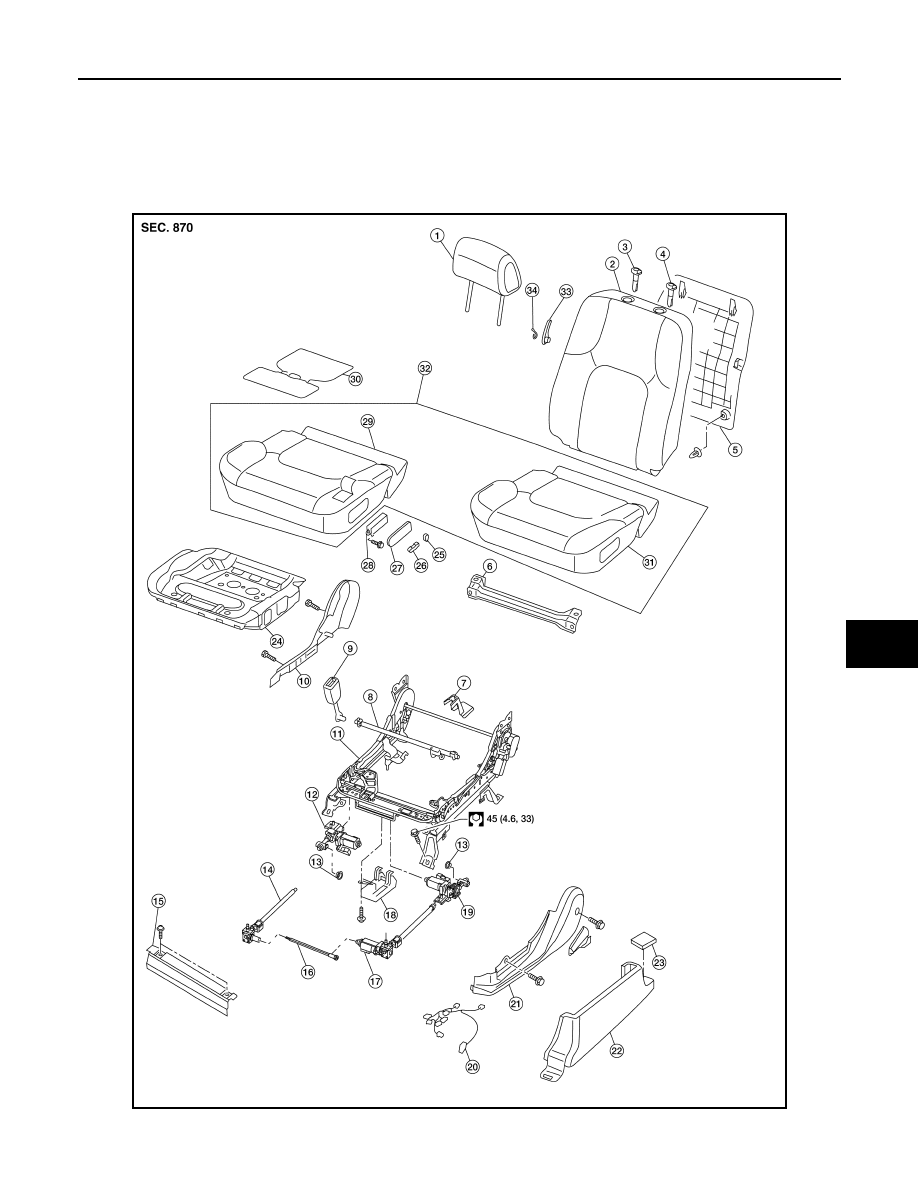

Exploded View

INFOID:0000000007356070

Power Driver Seat

AWJIA0550ZZ

August 2012

2012 Pathfinder

SE-30

< REMOVAL AND INSTALLATION >

FRONT SEAT

1.

Headrest

2.

Seatback assembly

3.

Headrest holder

4.

Headrest holder with multi position
lock

5.

Seatback board

6.

Power seat cushion rear finisher

7.

Leg Cover

8.

Lifter motor link bar

9.

Seat belt buckle assembly

10. Seat cushion inner finisher

11. Seat frame assembly

12. Seat lifter motor assembly

13. Seat spacer

14. Lock gear

15. Seat cushion front finisher

16. Flexible seat wire

17. Front seat slide motor assembly

18. Power seat control assembly

19. Lifter motor bracket assembly

20. Driver seat wiring harness

21. Seat cushion outer finisher

22 Leg cover

23 Bolt cover

24. Seat cushion frame

25. Recliner switch knob

26. Slide switch knob

27. Power seat switch escutcheon

28. Switch assembly

29. Seat cushion pad

30. Seat cushion heating element

31. Seat cushion trim

32. Seat cushion assembly

33. Lumbar support lever knob

34. Snap ring

August 2012

2012 Pathfinder

FRONT SEAT

SE-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

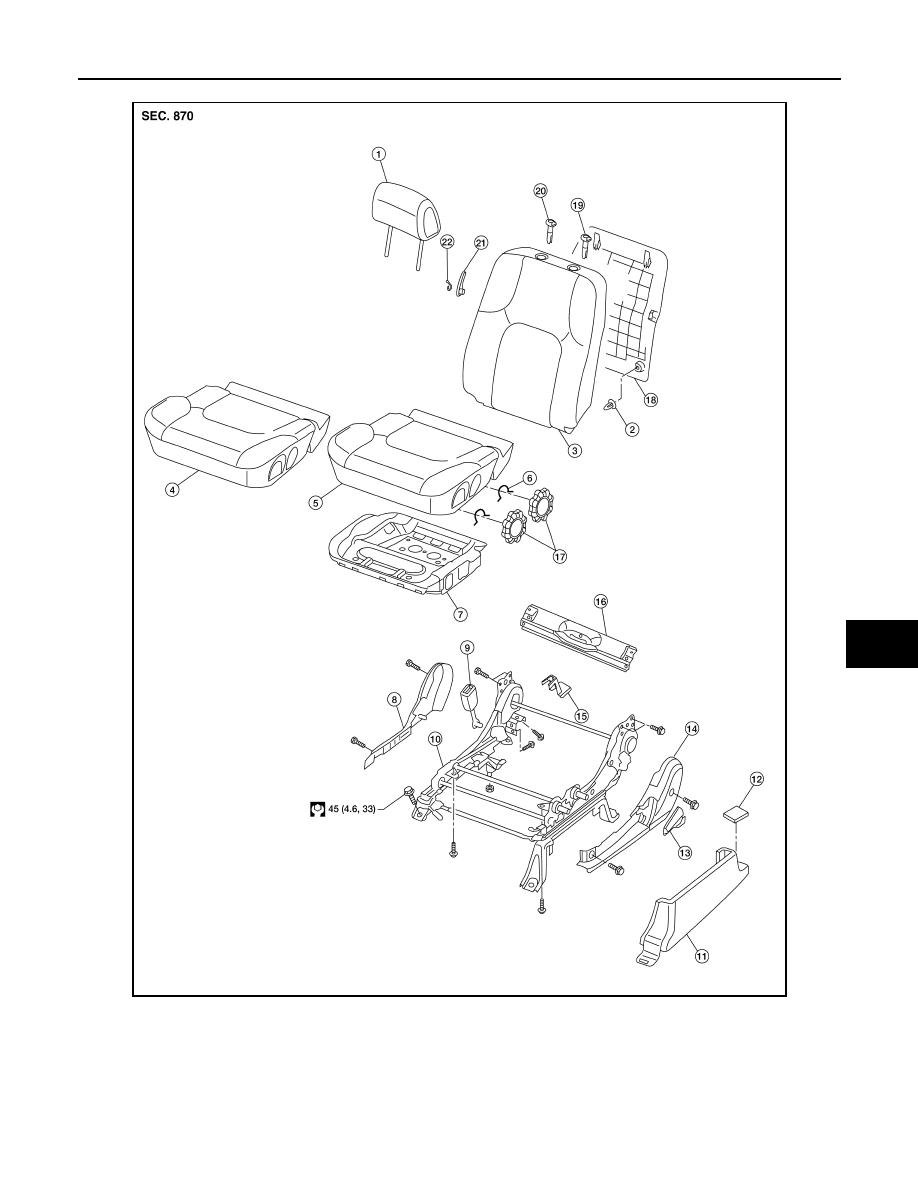

Manual Driver Seat

AWJIA0551ZZ

1.

Headrest

2.

Trim clip

3.

Seatback assembly

4.

Seat cushion trim cover

5.

Seat cushion pad

6.

Snap ring

7.

Seat cushion frame

8.

Seat cushion inner finisher

9.

Seat belt buckle assembly

10. Seat frame assembly

11. Leg cover

12. Bolt cover

13. Recline lever

14. Seat cushion outer finisher

15. Leg cover

16. Seat cushion rear finisher

17. Seat cushion lift knobs

18. Seatback board

August 2012

2012 Pathfinder
