SE-8

< DTC/CIRCUIT DIAGNOSIS >

HEATED SEAT

DTC/CIRCUIT DIAGNOSIS

HEATED SEAT

Description

INFOID:0000000007356061

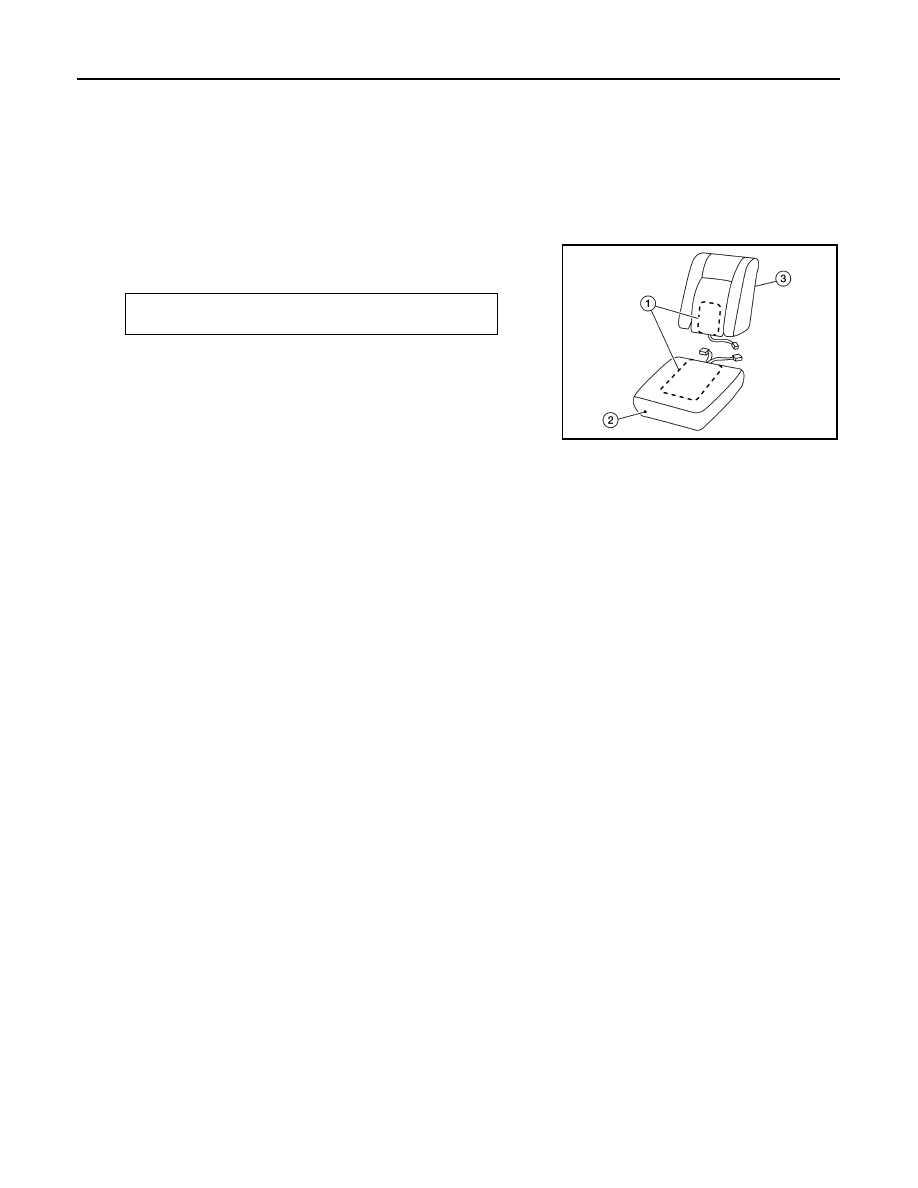

• When handling seat, be extremely careful not to scratch heating unit (1).

• To replace heating unit, seat trim and pad should be separated for the front seat cushion LH. For seatback

and front seat cushion RH, complete cushion (2) or seatback assembly (3) must be replaced.

• Do not use any organic solvent, such as thinner, benzene, alcohol,

etc. to clean trim.

Thermostat operation

ON

OFF

Trim temperature

°

C (

°

F)

25 -35 (77 - 95)

35 - 45 (95 - 113)

AWJIA0054ZZ

August 2012

2012 Pathfinder

POWER SEAT FOR DRIVER SIDE

SE-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT FOR DRIVER SIDE

Wiring Diagram - Without Automatic Drive Positioner

INFOID:0000000007356062

ABJWA0003GB

August 2012

2012 Pathfinder

SE-10

< WIRING DIAGRAM >

POWER SEAT FOR DRIVER SIDE

ABJIA0376GB

August 2012

2012 Pathfinder

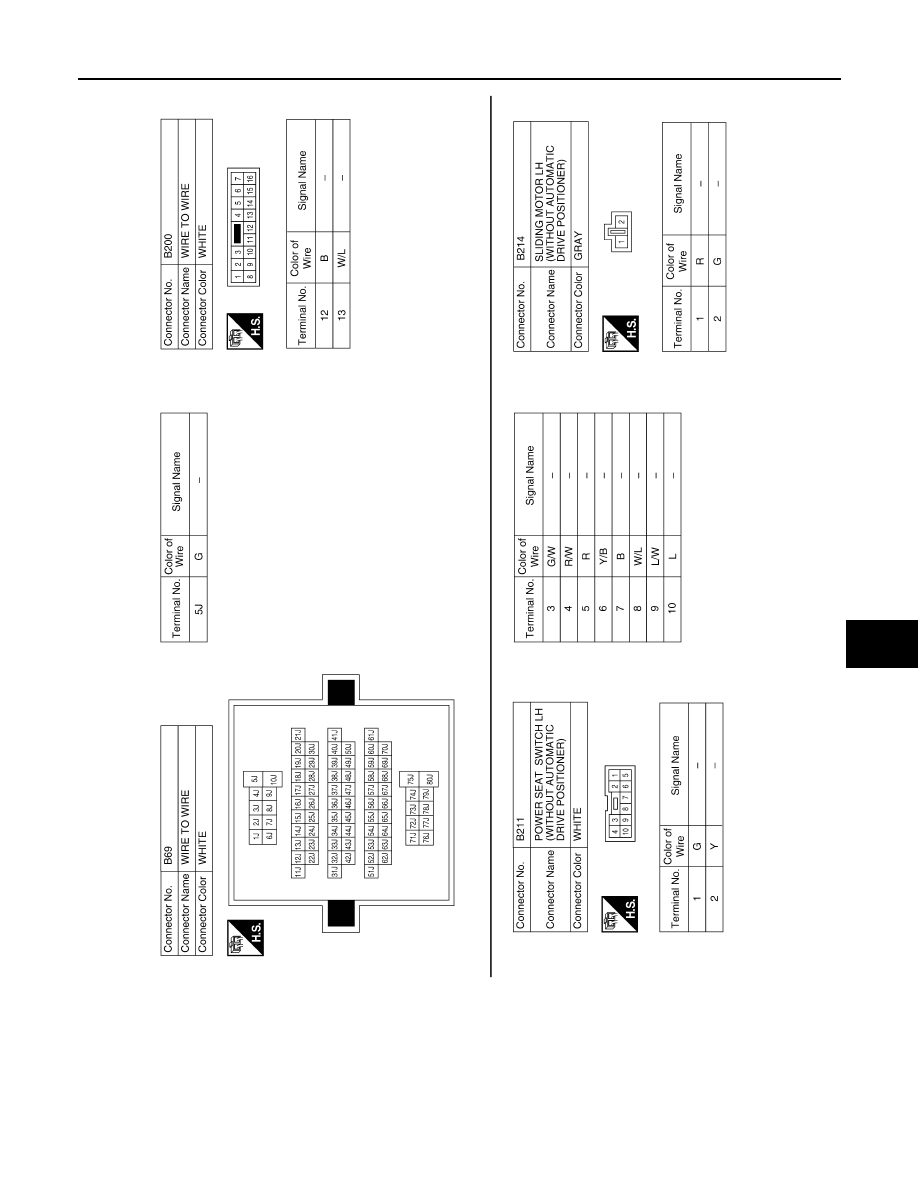

POWER SEAT FOR DRIVER SIDE

SE-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0005GB

August 2012

2012 Pathfinder

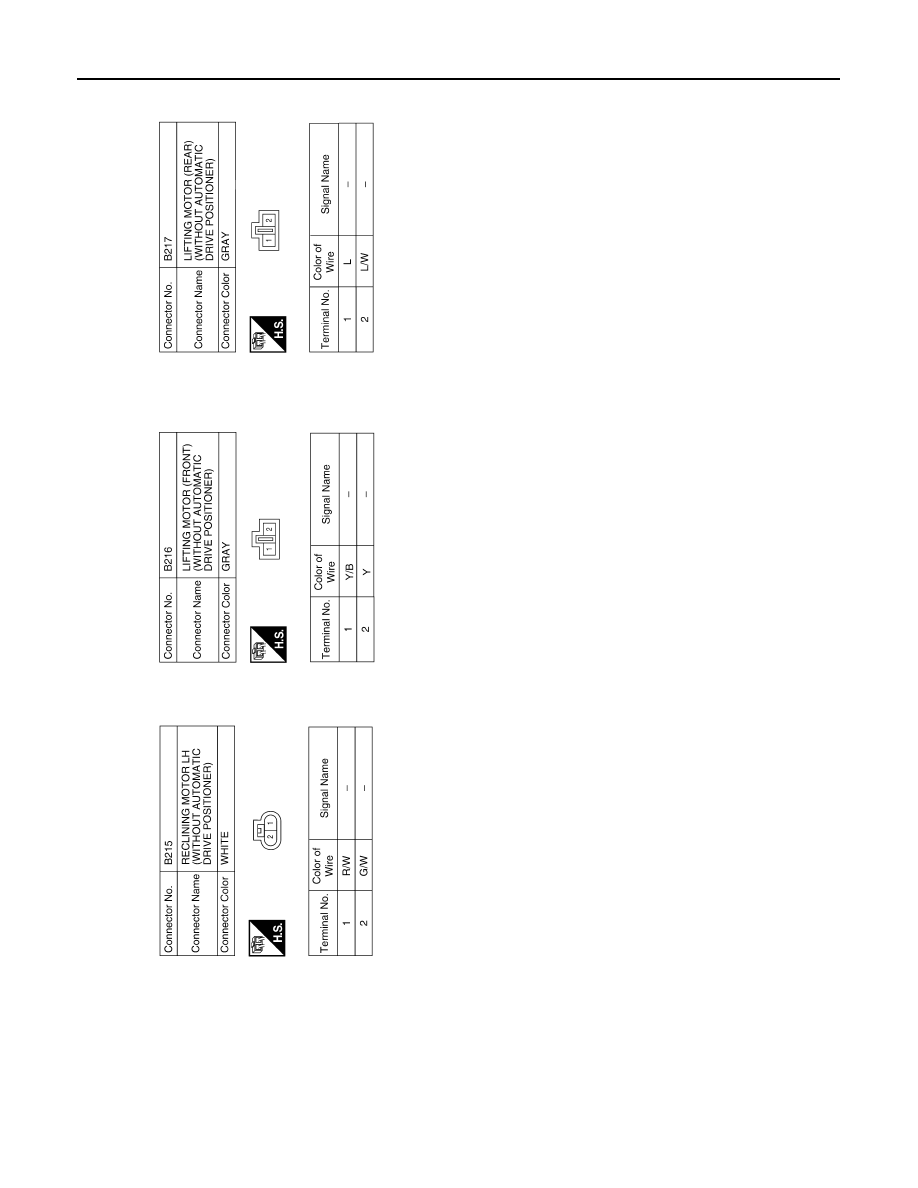

SE-12

< WIRING DIAGRAM >

POWER SEAT FOR DRIVER SIDE

ABJIA0006GB

August 2012

2012 Pathfinder

POWER SEAT FOR PASSENGER SIDE

SE-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

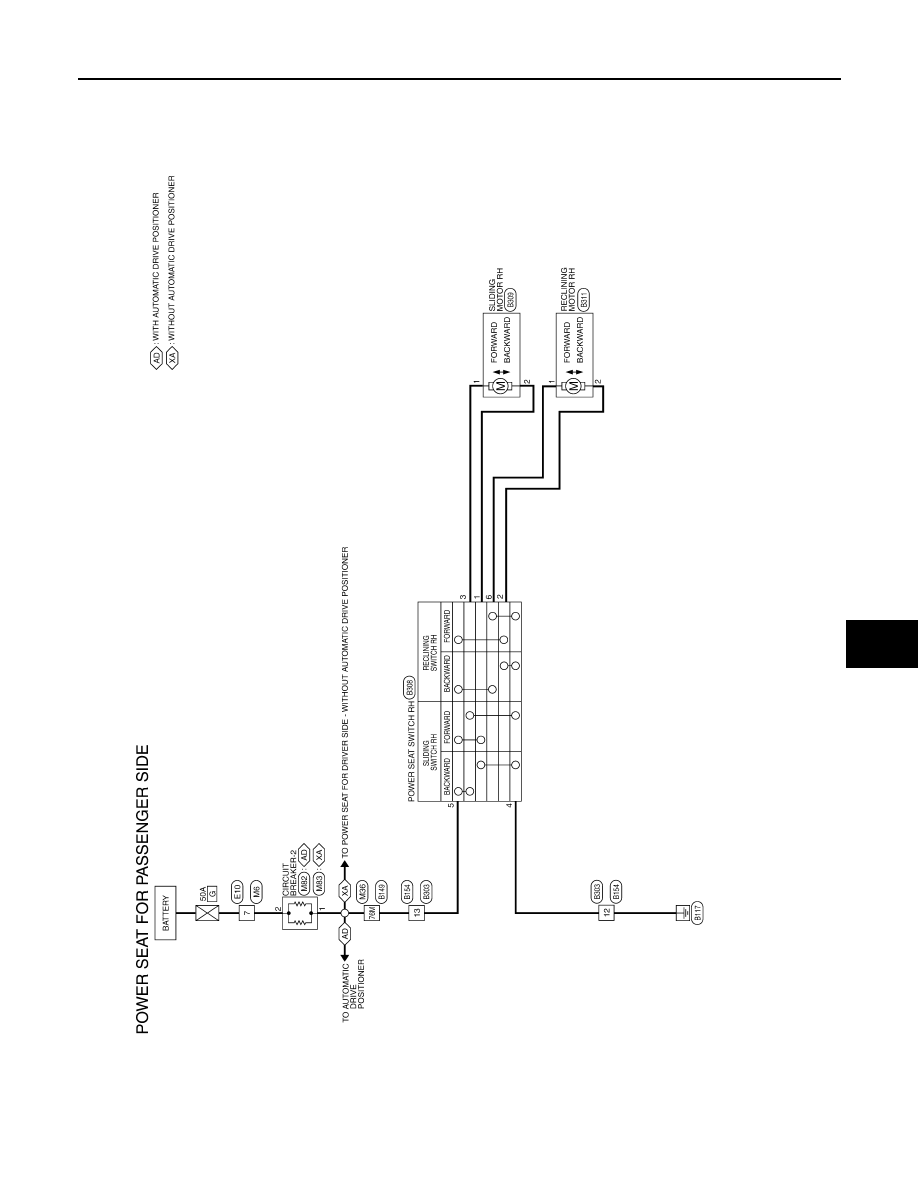

POWER SEAT FOR PASSENGER SIDE

Wiring Diagram

INFOID:0000000007356063

ABJWA0255GB

August 2012

2012 Pathfinder

SE-14

< WIRING DIAGRAM >

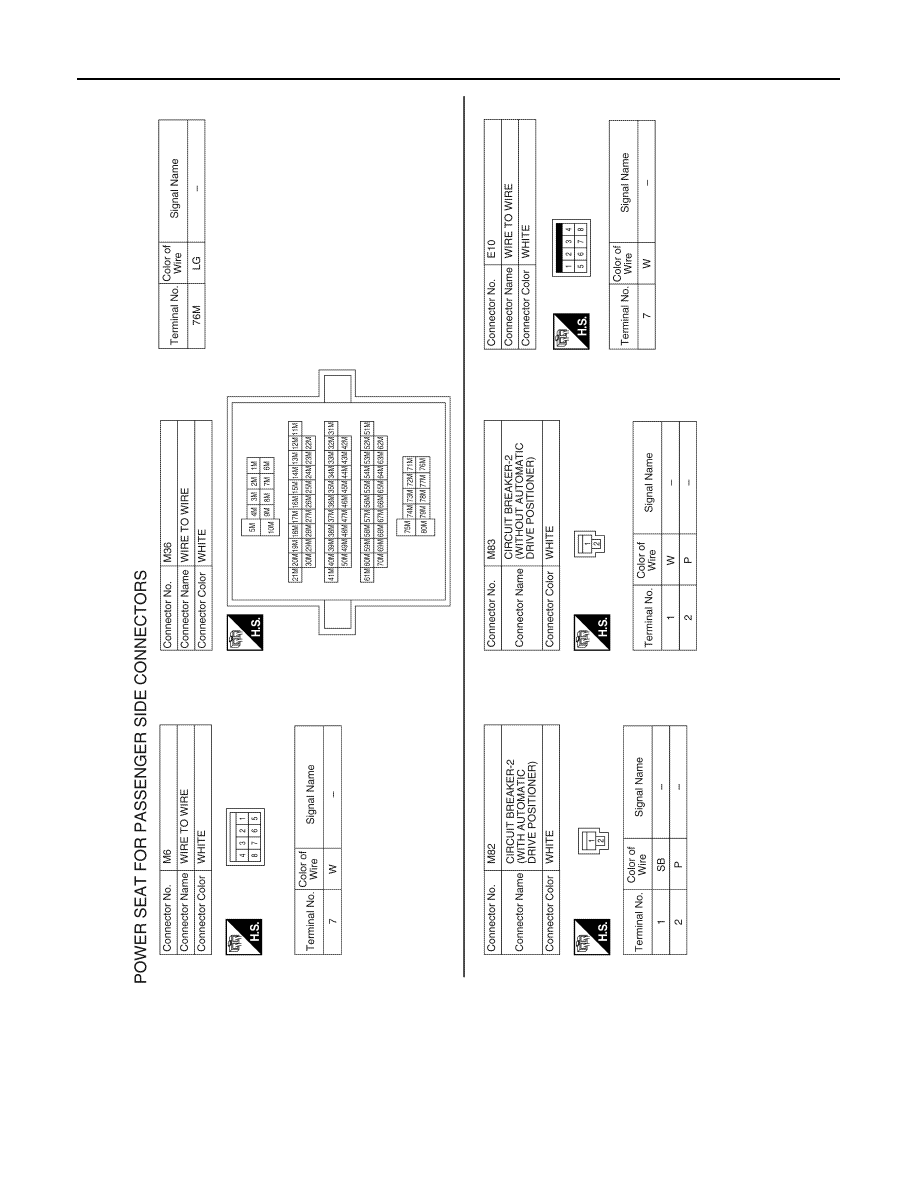

POWER SEAT FOR PASSENGER SIDE

ABJIA0373GB

August 2012

2012 Pathfinder

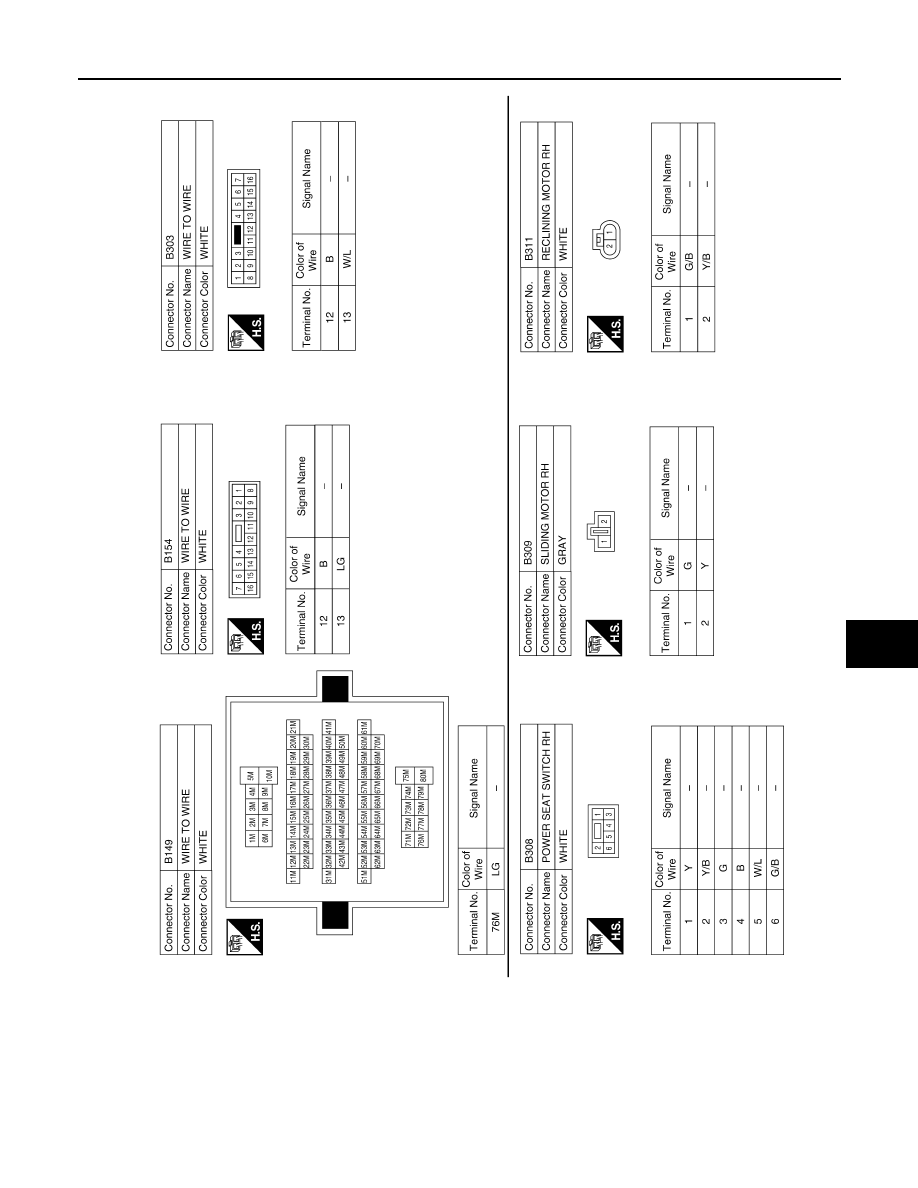

POWER SEAT FOR PASSENGER SIDE

SE-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0007GB

August 2012

2012 Pathfinder
