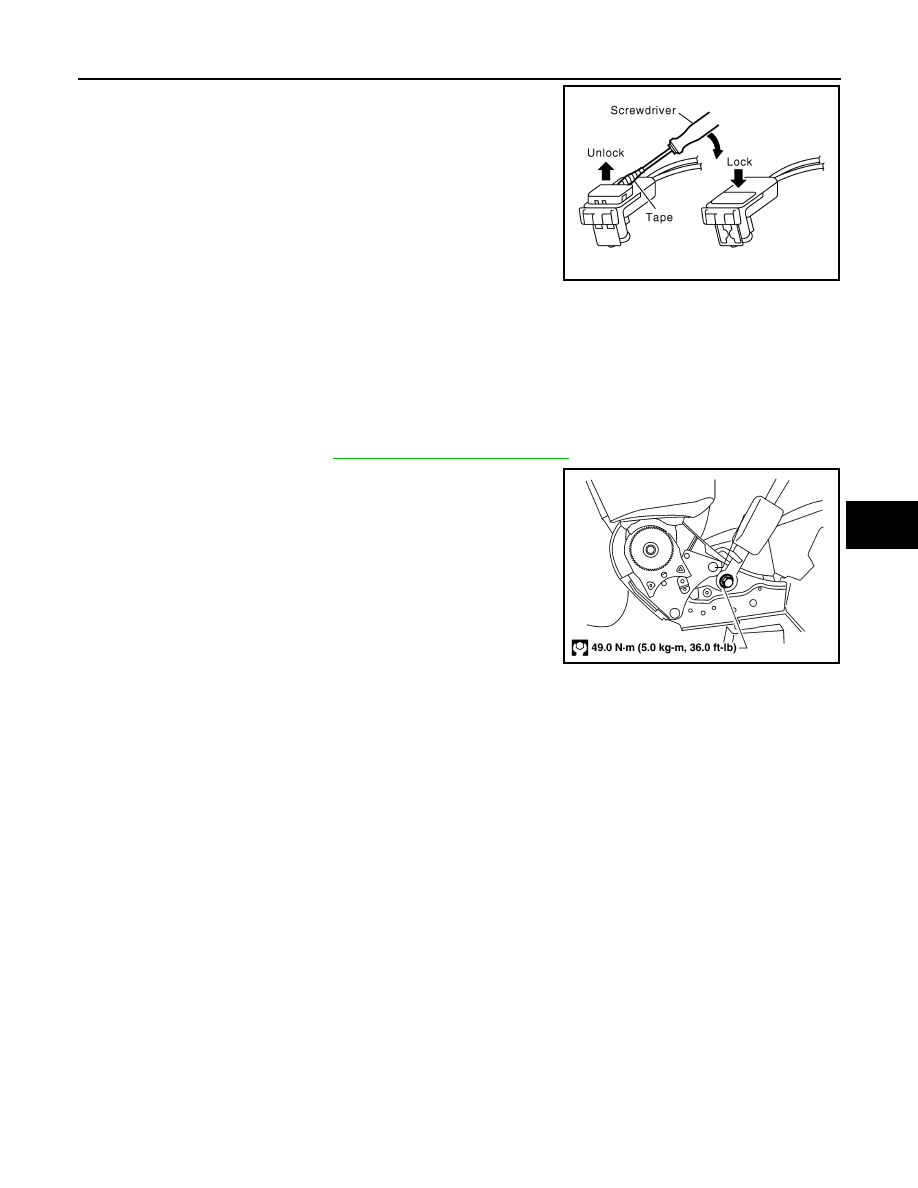

SEAT BELTS SB-5 < REMOVAL AND INSTALLATION > C D E F G I J K L M A B SB N O P • For installing/removing seat belt pre-tensioner connector, insert a thin screwdriver wrapped in tape into the notch, lift the lock and remove the connector. • Install the connector with the lock raised, and push the lock into the connector. INSTALLATION OF SEAT BELT RETRACTOR CAUTION: Hold belt tension sensor harness away from being caught or twisted during installation. Installation is in the reverse order of removal. • Install the seat belt retractor upper bolt first. • Ensure that seat belt height adjuster is locked in the lowest position during installation. REMOVAL OF SEAT BELT BUCKLE 1. Remove the front seat. Refer to SE-33, "Removal and Installation" 2. Remove screw and seat cushion inner finisher. INSTALLATION OF SEAT BELT BUCKLE Installation is in the reverse order of removal. PHIA0341E WHIA0128E August 2012 2012 Pathfinder |
