TM-192

< REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

6. Remove the crankshaft position sensor (POS) from the A/T

assembly.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or foreign material to get on the

sensor front edge magnetic area.

• Do not place in an area affected by magnetism.

7. Remove the undercovers using power tool (if equipped).
8. Partially drain the A/T fluid. Refer to

TM-155, "Checking the A/T

Fluid (ATF)"

.

9. Remove the front crossmember using power tool.
10. Remove the starter motor.
11. Remove the rear propeller shaft. Refer to

DLN-325, "Removal and Installation"

.

12. Remove the left and right front exhaust tubes. Refer to

EX-7, "Removal and Installation"

.

13. Remove the A/T shift selector control cable and bracket from the A/T.
14. Disconnect the A/T fluid cooler tubes from the A/T assembly.
15. Remove the dust cover from the converter housing.

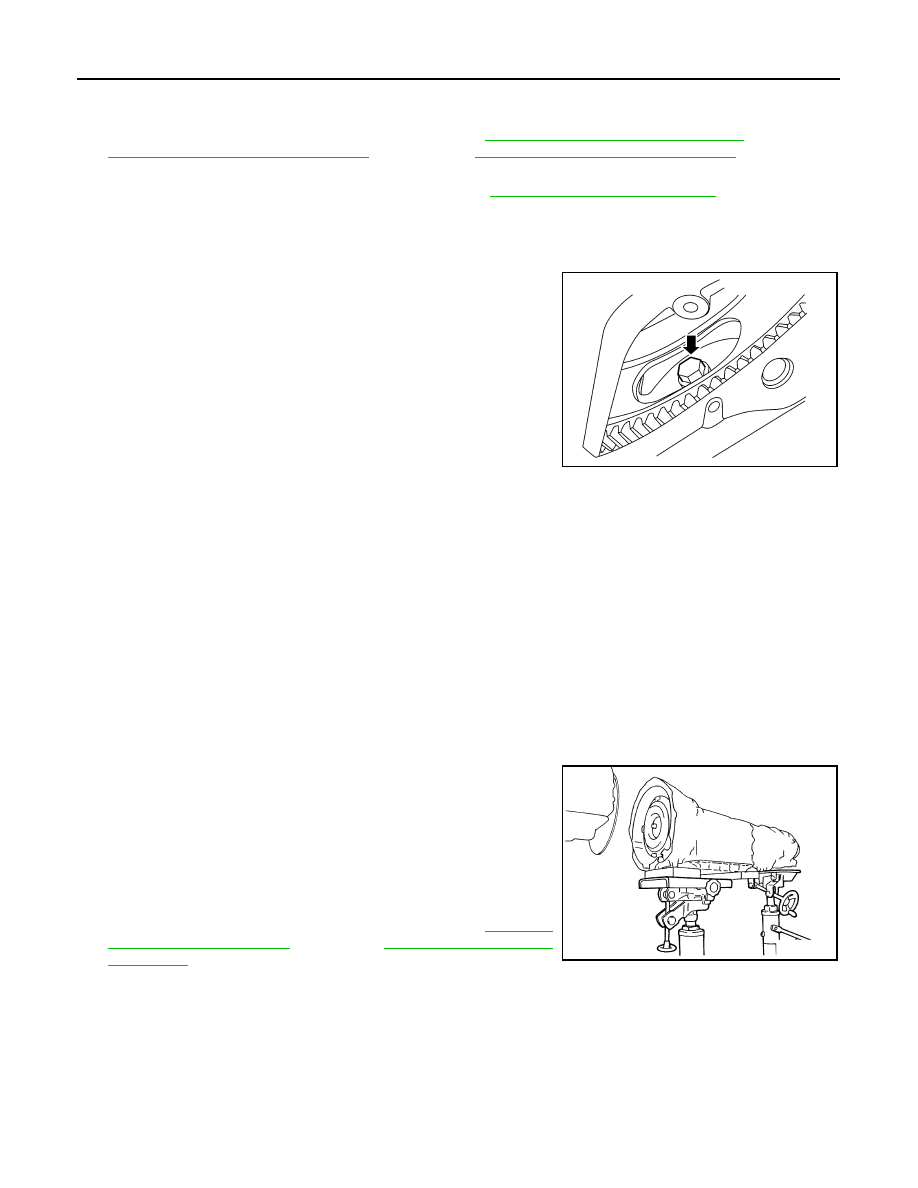

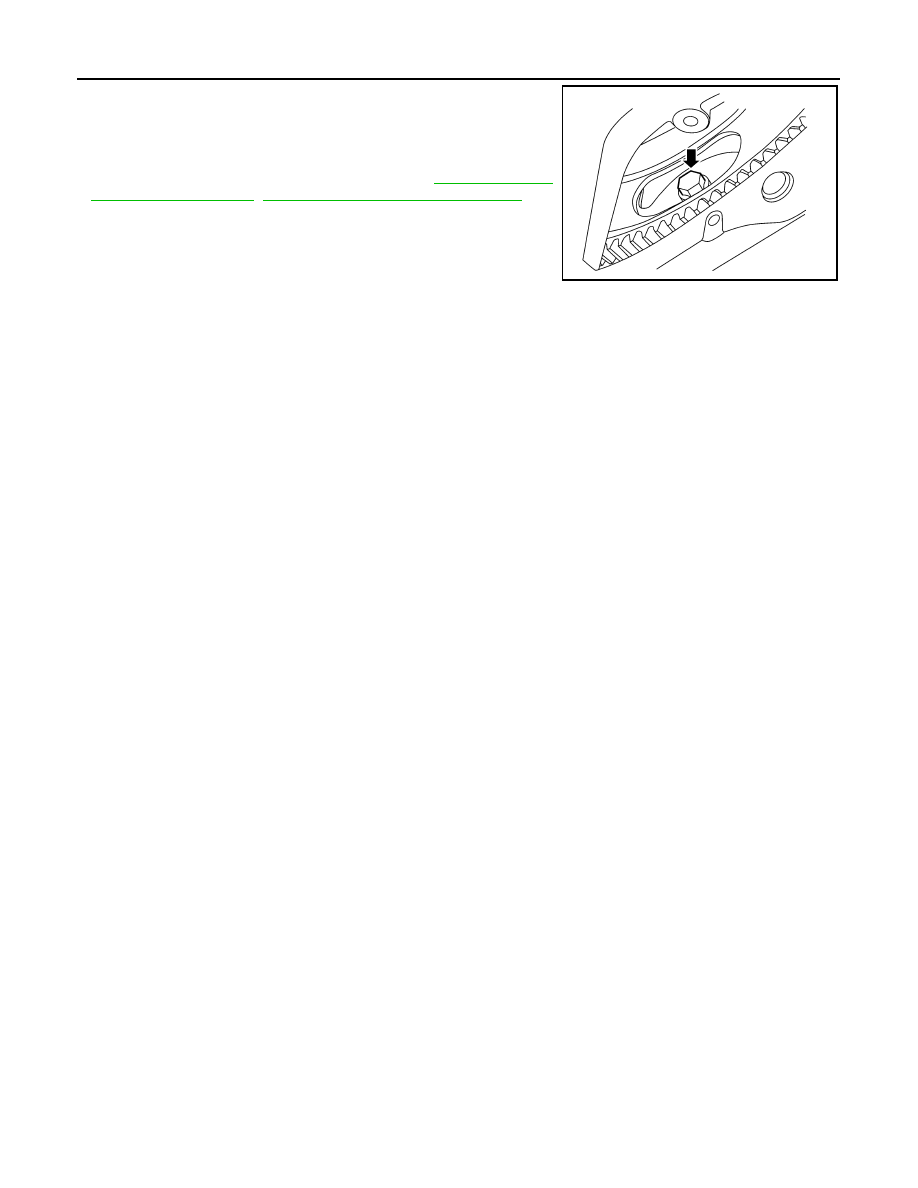

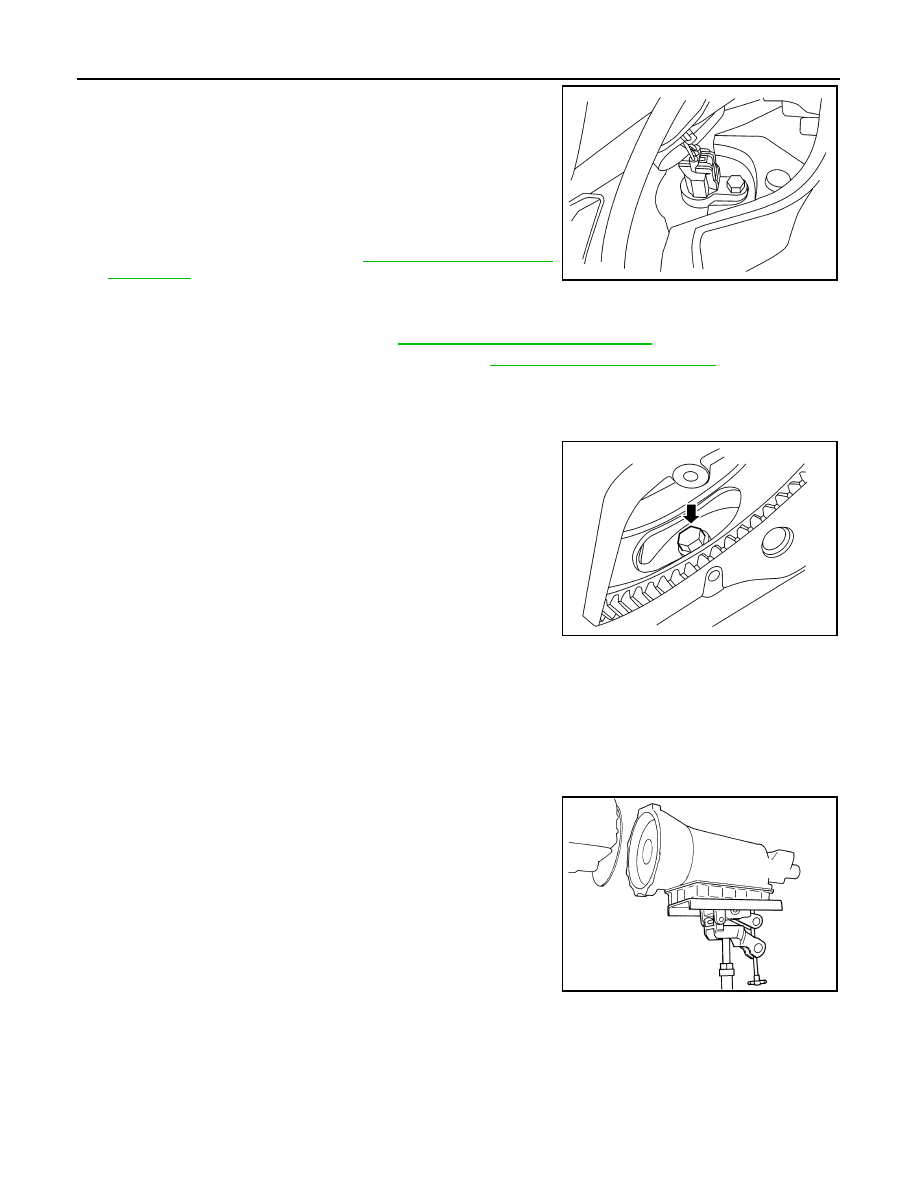

16. Turn the crankshaft to access and remove the four bolts for the

drive plate to torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed

from the front of the engine.

17. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow

it to collide against the drain plug.

18. Remove the nuts securing the insulator to the crossmember.
19. Remove the crossmember using power tool.
20. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

21. Disconnect the A/T assembly harness connector.
22. Remove the wiring harness from the retainers.
23. Remove the A/T fluid charging pipe.
24. Plug any openings such as the A/T fluid charging pipe hole.
25. Remove the A/T assembly to engine bolts using power tool.
26. Remove A/T assembly from the vehicle using Tool.

CAUTION:

• Secure the torque converter to prevent it from dropping.

• Secure the A/T assembly the transmission jack.

NOTE:

The actual special service Tool may differ from Tool shown.

INSPECTION

Installation and Inspection of Torque Converter

Tool number

:

 (J-47002)

LCIA0367E

LCIA0335E

SCIA0499E

2010 Pathfinder

TRANSMISSION ASSEMBLY

TM-193

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

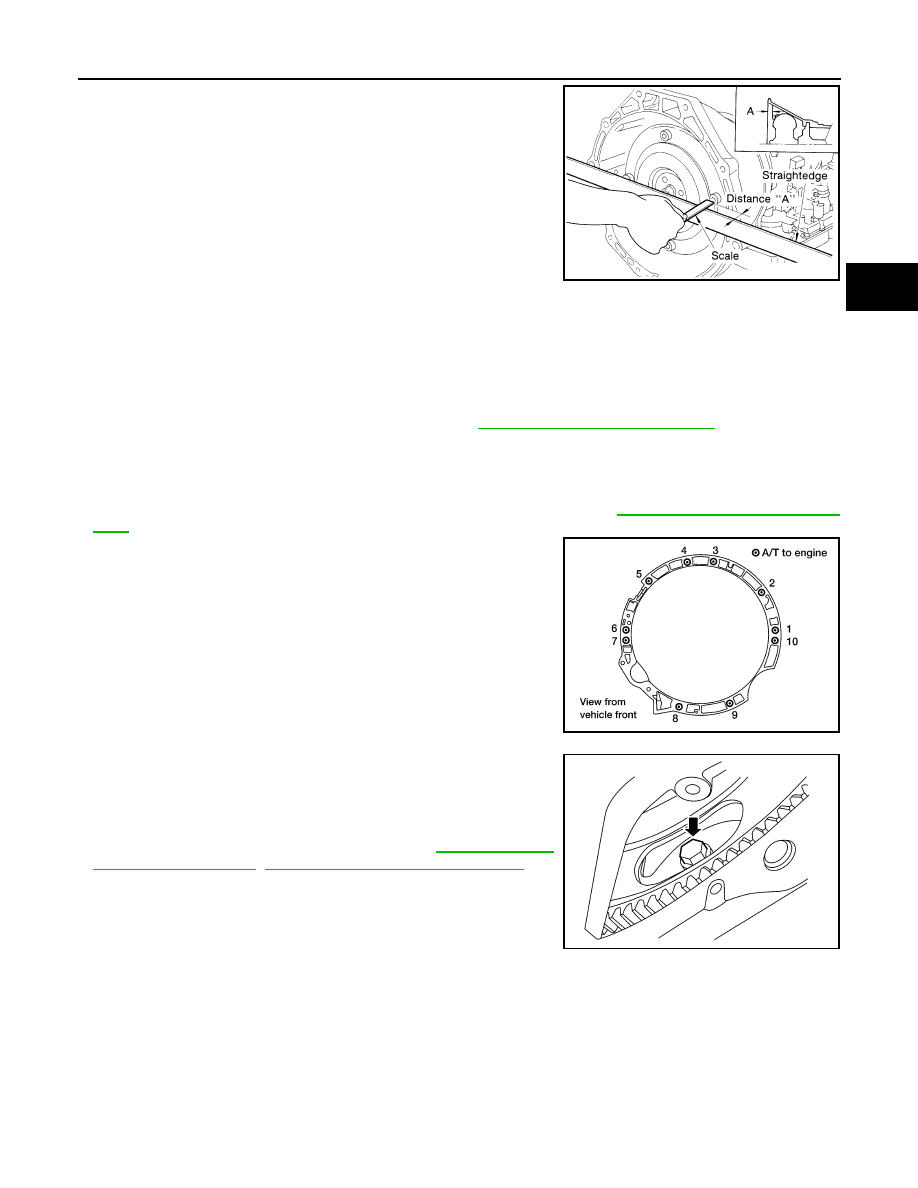

• After inserting the torque converter to the transmission, check

dimension (A) to ensure it is within the reference value limit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing an engine or transmission you must make sure the dowels are installed correctly

during re-assembly.

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of driv-

etrain components.

• Do not reuse O-rings and copper washers. Refer to

TM-191, "2WD : Exploded View"

.

• When turning crankshaft, turn it clockwise as viewed from the front of the engine.

• After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that

transmission rotates freely without binding.

• When tightening the bolts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-60, "Removal and Installa-

tion"

.

When installing transmission to the engine, tighten the bolts to the

specified torque as shown.

• When installing the drive plate to torque converter bolts, align the

positions of bolts for drive plate with those of the torque converter

and temporarily tighten the bolts. Then tighten the bolts with the

specified torque.

• After completing installation, fill A/T with fluid and check fluid leak-

age, fluid level, and the positions of A/T. Refer to

TM-155, "Check-

ing the A/T Fluid (ATF)"

TM-171, "Inspection and Adjustment"

.

4WD

Distance (A)

: 25.0 mm (0.98 in) or more

SAT017B

Transmission bolts

: 75 N·m (7.6 kg-m, 55 ft-lb)

LCIA0370E

LCIA0335E

2010 Pathfinder

TM-194

< REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

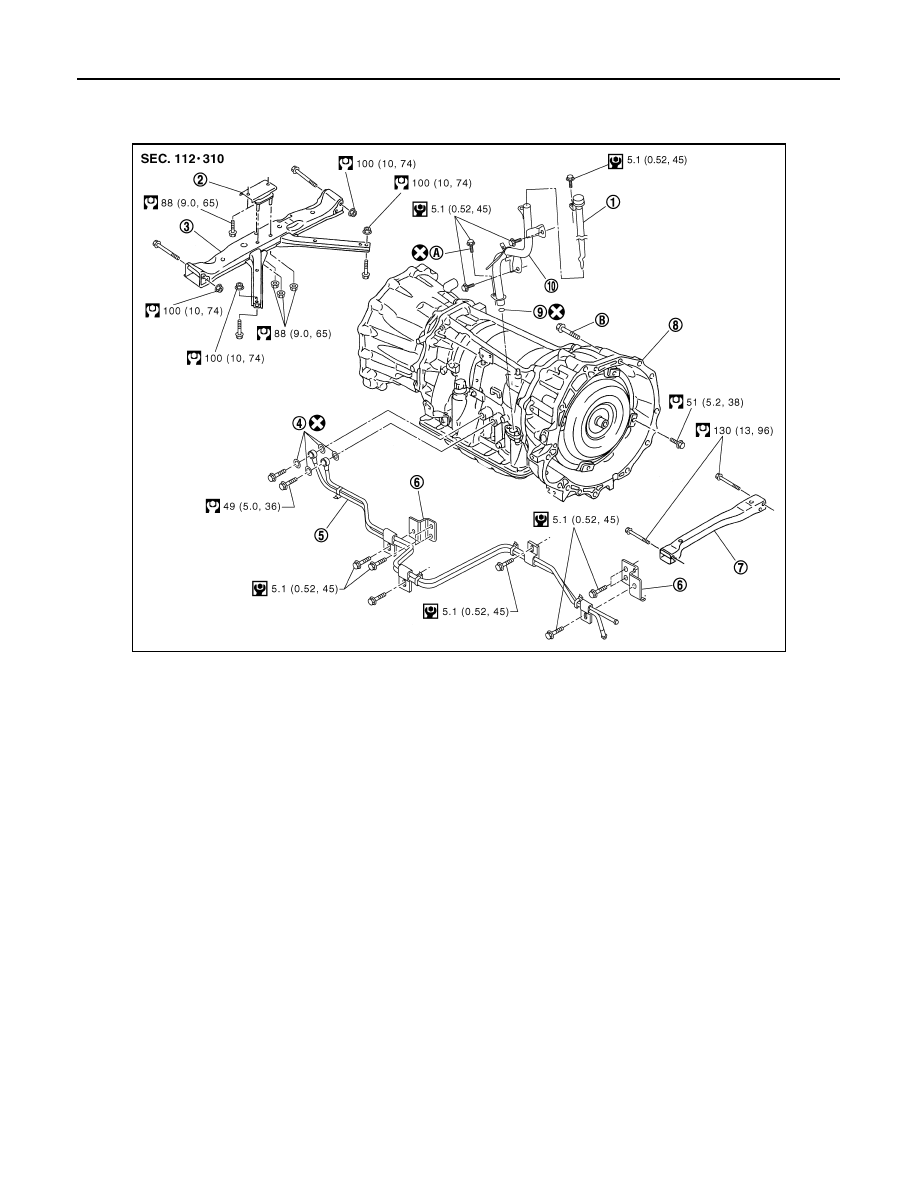

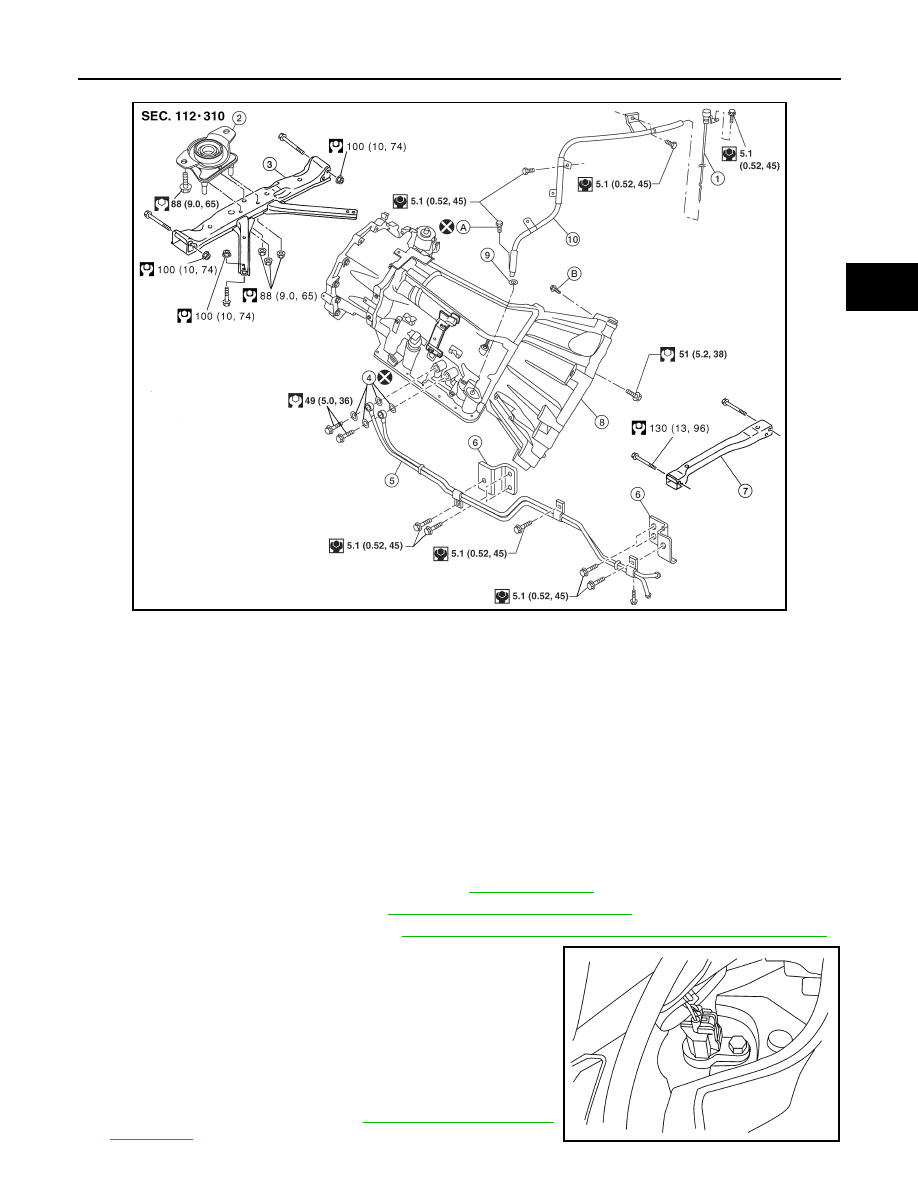

4WD : Exploded View

INFOID:0000000005258195

VQ40DE

WCIA0574E

1.

A/T fluid level gauge

2.

Insulator

3.

A/T crossmember

4.

Copper washers

5.

A/T fluid cooler tube

6.

Bracket

7.

Front crossmember

8.

Transmission assembly

9.

O-ring

10. A/T fluid charging pipe

A.

Self-sealing bolt

B. Refer to installation

2010 Pathfinder

TRANSMISSION ASSEMBLY

TM-195

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

VK56DE

4WD : Removal and Installation

INFOID:0000000005258196

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from

the A/T assembly.

1. Disconnect the negative battery terminal.
2. Remove the A/T fluid level gauge.
3. Remove front LH wheel and tire assembly. Refer to

WT-49, "Rotation"

.

4. Remove the front LH mud flap. Refer to

EXT-24, "Removal and Installation"

.

5. Remove the LH fender protector. Refer to

EXT-23, "Removal and Installation of Front Fender Protector"

.

6. Remove the crankshaft position sensor (POS) from the A/T

assembly.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or foreign material to get on the

sensor's front edge magnetic area.

• Do not place in an area affected by magnetism.

7. Remove the undercovers using power tool.
8. Partially drain the A/T fluid. Refer to

TM-157, "Changing the A/T

Fluid (ATF)"

.

AWDIA0625GB

1.

A/T fluid level gauge

2.

Insulator

3.

A/T crossmember

4.

Copper washers

5.

A/T fluid cooler tube

6.

Bracket

7.

Front crossmember

8.

Transmission assembly

9.

O-ring

10. A/T fluid charging pipe

A.

Self-sealing bolt

B. Refer to installation

LCIA0367E

2010 Pathfinder

TM-196

< REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

9. Remove the front crossmember using power tool.
10. Remove the starter motor.
11. Remove the front and rear propeller shafts. Refer to

DLN-315, "Removal and Installation"

 for front and

DLN-325, "Removal and Installation"

 (VQ40DE) or

DLN-336, "Removal and Installation"

 (VK56DE) for

rear.

12. Remove the left and right front exhaust tubes. Refer to

EX-7, "Removal and Installation"

.

13. Remove the A/T shift selector control cable and bracket from the A/T.
14. Disconnect the fluid cooler tubes from the A/T assembly.
15. Remove the dust cover from the converter housing.
16. Turn the crankshaft to access and remove the four bolts for the

drive plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed

from the front of the engine.

17. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow

it to collide against the drain plug.

18. Remove the nuts securing the insulator to the crossmember.
19. Remove the crossmember using power tool.
20. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

21. Disconnect the following:

• A/T assembly harness connector

• Neutral-4LO switch connector (ATX14B only)

• 4LO switch connector (TX15B only)

• Wait detection switch connector

• ATP switch connector

• Transfer motor connector (ATX14B only)

• Control valve assembly connector (ATX14B only)

• Transfer control device connector

22. Remove the wiring harness from the retainers.
23. Remove the A/T fluid charging pipe.
24. Plug any openings such as the fluid charging pipe hole.
25. Remove the A/T assembly to engine bolts using power tool.
26. Remove A/T assembly with transfer from the vehicle using Tool.

CAUTION:

• Secure the torque converter to prevent it from dropping.

• Secure the A/T assembly to the transmission jack.

NOTE:

The actual special service Tool may differ from Tool shown.

27. Remove the transfer from the A/T assembly. Refer to

DLN-151,

"Removal and Installation"

 (ATX14B) or

DLN-281, "Removal and

Installation"

 (TX15B).

INSPECTION

Installation and Inspection of Torque Converter

Tool number

:

 (J-47002)

LCIA0335E

SCIA2203E

2010 Pathfinder

TRANSMISSION ASSEMBLY

TM-197

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• After inserting the torque converter to the transmission, be sure to

check dimension (A) to ensure it is within the reference value limit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing an engine or transmission you must make sure the dowels are installed correctly

during re-assembly.

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of driv-

etrain components.

• Do not reuse O-rings and copper washers. Refer to

TM-194, "4WD : Exploded View"

.

• When turning crankshaft, turn it clockwise as viewed from the front of the engine.

• After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that

transmission rotates freely without binding.

• When tightening the bolts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-60, "Removal and Installa-

tion"

 (VQ40DE) or

EM-181, "Removal and Installation"

 (VK56DE).

When installing transmission to the engine, tighten the bolts to the specified torque as shown.

• For VQ40DE

• For VK56DE

NOTE:

*: Bolt also secures air breather vent.

Dimension (A)
VQ40DE Models

: 25.0 mm (0.98 in) or more

VK56DE Models

: 24.0 mm (0.94 in) or more

SAT017B

Transmission bolts

: 75 N·m (7.6 kg-m, 55 ft-lb)

LCIA0370E

Transmission bolts

: 113 N·m (12 kg-m, 83 ft-lb)

LCIA0371E

2010 Pathfinder

TM-198

< REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

• When installing the drive plate to torque converter bolts, align the

positions of bolts for drive plate with those of the torque converter

and temporarily tighten the bolts. Then tighten the bolts with the

specified torque.

• After completing installation, fill A/T with fluid and check fluid leak-

age, fluid level, and the positions of A/T. Refer to

TM-155, "Check-

ing the A/T Fluid (ATF)"

TM-171, "Inspection and Adjustment"

.

LCIA0335E

2010 Pathfinder

OVERHAUL

TM-199

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY AND ASSEMBLY

OVERHAUL

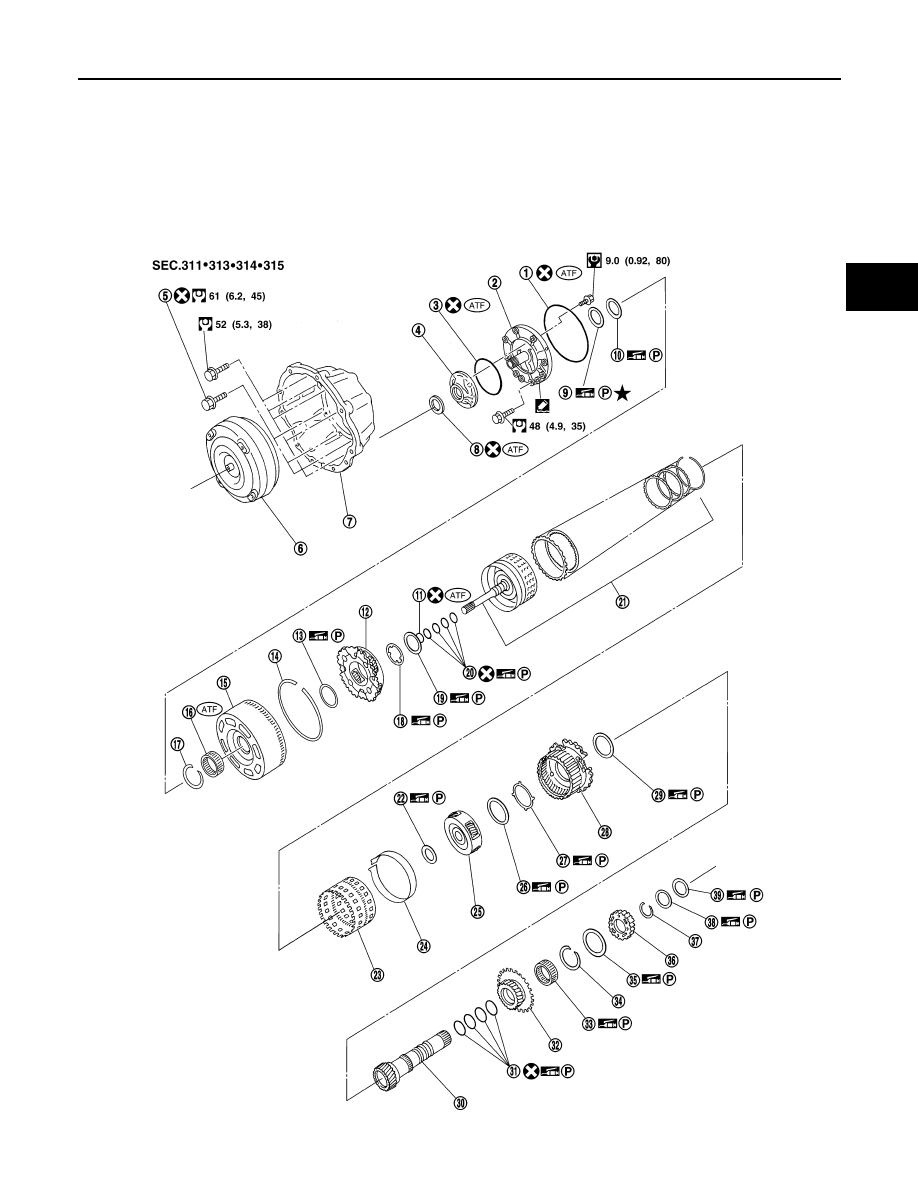

Exploded View

INFOID:0000000005258197

VQ40DE MODELS

Bell Housing Components

WCIA0661E

2010 Pathfinder
