Nissan Pathfinder (2010 year). Manual - part 631

TM-176

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

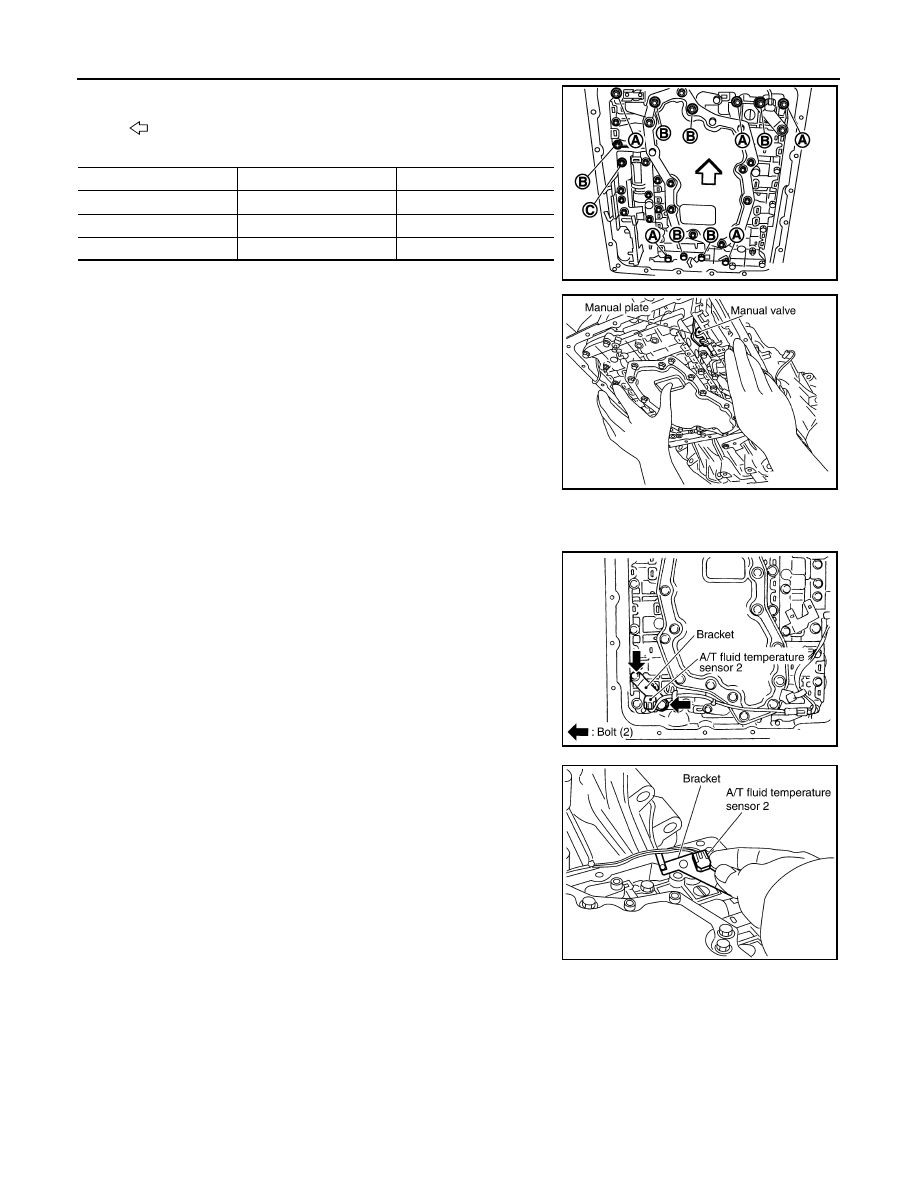

11. Remove bolts (A), (B) and (C) from control valve with TCM.

12. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

13. Remove the A/T fluid temperature sensor 2 or plug as shown below.
a.

A/T fluid temperature sensor 2

i.

Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

ii.

Remove bracket from A/T fluid temperature sensor 2.

b.

Plug

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

SCIA5142E

SCIA5253E

SCIA5264E

2010 Pathfinder

CONTROL VALVE WITH TCM

TM-177

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

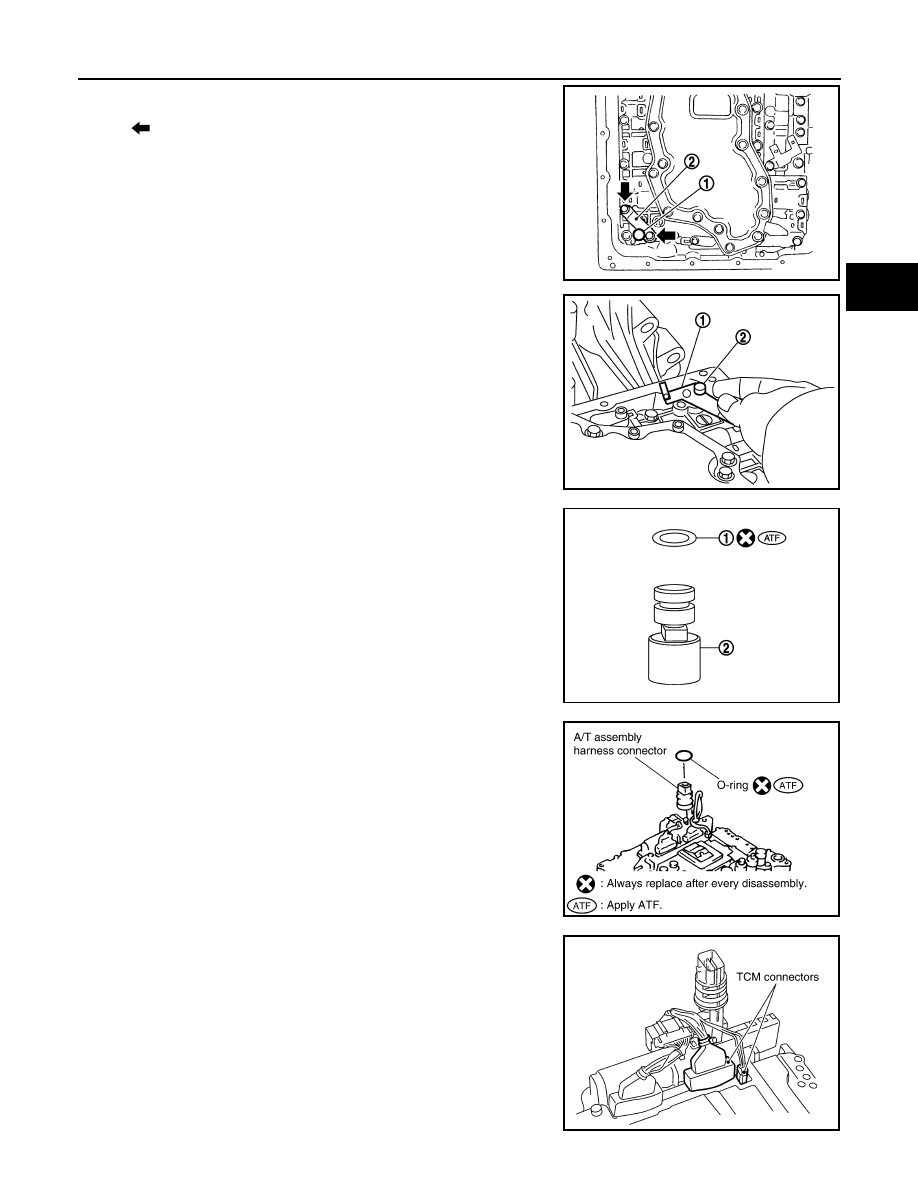

i.

Remove plug (1) with bracket (2) from control valve with TCM.

ii.

Remove bracket (1) from plug (2).

iii. Remove O-ring (1) from plug (2).

14. Remove O-ring from A/T assembly harness connector.

15. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

: Bolt

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ

SCIA5155E

SCIA5447E

2010 Pathfinder

TM-178

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

16. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

17. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

INSTALLATION

CAUTION:

• If the A/T fluid temperature sensor 2 has flaws, replace it with a plug.

• After completing installation, check A/T fluid leakage and fluid level. Refer to

TM-155, "Checking the

A/T Fluid (ATF)"

.

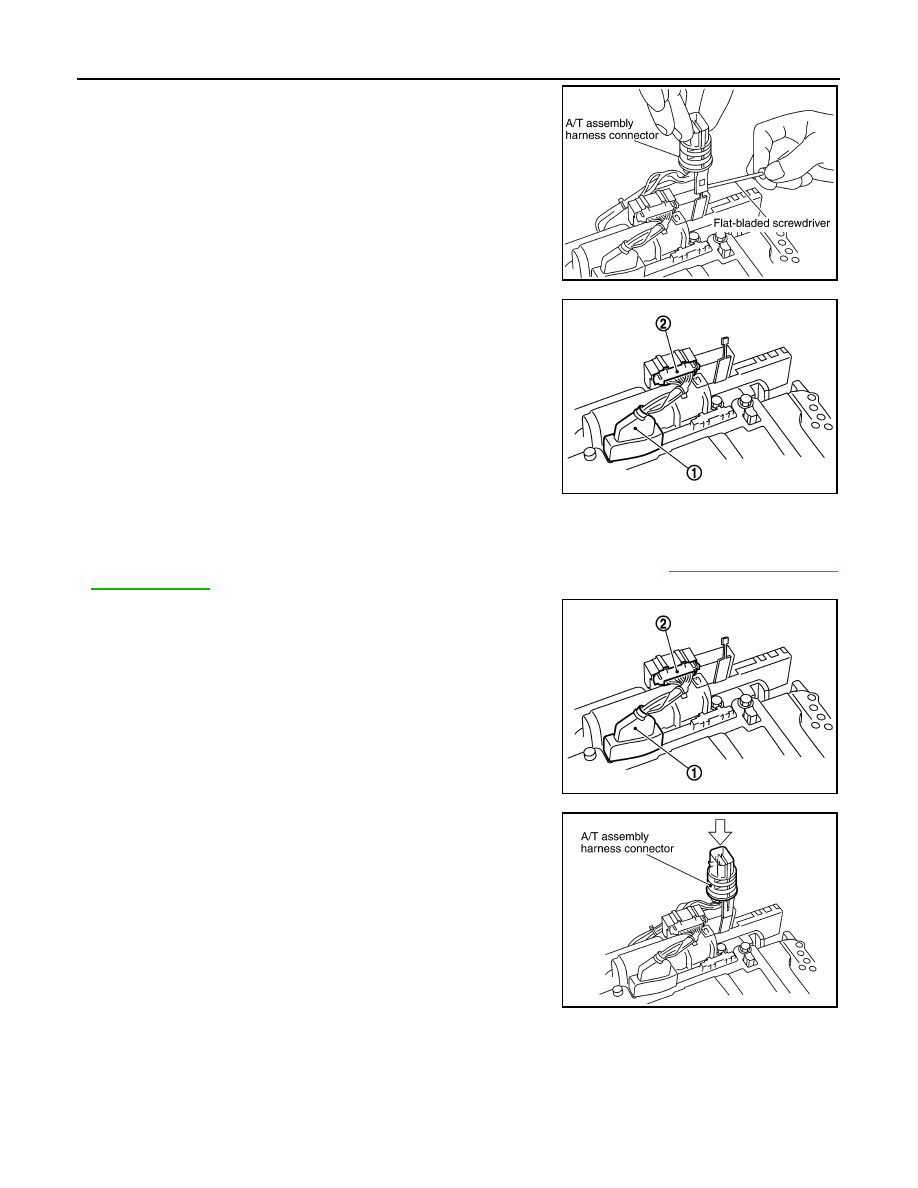

1. Connect TCM connector (1) and transmission range switch con-

nector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

SCIA5448E

JSDIA1317ZZ

JSDIA1317ZZ

SCIA5450E

2010 Pathfinder

CONTROL VALVE WITH TCM

TM-179

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

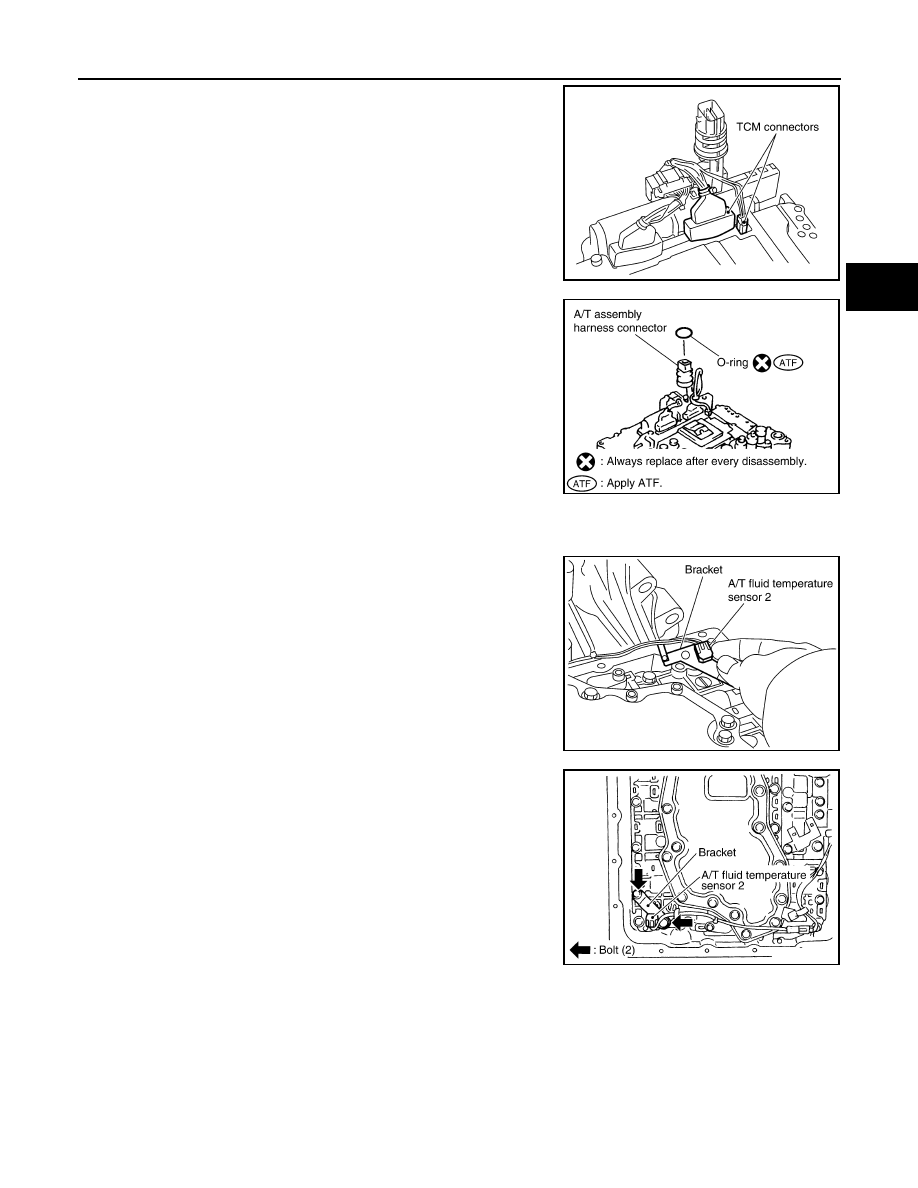

5. Install the A/T fluid temperature sensor 2 or plug as shown below.
a.

A/T fluid temperature sensor 2

i.

Install A/T fluid temperature sensor 2 to bracket.

ii.

Install A/T fluid temperature sensor 2 (with bracket) to control

valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to

the specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

b.

Plug

NOTE:

• When replacing the A/T fluid temperature sensor 2 with the plug, the A/T fluid temperature sensor 2 con-

nector should not be connected.

• Fold the terminal clips.

SCIA5447E

SCIA5155E

SCIA5264E

SCIA5253E

2010 Pathfinder

TM-180

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

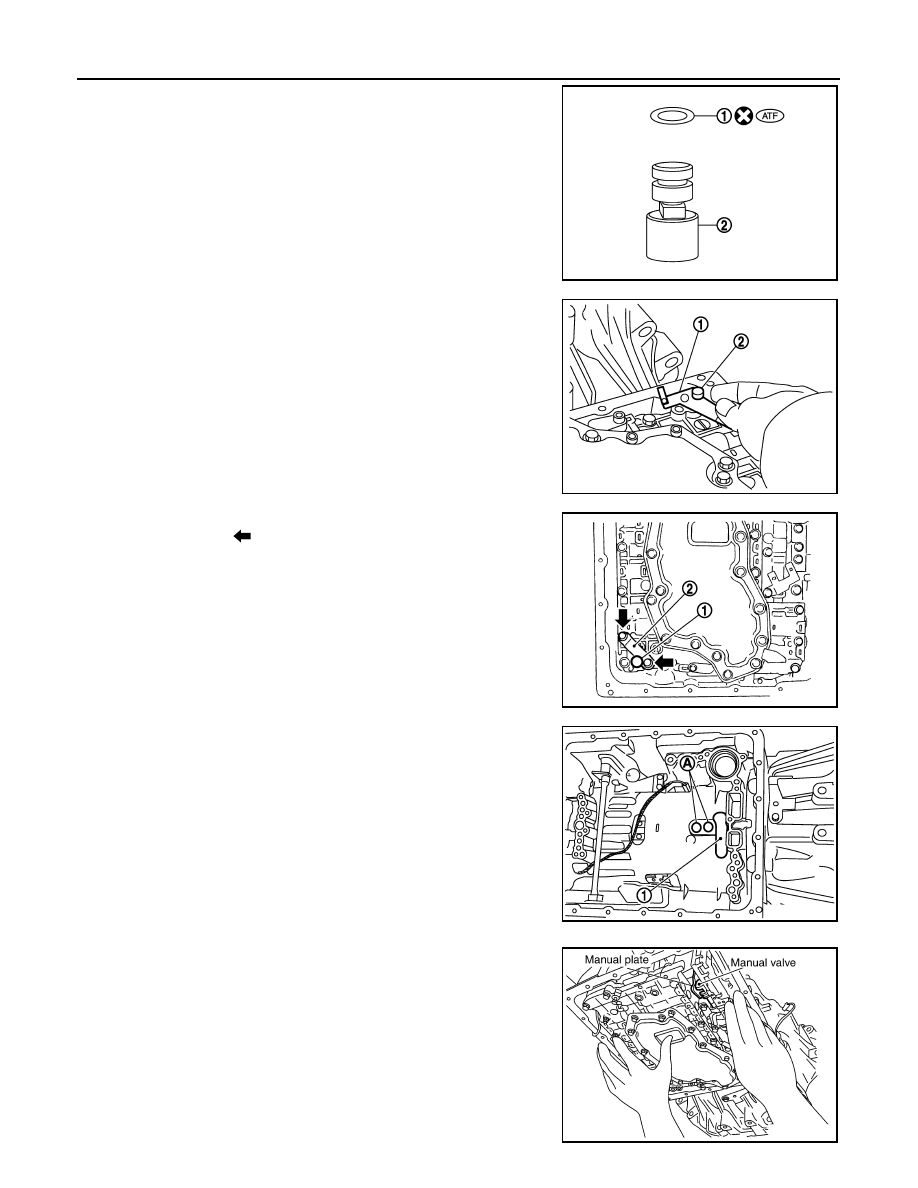

i.

Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

ii.

Install plug (2) to bracket (1).

iii. Install plug (1) [with bracket (2)] to control valve with TCM.

Tighten plug bolt (

) to the specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

6. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

JSDIA1313ZZ

JSDIA1312ZZ

JSDIA1311ZZ

1

: Brake band

JSDIA1318ZZ

SCIA5142E

2010 Pathfinder

CONTROL VALVE WITH TCM

TM-181

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

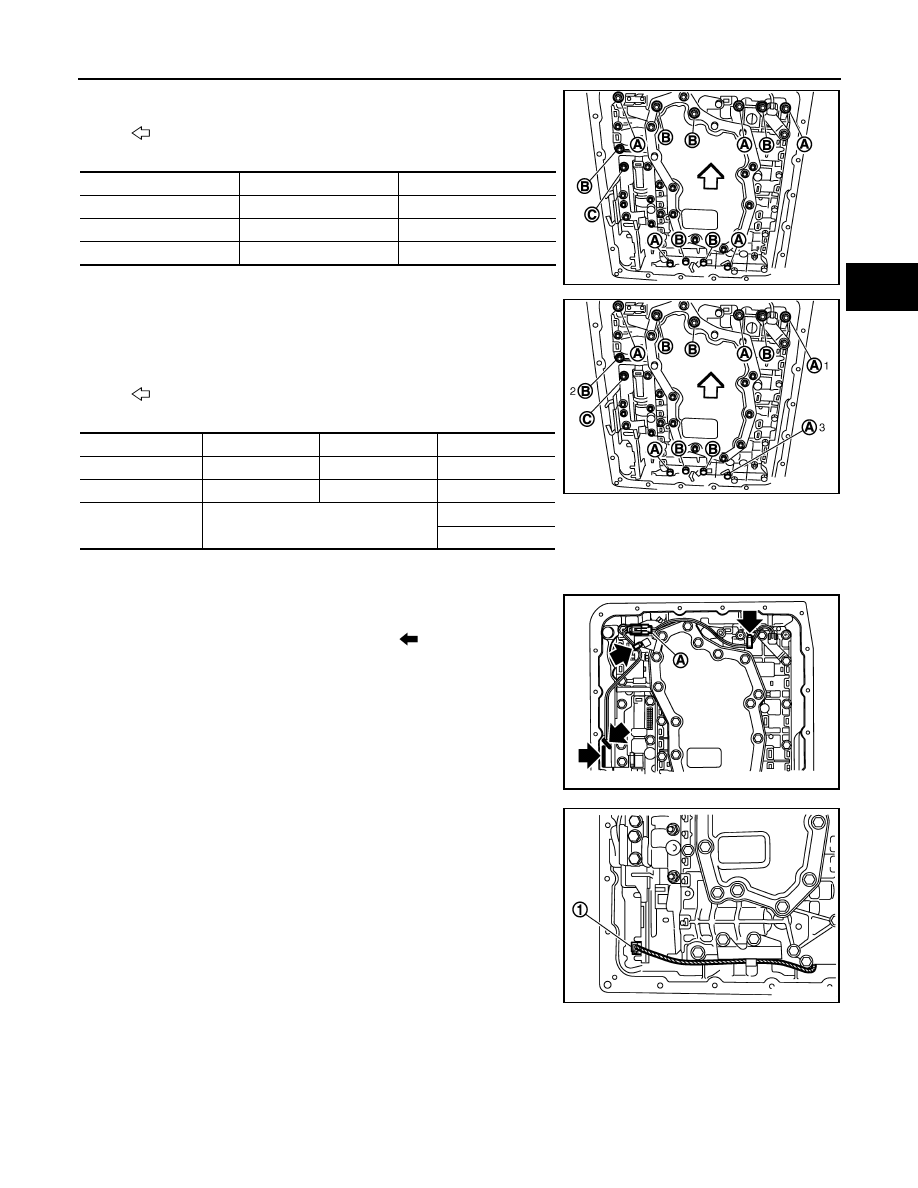

7. Install bolts (A), (B) and (C) in control valve with TCM.

8. Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.

After that tighten them in order (1

→

 2

→

 3). Then tighten other

bolts. Tighten control valve with TCM bolts to the specified

torque.

9. After installing the A/T fluid temperature sensor 2, connect the A/T fluid temperature sensor 2 connector

as shown below.

a. Connect A/T fluid temperature sensor 2 connector (A).
b. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips (

).

10. Connect output speed sensor connector (1).

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8075E

SCIA8124E

JSDIA1319ZZ

2010 Pathfinder

TM-182

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

11. Securely fasten output speed sensor (1) harness with terminal

clip (

).

12. Install oil pan to transmission case. Refer to

TM-172, "Removal and Installation"

.

13. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

14. Install snap ring to A/T assembly harness connector.
15. Connect A/T assembly harness connector.
16. Connect the negative battery terminal.
17. Refill the A/T with fluid and check the fluid level and for fluid

leakage. Refer to

TM-155, "Checking the A/T Fluid (ATF)"

.

JSDIA1316ZZ

SCIA5038E

SCIA5039E

2010 Pathfinder

REAR OIL SEAL

TM-183

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REAR OIL SEAL

Removal and Installation

INFOID:0000000005258187

REMOVAL

1. Remove rear propeller shaft. Refer to

DLN-325, "Removal and Installation"

 (2S1330),

DLN-336, "Removal

and Installation"

 (2S1350).

2. Remove transfer from transmission (4WD models). Refer to

DLN-151, "Removal and Installation"

(ATX14B),

DLN-281, "Removal and Installation"

 (TX15B).

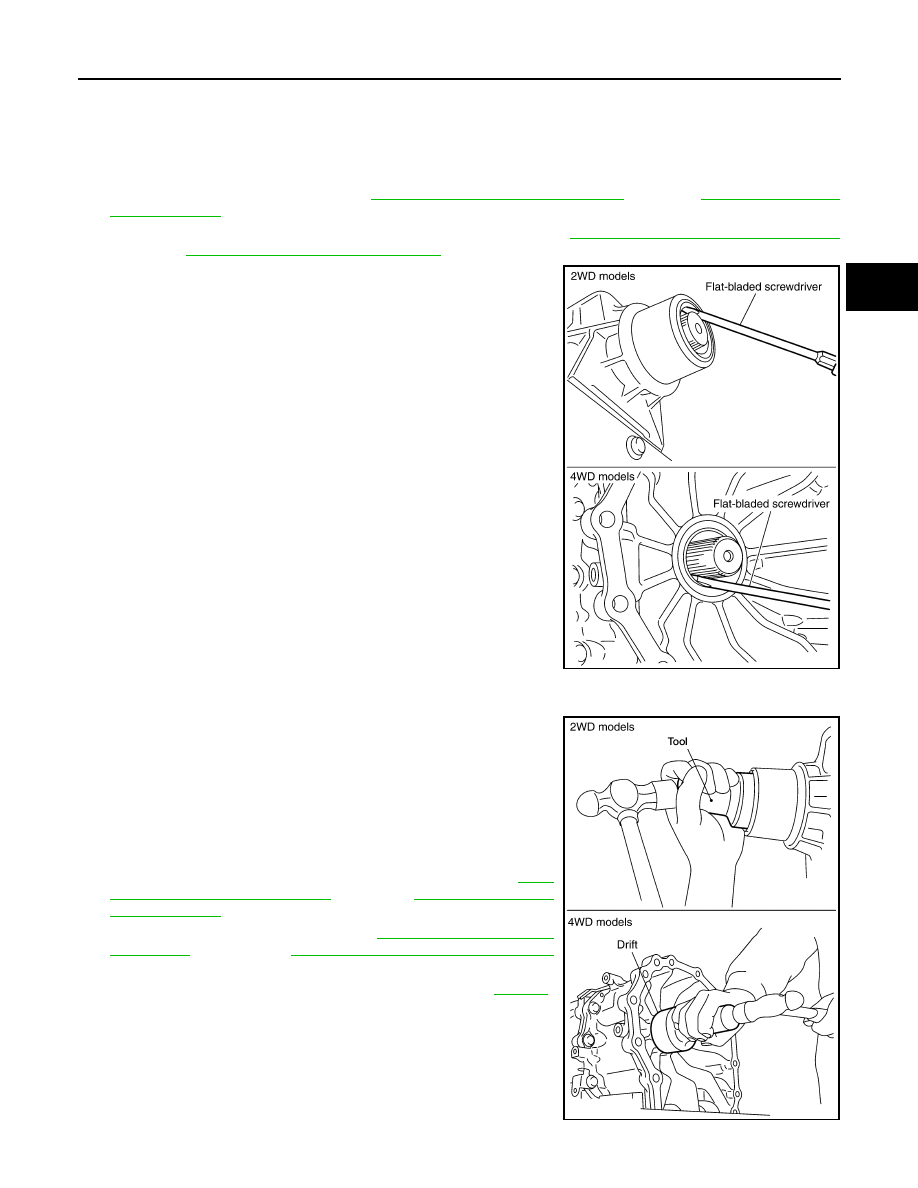

3. Remove rear oil seal using flat bladed screwdriver.

CAUTION:

Do not scratch rear extension assembly (2WD models) or

adapter case assembly (4WD models).

INSTALLATION

1. Install new rear oil seal until it is flush into the rear extension

case (2WD models) using Tool or adapter case (4WD models)

using suitable tool.

CAUTION:

• Apply ATF to rear oil seal.

• Do not reuse rear oil seal.

2. Install transfer to transmission (4WD models). Refer to

DLN-

151, "Removal and Installation"

 (ATX14B),

DLN-281, "Removal

and Installation"

 (TX15B).

3. Install rear propeller shaft. Refer to

DLN-325, "Removal and

Installation"

 (2S1330) or

DLN-336, "Removal and Installation"

(2S1350).

4. Check the A/T fluid level and for fluid leakage. Refer to

TM-155

.

SCIA5254E

Tool number

: ST33400001 (J-26082)

WCIA0475E
