< ON-VEHICLE REPAIR >

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Component

INFOID:0000000005258188

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to control device, make sure that casing cap and bracket are

firmly secured in their positions. If casing cap can be removed with an external load of less than 39

N (4.0 kg, 8.8 lb), replace key interlock cable with new one.

Removal and Installation

INFOID:0000000005258189

REMOVAL

1. Remove lower glove box. Refer to

IP-12, "Removal and Installation"

.

2. Remove A/T finisher. Refer to

IP-18, "Exploded View"

.

3. Remove lower instrument panel LH. Refer to

IP-11, "Exploded View"

.

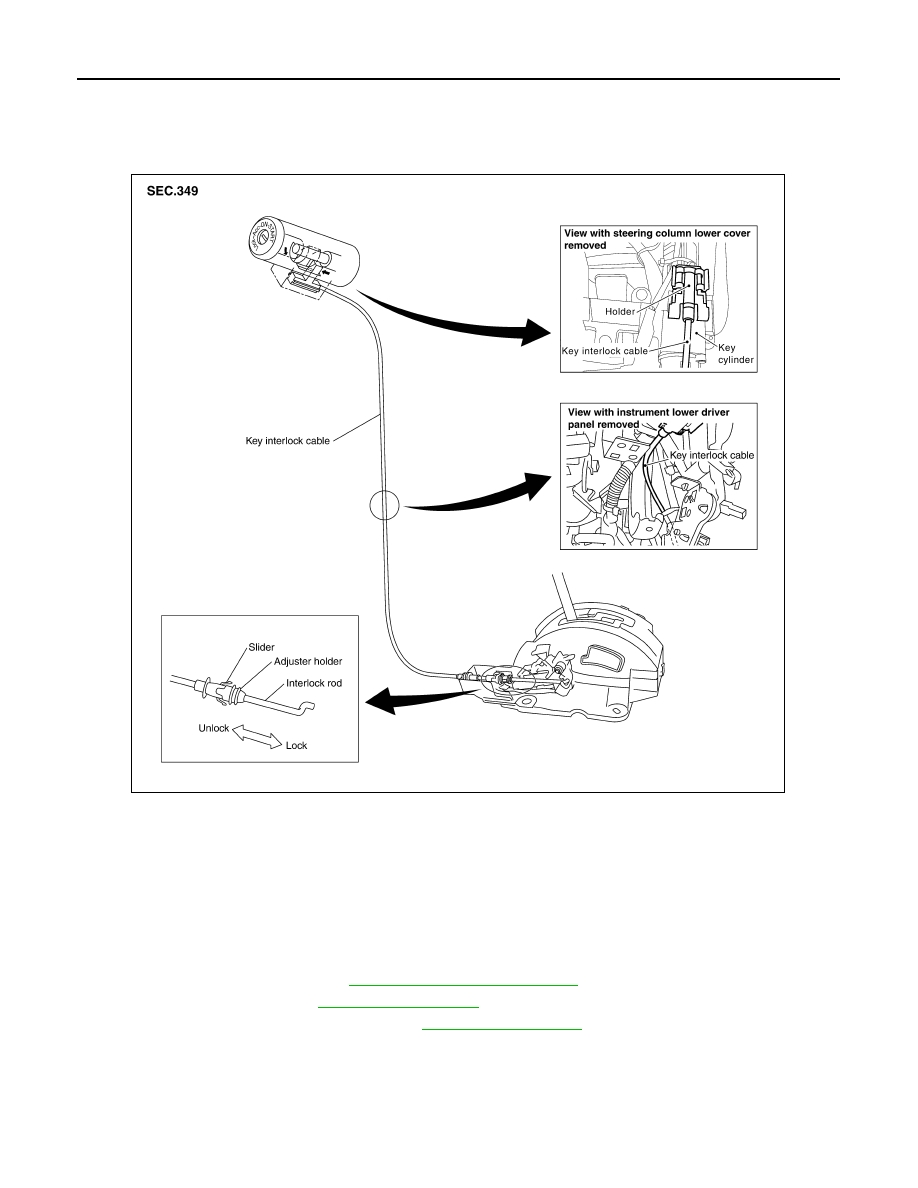

WCIA0467E

2010 Pathfinder

KEY INTERLOCK CABLE

TM-185

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4. Unlock slider from adjuster holder by squeezing lock tabs.
5. Remove casing cap from bracket of control device assembly

and remove interlock rod from adjuster holder.

6. Remove holder from key cylinder and remove key interlock

cable.

INSTALLATION

1. Set key interlock cable to key cylinder and install holder.
2. Turn ignition key to (LOCK) position.
3. Set selector lever to (P) position.

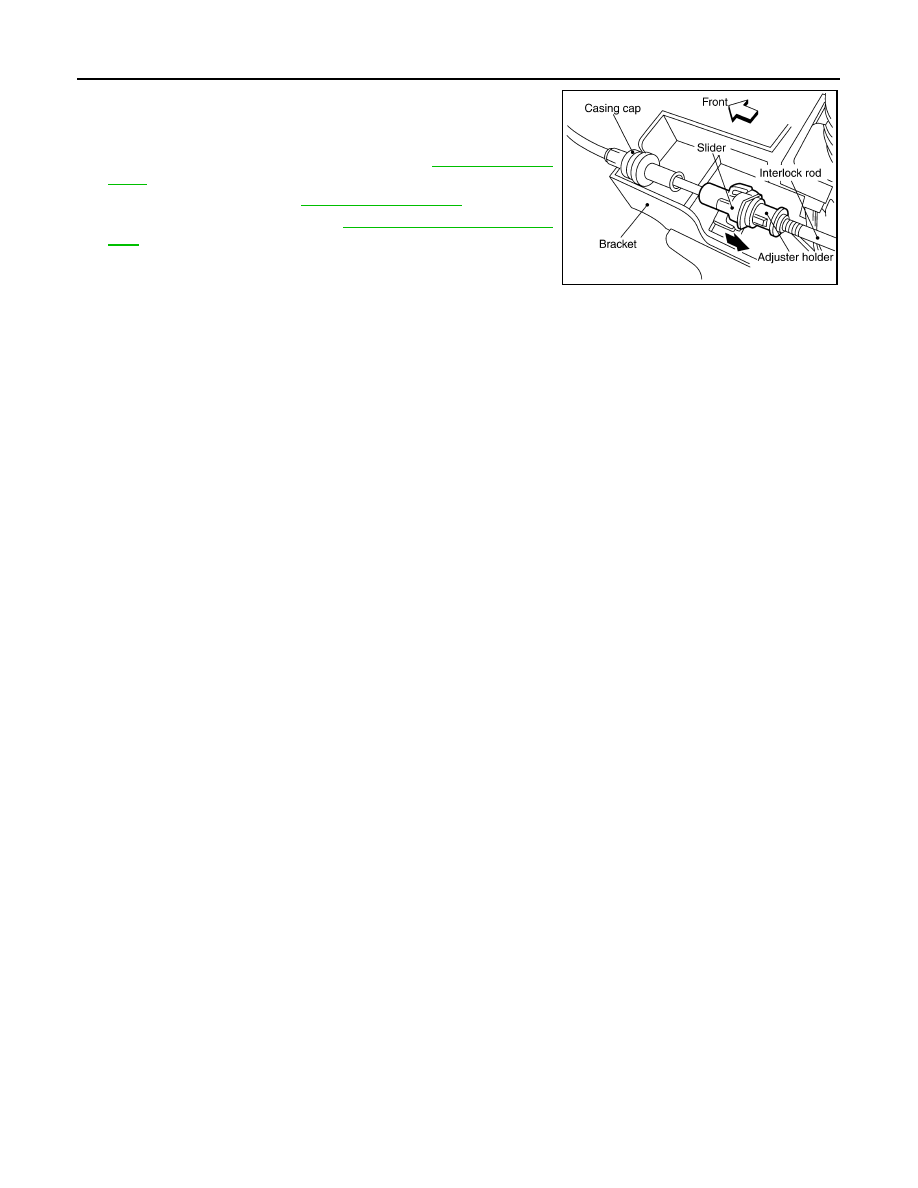

SCIA1230E

LCIA0375E

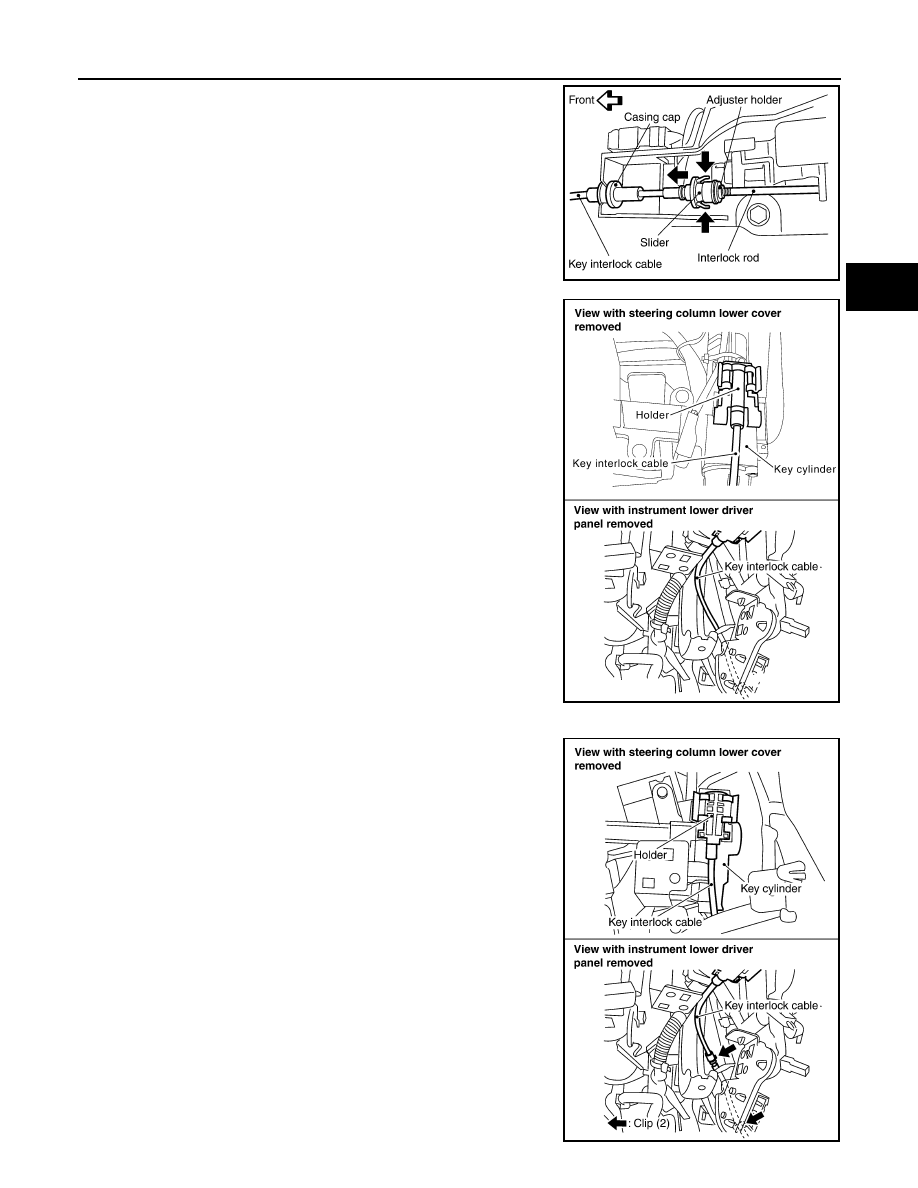

SCIA2258E

2010 Pathfinder

TM-186

< ON-VEHICLE REPAIR >

KEY INTERLOCK CABLE

4. Insert interlock rod into adjuster holder.
5. Install casing cap to bracket.
6. Move slider in order to secure adjuster holder to interlock rod.
7. Install lower instrument panel LH. Refer to

IP-11, "Exploded

View"

.

8. Install A/T finisher. Refer to

IP-18, "Exploded View"

.

9. Install lower glove box. Refer to

IP-12, "Removal and Installa-

tion"

.

SCIA1232E

2010 Pathfinder

AIR BREATHER HOSE

TM-187

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

2WD
2WD : Removal and Installation

INFOID:0000000005258190

VQ40DE Models

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

4WD
4WD : Removal and Installation

INFOID:0000000005258191

VQ40DE Models

1.

Air breather hose

2.

Transmission assembly

A.

Paint mark

B.

Clip

WCIA0663E

2010 Pathfinder

TM-188

< ON-VEHICLE REPAIR >

AIR BREATHER HOSE

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing an air breather hose, do not crush or block by folding or bending the hose.

• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket

VK56DE Models

1.

Air breather hose

2.

Transmission assembly

A.

Paint mark

B.

Clip

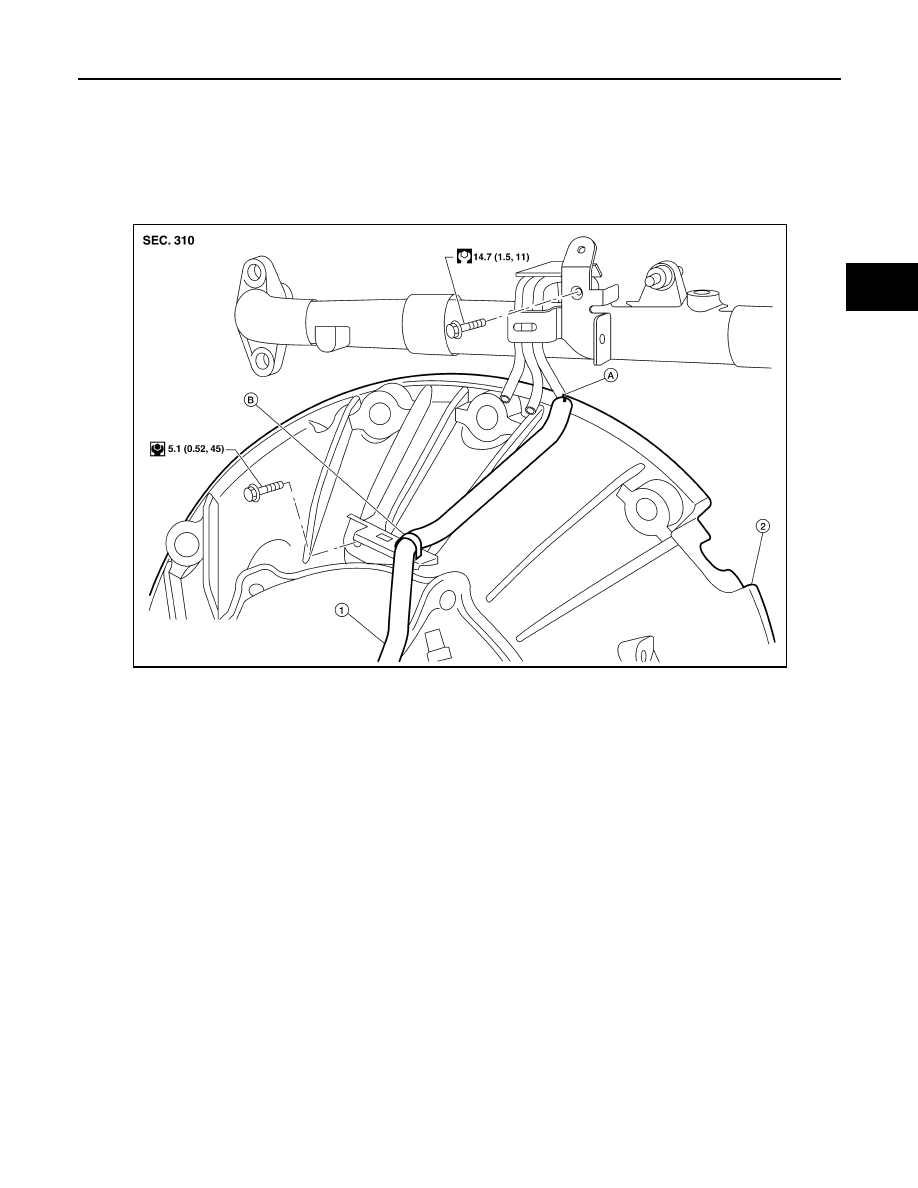

WCIA0664E

2010 Pathfinder

AIR BREATHER HOSE

TM-189

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing an air breather hose, do not crush or block by folding or bending the hose.

• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket

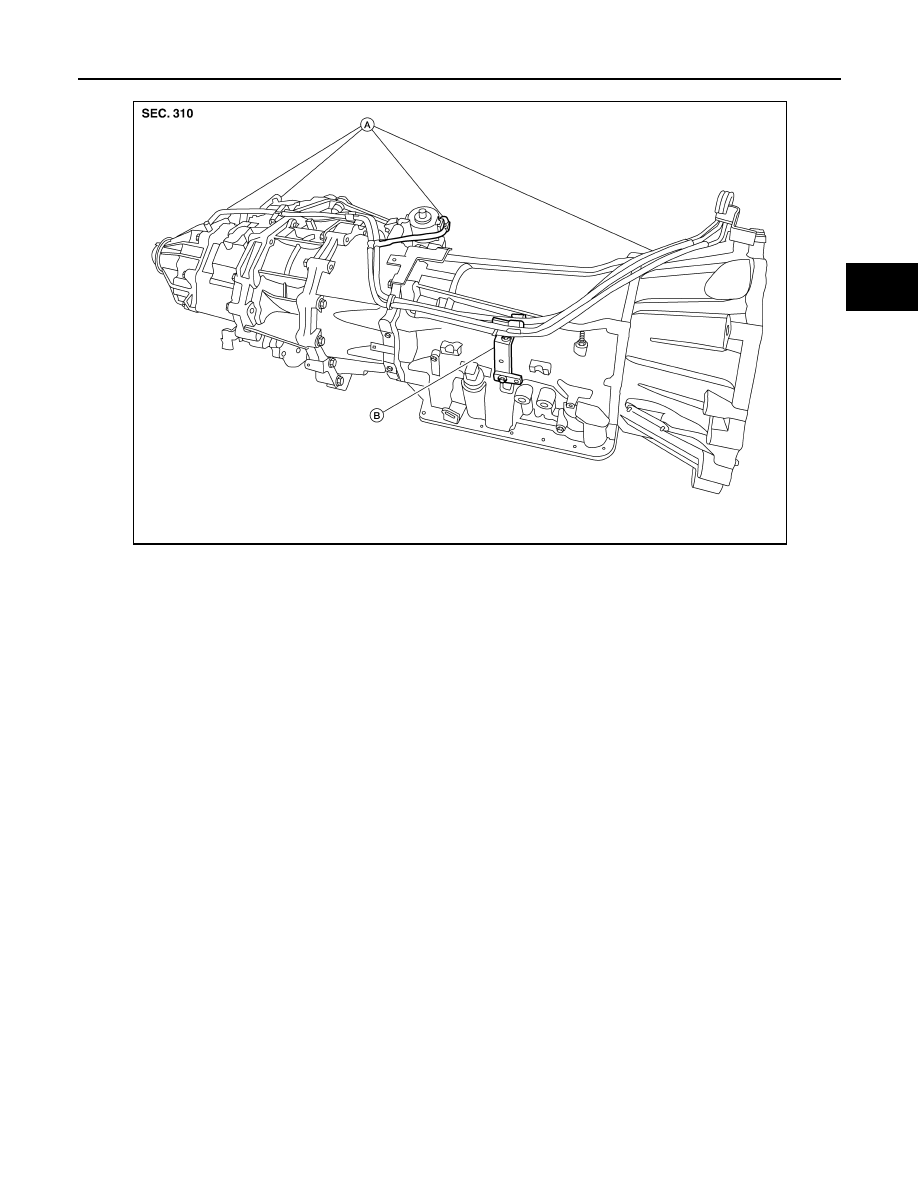

A.

Air breather hose

B.

Clip (set securely to bracket)

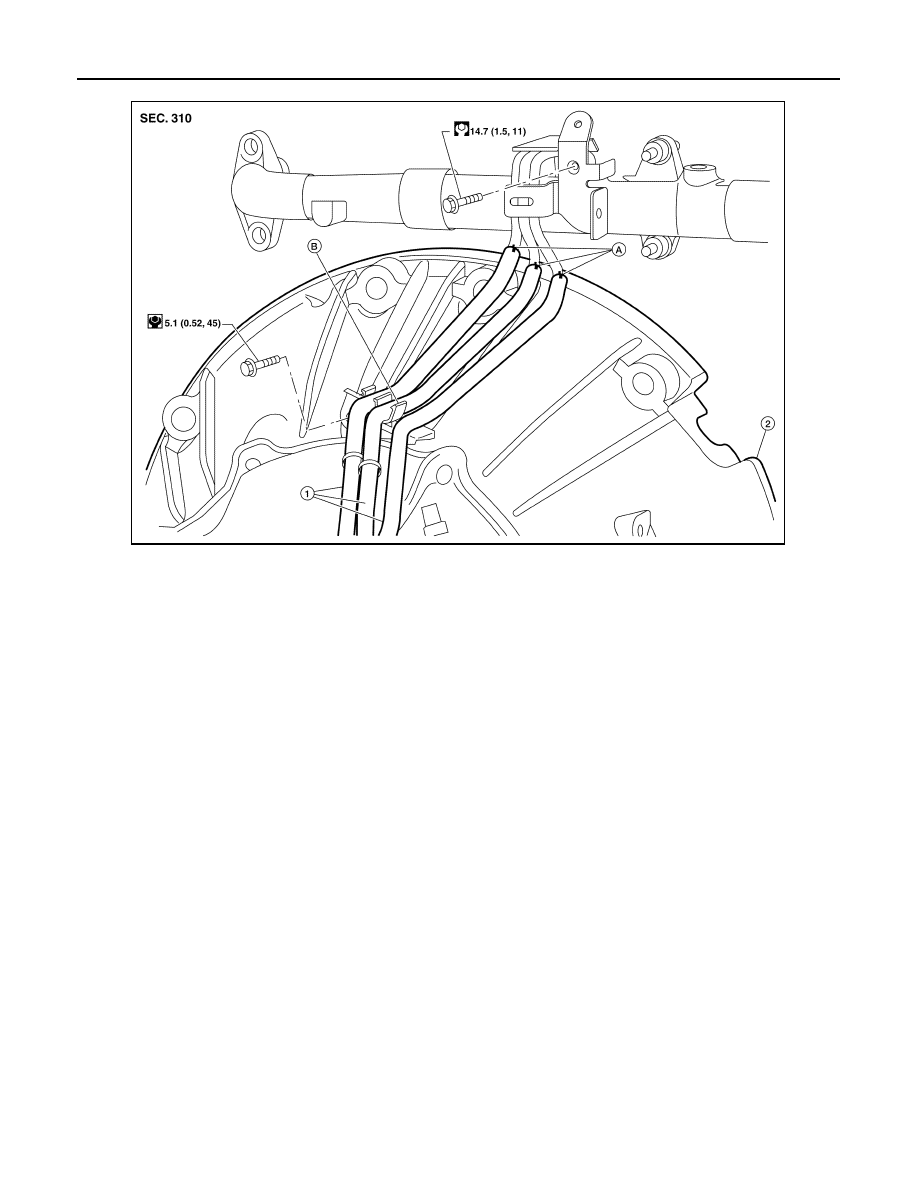

AWDIA0555GB

2010 Pathfinder

TM-190

< ON-VEHICLE REPAIR >

A/T FLUID COOLER

A/T FLUID COOLER

Removal and Installation

INFOID:0000000005258192

REMOVAL

1. Remove front grill. Refer to

EXT-18, "Removal and Installation"

.

2. Remove A/T fluid cooler hoses from fluid cooler.
3. Remove A/T fluid cooler.

INSTALLATION

Installation is in the reverse order of removal.

• After completing installation, check fluid level and check for fluid leakage. Refer to

TM-155, "Checking the A/

T Fluid (ATF)"

.

1.

A/T fluid cooler

2.

Fluid cooler tube

3.

Clip

4.

Hose clamp

5.

Cooler hose (lower)

6.

Cooler hose

7.

Tube joint

8.

Cooler hose (upper)

A.

To transmission

B.

From radiator

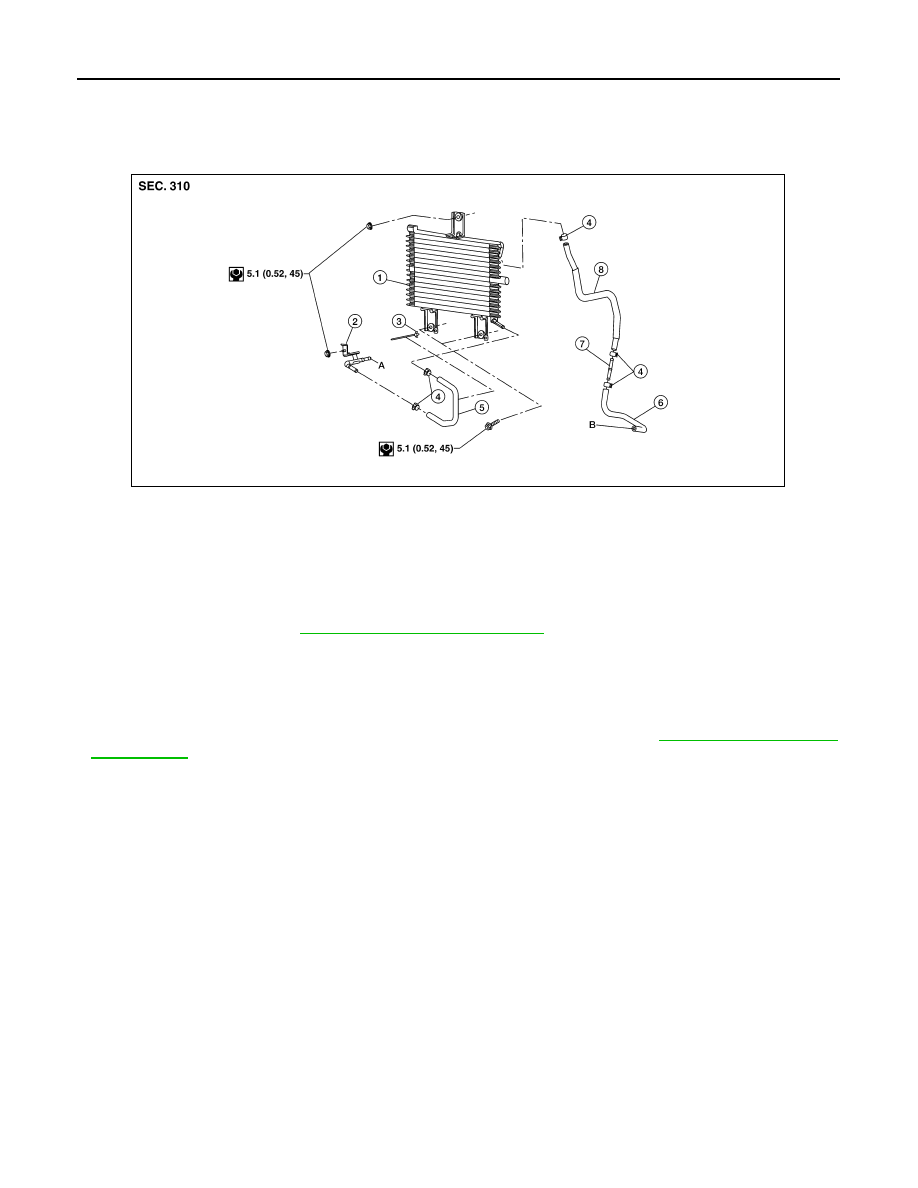

AWDIA0624GB

2010 Pathfinder

TRANSMISSION ASSEMBLY

TM-191

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

TRANSMISSION ASSEMBLY

2WD
2WD : Exploded View

INFOID:0000000005258193

2WD : Removal and Installation

INFOID:0000000005258194

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from

the A/T assembly.

1. Disconnect the negative battery terminal.
2. Remove the A/T fluid level gauge.
3. Remove front LH wheel and tire assembly. Refer to

WT-49, "Rotation"

.

4. Remove the front LH mud flap. Refer to

EXT-24, "Removal and Installation"

.

5. Remove the LH fender protector. Refer to

EXT-23, "Removal and Installation of Front Fender Protector"

.

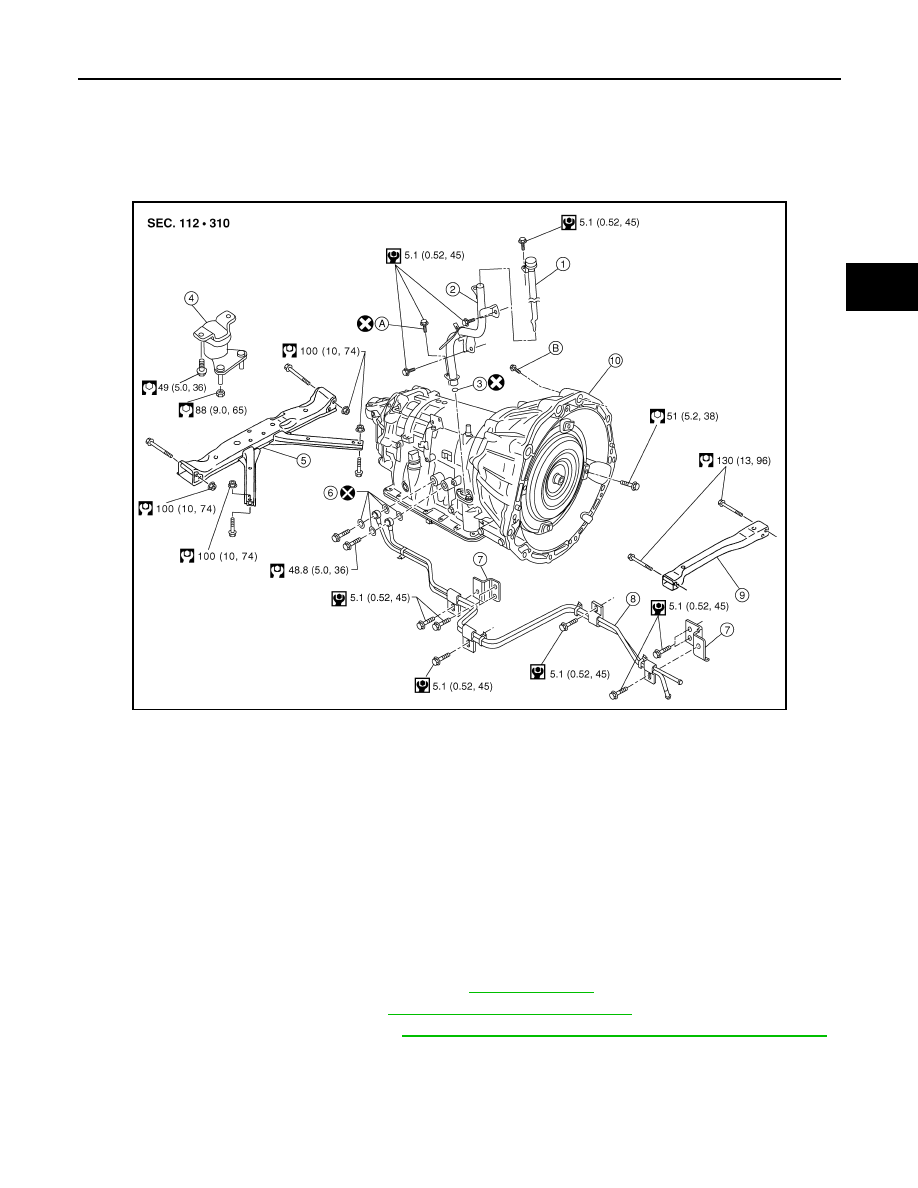

AWDIA0622GB

1.

A/T fluid level gauge

2.

A/T fluid charging pipe

3.

O-ring

4.

Insulator

5.

A/T crossmember

6.

Copper washer

7.

Bracket

8.

A/T fluid cooler tube

9.

Front crossmember

10. Transmission assembly

A. Self-sealing bolt

B. Refer to installation.
