PG-72

< COMPONENT DIAGNOSIS >

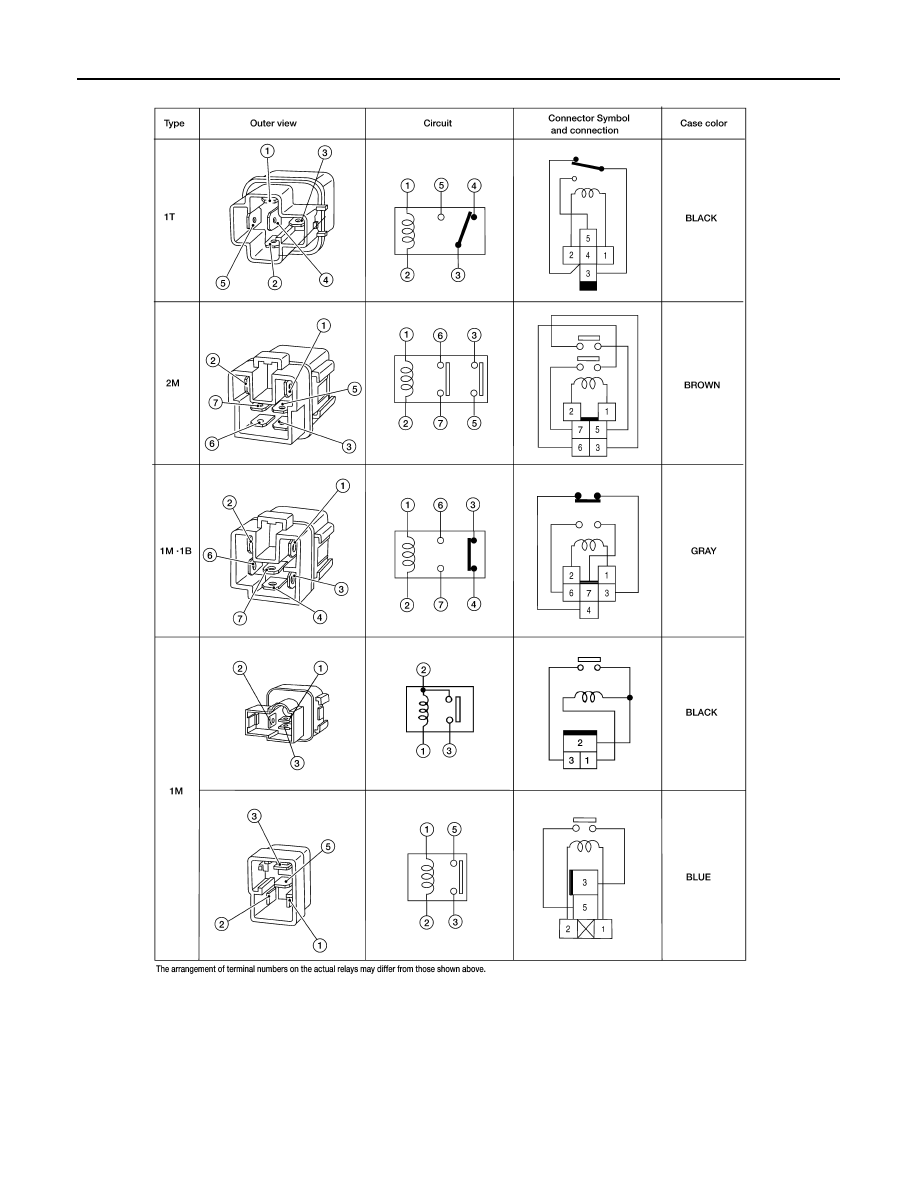

STANDARDIZED RELAY

WKIA0253E

2010 Pathfinder

PG

FUSE BLOCK-JUNCTION BOX (J/B)

PG-73

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

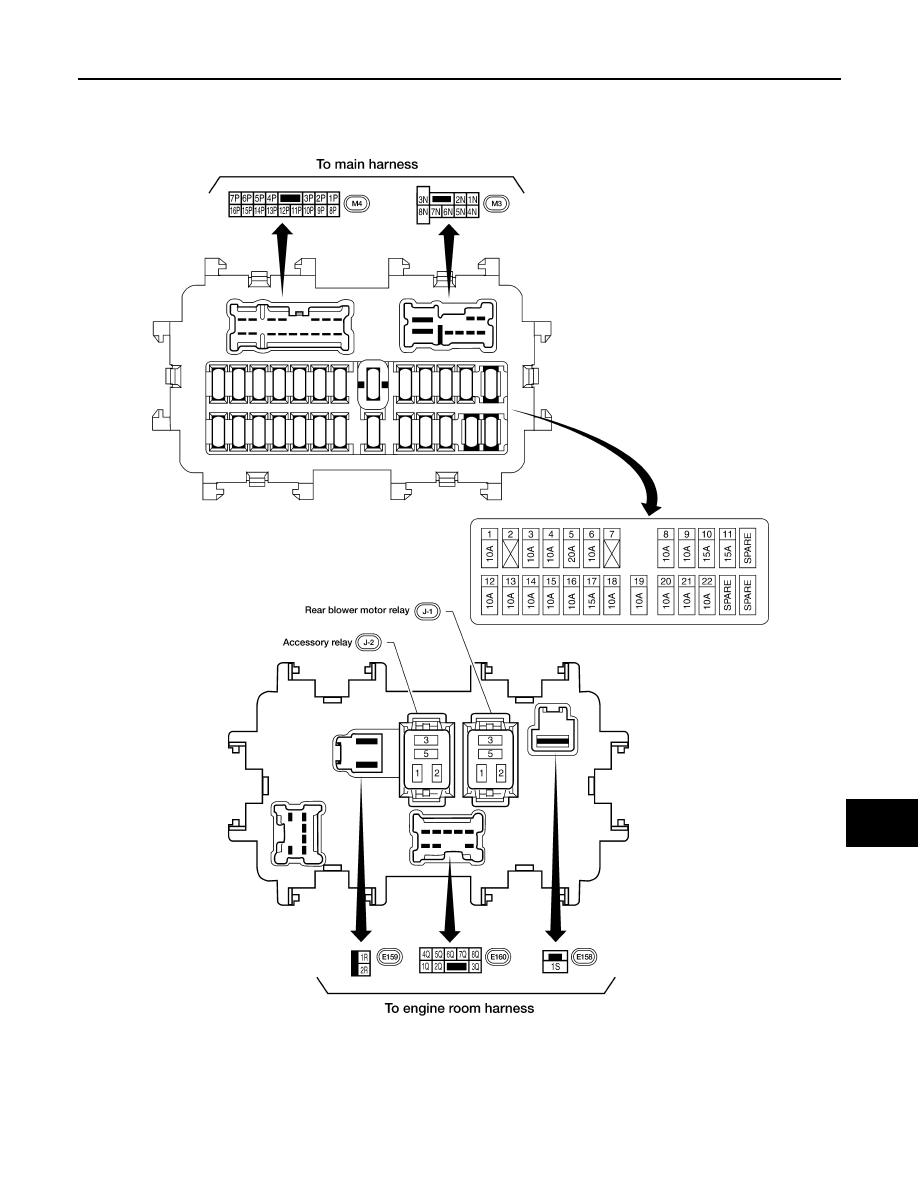

FUSE BLOCK-JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000005260664

ABMIA1385GB

2010 Pathfinder

PG-74

< COMPONENT DIAGNOSIS >

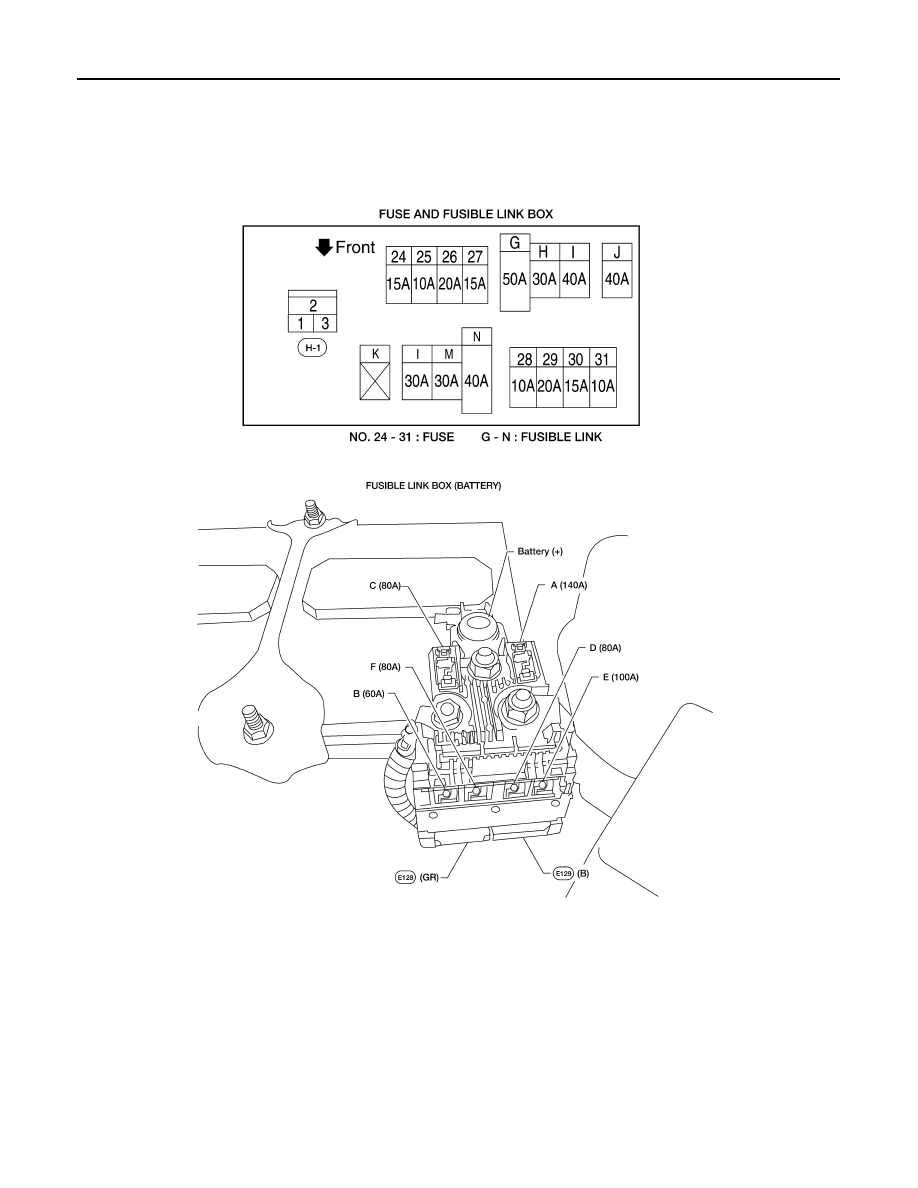

FUSE AND FUSIBLE LINK BOX

FUSE AND FUSIBLE LINK BOX

Terminal Arrangement

INFOID:0000000005260665

ABMIA1386GB

2010 Pathfinder

PG

FUSE AND RELAY BOX

PG-75

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

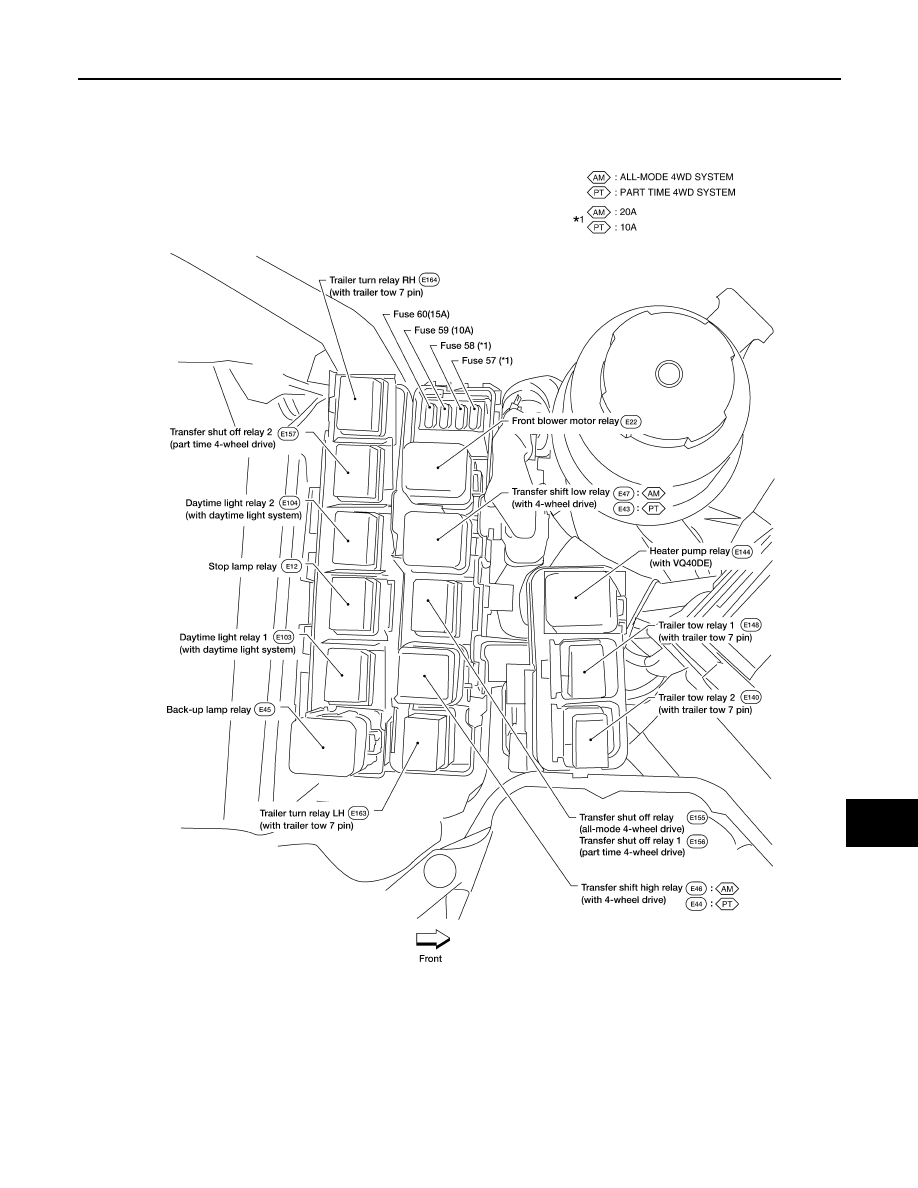

FUSE AND RELAY BOX

Terminal Arrangement

INFOID:0000000005260666

ABMIA1387GB

2010 Pathfinder

PG-76

< COMPONENT DIAGNOSIS >

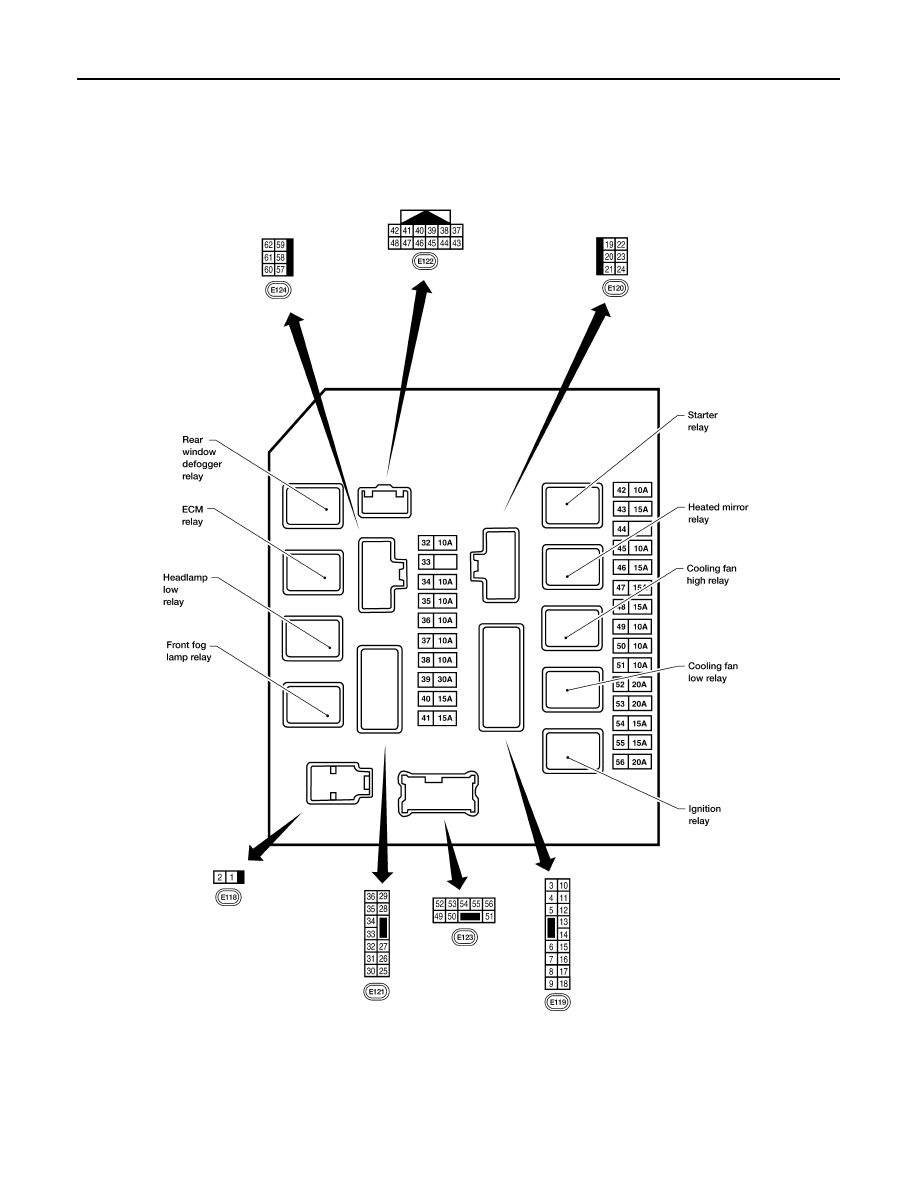

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

IPDM E/R Terminal Arrangement - Type A

INFOID:0000000005529082

ABMIA1388GB

2010 Pathfinder

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-77

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

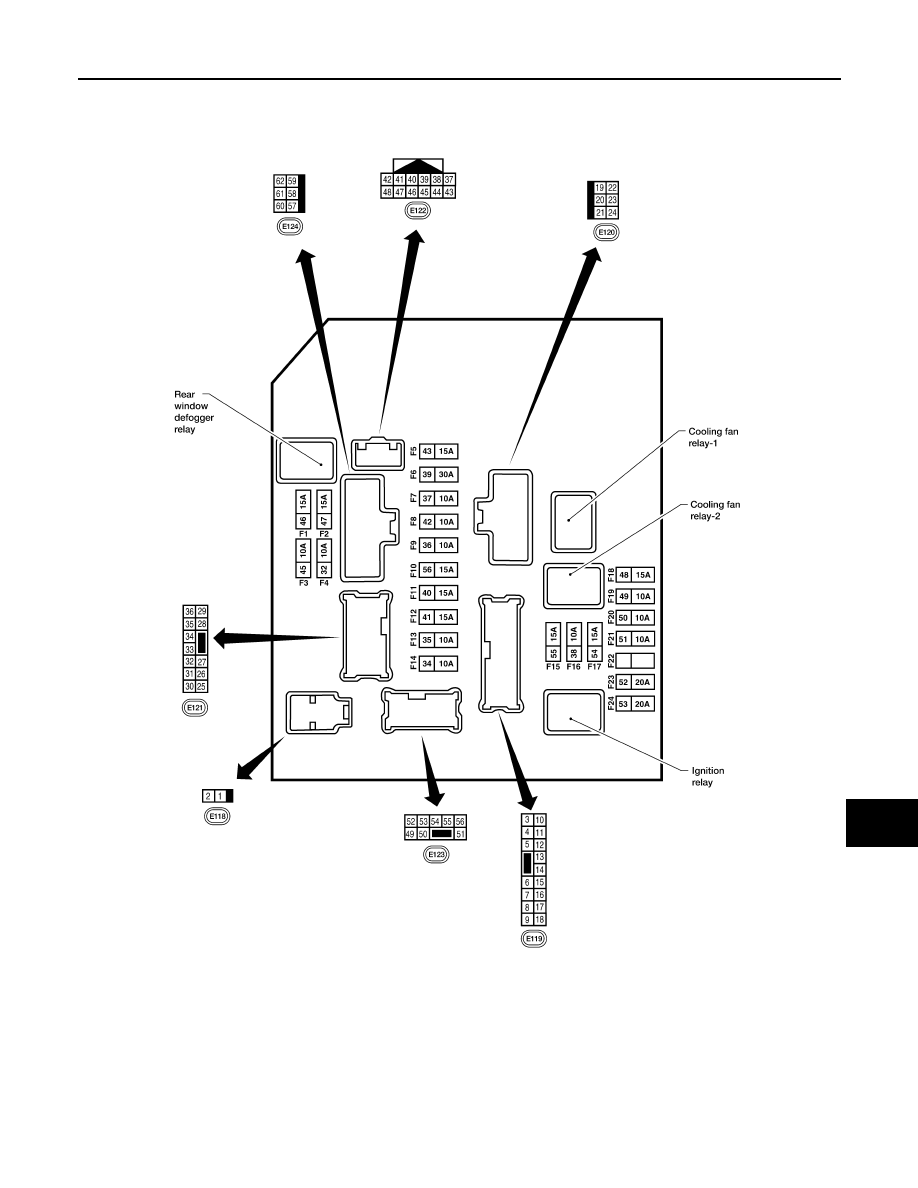

IPDM E/R Terminal Arrangement - Type B

INFOID:0000000005529083

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

AAMIA0386GB

2010 Pathfinder

PG-78

< ON-VEHICLE REPAIR >

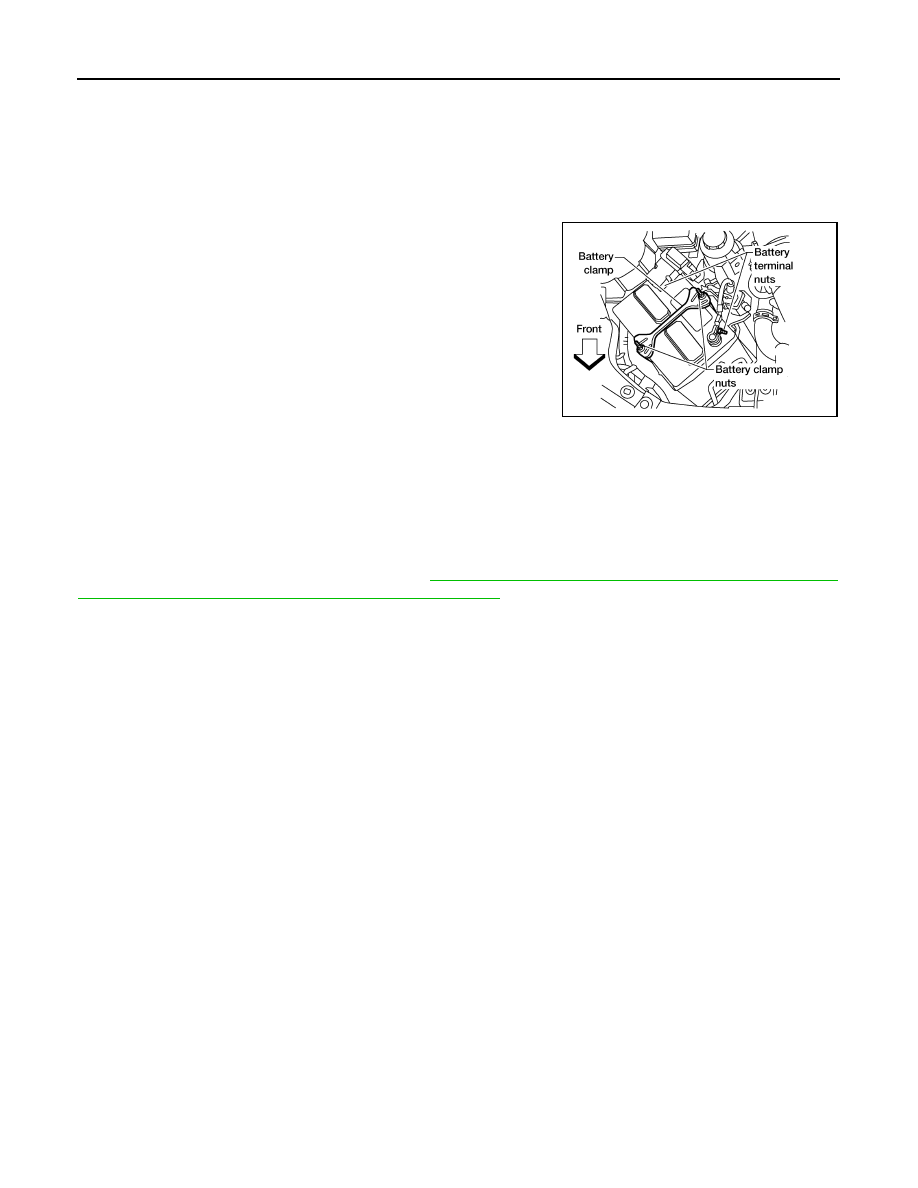

BATTERY

ON-VEHICLE REPAIR

BATTERY

Removal and Installation

INFOID:0000000005260668

REMOVAL

1. Disconnect both negative and positive battery terminals.

CAUTION:

Disconnect negative battery terminal first.

2. Remove battery clamp nuts and battery clamp.
3. Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When connecting battery terminals, connect positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-8, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

WKIA3188E

Battery clamp nuts

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)

2010 Pathfinder

PG

BATTERY

PG-79

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

BATTERY

Battery

INFOID:0000000005260669

*: Always check with the Parts Department for the latest parts information

Application

VQ40DE

VK56DE

Type*

Gr. 35

Gr. 24F

Capacity (20 HR) minimum V-AH

12-63

12-70

Cold cranking current A
[For reference value at -18

°

C (0

°

F)]

550

650
